Atomic Structure and Basic Circuit Symbols

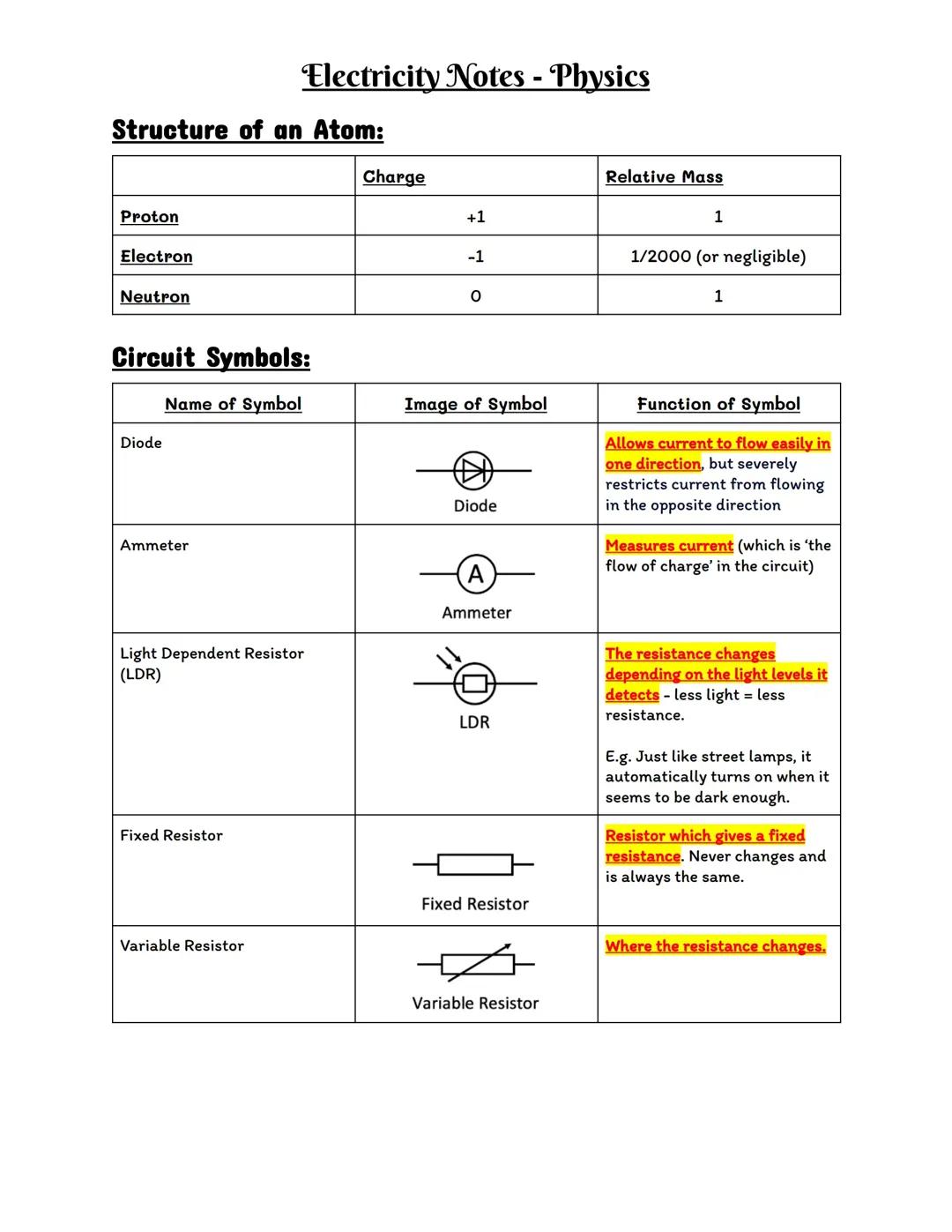

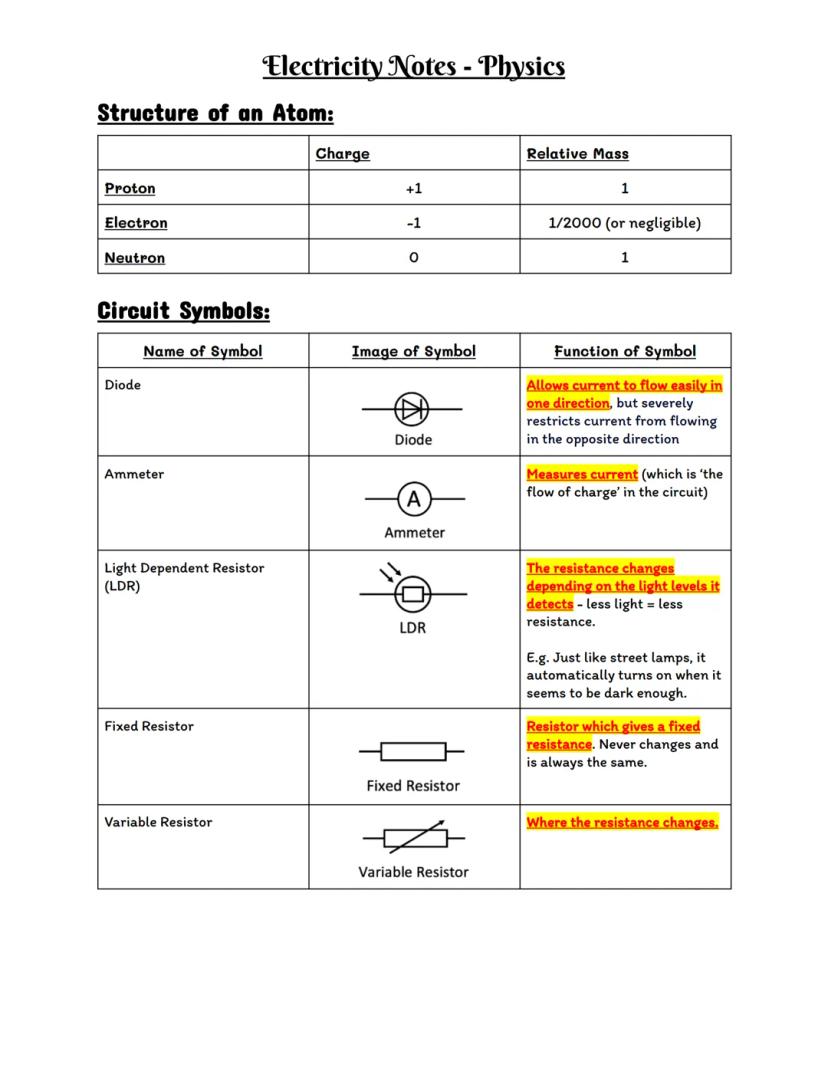

Your journey into electricity starts with understanding atoms - the tiny building blocks of everything around you. Atoms contain three key particles: protons (positive charge), electrons (negative charge), and neutrons (no charge). The movement of electrons creates electrical current!

Circuit diagrams use special symbols to represent different components. A diode acts like a one-way door for electricity, whilst an ammeter measures how much current flows through a circuit. Think of current as the flow of electrical charge - like water flowing through a pipe.

Light Dependent Resistors (LDRs) are brilliant examples of smart technology. They automatically detect light levels and change their resistance accordingly - that's how street lamps know when to switch on! Fixed resistors always provide the same resistance, whilst variable resistors let you adjust the resistance as needed.

Quick Tip: Remember that an ammeter must always be connected in series with the component you're measuring!

More Circuit Components and Switches

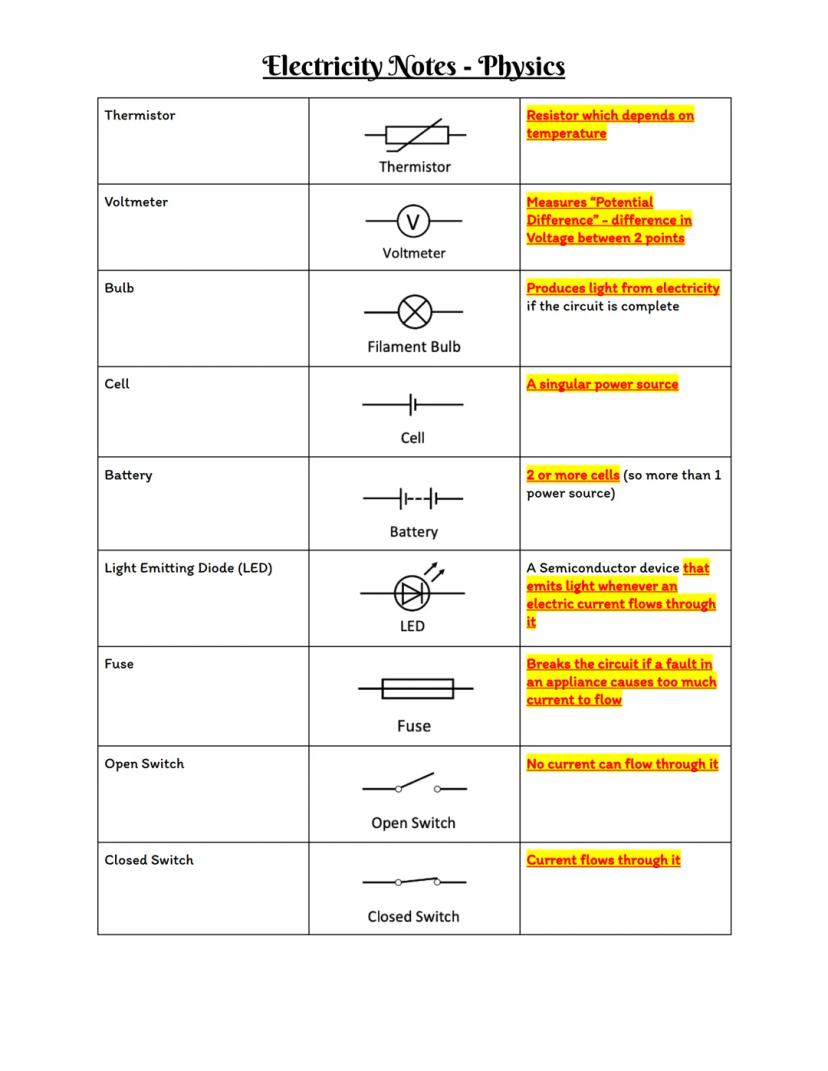

Thermistors are temperature-sensitive resistors that change their resistance based on heat - perfect for thermostats and temperature sensors. Meanwhile, a voltmeter measures the potential difference (voltage) between two points in a circuit, helping you understand the electrical "pressure" pushing current around.

Power sources come in two forms: a cell provides a single source of electrical energy, whilst a battery contains multiple cells working together. Light Emitting Diodes (LEDs) are incredibly efficient light sources that convert electricity directly into light without wasting energy as heat.

Safety components like fuses protect circuits by breaking the connection if too much current flows - preventing fires and damage. Switches control whether current can flow: open switches stop the flow, whilst closed switches allow current to pass through.

Remember: A voltmeter must always be connected in parallel across the component you're measuring!

Series vs Parallel Circuits

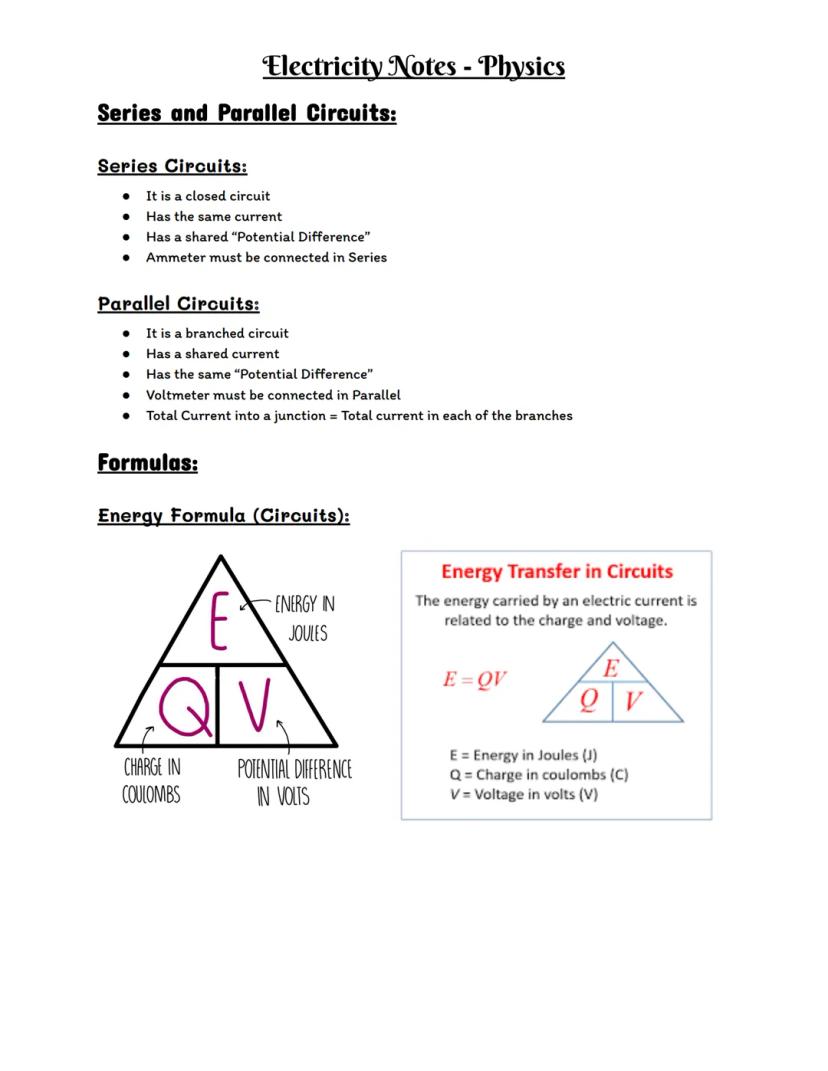

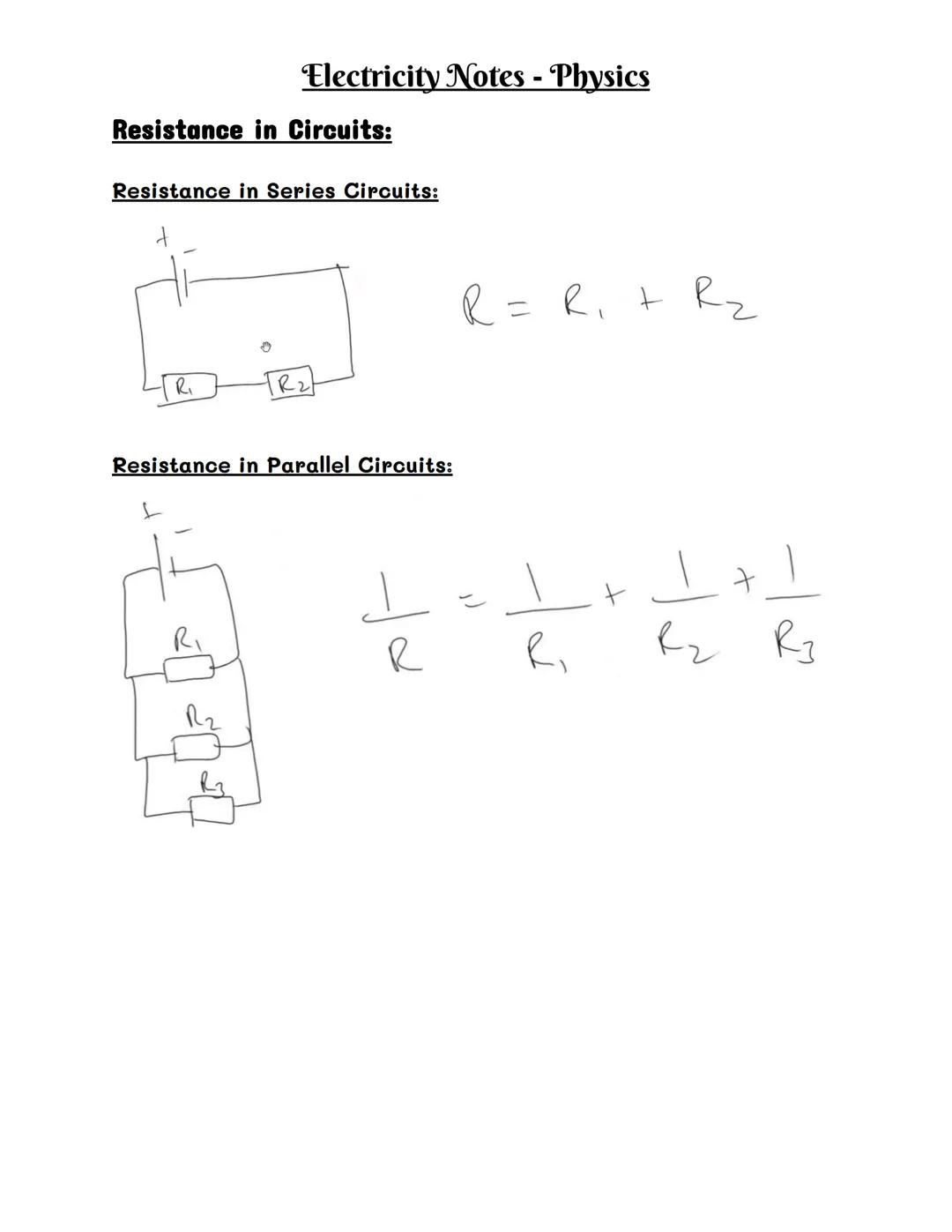

Series circuits create a single path for electricity to flow around. In these circuits, current stays the same throughout, but voltage gets shared between components. If one bulb breaks in a series circuit, they all go out - like old Christmas lights!

Parallel circuits create multiple branches for current to flow through. Here, voltage remains the same across all branches, but current gets divided between them. This is why your house lights stay on even when one bulb breaks.

The key rule for parallel circuits is that total current into a junction equals the total current in each branch. This makes parallel circuits much more practical for most electrical applications.

Understanding these circuit types helps you work out the energy transfer formula: E = QV, where energy (joules) equals charge (coulombs) times voltage (volts).

Circuit Hack: Series circuits share voltage but keep current constant; parallel circuits share current but keep voltage constant!

Essential Electrical Formulas

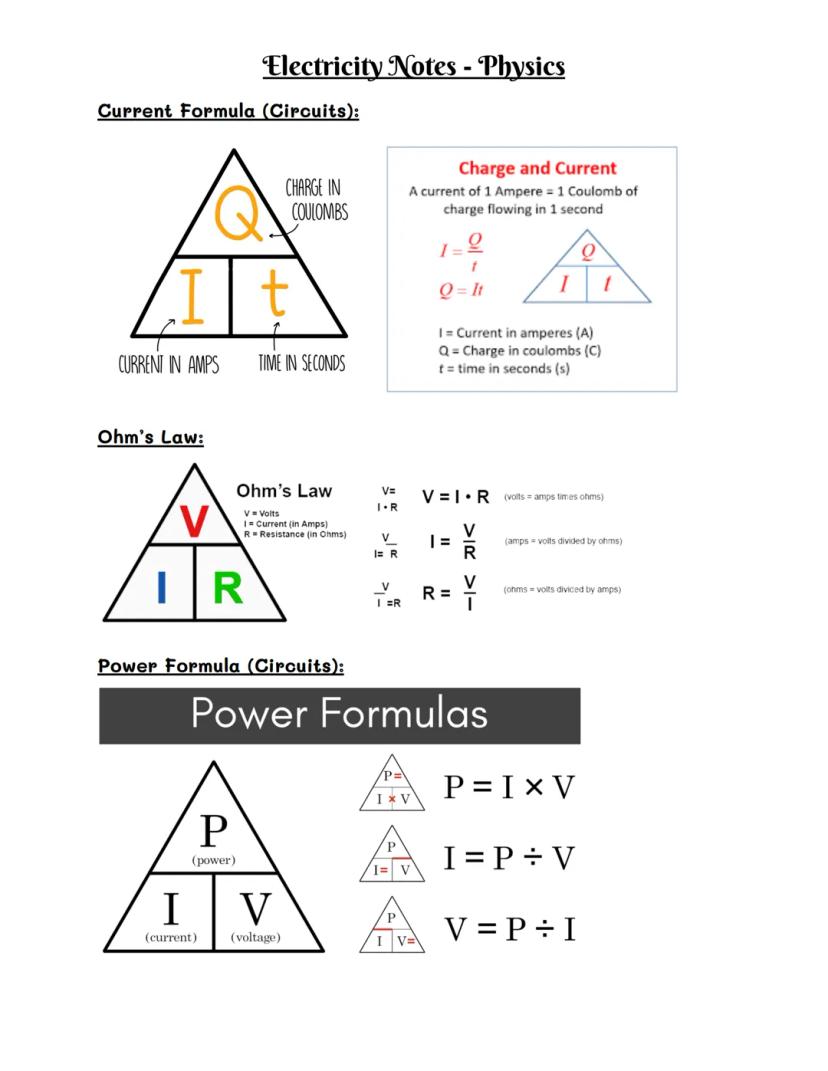

Ohm's Law is your best friend in electricity: V = IR (voltage equals current times resistance). This simple formula helps you calculate any missing value when you know the other two. Rearrange it to find current $I = V/R$ or resistance $R = V/I$.

The current formula shows that current equals charge divided by time: I = Q/t. Remember, 1 amp equals 1 coulomb of charge flowing past a point every second. This helps you understand how much electrical charge moves through circuits over time.

Power formulas tell you how much energy gets used per second. The main formula is P = IV (power equals current times voltage). You can rearrange this to find current $I = P/V$ or voltage $V = P/I$ depending on what you need.

These formulas work together to help you solve complex electrical problems. Master them, and you'll be able to calculate everything from battery life to energy costs!

Formula Success: Always write down what you know first, then choose the right formula to find what you need!
