Comprehensive AQA Notes on Electricity

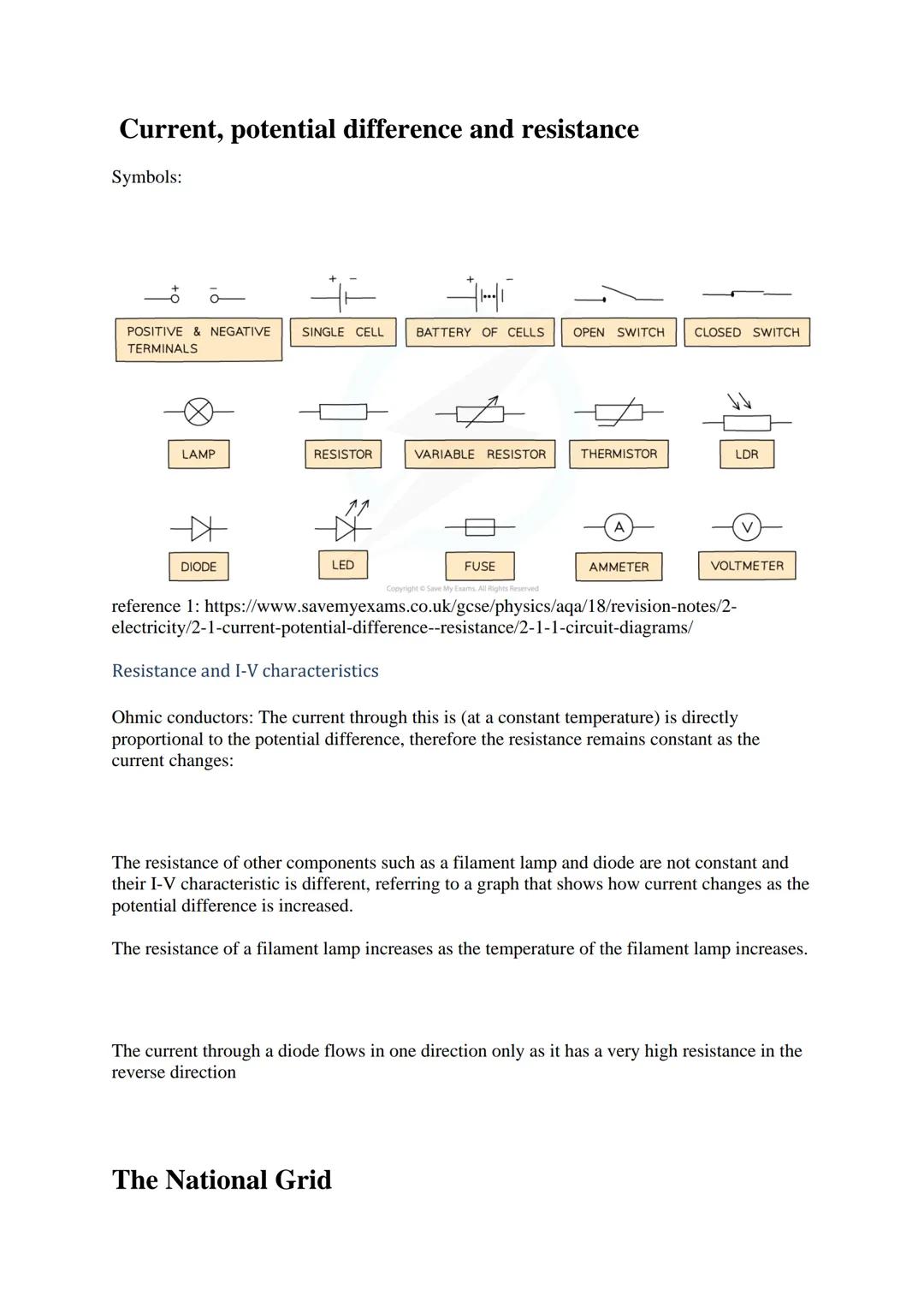

Circuit Symbols and Component Behaviour

Learning circuit symbols is like mastering a new language - once you know them, you can read and draw any electrical circuit diagram. The key symbols include batteries (with positive and negative terminals), switches (open and closed), lamps, resistors, and measuring devices like ammeters and voltmeters.

Ohmic conductors are the well-behaved components of the electrical world. At constant temperature, their current is directly proportional to potential difference - double the voltage, double the current. This means their resistance stays constant, making them predictable and easy to work with.

Not all components play by the same rules though. A filament lamp gets hotter as more current flows through it, which increases its resistance - that's why the bulb dims slightly when it first switches on. Diodes are even more dramatic, acting like electrical one-way streets by only allowing current to flow in one direction.

Quick Tip: Remember that I-V characteristic graphs show how current changes with voltage - they're your visual guide to understanding how different components behave!

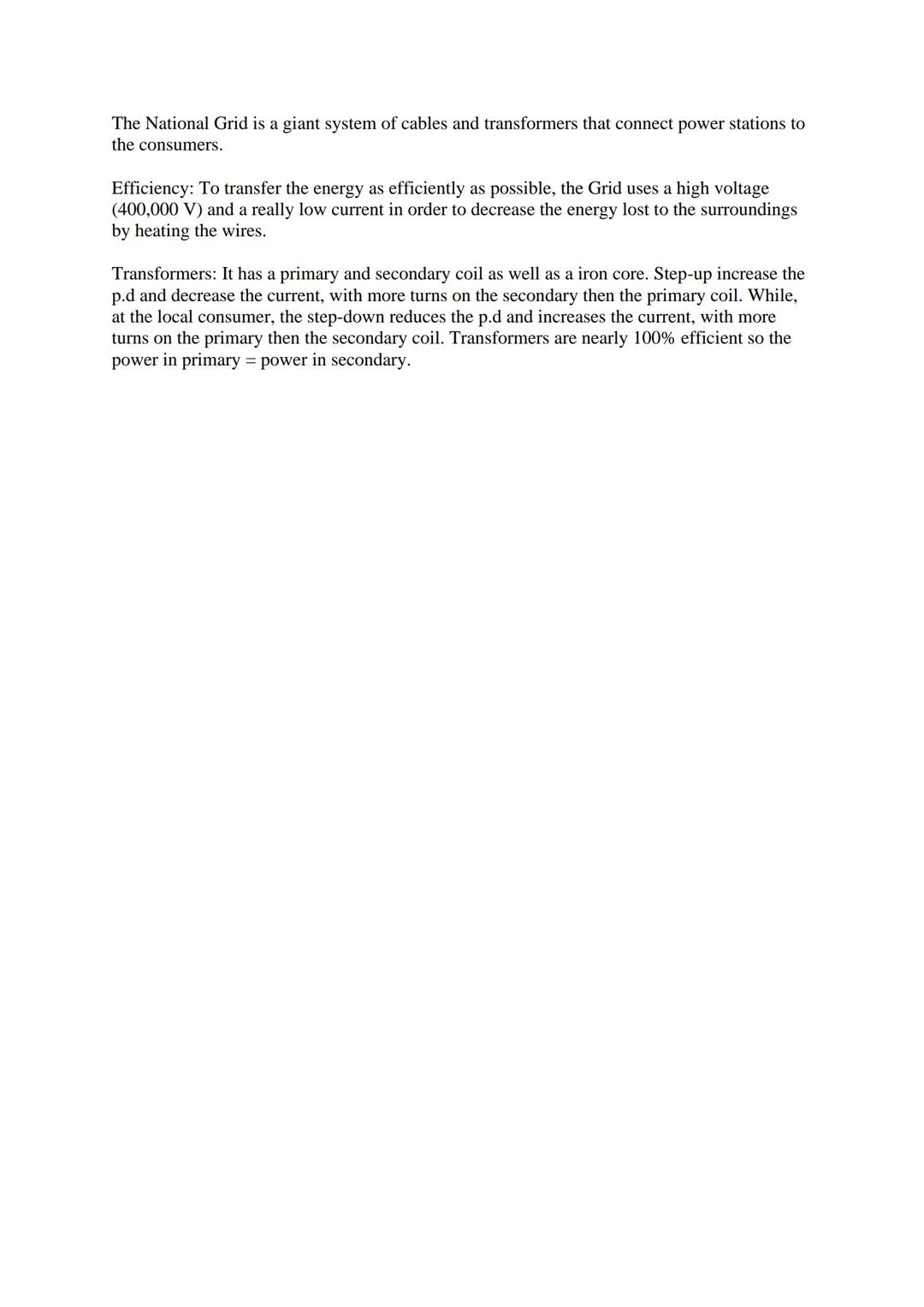

The National Grid System

The National Grid is basically the UK's electrical superhighway - a massive network of cables and transformers that carries electricity from power stations to every home, school, and business across the country.

Here's the clever bit: the Grid uses extremely high voltage (400,000 V) and low current to transport electricity efficiently. This might seem dangerous, but it's actually brilliant engineering - high voltage means less energy gets wasted as heat in the cables during transmission.

Step-up transformers at power stations boost the voltage for long-distance travel, whilst step-down transformers near your home reduce it back to safe levels (230 V). These transformers work using electromagnetic induction with primary and secondary coils wrapped around an iron core.

The beauty of transformers is they're nearly 100% efficient - the power going in almost exactly equals the power coming out. Whether stepping up or down, they follow the rule that more turns on a coil means higher voltage on that side.

Real-world Connection: Without the National Grid's high-voltage system, we'd lose so much energy as heat that your electricity bills would be astronomical!
