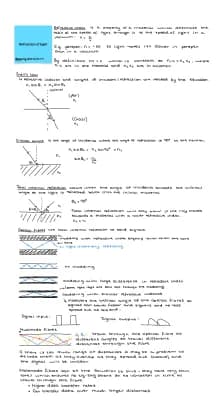

Optical Fibres and Multimode Dispersion

This page delves into the application of total internal reflection in optical fibers and introduces the concept of multimode dispersion, which affects data transmission rates.

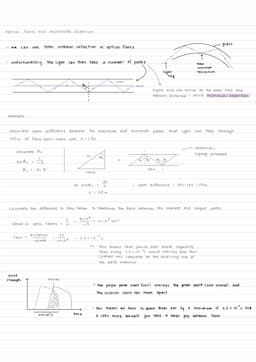

Optical fibers utilize total internal reflection to transmit light signals over long distances. However, in multimode fibers, light can take multiple paths through the fiber, leading to multimode dispersion.

Definition: Multimode dispersion is the spreading of light pulses as they travel through an optical fiber due to different path lengths, resulting in signal distortion and limiting data transmission rates.

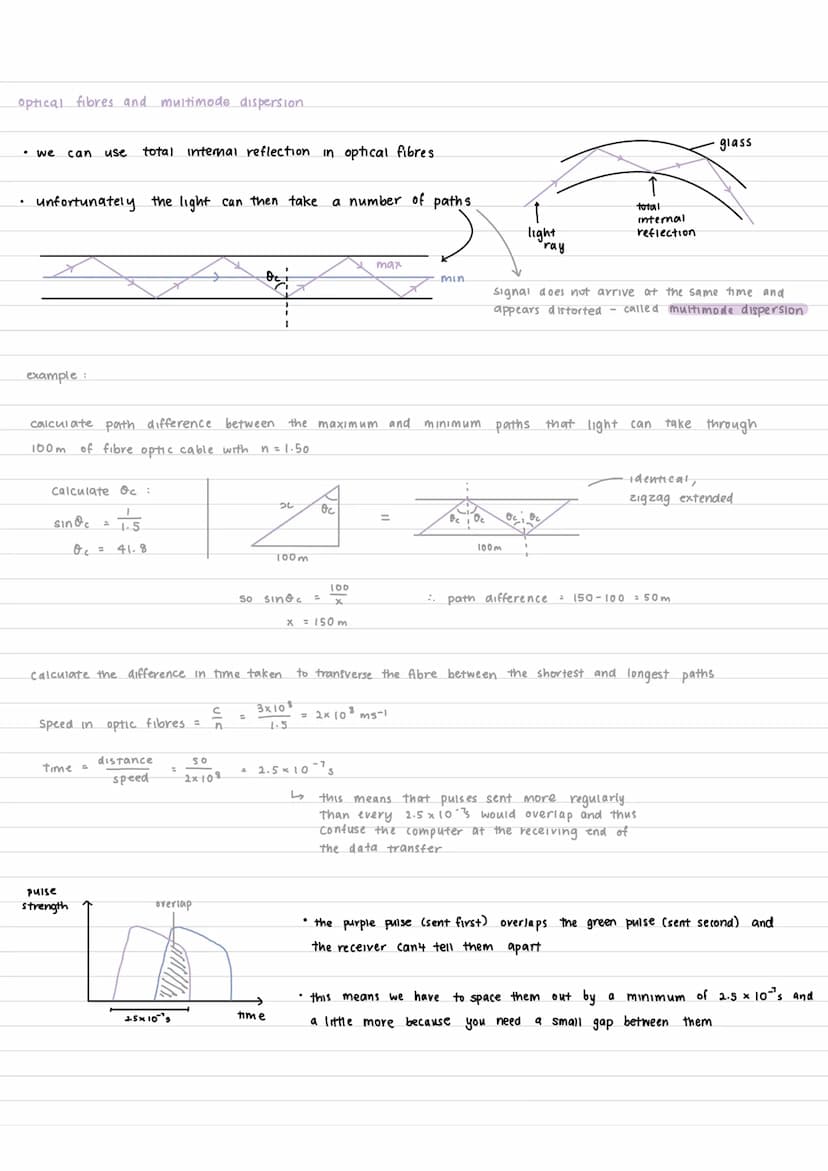

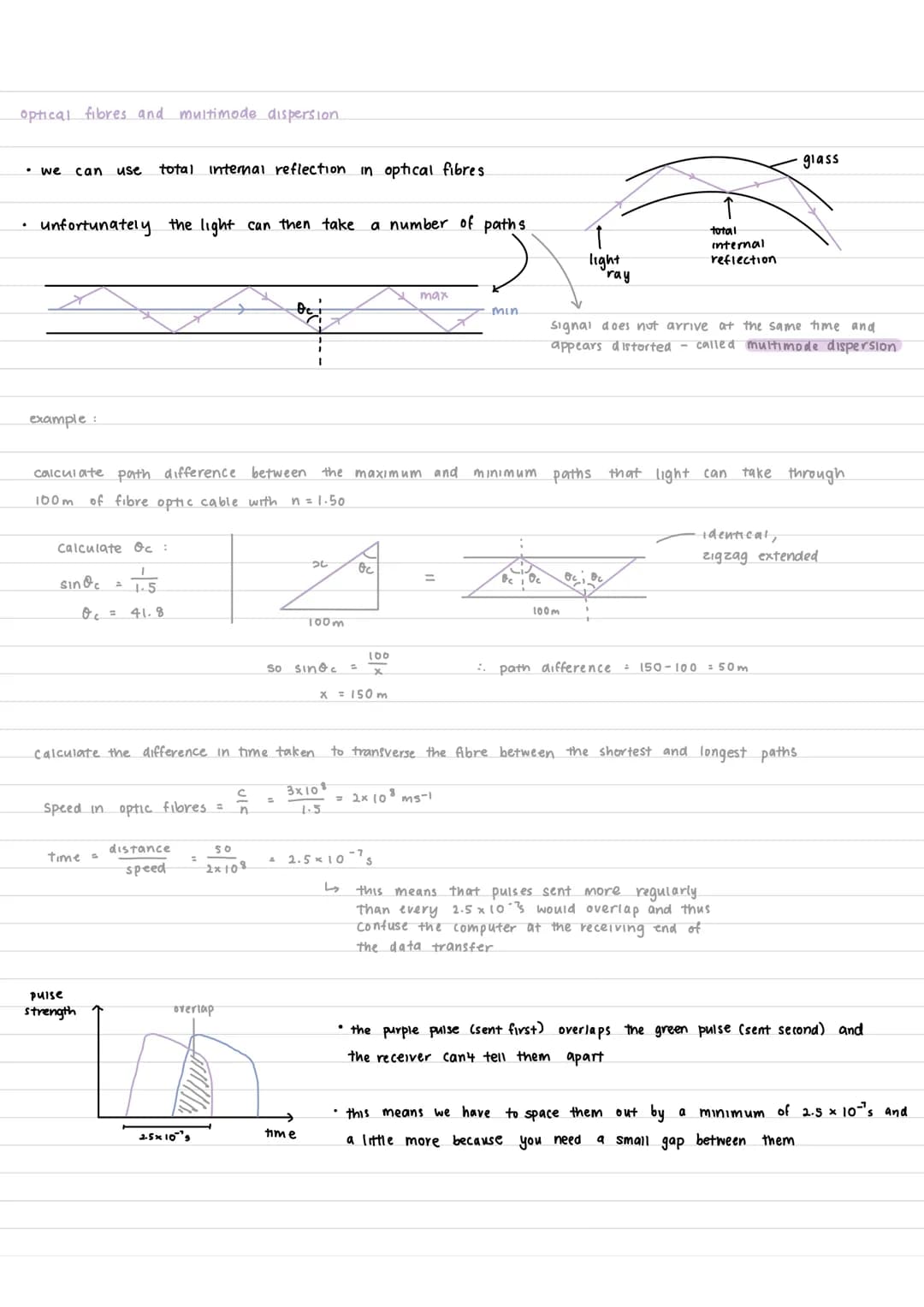

An example calculation demonstrates the impact of multimode dispersion:

For a 100m fiber optic cable with a refractive index of 1.50:

1. Calculate the critical angle: θc = arcsin$1/1.50$ ≈ 41.8°
2. Determine the maximum path length: 150m (zigzag path)
3. Calculate the time difference between shortest and longest paths: 2.5 × 10⁻⁷ s

Highlight: This time difference means that pulses sent more frequently than every 2.5 × 10⁻⁷ seconds would overlap, causing signal confusion at the receiving end.

The maximum data transfer rate can be calculated as:

Frequency = 1 / (2.5 × 10⁻⁷) ≈ 4.0 MHz

Example: In this case, the maximum data transfer rate is limited to about 4 million pulses per second due to multimode dispersion.

Understanding multimode dispersion effects on data transmission in optical fiber is crucial for designing efficient communication systems and implementing strategies to mitigate its impact.

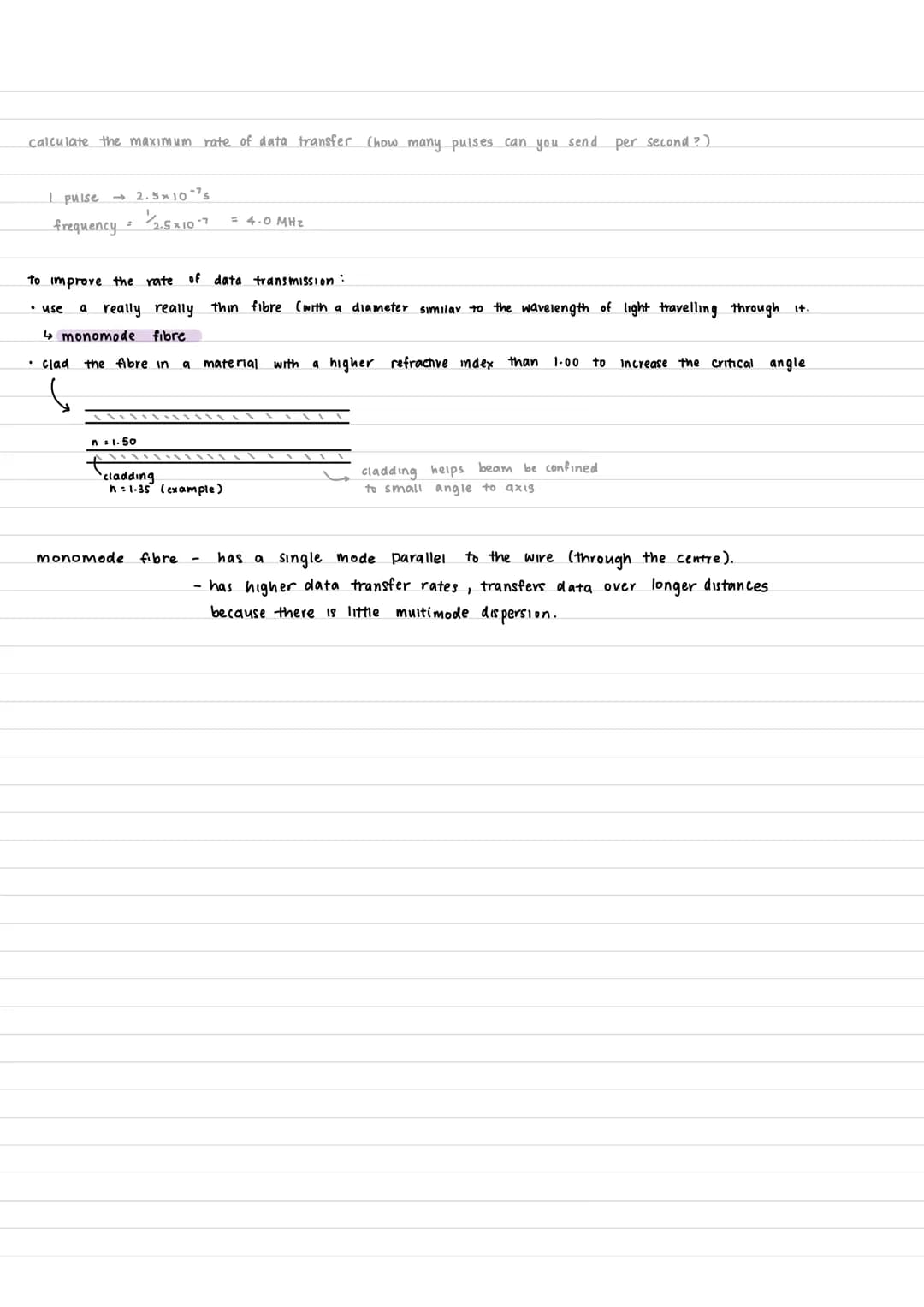

Improving Data Transmission in Optical Fibers

This page discusses strategies to reduce dispersion and improve data transmission rates in optical fibers.

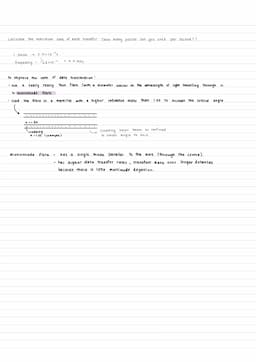

To enhance data transmission rates and reduce dispersion in optical fiber, several techniques can be employed:

1. Use of Monomode Fibers:

Definition: A monomode fiber (also known as single-mode fiber) has a very thin core with a diameter similar to the wavelength of light traveling through it.

Monomode fibers allow only a single mode of light propagation, typically parallel to the fiber's axis. This significantly reduces multimode dispersion, enabling higher data transfer rates and longer transmission distances.

2. Fiber Cladding:

Cladding the fiber core with a material that has a higher refractive index than 1.00 can increase the critical angle, improving light confinement within the core.

Example: If the core has a refractive index of 1.50 and the cladding has a refractive index of 1.35, the critical angle would be larger compared to an uncladded fiber, reducing signal loss.

Highlight: Monomode fibers with appropriate cladding can achieve much higher data transfer rates and longer transmission distances due to minimal multimode dispersion.

These techniques for dispersion compensation in optical fiber are crucial for modern high-speed optical communication systems. By implementing these strategies, engineers can design more efficient optical networks capable of meeting the increasing demands for data transmission capacity.

Understanding the principles of total internal reflection in optical fibers, Snell's law, and critical angle calculations is essential for developing advanced optical communication technologies and improving existing systems.

Refraction of Light and Total Internal Reflection

This page introduces the concepts of refraction, Snell's law, and total internal reflection, which are fundamental to understanding optical fiber technology.

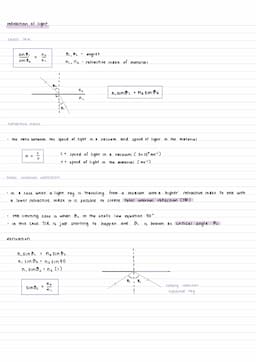

Snell's Law describes the relationship between the angles of incidence and refraction when light passes between two media with different refractive indices. It is expressed as:

n₁ sin θ₁ = n₂ sin θ₂

Where n₁ and n₂ are the refractive indices of the two media, and θ₁ and θ₂ are the angles of incidence and refraction, respectively.

Definition: The refractive index $n$ of a material is the ratio between the speed of light in a vacuum $c$ and the speed of light in the material $v$: n = c/v.

Total internal reflection (TIR) occurs when light travels from a medium with a higher refractive index to one with a lower refractive index, and the angle of incidence is greater than the critical angle.

Highlight: The critical angle (θc) is the angle of incidence at which light is refracted along the boundary between two media, marking the onset of total internal reflection.

To calculate the critical angle, we use the formula:

sin θc = n₂ / n₁

Where n₁ is the refractive index of the denser medium and n₂ is the refractive index of the less dense medium.

Example: In an optical fiber, if the core has a refractive index of 1.50 and the cladding has a refractive index of 1.48, the critical angle can be calculated as: sin θc = 1.48 / 1.50 ≈ 0.9867 θc ≈ 80.6°

Understanding these principles is crucial for designing efficient optical fiber systems that utilize total internal reflection in optical fibers for data transmission.
