Understanding Light Refraction and Optical Fibers

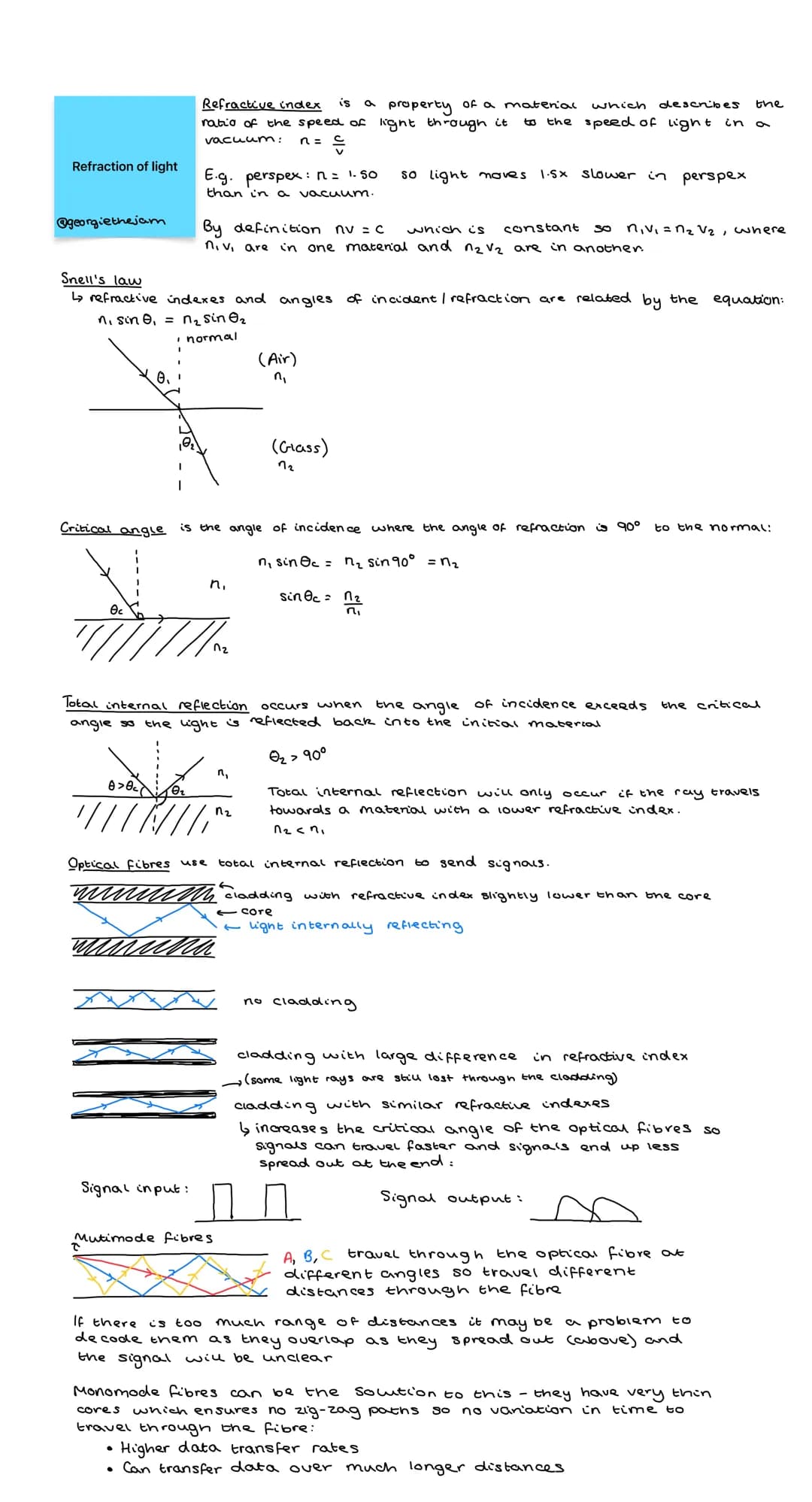

The first page introduces fundamental concepts of light refraction and its application in optical fiber technology. The content explores how light behaves when passing through different materials and the principles behind optical fiber communication systems.

Definition: Refractive index is a material property describing the ratio of light speed in vacuum to its speed through the material (n = c/v).

Example: Perspex has a refractive index of 1.50, meaning light travels 1.5 times slower through it compared to vacuum.

Vocabulary: Total internal reflection occurs when light hits an interface at an angle greater than the critical angle, causing complete reflection back into the original medium.

Highlight: The critical angle (θc) can be calculated using the equation sin θc = n₂/n₁, where n₁ and n₂ are the refractive indices of the materials.

The page details two types of optical fibers:

1. Multimode fibers: These have a core with a higher refractive index surrounded by cladding with a lower refractive index. Light travels in multiple paths, which can lead to signal spreading.

2. Monomode fibers: These feature very thin cores that eliminate zig-zag paths, resulting in:

   • Higher data transfer rates
   • Capability to transmit data over longer distances
   • Reduced signal dispersion

Quote: "Total internal reflection will only occur if the ray travels towards a material with a lower refractive index."
