DNA Structure and Replication Fun Notes PDF with Answers

DNA structure and replication are fundamental concepts in molecular biology. This summary provides an in-depth look at the structure of DNA, its replication process, and the applications of DNA amplification techniques.

DNA Structure and Replication is a crucial topic in higher human biology. Understanding the intricacies of DNA's structure and how it replicates is essential for grasping many biological processes. This summary covers the key aspects of DNA structure, the replication process, and the Polymerase Chain Reaction (PCR) technique, providing valuable insights for students studying DNA structure and replication class notes at GCSE and A-level.

  • DNA is a double-stranded helix composed of nucleotides
  • Each nucleotide consists of a deoxyribose sugar, phosphate group, and a nitrogenous base
  • DNA replication is semi-conservative, using existing strands as templates
  • PCR is a technique used to amplify specific DNA sequences
...

12/09/2023

463

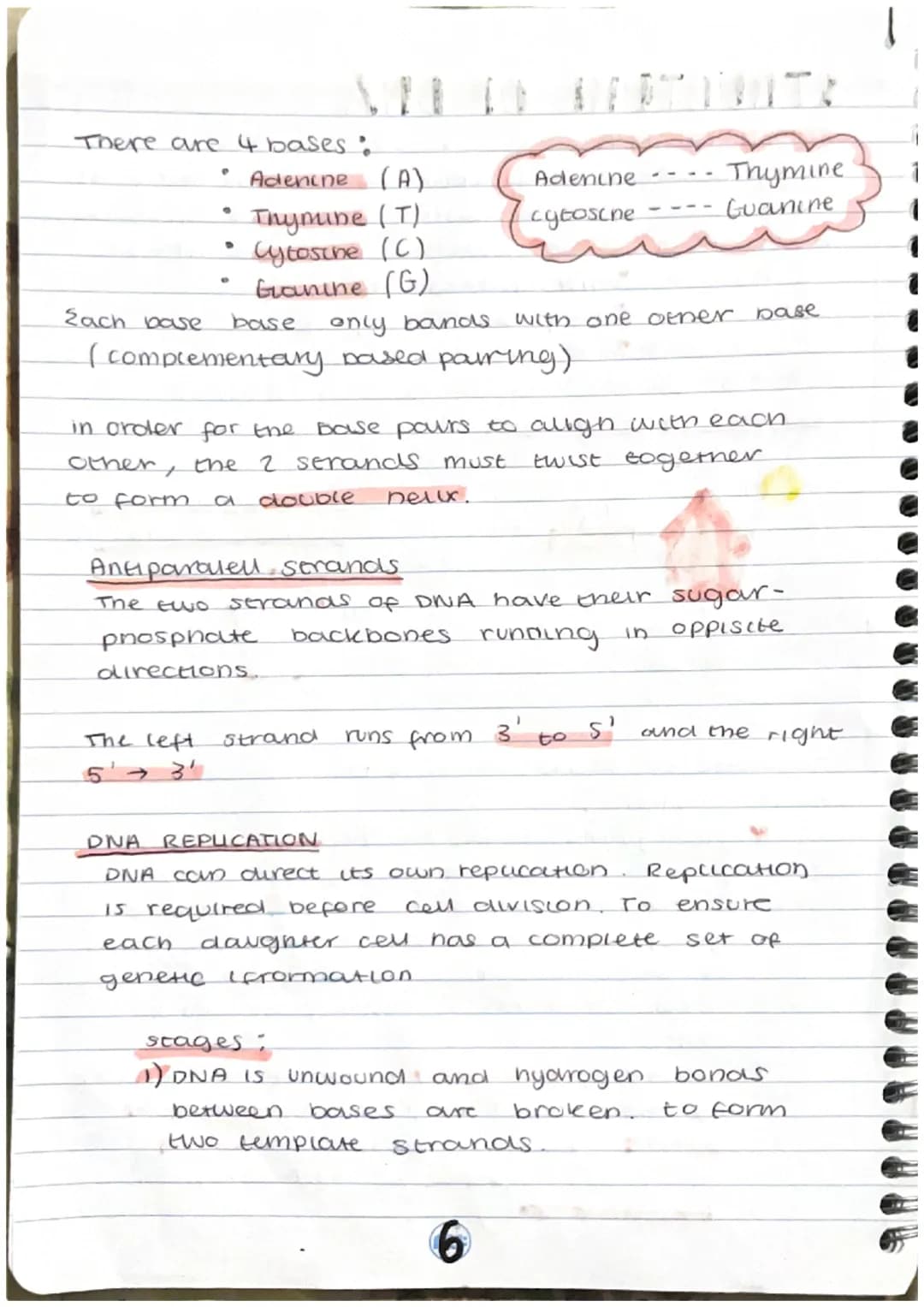

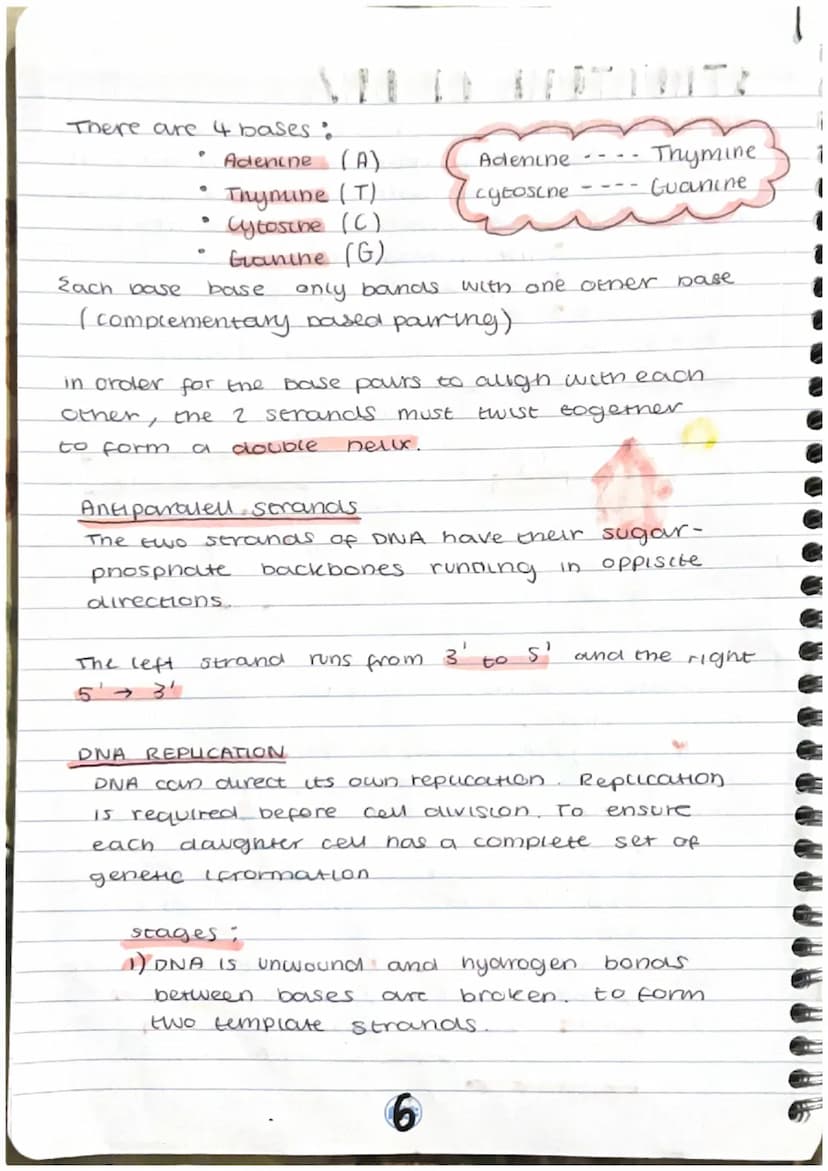

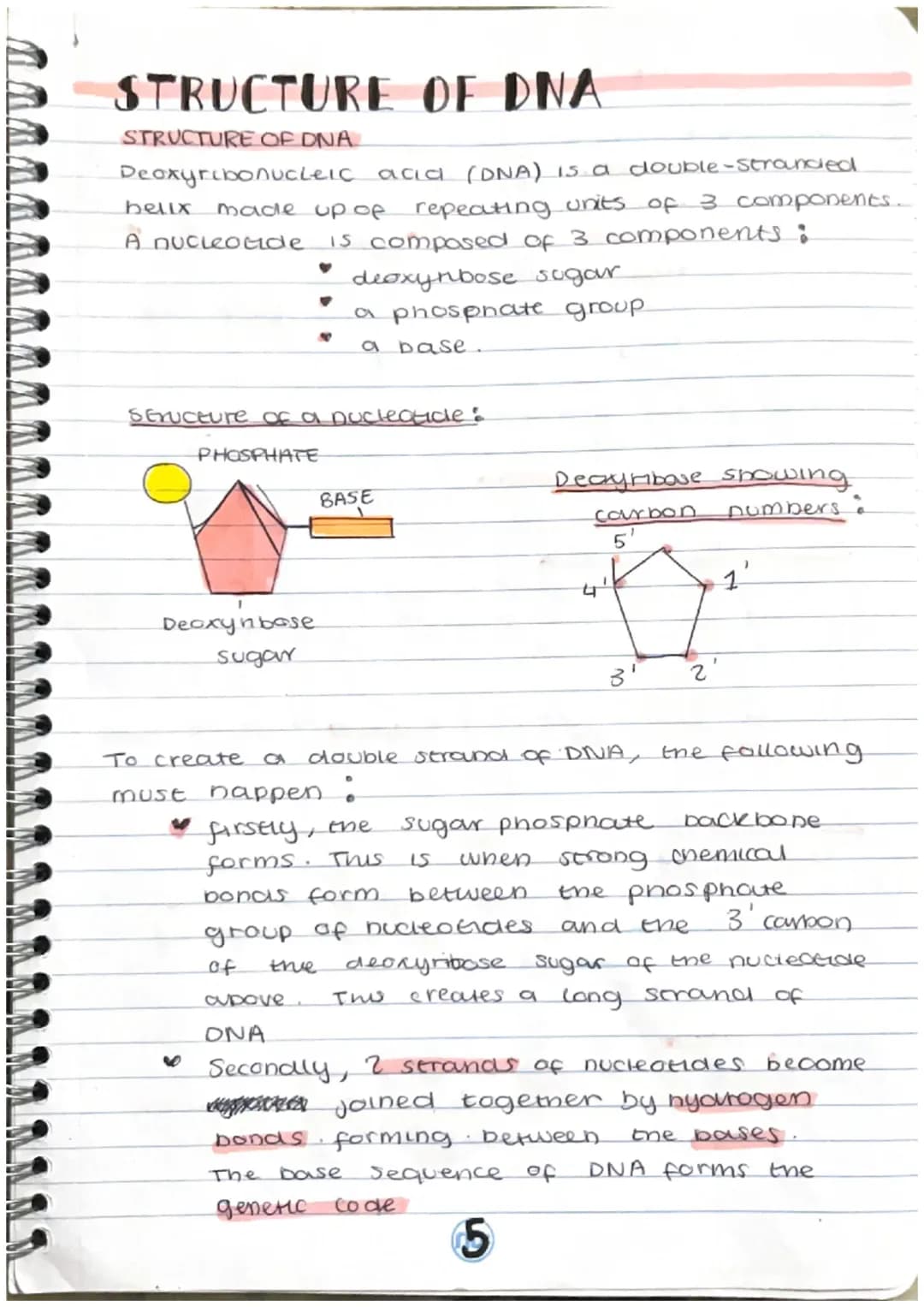

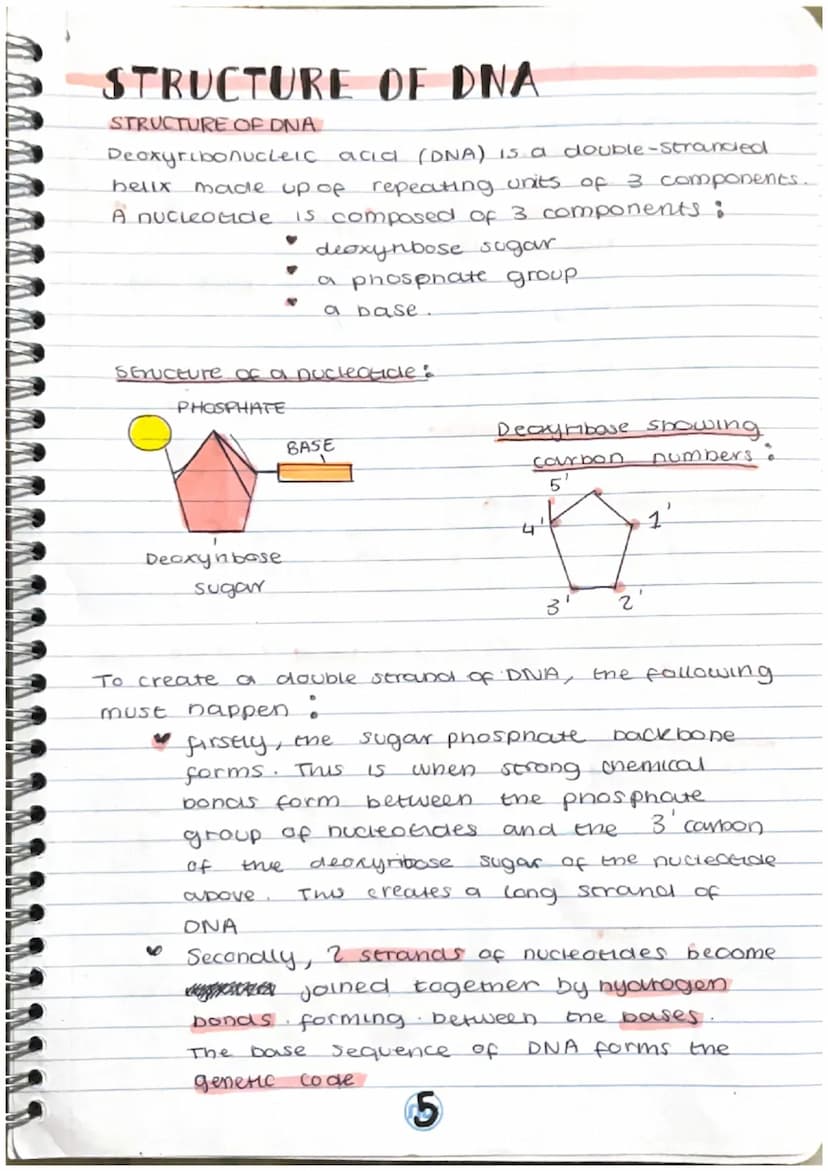

STRUCTURE OF DNA
STRUCTURE OF DNA.
Deoxyribonucleic acid (DNA) is a double-stranded
bellx made up of
repeating units of 3 components.
A DUCL

View

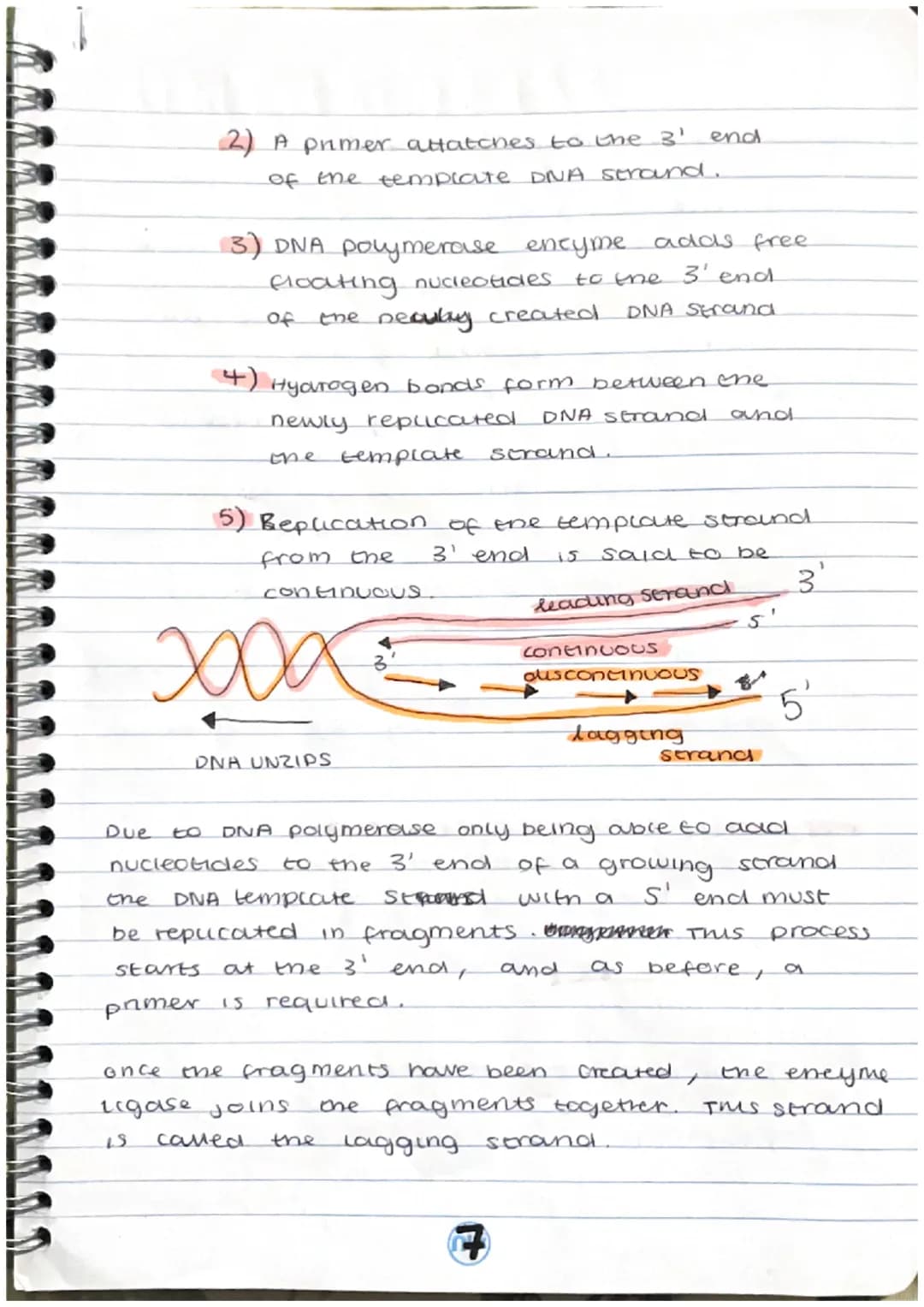

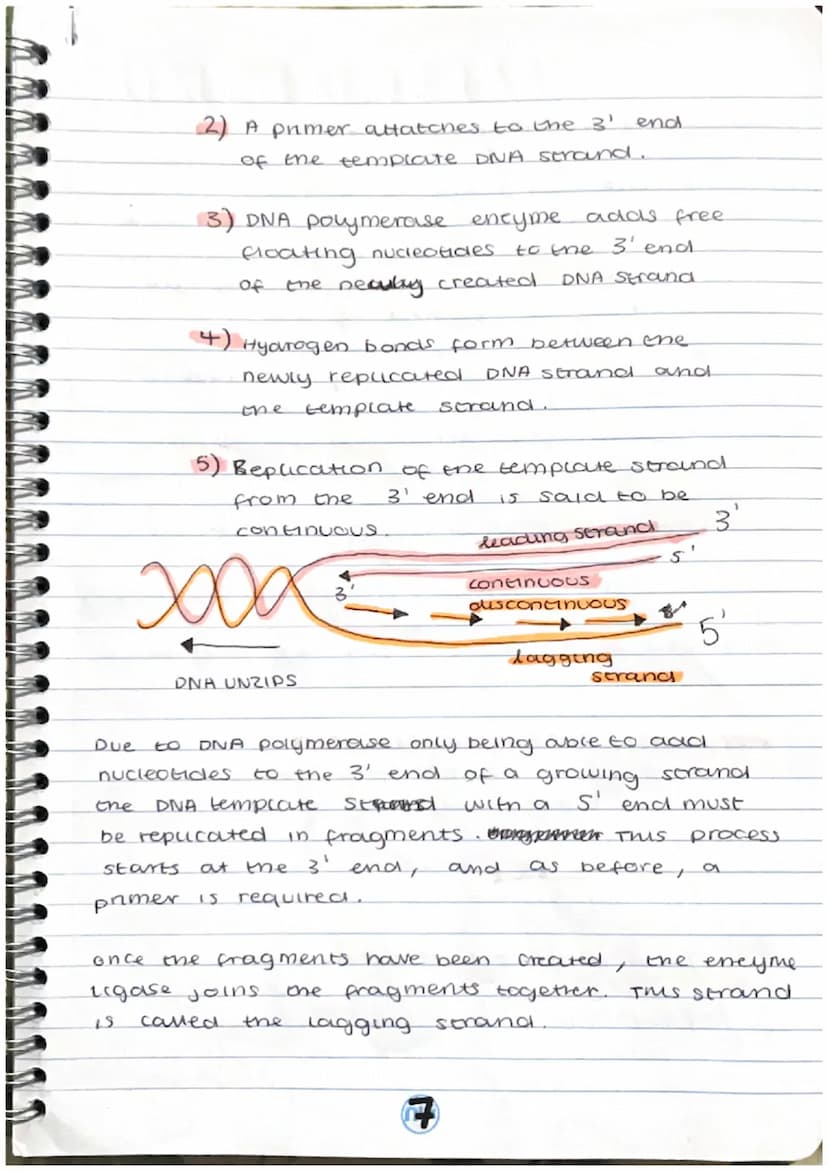

DNA Replication

DNA replication is the process by which DNA makes a copy of itself during cell division. This ensures that each new cell has a complete set of genetic information.

The key steps in DNA replication are:

  1. DNA unwinding and separation of strands
  2. Primer attachment to the 3' end of the template DNA strand
  3. DNA polymerase adding free nucleotides to create the new strand
  4. Formation of hydrogen bonds between the new strand and the template
  5. Continuous replication of the leading strand and discontinuous replication of the lagging strand

Example: The leading strand is replicated continuously from the 3' end, while the lagging strand is replicated in fragments called Okazaki fragments.

DNA replication requires several components:

  • DNA template
  • Supply of DNA nucleotides
  • Energy (ATP)
  • Enzymes (DNA Polymerase and Ligase)
  • Primers

Highlight: DNA polymerase can only add nucleotides to the 3' end of a growing strand, which is why the lagging strand must be replicated in fragments.

STRUCTURE OF DNA
STRUCTURE OF DNA.
Deoxyribonucleic acid (DNA) is a double-stranded
bellx made up of
repeating units of 3 components.
A DUCL

View

Polymerase Chain Reaction (PCR)

PCR is a technique used to amplify specific DNA sequences. It's widely used in molecular biology and has numerous applications in research and diagnostics.

The stages of PCR are:

  1. Denaturation: Heating the DNA to separate the strands (92-98°C)
  2. Annealing: Cooling to allow primers to bind to target sequences
  3. Extension: Heating to allow DNA polymerase to replicate the DNA (70-80°C)
  4. Repetition of the cycle to amplify the target sequence

Vocabulary: Primers - Short strands of nucleotides complementary to specific sequences at the ends of the region to be amplified.

PCR has several important applications:

  • DNA profiling
  • Paternity tests
  • Identifying unknown victims
  • Finding suspects in crime investigations
  • Genetic disorder screening

Example: In genetic disorder screening, a cell sample from a patient can be analyzed for the presence or absence of particular gene sequences to identify genetic disorders.

STRUCTURE OF DNA
STRUCTURE OF DNA.
Deoxyribonucleic acid (DNA) is a double-stranded
bellx made up of
repeating units of 3 components.
A DUCL

View

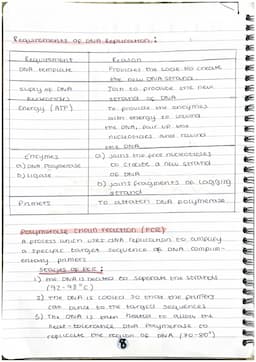

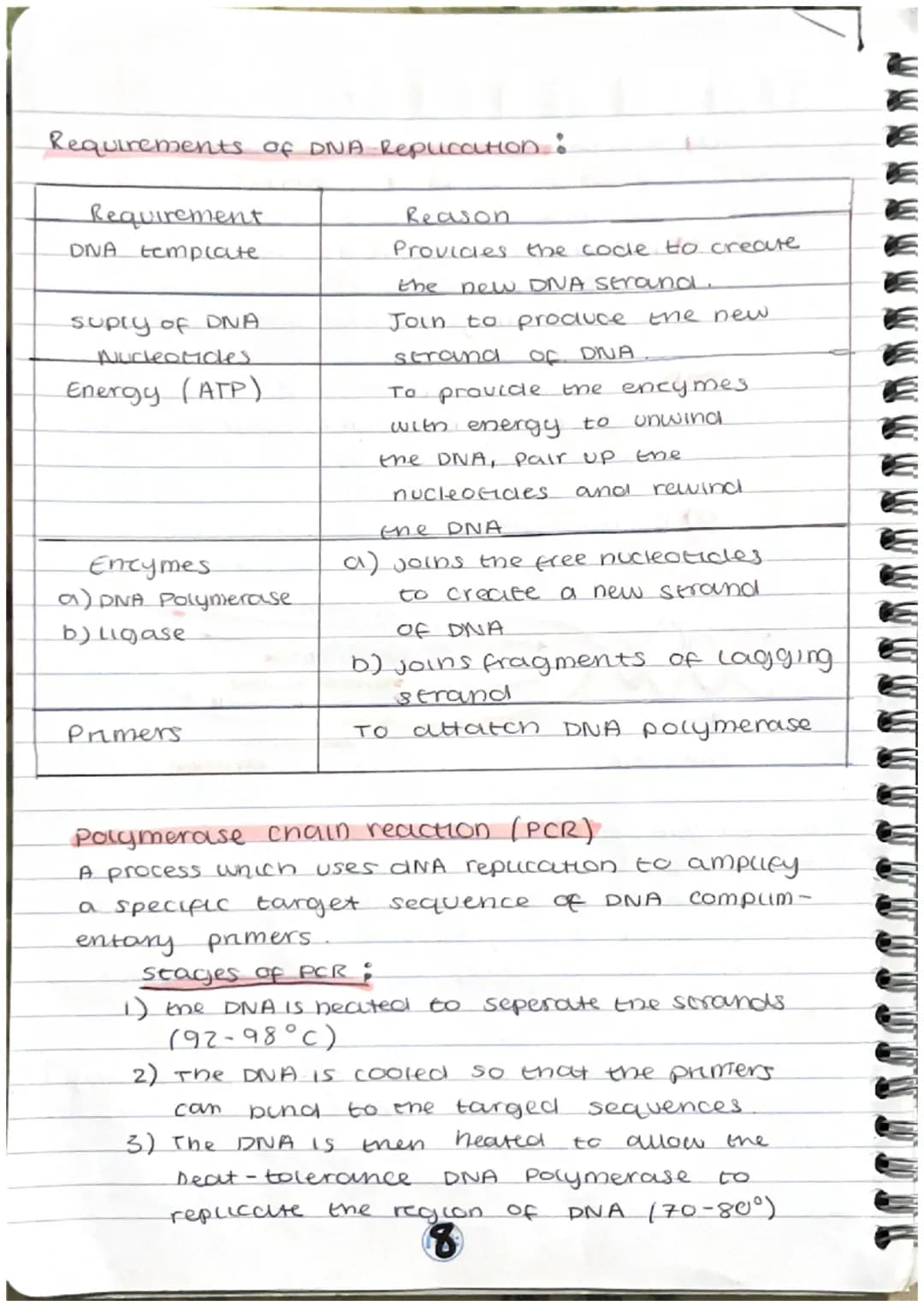

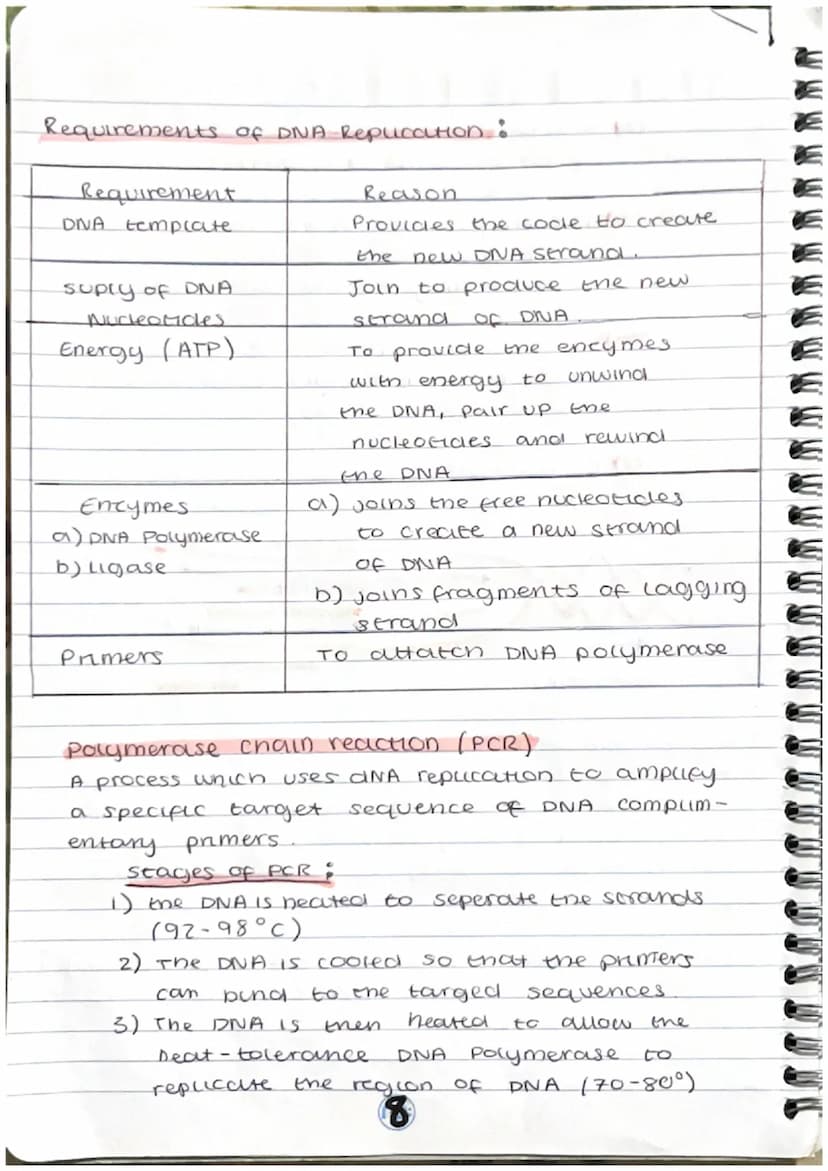

Requirements for DNA Replication

For DNA replication to occur successfully, several key components are necessary:

  1. DNA template: Provides the code to create the new DNA strand
  2. Supply of DNA nucleotides: Join to produce the new strand of DNA
  3. Energy (ATP): Powers the enzymes to unwind the DNA, pair up nucleotides, and rewind the DNA
  4. Enzymes: a) DNA Polymerase: Joins free nucleotides to create a new strand of DNA b) Ligase: Joins fragments of the lagging strand
  5. Primers: Attach to DNA polymerase

Highlight: The enzyme DNA polymerase is crucial in DNA replication as it joins free nucleotides to create the new DNA strand.

These components work together to ensure accurate and efficient DNA replication, which is essential for cell division and the transmission of genetic information to daughter cells.

Definition: Polymerase Chain Reaction (PCR) - A process that uses DNA replication to amplify a specific target sequence of DNA.

STRUCTURE OF DNA
STRUCTURE OF DNA.
Deoxyribonucleic acid (DNA) is a double-stranded
bellx made up of
repeating units of 3 components.
A DUCL

View

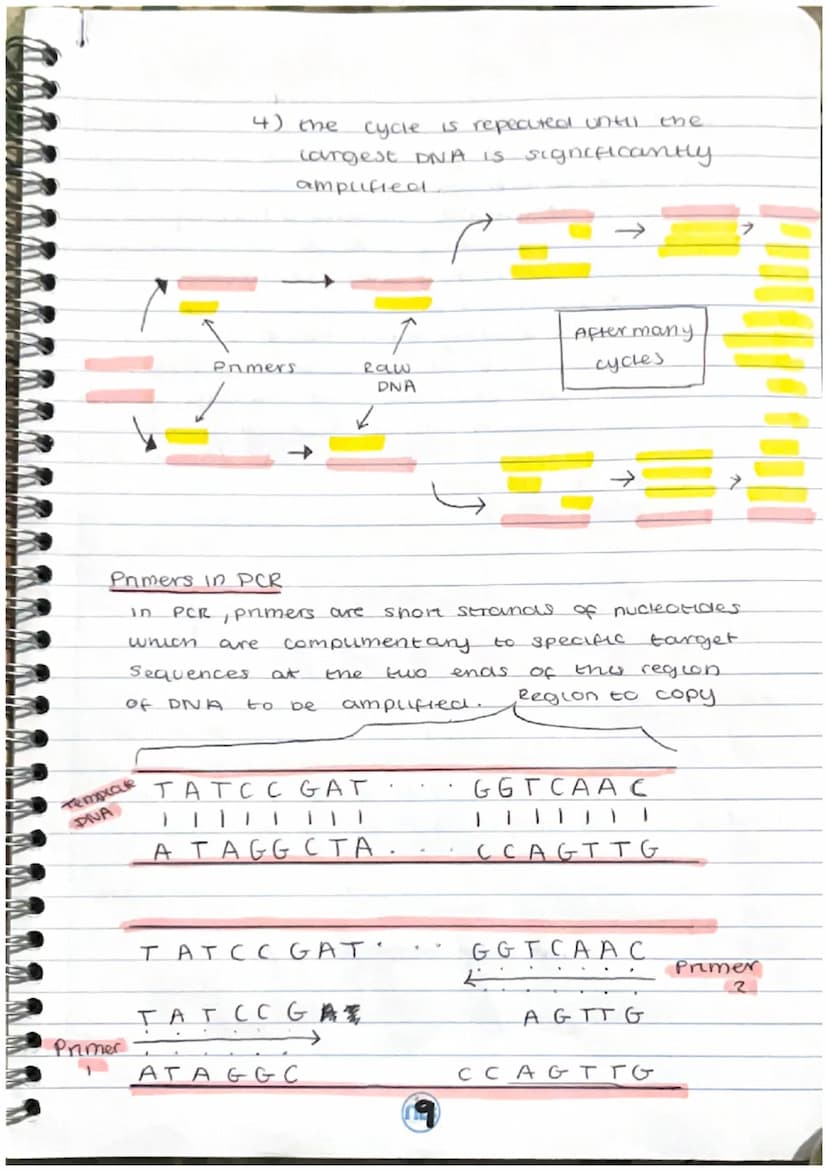

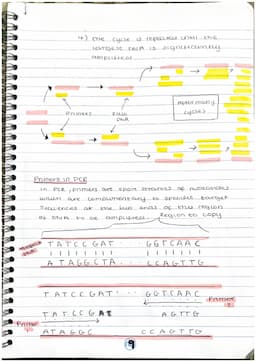

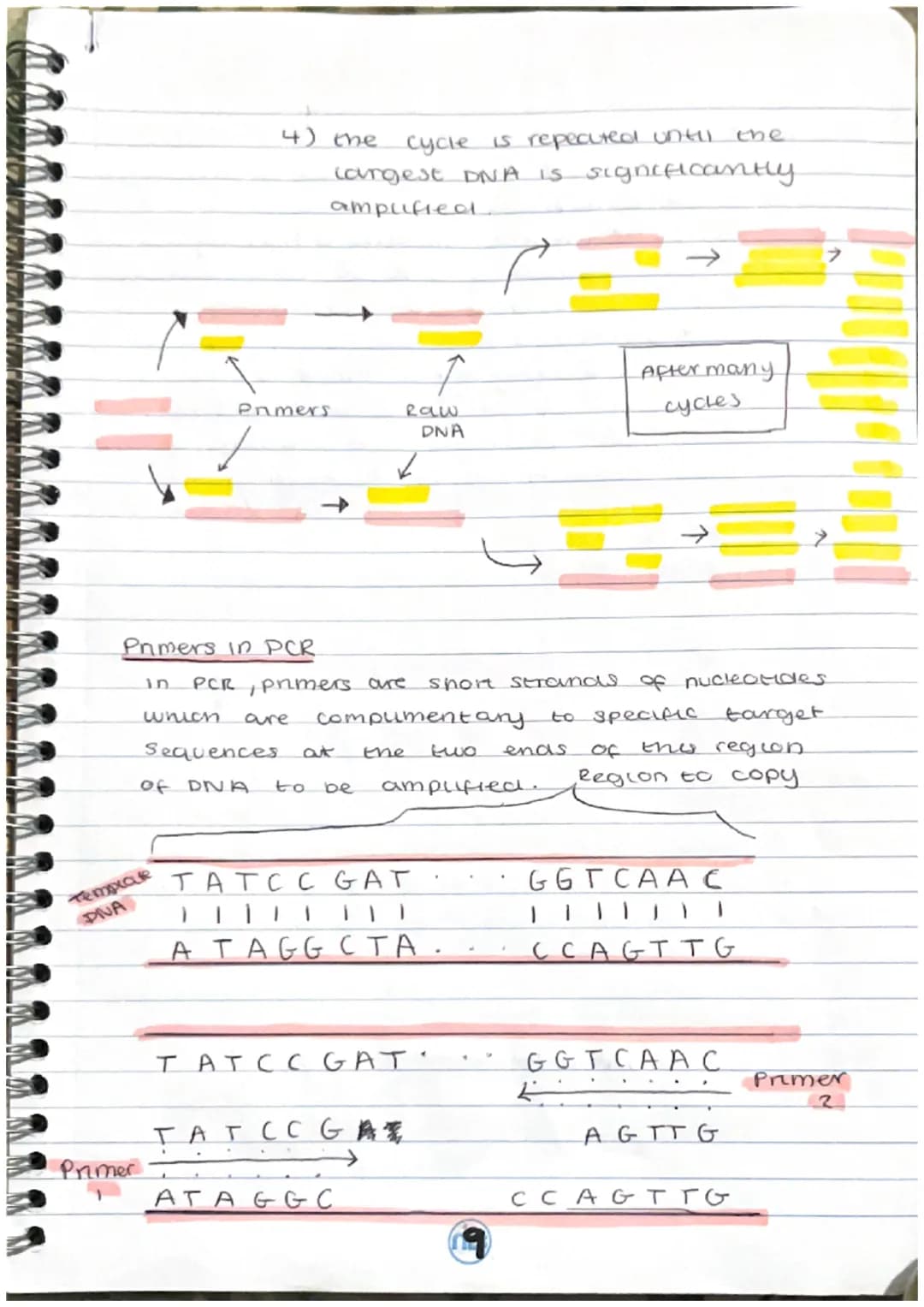

PCR Process and Applications

The Polymerase Chain Reaction (PCR) is a powerful technique in molecular biology that amplifies specific DNA sequences. This process is particularly useful when working with small amounts of DNA.

The PCR process involves several cycles, each consisting of three main steps:

  1. Denaturation: The DNA is heated to 92-98°C to separate the strands.
  2. Annealing: The temperature is lowered so that primers can bind to the target sequences.
  3. Extension: The temperature is raised to 70-80°C, allowing heat-tolerant DNA polymerase to replicate the region of DNA.

Vocabulary: Annealing - The process of primers binding to complementary sequences on the template DNA.

These cycles are repeated multiple times, resulting in exponential amplification of the target DNA sequence.

Highlight: After many cycles of PCR, the amount of target DNA is significantly increased, making it easier to study or use in further applications.

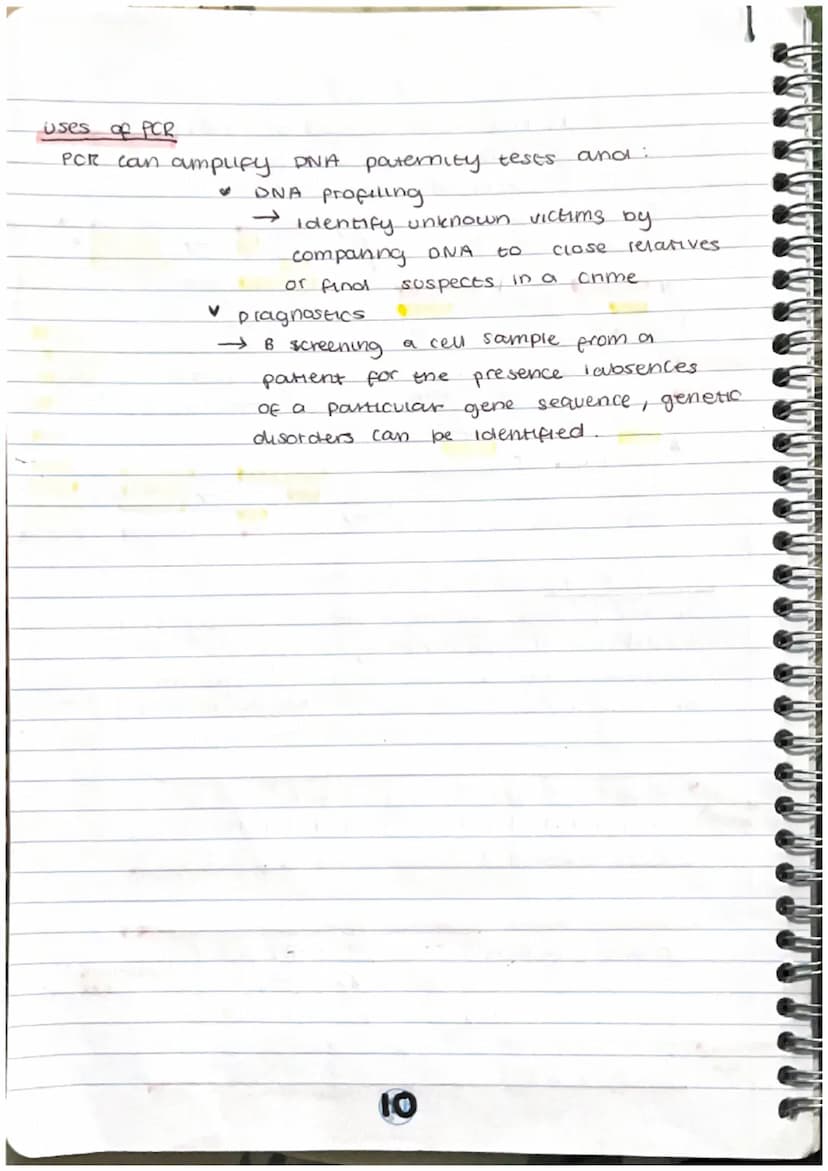

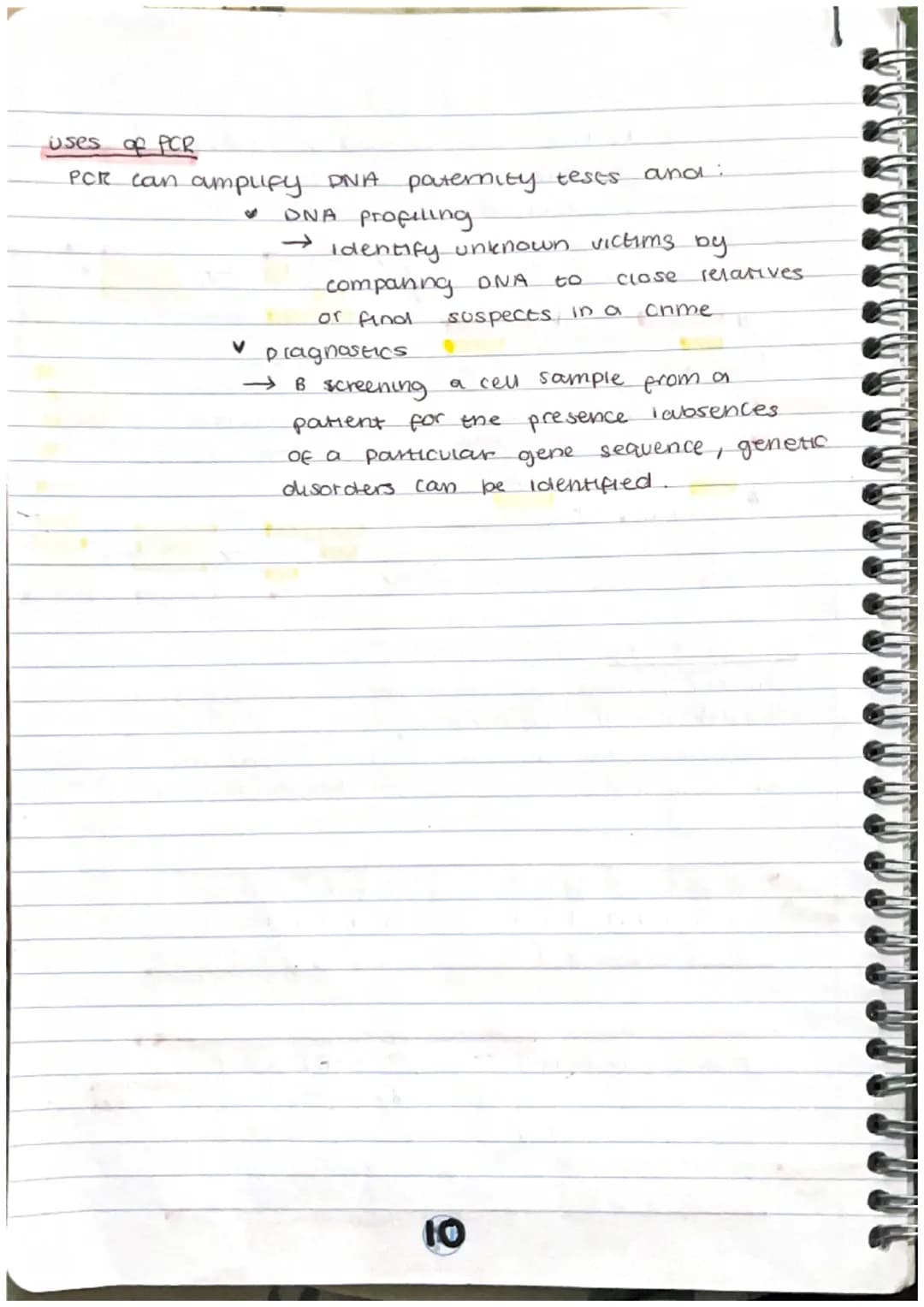

PCR has numerous applications in various fields:

  1. DNA profiling: Used in forensic science to identify individuals based on their unique DNA patterns.
  2. Paternity tests: Determines biological relationships between individuals.
  3. Victim identification: Compares DNA samples to those of close relatives to identify unknown victims.
  4. Criminal investigations: Helps find suspects by matching DNA evidence from crime scenes.
  5. Genetic disorder screening: Analyzes patient samples for specific gene sequences associated with genetic disorders.

Example: In genetic disorder screening, a cell sample from a patient can be analyzed using PCR to detect the presence or absence of particular gene sequences associated with specific genetic disorders.

The versatility and sensitivity of PCR make it an invaluable tool in modern molecular biology, medicine, and forensic science.

STRUCTURE OF DNA
STRUCTURE OF DNA.
Deoxyribonucleic acid (DNA) is a double-stranded
bellx made up of
repeating units of 3 components.
A DUCL

View

Importance of DNA Structure and Replication in Biology

Understanding DNA structure and replication is fundamental to many areas of biology and has far-reaching implications in various fields.

Key points to remember:

  1. DNA's double-helix structure allows for efficient storage and replication of genetic information.
  2. The complementary base pairing (A-T, C-G) ensures accurate replication and transcription of genetic material.
  3. DNA replication is a semi-conservative process, meaning each new double helix contains one original strand and one newly synthesized strand.
  4. The antiparallel nature of DNA strands influences the direction of replication and the need for different replication mechanisms for leading and lagging strands.

Definition: Semi-conservative replication - A model of DNA replication where each new double helix contains one original strand and one newly synthesized strand.

The study of DNA structure and replication is crucial for:

  • Understanding genetic inheritance
  • Developing treatments for genetic disorders
  • Advancing forensic science and criminal investigations
  • Improving crop yields through genetic modifications
  • Developing new diagnostic tools in medicine

Highlight: The discovery of DNA's structure and replication mechanism has revolutionized our understanding of life and has led to numerous advancements in science and medicine.

By mastering the concepts of DNA structure and replication, students gain a solid foundation for further studies in genetics, molecular biology, and biotechnology. This knowledge is essential for those pursuing careers in fields such as medicine, research, forensic science, and genetic counseling.
