Types of Rainfall

This page delves deeper into the processes of relief rainfall and convectional rainfall, two important rainfall patterns that are influenced by geographical features and temperature effects.

Relief rainfall, also known as orographic rainfall, is explained in more detail. This type of precipitation is common in areas with mountains and proximity to the sea. The process begins when moisture-laden wind blows in from the sea and encounters a mountain. As the air is forced to rise up the mountain slope, it cools and condenses, forming clouds. Eventually, this leads to precipitation on the windward side of the mountain.

Definition: Windward side - The side of a mountain facing the prevailing wind, which typically receives more rainfall.

The page illustrates the mountain relief rainfall process step by step, showing how the air rises, cools, and condenses as it moves over the mountain. It also introduces the concept of a rain shadow, which occurs on the leeward side of the mountain where less precipitation falls.

Vocabulary: Leeward side - The side of a mountain sheltered from the prevailing wind, which typically receives less rainfall.

Convectional rainfall and temperature effects are also explained in detail. This type of rainfall occurs frequently on hot days when the sun heats the ground intensely. The heated ground causes the air above it to warm and become very hot. As this hot air rises upwards, it cools and condenses into clouds.

Example: On a hot summer day, you might observe cumulus clouds forming in the afternoon as the sun heats the ground, leading to convectional uplift and potentially thunderstorms.

The page provides a visual representation of the convectional rainfall process, showing how the sun heats the land and the air above it, leading to the formation of heavy rain clouds.

Highlight: Both relief and convectional rainfall demonstrate how the interaction between geographical features, temperature, and atmospheric moisture can lead to different precipitation patterns.

Cloud Types and Altitudes

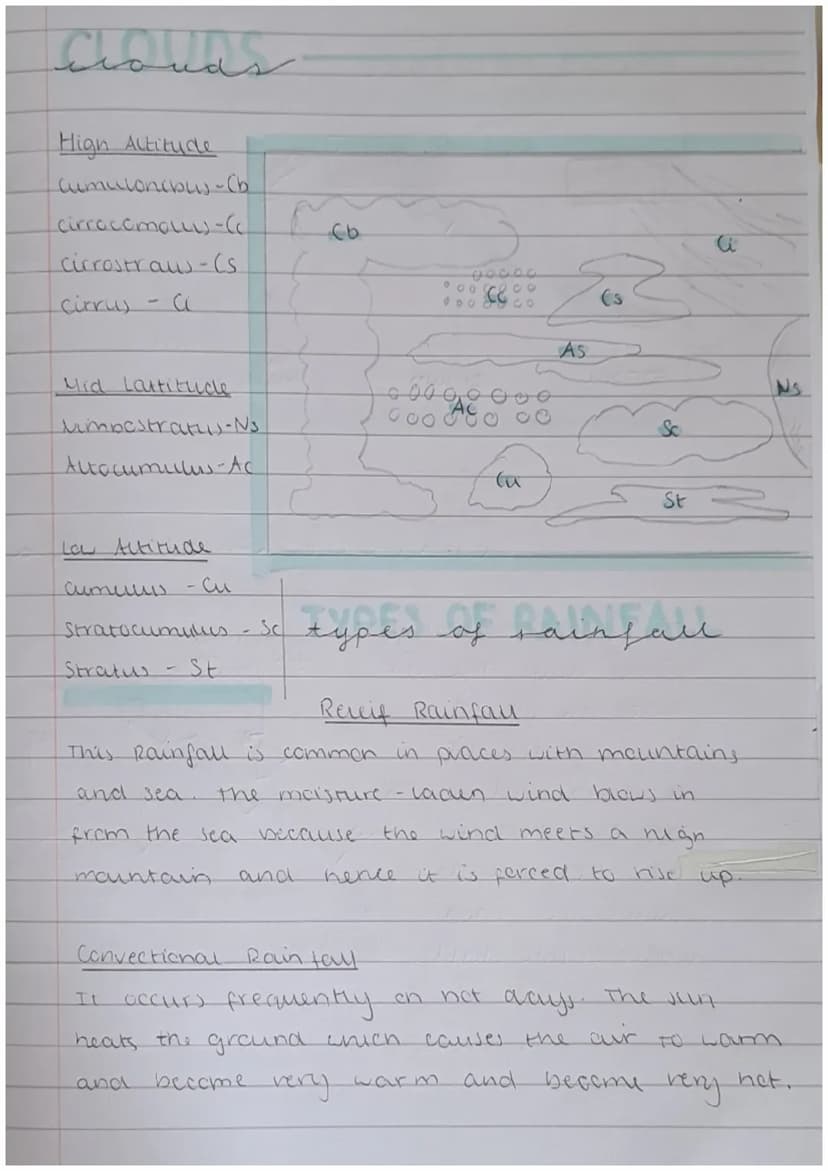

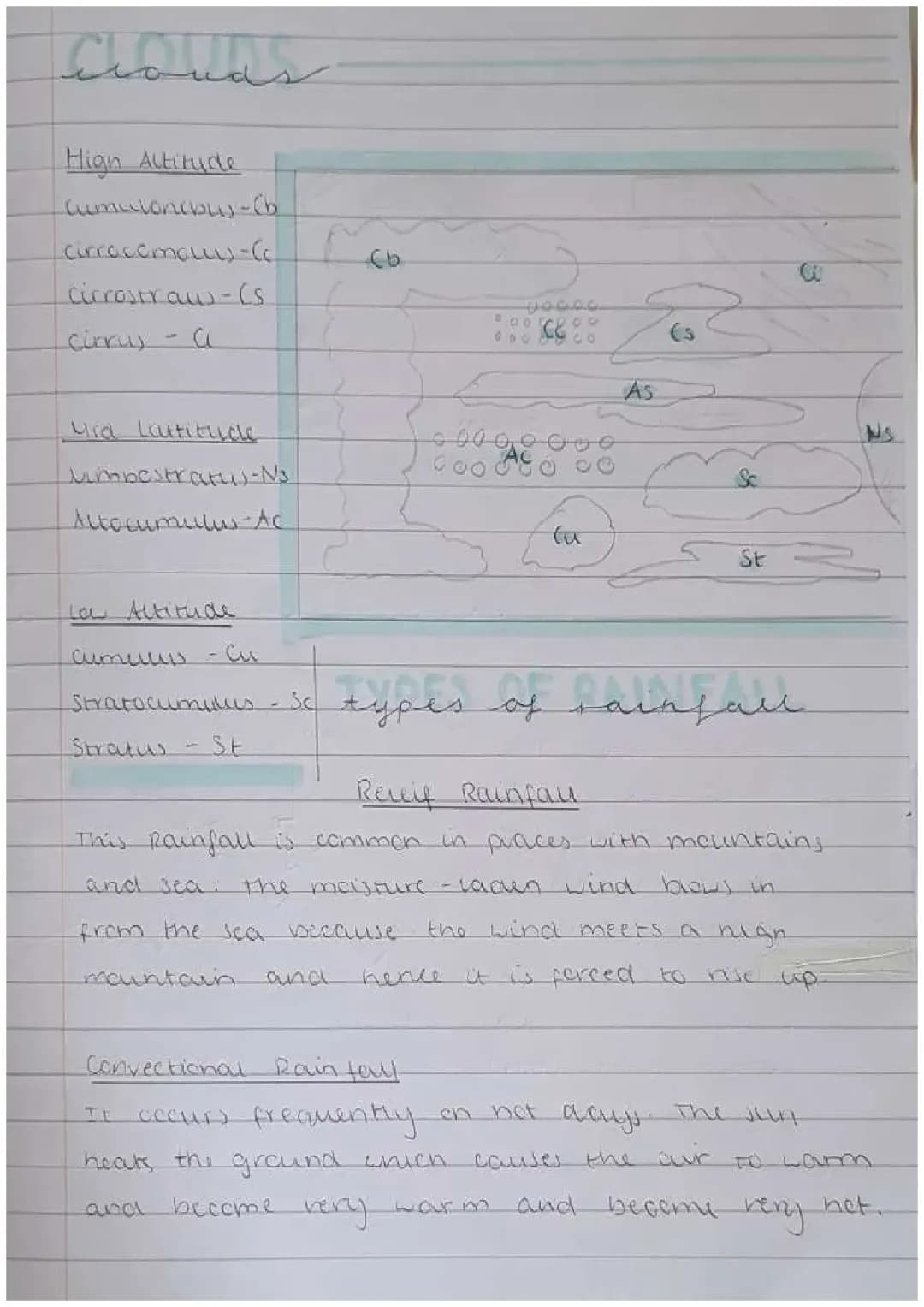

This page provides an overview of cloud types categorized by their altitude in the atmosphere. High altitude clouds play a significant role in rainfall patterns and weather systems.

High altitude clouds include cirrus (Ci), cirrostratus (Cs), and cirrocumulus (Cc). These clouds are typically found at the highest levels of the troposphere and are often composed of ice crystals.

Mid-latitude clouds consist of altostratus (As) and altocumulus (Ac). These clouds occupy the middle levels of the troposphere and can be composed of water droplets or ice crystals, depending on the temperature.

Low altitude clouds are found closest to the Earth's surface and include cumulus (Cu), stratocumulus (Sc), and stratus (St). These clouds are primarily composed of water droplets and are often associated with various types of precipitation.

Vocabulary: Troposphere - The lowest layer of Earth's atmosphere where most weather phenomena occur.

The page also introduces the concept of relief rainfall, which is common in areas with mountains and proximity to the sea. This type of rainfall occurs when moisture-laden wind from the sea encounters a mountain and is forced to rise, leading to cooling and condensation.

Example: When moist air from the ocean encounters a coastal mountain range, it is forced to rise, cool, and condense, often resulting in rainfall on the windward side of the mountains.

Convectional rainfall is briefly mentioned, noting that it occurs frequently on hot days. This process involves the sun heating the ground, which in turn warms the air above it, causing it to rise and cool.

Highlight: The interaction between different cloud types at various altitudes and geographical features like mountains plays a crucial role in determining local and regional rainfall patterns.
