Fun with GCSE Chemistry: Ionic Lattices, Simple Molecules, and Giant Structures

View

Fun with GCSE Chemistry: Ionic Lattices, Simple Molecules, and Giant Structures
user profile picture

isobel :]

@frogfriend

·

3 Followers

Follow

Ionic Compounds, Simple Molecular Substances, Giant Covalent Structures, and Polymers in GCSE Chemistry

This document covers key concepts in GCSE chemistry, focusing on the structures and properties of various types of compounds. It explores ionic lattice structures, simple molecular substances, giant covalent structures, and polymers, detailing their unique characteristics and behaviors.

  • Ionic compounds form regular lattice structures with strong electrostatic forces.
  • Simple molecular substances have weak intermolecular forces, resulting in low melting and boiling points.
  • Giant covalent structures feature strong covalent bonds between all atoms, leading to high melting points.
  • Polymers are formed from repeating monomer units, with properties influenced by their molecular structure.

08/10/2023

411

ionic compounds
regular lattice structure
1) ionic compounds have a structure called an ionic lattice.
2) the ions form a closely packed reg

View

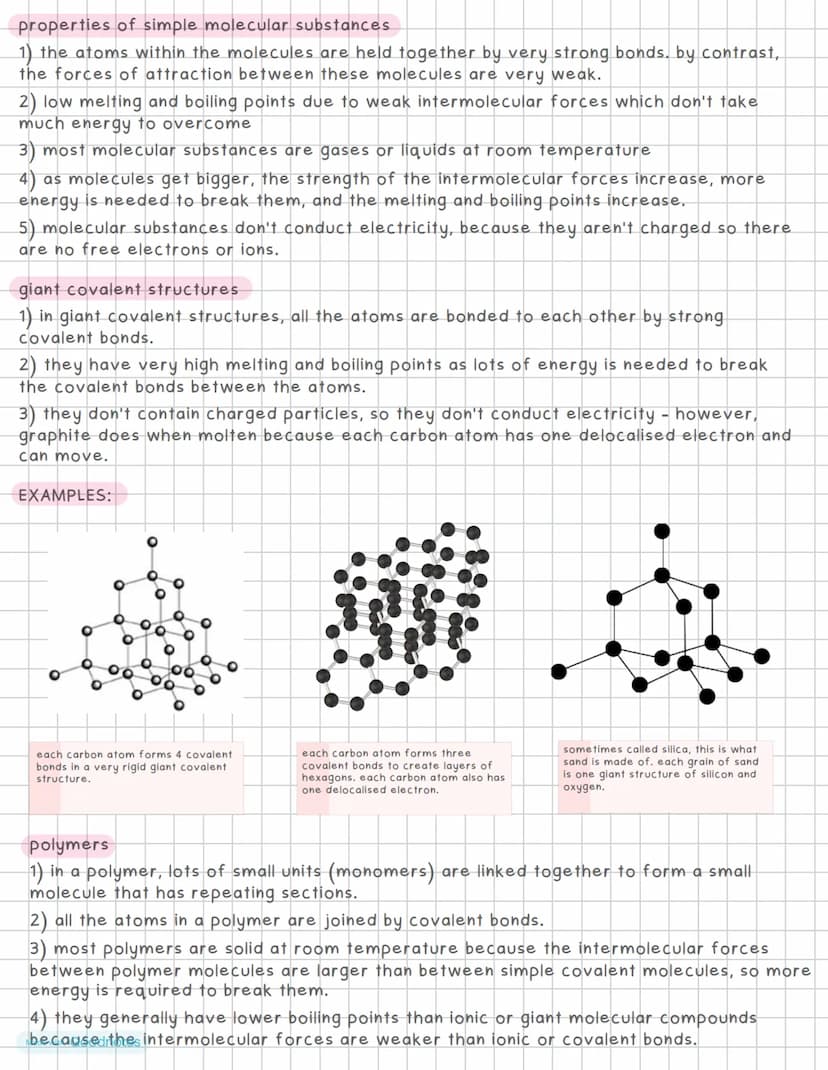

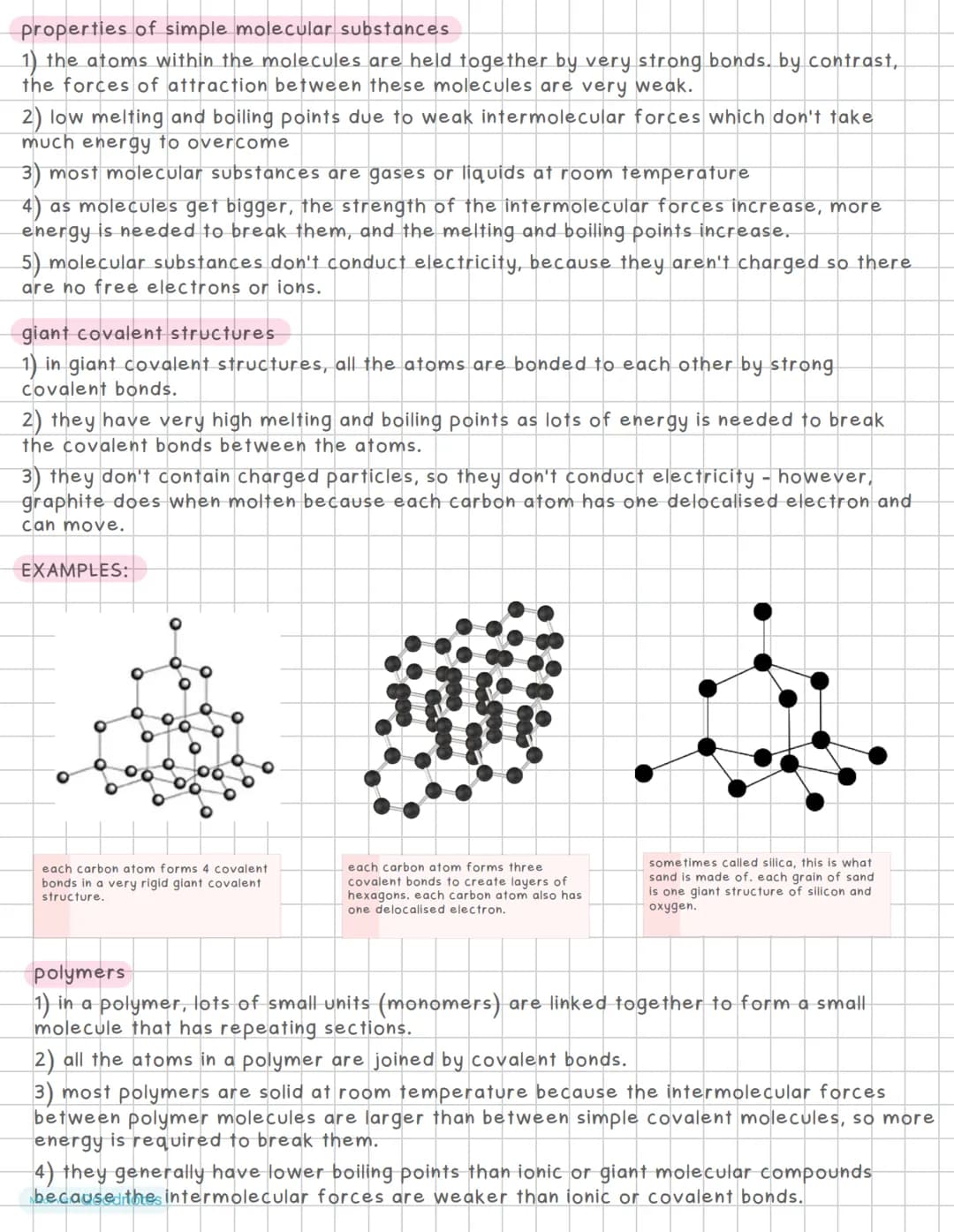

Properties of Simple Molecular Substances, Giant Covalent Structures, and Polymers

This page delves into the characteristics of simple molecular substances, giant covalent structures, and polymers, highlighting their unique properties and structural differences.

Simple Molecular Substances

Simple molecular substances have distinct properties due to their molecular structure:

  1. Strong Intramolecular Bonds:

    • Atoms within molecules are held by strong bonds
  2. Weak Intermolecular Forces:

    • Forces between molecules are very weak
  3. Low Melting and Boiling Points:

    • Due to weak intermolecular forces
    • Requires little energy to overcome these forces
  4. Physical State at Room Temperature:

    • Most are gases or liquids
  5. Size-Dependent Properties:

    • As molecules grow larger, intermolecular forces strengthen
    • This leads to higher melting and boiling points for bigger molecules
  6. Electrical Conductivity:

    • Do not conduct electricity
    • Lack of charged particles or free electrons

Example: Water (H2O) is a simple molecular substance. It has strong covalent bonds within each molecule but weak hydrogen bonds between molecules, resulting in relatively low melting and boiling points compared to ionic compounds.

Giant Covalent Structures

Giant covalent structures have unique properties due to their extensive network of covalent bonds:

  1. Extensive Bonding:

    • All atoms are bonded to each other by strong covalent bonds
  2. High Melting and Boiling Points:

    • Substantial energy required to break the covalent bonds
  3. Electrical Conductivity:

    • Generally non-conductive due to lack of charged particles
    • Exception: Graphite conducts when molten due to delocalized electrons

Examples:

  • Diamond: Each carbon atom forms 4 covalent bonds in a rigid structure
  • Graphite: Carbon atoms form three covalent bonds creating hexagonal layers
  • Silicon Dioxide (Silica): Forms sand grains, each a giant structure of silicon and oxygen

Polymers

Polymers are large molecules formed from repeating units:

  1. Structure:

    • Composed of many small units (monomers) linked together
    • Repeating sections in the molecule
  2. Bonding:

    • All atoms joined by covalent bonds
  3. Physical State:

    • Most are solid at room temperature
    • Stronger intermolecular forces than simple covalent molecules
  4. Boiling Points:

    • Generally lower than ionic or giant molecular compounds
    • Intermolecular forces weaker than ionic or covalent bonds

Vocabulary: Monomers are the small, repeating units that make up a polymer.

Highlight: The properties of polymers, such as their strength and flexibility, can be tailored by altering the type and arrangement of monomers, making them versatile materials for various applications in everyday life.

ionic compounds
regular lattice structure
1) ionic compounds have a structure called an ionic lattice.
2) the ions form a closely packed reg

View

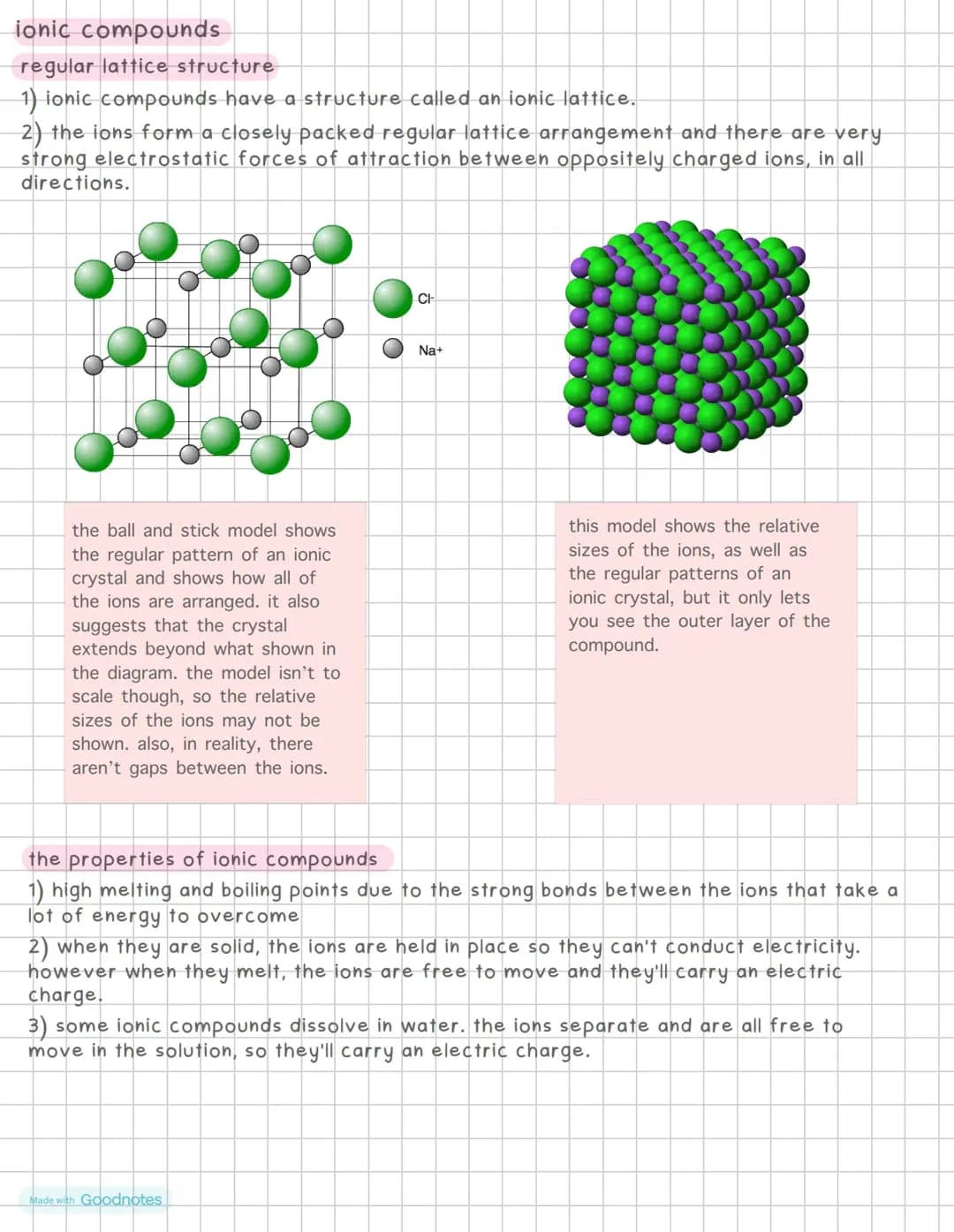

Ionic Compounds and Their Lattice Structure

Ionic compounds are characterized by their unique structural arrangement known as an ionic lattice. This structure plays a crucial role in determining the properties of these compounds.

Definition: An ionic lattice is a regular, three-dimensional arrangement of positively and negatively charged ions held together by strong electrostatic forces.

The ionic lattice structure is typically represented using two types of models:

  1. Ball and Stick Model:

    • Shows the regular pattern of the ionic crystal
    • Suggests the crystal extends beyond what's visible
    • Not to scale, so relative ion sizes may not be accurate
    • Doesn't accurately represent the lack of gaps between ions
  2. Space-Filling Model:

    • Displays the relative sizes of ions more accurately
    • Shows the regular patterns of the crystal
    • Limited to showing only the outer layer of the compound

Highlight: The strong electrostatic forces between oppositely charged ions in an ionic lattice contribute significantly to the properties of ionic compounds.

Properties of Ionic Compounds:

  1. High Melting and Boiling Points:

    • Due to strong bonds between ions
    • Requires substantial energy to overcome these bonds
  2. Electrical Conductivity:

    • Solid state: Non-conductive (ions are fixed in place)
    • Molten state: Conductive (ions are free to move and carry charge)
  3. Solubility:

    • Some ionic compounds dissolve in water
    • In solution, ions separate and move freely, carrying electric charge

Example: Sodium chloride (NaCl) is a classic example of an ionic compound. In its solid form, it doesn't conduct electricity, but when dissolved in water or melted, it becomes an excellent conductor due to the mobility of its ions.
