Types of Covalent Structures

This page discusses the different types of substances that can be formed through covalent bonding, including simple molecular substances and larger structures like polymers and giant covalent structures.

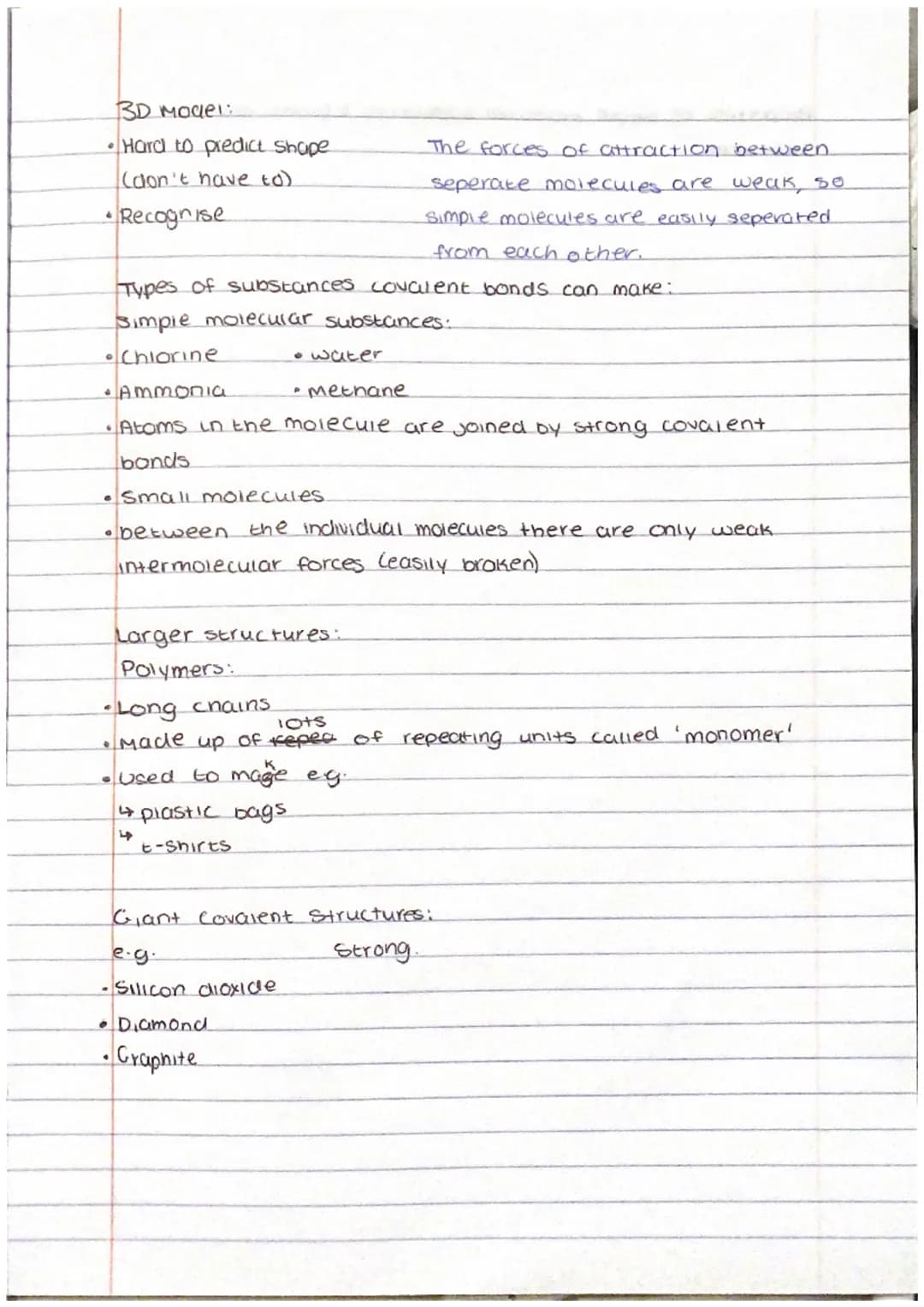

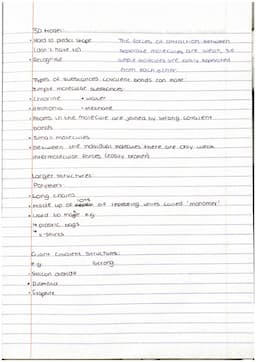

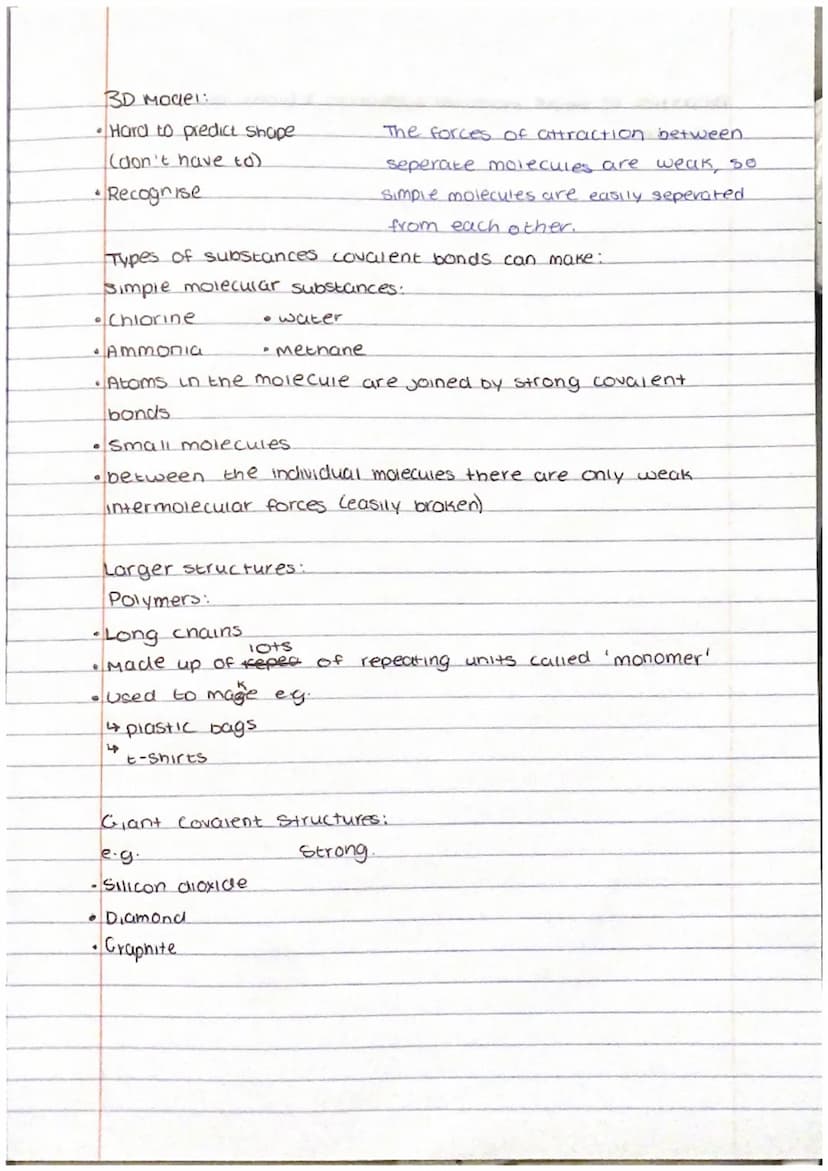

Simple molecular substances are compounds composed of small molecules held together by strong covalent bonds within the molecule, but weak intermolecular forces between molecules.

Example: 10 examples of covalent bonds in simple molecular substances include chlorine, water, ammonia, methane, carbon dioxide, hydrogen chloride, oxygen, nitrogen, hydrogen, and ethanol.

These weak intermolecular forces make simple molecular substances easy to separate, affecting their physical properties such as low melting and boiling points.

Larger covalent structures include polymers and giant covalent structures:

1. Polymers are long chains made up of repeating units called monomers. They are used in various applications such as plastic bags and t-shirts.

2. Giant covalent structures examples include silicon dioxide, diamond, and graphite. These structures are characterized by their strength and unique properties.

Highlight: Properties of giant covalent structures include high melting points, hardness, and in some cases, the ability to conduct electricity.

Understanding the different types of covalent structures is crucial for predicting and explaining the properties of various materials in chemistry and materials science.

Vocabulary: Intermolecular forces are the weak attractions between separate molecules in simple molecular substances.

The study of these structures often involves the use of various models to represent molecular arrangements and bonding.

Definition: A ball and stick model is a type of molecular model where atoms are represented by spheres (balls) and bonds by rods (sticks), providing a clear visualization of molecular structure and bond angles.

Water Molecule: A Case Study in Covalent Bonding

This page focuses on the water molecule as an exemplar of covalent bonding, illustrating how atoms combine to form stable molecules through electron sharing.

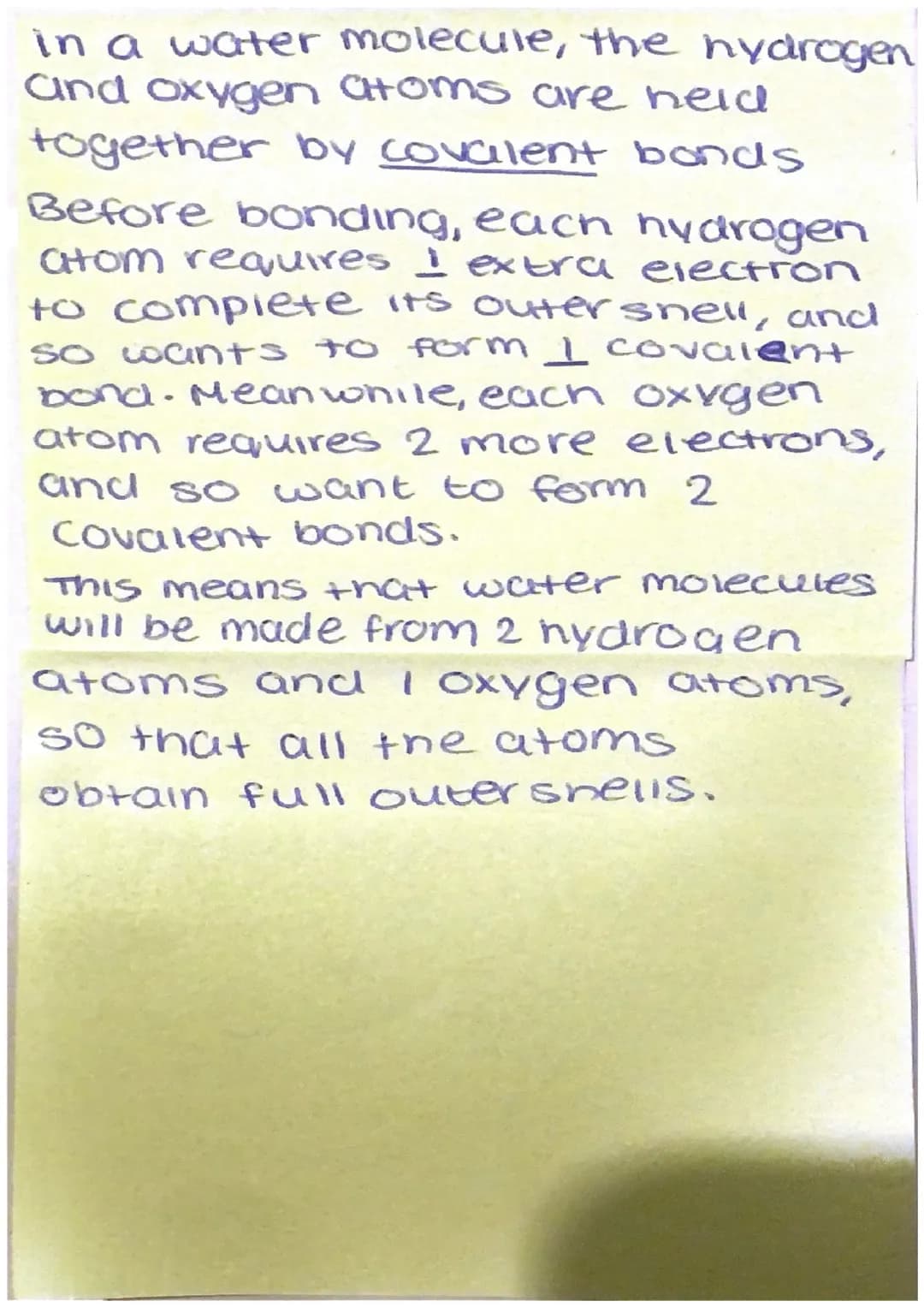

In a water molecule, hydrogen and oxygen atoms are held together by covalent bonds. The formation of these bonds is driven by the electron requirements of each atom:

1. Each hydrogen atom needs one extra electron to complete its outer shell, thus forming one covalent bond.
2. The oxygen atom requires two more electrons, leading to the formation of two covalent bonds.

Highlight: The resulting water molecule consists of two hydrogen atoms and one oxygen atom, with all atoms achieving full outer electron shells through covalent bonding.

This arrangement explains the well-known H₂O formula of water. The covalent bonds in water are responsible for many of its unique properties, including its ability to form hydrogen bonds with other water molecules.

Example: A ball-and-stick model of a water molecule would show the oxygen atom at the center with two hydrogen atoms attached at an angle of approximately 104.5°, clearly illustrating the bent shape of the molecule.

Understanding the covalent bonding in water is crucial for explaining its properties, such as its high boiling point relative to its molecular size, which is due to the strong hydrogen bonding between water molecules.

Vocabulary: Hydrogen bonding is a special type of intermolecular attraction that occurs in molecules where hydrogen is bonded to highly electronegative atoms like oxygen, nitrogen, or fluorine.

The study of water's molecular structure and bonding is fundamental in various scientific fields, from chemistry and biology to environmental science and materials engineering.

Covalent Bonding Basics

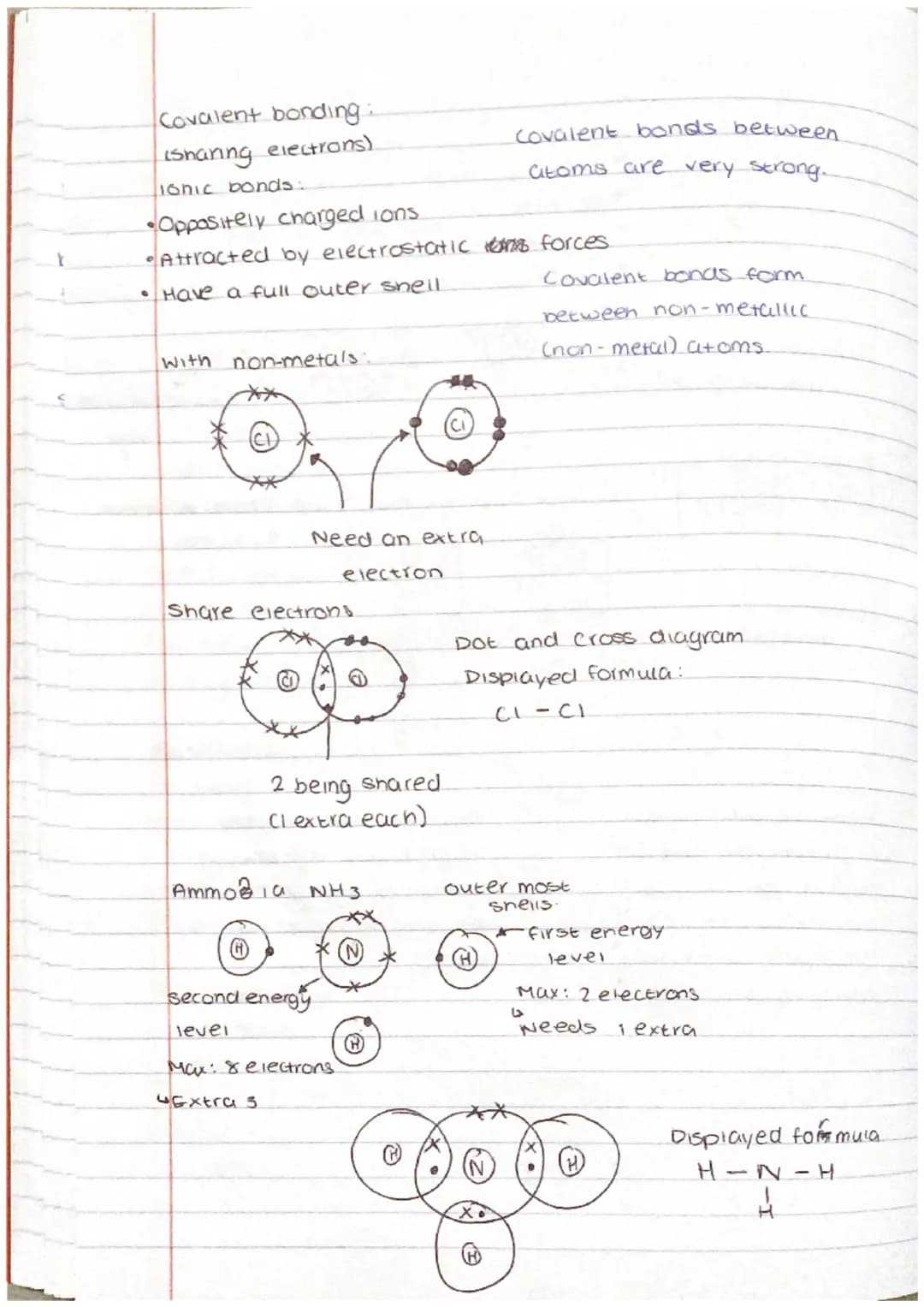

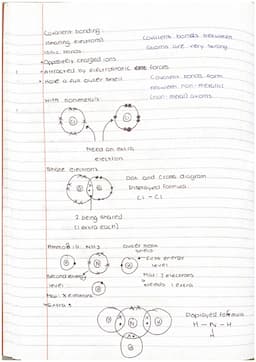

Covalent bonding is a type of chemical bonding that involves the sharing of electrons between atoms. This section explores the fundamental concepts of covalent bonding and its comparison to ionic bonding.

Definition: Covalent bonding is the sharing of electrons between atoms, typically non-metals, to achieve a stable electron configuration.

Covalent bonds are formed between two non-metals, unlike ionic bonds which form between metals and non-metals. In covalent bonding, atoms share electrons to complete their outer shells, resulting in stable molecules.

Highlight: The strength of covalent bonds within molecules is very high, making them difficult to break.

The formation of covalent bonds can be represented using dot and cross diagrams or displayed formulas. These visual representations help in understanding the electron arrangement in molecules.

Example: In a chlorine molecule (Cl₂), each chlorine atom shares one electron, forming a single covalent bond. This can be represented as Cl-Cl in a displayed formula.

Vocabulary: A displayed formula shows all the atoms and bonds in a molecule, providing a clear visual representation of its structure.

The number of covalent bonds an atom can form depends on its electron configuration. For instance, hydrogen typically forms one covalent bond, while carbon can form four.

Example: Ammonia (NH₃) consists of one nitrogen atom forming three covalent bonds with three hydrogen atoms. Its displayed formula would be H-N-H with one H above the N.

Understanding covalent bonding is crucial for predicting molecular structures and properties, which is essential in various fields of chemistry and materials science.
