Drawing Ionic Bonding and Compounds

This page delves into the specifics of drawing ionic bonds and compounds, focusing on the use of dot-and-cross diagrams to illustrate electron transfer.

Ionic Bonding Basics

Ionic bonding typically occurs between metals and non-metals due to their strong electrostatic attraction. This type of bonding is characterized by the transfer of electrons from one atom to another.

Definition: Ionic bonding is a type of chemical bonding that involves the electrostatic attraction between oppositely charged ions.

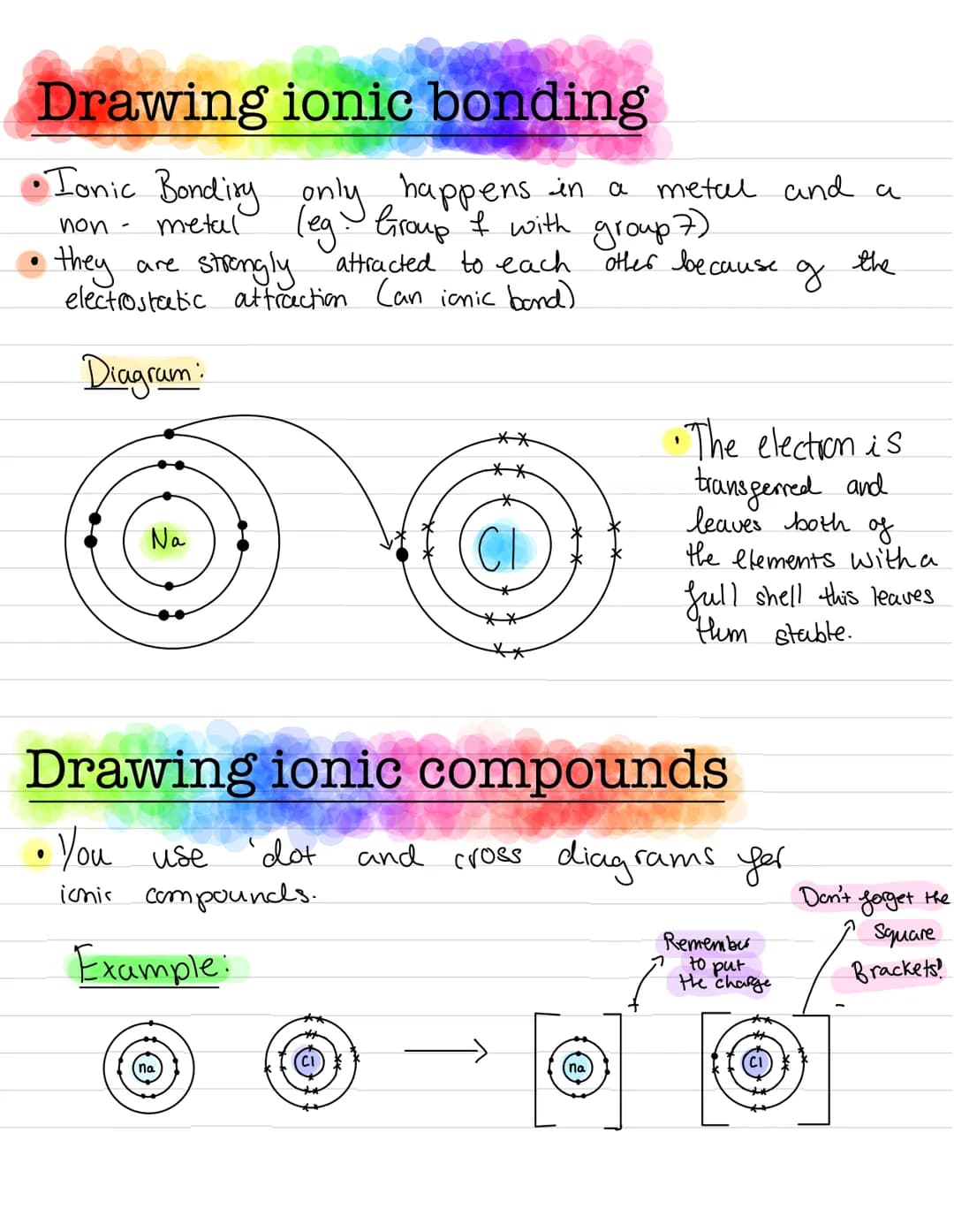

Creating Dot-and-Cross Diagrams

Dot-and-cross diagrams are used to visually represent the transfer of electrons in ionic compounds. These diagrams show how electrons are redistributed to achieve stable electron configurations for both elements involved.

Highlight: In a dot-and-cross diagram, dots (•) and crosses (×) represent electrons from different atoms.

Key Points for Drawing Ionic Compounds

Use dot-and-cross notation to show electron transfer
Indicate the transfer of electrons from the metal to the non-metal
Ensure both elements end up with full outer shells after electron transfer
Include square brackets around the resulting ions
Don't forget to add the appropriate charges to each ion

Example: In the sodium chloride (NaCl) example provided, the sodium atom loses one electron to the chlorine atom, resulting in Na⁺ and Cl⁻ ions.

This page provides essential information for those learning how to draw ionic bonds Lewis Structure and ionic bonding dot and cross diagram questions. It's an invaluable resource for students working on drawing ionic compounds with dot and cross diagrams worksheets.

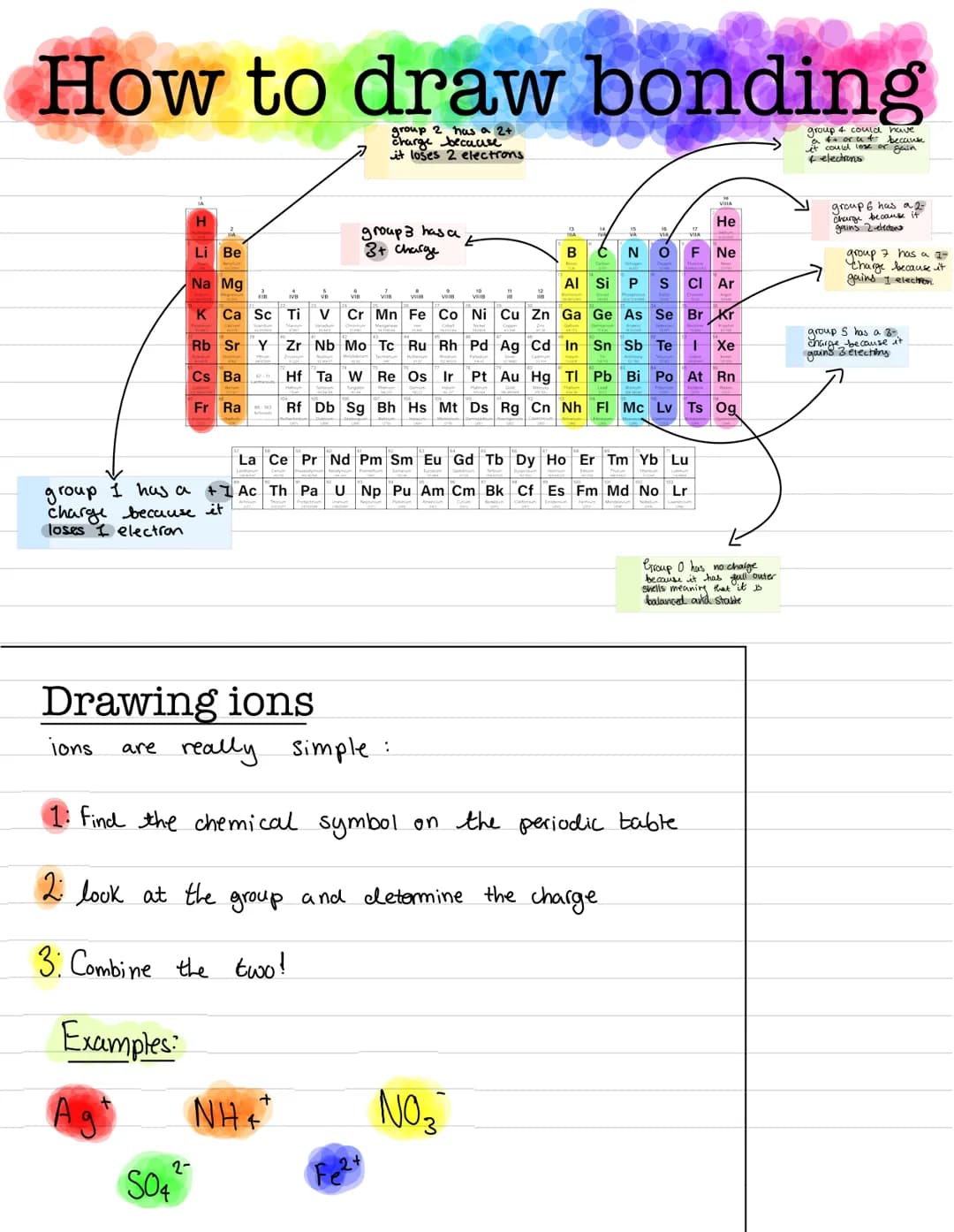

Understanding Charges and Drawing Ionic Bonds

This page provides a comprehensive guide on how to determine the charges of elements and draw ionic bonds. It focuses on the relationship between an element's position on the periodic table and its ionic charge.

Highlight: The periodic table is a crucial tool for understanding element charges and predicting ionic bonding behavior.

Element Charges Based on Group Numbers

Group 1 elements have a +1 charge (lose 1 electron)
Group 2 elements have a +2 charge (lose 2 electrons)
Group 3 elements have a +3 charge
Group 6 elements have a 2- charge (gain 2 electrons)
Group 7 elements have a 1- charge (gain 1 electron)

Vocabulary: Ions are atoms or molecules with a net electric charge due to the loss or gain of electrons.

Special Cases

Group 0 (noble gases) typically have no charge due to their full outer electron shells
Group 4 elements can have either a 4+ or 4- charge, depending on whether they lose or gain 4 electrons

Steps for Drawing Ions

Locate the chemical symbol on the periodic table
Determine the charge based on the element's group
Combine the symbol with the charge

Example: For silver (Ag), which is in Group 11, the ion would be Ag+

Common Polyatomic Ions

The page also mentions some common polyatomic ions:

SO₄²⁻ (sulfate ion)
NH₄⁺ (ammonium ion)
NO₃⁻ (nitrate ion)

Definition: Polyatomic ions are ions composed of multiple atoms bonded together with an overall electric charge.

This comprehensive guide provides a solid foundation for understanding charges on the periodic table GCSE and is an excellent resource for those learning how to draw ionic bonding steps step by step.
