Higher Biology Gene Expression & Protein Synthesis Notes with Diagrams

user profile picture
sarah@sarah______

Gene expression is a fundamental process in biology involving transcription...

1
of 4
Gene Expression - Higher Biology – page 1

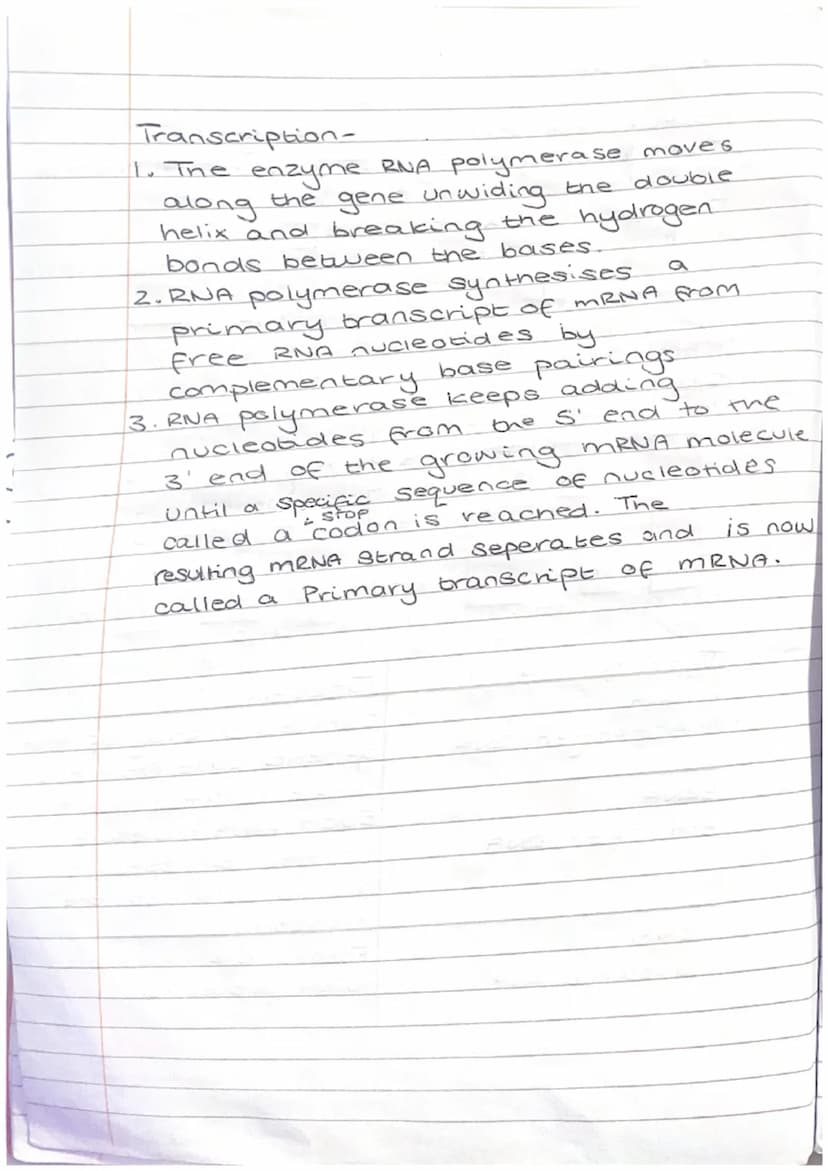

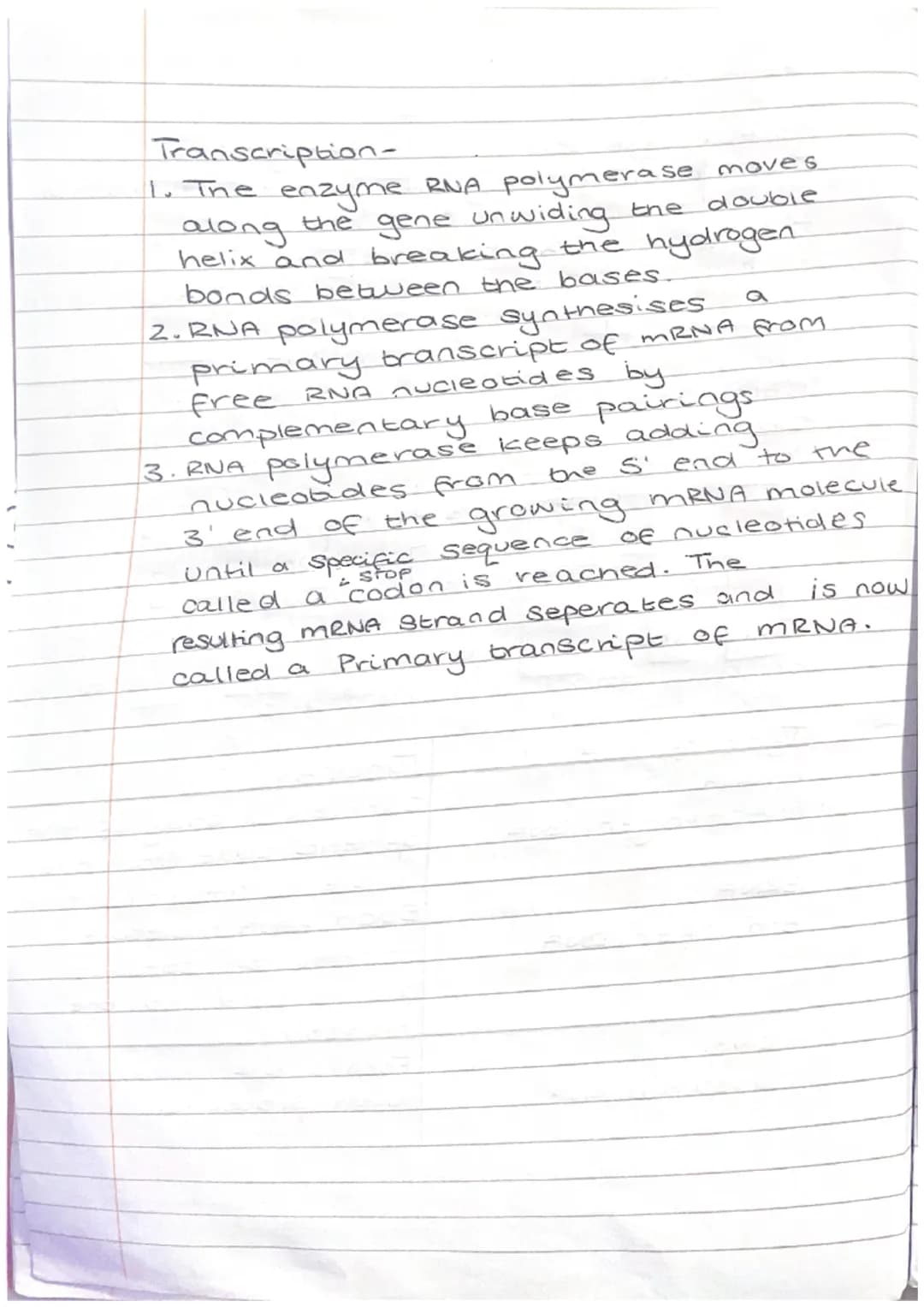

Transcription Process

The transcription and translation steps begin with the synthesis of mRNA. This process occurs in the nucleus and involves several key steps:

  1. RNA polymerase moves along the DNA, unwinding the double helix and breaking hydrogen bonds between bases.
  2. Free RNA nucleotides are added to the growing mRNA strand through complementary base pairing.
  3. The mRNA strand continues to grow from the 5' end to the 3' end until a specific sequence called a stop codon is reached.

Vocabulary: The primary transcript of mRNA is the initial RNA molecule produced during transcription, before any modifications.

The resulting mRNA strand, known as the primary transcript, separates from the DNA template. This primary transcript will undergo further processing before it can be used for protein synthesis.

Highlight: The direction of mRNA synthesis (5' to 3') is important for understanding the subsequent steps in protein synthesis higher Biology.

2
of 4
Gene Expression - Higher Biology – page 2

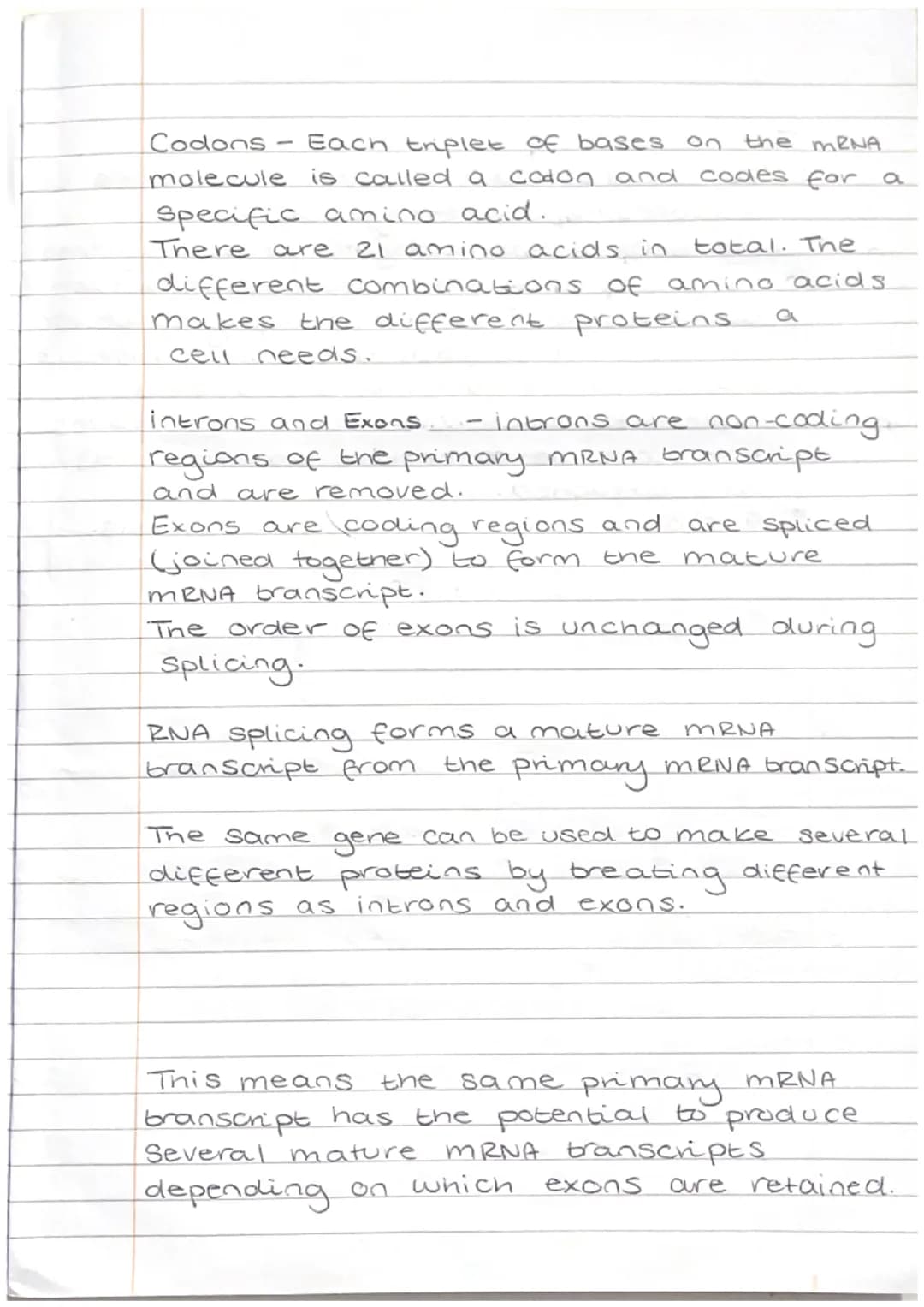

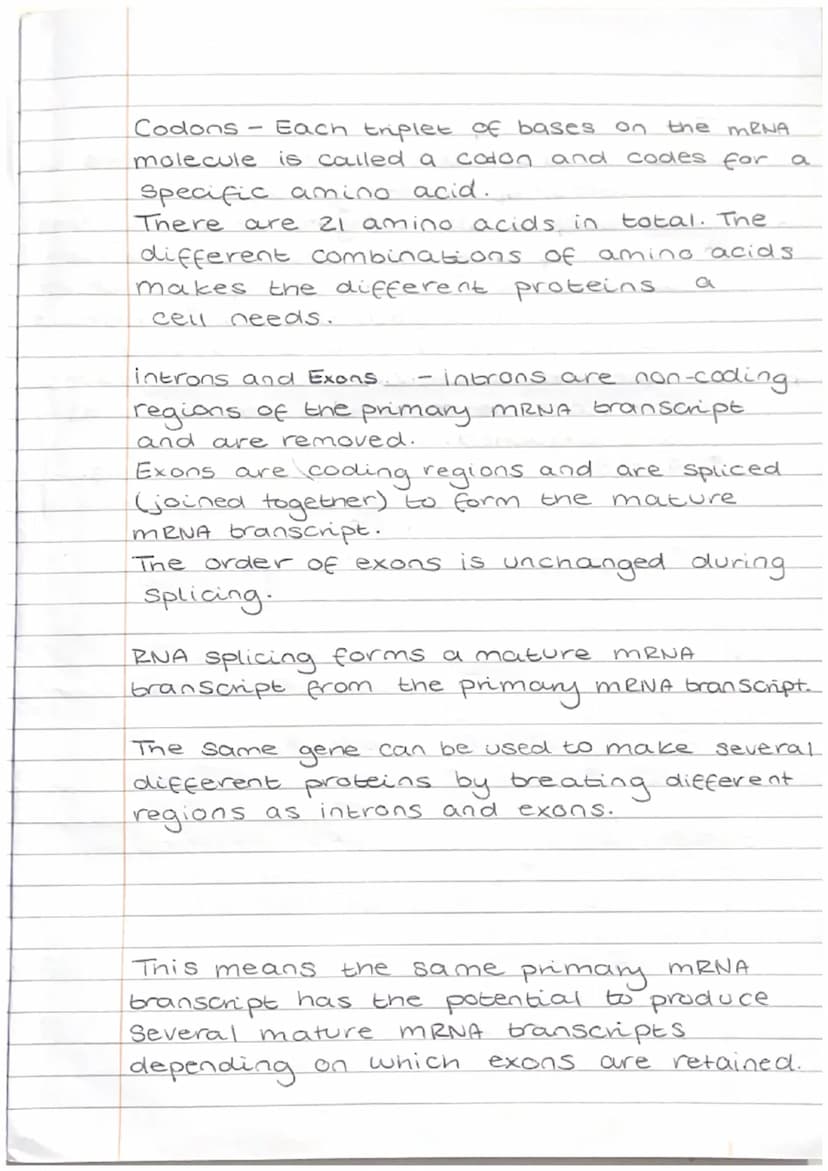

RNA Processing and Splicing

After transcription, the primary mRNA transcript undergoes processing to form the mature mRNA transcript. This process is crucial in Higher biology gene expression and involves:

  1. Identification of codons: Each triplet of bases on the mRNA molecule is called a codon and codes for a specific amino acid.

  2. Removal of introns and splicing of exons:

    • Introns are non-coding regions of the primary mRNA transcript and are removed.
    • Exons are coding regions that are spliced (joined together) to form the mature mRNA transcript.

Definition: RNA splicing is the process of removing introns and joining exons to form a mature mRNA transcript.

Highlight: The order of exons remains unchanged during splicing, ensuring the correct sequence for protein synthesis.

An important concept in gene expression is alternative splicing:

Example: The same gene can produce different proteins by treating different regions as introns and exons. This means a single primary mRNA transcript has the potential to produce several mature mRNA transcripts depending on which exons are retained.

This process of mRNA splicing and alternative splicing allows for greater protein diversity from a limited number of genes, highlighting the complexity of gene expression in higher organisms.

3
of 4
Gene Expression - Higher Biology – page 3

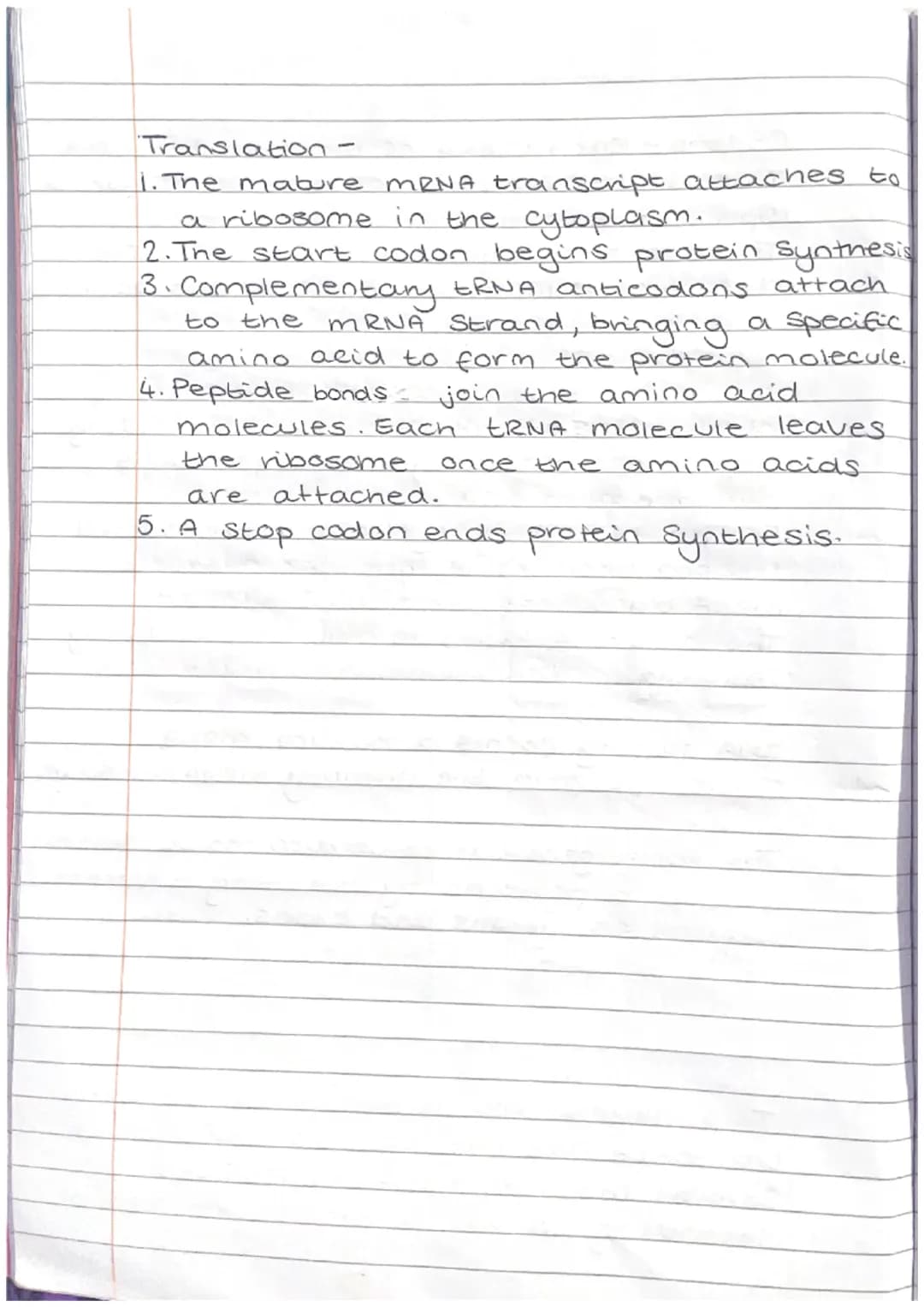

Translation Process

Translation is the second major stage in protein synthesis higher Biology. It occurs in the cytoplasm and involves the following steps:

  1. The mature mRNA transcript attaches to a ribosome in the cytoplasm.
  2. The start codon initiates protein synthesis.
  3. Complementary tRNA anticodons attach to the mRNA strand, bringing specific amino acids to form the protein molecule.
  4. Peptide bonds join the amino acid molecules. Each tRNA molecule leaves the ribosome once its amino acid is attached.
  5. A stop codon ends protein synthesis.

Vocabulary: Anticodons are sequences on tRNA molecules that are complementary to codons on mRNA.

Highlight: The ribosome plays a crucial role in translation by providing the site for mRNA and tRNA interaction and facilitating peptide bond formation.

This process of translation results in the synthesis of a specific protein based on the genetic information originally encoded in the DNA and transcribed into mRNA. Understanding these transcription and translation steps is fundamental to comprehending gene expression and protein synthesis in Higher Biology.

4
of 4
Gene Expression - Higher Biology – page 4

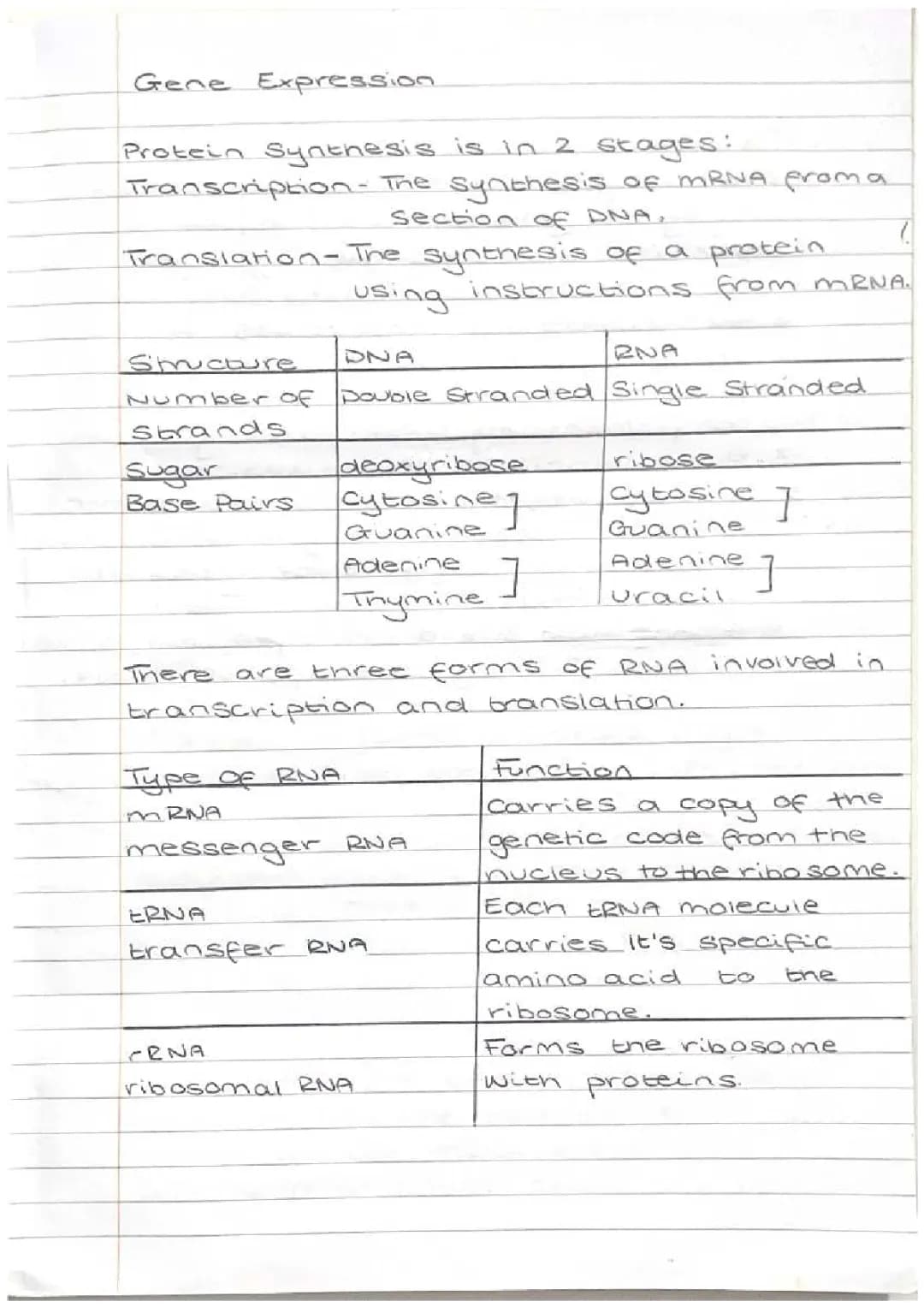

Transcription and RNA Structure

Transcription is the first stage of protein synthesis higher Biology, where mRNA is synthesized from a DNA template. This process involves RNA polymerase and occurs in the nucleus.

Definition: Transcription is the synthesis of mRNA from a section of DNA.

The structure of RNA differs from DNA in several key ways:

  • RNA is single-stranded, while DNA is double-stranded
  • RNA contains ribose sugar, whereas DNA has deoxyribose
  • RNA uses uracil instead of thymine as one of its bases

There are three types of RNA involved in gene expression:

  1. Messenger RNA (mRNA): Carries genetic information from DNA to ribosomes
  2. Transfer RNA (tRNA): Transports specific amino acids to ribosomes
  3. Ribosomal RNA (rRNA): Forms part of the ribosome structure

Highlight: Understanding the differences between DNA and RNA structure is crucial for comprehending the transcription and translation steps.
