BiologyBiology117 views·Updated May 21, 2026·1 page

Cellular Control Mindmap for OCR A-Level Biology

E
Ella Sanders@ellasanders_dvhk

Ever wondered how your DNA actually controls what proteins get... Show more

1
of 1

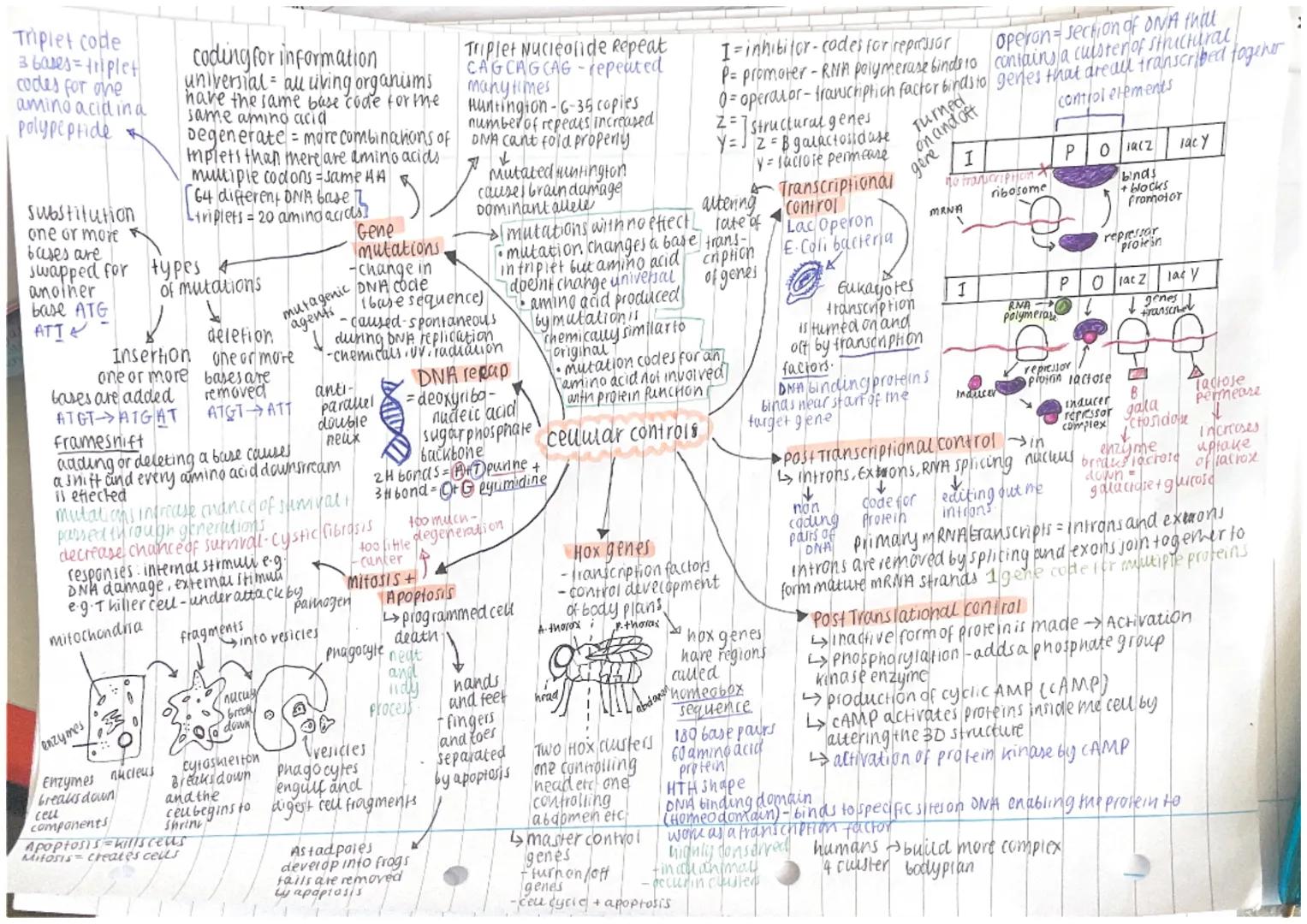

Triplet code
3 bases-triplet
codes for one
amino acid ina
polypeptide

substitution
one or more
bases are
swapped for types
another
base ATG

The Genetic Code and Mutations

The triplet code is brilliantly simple: every three DNA bases code for one amino acid in a protein. What's amazing is that this code is universal - the same triplet means the same amino acid whether you're a human, plant, or bacteria.

Here's where it gets interesting: there are 64 possible DNA triplets but only 20 amino acids. This means the code is degenerate - multiple triplets can code for the same amino acid, which actually protects us from some mutations.

Gene mutations happen when the DNA sequence changes, either spontaneously during replication or from external factors like UV radiation. Substitution swaps one base for another, whilst insertion and deletion add or remove bases. The scary ones are frameshift mutations - when insertions or deletions shift the entire reading frame, affecting every amino acid downstream.

Key insight: Some mutations have no effect at all - they might change a base but still code for the same amino acid, or produce a chemically similar amino acid that doesn't affect protein function.

Gene Regulation: The Lac Operon

Think of the lac operon as a molecular switch that E. coli bacteria use to control lactose processing. This operon contains clustered genes that work together, controlled by specific DNA sequences.

The system includes a promoter (where RNA polymerase binds), an operator (where the repressor binds), and structural genes that code for enzymes. When lactose is absent, a repressor protein blocks transcription. When lactose appears, it acts as an inducer, removing the repressor and allowing the genes to be transcribed.

This is transcriptional control - regulating gene expression by controlling when transcription happens. It's incredibly efficient because cells only make proteins when they're actually needed.

Advanced Gene Control in Eukaryotes

Eukaryotes have much more sophisticated control systems than bacteria. Transcription factors are DNA-binding proteins that can turn genes on or off by binding near the start of target genes.

Post-transcriptional control involves RNA splicing - removing non-coding sequences called introns and joining the coding exons together. This allows one gene to produce multiple different proteins depending on how it's spliced.

Post-translational control modifies proteins after they're made. Phosphorylation adds phosphate groups to activate proteins, often triggered by cyclic AMP (cAMP), which acts as a cellular messenger to coordinate protein activation.

Remember: Gene regulation happens at multiple levels - during transcription, after transcription, and even after translation - giving cells incredible control over protein production.

Development and Cell Death

Hox genes are the master controllers of body plan development, acting as transcription factors that determine where your head, thorax, and abdomen develop. Humans have four Hox clusters that create our complex body structure.

Apoptosis (programmed cell death) is just as important as cell growth. It's how your fingers and toes separated during development and how tadpoles lose their tails when becoming frogs.

During apoptosis, cells respond to internal or external signals by systematically breaking down. The nucleus fragments, mitochondria break into vesicles, and phagocytes clean up the cellular debris. This controlled process is essential for proper development and removing damaged cells.
