Atomic Structure Diagram and Nuclear Symbols

This section explores the visual representation of atomic structure and the use of nuclear symbols to convey important information about elements.

Structure of an Atom Diagram

A typical structure of atom diagram includes:

• The nucleus at the center, containing protons and neutrons
• Electron shells surrounding the nucleus, representing the orbits of electrons

Highlight: The electron shells are not to scale in most diagrams, as they would be much larger relative to the nucleus in reality.

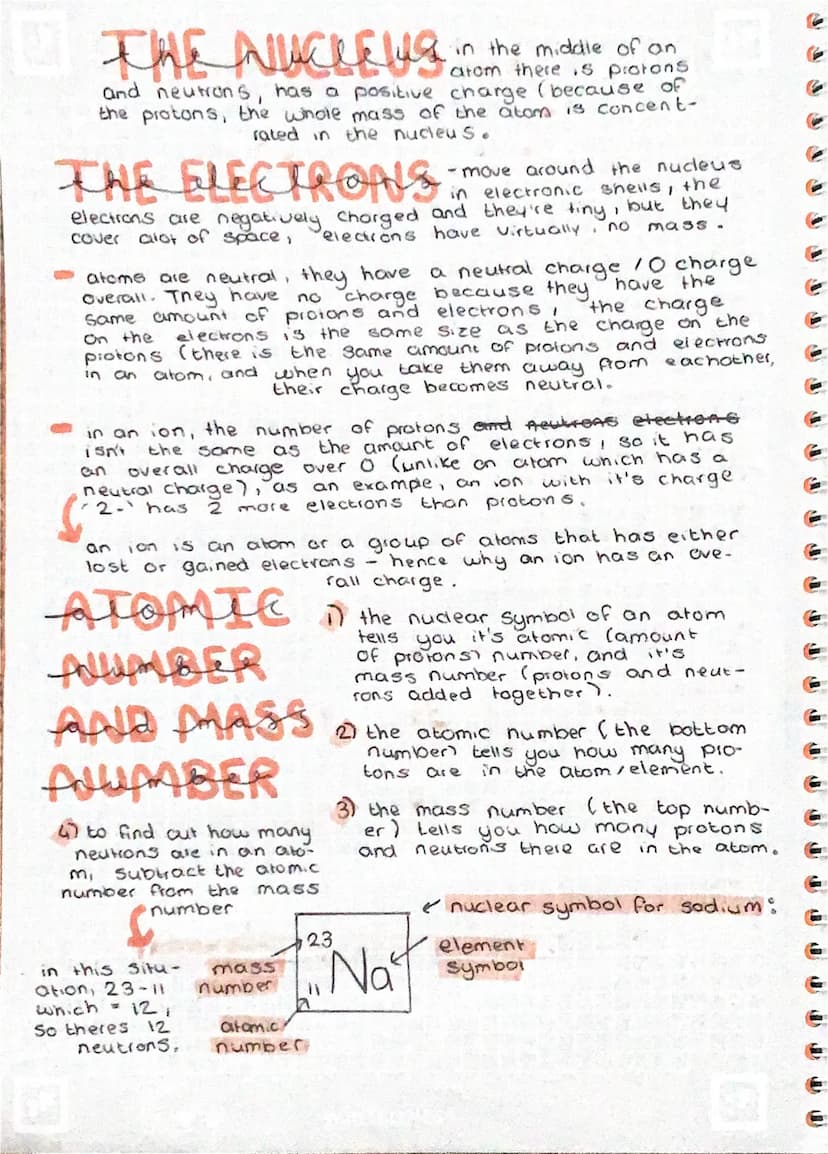

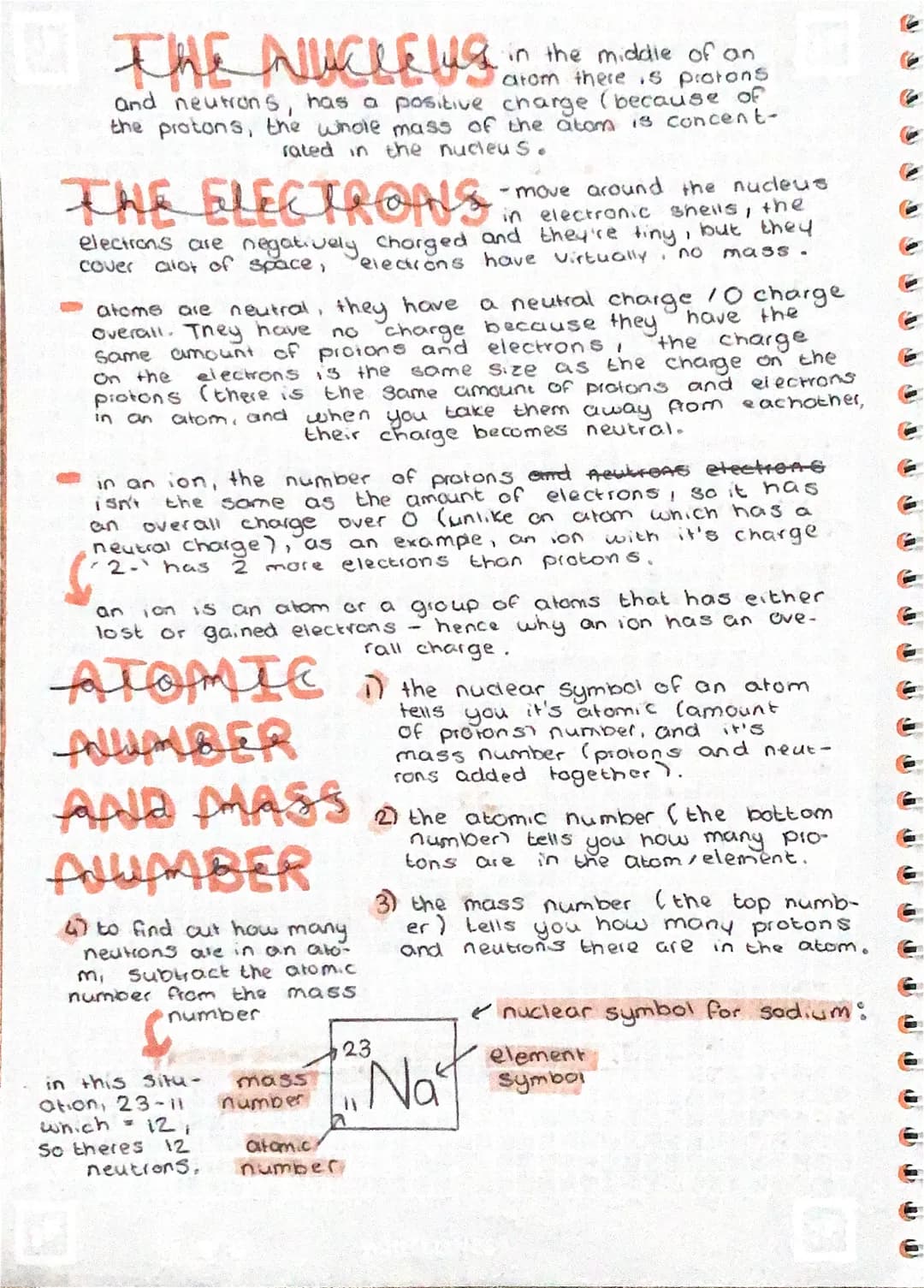

Nuclear Symbols

Nuclear symbols provide a concise way to represent the composition of an atom's nucleus.

Definition: A nuclear symbol is a shorthand notation that shows the number of protons and neutrons in an atom's nucleus.

The format of a nuclear symbol is:

   A
 X
   Z

Where:

• X is the element symbol
• A is the mass number (protons + neutrons)
• Z is the atomic number (number of protons)

Example: The nuclear symbol for sodium is:

  23
Na
  11

This symbol indicates that sodium has 11 protons and 12 neutrons $23 - 11 = 12$.

Importance of Understanding Atomic Structure

Grasping the concepts of atomic structure is crucial for students in various science classes, from Class 7 through Class 10 and beyond. It forms the foundation for understanding chemical reactions, periodic trends, and more advanced topics in chemistry and physics.

Highlight: Knowledge of atomic structure is essential for comprehending how elements combine to form compounds and how chemical reactions occur.

By mastering these concepts, students will be well-prepared to tackle more complex topics in chemistry and physics, making this guide an invaluable resource for those studying atomic structure KS3 or preparing for higher-level courses.

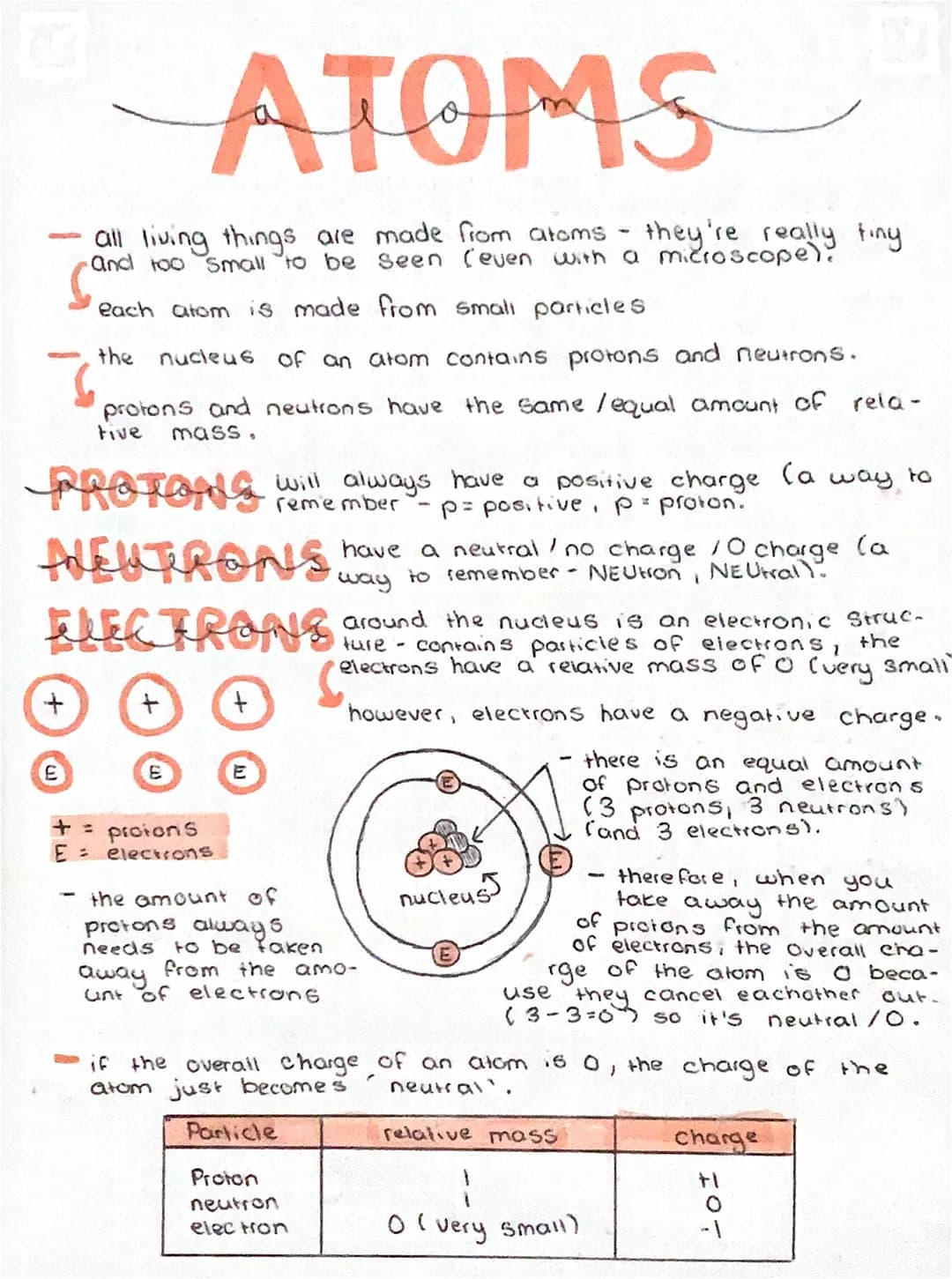

Atoms and Their Fundamental Particles

Atoms are the building blocks of all matter, including living things. They are incredibly small, beyond the reach of even powerful microscopes. Each atom is composed of three main types of particles: protons, neutrons, and electrons.

Definition: An atom is the smallest unit of matter that retains the properties of an element.

The Nucleus

The nucleus is the dense central core of an atom, containing protons and neutrons.

Highlight: The nucleus contains nearly all of the atom's mass and has a positive charge due to the presence of protons.

Protons

• Positively charged particles
• Located in the nucleus
• Have a relative mass of 1

Vocabulary: Protons are subatomic particles with a positive electric charge.

Neutrons

• Neutral particles (no charge)
• Located in the nucleus alongside protons
• Have a relative mass of 1

Example: The term "neutron" comes from "neutral," reflecting its lack of electric charge.

Electrons

• Negatively charged particles
• Orbit the nucleus in electron shells
• Have a negligible mass (relative mass of 0)

Highlight: Electrons are much smaller than protons and neutrons but occupy a large space around the nucleus.

Atomic Structure and Charge

In a neutral atom, the number of protons equals the number of electrons, resulting in an overall neutral charge.

Definition: The atomic number of an element is equal to the number of protons in its nucleus.

Calculating Particles

To determine the number of neutrons in an atom:

1. Identify the mass number (total protons and neutrons)
2. Subtract the atomic number (number of protons) from the mass number

Example: For sodium (Na) with mass number 23 and atomic number 11, the number of neutrons is 23 - 11 = 12.

Ions: Charged Atoms

Ions are atoms or groups of atoms that have gained or lost electrons, resulting in a net electric charge.

Definition: An ion is an atom or molecule with a net electric charge due to the loss or gain of one or more electrons.

Example: An ion with a charge of -2 has two more electrons than protons.
