AQA A-Level Design Technology: Unit 1 - Comprehensive Theory Notes

Course Introduction

This is your guide to AQA Design Technology Unit 1, covering everything you need to know about paper and board materials. You'll explore how these versatile materials are manufactured, their key properties, and why designers choose specific types for different applications.

The unit focuses on practical knowledge that directly applies to your coursework and exam preparation. Master these concepts and you'll be able to justify material choices confidently in any design project.

Quick Tip: This unit builds the foundation for understanding all materials in design technology, so getting these basics right will boost your performance across the entire course.

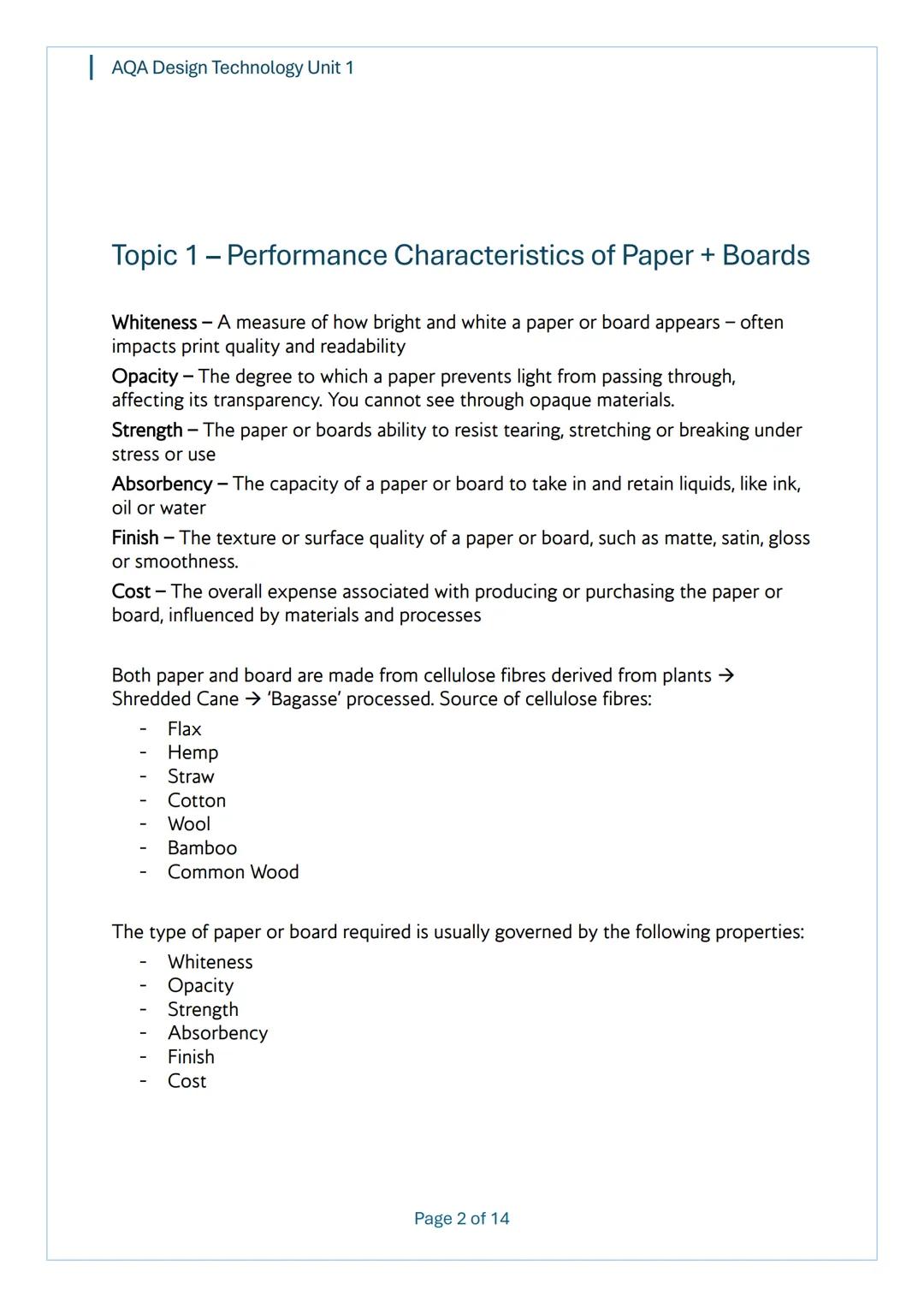

Performance Characteristics of Paper and Board

Ever wondered why some packaging feels premium whilst others seem cheap? It all comes down to six key performance characteristics that determine how paper and board behave in real-world applications.

Whiteness affects how vibrant your printed colours appear and impacts overall print quality. Opacity determines whether you can see through the material - crucial for things like envelopes or packaging where contents need hiding. Strength measures resistance to tearing and breaking under stress, whilst absorbency controls how much liquid the material soaks up.

The finish creates the surface texture - from smooth matte to shiny gloss - and significantly affects the material's appearance and feel. Finally, cost influences which materials designers can actually use in commercial products.

Both paper and board start life as cellulose fibres from plants like wood, bamboo, cotton, or even straw. These get processed into 'bagasse' before becoming the materials we use daily.

Remember: These six properties work together - improving one often affects another, so designers must balance competing requirements.

Manufacturing Process and Quality Control

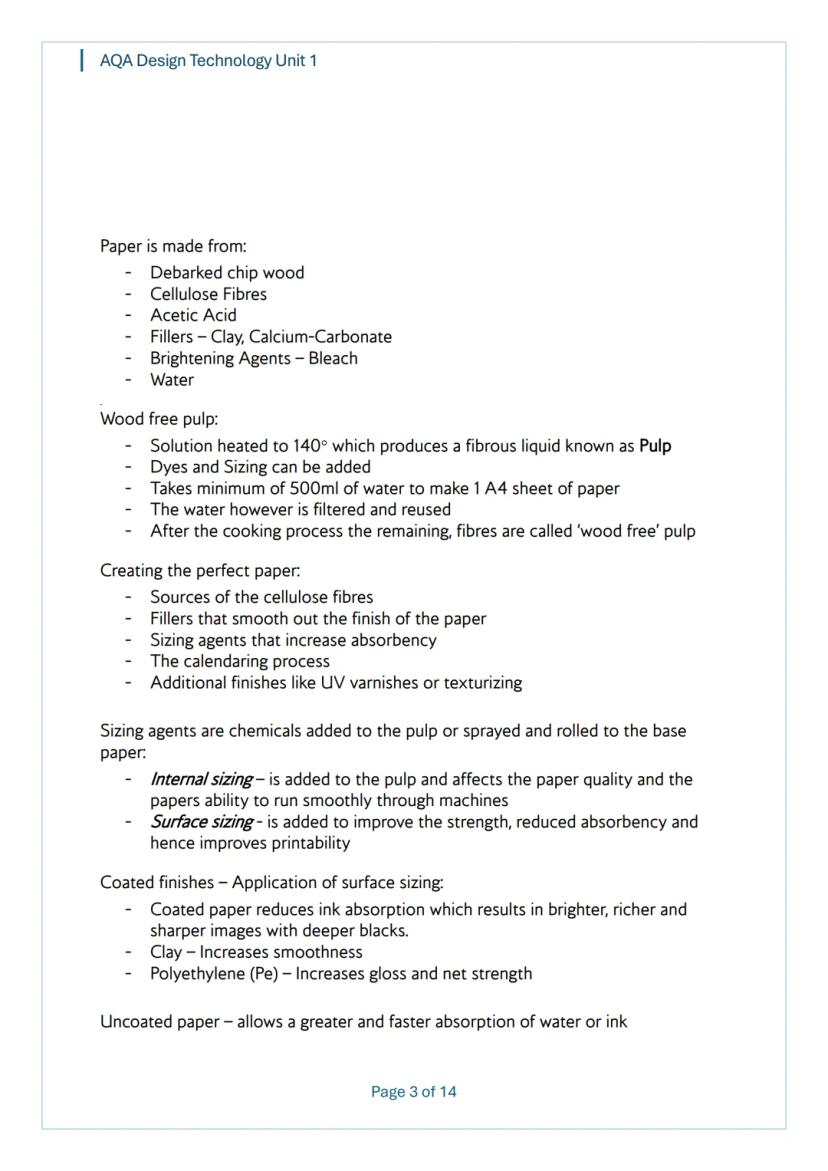

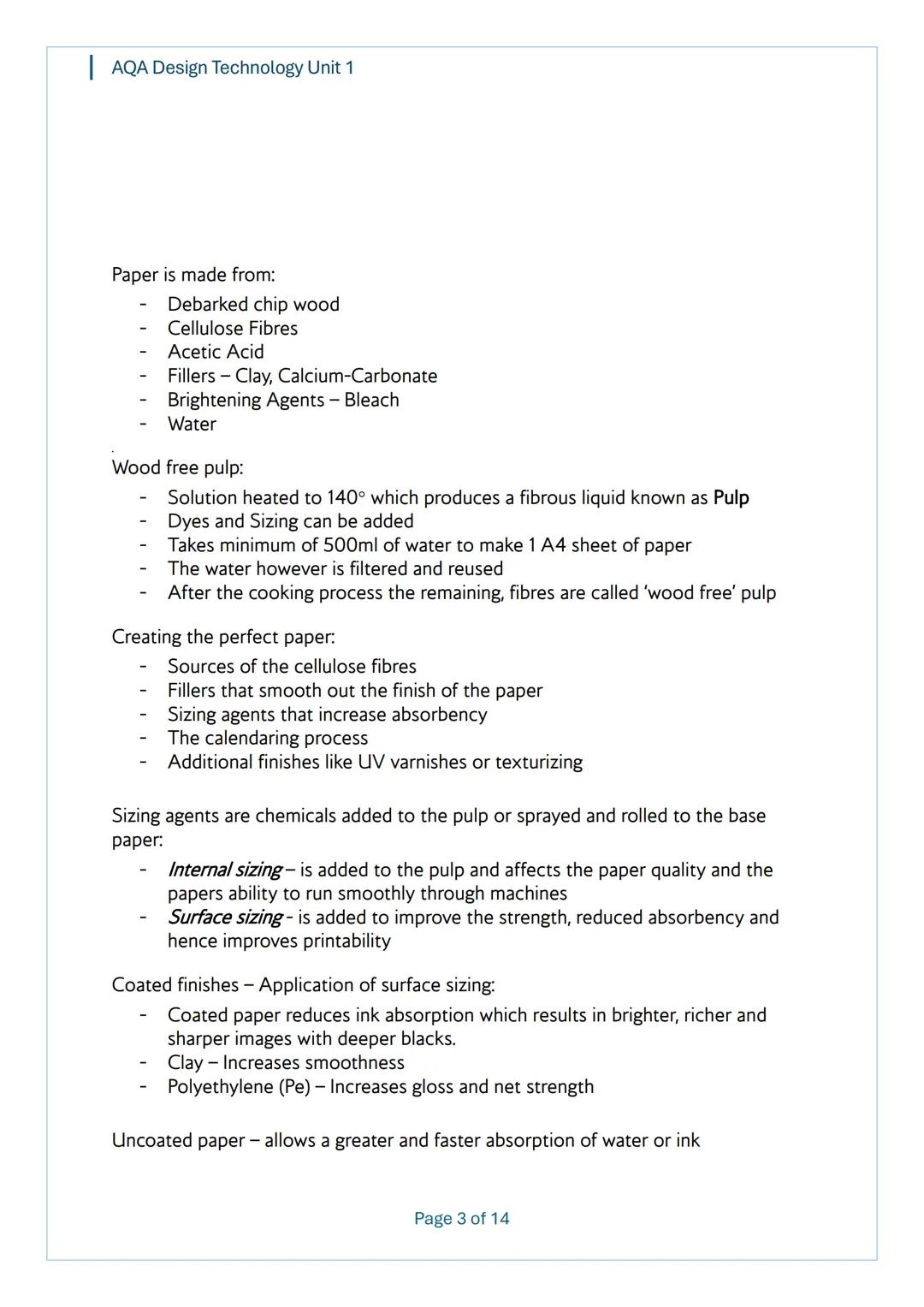

Making paper involves more chemistry than you might expect! Wood-free pulp gets created by heating debarked wood chips with cellulose fibres and acetic acid to 140°C, producing a fibrous liquid that becomes your finished paper.

Fillers like clay smooth out the surface, whilst sizing agents control absorbency - either mixed into the pulp (internal sizing) or applied to the surface later. It takes a whopping 500ml of water to make just one A4 sheet, though this water gets filtered and reused.

Coated finishes prevent ink soaking in, creating brighter colours and sharper images. Clay increases smoothness whilst polyethylene adds gloss and strength. Uncoated paper absorbs ink faster, making colours appear duller but allowing more textured finishes.

The calendaring process and additional treatments like UV varnishes create the final surface quality, from matte to gloss finishes.

Exam Focus: You might need to explain why coated papers cost more but produce better print results - it's all about that surface treatment preventing ink absorption.

Testing Strength and Practical Applications

Tear resistance depends on four crucial factors that you absolutely need to remember for exams. The bonding between cellulose fibres, their individual strength, fibre length (longer equals stronger), and filler quality all determine how easily material rips.

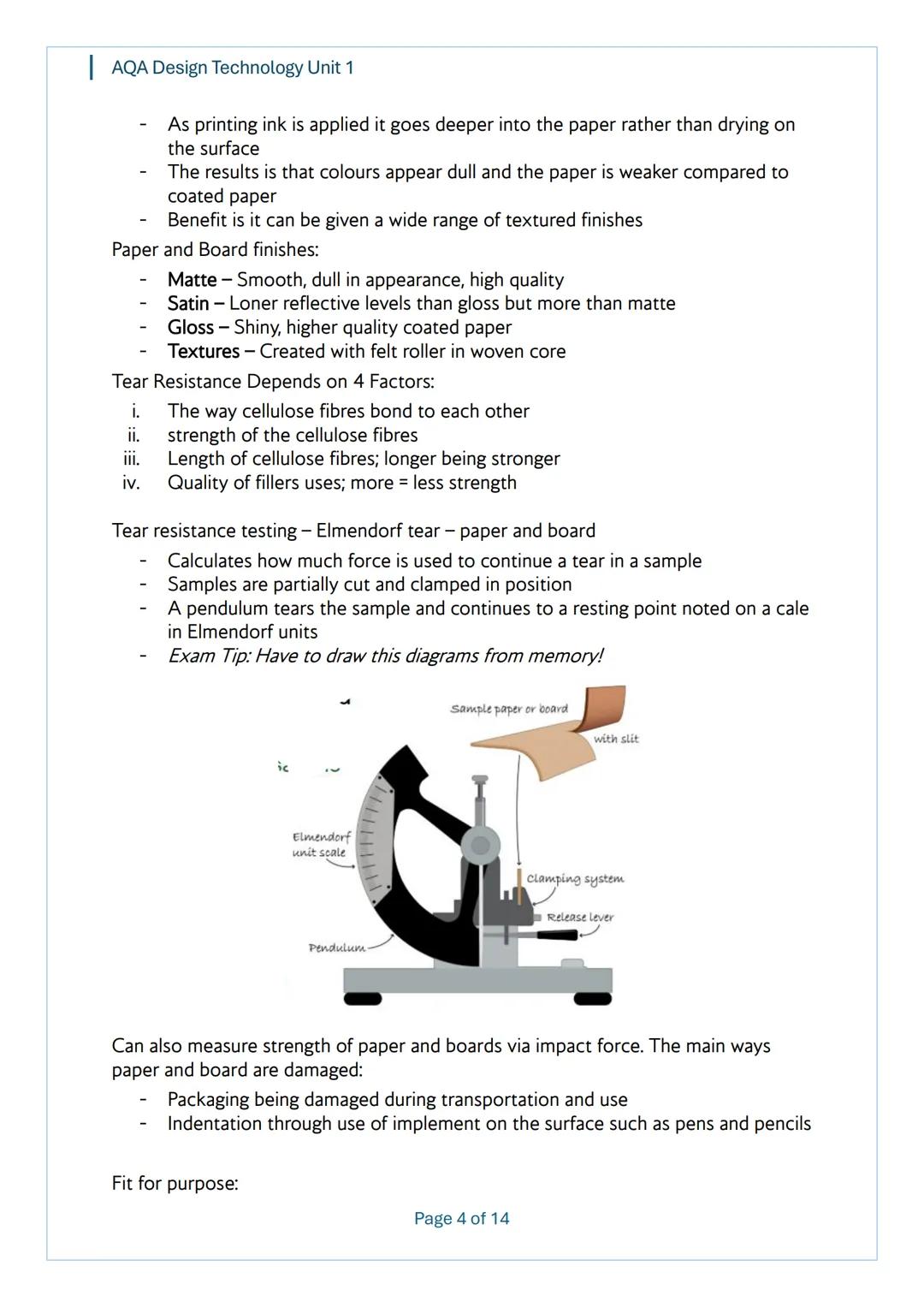

The Elmendorf tear test measures this scientifically - samples get partially cut, clamped in position, then torn by a pendulum. The force required gets measured in Elmendorf units, and yes, you might need to draw this diagram from memory in your exam!

Fit for purpose design considers weight (airmail needs lightweight paper), longevity (newsprint is single-use), and impact strength (corrugated board provides directional reinforcement for packaging).

Papers and boards get damaged through transportation, indentation from writing implements, and general handling - understanding these failure modes helps designers choose appropriate materials.

Exam Tip: Practice sketching the Elmendorf tear test setup - it's a common diagram question that catches students off guard!

Industrial Processing Techniques

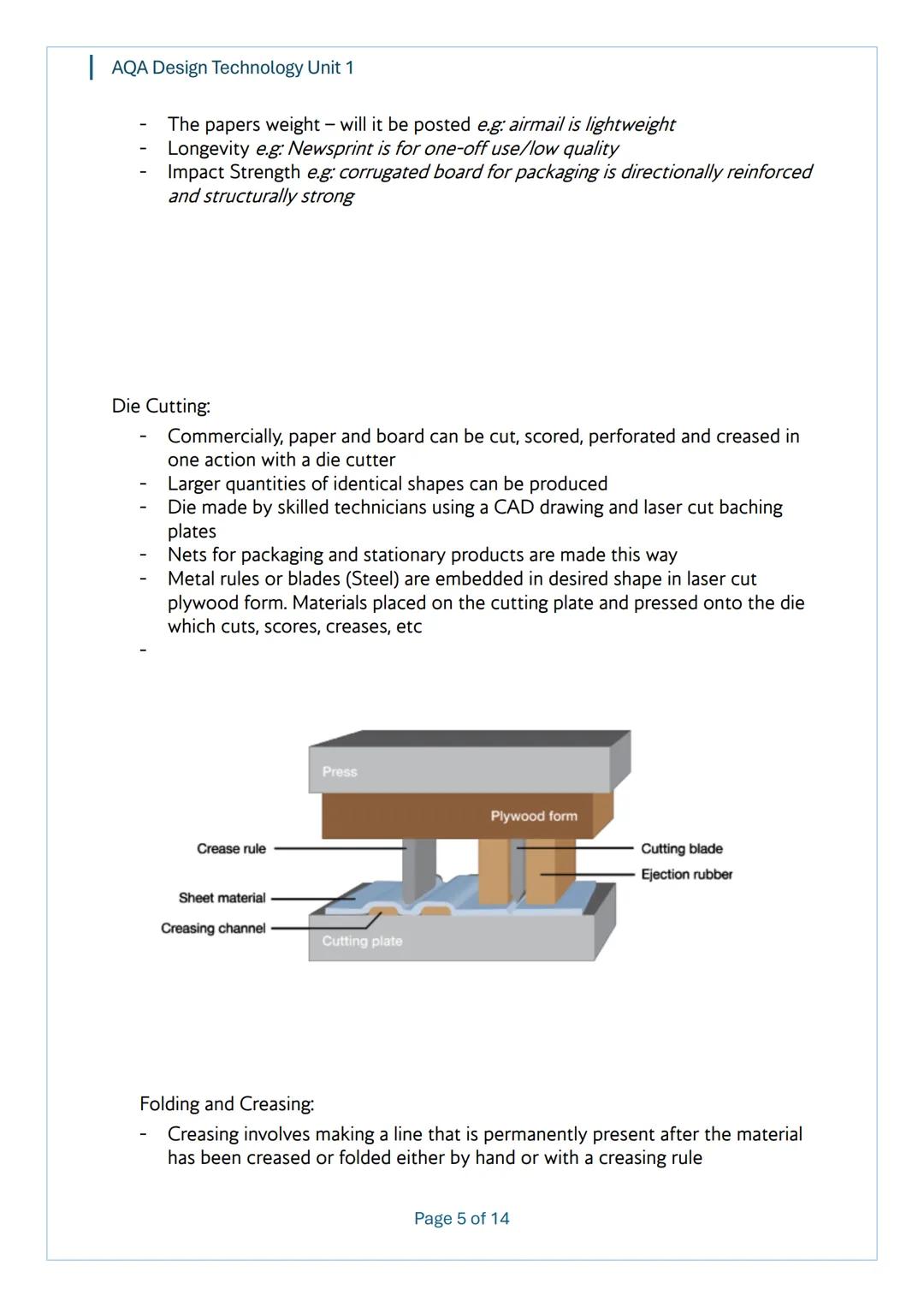

Die cutting revolutionises commercial production by cutting, scoring, perforating, and creasing materials in one swift action. Skilled technicians create dies using CAD drawings and laser-cut backing plates, embedding steel rules in plywood forms to shape thousands of identical pieces efficiently.

Creasing permanently crushes cellulose fibres to create fold lines, whilst folding shapes materials into boxes, envelopes, or pamphlets. Scoring cuts partway through material, creating sharp edges that articulate accurately without going completely through.

Perforations - those tiny cuts in stamps or tear-off coupons - allow portions to separate cleanly and accurately. Each technique serves specific purposes and gets chosen based on the final product requirements.

Industrial folding creates complex 3D shapes from flat materials, transforming simple sheets into functional packaging or products through clever engineering and precise processing.

Key Insight: Die cutting's efficiency makes it perfect for high-volume production - one action replaces multiple separate processes, saving time and money.

Paper and Board Classification Systems

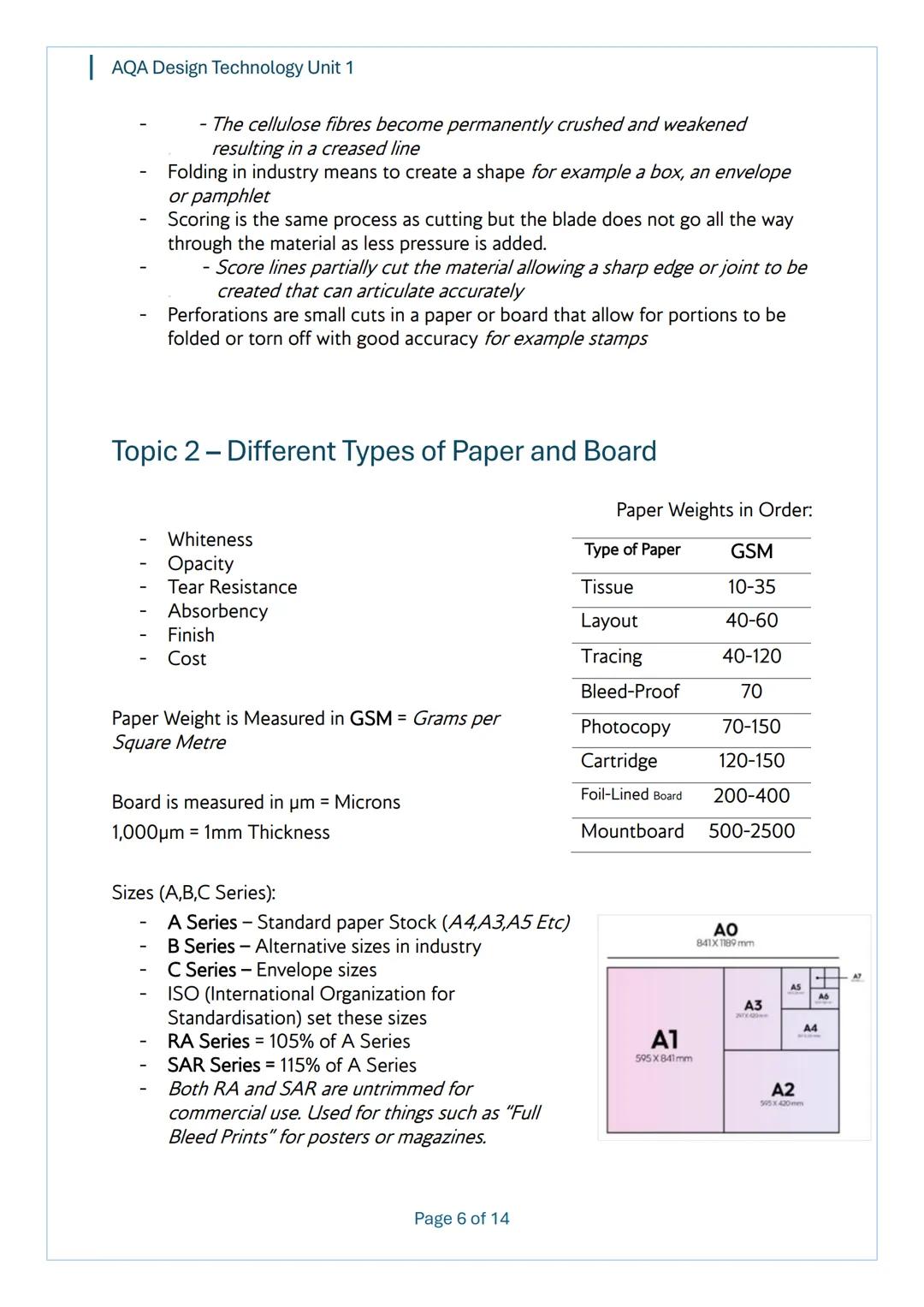

Weight measurement splits into two systems you must remember: GSM (grams per square metre) for paper and microns (µm) for board thickness, where 1,000µm equals 1mm. This isn't arbitrary - it reflects how each material gets specified in industry.

ISO paper sizes follow logical patterns - A Series covers standard stock (A4, A3, A5), B Series provides alternative industrial sizes, and C Series handles envelopes. RA Series (105% of A Series) and SRA Series (115% of A Series) remain untrimmed for commercial printing.

Paper weights range from delicate tissue $10-35 GSM$ through layout paper $40-60 GSM$ to sturdy cartridge paper $120-150 GSM$. Once you hit 220 GSM, materials typically get classified as card rather than paper.

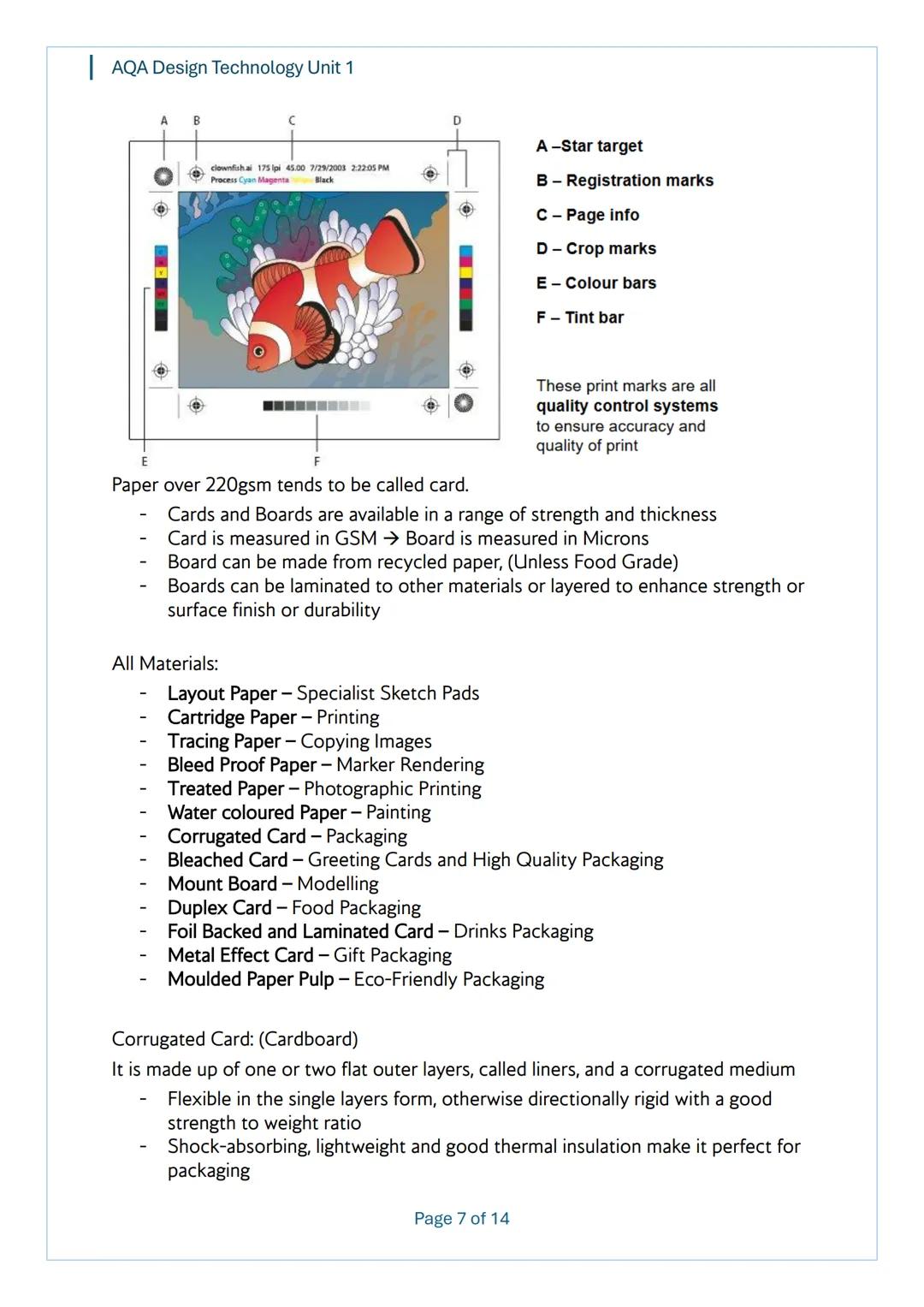

Print marks - those mysterious symbols around printed materials - provide quality control, including registration marks, crop marks, and colour bars that ensure accuracy and consistency.

Memory Trick: Remember that anything over 220 GSM becomes 'card' - it's the magic number that separates paper from heavier materials.

Specialist Paper Types and Applications

Different papers solve specific design problems, and knowing which to choose separates good designers from great ones. Layout paper works perfectly for specialist sketch pads, whilst cartridge paper handles general printing needs with its versatile surface.

Tracing paper enables image copying and overlaying, bleed-proof paper prevents marker rendering disasters, and treated photographic paper produces sharp, vibrant images. Each gets engineered for its specific application.

Corrugated card dominates packaging through clever engineering - flat outer layers sandwich a corrugated medium, creating flexibility in one direction but rigidity in another. This anisotropic property (strong one way, weak another) makes it perfect for boxes.

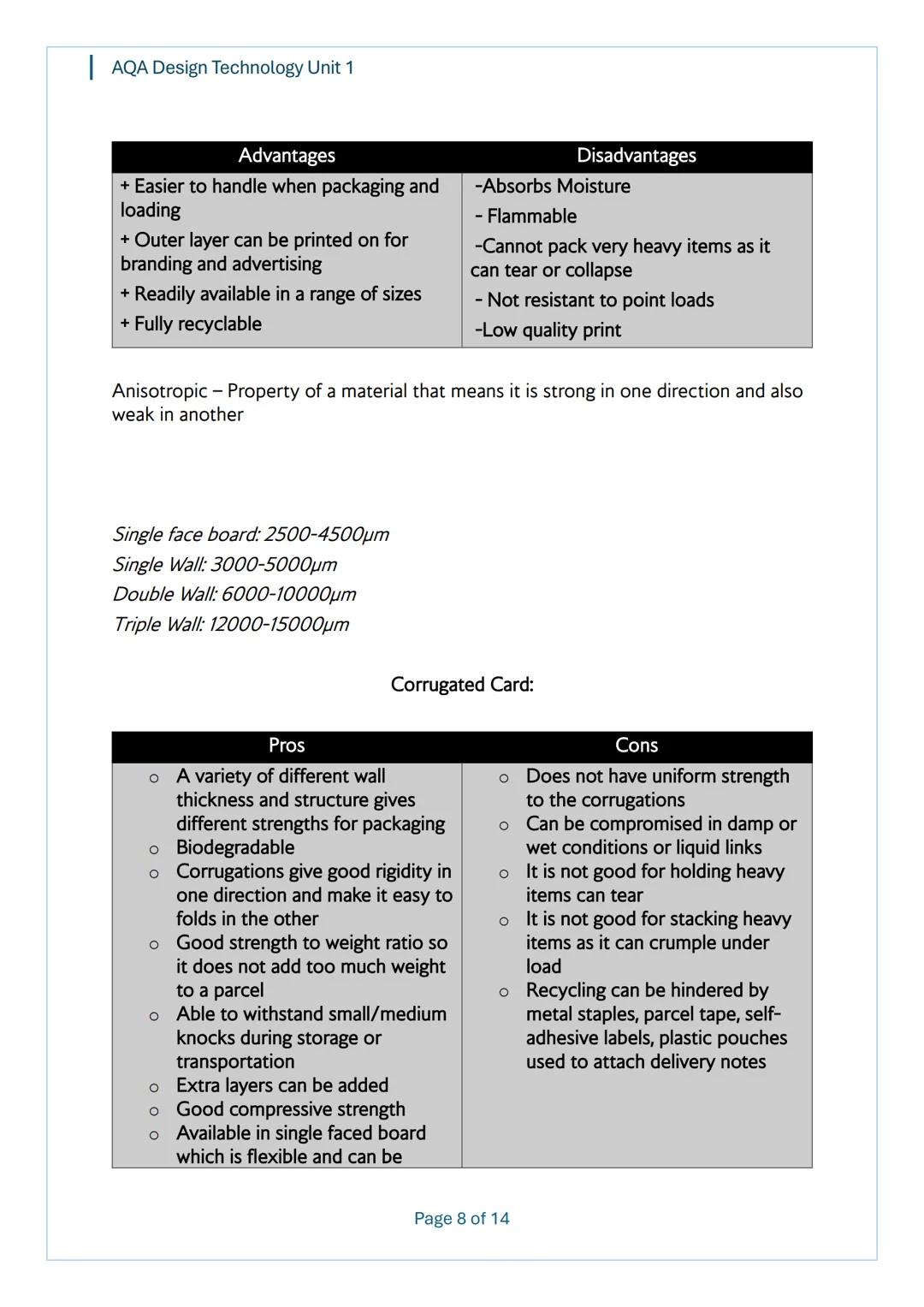

Wall thickness varies dramatically: single face $2500-4500µm$, single wall $3000-5000µm$, double wall $6000-10000µm$, and triple wall $12000-15000µm$ each serve different strength requirements.

Design Tip: Corrugated card's directional strength means orientation matters hugely - place corrugations vertically for maximum compression strength in packaging.

Corrugated Card Properties and Limitations

Corrugated cardboard excels at packaging because it combines multiple advantages: easy handling, printable surfaces for branding, wide size availability, and complete recyclability. Its anisotropic nature provides excellent rigidity in one direction whilst remaining flexible in another.

The corrugated structure creates outstanding compressive strength and shock absorption whilst maintaining a brilliant strength-to-weight ratio. Single-faced board offers flexibility for wrapping, whilst multi-wall versions handle serious structural loads.

However, corrugated card has clear limitations. It absorbs moisture, making it vulnerable in damp conditions, and cannot handle heavy point loads without tearing or collapsing. The corrugated structure also limits print quality compared to solid boards.

Recycling challenges emerge from metal staples, plastic tape, adhesive labels, and attached delivery pouches that contaminate the recycling process.

Real-World Application: Understanding these limitations helps explain why premium products often use solid card packaging instead of corrugated alternatives.

Transparent and Semi-Transparent Papers

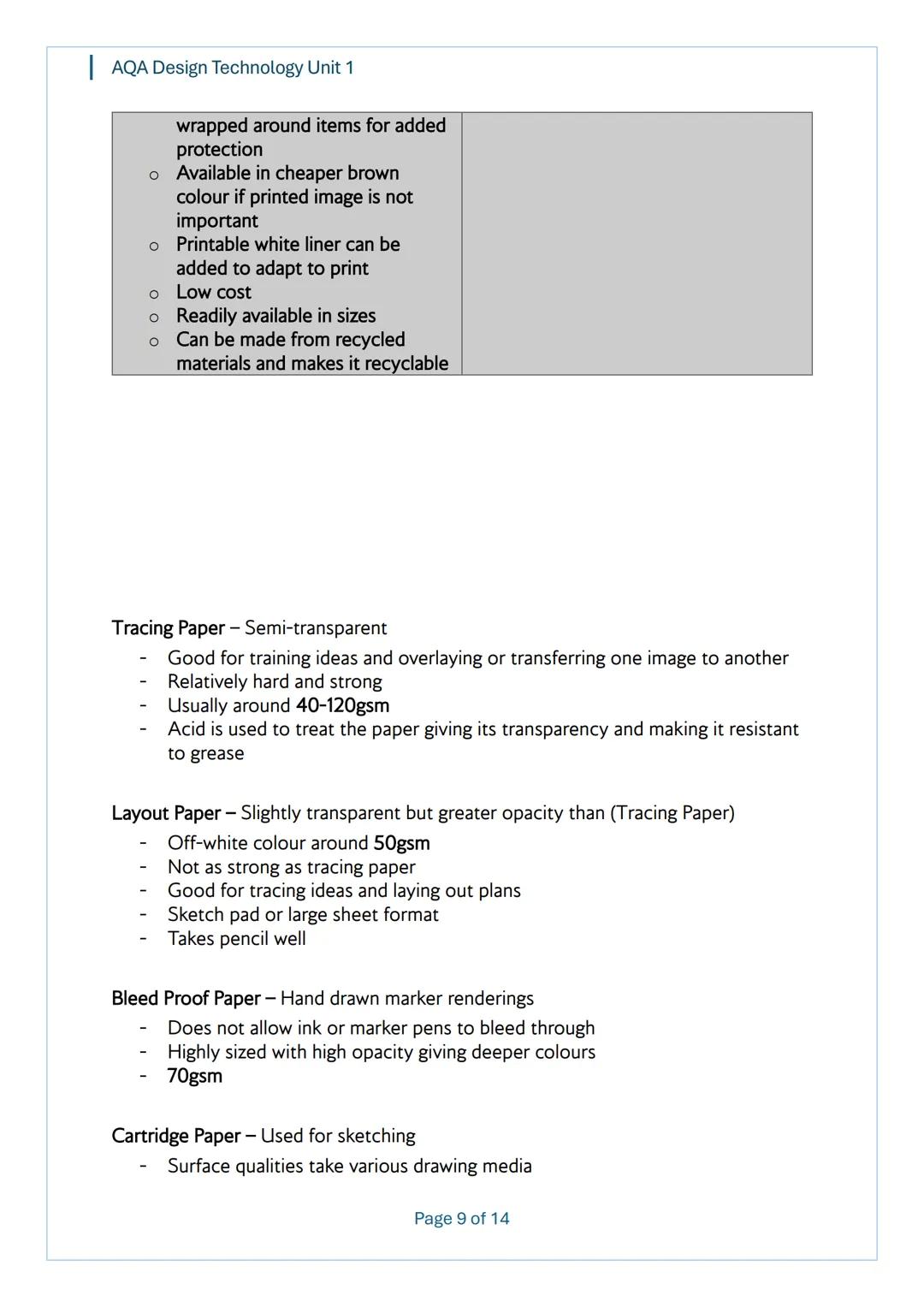

Tracing paper gets its semi-transparent quality from acid treatment, making it resistant to grease whilst maintaining strength around 40-120 GSM. It's perfect for transferring images and overlaying ideas during design development.

Layout paper offers slightly more opacity than tracing paper with its off-white colour and 50 GSM weight. Though not as strong as tracing paper, it excels for planning layouts and initial sketching work.

Bleed-proof paper solves a common designer frustration - marker pens bleeding through to other pages. Its highly sized surface with high opacity creates deeper, more vibrant colours at exactly 70 GSM.

Cartridge paper provides the versatile surface that art and DT departments rely on. Its slightly textured finish accepts pens, pencils, pastels, crayons, inks, and some paints, making it the go-to choice for general design work.

Practical Tip: Choose your paper based on your drawing tools - markers need bleed-proof, watercolours need absorbent, and general sketching works fine with cartridge paper.

Specialist Cards and Boards

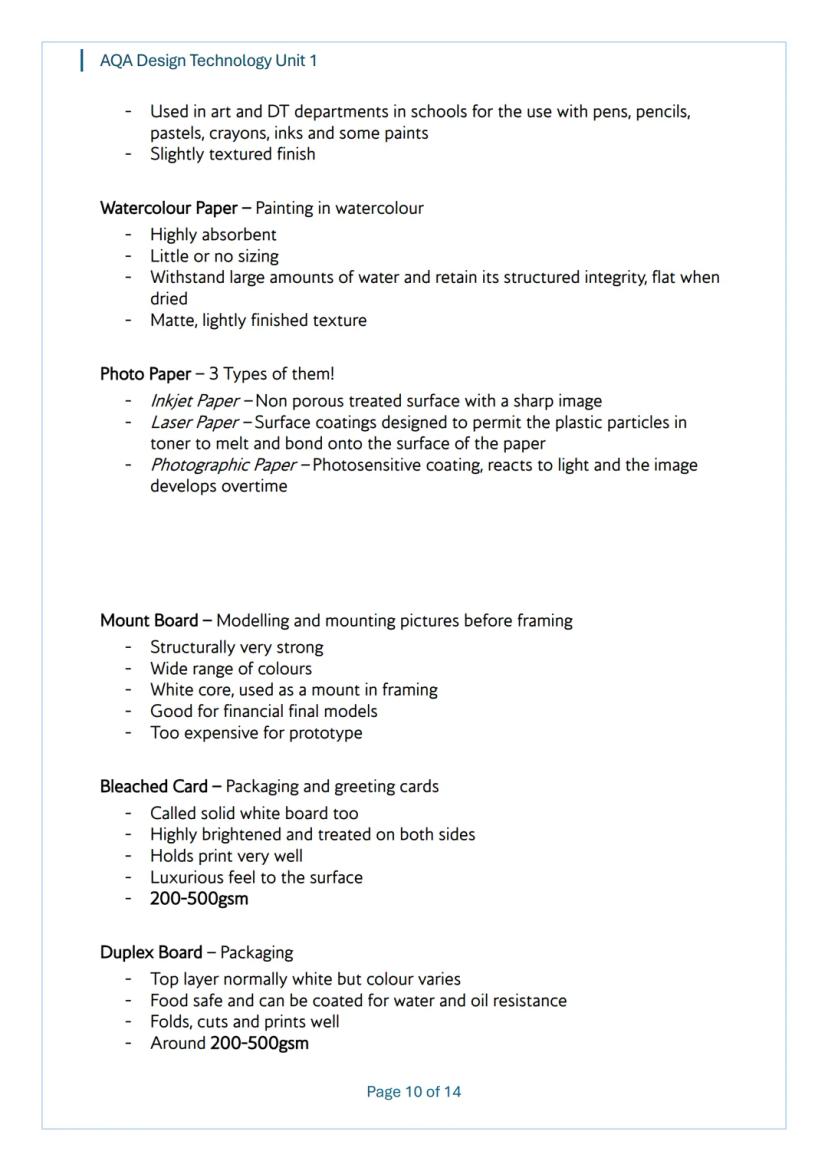

Watercolour paper handles serious water loads whilst maintaining structural integrity - its highly absorbent, lightly sized surface accepts large water quantities then dries flat with a matte texture perfect for paint application.

Photo papers split into three distinct types: inkjet (non-porous treated surface), laser (coated for toner bonding), and photographic (photosensitive coating that develops over time). Each gets engineered for specific printing technologies.

Mount board provides structural strength for modelling and picture framing, available in numerous colours with white cores. It's excellent for final models but too expensive for prototyping work.

Bleached card (also called solid white board) creates that luxurious packaging feel through brightening and dual-side treatment. Duplex board offers food-safe properties with water and oil resistance, perfect for food packaging applications.

Both bleached and duplex boards typically range from 200-500 GSM, folding and printing beautifully whilst providing the premium feel that brands desire.

Cost Consideration: Mount board works brilliantly for final presentations, but switch to cheaper alternatives like corrugated card for early prototyping to manage project budgets effectively.
