Understanding Vectors and Scalars in Physics

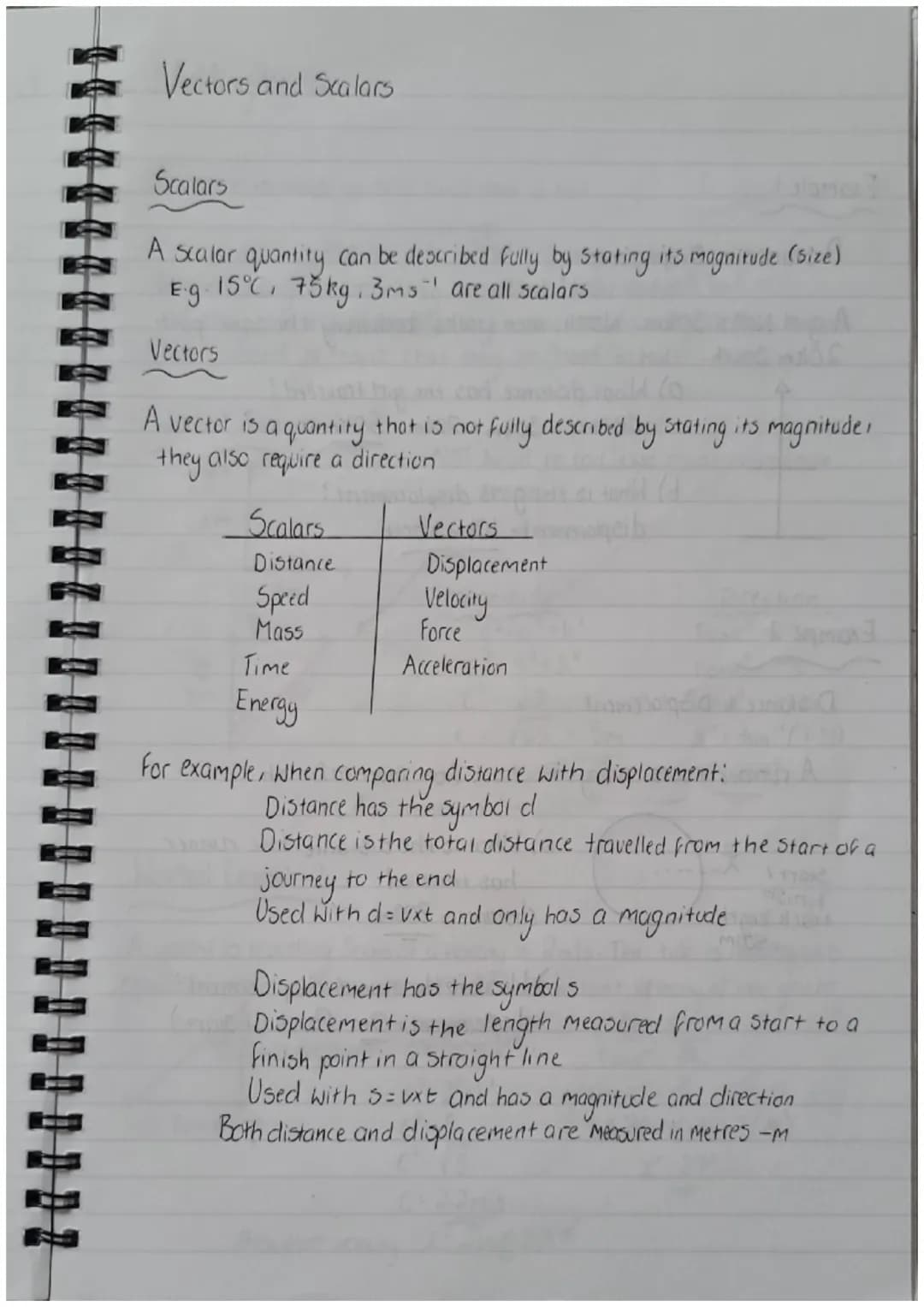

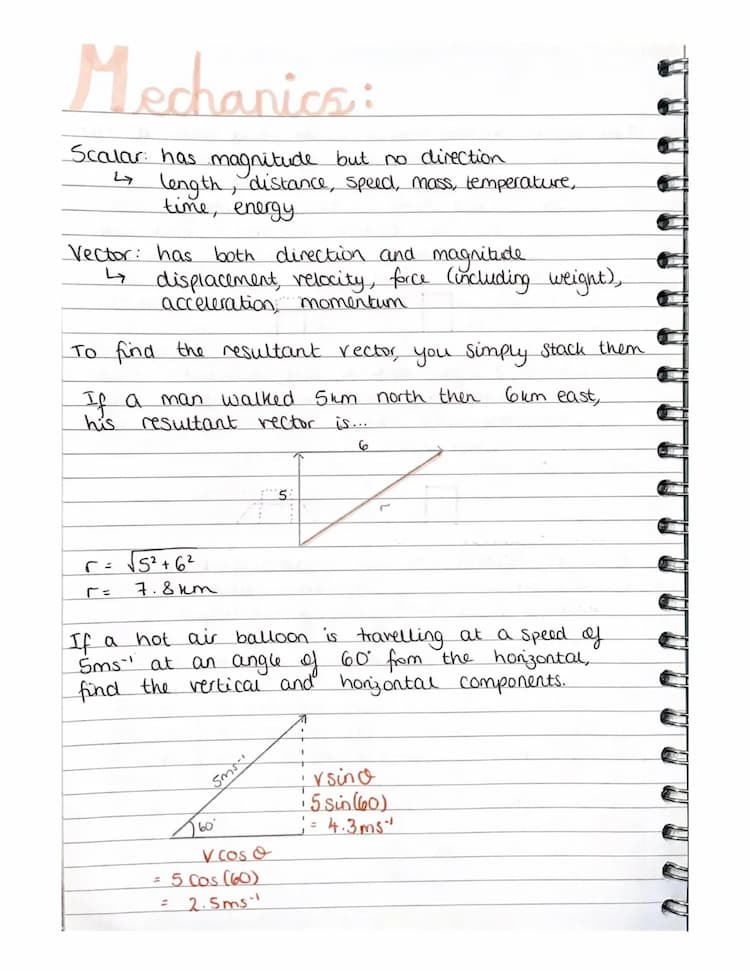

Scalars and vectors physics form the foundation of how we measure and describe physical quantities. A scalar quantity has only magnitude (size), while vector quantities include both magnitude and direction.

Definition: A scalar meaning physics refers to quantities that can be fully described by their magnitude alone, such as temperature (15°C), mass (75kg), or time (3 seconds).

Physical quantities can be categorized into two main types. Scalars have only magnitude and include:

• Distance
• Speed
• Mass
• Time
• Energy

Vector quantity examples include:

• Displacement
• Velocity
• Force
• Acceleration

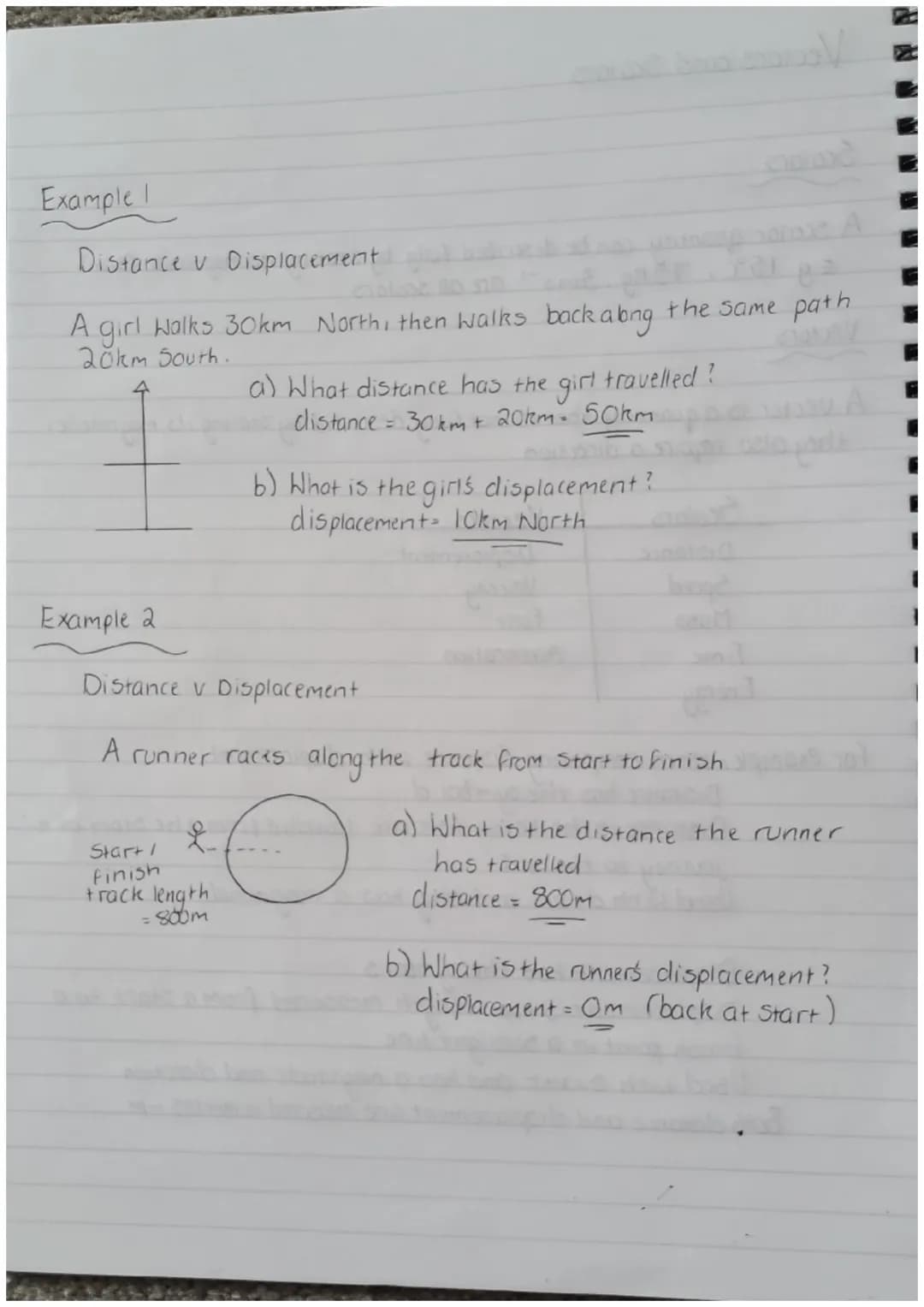

Example: Consider the difference between distance and displacement:

• Distance: Total length traveled regardless of direction (measured in meters)
• Displacement: Straight-line distance from start to end point with direction (measured in meters)

When dealing with vectors and scalars physics questions, understanding the distinction between similar-sounding quantities is crucial. For instance, speed is a scalar quantity because it only tells you how fast something is moving, while velocity is a vector quantity because it includes both speed and direction of motion.

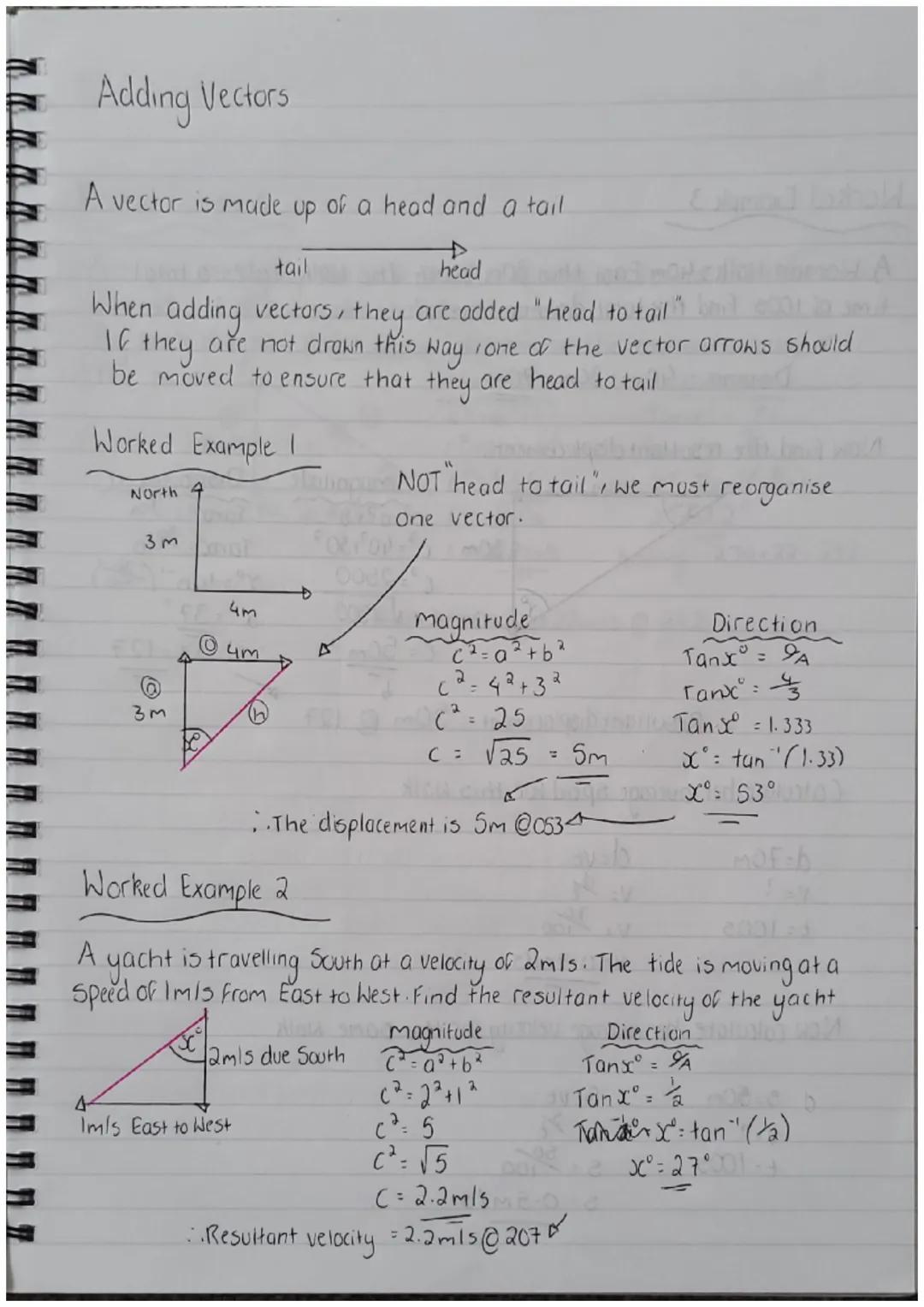

Vector Addition and the Head-to-Tail Method

The head-to-tail method is a fundamental technique for adding vectors graphically. This method provides a visual representation of vector addition and helps solve complex motion problems.

Highlight: When using the head-to-tail method step by step, vectors are arranged so that the head (arrow) of one vector connects to the tail (starting point) of the next vector.

Consider these Adding vectors head to tail example problems:

1. A person walks 3m north, then 4m east
2. A boat travels 2m/s south while experiencing a 1m/s current from east to west

Example: To solve these problems:

1. Draw the first vector
2. Connect the second vector's tail to the first vector's head
3. Draw the resultant vector from the tail of the first to the head of the last

The head-to-tail method formula involves using trigonometry to calculate the resultant vector's magnitude and direction. For magnitude, use the Pythagorean theorem $c² = a² + b²$. For direction, use inverse tangent (tan⁻¹).

Practical Applications of Vectors and Scalars

Understanding vectors and scalars examples is crucial for real-world applications in physics and engineering. These concepts help explain everything from navigation to force analysis.

Vocabulary: Resultant vector - the single vector that represents the combined effect of two or more vectors.

When solving scalars and vectors gcse physics problems, consider these practical scenarios:

• Navigation: A pilot must account for wind direction and speed
• Construction: Engineers calculate forces acting on structures
• Sports: Athletes analyze motion for optimal performance

The relationship between scalar and vector quantities becomes particularly important when:

• Calculating average speed vs. average velocity
• Determining total distance vs. displacement
• Analyzing forces in multiple directions

Advanced Vector Problem Solving

Complex problems involving multiple vectors require systematic approaches. Here's how to tackle advanced vectors and scalars bbc bitesize style problems:

1. First, identify all vector quantities involved
2. Draw vectors to scale using the head-to-tail method
3. Calculate resultant vectors using trigonometry
4. Consider the time component if relevant

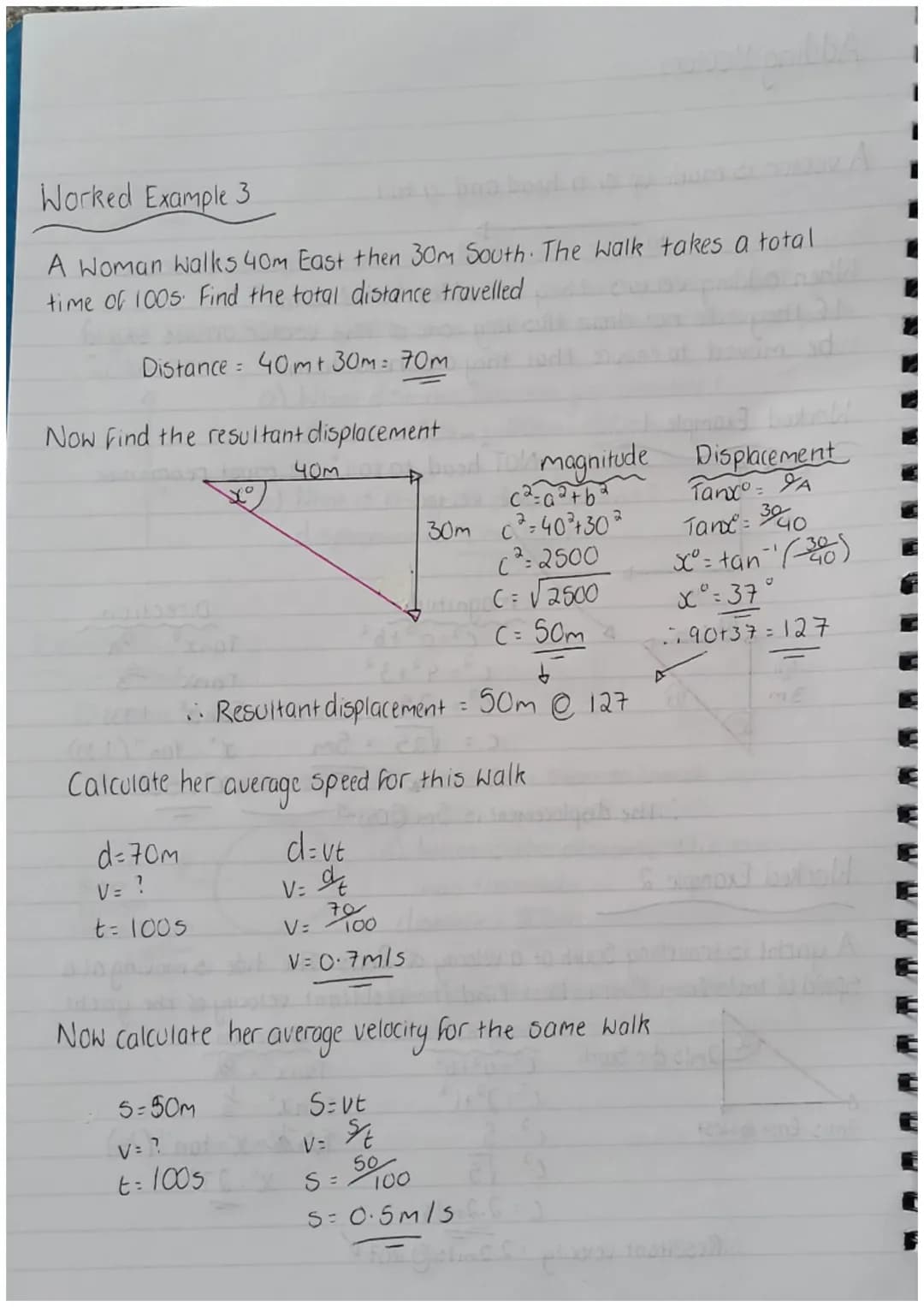

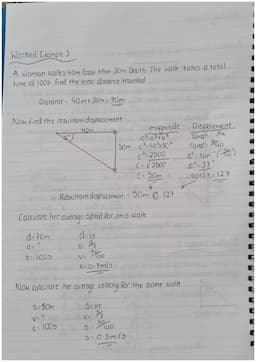

Example: A person walks 40m east then 30m south in 100 seconds:

• Total distance = 70m (scalar)
• Displacement = 50m at 127° from north (vector)
• Average speed = 0.7 m/s (scalar)
• Average velocity = 0.5 m/s at 127° from north (vector)

Understanding these concepts is essential for advanced physics and engineering applications. The relationship between scalar and vector quantities helps explain complex motion and force scenarios in the real world.

Vector Problem Solving in Physics: Worked Examples and Practice Questions

When solving vectors and scalars physics questions, it's essential to understand both the mathematical approach and real-world applications. Let's explore some detailed examples that demonstrate key concepts in vector quantity examples and problem-solving techniques.

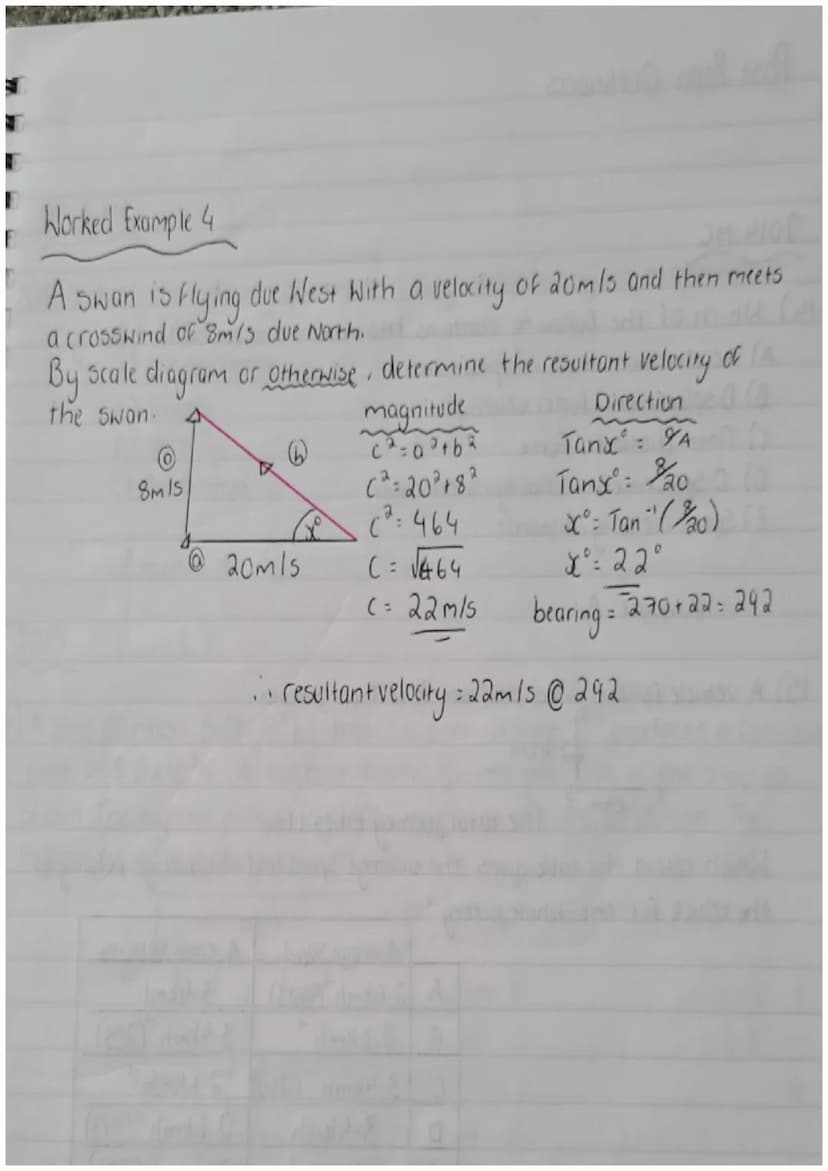

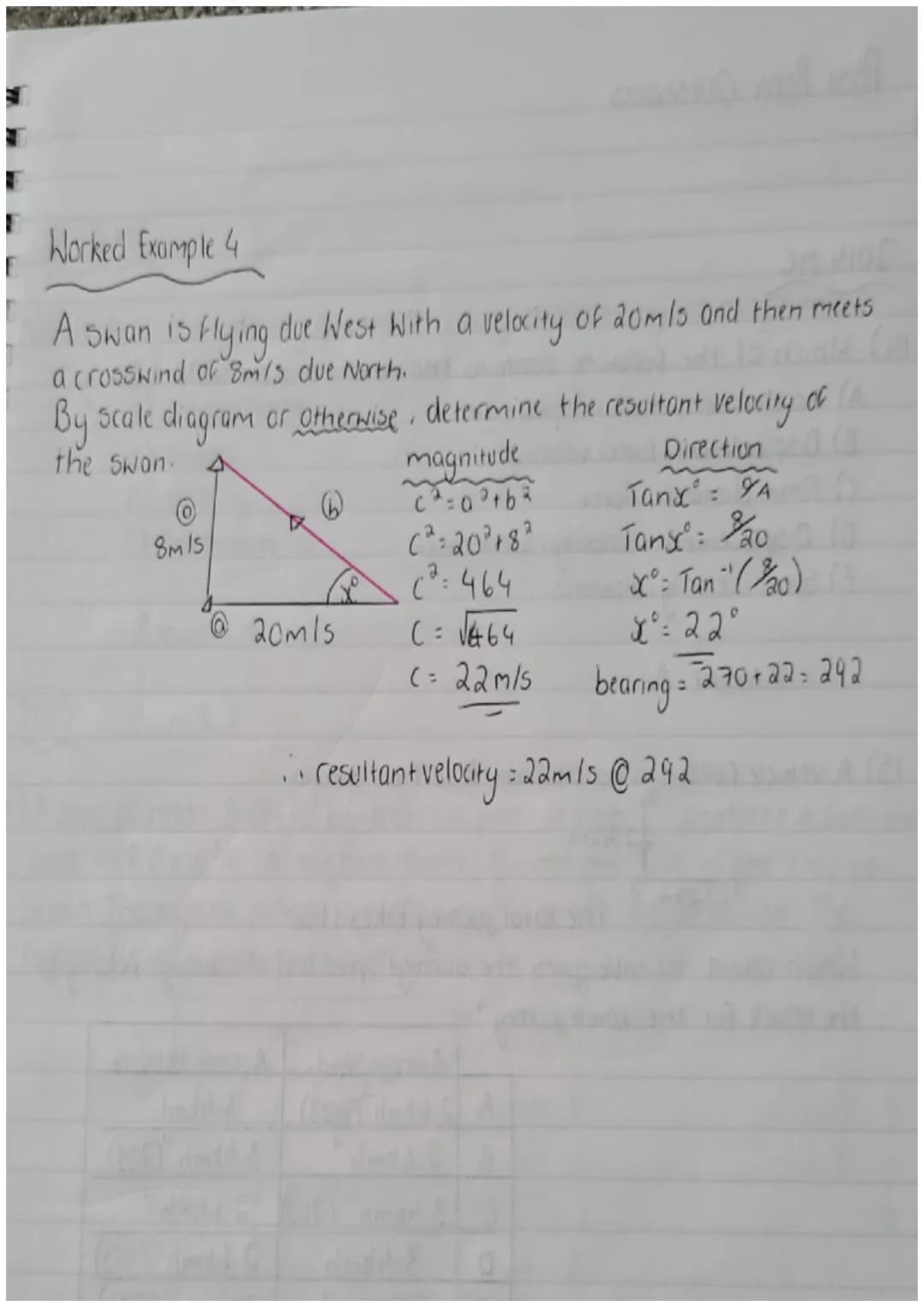

Example: A swan flying west at 20m/s encounters an 8m/s northward wind. This scenario perfectly illustrates how multiple vectors combine to create a resultant velocity.

Using the head-to-tail method, we can determine the swan's actual flight path:

1. Draw the first vector $20m/s west$
2. From its endpoint, draw the second vector (8m/s north)
3. Connect the start of the first vector to the end of the second

The resultant velocity can be calculated using the Pythagorean theorem:

• Magnitude: √$20² + 8²$ = √464 = 22m/s
• Direction: tan⁻¹$8/20$ = 22°
• Final bearing: 270° + 22° = 292°

Definition: The head-to-tail method is a graphical technique for adding vectors where each subsequent vector starts at the endpoint of the previous vector.

Understanding Scalar and Vector Quantities Through Practice Problems

In scalars and vectors physics, distinguishing between scalar and vector quantities is crucial. Scalars have only magnitude, while vectors have both magnitude and direction.

Vocabulary:

• Scalar quantities: mass, time, speed, energy
• Vector quantities: displacement, velocity, acceleration, force

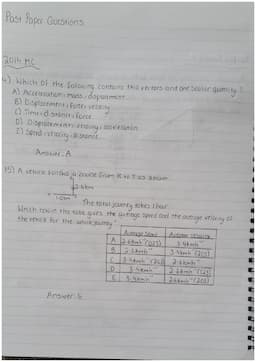

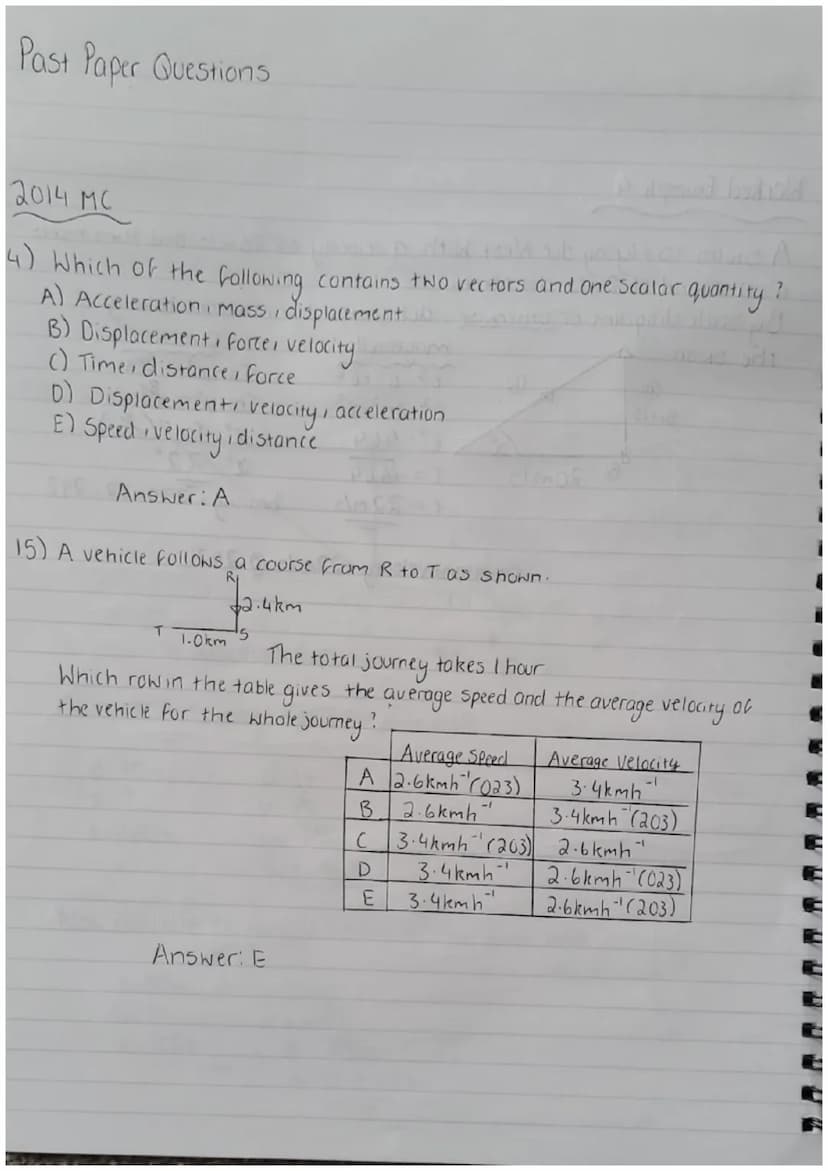

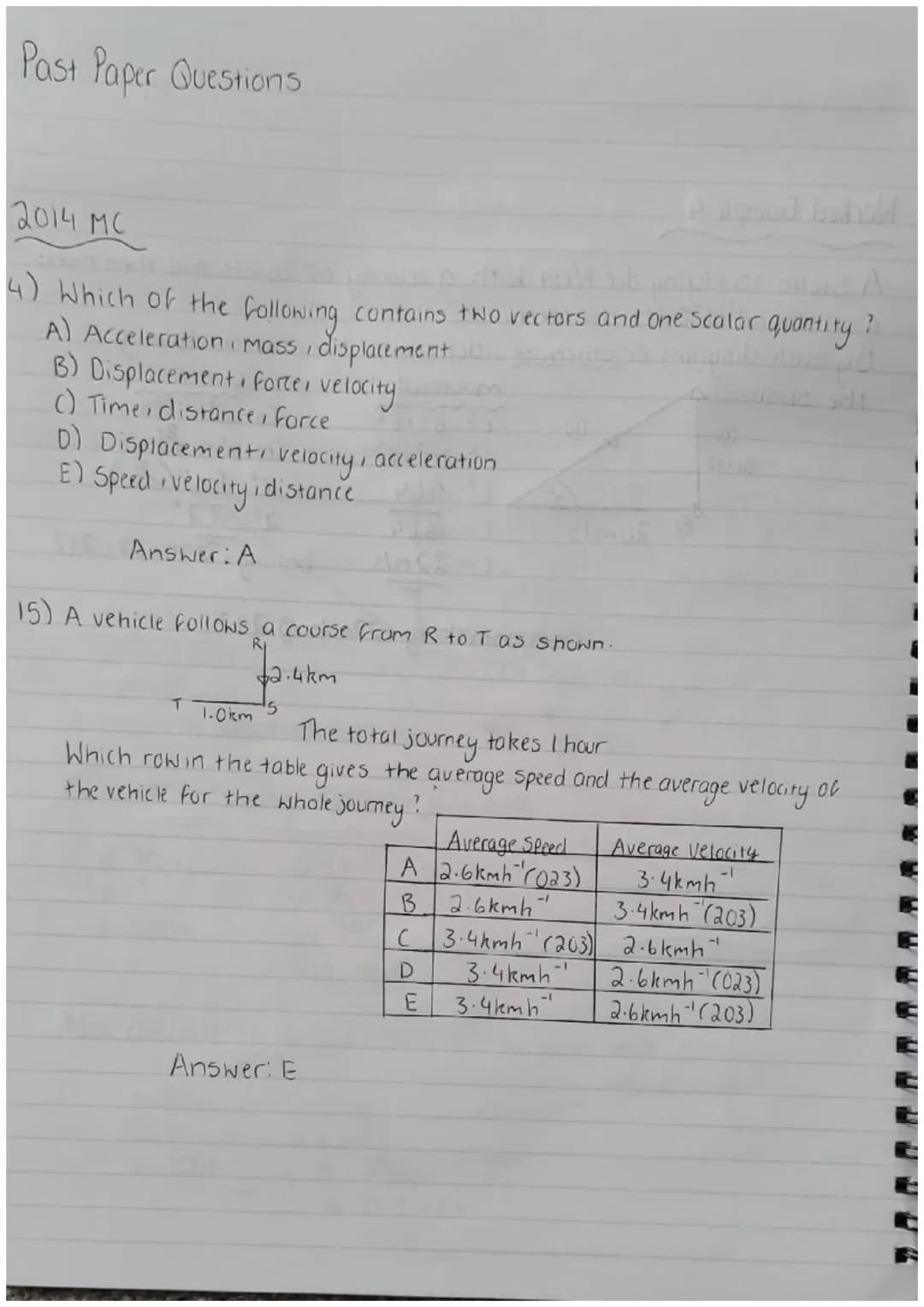

Consider this practice problem from past examinations: A vehicle travels 2.4km east then 1.0km north in one hour. This journey demonstrates the difference between average speed (a scalar) and average velocity (a vector).

Highlight: When calculating average velocity, only the straight-line distance between start and finish points matters, while average speed considers the total distance traveled.

The solution requires:

1. Calculating total distance traveled $2.4 + 1.0 = 3.4km$
2. Finding the straight-line displacement using Pythagorean theorem
3. Dividing both by time to get average speed and velocity

Advanced Vector Analysis in Physics Applications

When studying scalars and vectors gcse physics, real-world applications help cement understanding. Let's examine a maritime example involving multiple forces.

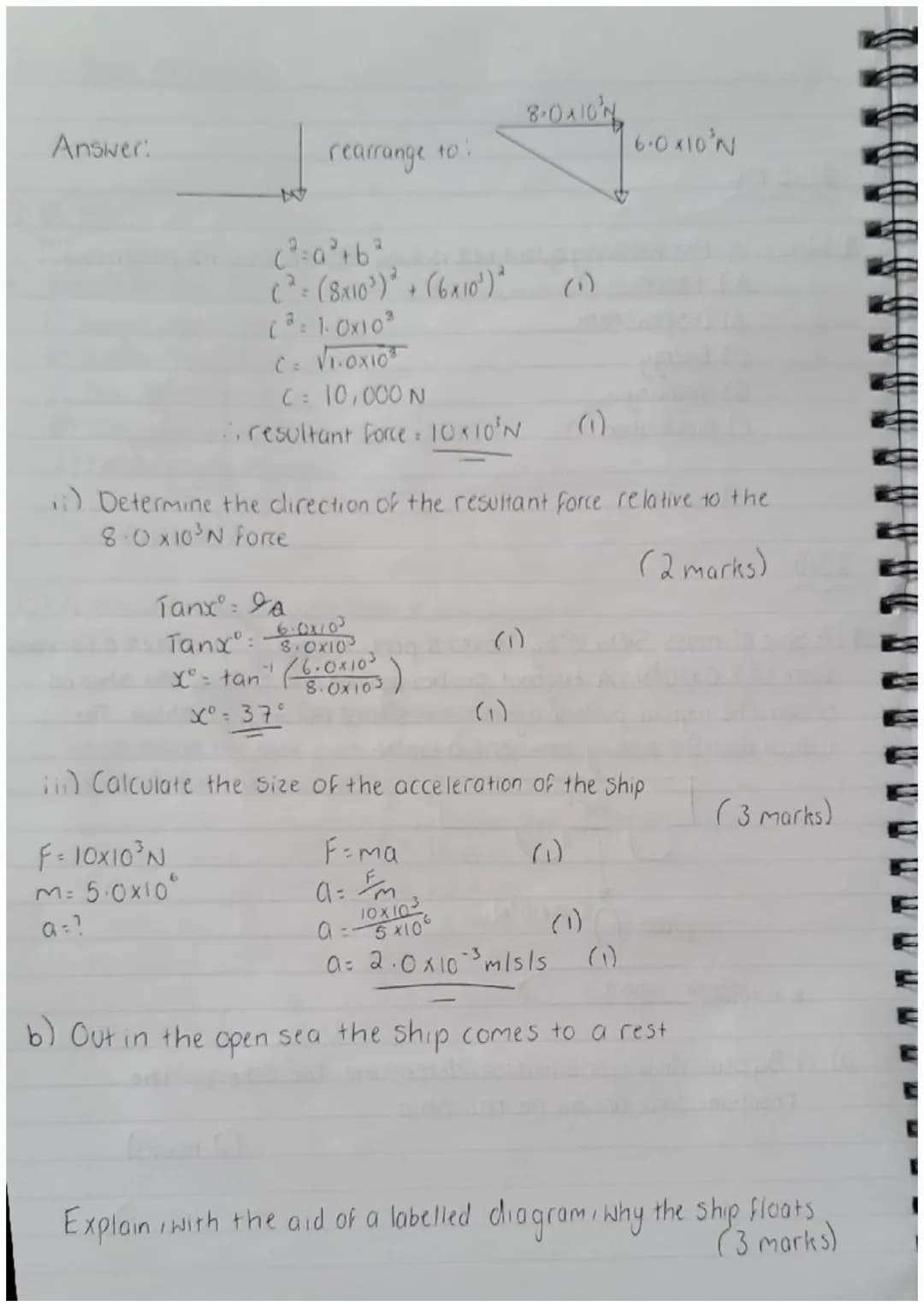

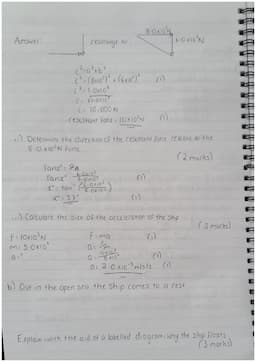

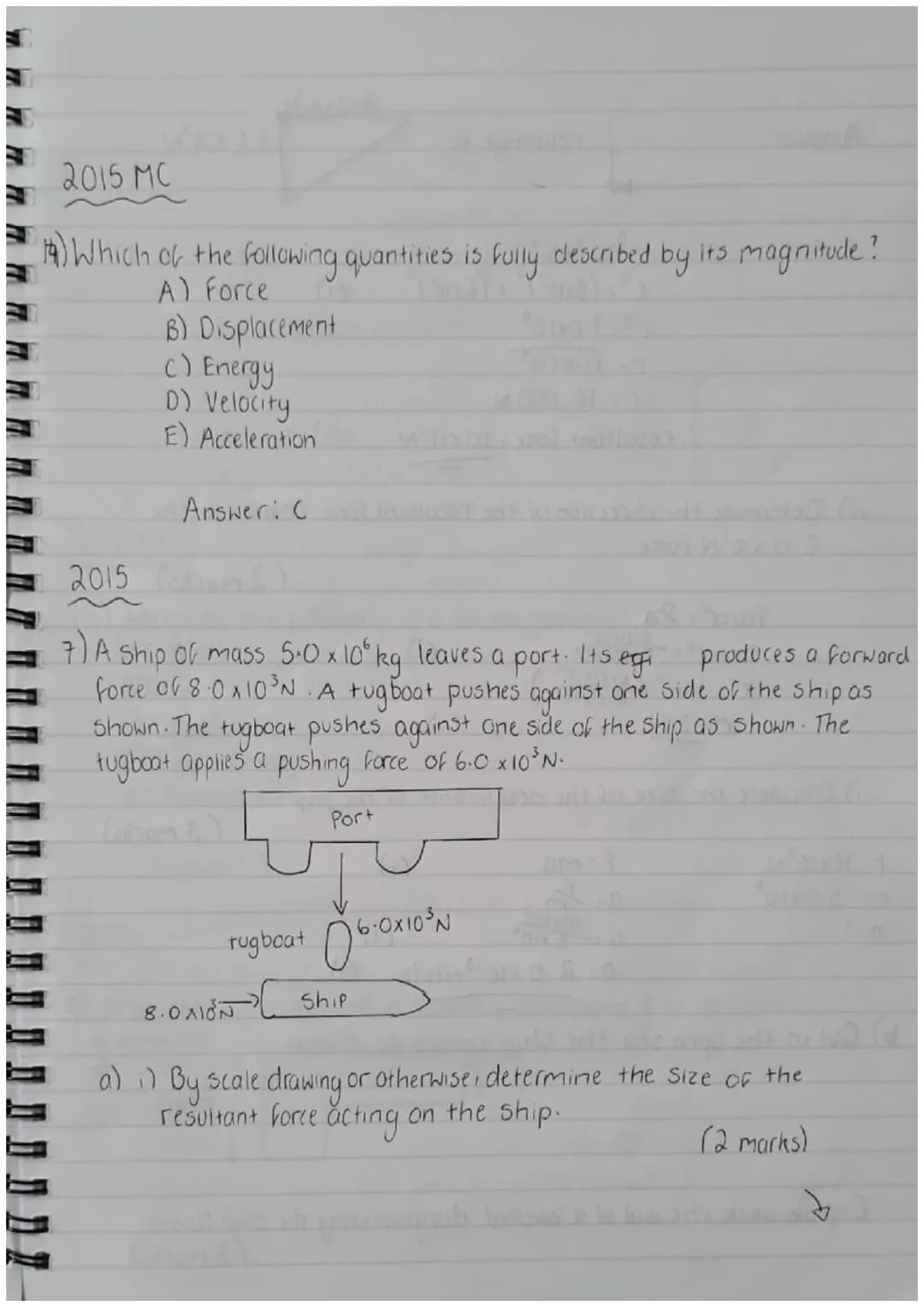

Consider a ship experiencing:

• Forward engine force: 8.0 × 10³N
• Sideways tugboat force: 6.0 × 10³N

Example: To find the resultant force:

1. Use Pythagorean theorem: √$(8.0×10³)² + (6.0×10³)²$ = 10×10³N
2. Calculate direction: tan⁻¹$6.0/8.0$ = 37°

The acceleration can then be found using F = ma: a = F/m = (10×10³)/(5.0×10⁴) = 0.2 m/s²

Vector Applications in Navigation and Movement

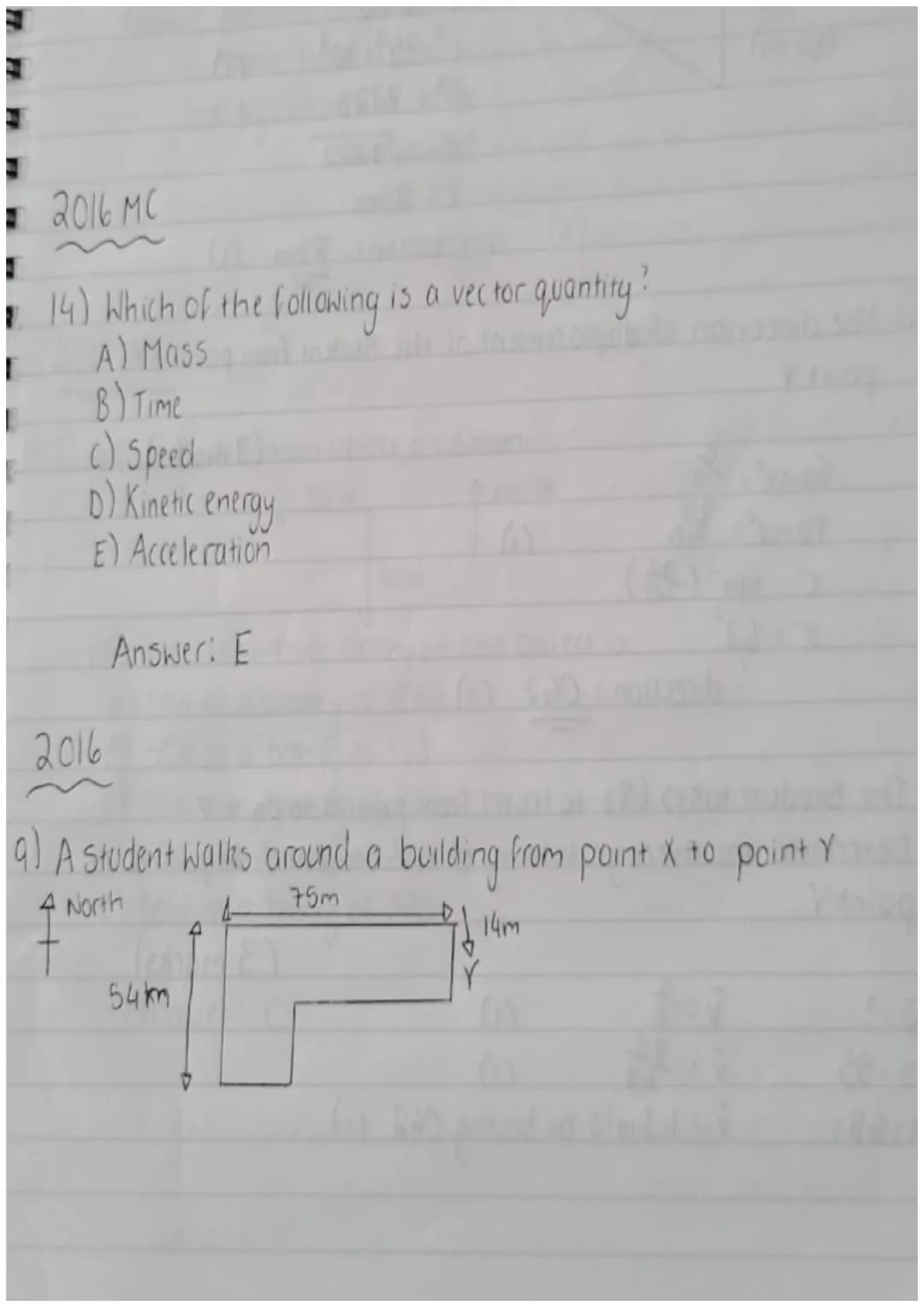

Understanding vector quantity examples is essential for analyzing movement and navigation problems. Let's examine a practical scenario involving walking around a building.

Definition: In navigation problems, the resultant displacement is the straight-line distance between start and finish points, regardless of the path taken.

When solving such problems:

1. Break down the movement into north-south and east-west components
2. Add components separately using vector addition
3. Calculate the resultant using the Pythagorean theorem
4. Determine direction using trigonometry

This approach applies to various scenarios, from simple walking paths to complex navigation problems, demonstrating why vectors are essential in physics and everyday life.

Understanding Vector Calculations in Physics: Displacement and Velocity

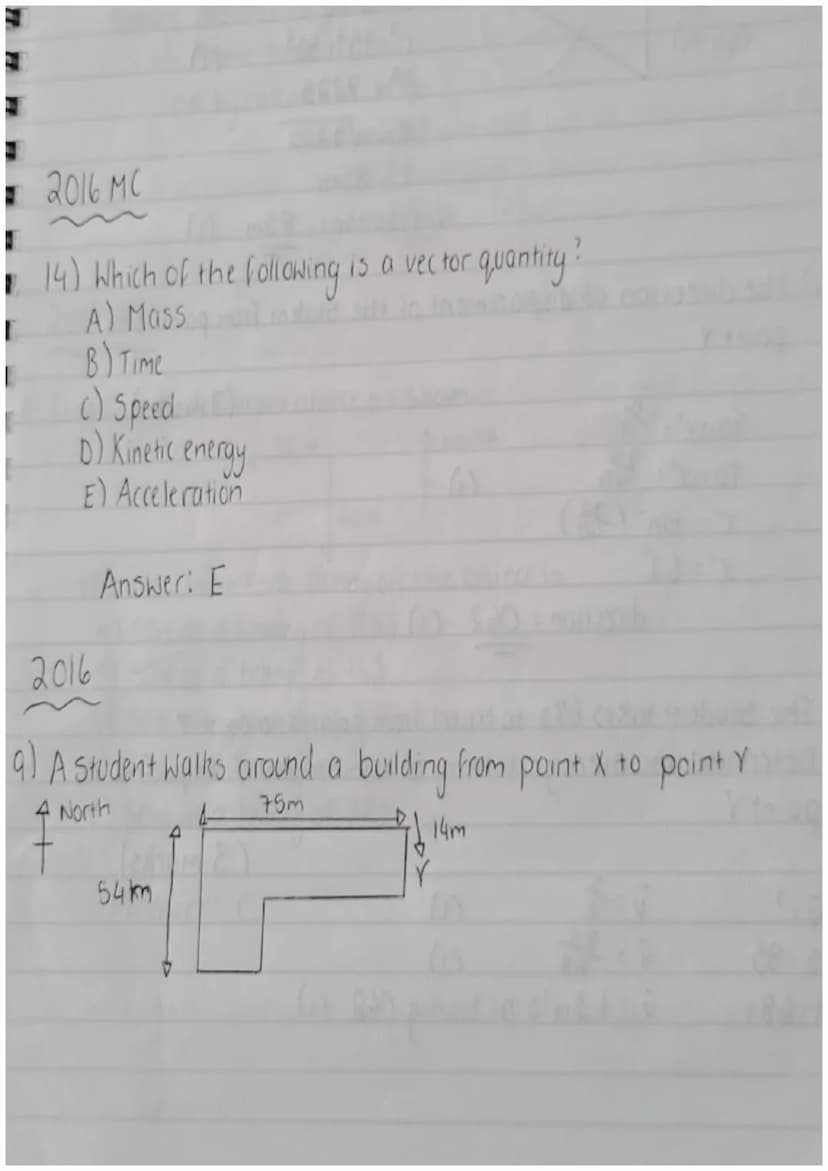

When studying vectors and scalars physics, understanding how to calculate displacement and velocity is crucial. Let's explore a practical example involving a student's movement between two points.

Definition: Displacement is a vector quantity that describes both the distance and direction between two points, while velocity represents the rate of change of displacement over time.

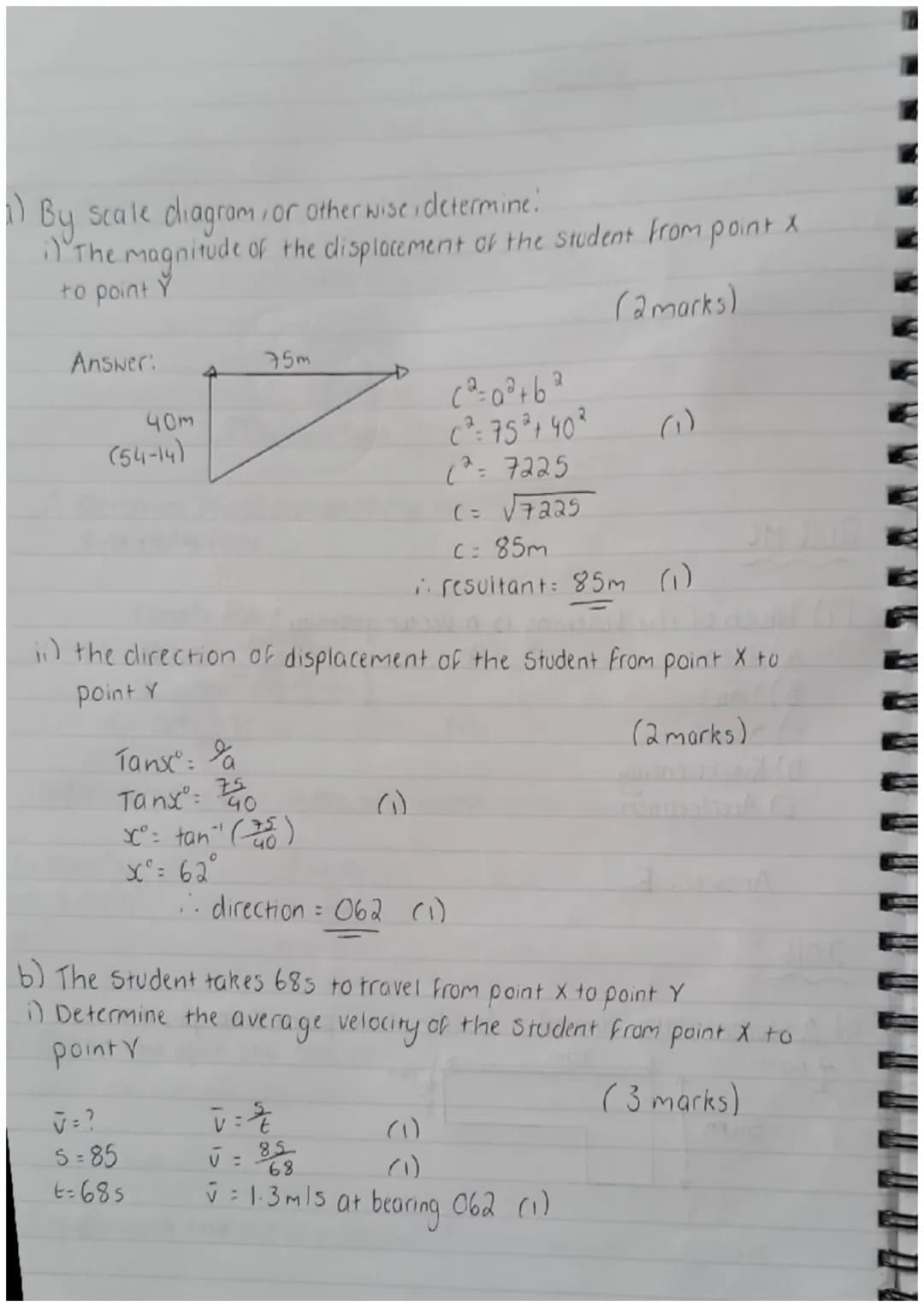

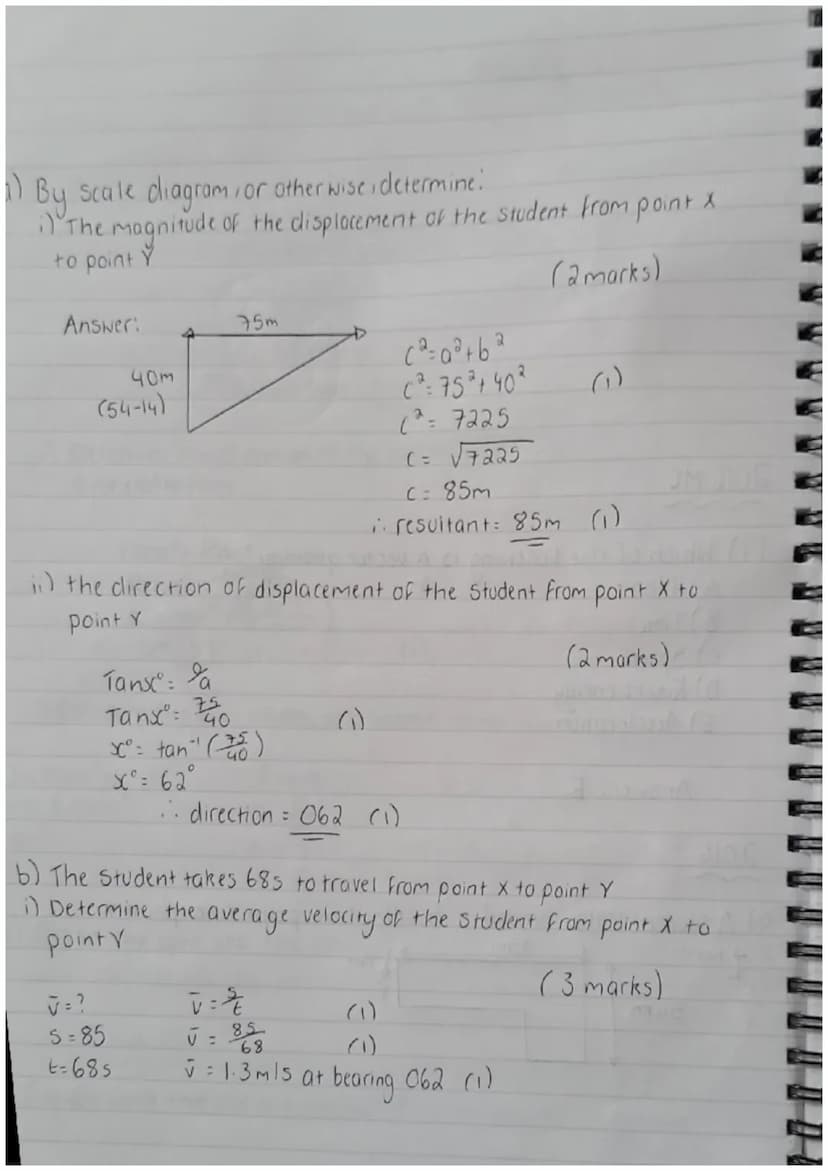

In this scenario, we analyze a student's movement from point X to point Y. To find the total displacement, we must consider both horizontal and vertical components. Using the head-to-tail method, we can determine that the horizontal distance is 75m and the vertical distance is 40m.

Example: To calculate the magnitude of displacement:

• Use the Pythagorean theorem: √$75² + 40²$
• √$5625 + 1600$ = √7225
• Total displacement = 85 meters

The direction of the displacement requires trigonometric calculations. Using the inverse tangent (tan⁻¹) of the vertical component divided by the horizontal component: tan⁻¹$40/75$ = 28°, measured from the horizontal. Converting to bearing gives us 062°.

Highlight: When calculating average velocity, we divide the total displacement by the time taken. In this case: Average velocity = 85m ÷ 68s = 1.3 m/s at bearing 062°

Advanced Vector Analysis: Applications in Real-World Movement

Understanding scalars and vectors physics becomes more practical when applied to real-world situations. This problem demonstrates how vector quantities combine both magnitude and direction to describe motion completely.

Vocabulary: Bearing is an angular measurement used in navigation, measured clockwise from north (000°) through 360°.

The calculation process illustrates several key concepts in vectors and scalars examples:

• The importance of breaking vectors into components
• How to use trigonometry to find angles and distances
• The relationship between displacement, time, and velocity

When solving vectors and scalars physics questions, it's essential to:

1. Draw a clear scale diagram
2. Label all known values
3. Use appropriate mathematical methods (Pythagorean theorem, trigonometry)
4. Express final answers with correct units and direction

Definition: Average velocity is a vector quantity that equals the total displacement divided by the total time taken, maintaining both magnitude and directional components.

This example demonstrates how scalar and vector quantities differ in practical applications. While the distance traveled might be greater than 85m if the student didn't move in a straight line, the displacement (a vector) is always measured straight from start to finish.
