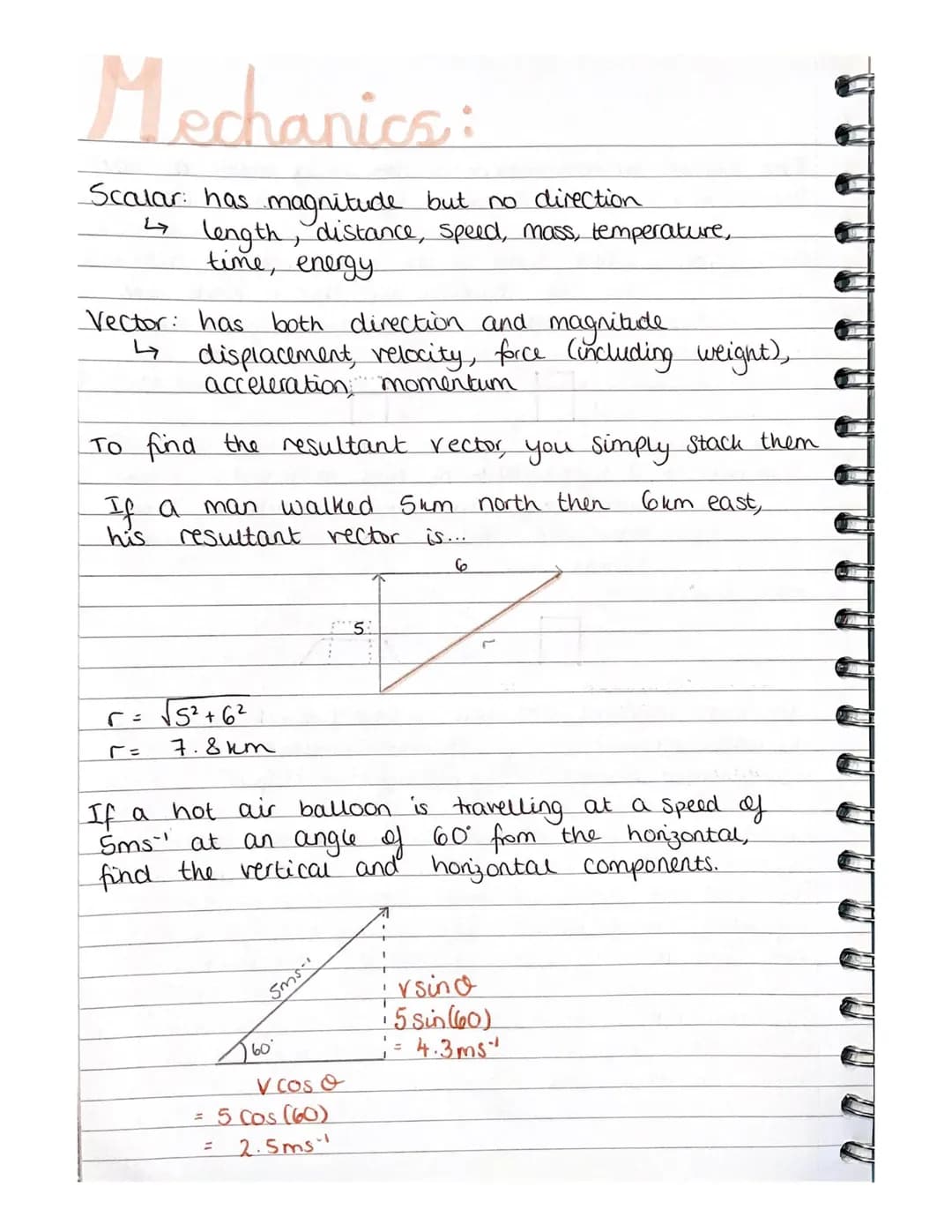

Understanding Forces and Equilibrium in A-Level Physics Mechanics

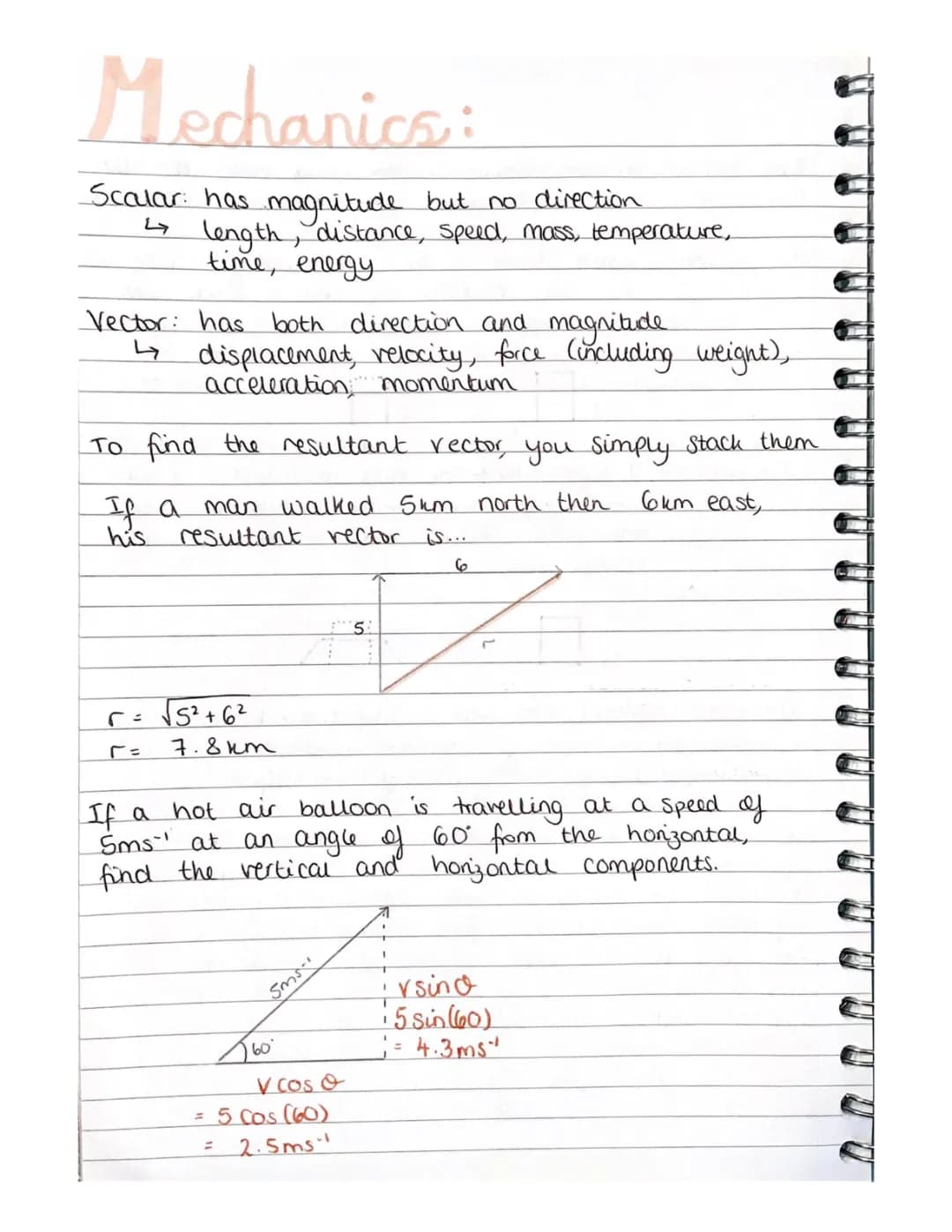

Forces in mechanics form the foundation of physical motion and stability. When studying equilibrium in mechanics a level physics, understanding both scalar and vector quantities is crucial. Scalar quantities like mass, temperature, and energy have magnitude but no direction, while vector quantities such as displacement, velocity, and force require both magnitude and direction for complete description.

When dealing with vectors, finding resultant forces becomes essential for solving forces in equilibrium A level physics questions. For instance, when combining multiple vectors, such as a person walking 5km north followed by 6km east, the resultant vector can be calculated using the Pythagorean theorem. This gives us a resultant displacement of 7.8km in a specific direction.

Definition: A vector quantity is a physical property that requires both magnitude and direction to be fully described, unlike scalar quantities which only need magnitude.

Resolving forces into components is another crucial skill in resolving forces in aqa physics mechanics. When a force acts at an angle, it can be broken down into horizontal and vertical components using trigonometric functions. For example, a hot air balloon traveling at 5m/s at 60° from the horizontal has horizontal and vertical components of 2.5m/s and 4.3m/s respectively.

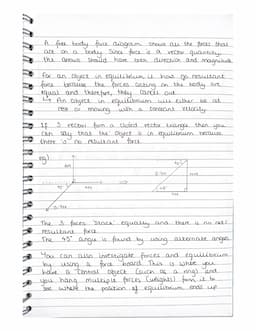

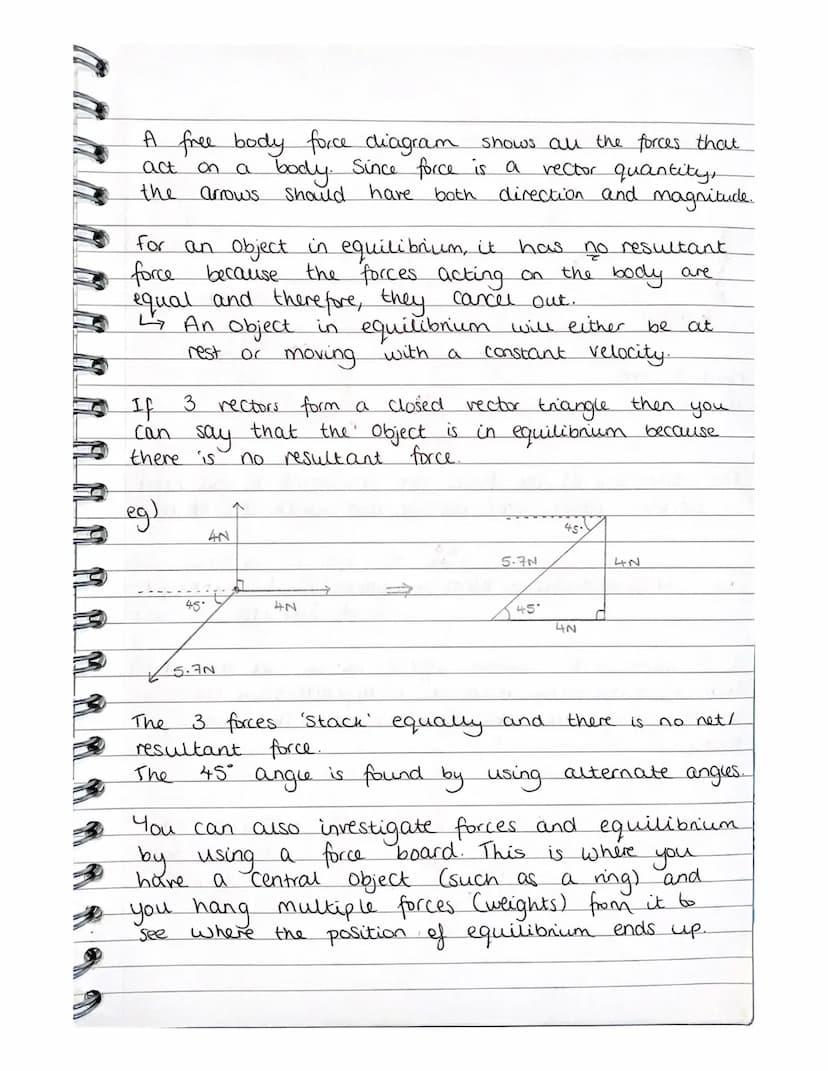

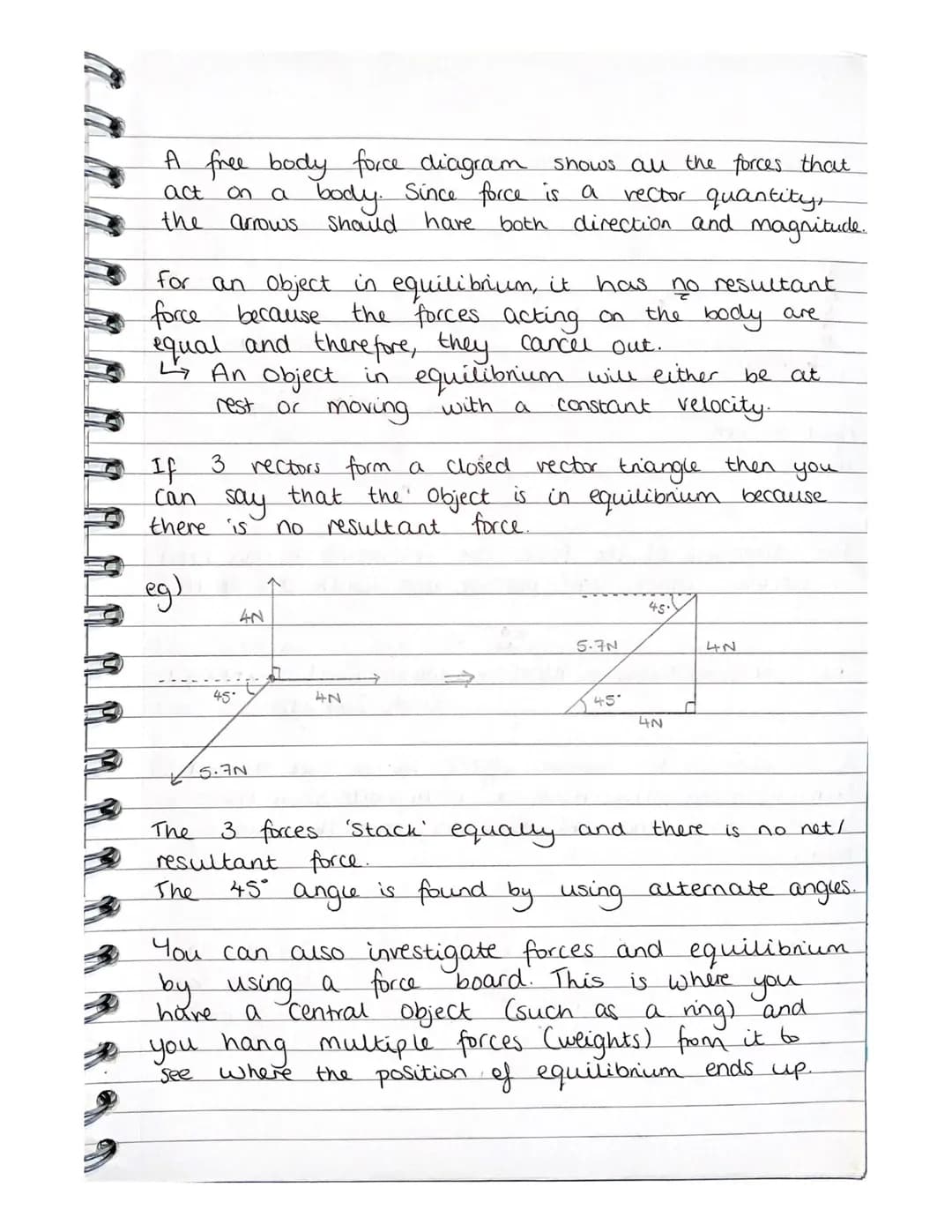

Free Body Diagrams and Force Analysis

Free body diagrams are essential tools in AQA A level Physics notes PDF for analyzing forces acting on objects. These diagrams show all forces acting on a body using arrows to represent both magnitude and direction. Understanding these diagrams is crucial for solving equilibrium of forces questions and answers PDF.

In equilibrium conditions, the sum of all forces must equal zero, meaning there is no resultant force. This principle applies to objects that are either stationary or moving with constant velocity. Vector triangles can be used to verify equilibrium - when forces form a closed triangle, the object is in equilibrium.

Example: Consider three forces of 4N, 4N, and 5.7N acting at specific angles. If these forces form a closed triangle, the object is in equilibrium with no net force.

Force boards provide practical demonstrations of equilibrium concepts, allowing students to experiment with different force combinations and observe their effects on a central object. This hands-on approach helps reinforce theoretical understanding of examples of equilibrium in Physics.

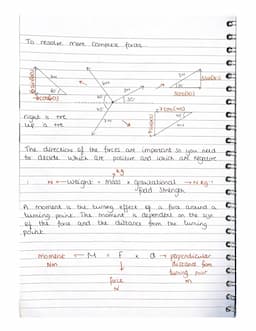

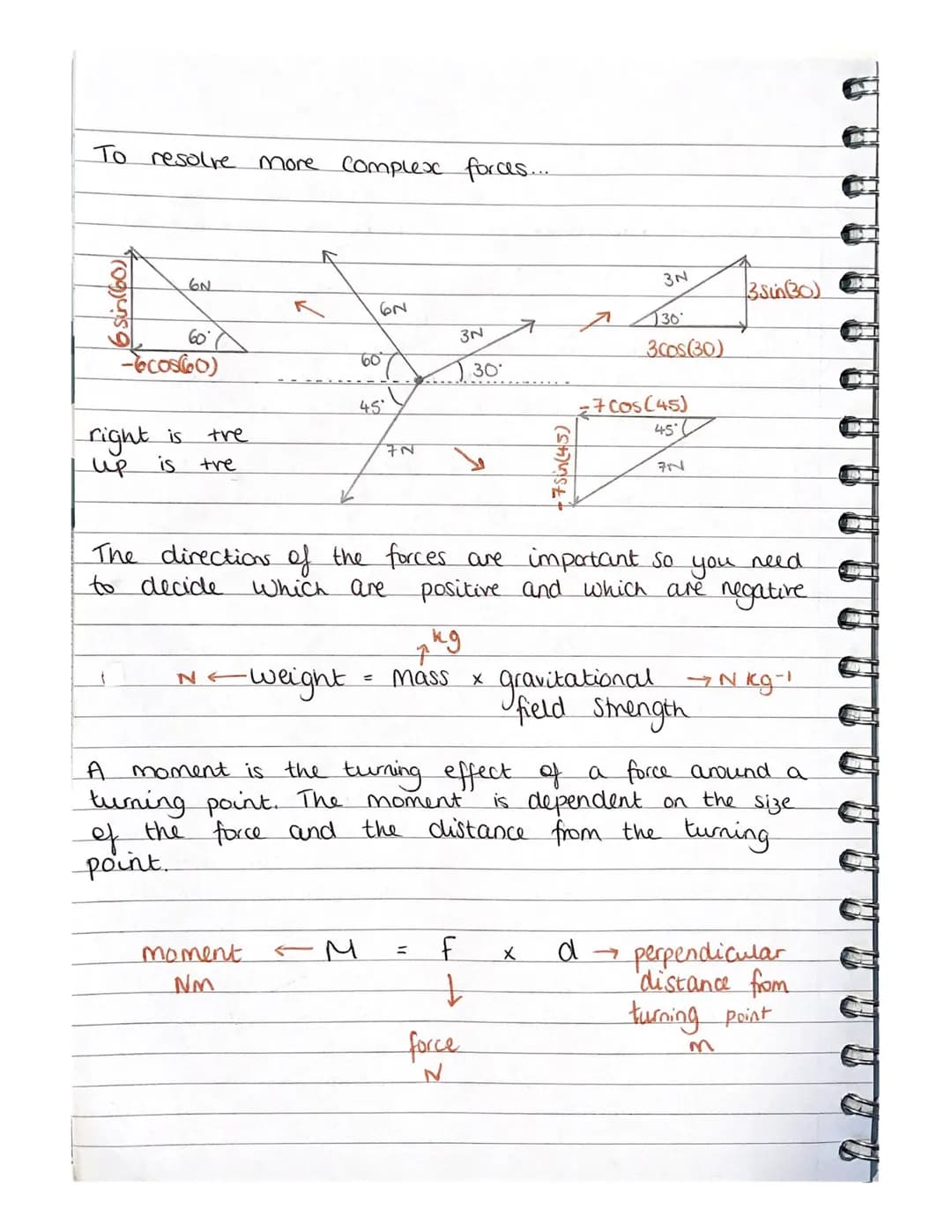

Complex Force Resolution and Moments

When dealing with more complex force scenarios in A level Physics Mechanics questions and answers pdf, careful consideration of force directions becomes crucial. Positive and negative directions must be clearly defined when resolving forces into components using trigonometric functions.

Moments represent the turning effect of forces and play a vital role in rotational equilibrium. The moment of a force depends on both the force magnitude and its perpendicular distance from the turning point. This concept is fundamental in understanding rotational equilibrium in mechanical systems.

Highlight: The moment of a force is calculated using the formula M = F × d, where F is the force and d is the perpendicular distance from the turning point.

Understanding gravitational effects is essential, as the weight force (mass × gravitational field strength) contributes to moments in many practical situations. This knowledge is particularly important when solving problems in equilibrium in mechanics a level physics pdf.

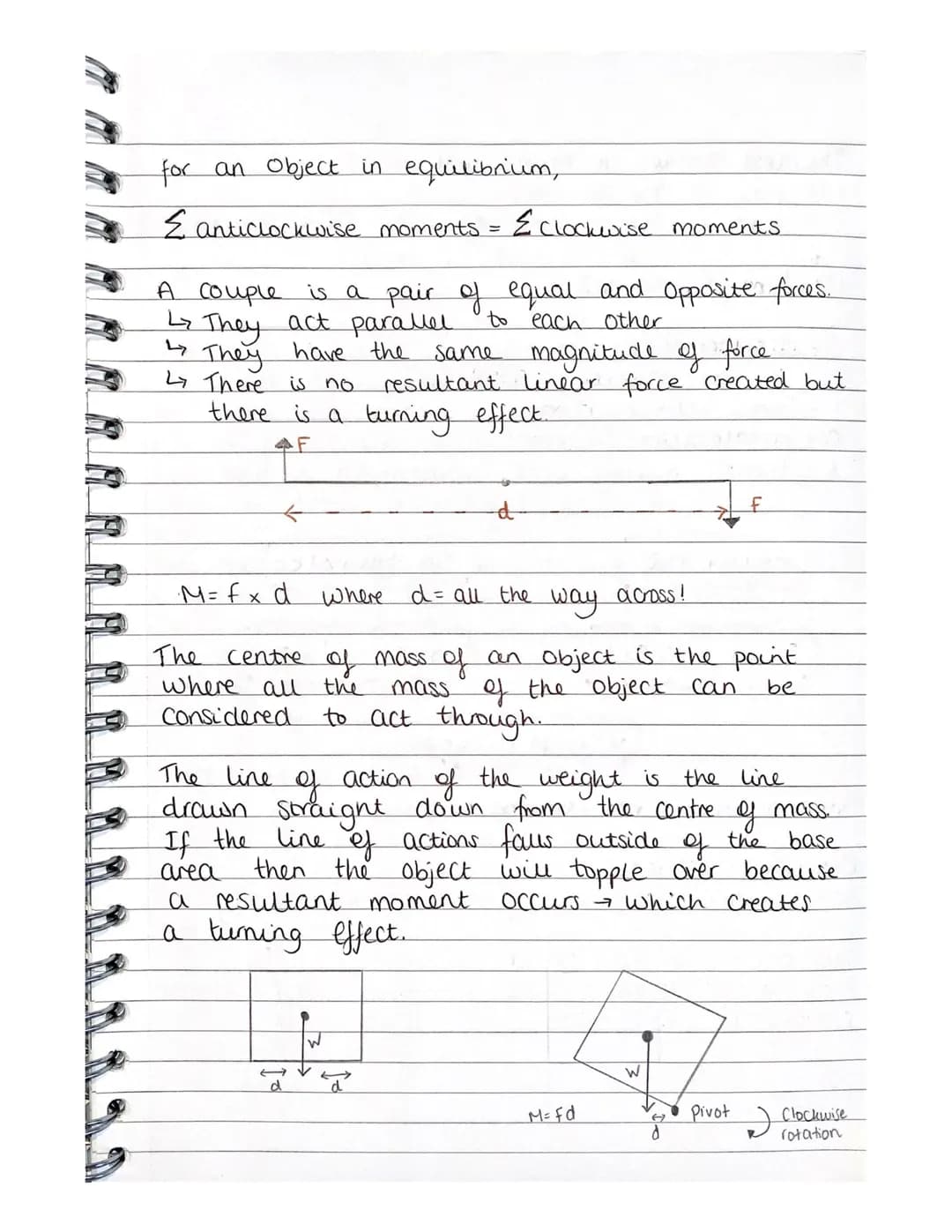

Equilibrium Conditions and Center of Mass

For complete equilibrium in mechanical systems, both force and moment conditions must be satisfied. The sum of anticlockwise moments must equal the sum of clockwise moments, while the net force must be zero. This principle is fundamental in resolving forces Questions and answers.

The center of mass concept is crucial in understanding stability. It represents the point through which the entire mass of an object can be considered to act. The line of action of weight, drawn vertically down from the center of mass, determines an object's stability. If this line falls outside the base area, the object will topple due to an unbalanced moment.

Vocabulary: A couple consists of two equal and opposite parallel forces that create a pure turning effect without any resultant linear force.

These principles find practical applications in engineering and architecture, where understanding stability and equilibrium is essential for structural design. The concepts covered in AQA A level physics mechanics notes pdf free download provide the foundation for more advanced studies in mechanical engineering and physics.

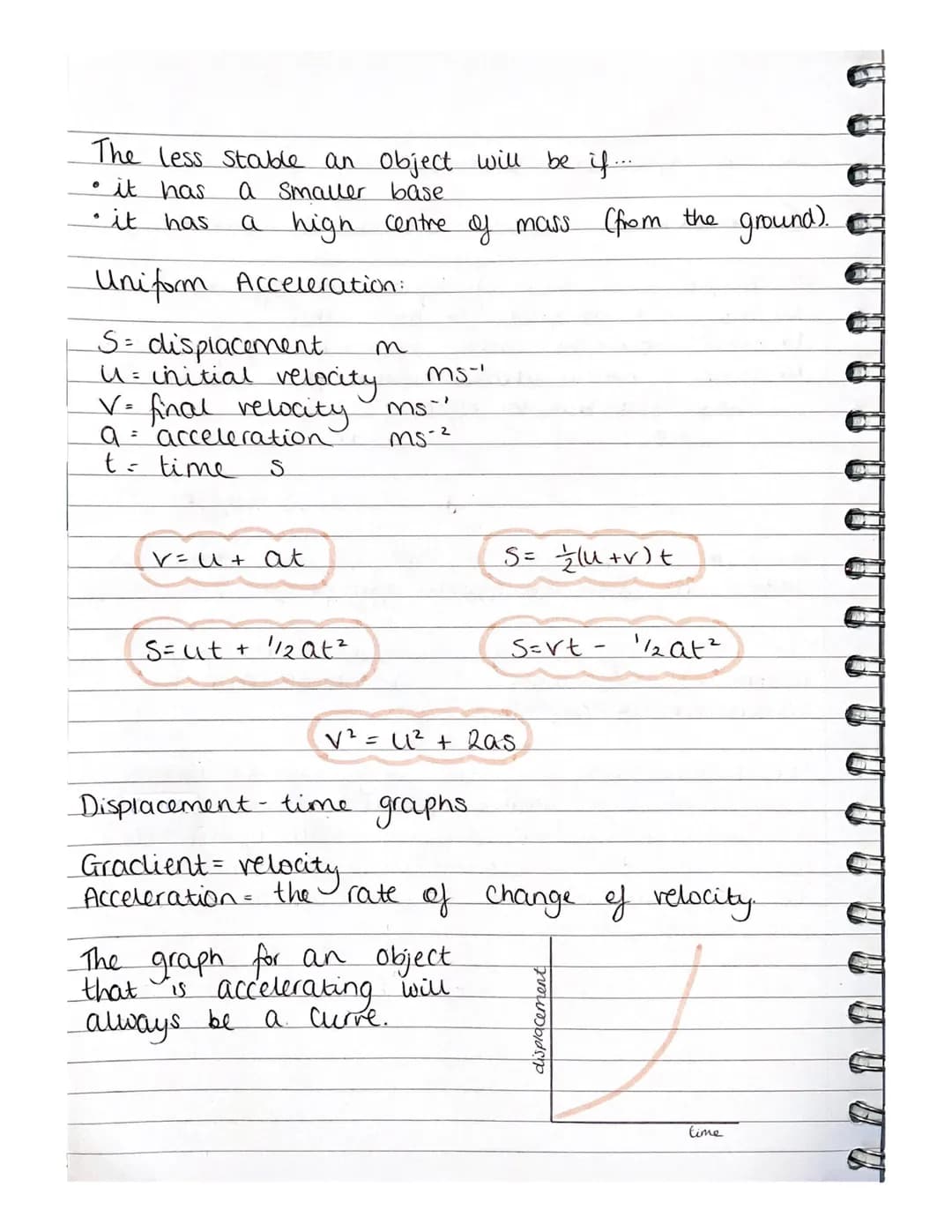

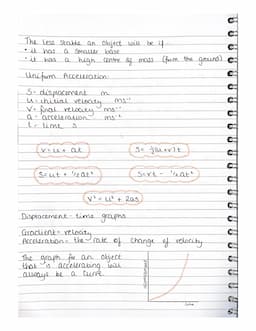

Understanding Stability and Uniform Acceleration in Physics

The stability of objects is fundamentally determined by two key factors that physics students must understand. An object becomes less stable when it has a smaller base area or when its center of mass is positioned higher from the ground. This relationship between base size, center of mass, and stability is crucial for equilibrium in mechanics a level physics examples.

The equations of uniform acceleration form the cornerstone of mechanics. These equations describe the relationships between displacement $s$, initial velocity $u$, final velocity $v$, acceleration $a$, and time $t$. The five key equations are:

• v = u + at
• s = ut + ½at²
• s = ½$u+v$t
• v² = u² + 2as

Definition: Uniform acceleration occurs when the rate of change of velocity remains constant over time.

When analyzing motion graphically, displacement-time graphs provide valuable insights. The gradient of these graphs represents velocity, while acceleration is shown by the rate of change of velocity. For an accelerating object, the displacement-time graph will always show a curved line, demonstrating the non-linear relationship between displacement and time.

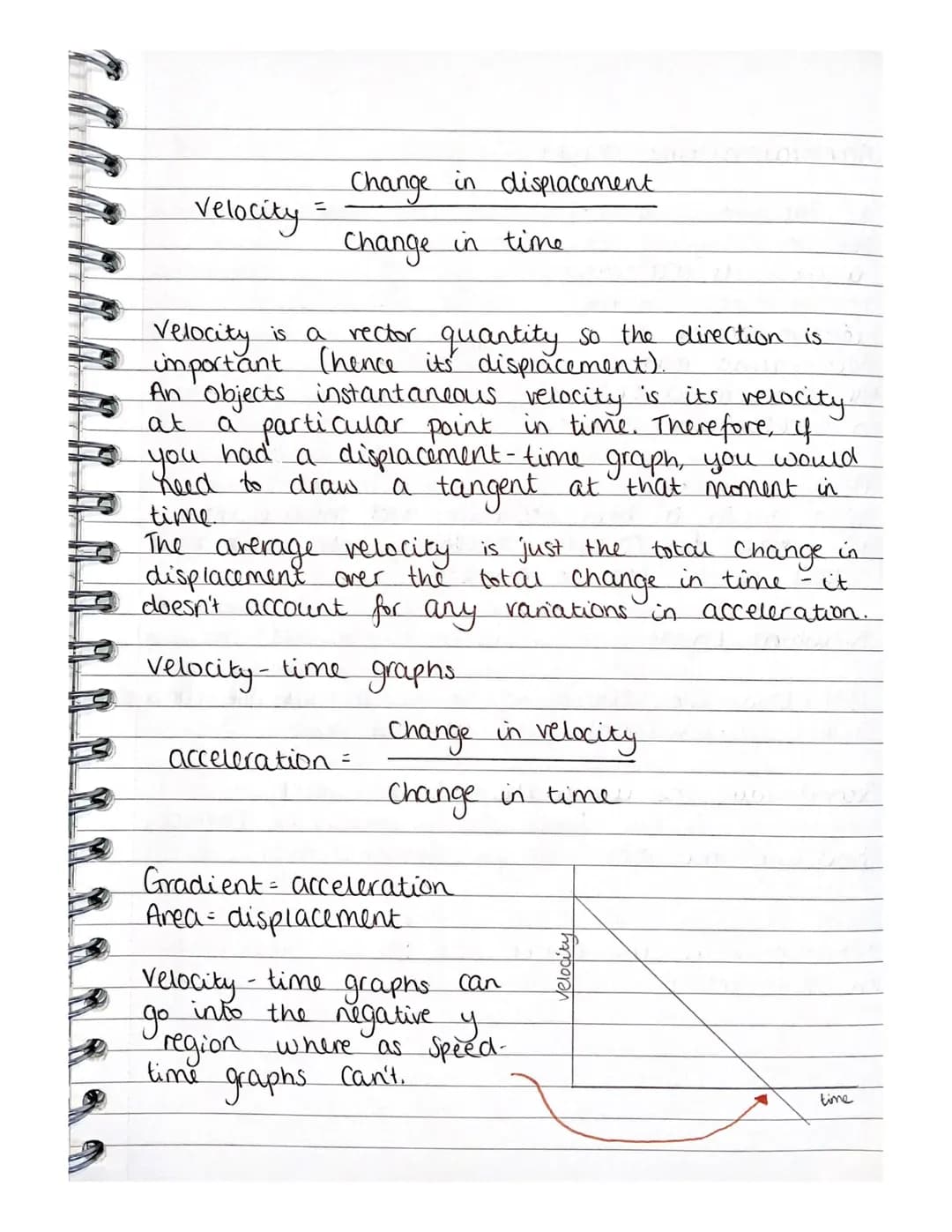

Velocity and Time Relationships in Physics Motion

A level Physics Mechanics questions and answers pdf frequently cover velocity concepts. Velocity, being a vector quantity, requires both magnitude and direction for complete description. This distinguishes it from speed, which is scalar.

The instantaneous velocity of an object represents its velocity at a specific moment in time. On a displacement-time graph, this can be found by drawing a tangent at the point of interest. Average velocity, however, considers the total change in displacement over the total time period, without accounting for acceleration variations.

Highlight: Velocity-time graphs can extend into negative regions, unlike speed-time graphs, because velocity includes direction.

In velocity-time graphs:

• The gradient represents acceleration
• The area under the curve represents displacement
• Negative values indicate motion in the opposite direction

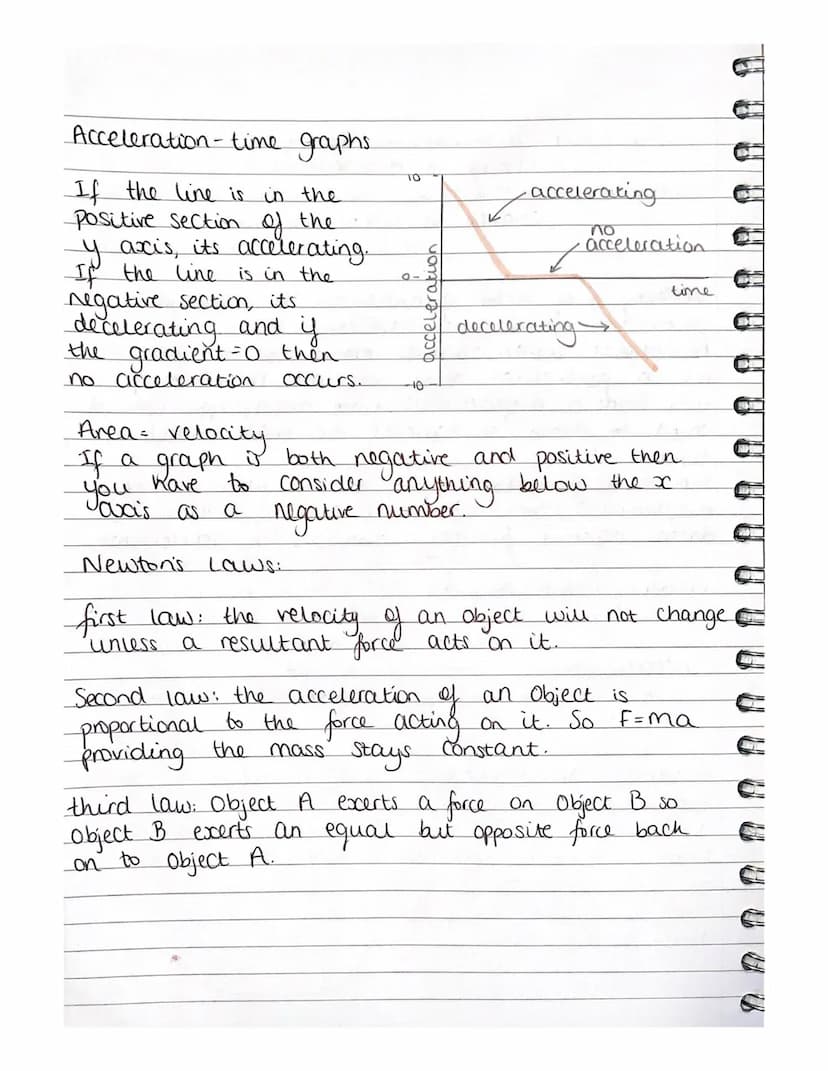

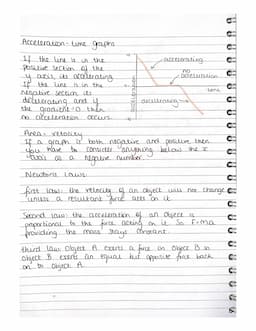

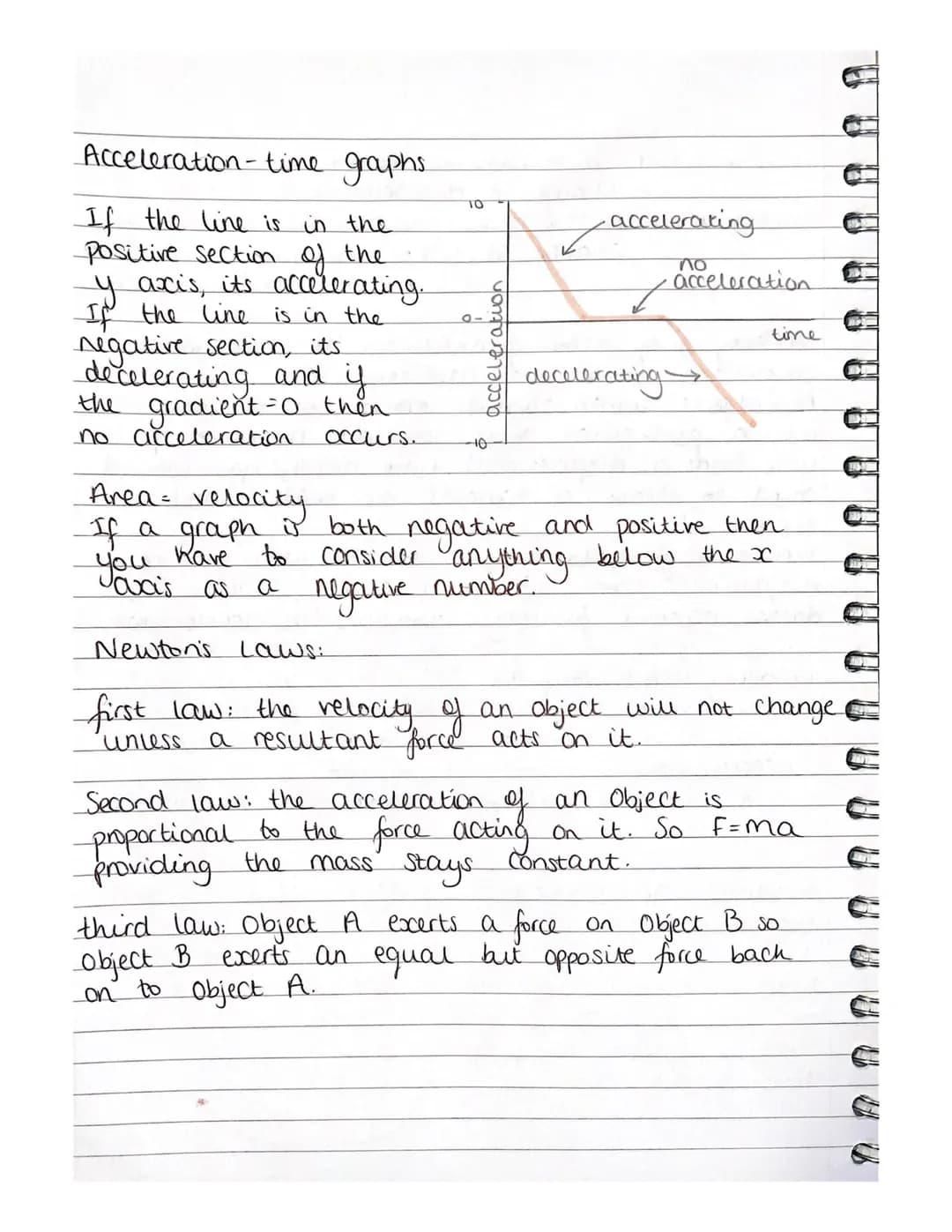

Newton's Laws and Acceleration Analysis

Understanding acceleration-time graphs is crucial for resolving forces in aqa physics mechanics pdf. When the line appears in the positive section of the y-axis, it indicates acceleration. Conversely, a line in the negative section shows deceleration. A horizontal line (gradient = 0) indicates constant velocity.

Newton's three laws of motion form the foundation of mechanics:

1. An object's velocity remains unchanged unless acted upon by a resultant force
2. Acceleration is proportional to the applied force $F = ma$
3. For every action, there is an equal and opposite reaction

Example: When pushing against a wall, you exert a force on the wall, and the wall exerts an equal but opposite force back on you.

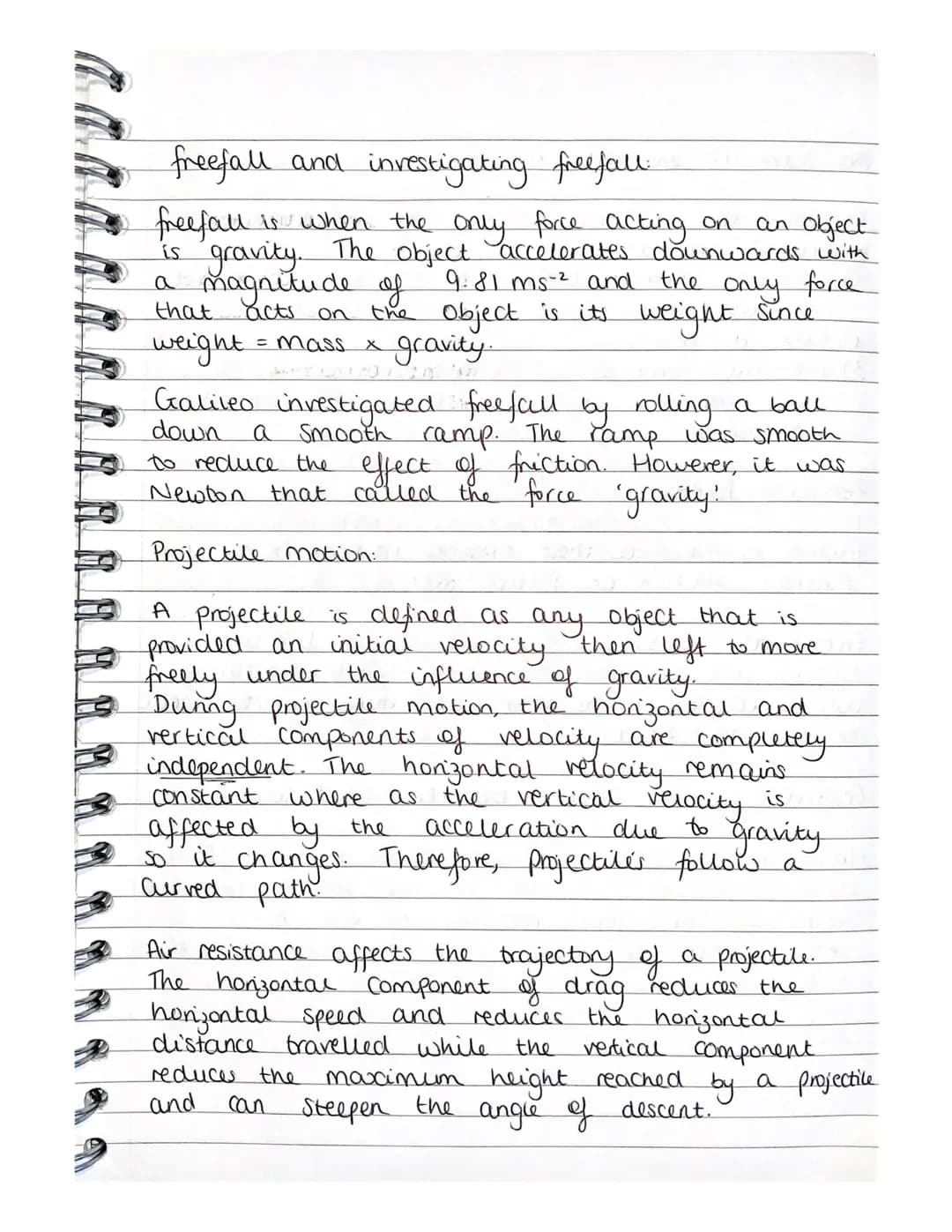

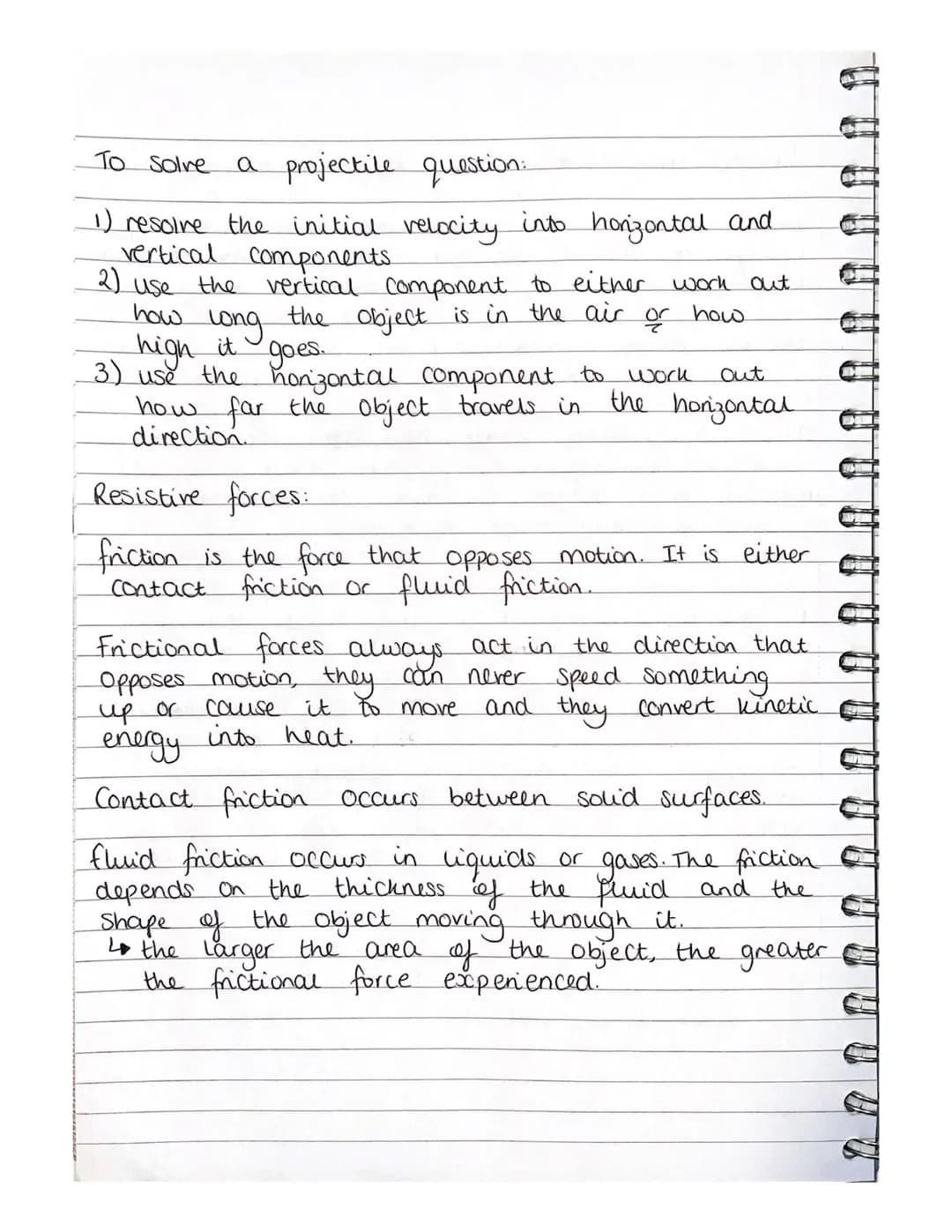

Projectile Motion and Resistive Forces

Forces in equilibrium A level physics questions often involve projectile motion analysis. A projectile is any object given an initial velocity and then left to move under gravity's influence. The motion combines constant horizontal velocity with accelerating vertical motion due to gravity (9.81 ms⁻²).

Key aspects of projectile motion include:

• Independent horizontal and vertical components
• Constant horizontal velocity (ignoring air resistance)
• Changing vertical velocity due to gravity
• Curved trajectory path

Vocabulary: Resistive forces include contact friction between solid surfaces and fluid friction in liquids or gases.

Air resistance affects projectiles by:

• Reducing horizontal speed
• Decreasing maximum height
• Steepening the descent angle
• Converting kinetic energy to heat

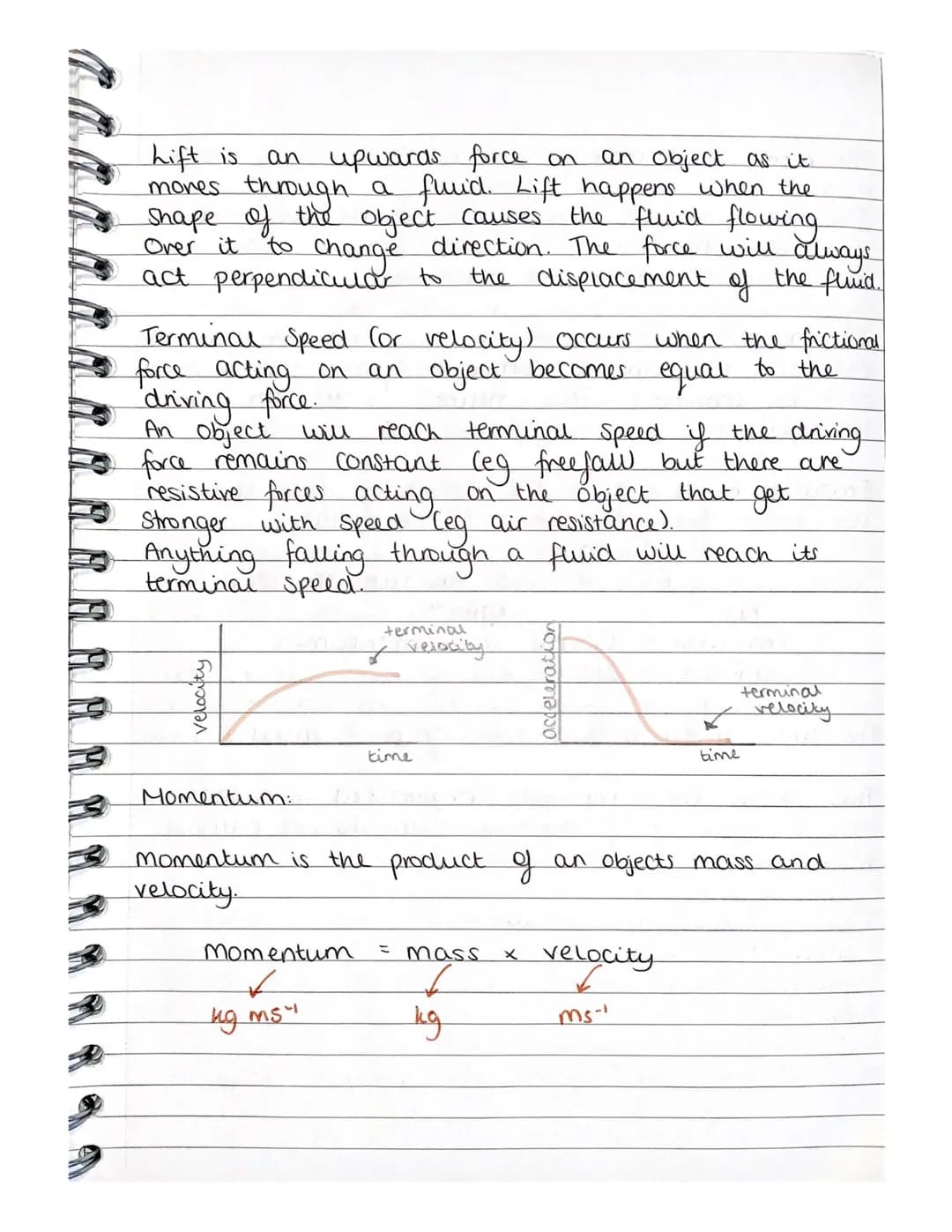

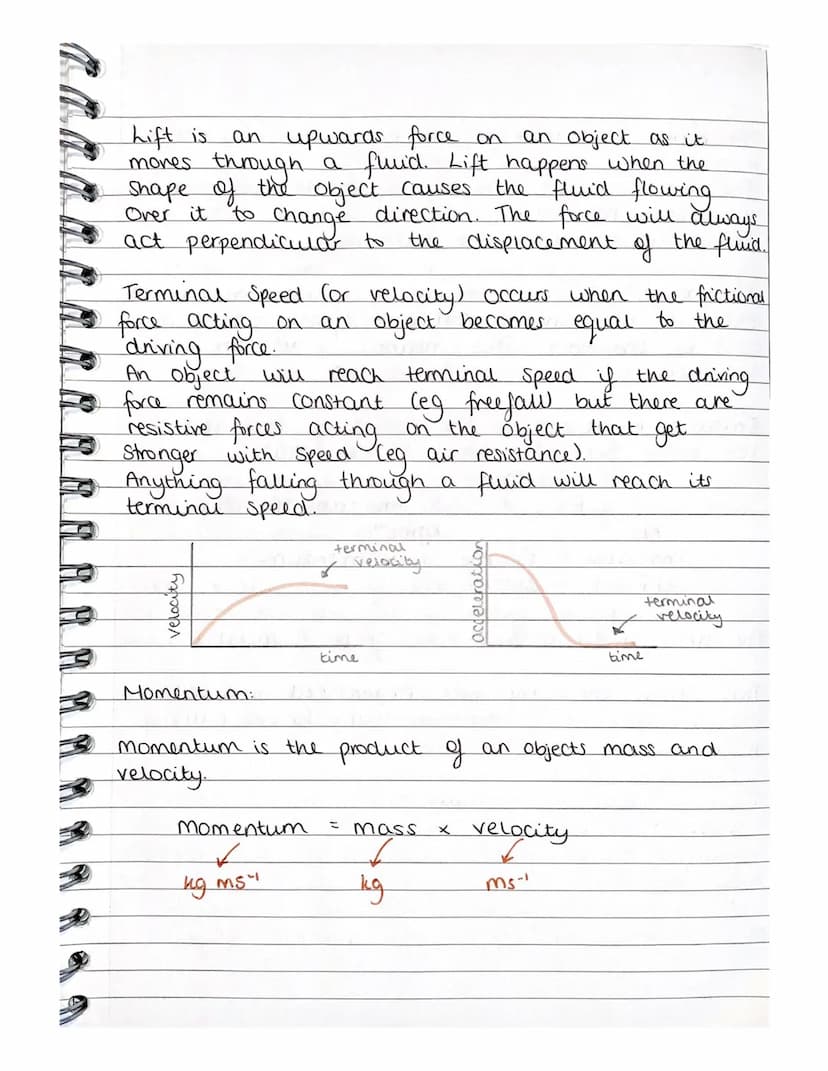

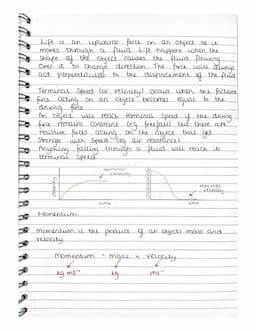

Understanding Terminal Velocity and Momentum in Physics

When studying equilibrium in mechanics a level physics, understanding terminal velocity and momentum is crucial. Terminal velocity occurs when an object moving through a fluid reaches a constant speed because the forces acting on it become balanced. This concept is fundamental in AQA A level Physics mechanics and appears frequently in practical applications.

In fluid dynamics, lift force plays a significant role. When an object moves through a fluid, the shape of the object causes the fluid flow to change direction, creating an upward force perpendicular to the fluid's displacement. This principle explains how aircraft wings generate lift and how birds stay airborne.

Definition: Terminal velocity is reached when the resistive forces (like air resistance) exactly balance the driving force (usually gravity), resulting in zero acceleration.

The relationship between terminal velocity and momentum is particularly important in A level Physics Mechanics. Momentum, defined as the product of mass and velocity, helps us understand how objects behave in motion. When an object reaches terminal velocity, its momentum remains constant because there is no acceleration.

Example: A skydiver falling through air initially accelerates due to gravity. As their speed increases, air resistance grows until it equals their weight. At this point, they reach terminal velocity and fall at a constant speed.

Understanding these concepts is essential for solving Forces in equilibrium A level physics questions. The mathematical relationship between momentum $p$, mass $m$, and velocity $v$ is expressed as p = mv, where momentum is measured in kg⋅m/s. This equation forms the foundation for more complex mechanics problems.

Applications of Terminal Velocity and Force Resolution

In practical applications of resolving forces in AQA physics mechanics, terminal velocity plays a crucial role in various scenarios. From raindrops falling through the atmosphere to vehicles designing for optimal aerodynamics, understanding how objects reach their terminal speed is essential for engineering and scientific applications.

Highlight: The key factors affecting terminal velocity are:

• Object mass and size
• Fluid density
• Cross-sectional area
• Surface texture
• Shape of the object

When solving Resolution of forces Questions and answers PDF problems, it's important to consider how different forces interact. The total force acting on an object determines whether it will reach terminal velocity. This involves analyzing both driving forces and resistive forces in various directions.

Vocabulary: Resistive forces are forces that oppose motion, such as:

• Air resistance (drag)
• Fluid friction
• Surface friction
• Viscous drag

These concepts frequently appear in A Level Physics Mechanics Past Papers, where students must demonstrate their understanding of force resolution and terminal velocity calculations. Real-world applications include designing parachutes, understanding weather patterns, and optimizing vehicle aerodynamics.
