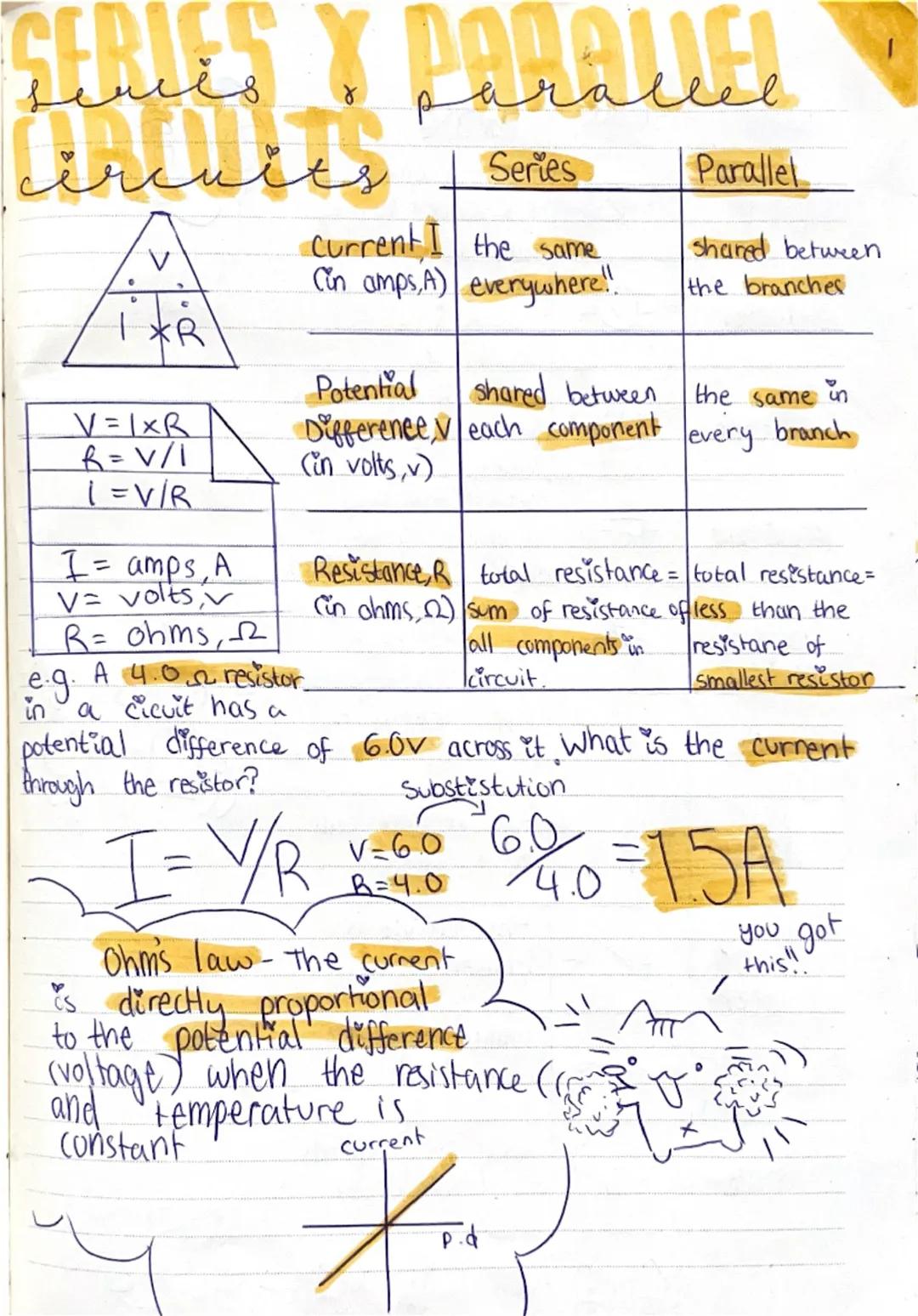

Series and Parallel Circuits
Series circuits are like a single motorway - current flows the same everywhere, but voltage gets shared between each component. Think of Christmas lights that all go out when one bulb breaks!
Parallel circuits work like multiple lanes on a road. Current splits between different branches, but each branch gets the full voltage. This is why your bedroom lights don't all turn off when you switch on your desk lamp.
Ohm's Law is your best mate for circuit calculations. It shows that current is directly proportional to voltage when resistance stays constant. Higher voltage means more current flows, but higher resistance means less current gets through.
Quick Tip: Remember "Very Important Relationship" for V = I × R!

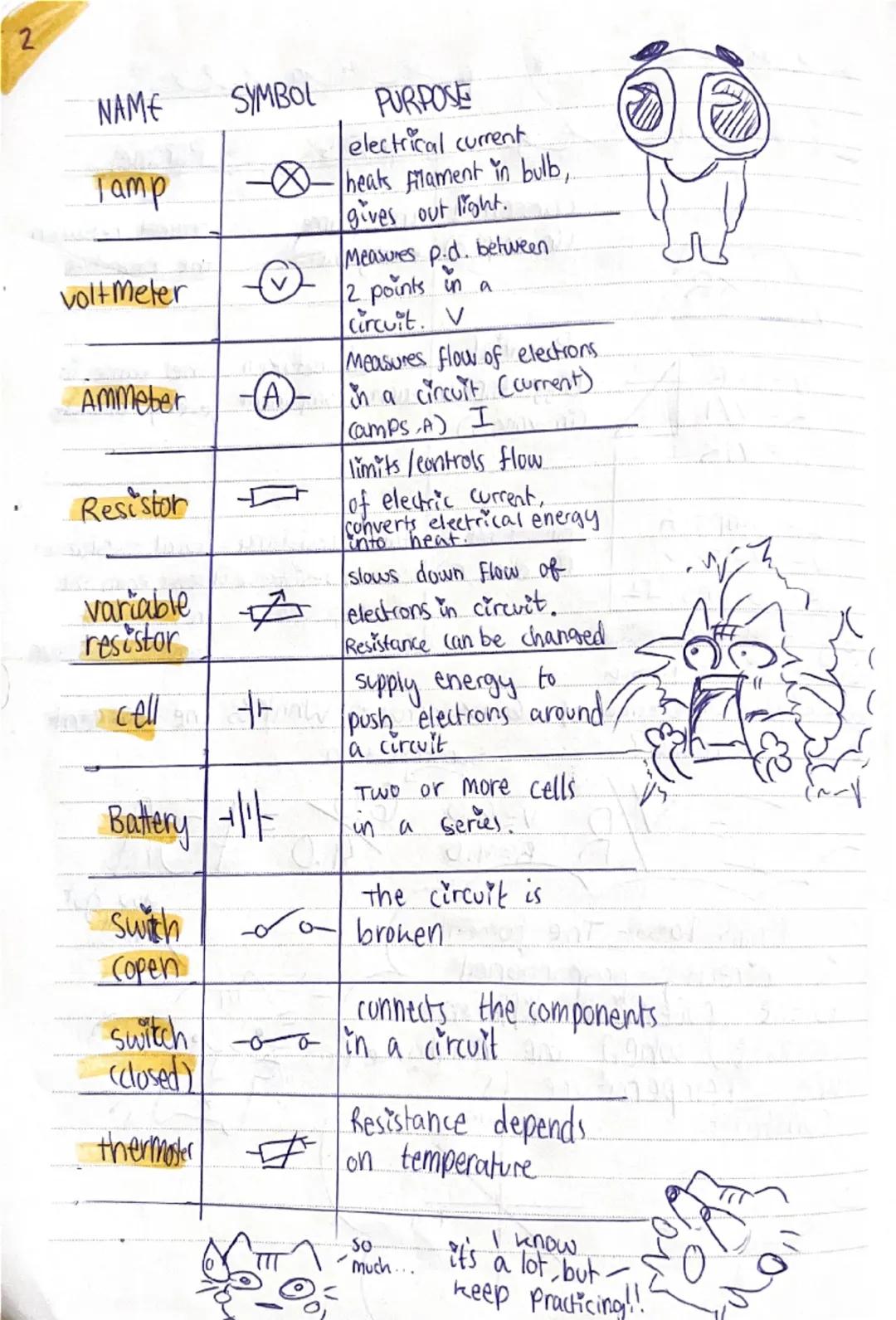

Circuit Components and Symbols
You'll need to recognise these circuit symbols for your exams. Lamps convert electrical energy into light, whilst resistors control current flow and convert electrical energy into heat.
Ammeters measure current (in amps) and must be connected in series. Voltmeters measure potential difference and connect in parallel. Both are essential for circuit investigations.
Cells and batteries provide the energy to push electrons around circuits. A single cell gives about 1.5V, whilst multiple cells in series add up their voltages.
Variable resistors let you control how much current flows - like a dimmer switch for your lights. Thermistors change resistance with temperature, making them perfect for thermostats.
Remember: Ammeters go "Along" the circuit (series), Voltmeters go "Vertical" across components (parallel)!
Special Components and Electric Fields
Light-dependent resistors (LDRs) are clever components that change resistance based on light levels. More light means less resistance, so more current flows. They're used in automatic street lights and burglar alarms.
Diodes only allow current to flow in one direction - they're like electrical one-way streets. LEDs (Light Emitting Diodes) do the same job but also give out light when current flows the right way.
Fuses are safety devices that break the circuit when too much current flows. They contain a thin wire that melts if the current gets dangerously high, protecting your expensive equipment.
Electric fields exist around charged objects. The closer the field lines are together, the stronger the electric field. Charged objects feel forces when placed in these fields - positive and negative charges attract, whilst like charges repel.
Safety First: Fuses are like circuit bodyguards - they sacrifice themselves to protect everything else!

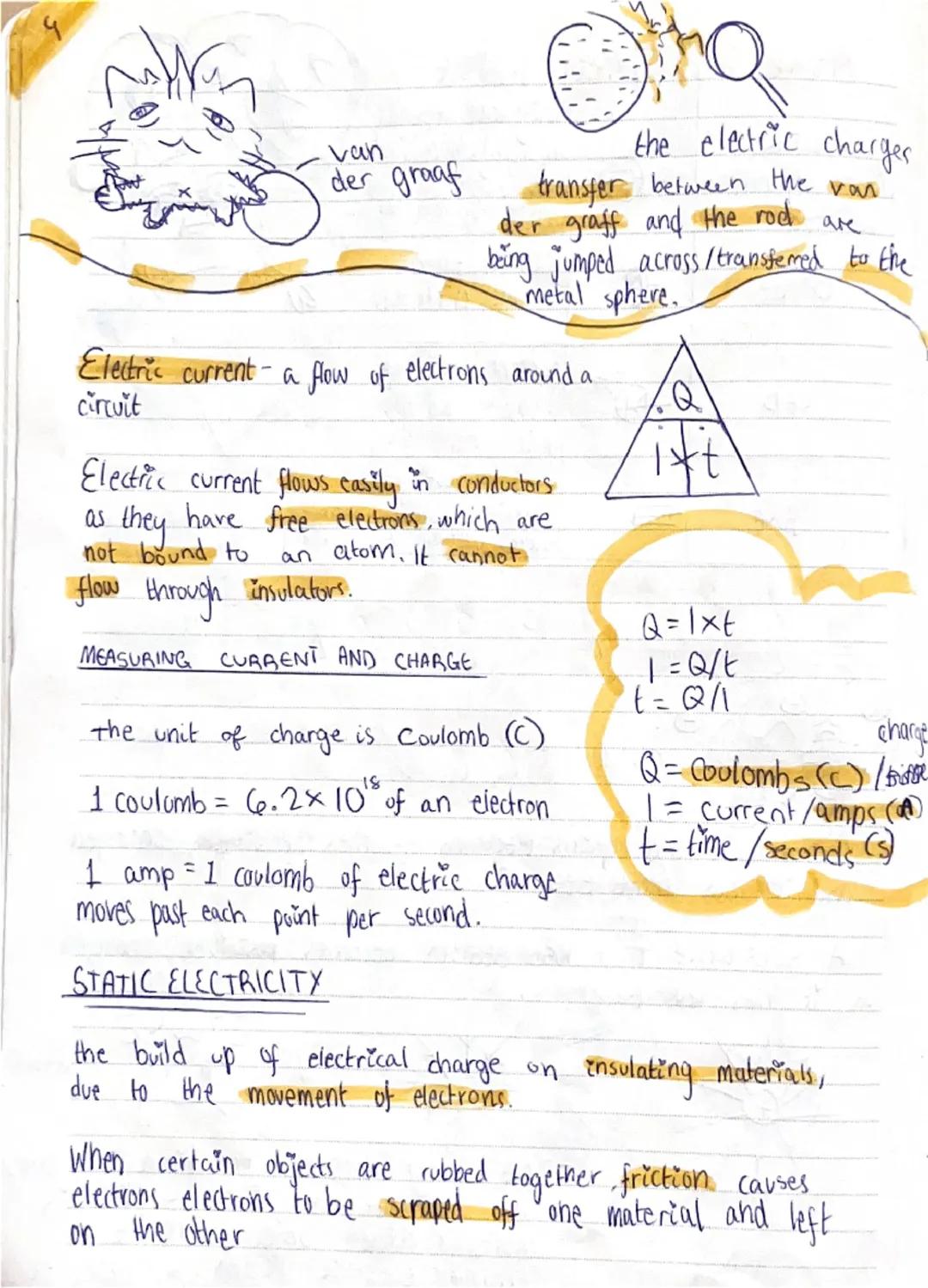

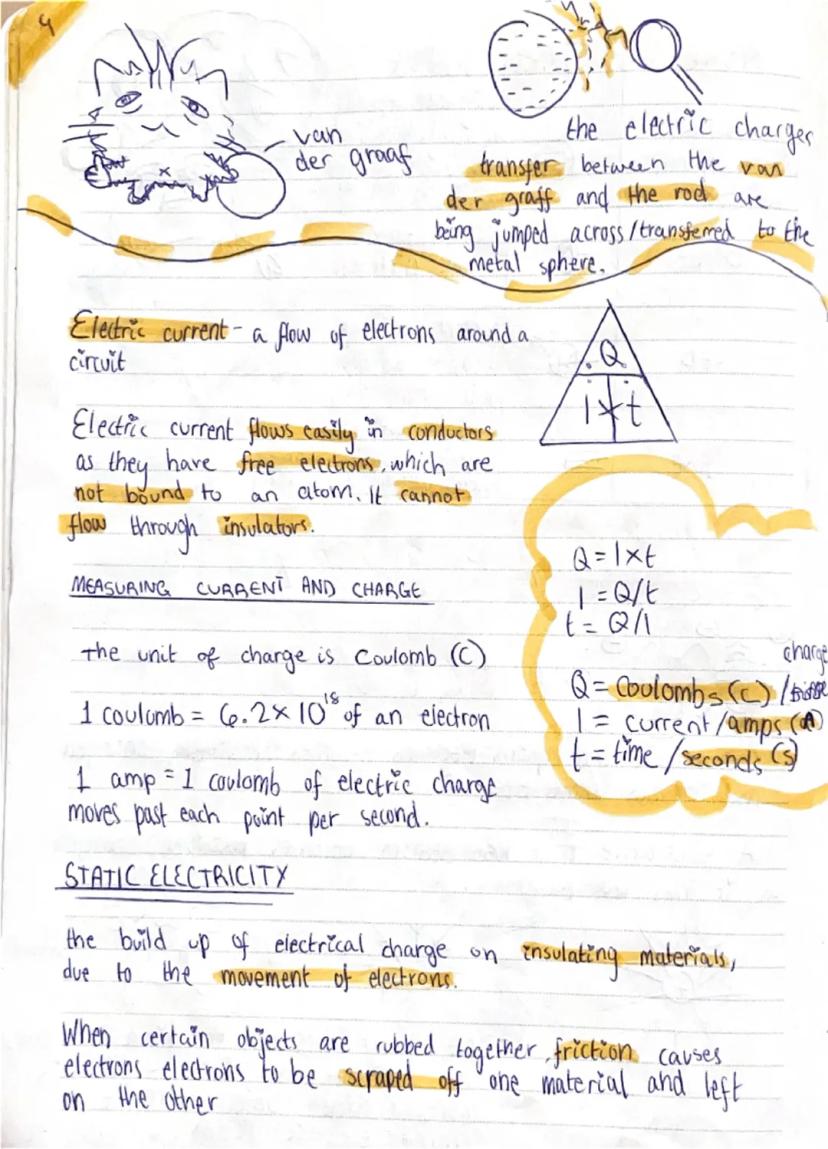

Current, Charge and Static Electricity
Electric current is simply electrons flowing around a circuit, measured in amperes (amps). Conductors like metals have free electrons that move easily, whilst insulators keep electrons bound tightly to their atoms.
Charge is measured in coulombs (C). One amp equals one coulomb of charge flowing past a point every second. That's about 6.2 × 10¹⁸ electrons - an absolutely massive number!
Static electricity builds up when you rub certain materials together. Friction scrapes electrons off one material onto another, creating a charge imbalance. Ever felt a shock touching a door handle after walking on carpet? That's static electricity jumping between you and the metal.
Van de Graaff generators demonstrate static electricity dramatically by transferring huge amounts of charge to a metal dome, creating spectacular sparks.
Fun Fact: One coulomb contains more electrons than there are people who have ever lived on Earth!

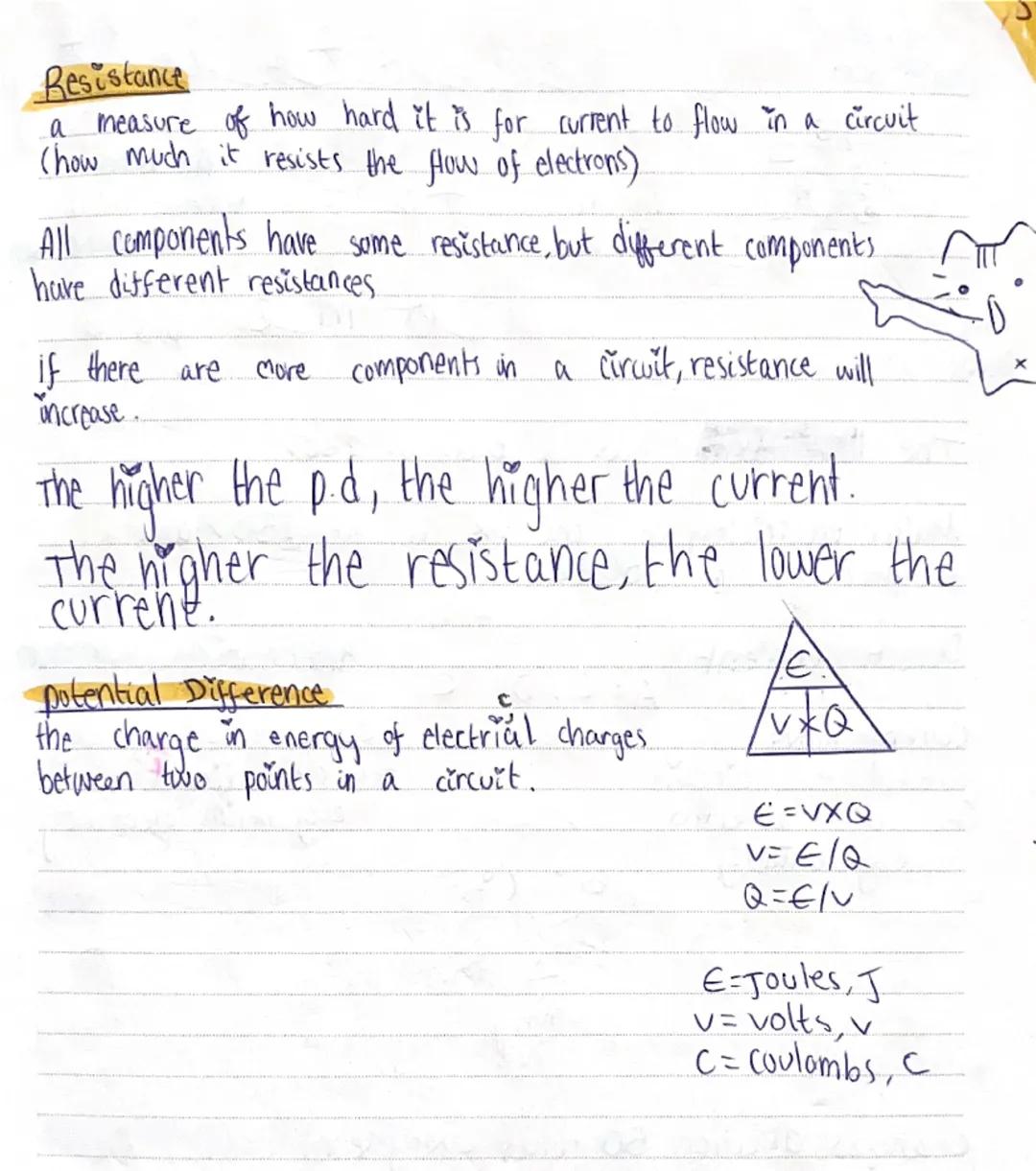

Resistance and Potential Difference
Resistance measures how much a component opposes current flow - think of it as electrical friction. All components have some resistance, but values vary enormously between different materials and components.
Adding more components to a circuit increases the total resistance. This means less current flows for the same voltage - like adding more traffic lights to slow down cars on a road.
Potential difference (voltage) represents the energy difference between two points in a circuit. Higher voltage pushes current harder through resistance, whilst higher resistance opposes current flow more strongly.
These relationships work together perfectly: increase voltage and current goes up, increase resistance and current goes down. It's all about balance in electrical circuits.
Think of it: Voltage is like water pressure, current is like water flow, and resistance is like a narrow pipe restricting the flow!

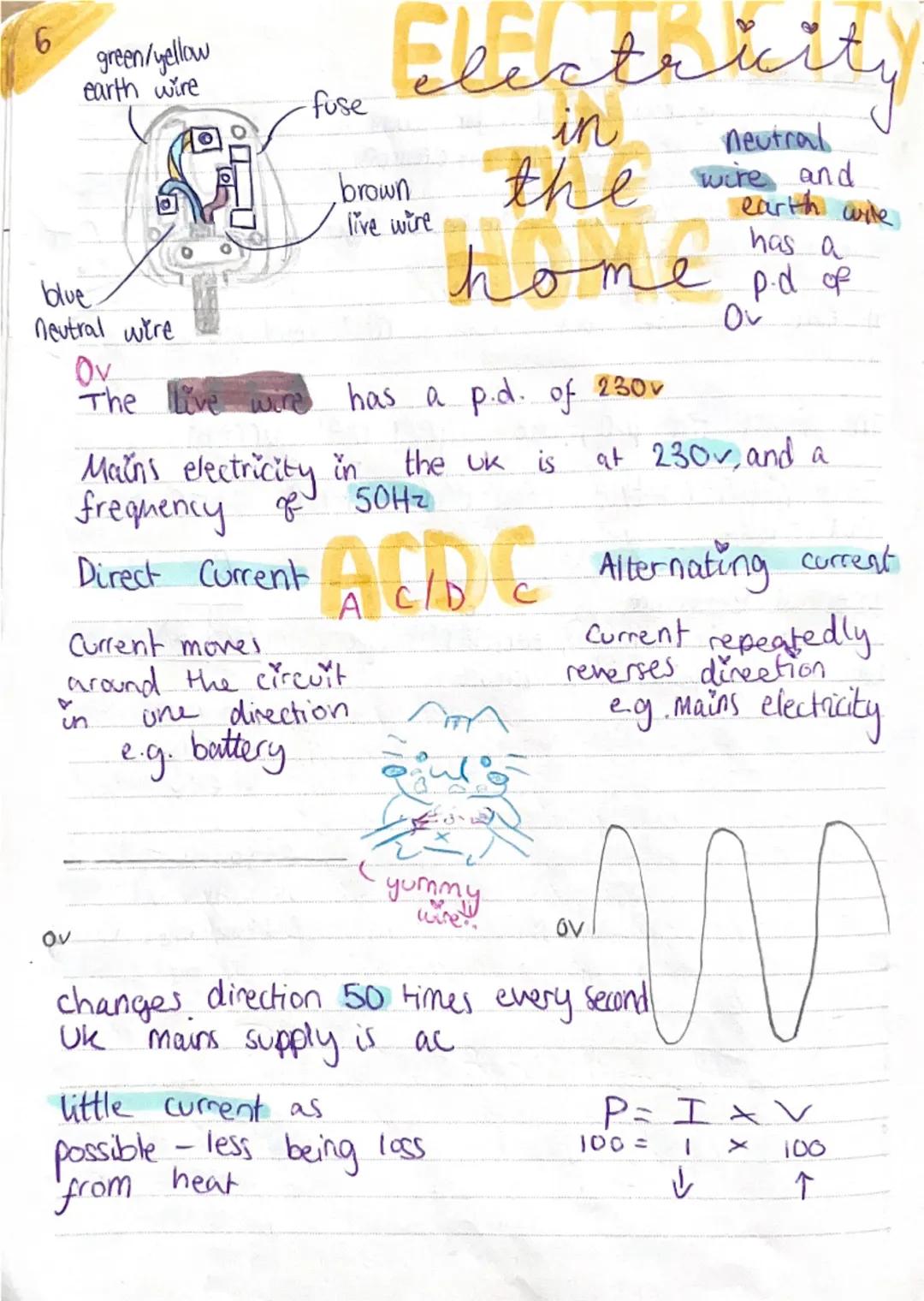

Mains Electricity and AC/DC
UK mains electricity supplies 230V at 50Hz frequency through three wires: brown live wire (230V), blue neutral wire (0V), and green/yellow earth wire for safety.
Direct current (DC) flows in one direction only, like from batteries in your phone. Alternating current (AC) constantly changes direction - UK mains electricity reverses direction 50 times every second.
AC is used for mains supply because it's more efficient for transmitting power over long distances. The power equation P = I × V shows how electrical power relates to current and voltage.
The earth wire provides a safe path for current if something goes wrong, whilst fuses break the circuit if too much current flows. These safety features prevent fires and electric shocks.
Safety Alert: Never touch the live wire - 230V can seriously injure or kill you!
