Essential Physics Required Practicals

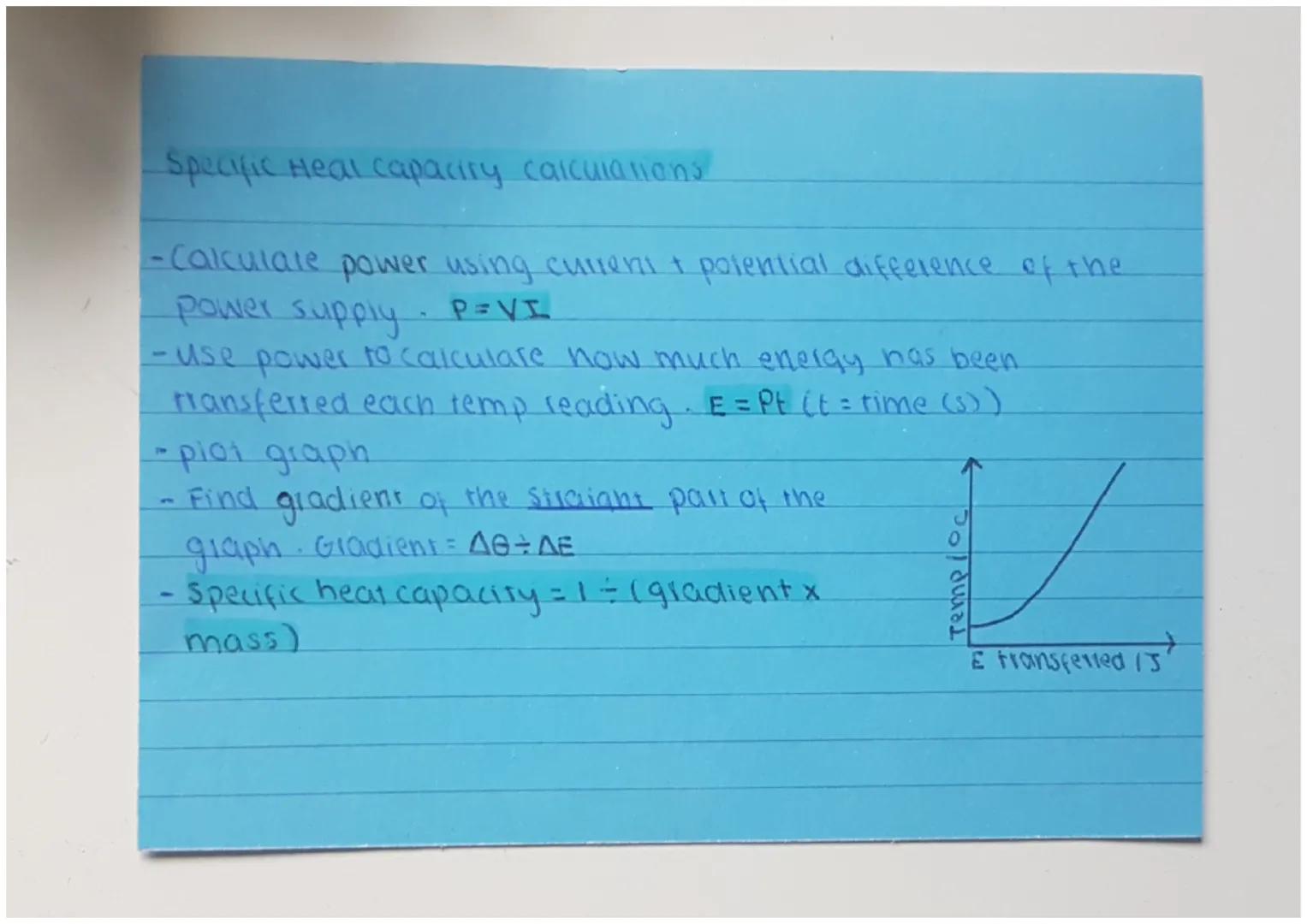

Specific Heat Capacity Calculations

Ever wondered why some materials heat up faster than others? Specific heat capacity tells us exactly how much energy different materials need to warm up.

First, you'll calculate the power of your heating element using P = VI (voltage times current). Then work out the total energy transferred using E = Pt, where t is time in seconds.

The magic happens when you plot your temperature readings against energy on a graph. The gradient of the straight line section equals ΔΘ/ΔE, and your final specific heat capacity is simply 1 divided by (gradient × mass).

Quick Tip: Keep your units consistent - use joules for energy, seconds for time, and kilograms for mass to get the right answer every time.

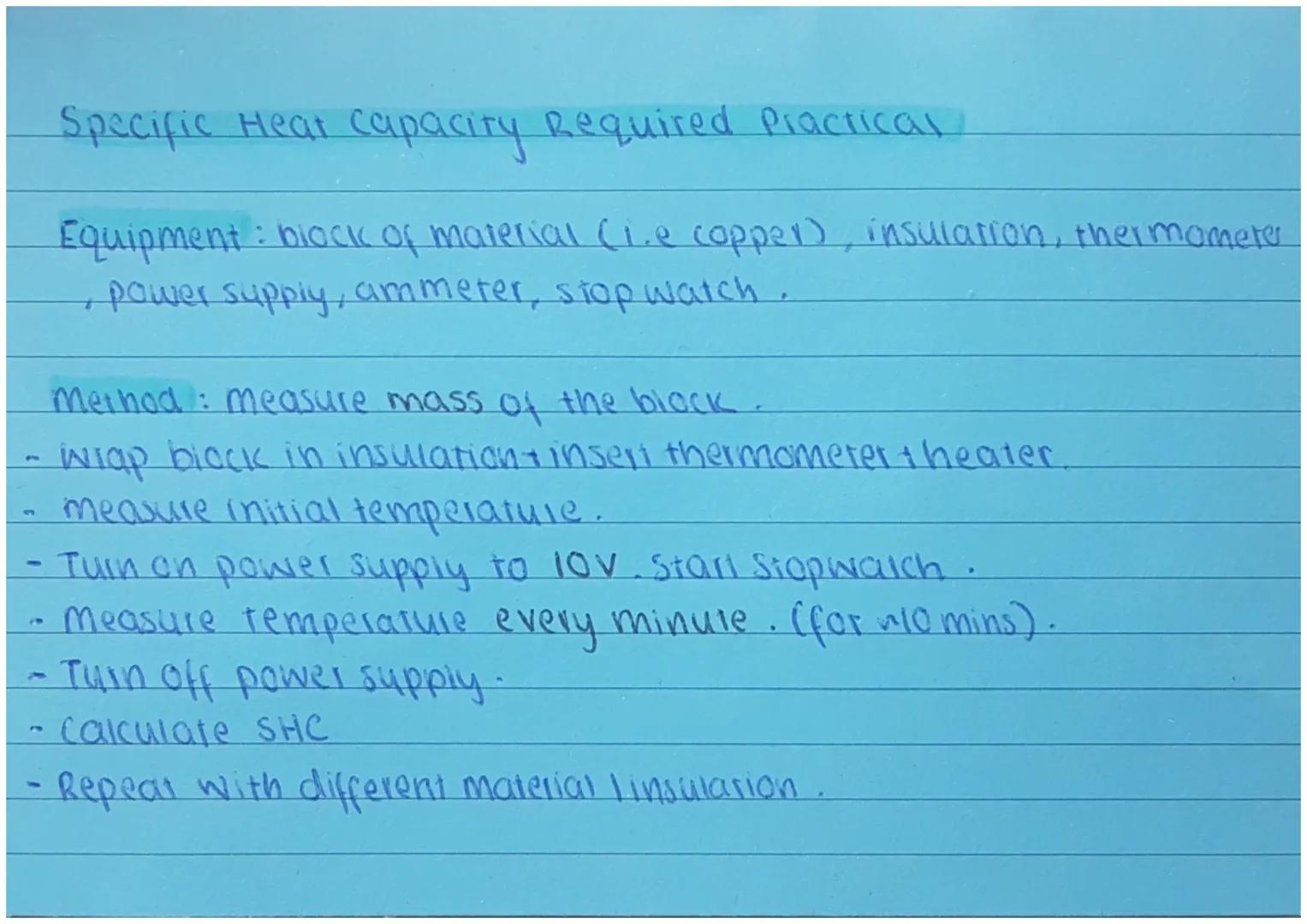

Specific Heat Capacity Required Practical

This practical lets you compare how quickly different materials heat up - perfect for understanding why metal spoons get hot in soup whilst wooden ones don't!

You'll need a block of material (like copper), some insulation, a thermometer, power supply, ammeter, and stopwatch. Start by measuring the block's mass, then wrap it in insulation and insert both the thermometer and heater.

Set your power supply to 10V and record the temperature every minute for 10 minutes. The insulation is crucial - it stops heat escaping and messing up your results.

Try different materials like aluminium or steel to see how their heating rates compare. Each material has its own unique specific heat capacity value.

Safety Note: Those blocks get properly hot, so use tongs when handling them and let everything cool down before packing away.

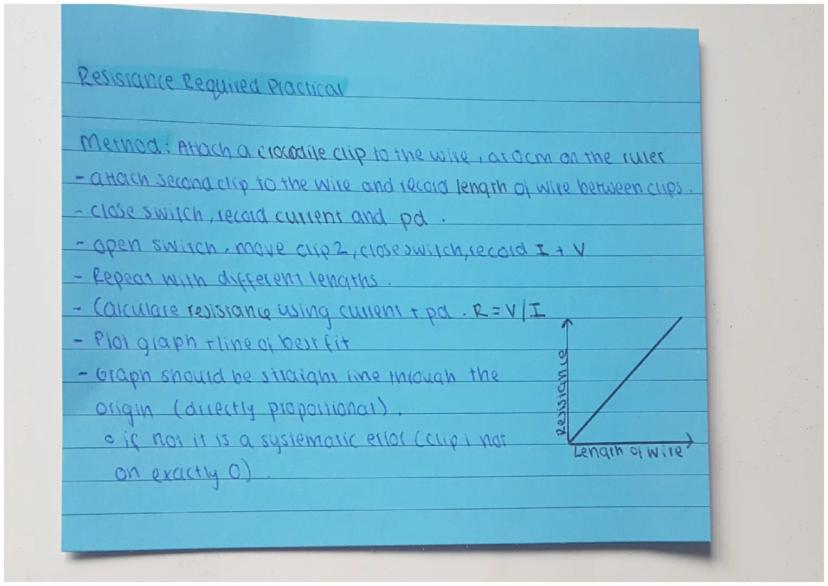

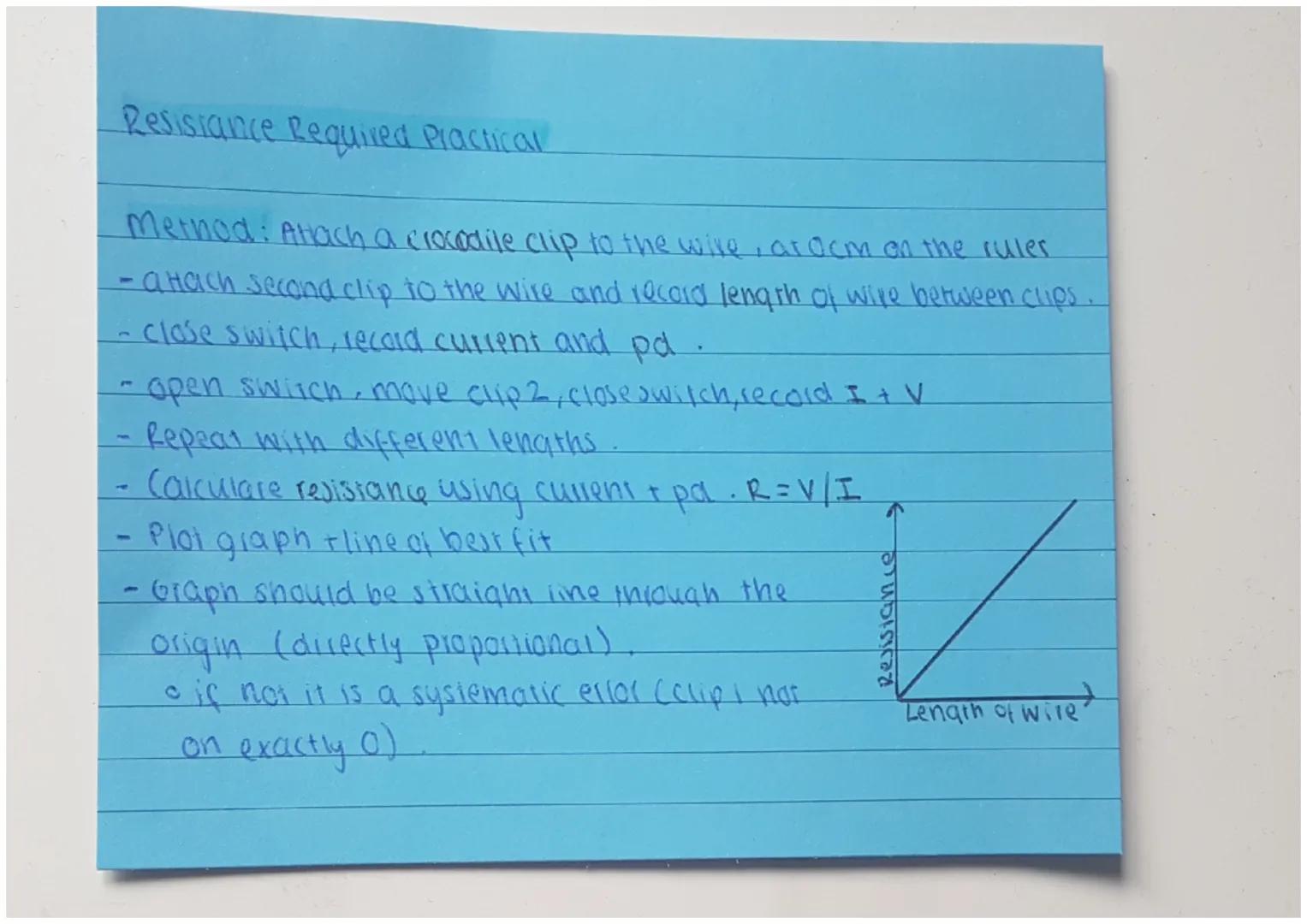

Resistance Required Practical

This brilliant experiment shows you exactly how a wire's length affects its electrical resistance - knowledge that engineers use when designing circuits.

Set up your wire with crocodile clips at 0cm, then gradually move the second clip to different lengths. Each time, close the switch briefly to record current and potential difference (don't leave it on too long or the wire heats up).

Calculate resistance using R = V/I for each length. When you plot your graph, you should get a lovely straight line through the origin, proving that resistance and length are directly proportional.

If your line doesn't go through zero, you've got a systematic error - probably because your first clip wasn't exactly on the 0cm mark.

Pro Tip: Work quickly with each measurement to prevent the wire heating up, which would change its resistance and skew your results.

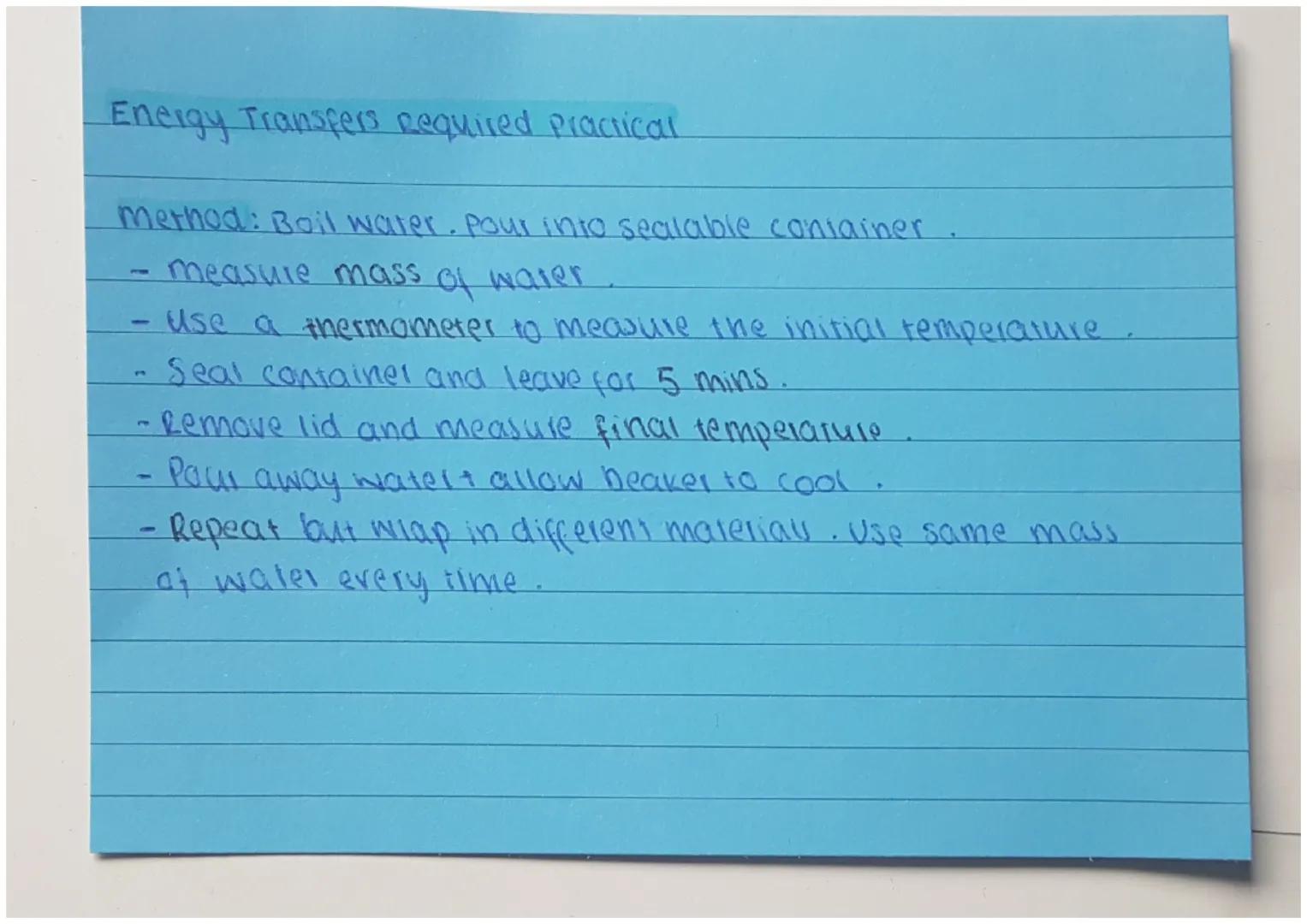

Energy Transfers Required Practical

This practical shows you which insulating materials are best at keeping your tea warm - the same principle behind thermal flasks and house insulation.

Start with freshly boiled water in a sealable container. Measure the water's mass and initial temperature, then seal it up and wait exactly 5 minutes. The temperature drop tells you how much heat energy escaped.

Repeat the experiment wrapping your container in different materials like newspaper, bubble wrap, or wool. Always use the same mass of water and the same timing for fair comparisons.

The material that gives you the smallest temperature drop is your best thermal insulator. You'll be amazed at how much difference the right material makes!

Safety First: Handle that boiling water carefully - use a kettle with a good spout and keep the container on a stable surface.

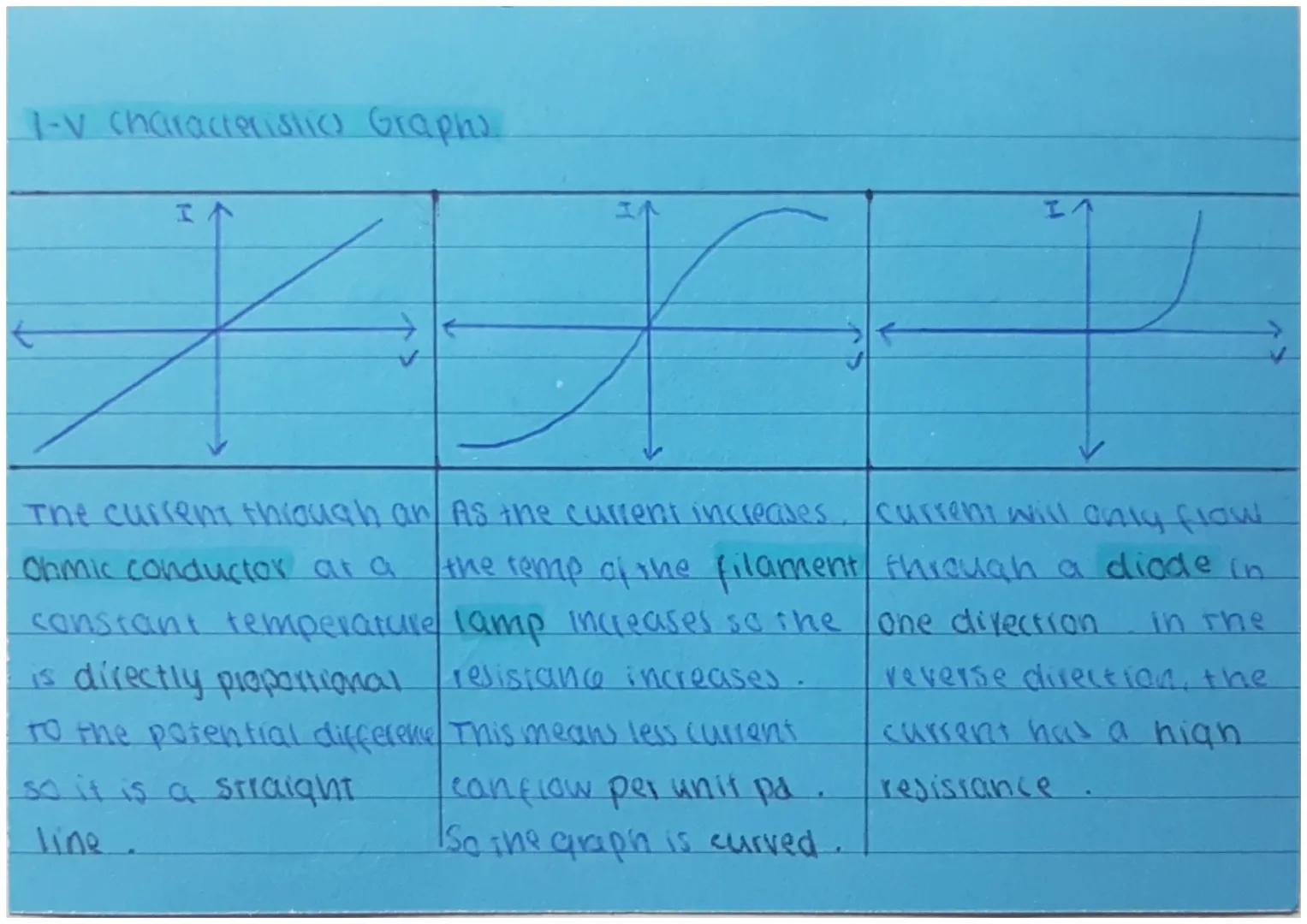

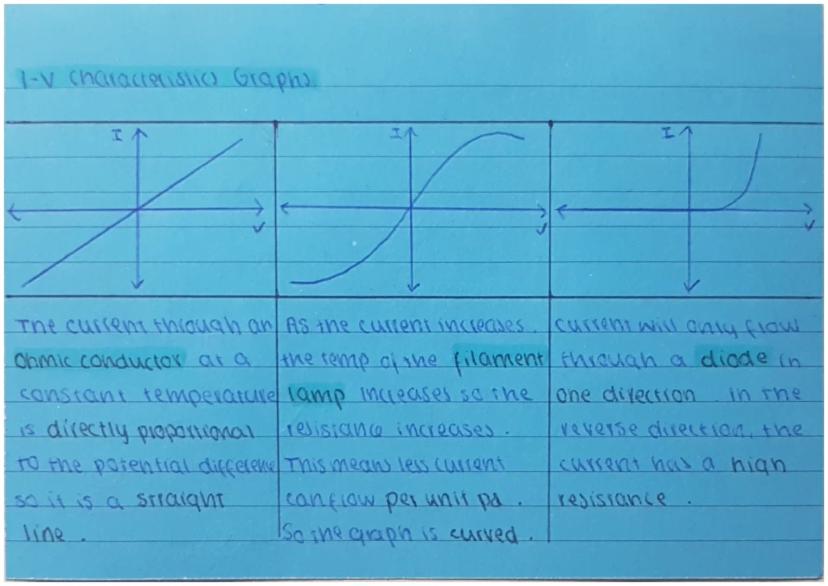

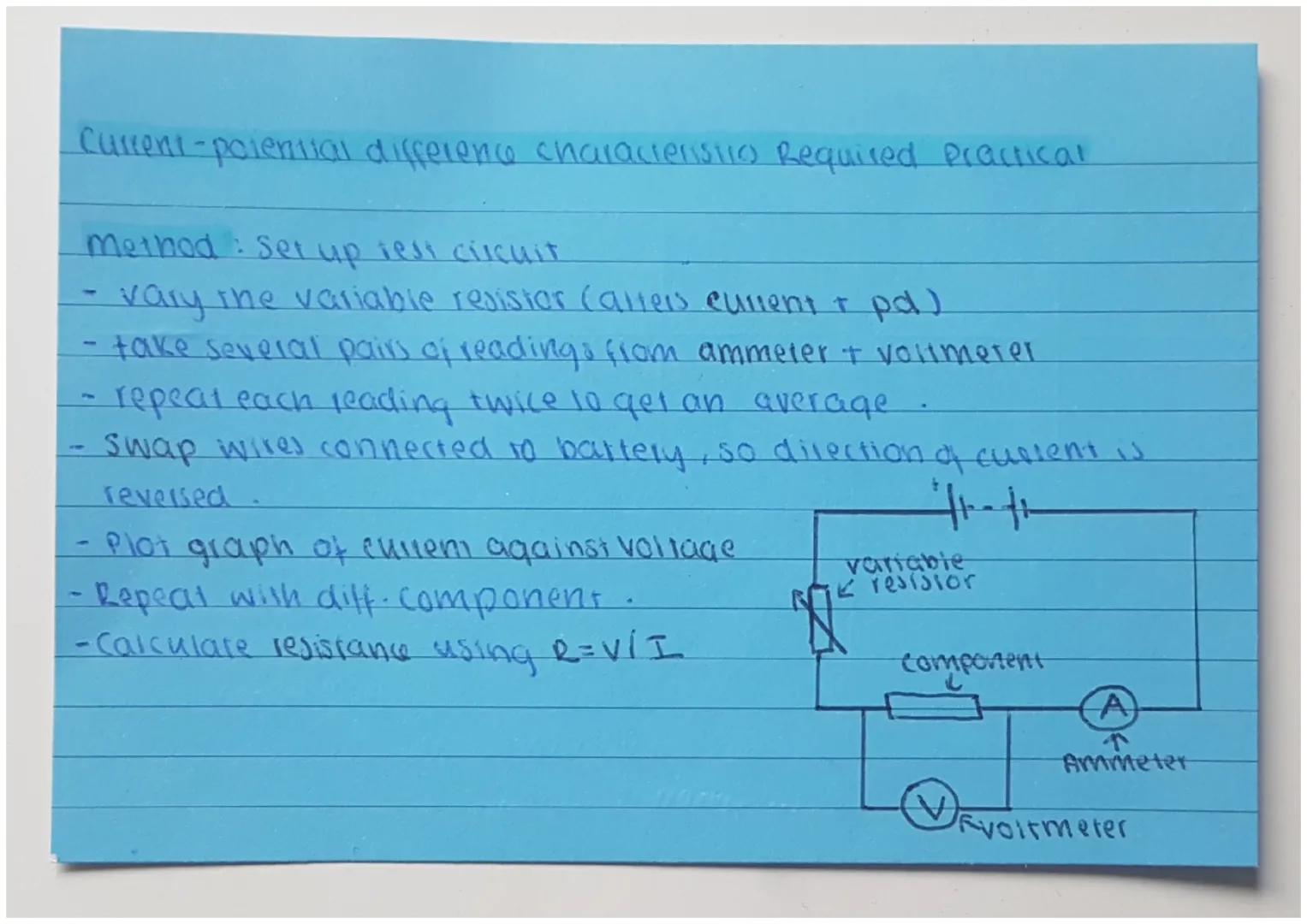

Current-Potential Difference Characteristics Practical

This experiment reveals how different electrical components behave when you change the voltage - essential knowledge for understanding everything from LED lights to phone chargers.

Set up your test circuit with a variable resistor to control the current and voltage. Take several readings from your ammeter and voltmeter, then repeat each measurement twice for accuracy.

Here's the clever bit: swap your battery connections around to reverse the current direction and take more readings. This shows you how components behave with both positive and negative voltages.

Plot current against voltage for each component you test. Different components give completely different graph shapes, which tells you loads about how they work.

Remember: Calculate resistance at different points using R = V/I - you'll notice some components have changing resistance values.
