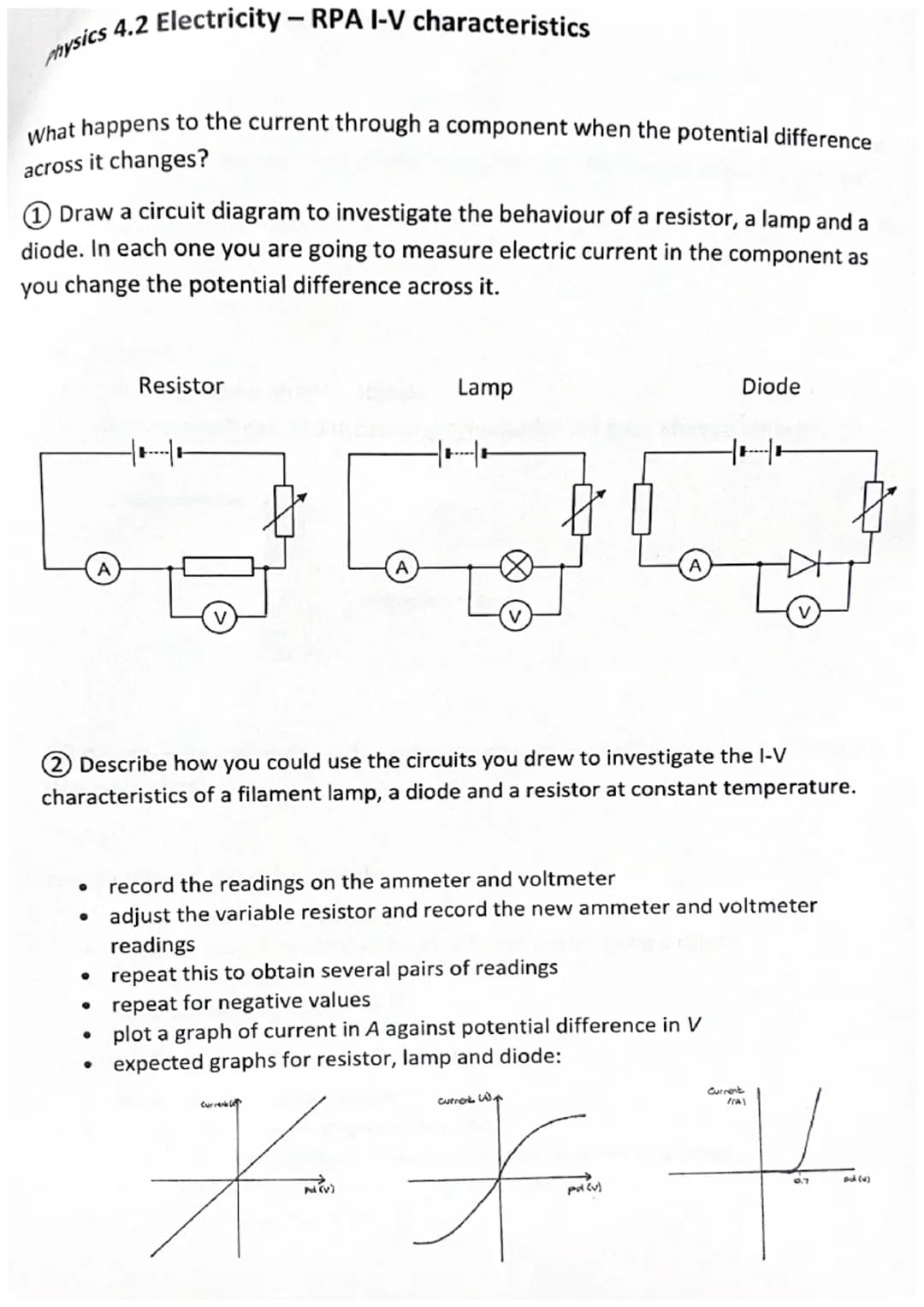

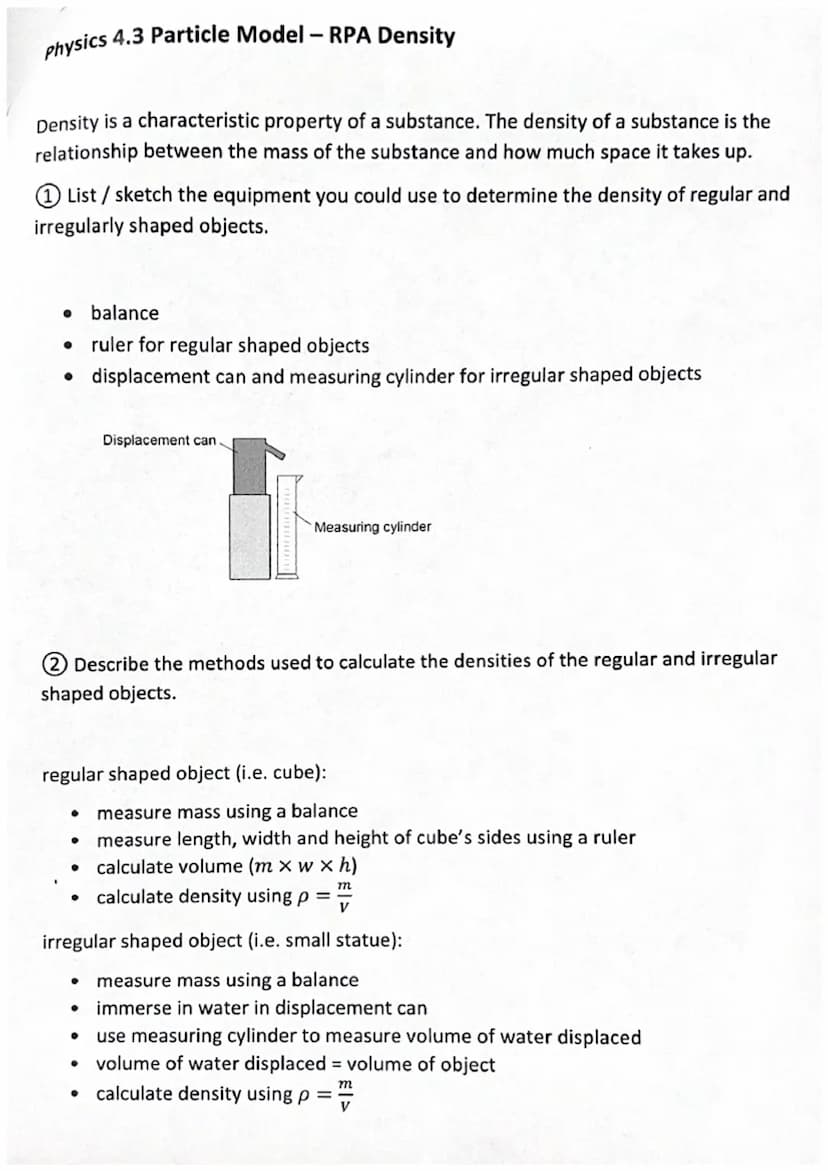

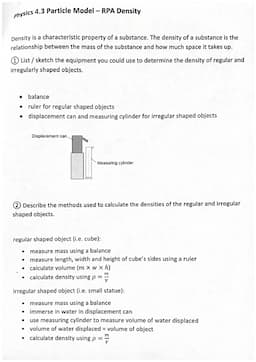

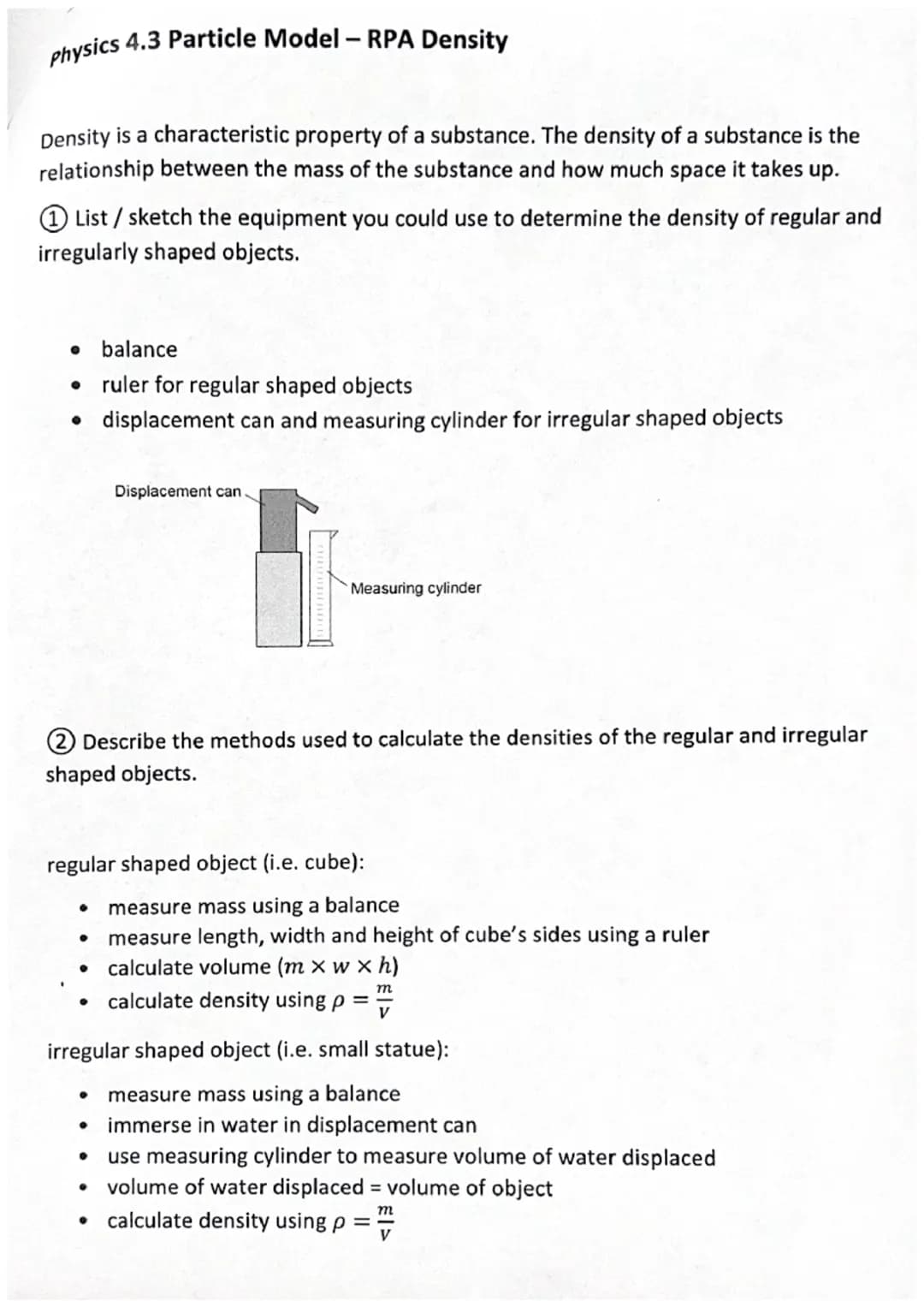

Physics 4.2 Electricity - RPA I-V Characteristics

This section covers the required practical activity for investigating the current-voltage (I-V) characteristics of various electrical components. The experiment helps students understand how current changes with potential difference in different components, such as resistors, lamps, and diodes.

The practical involves setting up circuits to measure the current through and potential difference across each component as the voltage is varied. Students learn to plot I-V graphs and interpret the results for each component.

Vocabulary: I-V characteristics - The relationship between current and voltage in an electrical component, typically represented as a graph.

The AQA GCSE physics required practical I-V characteristics method includes:

1. Setting up separate circuits for a resistor, a lamp, and a diode
2. Using a variable resistor to adjust the potential difference across the component
3. Measuring current and potential difference for various voltage settings
4. Recording positive and negative values for the resistor and lamp (diode only positive)
5. Plotting graphs of current against potential difference for each component

Highlight: The shape of the I-V graph for each component reveals its unique electrical behavior.

Example: A resistor typically shows a straight line graph, indicating a constant resistance. A lamp's graph curves, showing increasing resistance as it heats up. A diode's graph shows current flow in only one direction above a certain voltage.

This practical activity is crucial for understanding the behavior of different electrical components and how they respond to changes in voltage. It provides hands-on experience with key concepts in electrical circuits and helps students develop skills in data collection, analysis, and graphical representation.

Definition: Diode - An electrical component that allows current to flow in only one direction.

By conducting this experiment, students gain valuable insights into the investigating resistance practical aspects and learn to interpret I-V characteristics of various components, which is essential knowledge for further studies in electronics and electrical engineering.

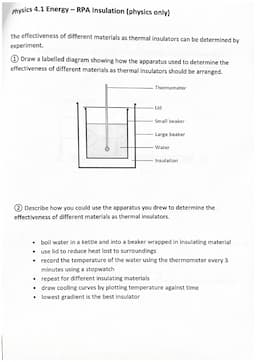

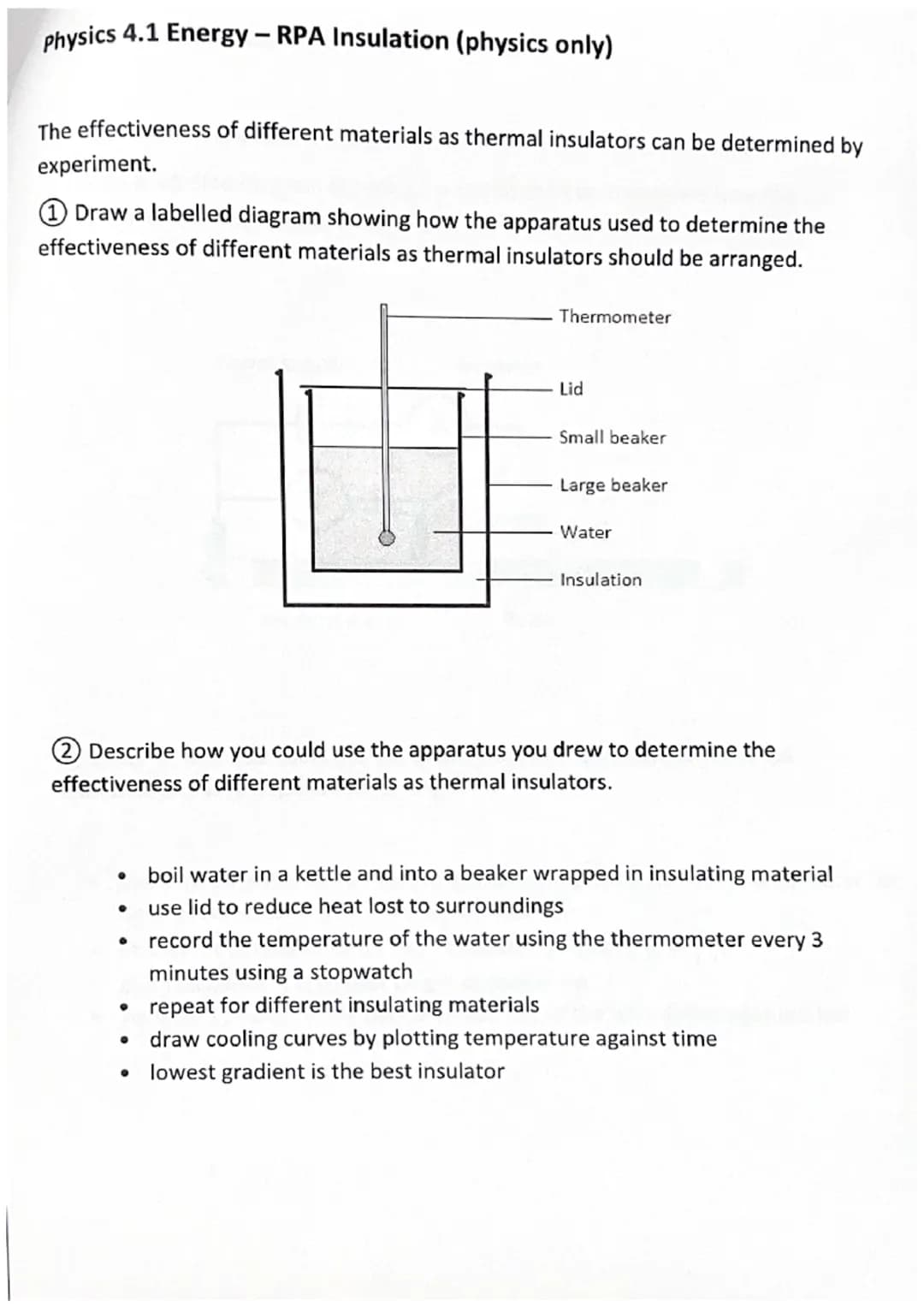

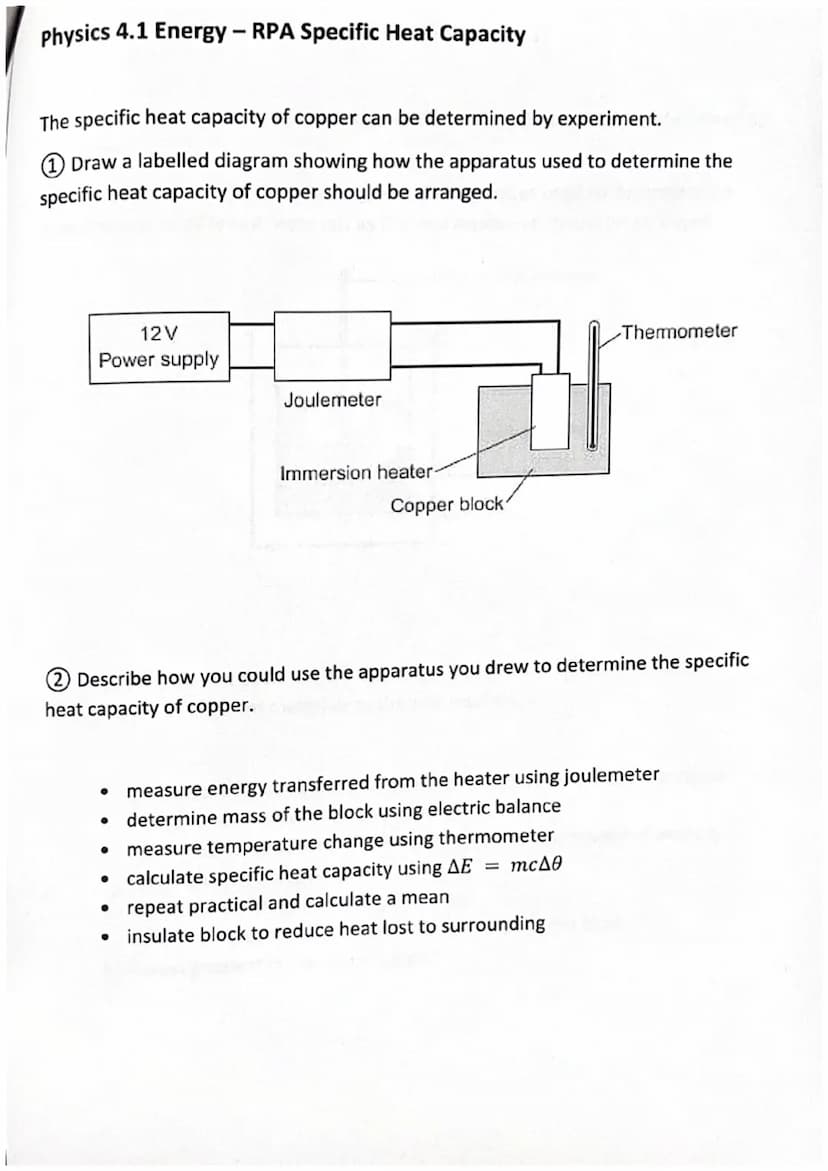

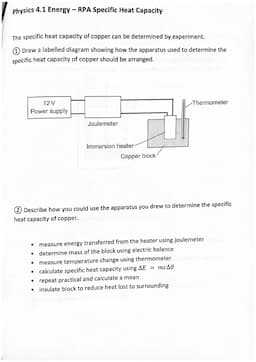

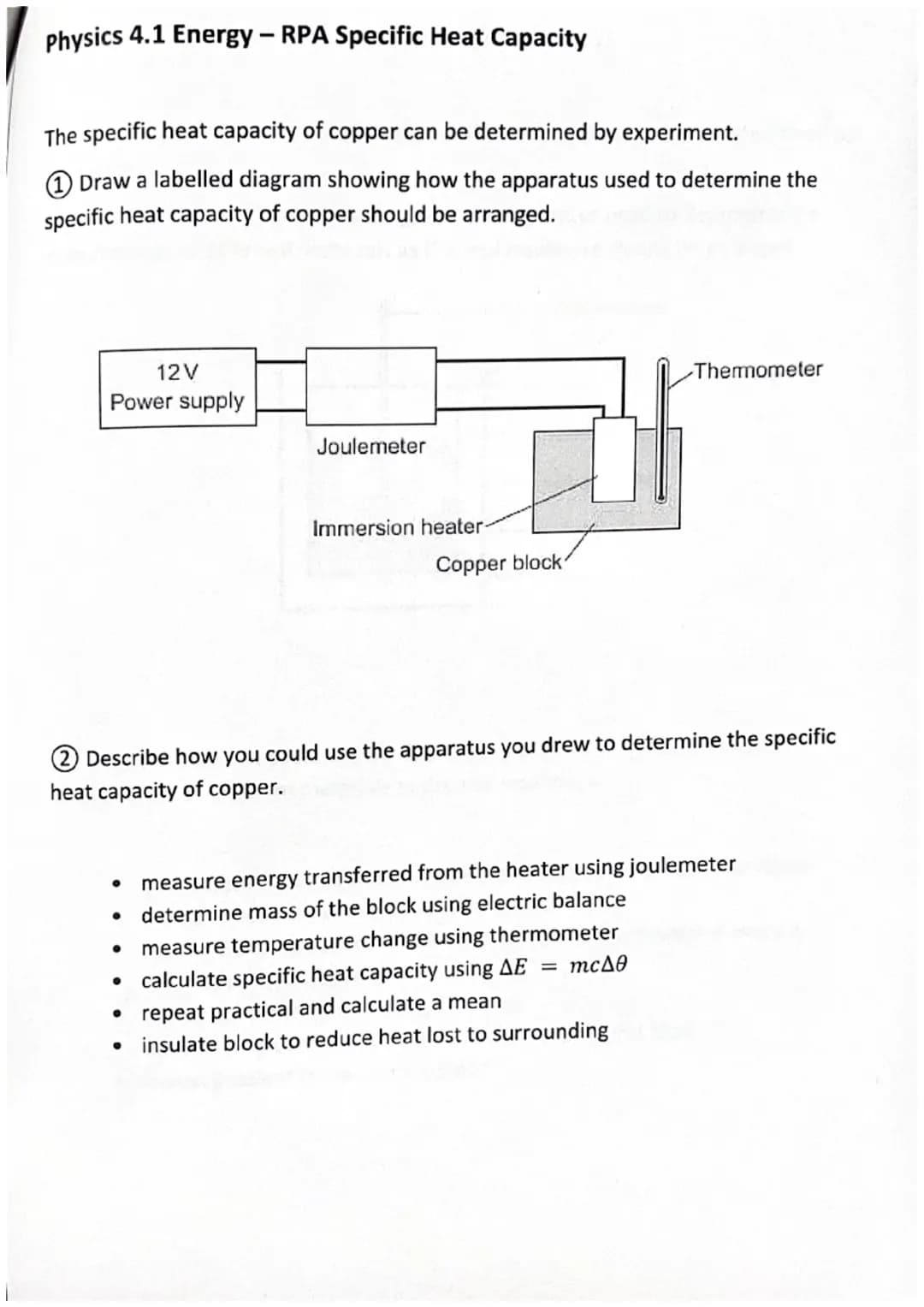

Physics 4.1 Energy - RPA Insulation (Physics Only)

This section covers the required practical activity for investigating the effectiveness of different materials as thermal insulators. The experiment is designed to help students understand the principles of thermal insulation and compare the insulating properties of various materials.

The setup involves using two beakers (one small, one large), a thermometer, and different insulating materials. Students learn to measure and compare the rate of temperature change for water in beakers wrapped with different insulators.

Vocabulary: Thermal insulator - A material that reduces the transfer of heat energy from one object to another.

The thermal insulation required practical method includes:

1. Boiling water and pouring it into a small beaker wrapped in insulating material
2. Placing the small beaker inside a larger beaker for additional insulation
3. Using a lid to reduce heat loss to the surroundings
4. Recording the water temperature every 3 minutes using a thermometer and stopwatch
5. Repeating the process with different insulating materials
6. Drawing cooling curves by plotting temperature against time

Highlight: The material that produces the cooling curve with the lowest gradient is considered the best insulator.

This practical activity is crucial for understanding heat transfer and insulation principles, which are essential concepts in the AQA GCSE physics curriculum.

Example: Students might compare materials such as bubble wrap, foam, wool, and aluminum foil to determine which material is the best insulator in the experiment.

By conducting this experiment, students gain hands-on experience in thermal insulation physics and learn to analyze and interpret data related to heat transfer and insulation effectiveness.

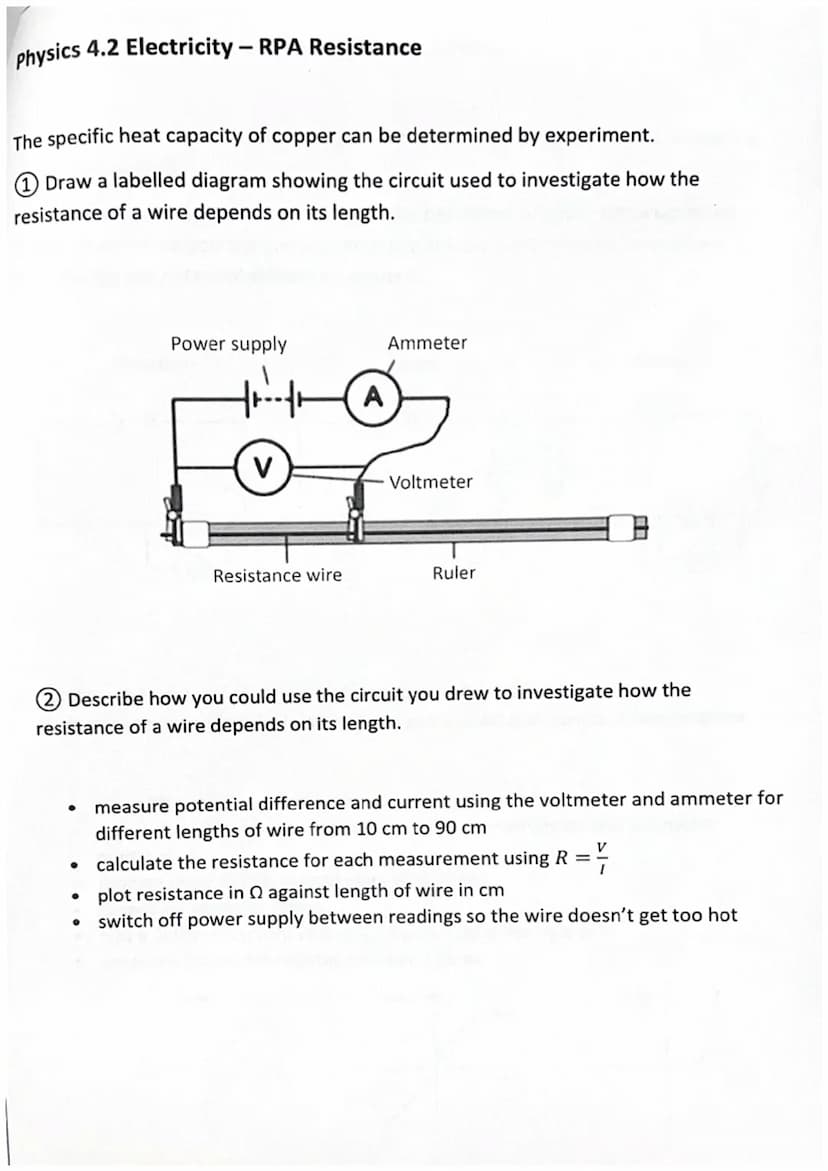

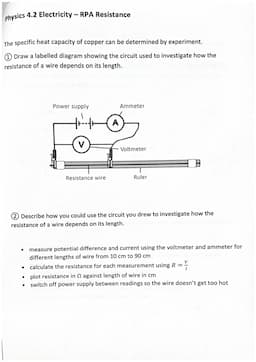

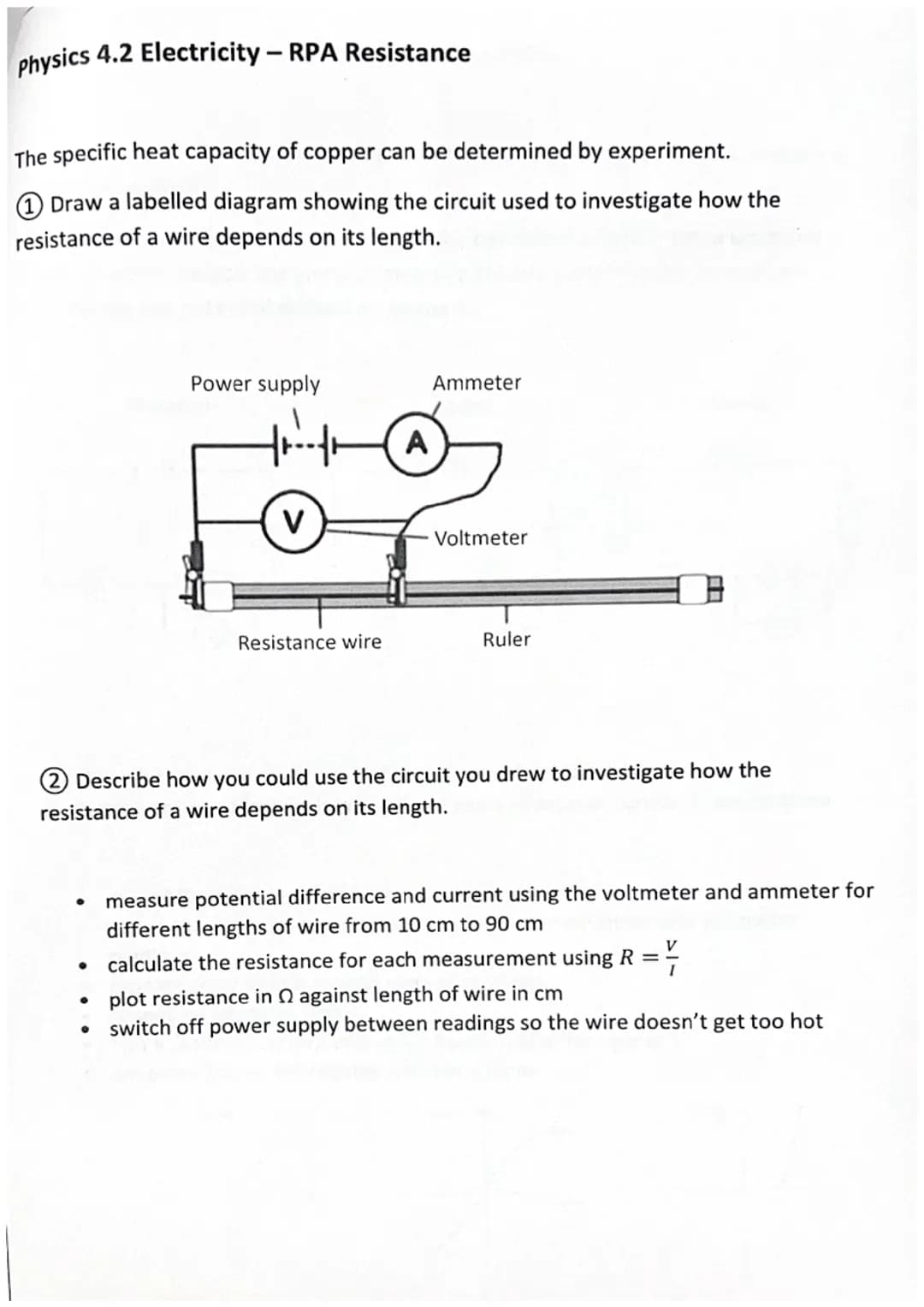

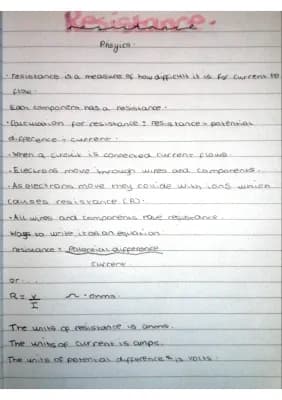

Physics 4.2 Electricity - RPA Resistance

This section focuses on the required practical activity for investigating how the resistance of a wire depends on its length. The experiment helps students understand the relationship between wire length and electrical resistance, a fundamental concept in electrical circuits.

The setup involves creating a circuit with a power supply, ammeter, voltmeter, and a length of resistance wire. Students learn to measure current and potential difference for various lengths of wire and calculate resistance using Ohm's law.

Vocabulary: Resistance - The opposition to the flow of electric current in a circuit, measured in ohms (Ω).

The resistance of a wire practical method includes:

1. Setting up the circuit with the power supply, ammeter, voltmeter, and resistance wire
2. Measuring the potential difference and current for different lengths of wire (from 10 cm to 90 cm)
3. Calculating the resistance for each measurement using the equation R = V/I
4. Plotting resistance against wire length on a graph

Highlight: It's crucial to switch off the power supply between readings to prevent the wire from overheating, which could affect the results.

Example: Students might observe that doubling the length of the wire results in doubling the resistance, demonstrating a direct proportional relationship.

This practical activity is essential for understanding the factors affecting electrical resistance and how to conduct accurate measurements in electrical circuits. It also provides valuable experience in data collection, analysis, and graphing skills.

Definition: Ohm's law - The principle stating that the current through a conductor is directly proportional to the potential difference across it, given that the temperature remains constant.

By completing this experiment, students gain practical knowledge about the resistance of a wire practical variables and how to investigate resistance in different electrical components.
