Electric circuits are everywhere in your daily life - from... Show more
Physics146 views·Updated May 17, 2026·4 pagesComprehensive Physics P4: Insights into Electric Circuits
Patryk Wielgus@patryk_wielgus
1 / 4
1
of 4

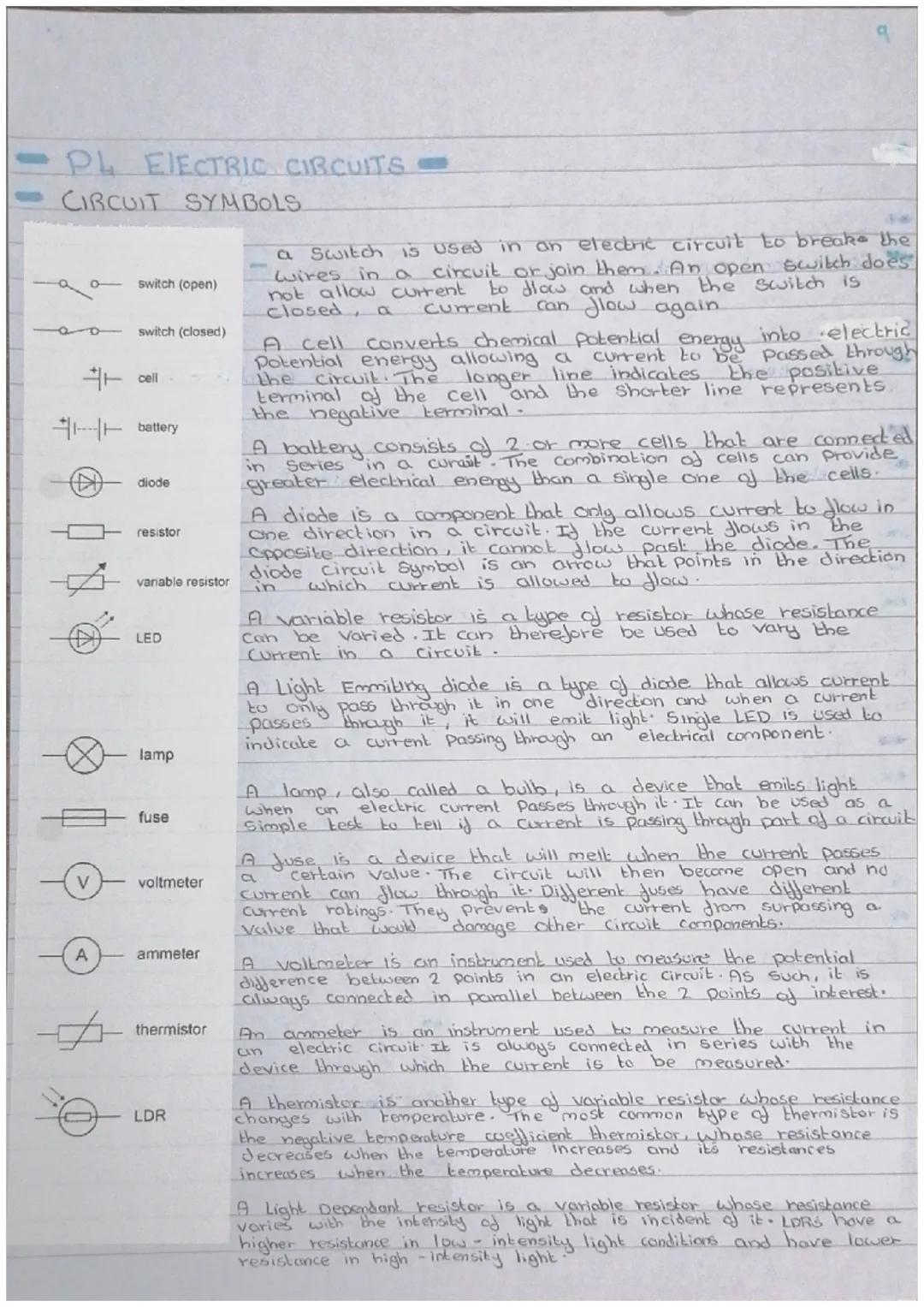

Circuit Symbols and Basic Components
You'll need to memorise these circuit symbols for your exams - they're like the alphabet of electronics! The most fundamental components include switches (which control current flow), cells and batteries (which provide the electrical energy), and resistors (which control how much current flows).
Switches are your basic on/off controls. When open, no current flows; when closed, current can pass through. Think of them as drawbridges for electrons - they either allow traffic or stop it completely.
Cells and batteries convert chemical energy into electrical energy. A cell has a positive terminal (longer line in the symbol) and negative terminal (shorter line), whilst a battery is simply multiple cells connected together for more power.
Measuring instruments are crucial for circuit analysis. Voltmeters always connect in parallel to measure potential difference between two points, whilst ammeters always connect in series to measure current flowing through a component.
Quick Tip: Remember VAP (Voltmeter Always Parallel) and AAS (Ammeter Always Series) - this will save you marks in circuit diagrams!
2
of 4

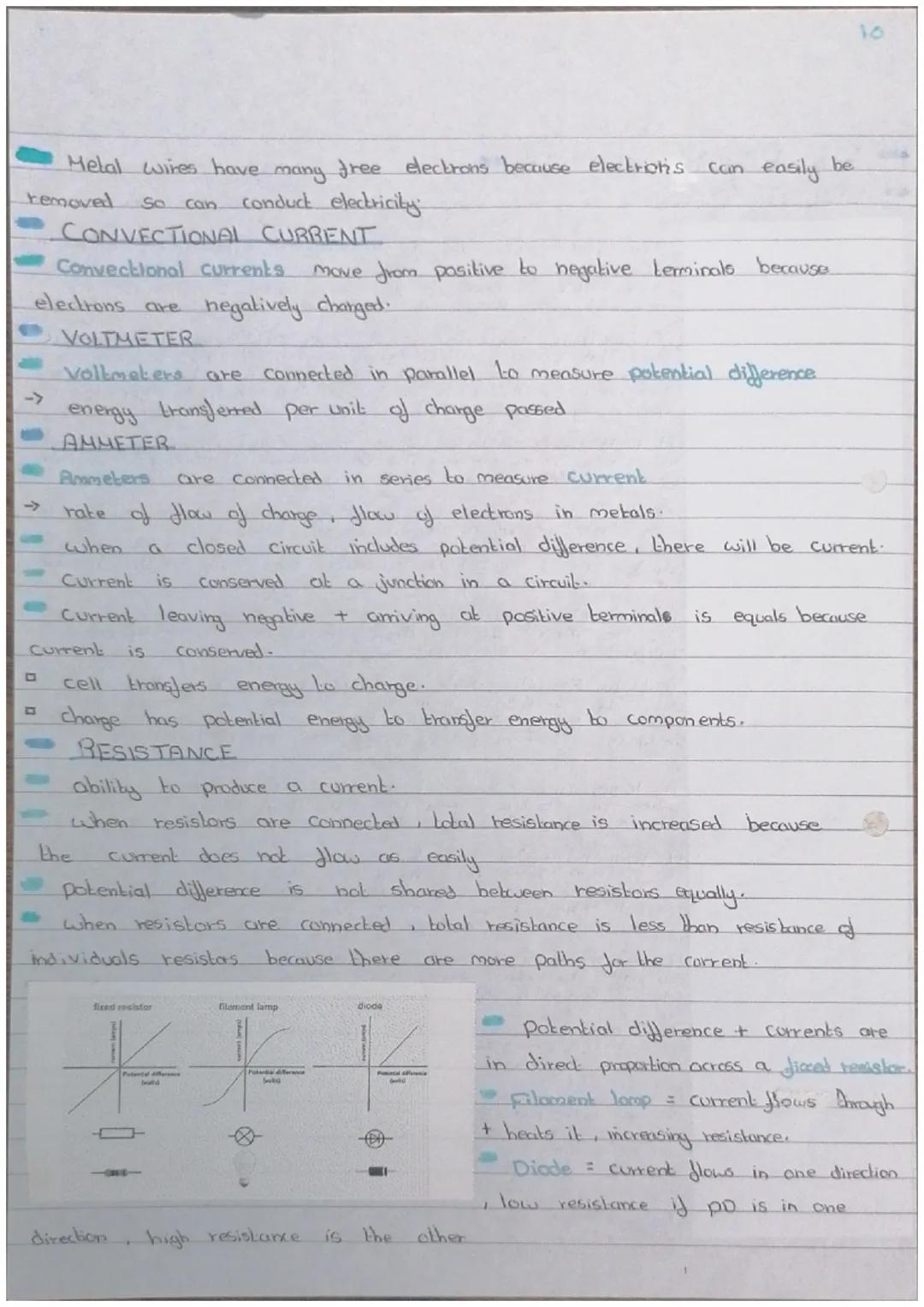

Current, Voltage and How Circuits Actually Work
Here's what's really happening in your circuits: conventional current flows from positive to negative terminals, even though electrons (the actual moving particles) travel the opposite way. It's a historical convention that stuck, so just go with it!
Current is the rate of flow of charge - basically how many electrons are whizzing past a point each second. Voltage (or potential difference) is the energy transferred per unit of charge. Think of voltage as the "push" that makes current flow.
Metal wires conduct electricity brilliantly because they have loads of free electrons that can move easily. When you create a closed circuit with a potential difference, current will always flow - it's that simple.
Current is conserved at junctions, meaning the current flowing in equals the current flowing out. This is like water flowing through pipes - what goes in must come out somewhere.
Real-world connection: This is why your phone battery drains faster when you're using multiple apps - more current is flowing to power everything!
3
of 4

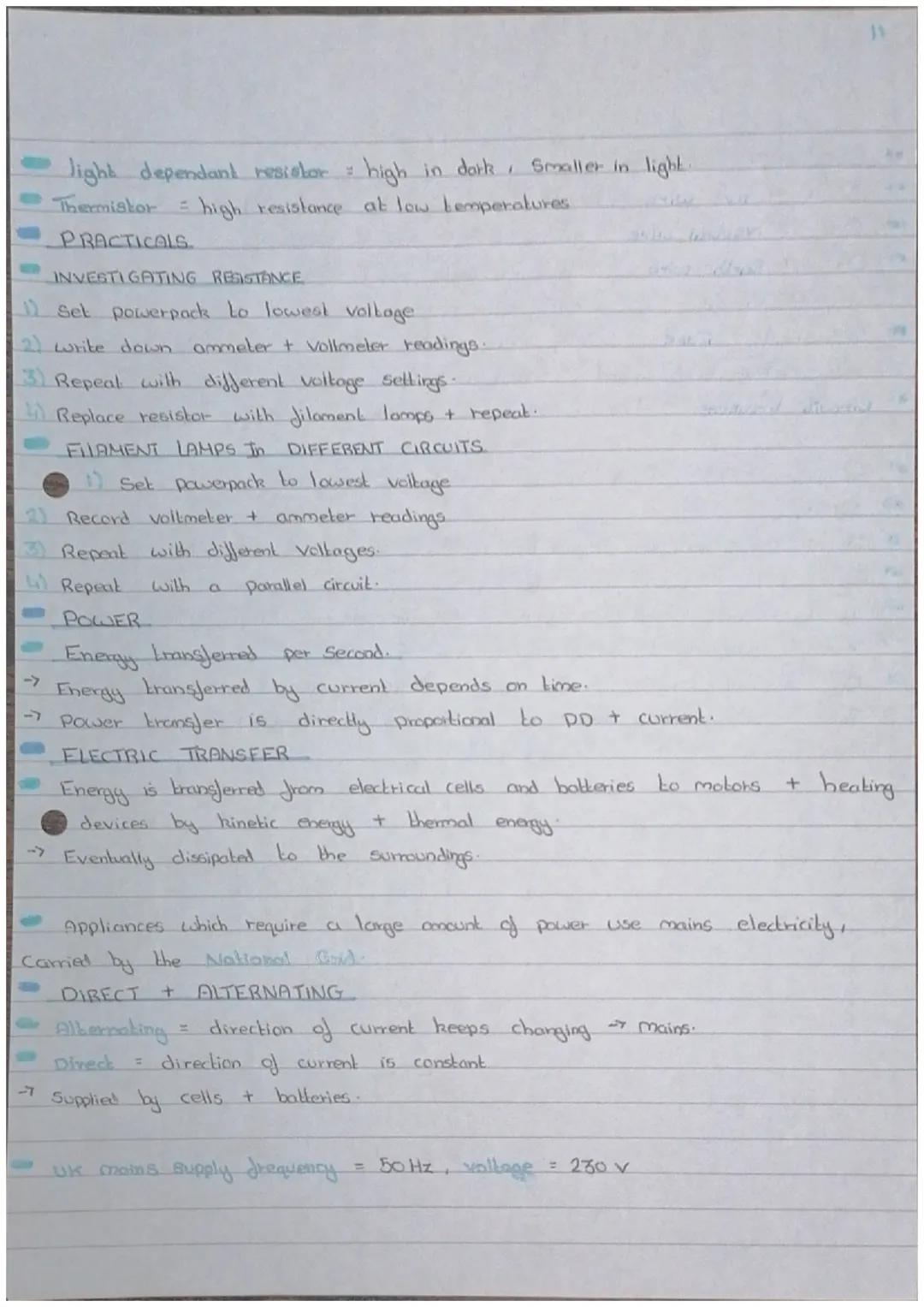

Resistance and Power in Circuits
Resistance determines how easily current can flow through a component. When you add resistors in series, total resistance increases (more obstacles for current). In parallel, total resistance decreases (more paths for current to take).
Different components have unique resistance characteristics. Fixed resistors follow Ohm's law perfectly, but filament lamps increase in resistance as they heat up. Diodes only allow current in one direction, whilst thermistors and LDRs change resistance with temperature and light respectively.
Power is energy transferred per second, and it's directly proportional to both potential difference and current. High-power appliances like kettles and ovens need mains electricity because batteries simply can't provide enough energy quickly enough.
The UK mains electricity operates at 230V and 50Hz. Unlike the direct current from batteries, mains electricity is alternating current - the direction keeps switching back and forth 50 times per second.
Exam hint: You'll often need to investigate resistance practically, so remember to start with the lowest voltage and gradually increase it whilst recording ammeter and voltmeter readings.
4
of 4

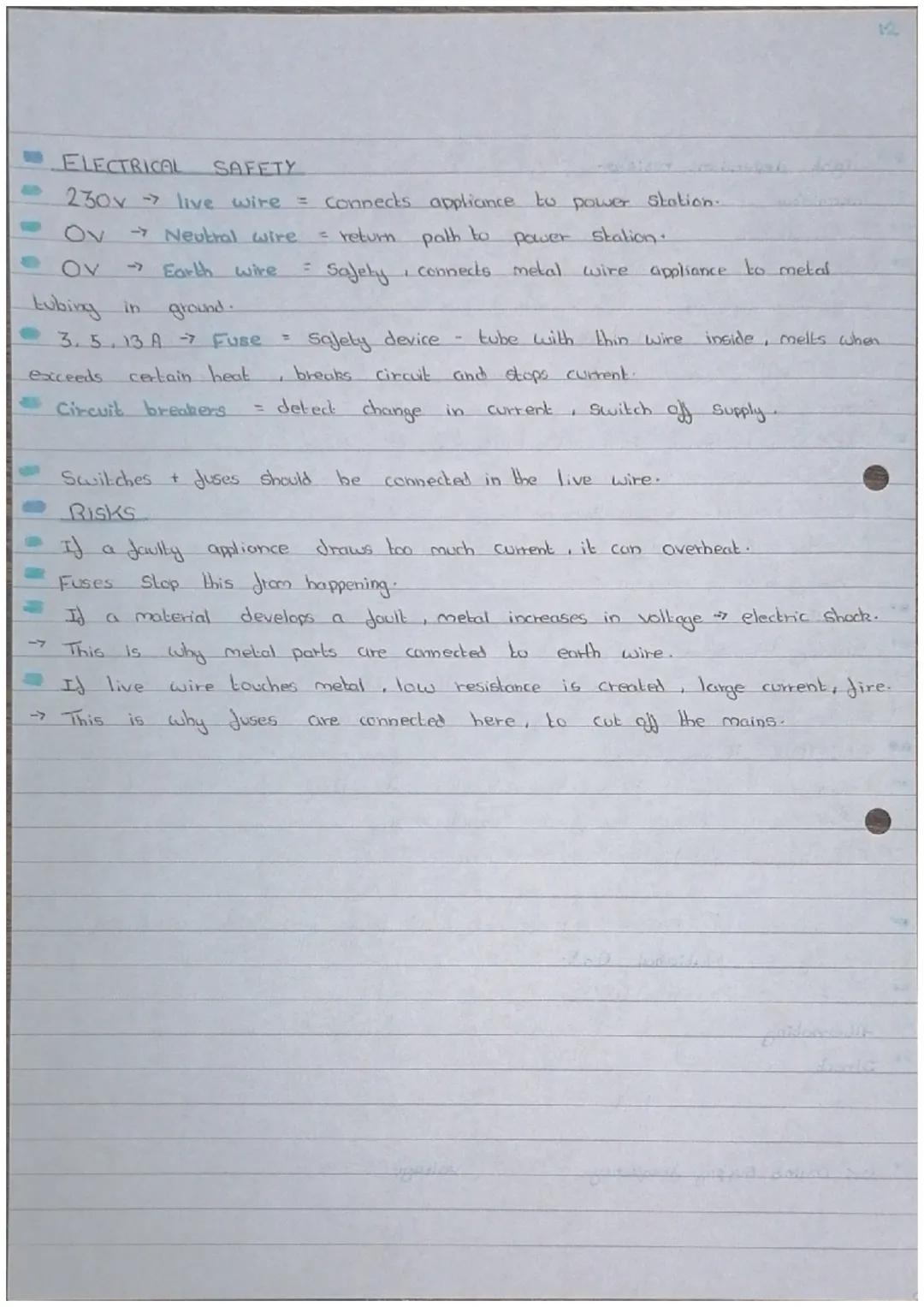

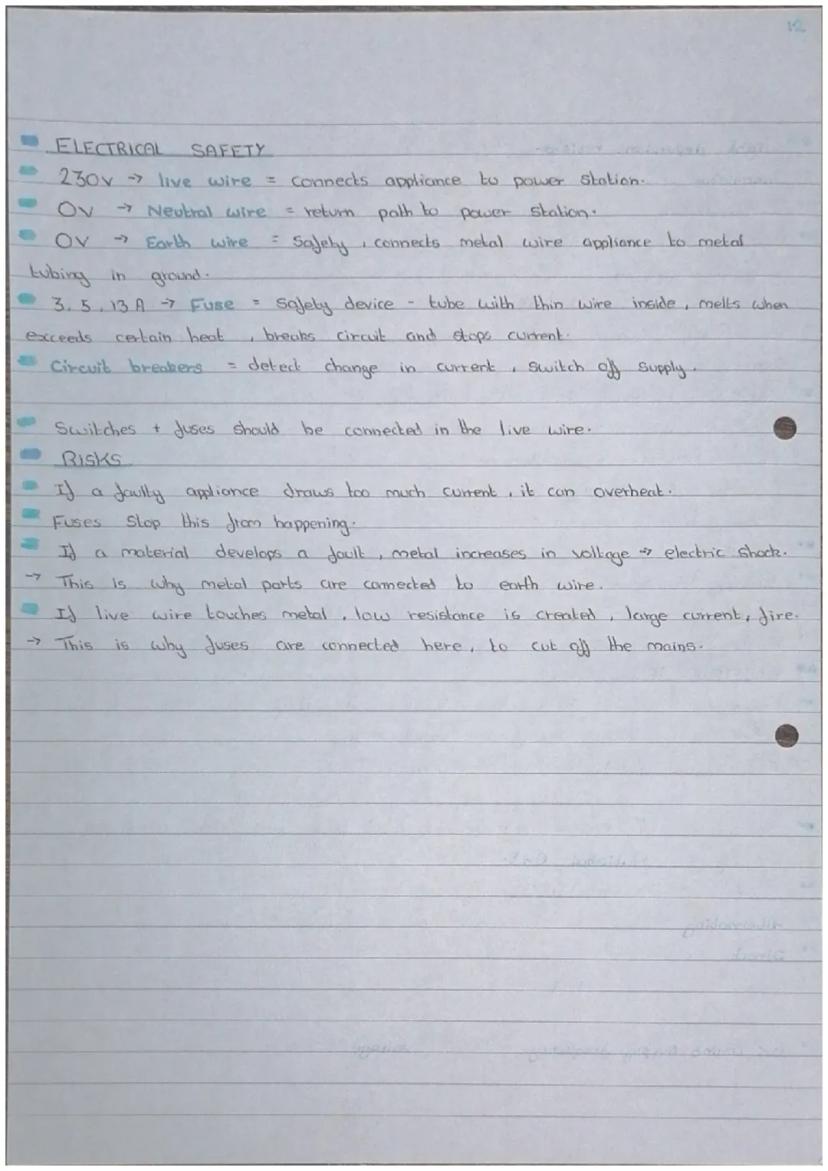

Electrical Safety and Mains Electricity
Your home's electrical safety depends on a three-wire system: the live wire (230V, connects to power station), neutral wire (0V, return path), and earth wire (0V, safety connection to ground). Each wire has a specific colour and crucial safety function.
Fuses are your first line of defence against electrical disasters. They contain thin wire that melts when current exceeds a safe level, breaking the circuit before components overheat or catch fire. Circuit breakers do the same job but can be reset rather than replaced.
The earth wire prevents electric shocks by connecting metal appliance cases to the ground. If a live wire touches the metal casing, it creates a low-resistance path to earth, causing a large current that immediately blows the fuse and cuts the power.
Always remember that switches and fuses must be connected to the live wire to be effective. This ensures that when they operate, they actually disconnect the dangerous high voltage from your appliances.
Safety first: Never attempt electrical work yourself - faulty wiring can cause fires, electric shocks, or even death. Always use a qualified electrician for mains electricity work.
