Understanding P13 Electromagnetic Waves: Key Concepts Explained







The Electromagnetic Spectrum
Ever wondered what connects your mobile phone to radio stations and hospital X-ray machines? They all use different parts of the electromagnetic spectrum, which is basically a family of waves arranged by their properties.
The spectrum runs from radio waves (longest wavelength, lowest energy) through microwaves, infrared, visible light, ultraviolet, X-rays, to gamma rays (shortest wavelength, highest energy). Your eyes can only detect visible light, which has wavelengths between about 350-650 nanometres.
All electromagnetic waves transfer energy from one place to another using the wave equation v = f × λ . White light contains all colours of the visible spectrum mixed together.
Quick Tip: Remember the spectrum order with "Really Mad Insects Visit Using eXtreme Games" - Radio, Microwaves, Infrared, Visible, Ultraviolet, X-rays, Gamma!

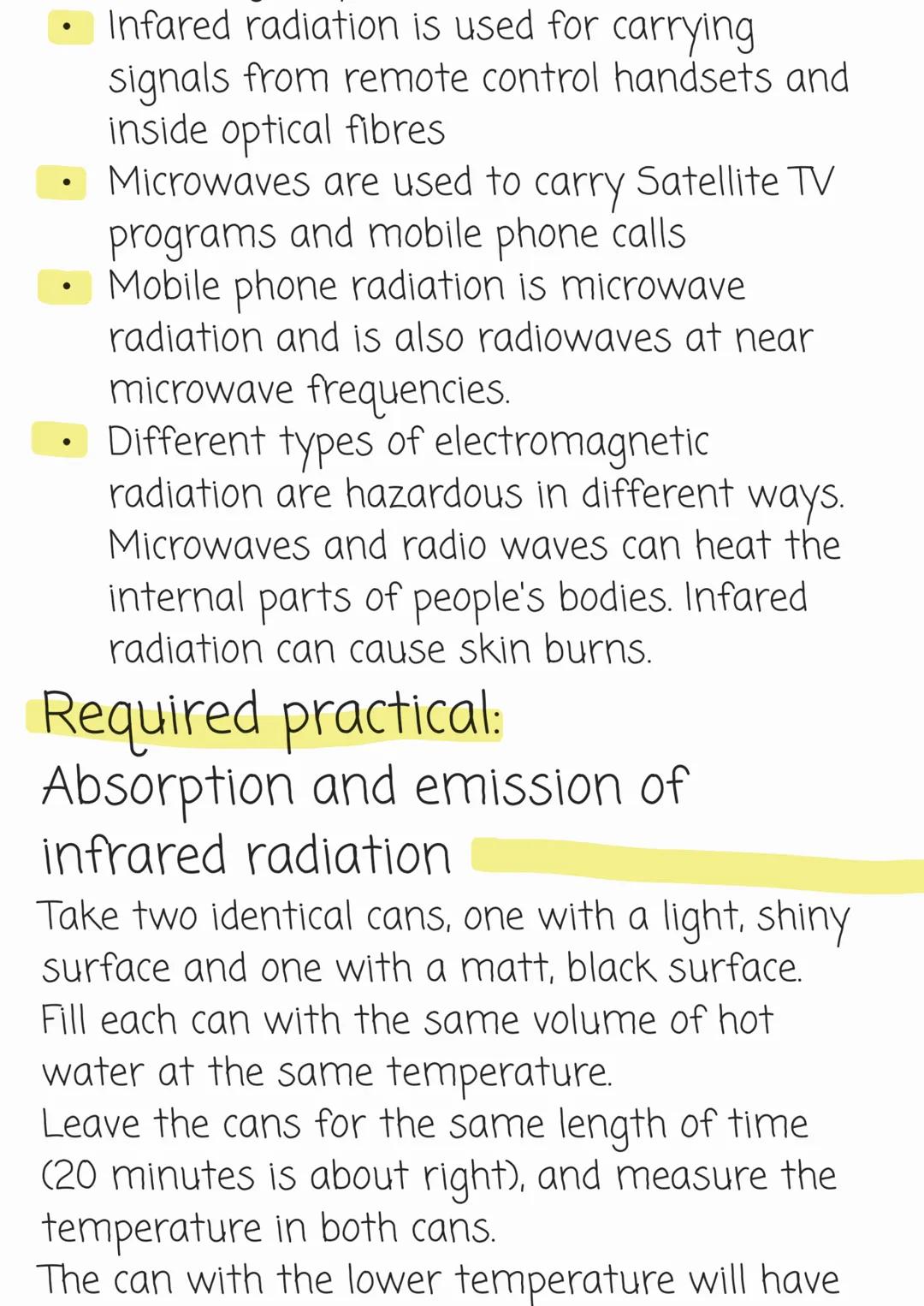

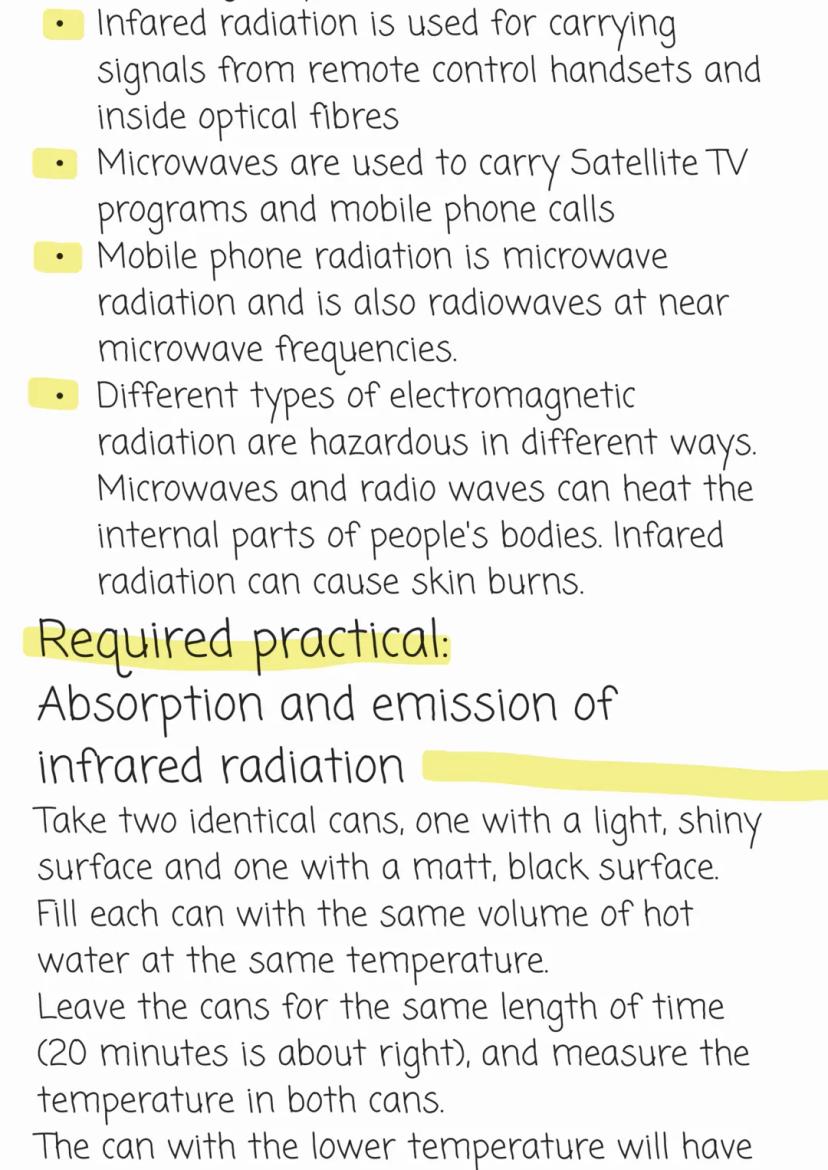

Light, Infrared, Microwaves and Radio Waves
These waves are the workhorses of modern communication and they're generally safe for everyday use. Infrared radiation powers your TV remote and carries signals through optical fibres at lightning speed.
Microwaves are brilliant for satellite TV and mobile phone calls because they can travel long distances and carry lots of information. Your mobile actually uses microwave radiation mixed with radio waves at similar frequencies.
However, these waves aren't completely harmless. Microwaves and radio waves can heat up the inside of your body (think microwave oven!), whilst infrared can cause nasty skin burns if you're exposed to too much.
Did You Know? The same microwaves that heat your food also carry your Netflix shows from satellites in space!

Required Practical: Infrared Absorption and Emission
This experiment shows you which surfaces are best at absorbing and giving off infrared radiation - crucial knowledge for understanding heat transfer and energy efficiency.
Take two identical cans - one shiny and light, one matt and black. Fill both with hot water at the same temperature, wait 20 minutes, then measure temperatures. The cooler can has the surface that's the best emitter of infrared.
Now fill both cans with cold water and place them in sunlight for 30 minutes. The warmer can has the surface that's the best absorber of infrared. You'll find that dark, matt surfaces both absorb and emit infrared better than light, shiny ones.
Real-World Connection: This is why radiators are often painted with matt paint and why wearing black clothes makes you hotter in summer!

Communications Technology
Different radio wave frequencies behave differently - some travel further, others carry more information, and some spread out more than others. This is why radio stations, satellite TV, and mobile networks all use specific frequency ranges.
Microwaves are perfect for satellite TV because they can punch through the atmosphere without getting scattered. Optical fibres are incredibly thin, transparent cables that use light and infrared to carry communication signals at massive speeds.
The system works using carrier waves - these are base waves that carry information by changing their amplitude (strength). Scientists are still researching whether mobile phone radiation is completely safe for long-term use.
Tech Fact: Optical fibres can carry thousands of phone calls simultaneously and are almost impossible to tap into - perfect for secure communications!

Ultraviolet, X-rays and Gamma Rays
Now we're entering the dangerous zone of the electromagnetic spectrum. Ultraviolet waves have shorter wavelengths than visible light and can seriously damage your skin and eyes - think sunburn and cataracts.
X-rays are brilliant for medical imaging because they pass through soft tissue but get absorbed by bones and teeth. Gamma rays are the ultimate sterilisers - they kill bacteria in food, sterilise surgical equipment, and destroy cancer cells.
Both X-rays and gamma rays are ionising radiation, meaning they can knock electrons off atoms and damage living tissue. This makes them useful for medicine but potentially very dangerous.
Safety Note: This is why radiographers leave the room when taking X-rays - even small doses add up over time!

X-rays in Medicine
X-rays are incredibly useful in hospitals for two main jobs: creating images of your internal body parts and destroying tumours near the body surface. They work because bones absorb X-rays much more than soft tissues do.
Since X-rays are ionising radiation, hospital workers wear film badges that detect radiation exposure. These badges change colour when exposed to X-rays, helping keep staff safe from dangerous doses.
Sometimes doctors use contrast medium (a special dye) to make soft tissues like your stomach show up on X-ray images. This liquid absorbs X-rays better than normal tissue, creating clearer pictures for diagnosis.
Career Connection: Medical imaging is a growing field - radiographers, medical physicists, and technologists all work with this technology every day!
