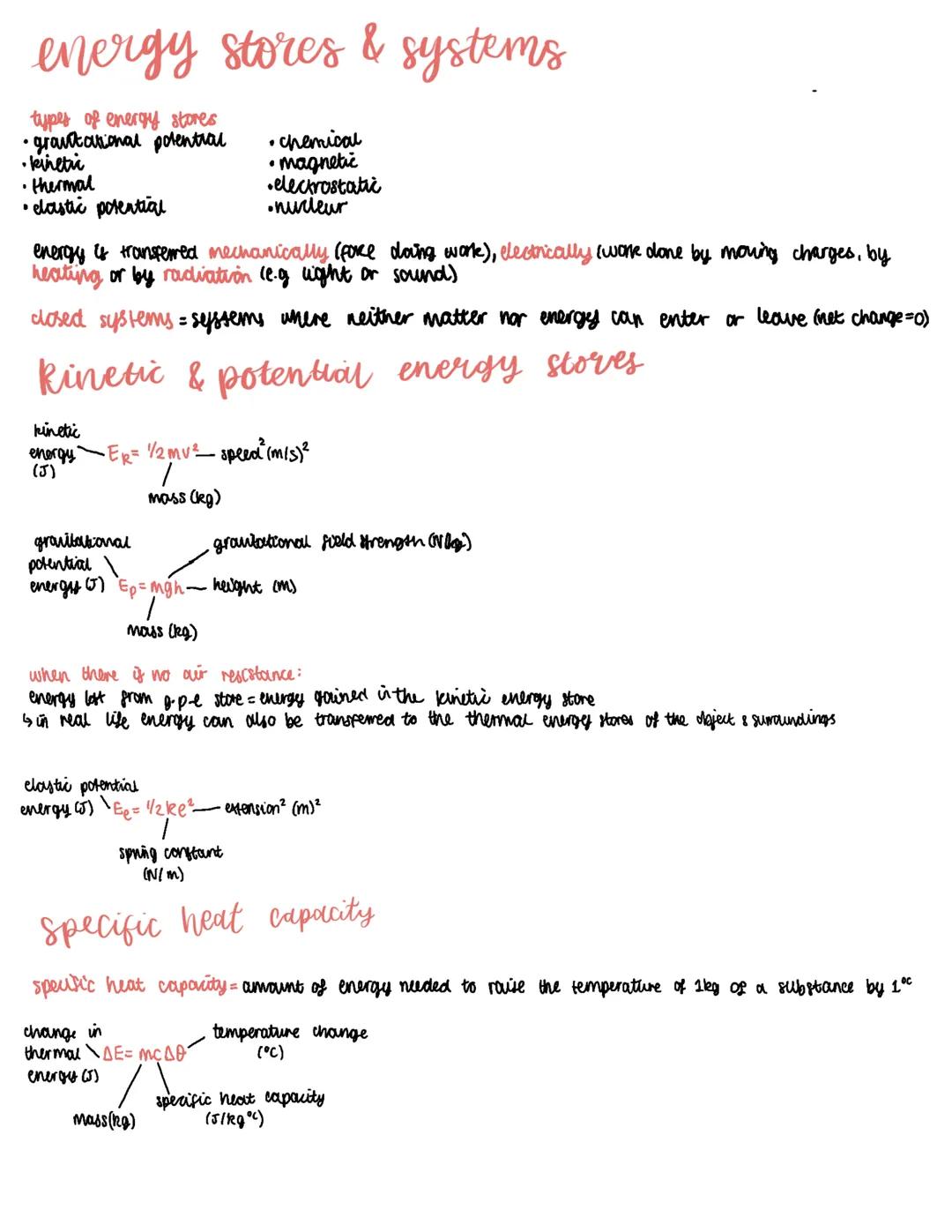

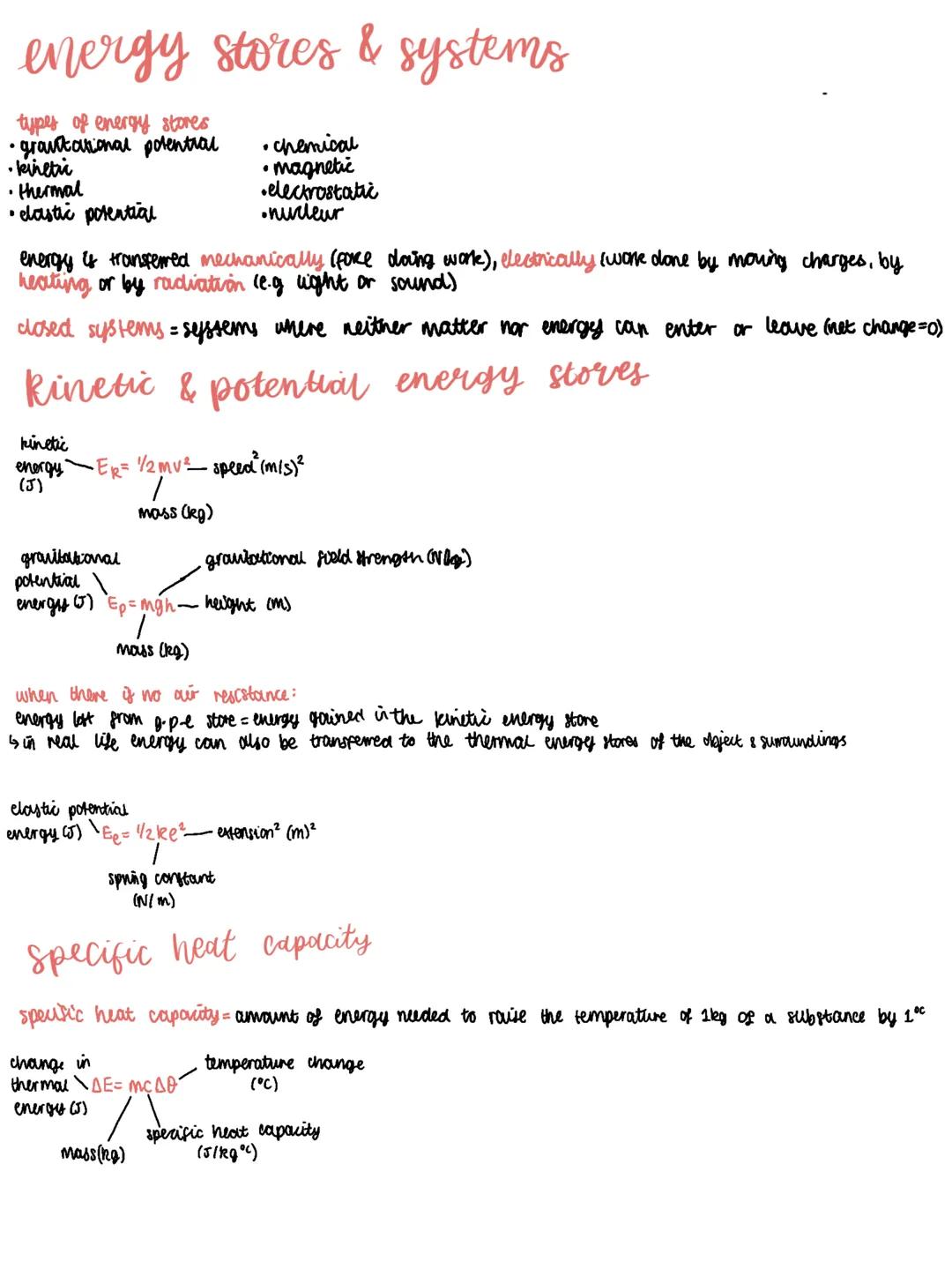

Energy Stores and Systems
Ever wondered how energy actually exists around us? Energy can be stored in many different forms including gravitational potential, kinetic, chemical, thermal, elastic potential, and others like magnetic, electrostatic, and nuclear.
Energy transfers happen in three main ways: mechanically (when a force does work), electrically (work done by moving charges), or by heating/radiation (like light or sound). In a closed system, neither matter nor energy can enter or leave, so the total energy remains constant.
The kinetic energy of a moving object can be calculated using Ek = ½mv², where m is mass and v is velocity. Similarly, gravitational potential energy uses the formula Ep = mgh, where h is height and g is gravitational field strength. For springs, elastic potential energy follows Ee = ½ke², where k is the spring constant.
Remember this! The specific heat capacity of a material tells us how much energy is needed to raise 1kg of that substance by 1°C. We calculate thermal energy change using ΔE = mcΔθ, where m is mass, c is specific heat capacity, and Δθ is the temperature change.
2
of 7

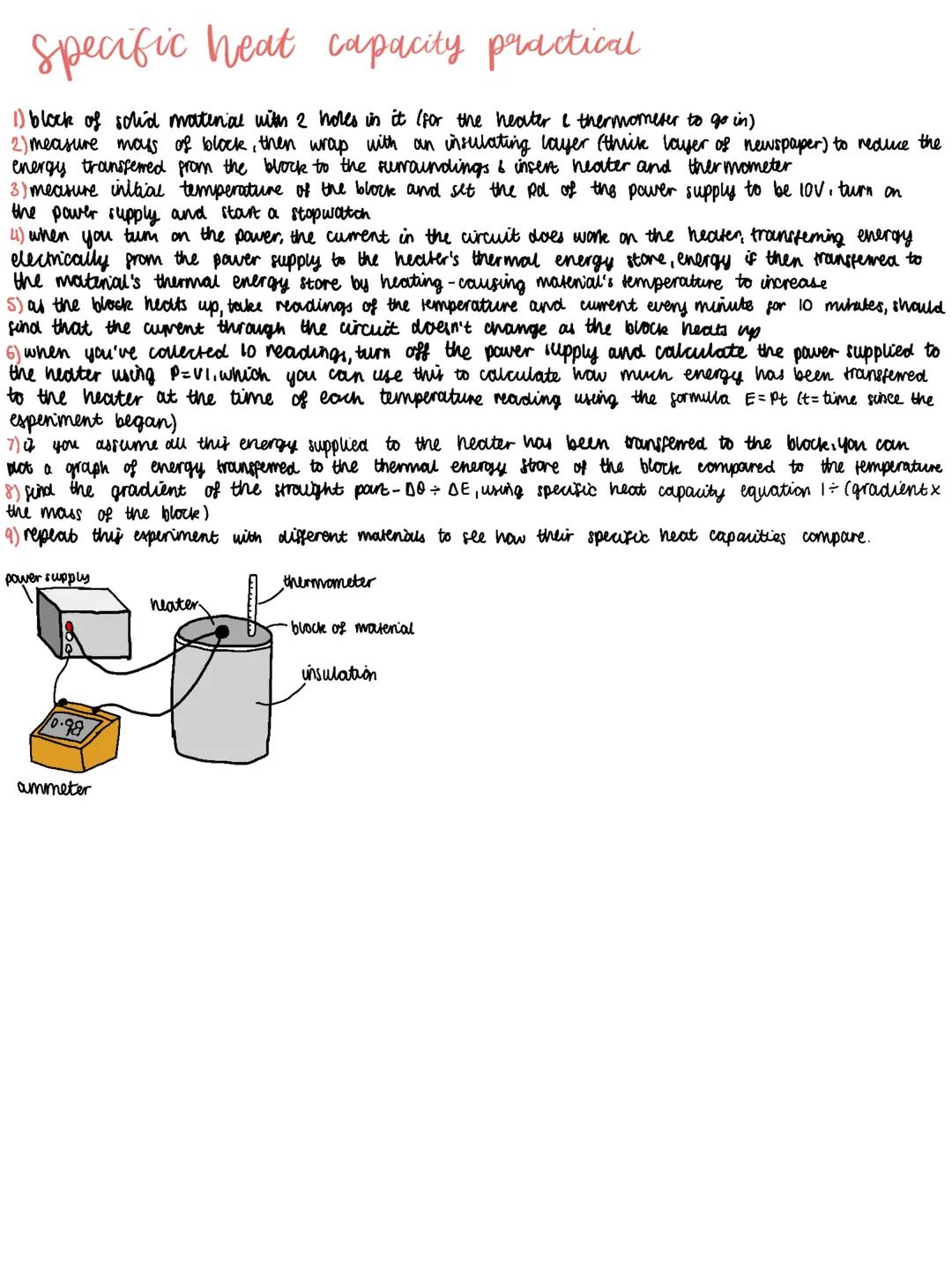

Measuring Specific Heat Capacity
Let's get practical! You can determine the specific heat capacity of a material through a straightforward experiment using everyday lab equipment.
First, take a block of solid material with holes for a heater and thermometer. Wrap it with insulation (like newspaper) to prevent energy loss. After measuring its initial temperature, apply a constant voltage (about 10V) to the heater and record temperature and current readings every minute for 10 minutes.
The electrical energy transferred to the heater can be calculated using power × time . By plotting energy transferred against temperature change, the gradient of the straight section of the graph relates to specific heat capacity through the equation c = gradient × mass of the block.
Lab tip: Good insulation is crucial for accurate results! Any energy escaping to the surroundings will give you a falsely high specific heat capacity value.
3
of 7

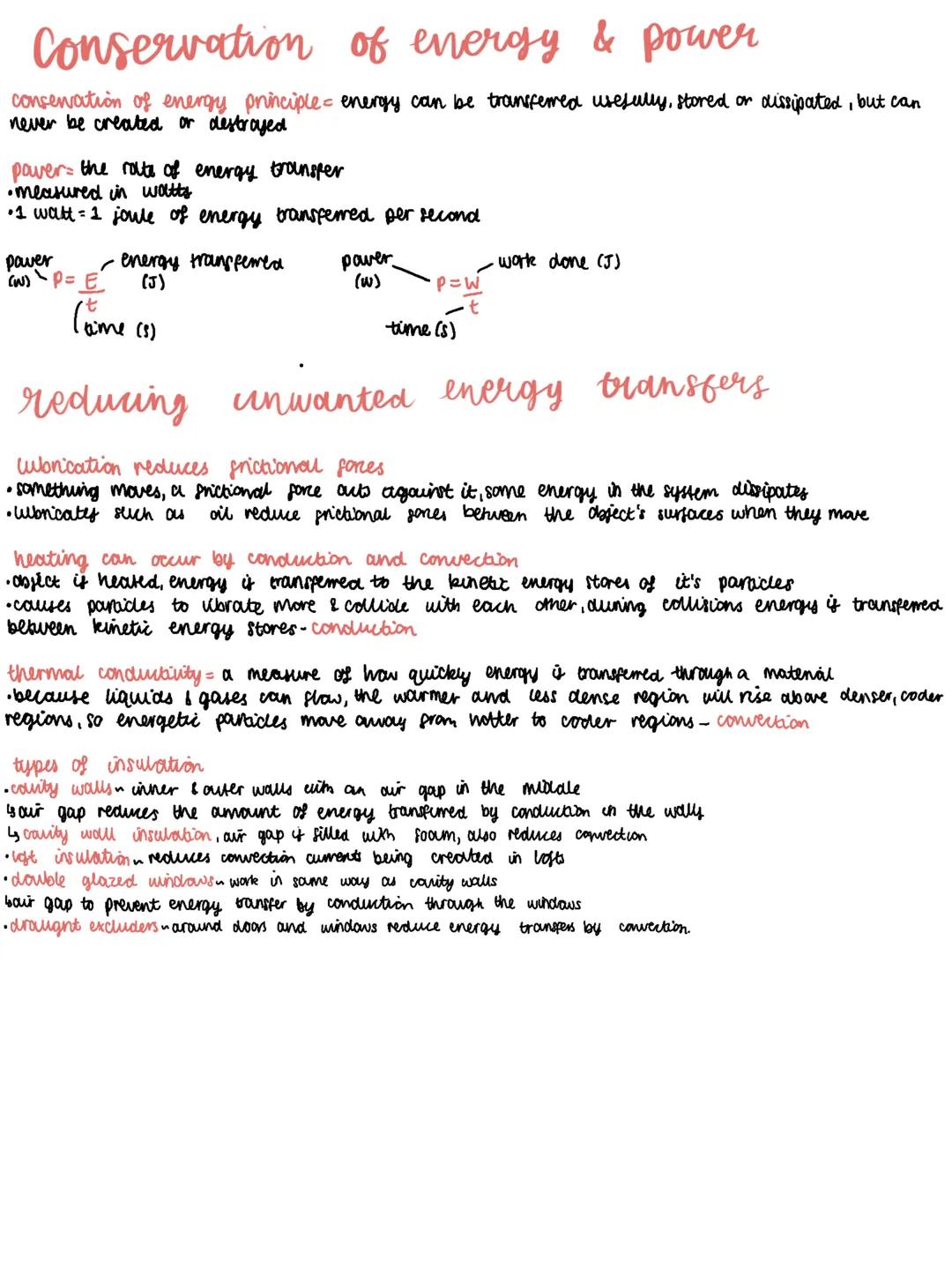

Energy Conservation and Reducing Energy Transfers
The conservation of energy principle is fundamental to physics: energy can be transferred, stored or dissipated, but never created or destroyed. Power measures how quickly energy is transferred, measured in watts .
When objects move, friction causes unwanted energy transfers to thermal stores. Lubrication helps reduce these frictional forces, making systems more efficient. Energy can be transferred through conduction (particles vibrating and colliding) or convection (warmer, less dense materials rising above cooler ones).
We use various types of insulation in our homes to reduce these unwanted transfers. Cavity walls trap air between inner and outer walls, while loft insulation reduces convection in attics. Double glazed windows work similarly by trapping air between glass panes, and draught excluders around doors and windows reduce energy loss through convection.
Real-world application: Understanding these principles helps explain why your home loses heat in winter and how insulation saves energy and money on heating bills!
4
of 7

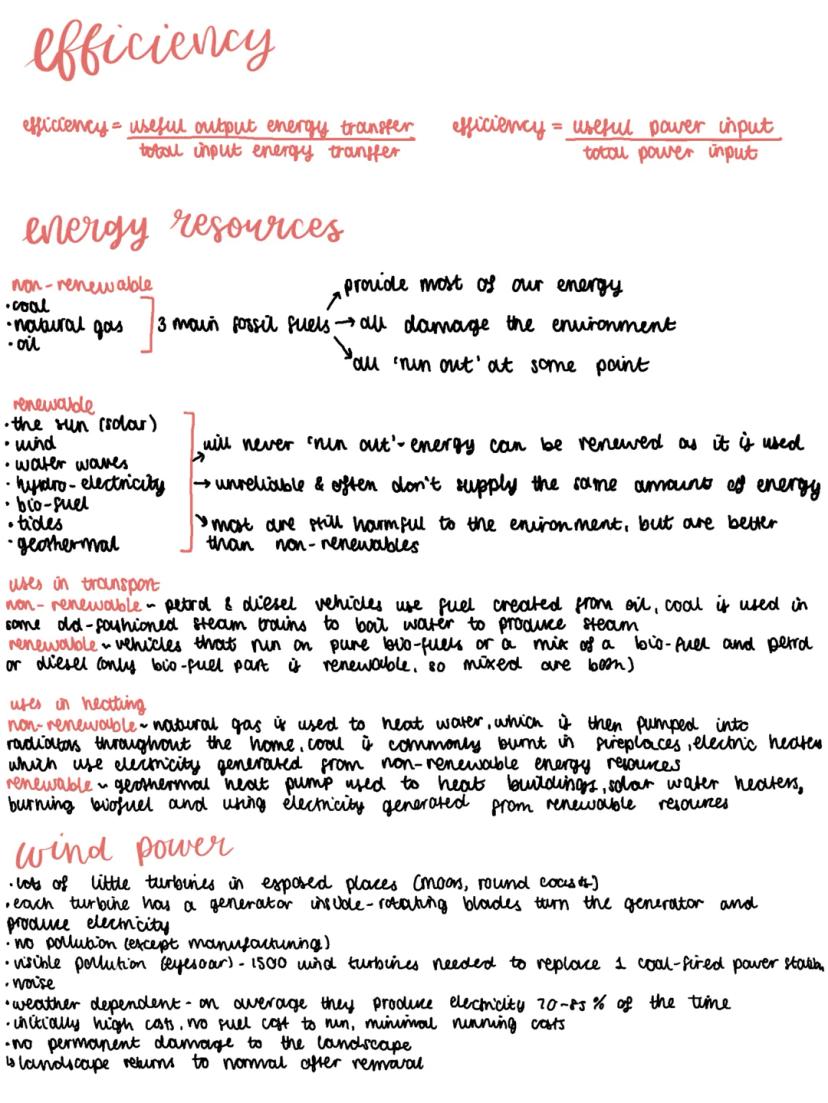

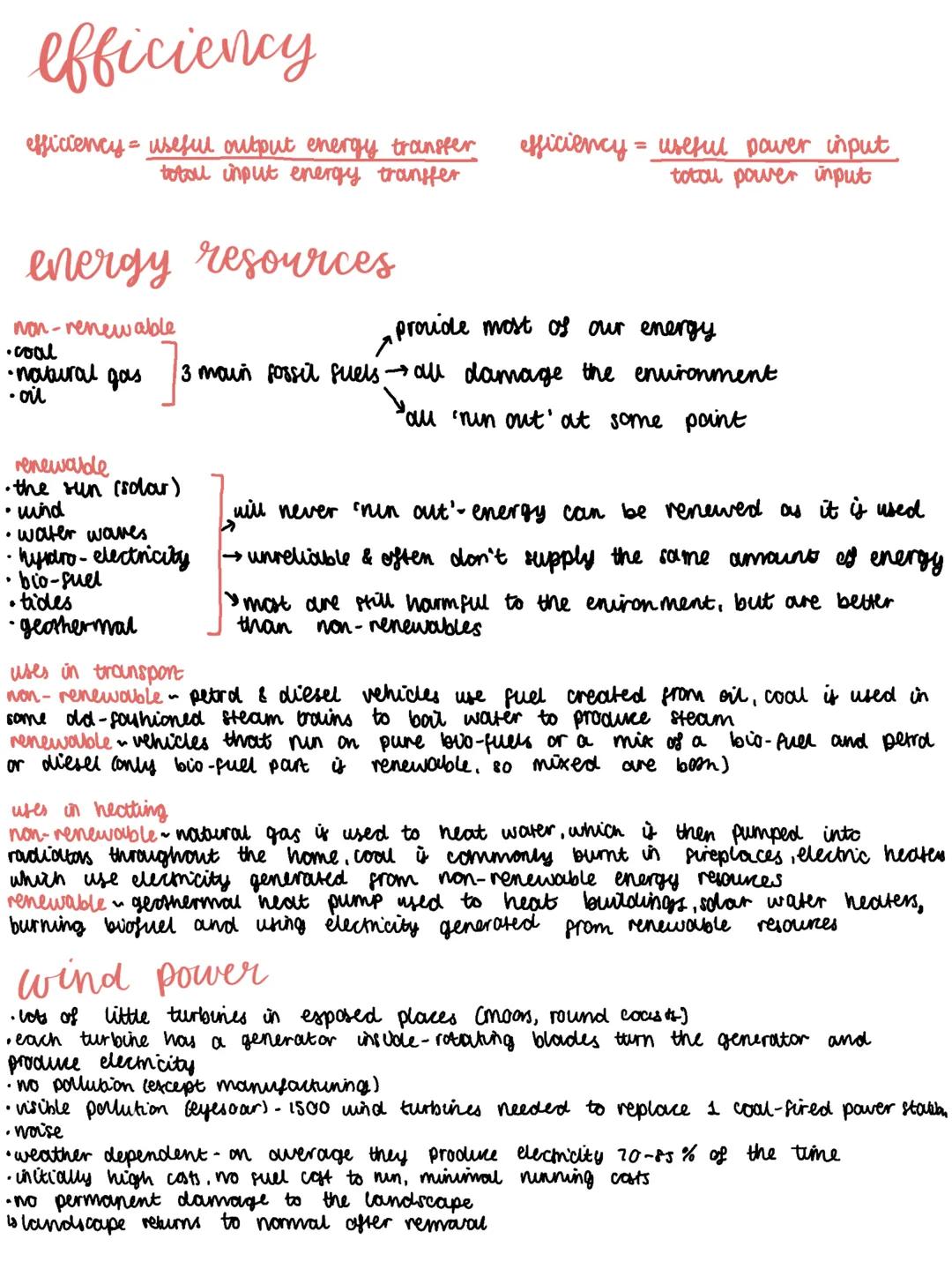

Energy Resources and Efficiency
How effectively we use energy matters! Efficiency is calculated as the ratio of useful output energy to total input energy, or similarly with power: efficiency = (useful power output ÷ total power input).
Our energy comes from two main sources. Non-renewable resources like coal, natural gas, and oil provide most of our energy but will eventually run out and damage the environment. Renewable resources such as solar, wind, water, waves, and geothermal will never run out but can be unreliable and still impact the environment, though less severely.
In transportation, vehicles typically use non-renewable petrol or diesel, though some now use biofuels or mixed fuels. For heating, we commonly use natural gas or renewable options like geothermal heat pumps and solar water heaters.
Think about this: Wind power produces no pollution during operation, but the 1,500 turbines needed to replace one coal power station create visual and noise pollution. Every energy source involves trade-offs!
5
of 7

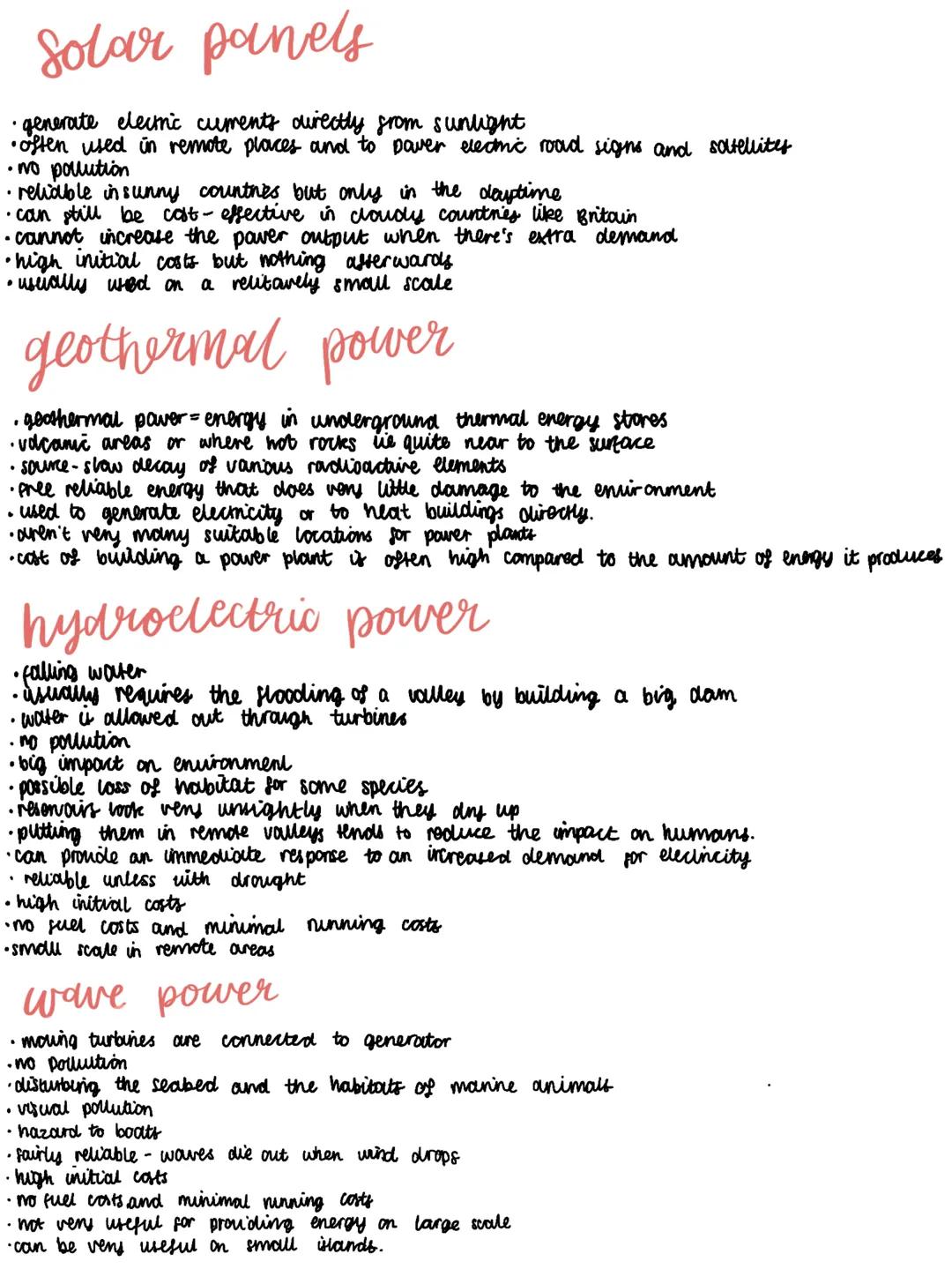

Renewable Energy Sources
Solar panels generate electricity directly from sunlight—brilliant for remote locations and sunny countries. Though they have high initial costs, they require minimal maintenance and produce no pollution. They're cost-effective even in cloudy Britain but can't increase output when demand rises.
Geothermal power taps into underground heat, often from radioactive decay in volcanic areas or where hot rocks are near the surface. It provides reliable, clean energy but suitable locations are limited, and construction costs can be high relative to energy output.
Hydroelectric power uses falling water (usually through dams) to generate electricity. It produces no pollution and can respond immediately to increased demand. Despite high initial costs, it has minimal running costs. However, dam construction floods valleys, destroying habitats and creating unsightly reservoirs during droughts.
Did you know? Wave and tidal power are less developed but promising renewable sources. Tidal barrages across river estuaries can reliably generate power twice daily using the gravitational pull of the sun and moon!
6
of 7

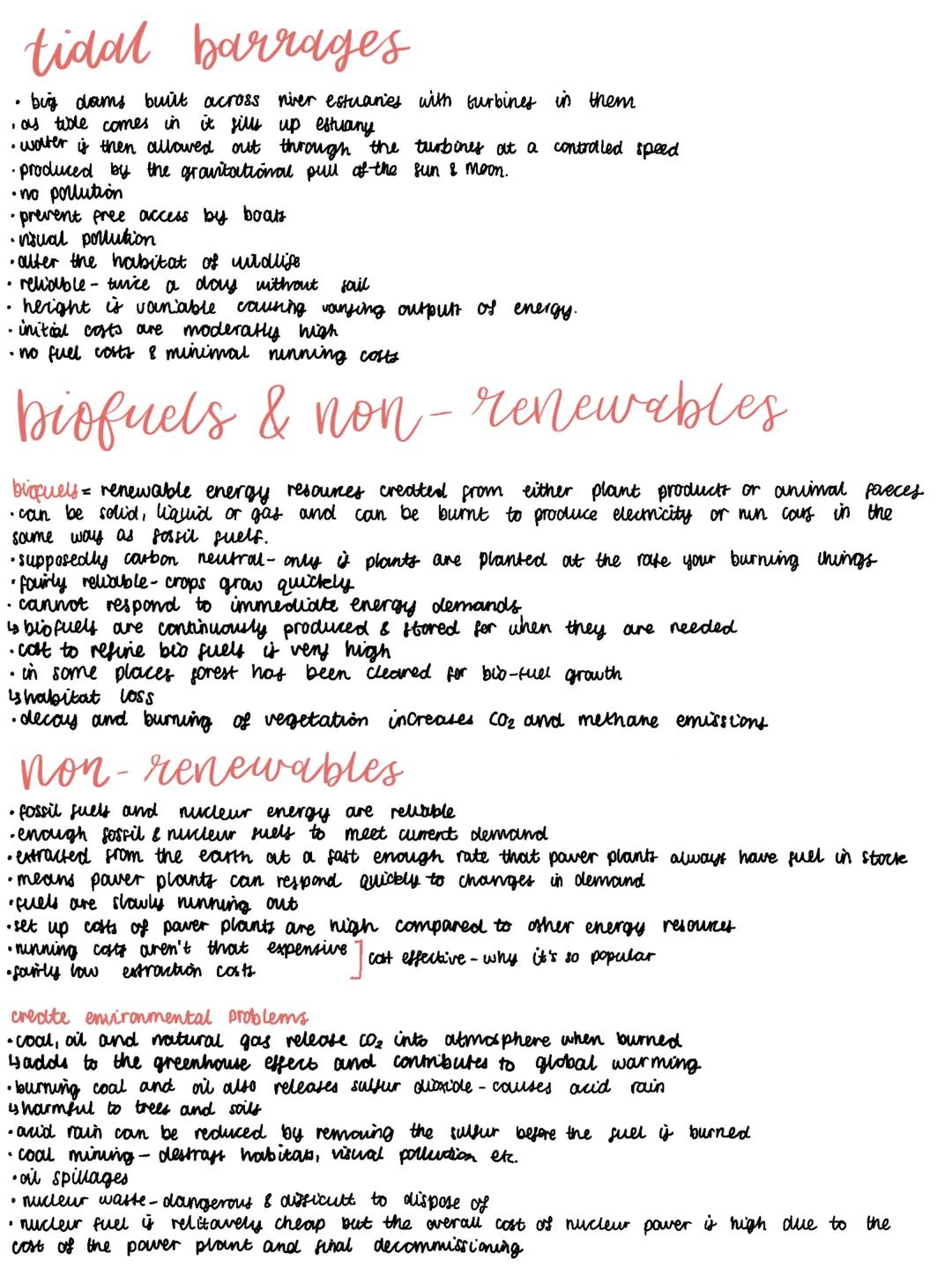

Comparing Energy Sources
Biofuels offer renewable alternatives created from plant products or animal waste. Available as solids, liquids, or gases, they can be burned for electricity or fuel vehicles. They're supposedly carbon-neutral (if plants are replenished at the same rate they're used) but have high refining costs and sometimes cause habitat loss when forests are cleared for biofuel crops.
Non-renewable resources like fossil fuels and nuclear energy remain popular because they're reliable and can meet current demand. Power plants can respond quickly to demand changes, and the extraction costs are relatively low compared to the energy they produce.
However, these fuels create significant environmental problems. Fossil fuels release CO₂ (contributing to global warming) and sometimes sulfur dioxide (causing acid rain). Coal mining destroys habitats, oil spills damage ecosystems, and nuclear waste is dangerous and difficult to dispose of.
Consider this: Nuclear fuel itself is relatively cheap, but the overall cost of nuclear power is high due to expensive power plant construction and decommissioning costs.
7
of 7

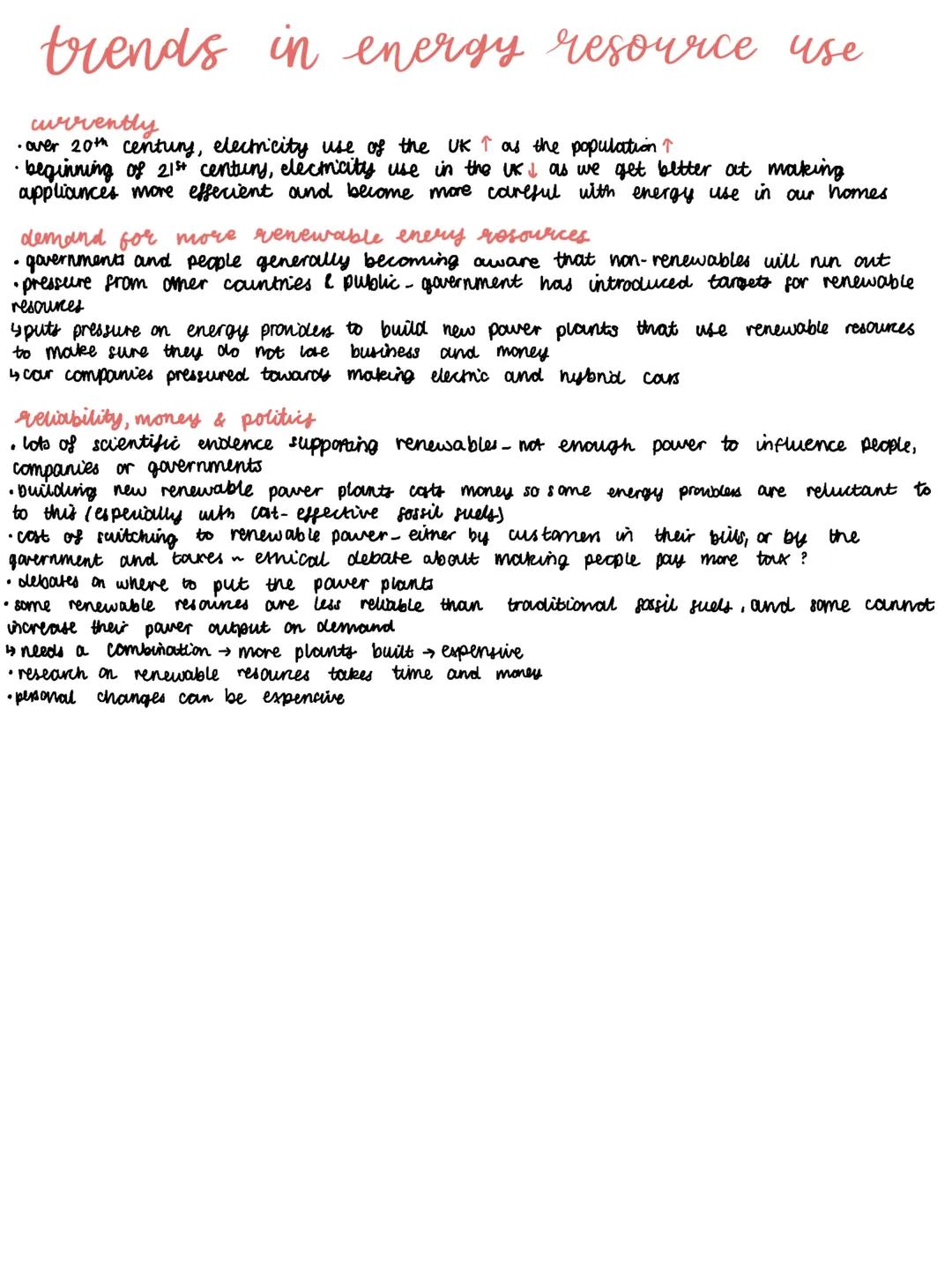

Energy Resource Trends and Challenges
The UK's electricity usage increased throughout the 20th century as the population grew. However, early in the 21st century, usage began to level off as appliances became more efficient and people grew more energy-conscious.
There's growing pressure for renewable energy from governments, the public, and international agreements. Energy providers face pressure to build renewable power plants to stay competitive, while car manufacturers are pushed toward electric and hybrid vehicles.
Despite scientific evidence supporting renewables, several challenges remain. The cost of building new renewable plants is substantial, raising debates about who should pay—customers through higher bills or taxpayers through government subsidies. Additionally, many renewable sources are less reliable than traditional fuels and cannot quickly respond to demand changes.
Looking forward: The transition to renewables requires a combination approach, substantial investment in research, and possibly personal sacrifices. The decisions we make now will affect energy availability for generations to come!
