You're surrounded by waves every day - from the light...
Physics208 views·Updated 5 Jul 2026·6 pagesNat 5 Physics Unit 1: Waves & Radiation Revision
J
Jenna@jenna_cp06
1 / 6
1
of 6

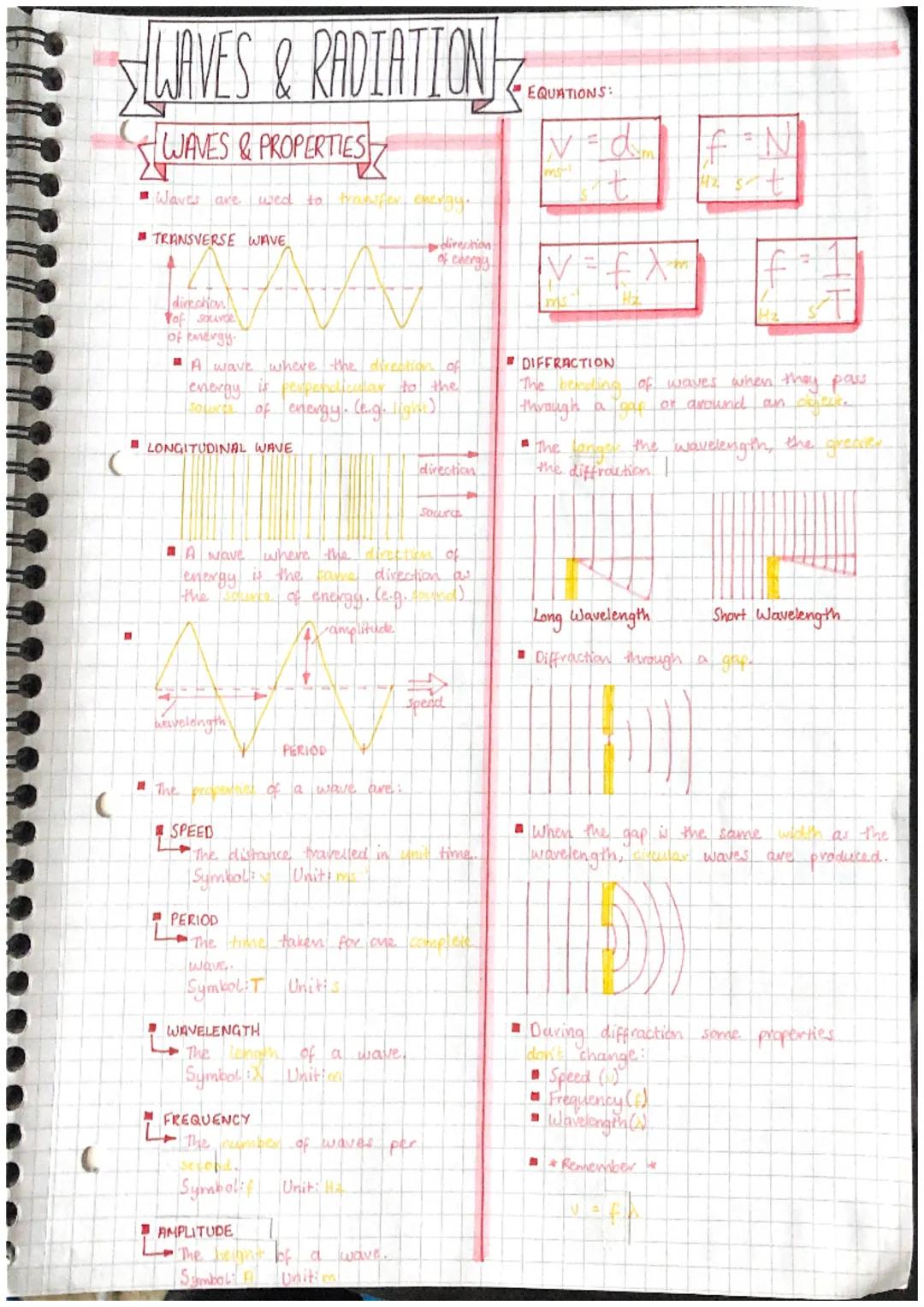

Wave Properties & Behaviour
Ever noticed how your voice echoes differently in a bathroom versus outside? That's waves in action! Waves transfer energy from one place to another, and they come in two main types that behave quite differently.
Transverse waves move energy perpendicular to their source - think of light waves or the waves you create by flicking a rope up and down. Longitudinal waves push energy in the same direction as the source, like sound waves travelling through air when you speak.
Every wave has five key properties you need to master: amplitude (height), wavelength (length), frequency (waves per second), period (time for one wave), and speed (distance per time). The magic happens with the equation v = f × λ, which connects speed, frequency, and wavelength.
Quick Tip: Remember that during diffraction (when waves bend around objects), the speed, frequency, and wavelength all stay the same - the wave just changes direction!
2
of 6

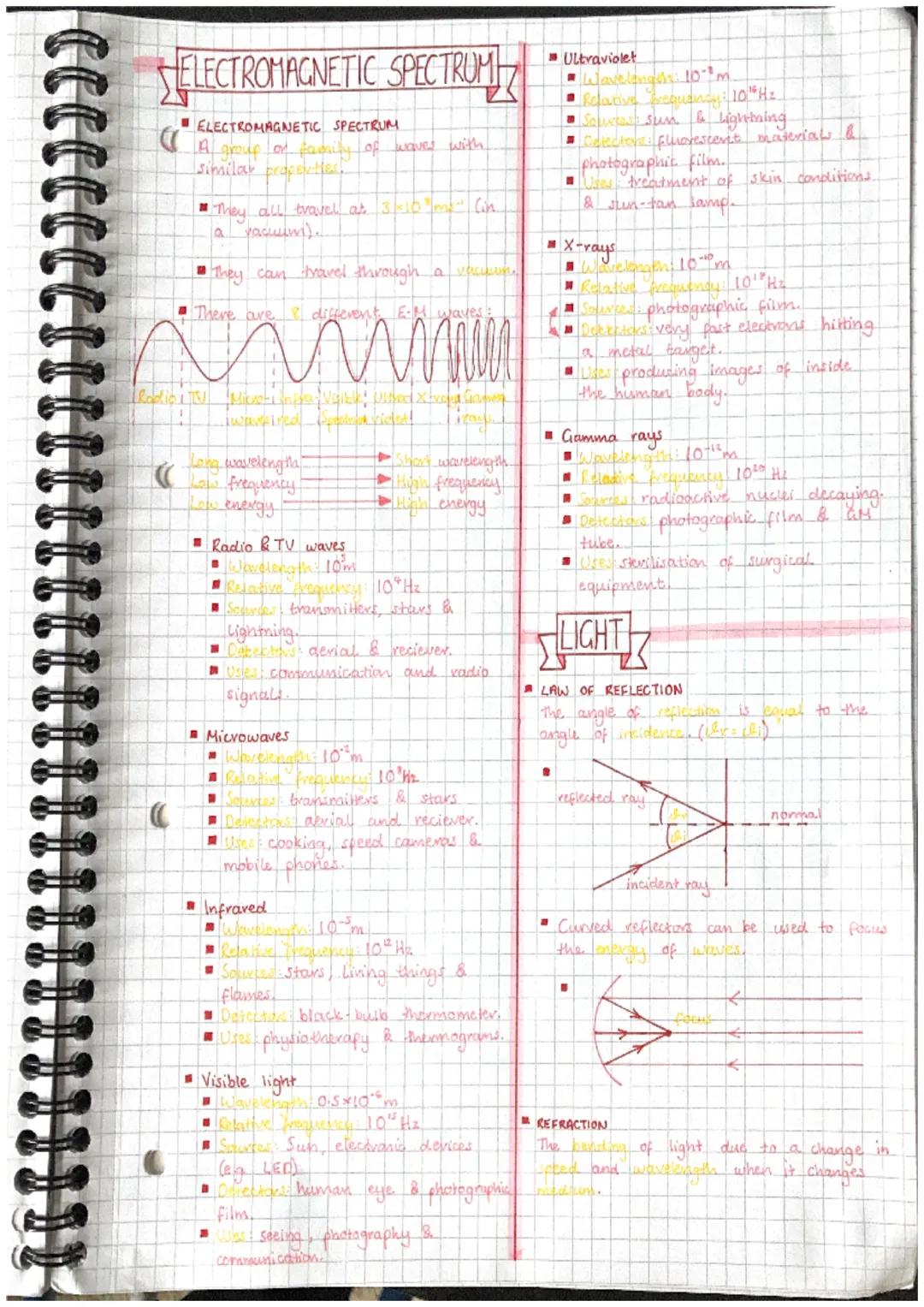

Electromagnetic Spectrum
Your mobile phone, microwave, and the Sun all have something in common - they all use electromagnetic waves that travel at an incredible 3 × 10⁸ m/s through space. These waves form a family called the electromagnetic spectrum.
From longest to shortest wavelength, we have: radio waves (communication), microwaves (cooking and phones), infrared (heat detection), visible light (what you see), ultraviolet (sun tans), X-rays (medical imaging), and gamma rays (sterilisation). Each type has different uses based on its energy level.
Visible light is the tiny portion you can actually see, ranging from red (longest wavelength) to violet (shortest wavelength). When light hits different materials, it follows the law of reflection (angle in equals angle out) or bends through refraction when changing speed between materials.
Remember: Higher frequency means higher energy - that's why gamma rays are dangerous while radio waves are safe!
3
of 6

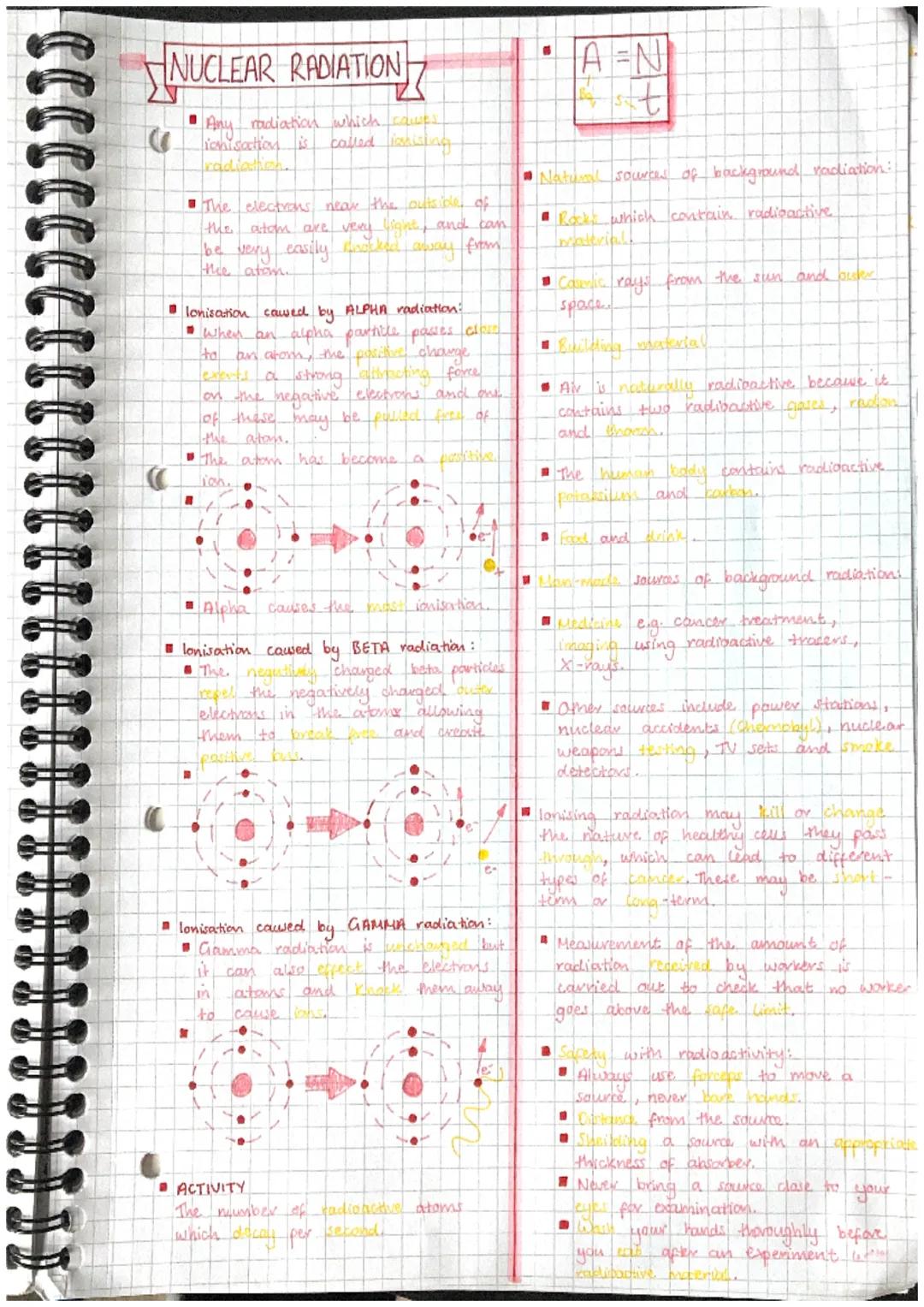

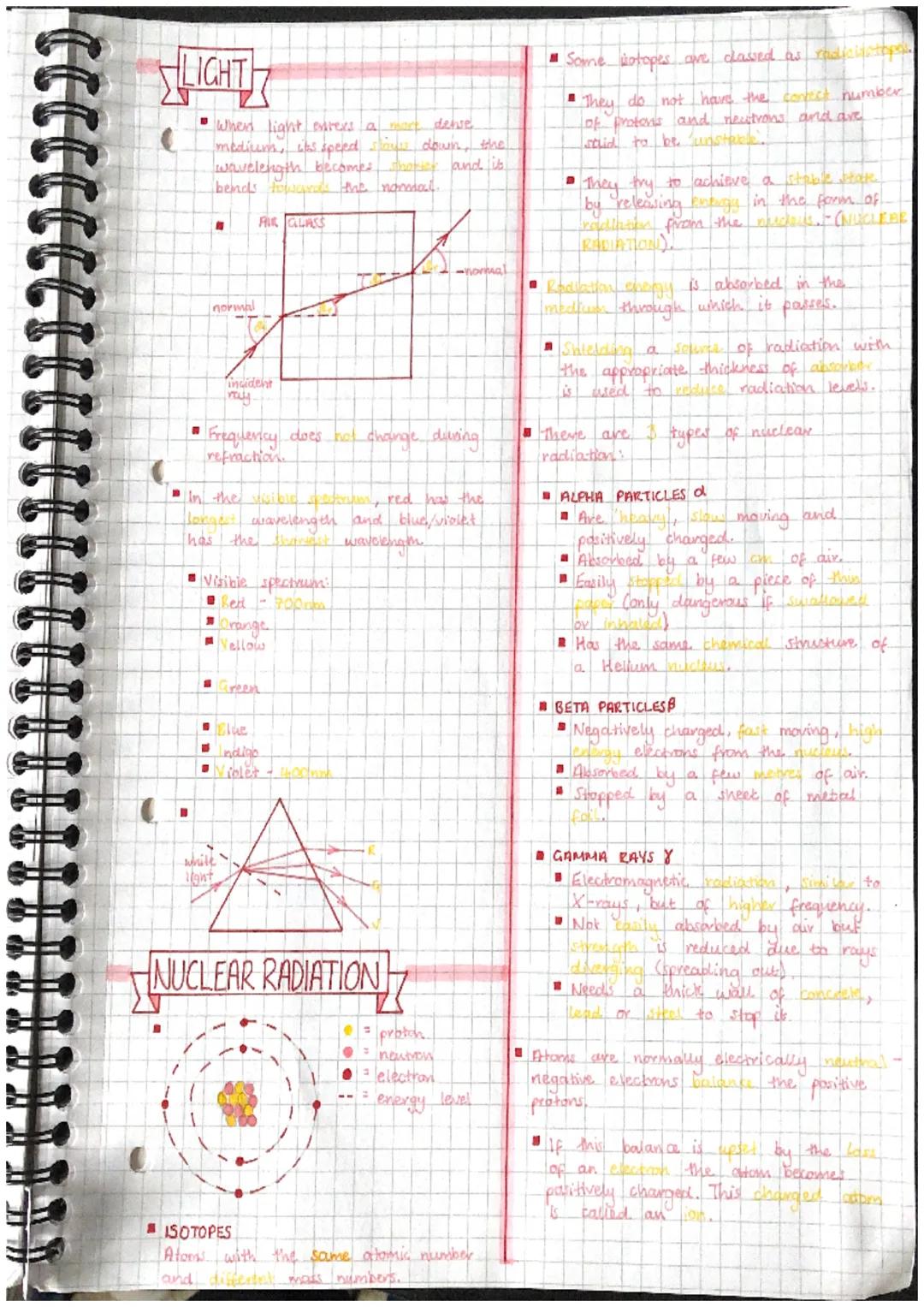

Nuclear Radiation Basics
Some atoms are like wobbly chairs - they're unstable and need to release energy to become balanced. These radioisotopes achieve stability by shooting out nuclear radiation from their nucleus, and this process affects everything around them.
There are three types of radiation with very different personalities. Alpha particles are heavy and slow - they can't even get through paper but are dangerous if you swallow them. Beta particles are fast electrons that need metal foil to stop them. Gamma rays are like super-powered X-rays that need thick concrete or lead walls to block them.
When radiation hits normal atoms, it can knock electrons away, creating ions (charged atoms). This ionisation is why radiation can be both useful and dangerous - it changes the structure of whatever it touches.
Safety First: Alpha causes the most ionisation but travels the shortest distance, whilst gamma travels the furthest but causes the least ionisation per particle.
4
of 6
Radiation Safety & Background Sources
You're actually surrounded by background radiation right now, and that's completely normal! It comes from rocks, cosmic rays from space, building materials, and even your own body contains radioactive elements like potassium and carbon.
Man-made sources include medical treatments, X-rays, nuclear power stations, and even smoke detectors. The key is understanding that ionising radiation can damage healthy cells, potentially causing cancer, so we need to measure and control exposure carefully.
Safety with radioactive materials follows simple rules: use forceps (never bare hands), keep your distance, use proper shielding, avoid bringing sources near your eyes, and always wash hands thoroughly afterwards. Workers in nuclear industries wear badges that monitor their radiation dose to ensure they stay within safe limits.
Dose Limits: The average person in the UK receives 2.2mSv per year from background radiation, whilst radiation workers are limited to 20mSv annually.
5
of 6

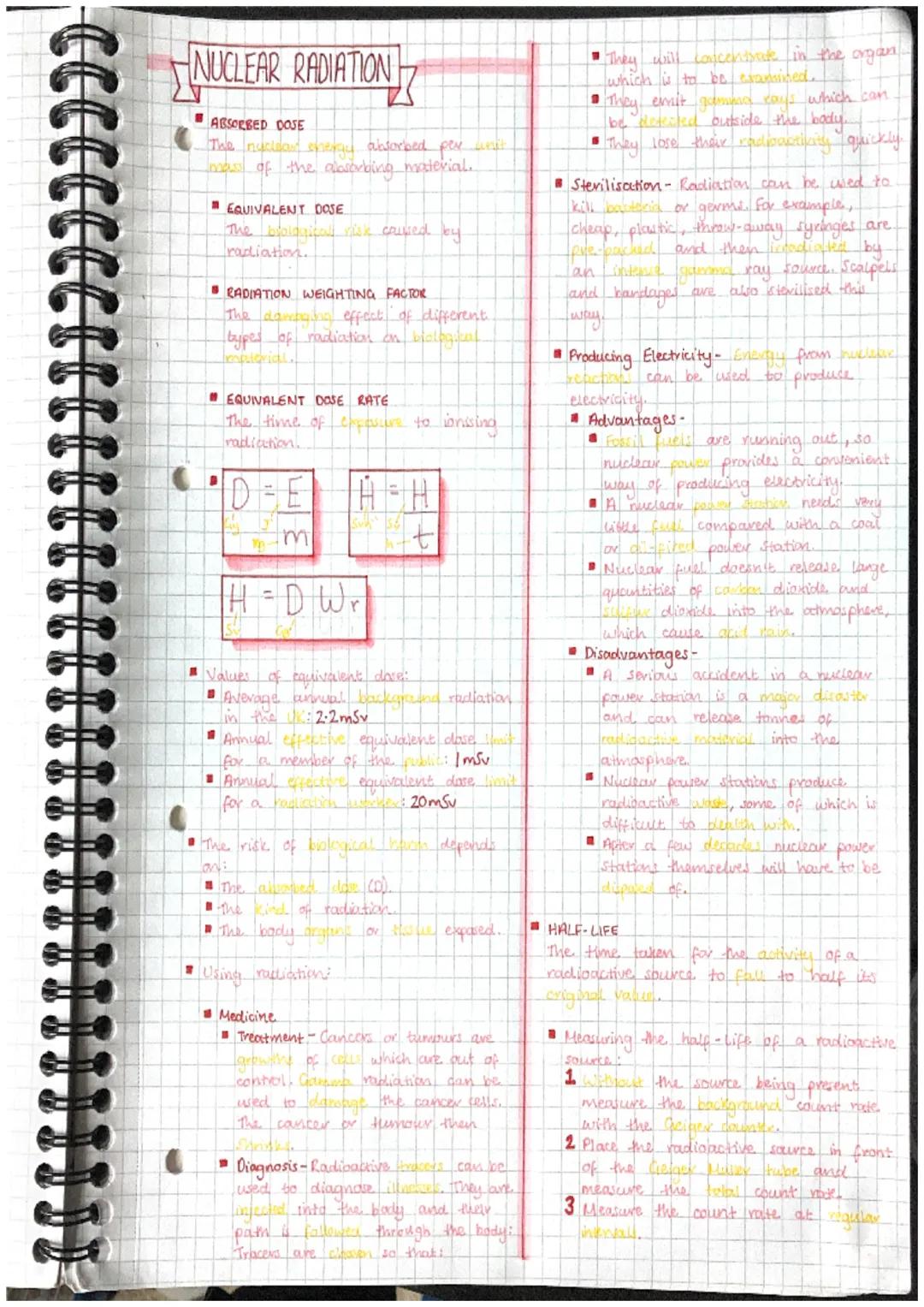

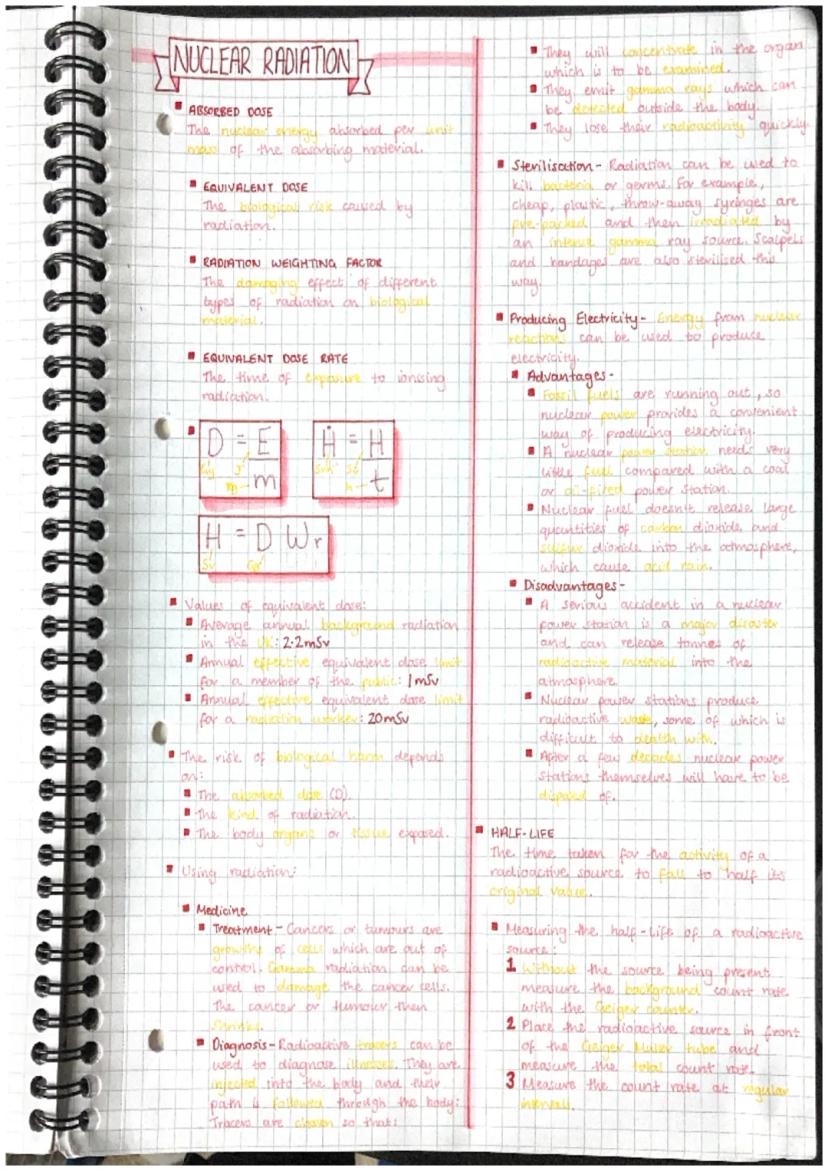

Measuring Radiation & Medical Uses
Understanding radiation exposure involves several key measurements. Absorbed dose shows how much energy radiation deposits in your body, whilst equivalent dose considers the biological damage different radiation types cause using radiation weighting factors.
Medicine uses radiation in brilliant ways. Gamma rays can target and destroy cancer cells during treatment. Radioactive tracers help doctors diagnose problems by following their path through your body - they're chosen to concentrate in specific organs, emit detectable gamma rays, and lose radioactivity quickly for safety.
Sterilisation uses intense gamma radiation to kill bacteria on medical equipment like syringes and bandages. Nuclear power provides electricity with advantages (no greenhouse gases, very little fuel needed) but also serious disadvantages (potential accidents, radioactive waste, eventual disposal of power stations).
Half-life is crucial - it's the time for radiation activity to halve, helping us predict how long sources remain dangerous and how quickly medical tracers clear from your body.
6
of 6

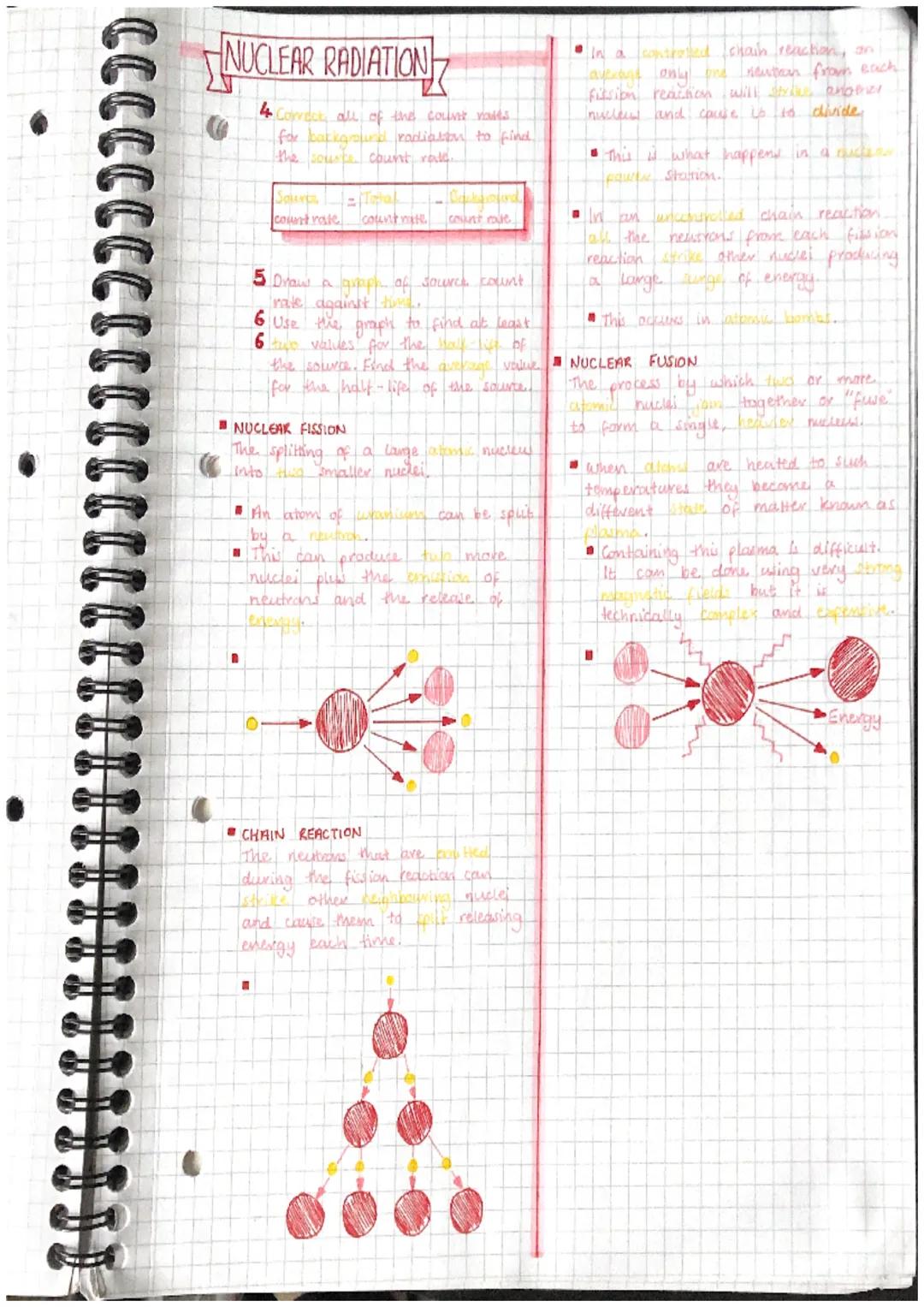

Nuclear Reactions
Nuclear fission is like splitting a massive atomic nucleus into two smaller pieces, releasing enormous energy in the process. When a neutron hits a uranium atom, it splits and releases more neutrons, which can hit other uranium atoms in a chain reaction.
Controlled chain reactions in nuclear power stations carefully manage this process so only one neutron from each split causes another split. Uncontrolled chain reactions let all neutrons cause splits, creating the massive energy release in atomic bombs.
Nuclear fusion works oppositely - it smashes light atomic nuclei together to form heavier ones, releasing even more energy. This happens naturally in stars like our Sun, but recreating it on Earth requires creating plasma (super-heated matter) contained by incredibly strong magnetic fields.
Energy Source: Fusion could provide unlimited clean energy, but the technical challenges of containing plasma at millions of degrees make it extremely difficult and expensive to achieve.
