Working with Potential Divider Circuits

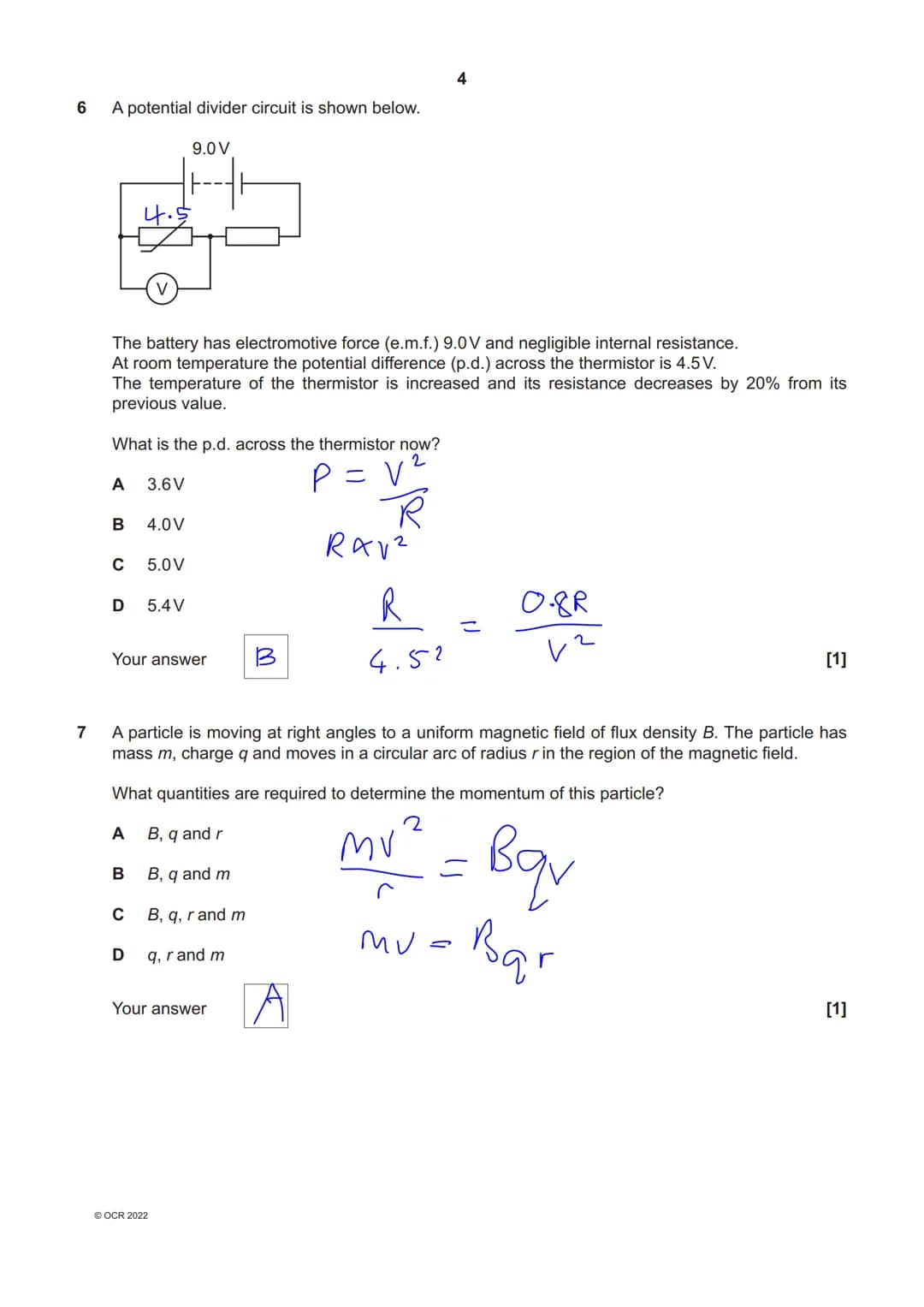

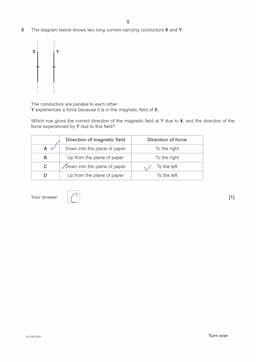

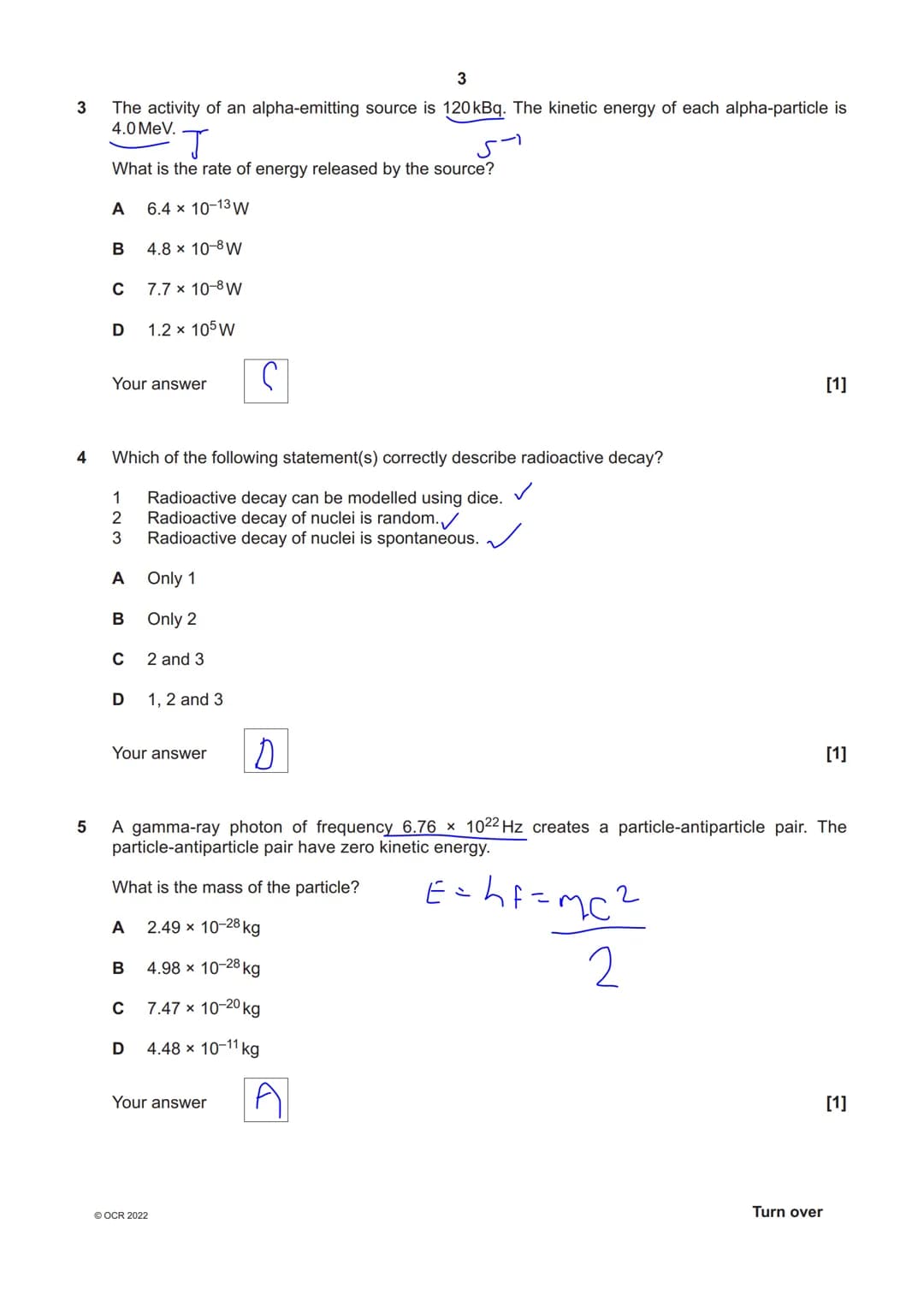

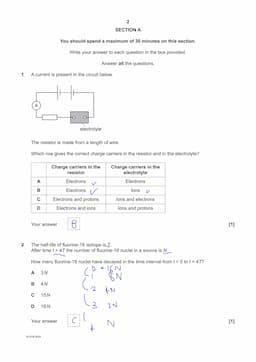

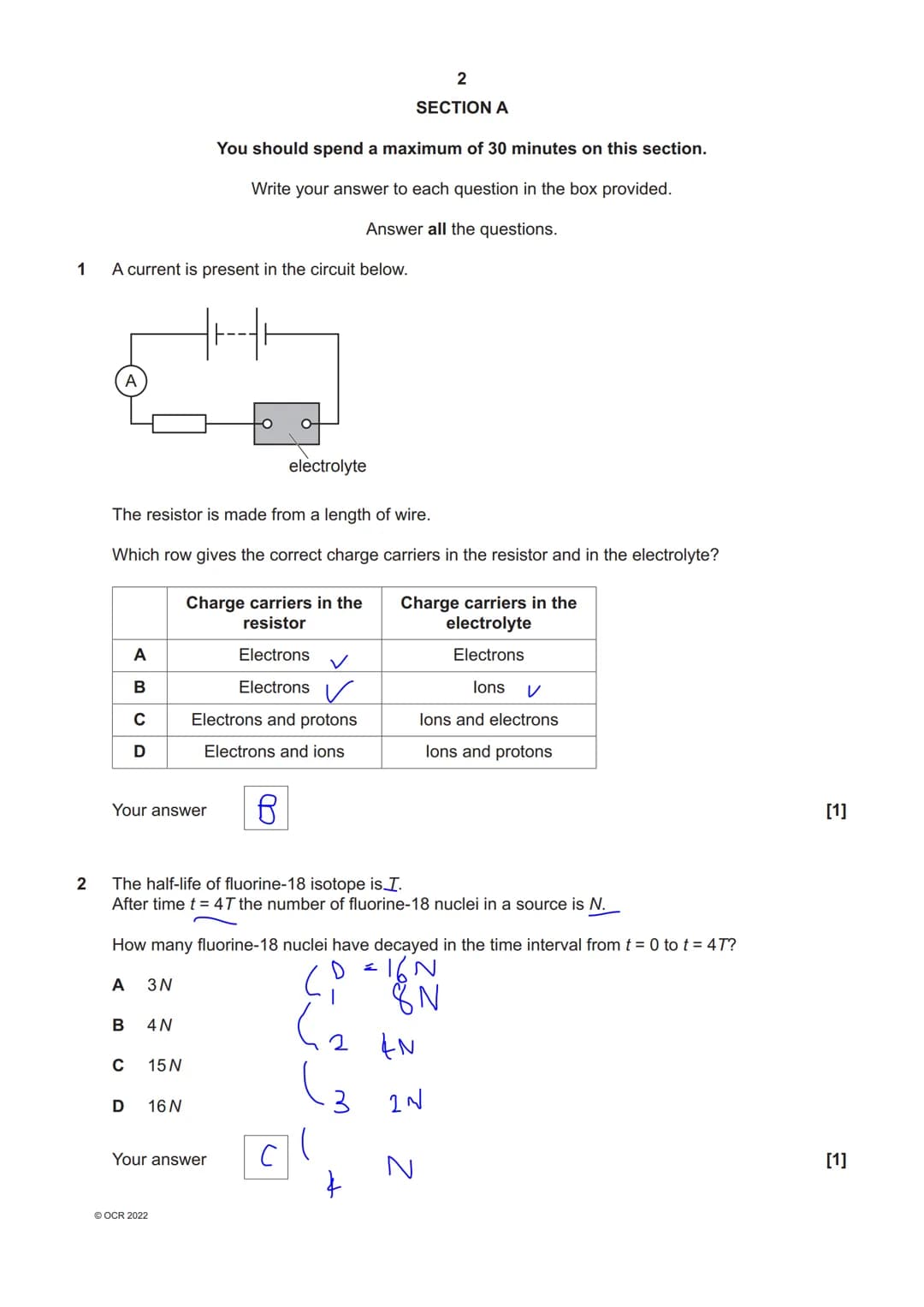

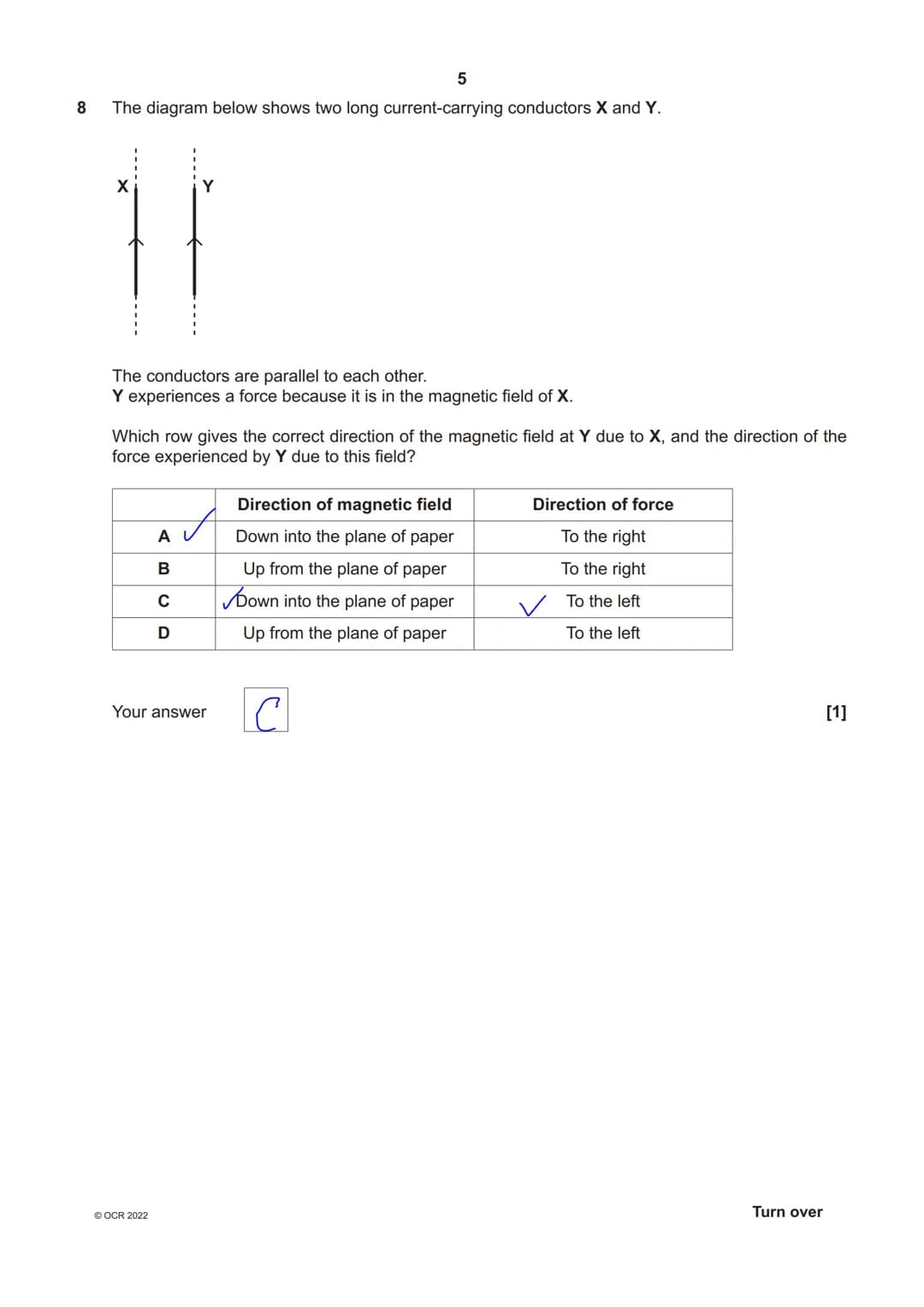

The potential divider circuit in A Level Physics represents a fundamental concept in electrical systems. These circuits divide voltage between components in a predictable and useful way, making them essential in many practical applications.

When analyzing potential divider circuits, students must understand how resistance changes affect voltage distribution. For instance, when a thermistor's resistance changes due to temperature variations, the voltage across it changes proportionally. This relationship demonstrates the practical application of potential dividers in temperature-sensing circuits.

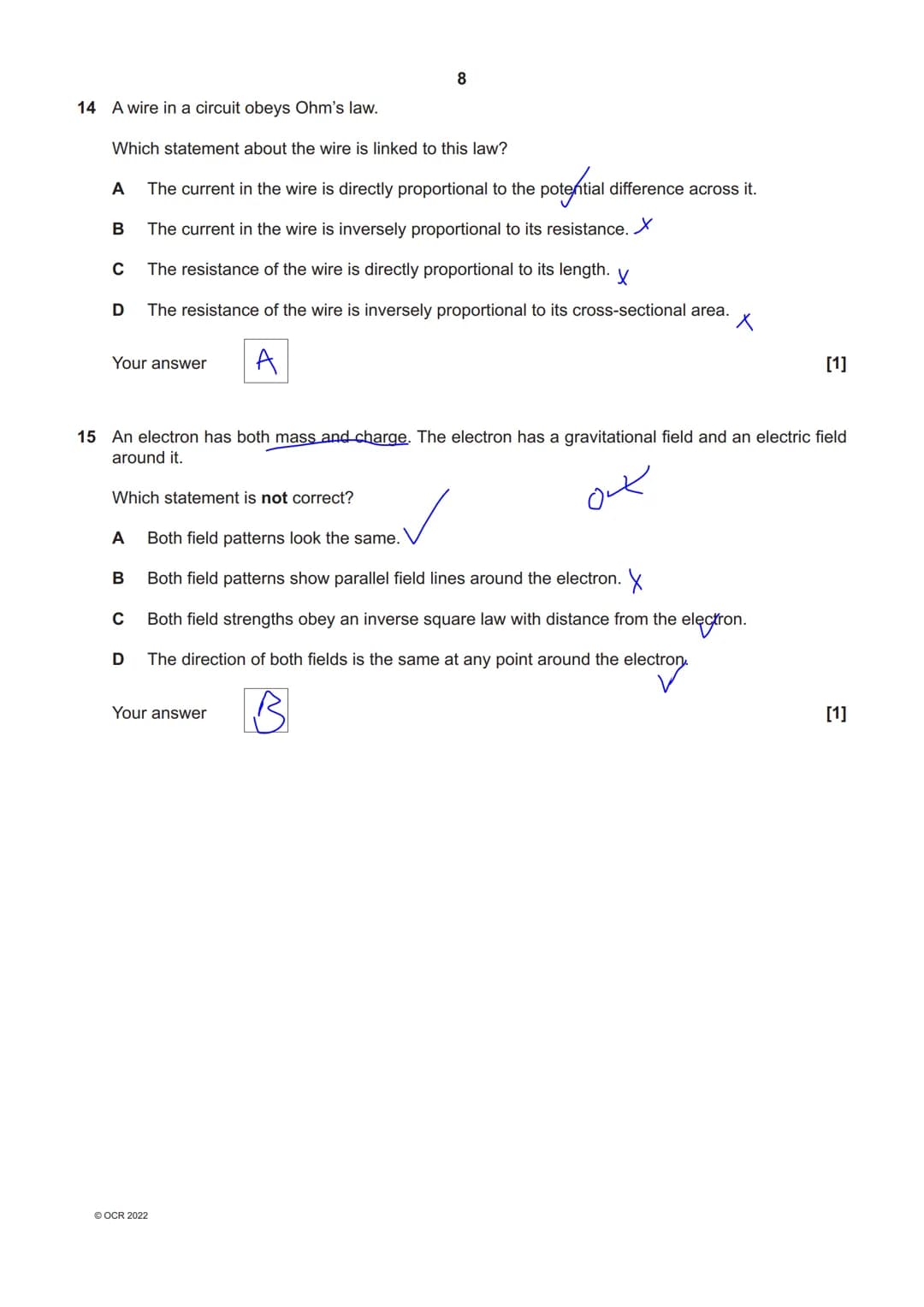

Vocabulary: A potential divider circuit distributes voltage between components proportionally to their resistances, following Ohm's Law principles.

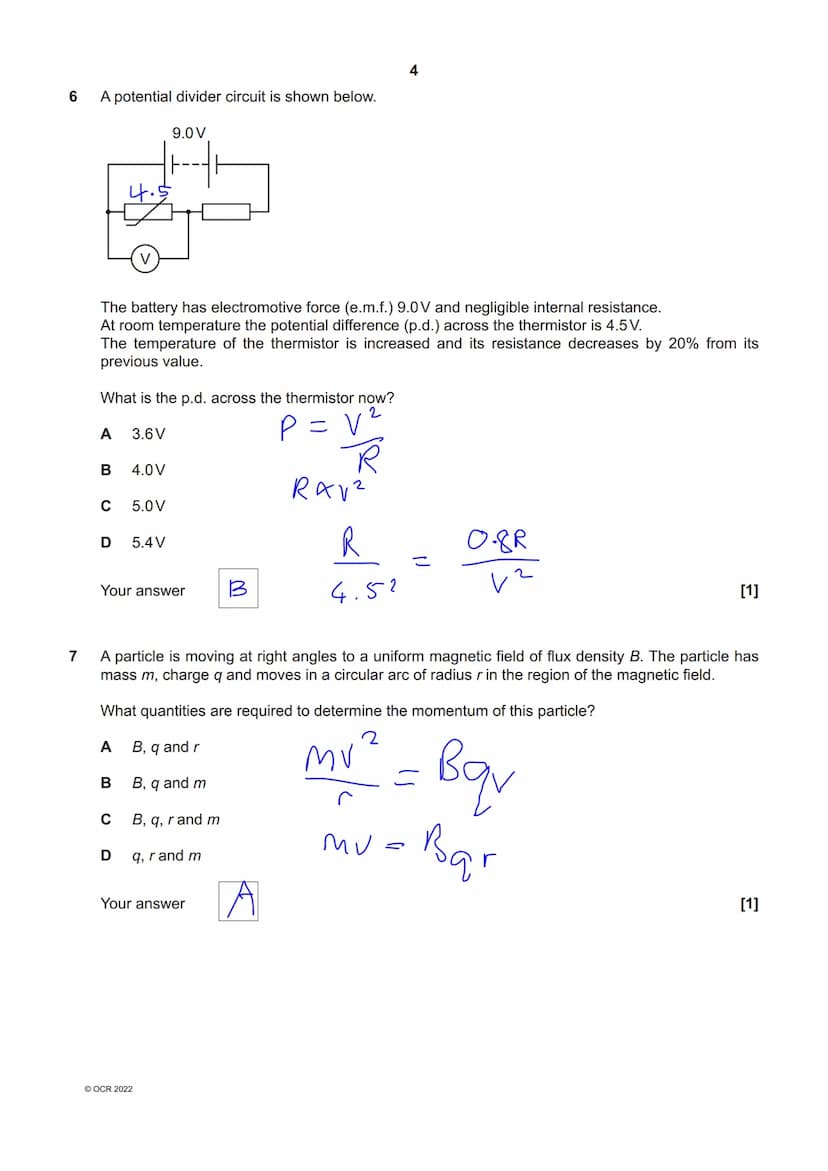

Students must also consider how component values affect the overall circuit behavior. For example, in a circuit with a 9.0V source, changing a thermistor's resistance by 20% results in a predictable change in voltage distribution, demonstrating the mathematical relationships between resistance and potential difference.

Understanding Wave Properties and Double-Slit Interference in A Level Physics A OCR study guide

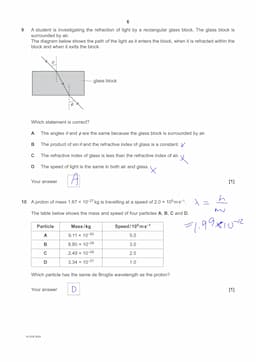

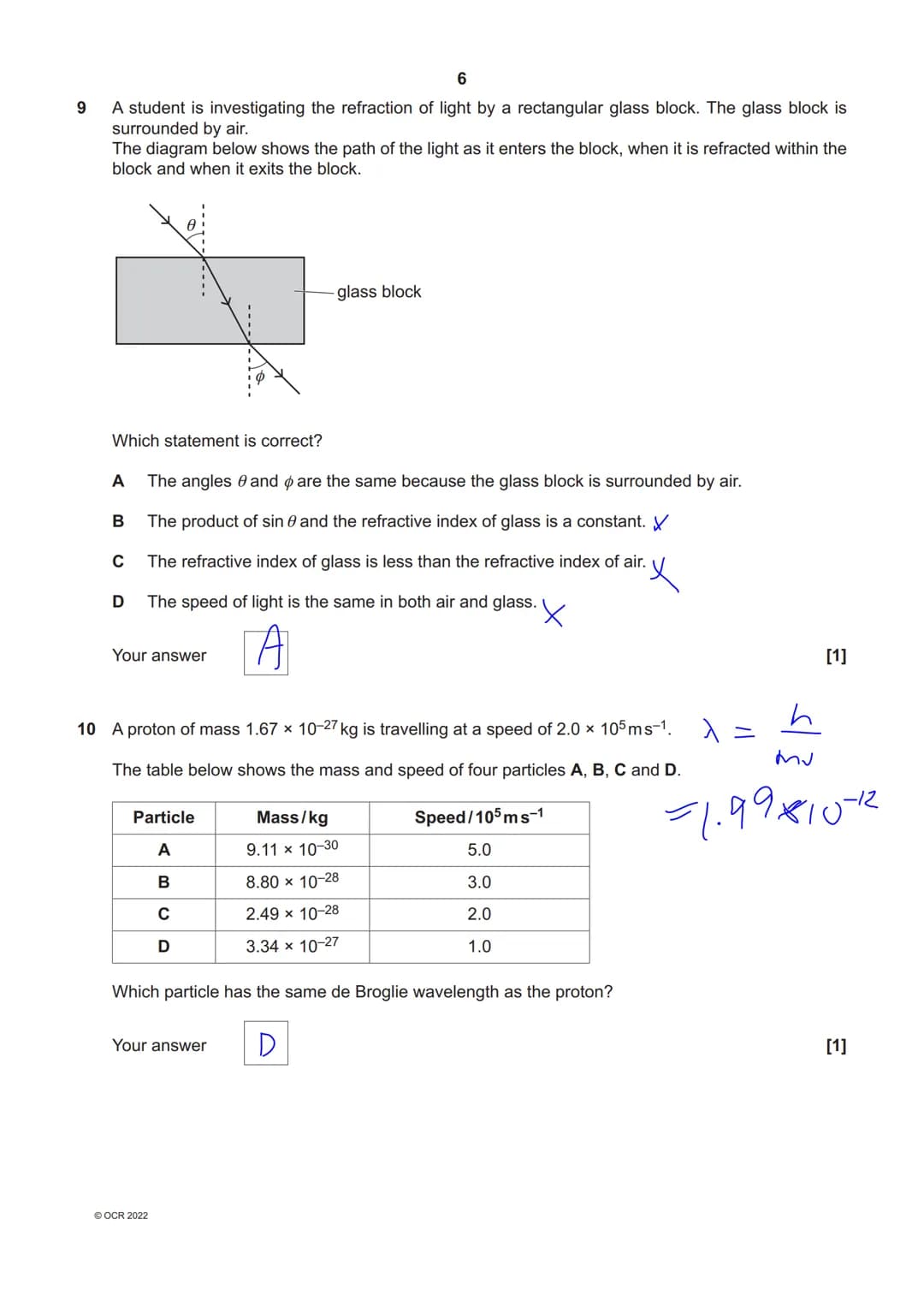

Wave motion and interference patterns are fundamental concepts in physics that help us understand how energy propagates through space. When studying progressive waves and their behavior, we need to analyze their displacement, phase differences, and interference patterns carefully.

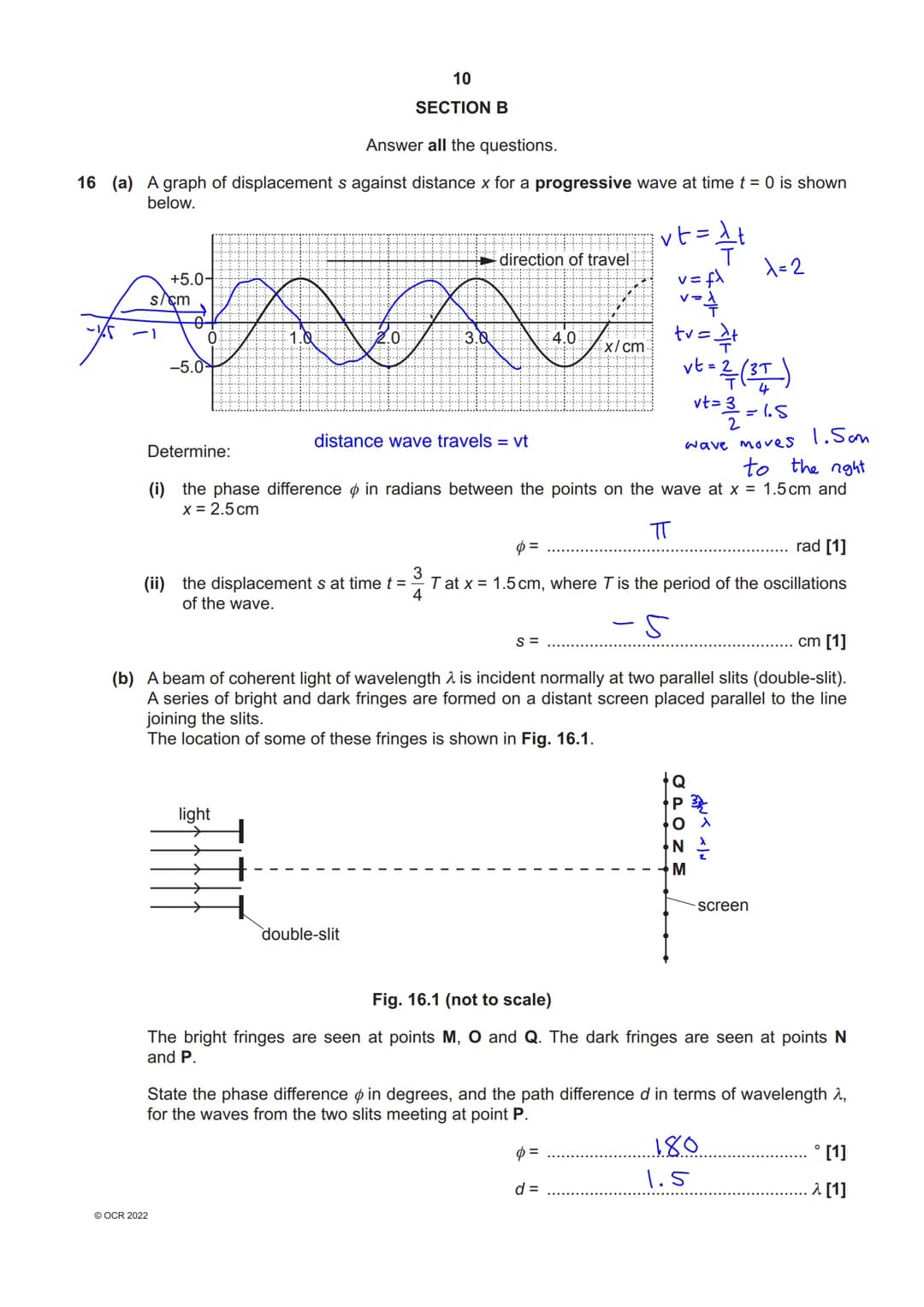

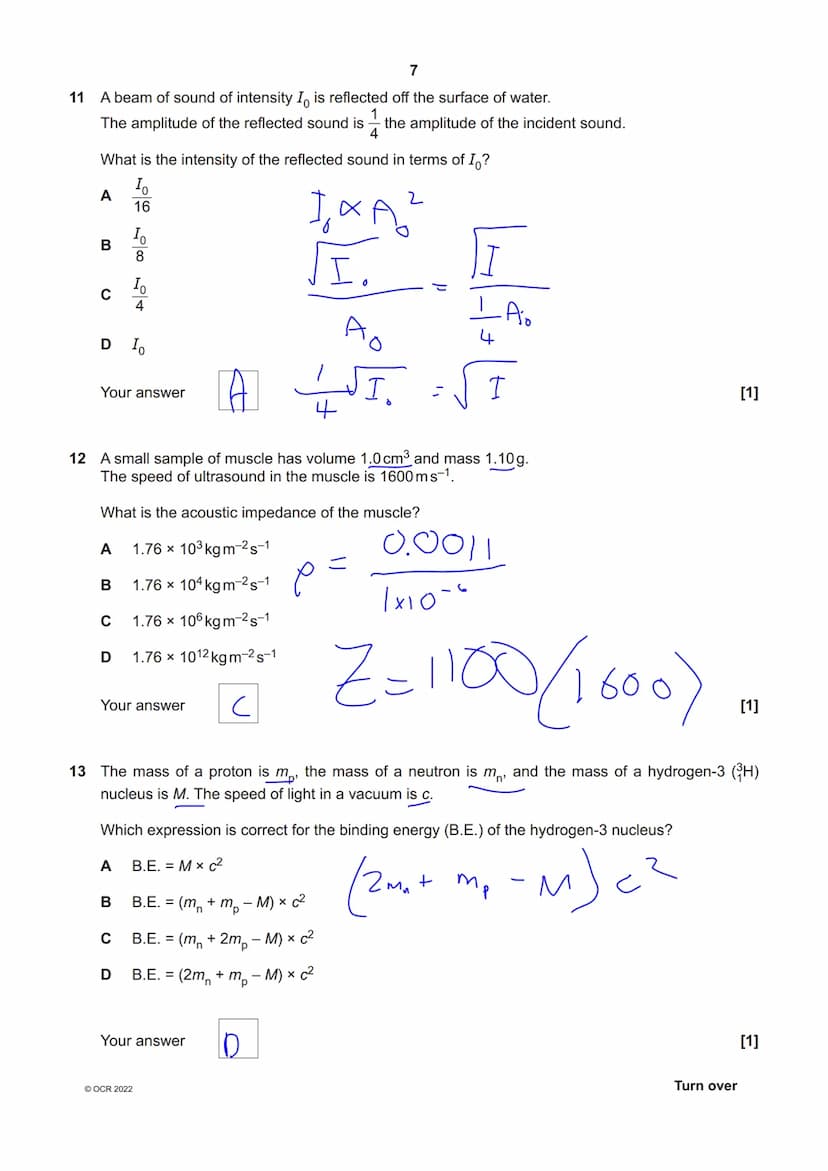

In progressive wave analysis, we examine how displacement varies with position at a given time. Consider a wave with amplitude of 5.0 cm traveling to the right. When calculating phase differences between two points on a wave, we need to consider their relative positions along the wavelength. For instance, between points at x = 1.5 cm and x = 2.5 cm, we can determine the phase difference in radians by understanding how much of a complete cycle (2π radians) separates these points.

Definition: Phase difference is the fraction of a complete cycle that separates two points on a wave, measured in radians or degrees. One complete cycle equals 2π radians or 360 degrees.

The double-slit experiment demonstrates wave interference beautifully. When coherent light passes through two parallel slits, it creates an interference pattern of bright and dark fringes on a distant screen. The bright fringes occur where waves arrive in phase (constructive interference), while dark fringes appear where waves arrive out of phase (destructive interference).

Example: In a double-slit setup, if waves meeting at a dark fringe have a phase difference of 180 degrees, this corresponds to a path difference of λ/2 (half a wavelength). This creates destructive interference, resulting in a dark spot on the screen.

Advanced Wave Calculations and Applications

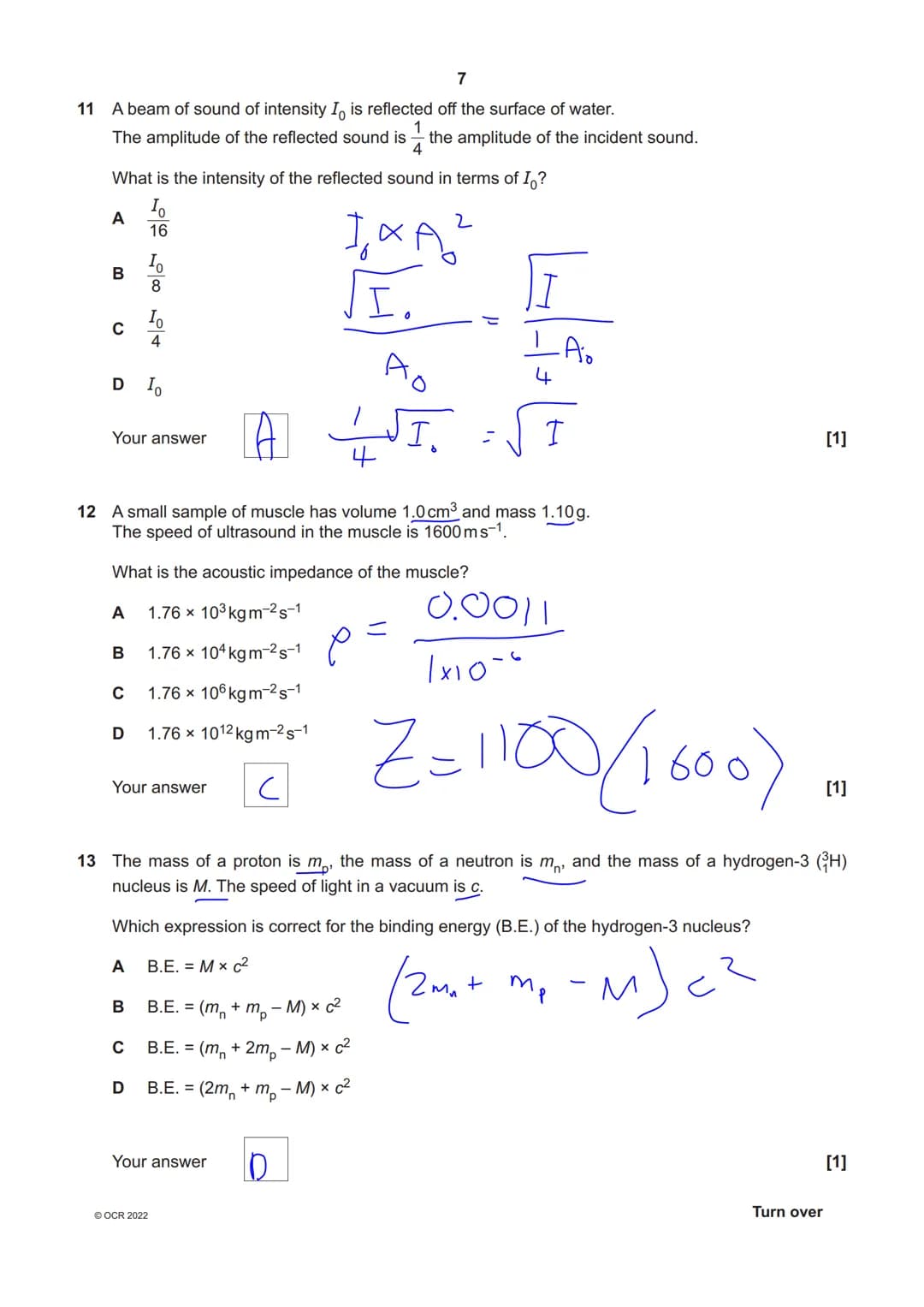

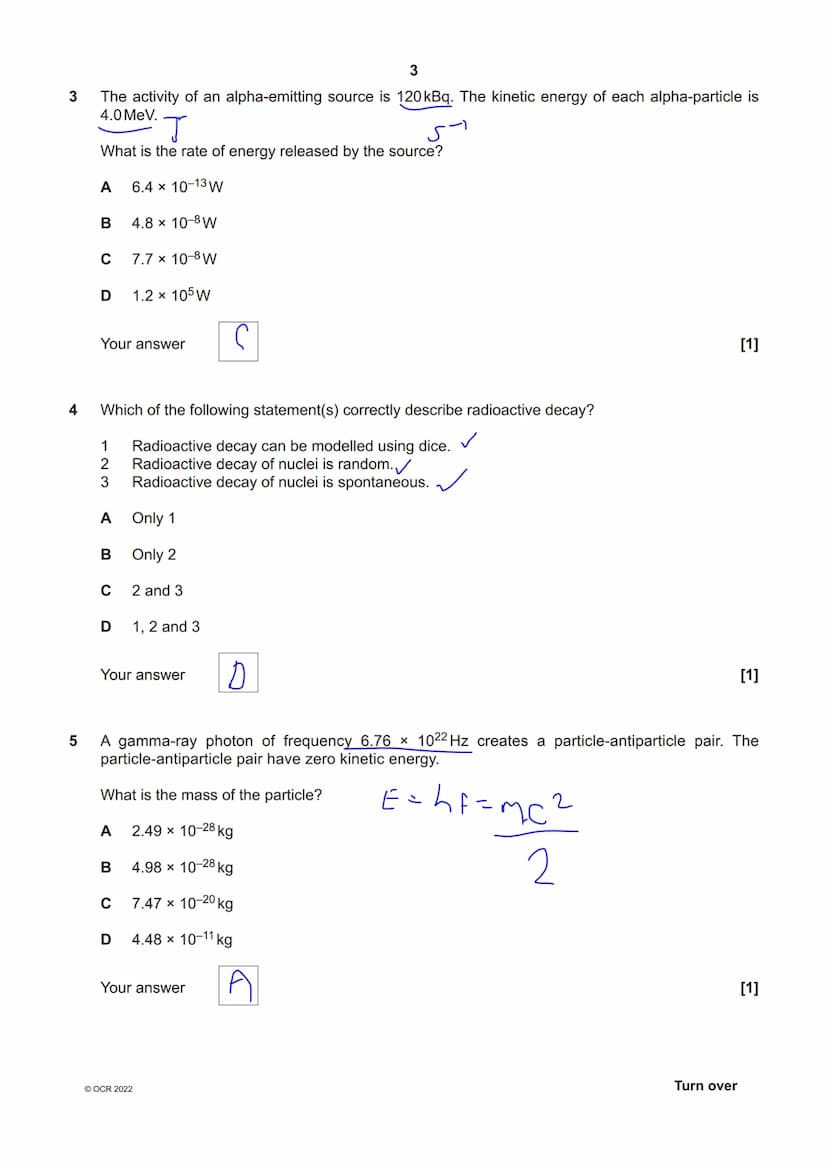

Understanding wave calculations requires careful consideration of multiple variables including wavelength, frequency, and wave speed. When analyzing wave motion over time, we must account for how the wave's shape changes and how points along the wave move through their cycles of oscillation.

For any point along a wave, its displacement at a given time can be calculated by considering both its position and the fraction of the wave's period that has elapsed. For example, if we want to find the displacement at x = 1.5 cm after three-quarters of a period (3T/4), we need to account for how far the wave has traveled and how this affects the point's position in its cycle.

Highlight: The relationship between wave speed (v), frequency (f), and wavelength (λ) is given by v = fλ. This fundamental equation helps us analyze wave motion and interference patterns.

Wave interference patterns have practical applications in many fields, from optical instruments to quantum mechanics. The principles we observe in double-slit experiments form the foundation for understanding more complex wave phenomena, including electromagnetic radiation and quantum behavior of particles.

Vocabulary: Path difference - The difference in distance traveled by waves from two sources to reach a particular point. This determines whether constructive or destructive interference occurs at that point.
