Understanding Nuclear Decay and Semiconductor Physics

Overall Summary This comprehensive guide covers nuclear decay equations, kinetic energy calculations in particle physics, and semiconductor behavior in magnetic fields. The content is structured to help students master these advanced physics concepts through detailed explanations and practical examples.

Nuclear Decay Processes and Energy Calculations

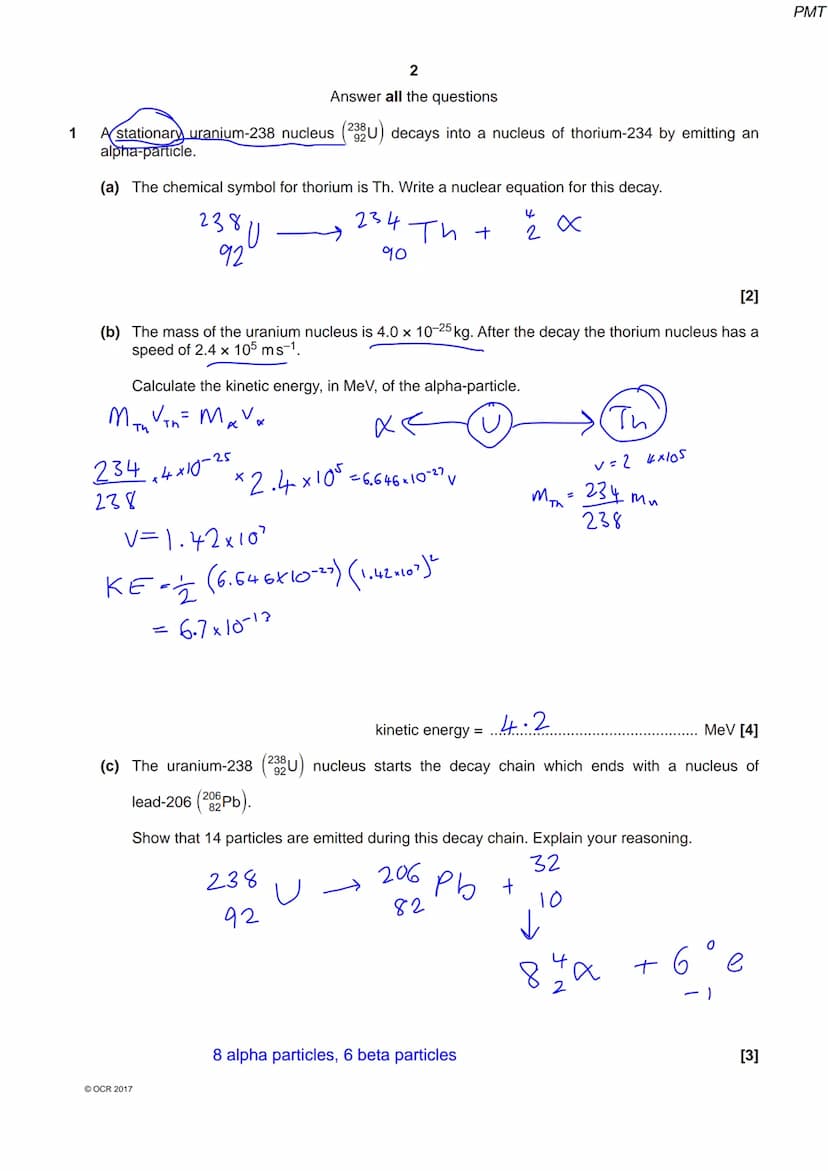

The process of nuclear decay involves complex transformations where unstable atomic nuclei emit particles to achieve stability. In the case of Uranium-238 decay, we observe a fascinating example of alpha decay.

Definition: Alpha decay is a type of radioactive decay where an atomic nucleus emits an alpha particle (two protons and two neutrons, identical to a helium nucleus).

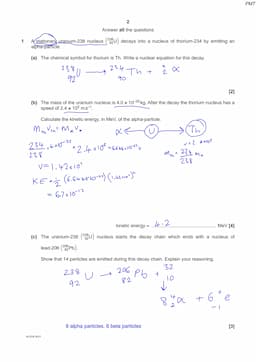

When Uranium-238 undergoes alpha decay, it transforms into Thorium-234. This process can be represented through a detailed nuclear equation:

Example: ²³⁸U → ²³⁴Th + ⁴He 92 90 2

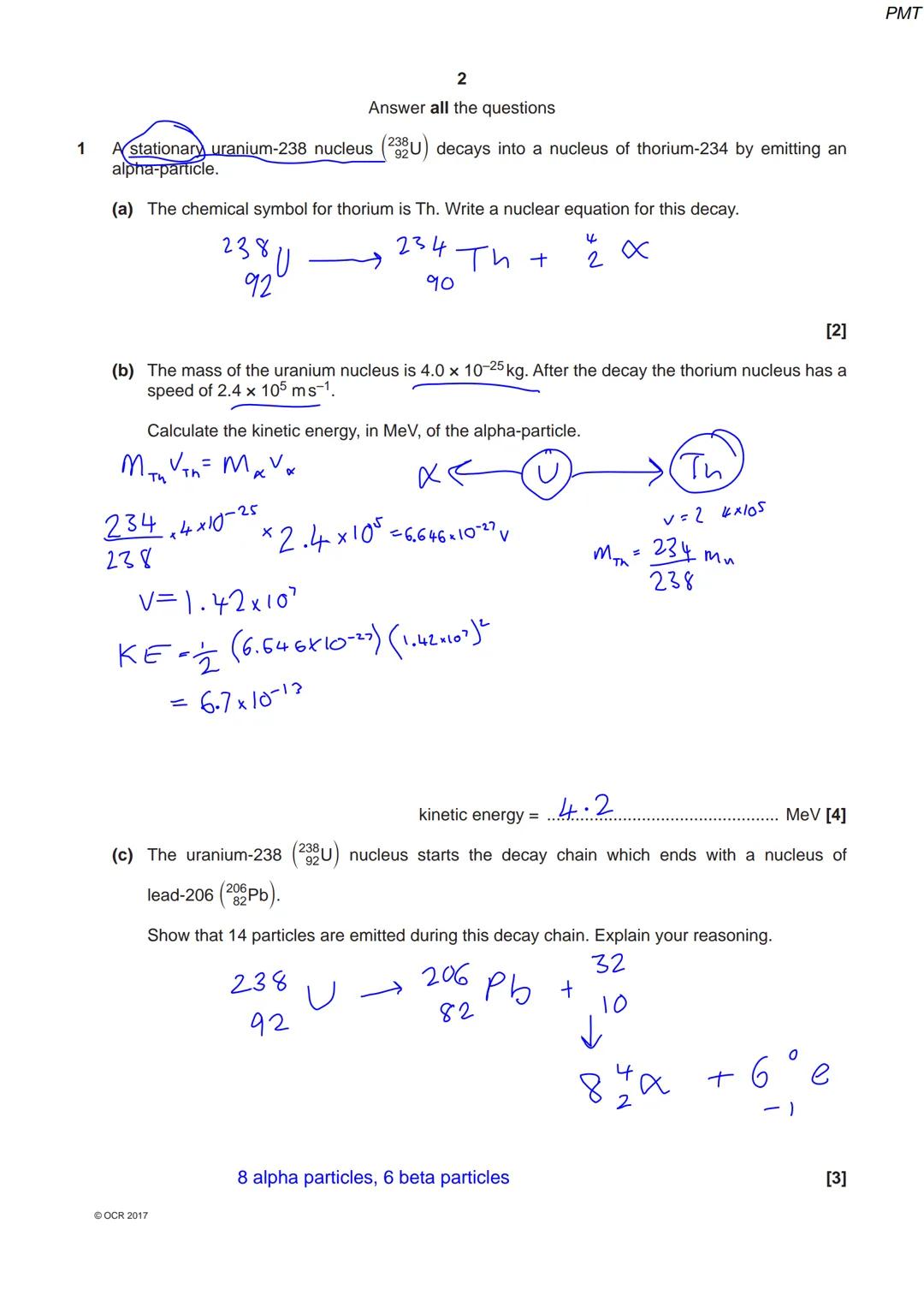

The kinetic energy released during this decay process follows conservation of momentum principles. Using the mass of the uranium nucleus (4.0 × 10⁻²⁵ kg) and the resulting thorium nucleus velocity $2.4 × 10⁵ m/s$, we can calculate the alpha particle's kinetic energy in MeV.

Highlight: The complete decay chain from Uranium-238 to Lead-206 involves multiple steps, releasing a total of 14 particles (8 alpha particles and 6 beta particles).

Semiconductor Behavior in Magnetic Fields

Understanding how semiconductors behave in magnetic fields is crucial for modern electronics applications. When a semiconductor slice carries current in a magnetic field, interesting phenomena occur due to the interaction between moving electrons and the field.

Vocabulary: Drift velocity refers to the average velocity of charge carriers (electrons) in a conductor under the influence of an electric field.

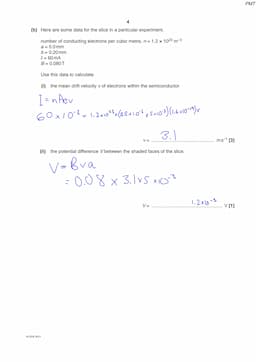

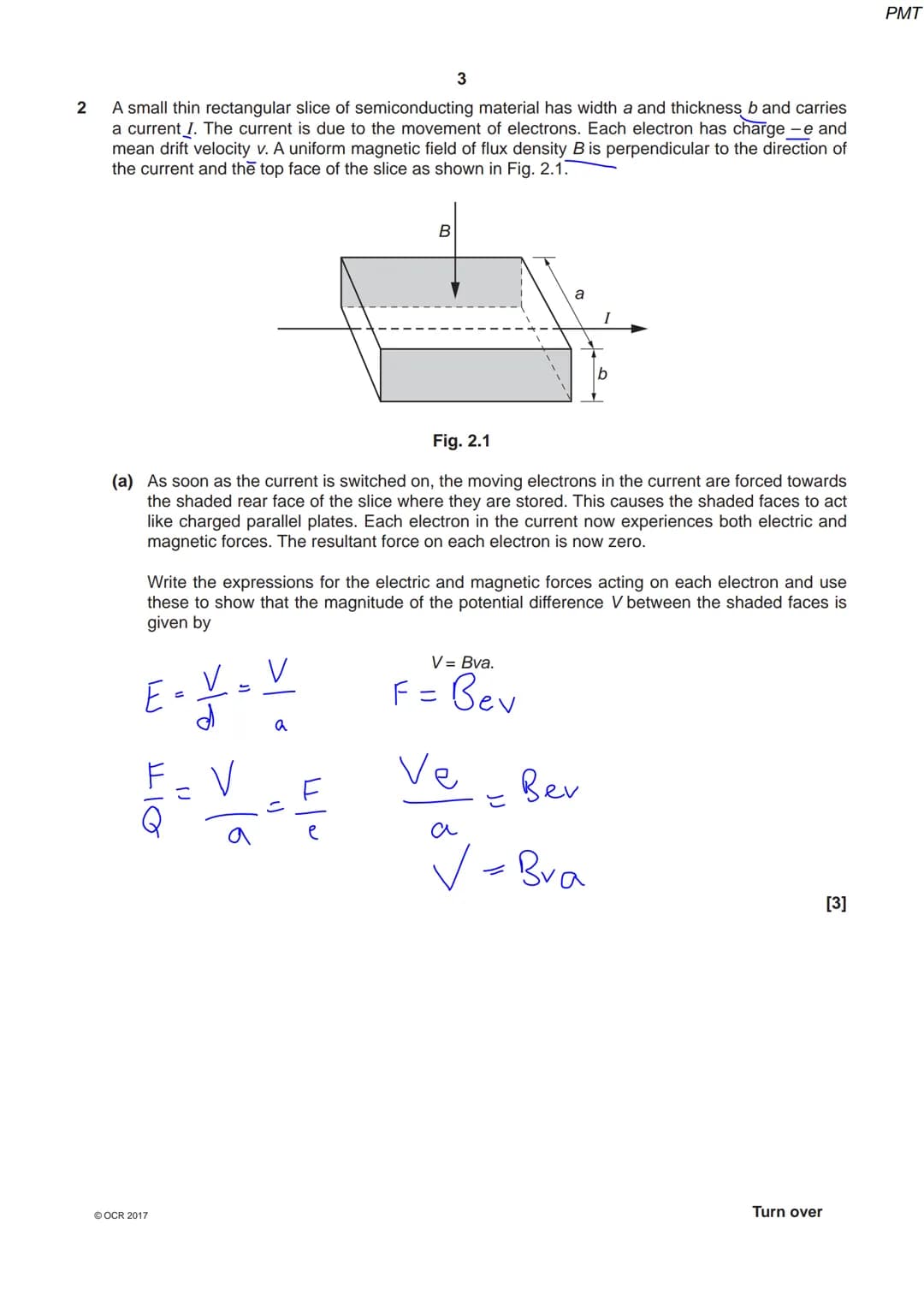

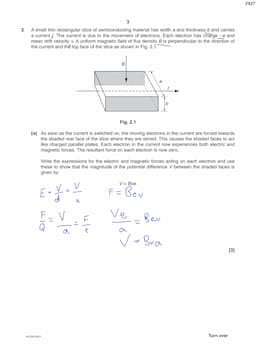

The rectangular semiconductor slice experiences both electric and magnetic forces when placed in a uniform magnetic field. The magnetic force $F = Bev$ acts perpendicular to both the current direction and magnetic field, while the electric force $F = eE$ develops due to charge separation.

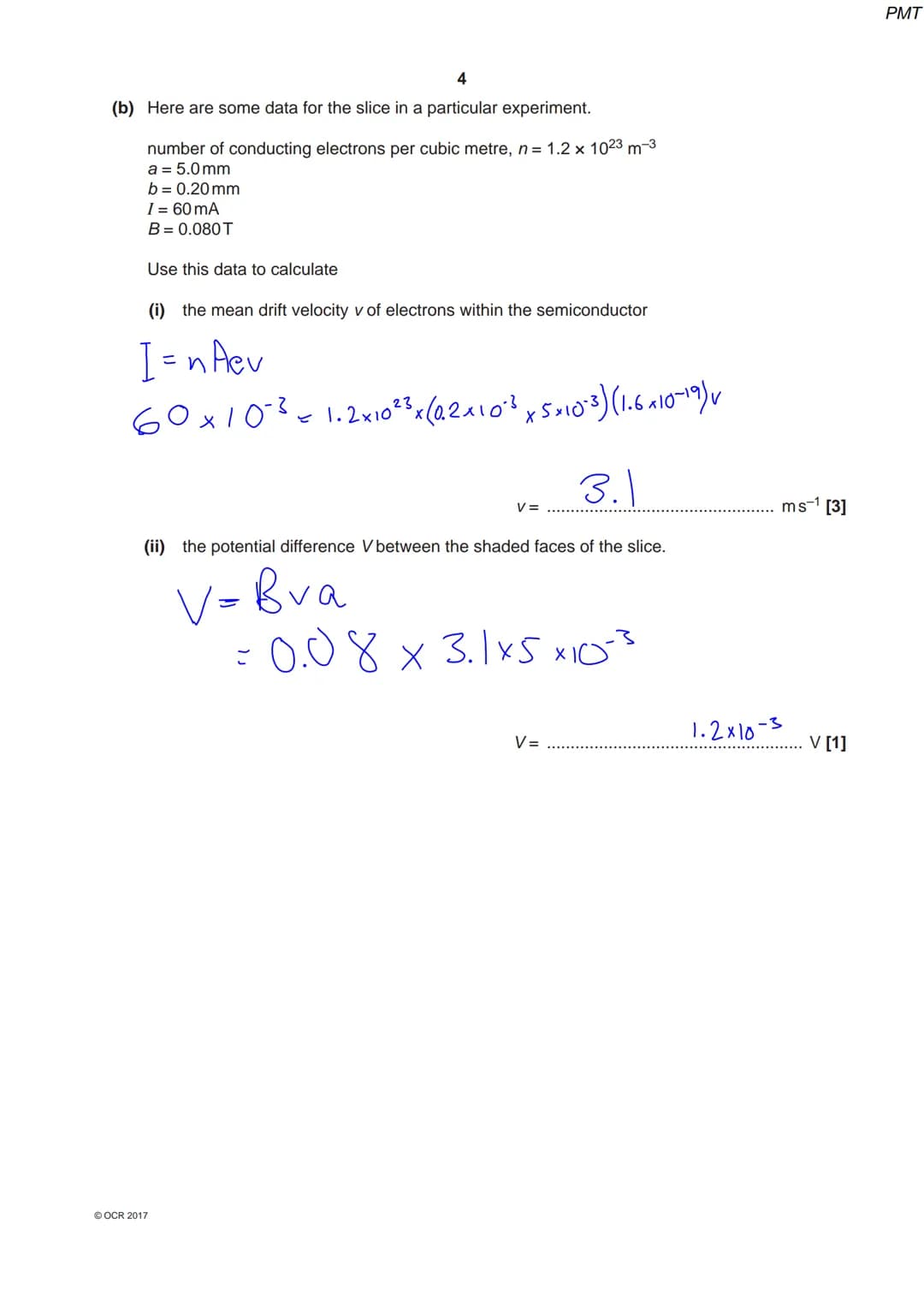

Example: For a semiconductor with dimensions a = 5.0mm and b = 0.20mm, carrying current I = 60mA in a magnetic field B = 0.080T, we can calculate both the drift velocity and resulting potential difference.

The relationship between current, charge carrier density, and drift velocity follows the equation I = nAev, where n is the number of conducting electrons per cubic meter.

Applications and Practical Implications

These principles have significant applications in modern technology, from nuclear power generation to semiconductor devices. Understanding nuclear decay helps in radioactive dating and medical treatments, while semiconductor behavior in magnetic fields is crucial for developing sensors and electronic components.

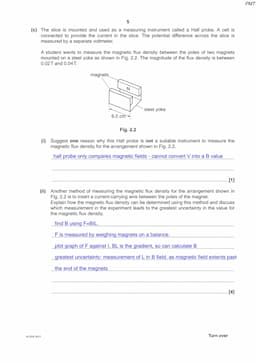

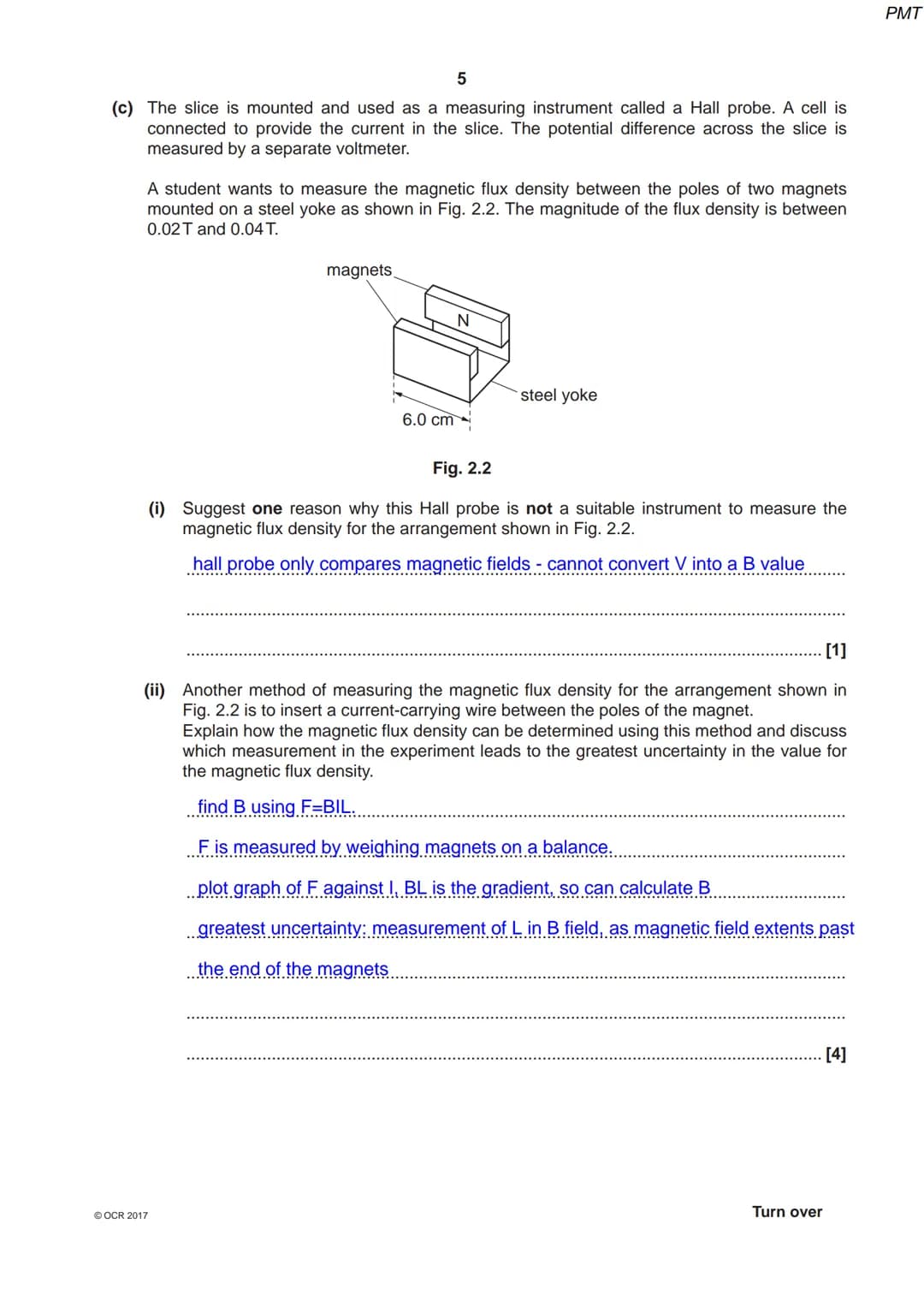

Highlight: The Hall effect, demonstrated in the semiconductor example, is widely used in magnetic field sensors and position detection devices.

The calculations and concepts presented here form the foundation for more advanced studies in nuclear physics and semiconductor technology. Students should focus on understanding both the mathematical relationships and the underlying physical principles.

Experimental Circuit Analysis: Identifying Unknown Terminal Configurations

When working with electrical circuits, engineers and students often encounter "black box" scenarios where component arrangements are unknown. This detailed guide explores how to systematically identify unmarked terminals and internal circuit configurations using basic measurement techniques.

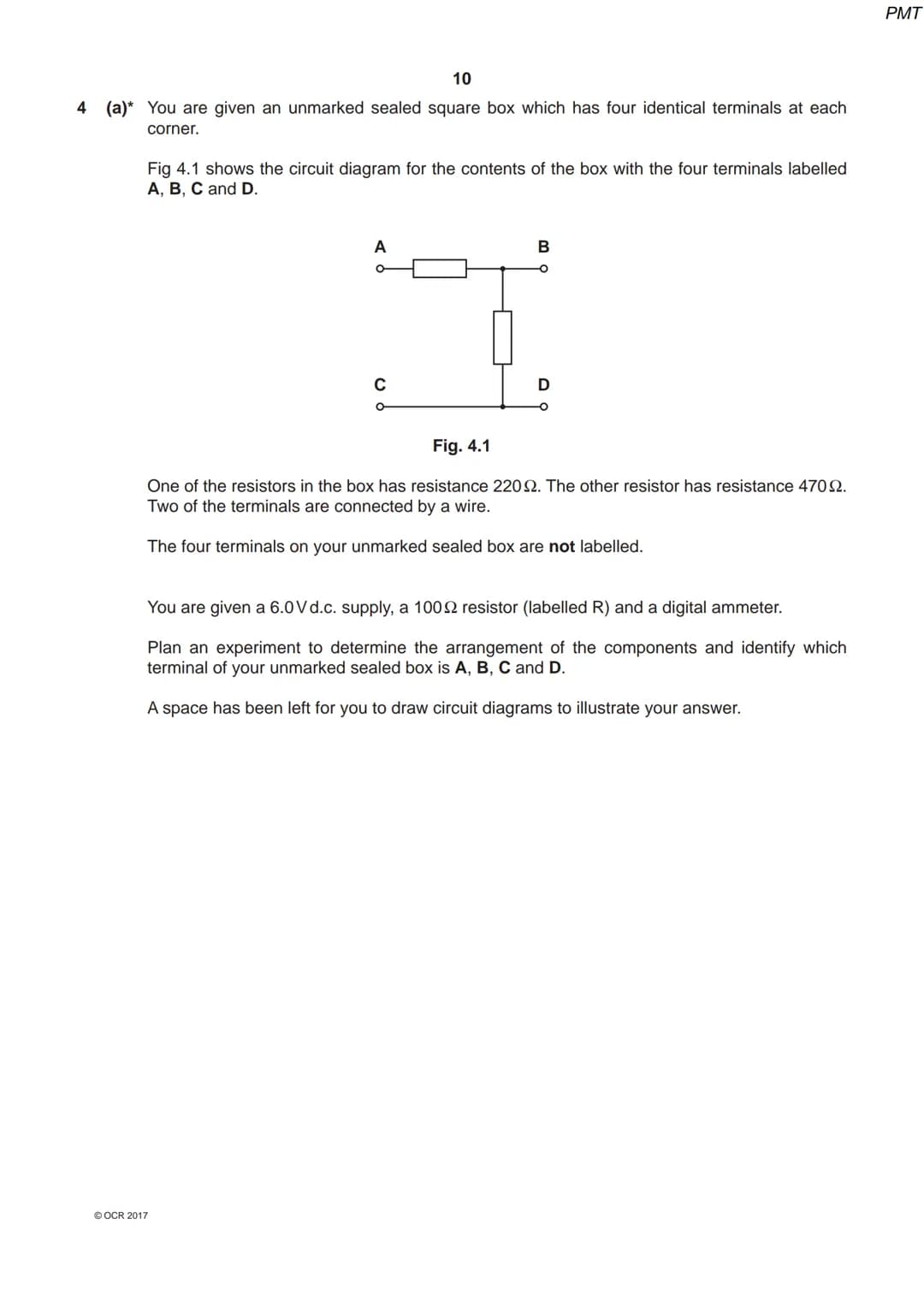

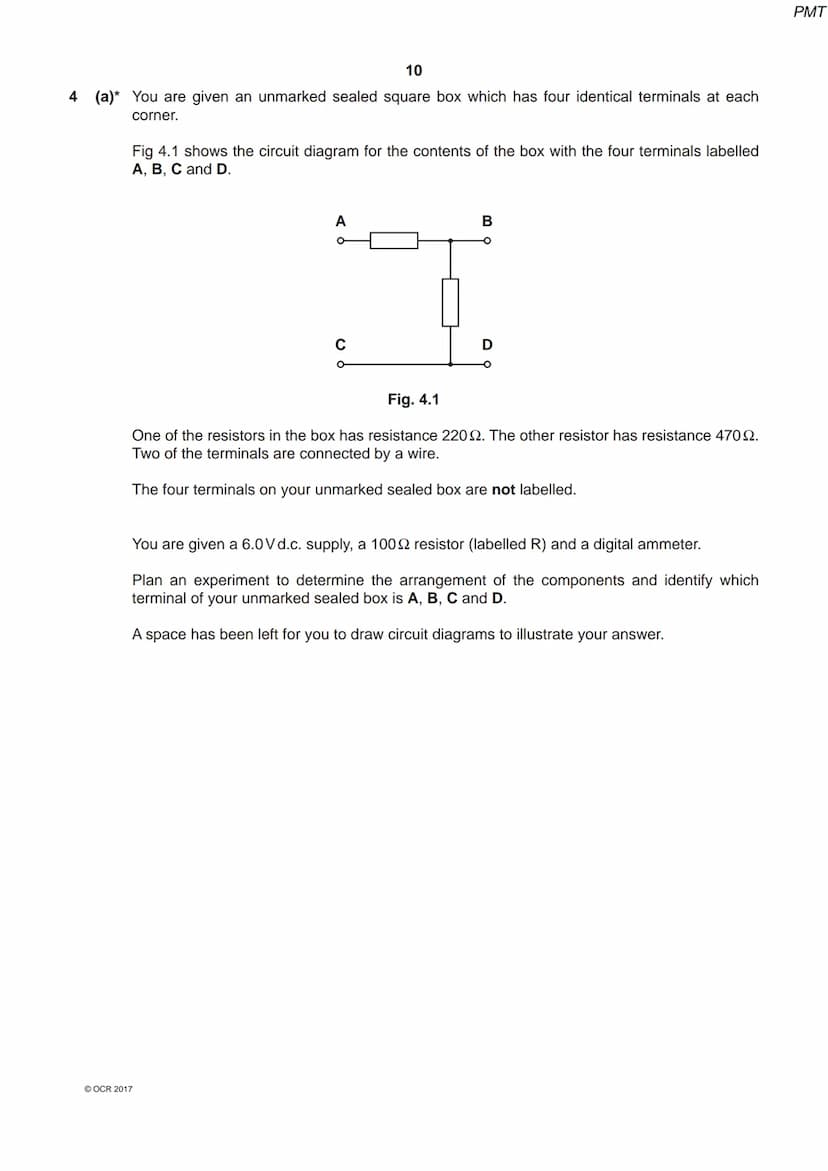

The experimental setup involves a sealed box containing two resistors (220Ω and 470Ω) and a wire connection, with four unmarked terminals. Using a 6.0V DC supply, a 100Ω external resistor, and a digital ammeter, we can determine the internal arrangement through careful testing and analysis.

Definition: A "black box" circuit is an enclosed system where internal components are hidden, but external terminals are accessible for testing and measurement.

The systematic identification process begins by measuring current flow between different terminal pairs. Since one terminal pair is connected by a wire, this connection will show minimal resistance and maximum current flow. The remaining terminals connect through the resistors in series, allowing us to identify their positions based on the measured current values using Ohm's Law.

To execute the experiment effectively:

1. First measure current between all possible terminal combinations
2. Identify the direct wire connection from the highest current reading
3. Use the measured currents through other terminal pairs to calculate effective resistances
4. Match the calculated values with the known resistor values to map the circuit configuration

Example: When testing terminals connected by the wire, the current reading will be significantly higher than terminals connected through resistors. For a 6.0V supply and 100Ω external resistor:

• Wire connection: I = 6.0V/100Ω = 60mA
• Through 220Ω: I = 6.0V/(320Ω) = 18.75mA
• Through 470Ω: I = 6.0V/(570Ω) = 10.53mA

Advanced Circuit Testing Methodology and Analysis

Understanding the relationship between voltage, current, and resistance is crucial for successful circuit analysis. When working with unknown configurations, systematic testing combined with theoretical calculations provides a reliable approach to circuit mapping.

The experimental process requires careful attention to measurement accuracy and proper connection techniques. When connecting the ammeter, ensure proper polarity and range selection to avoid damage to the instrument and obtain accurate readings. The external 100Ω resistor serves as both a current limiter and a reference point for calculations.

Highlight: Always begin testing with the lowest voltage setting and highest current range on measuring instruments to protect both the equipment and the circuit components.

Circuit analysis becomes more manageable by creating a detailed testing matrix. Record measurements between each possible terminal combination and analyze the patterns that emerge. The presence of parallel or series configurations will become apparent through the current measurements, allowing for accurate identification of terminal positions.

Vocabulary:

• Series Circuit: Components connected end-to-end, sharing the same current
• Parallel Circuit: Components connected across the same voltage points
• Terminal: An electrical connection point for external access to a circuit
• Resistance: Opposition to current flow measured in ohms (Ω)

The final step involves verifying the identified configuration by comparing measured values with theoretical calculations. This verification ensures accuracy and provides confidence in the terminal identification process. Document all findings and include circuit diagrams showing the confirmed terminal arrangements and component positions.

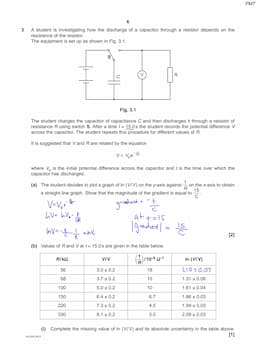

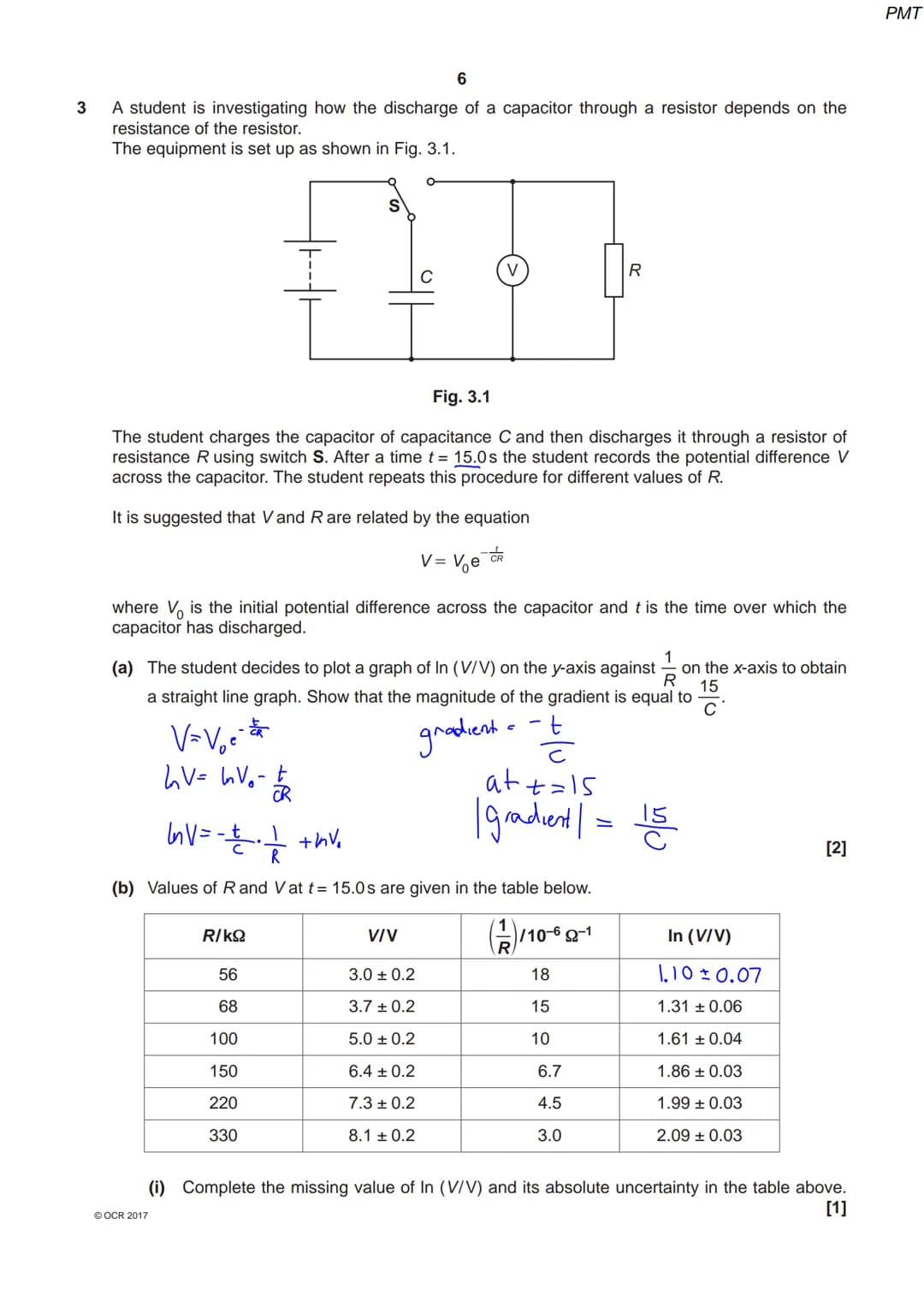

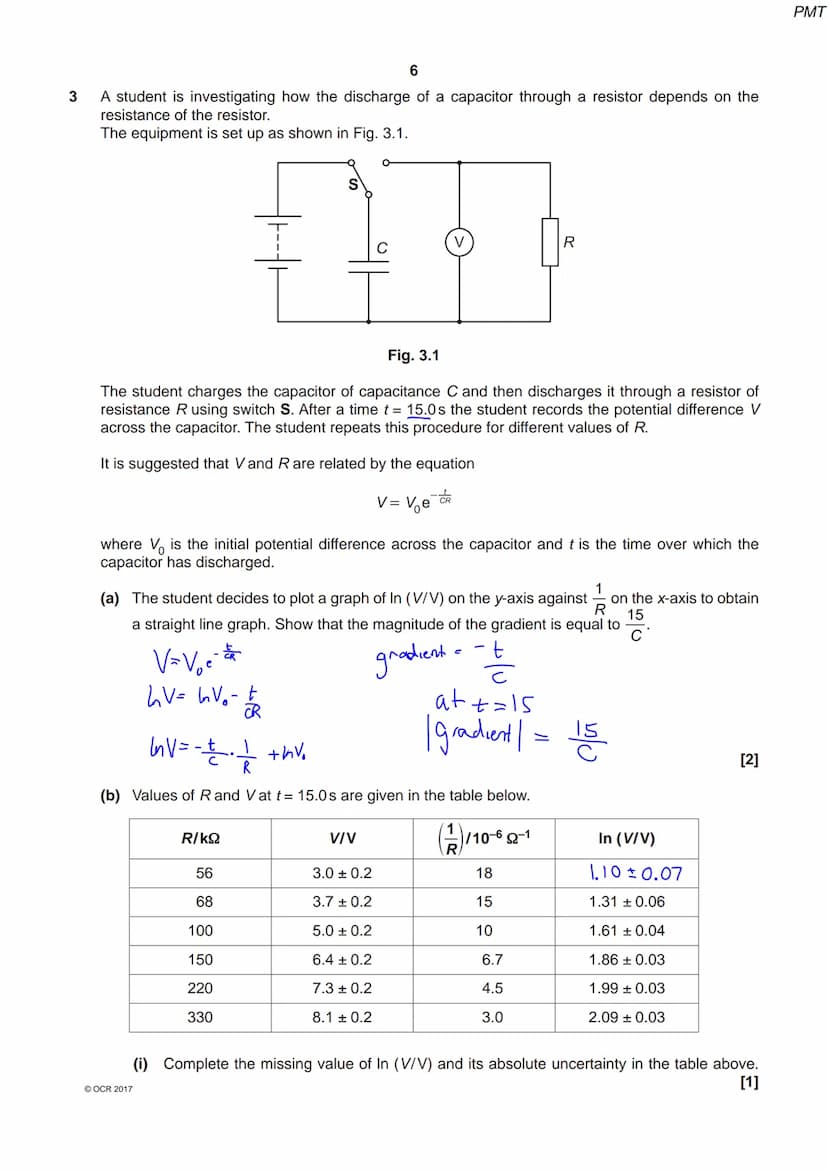

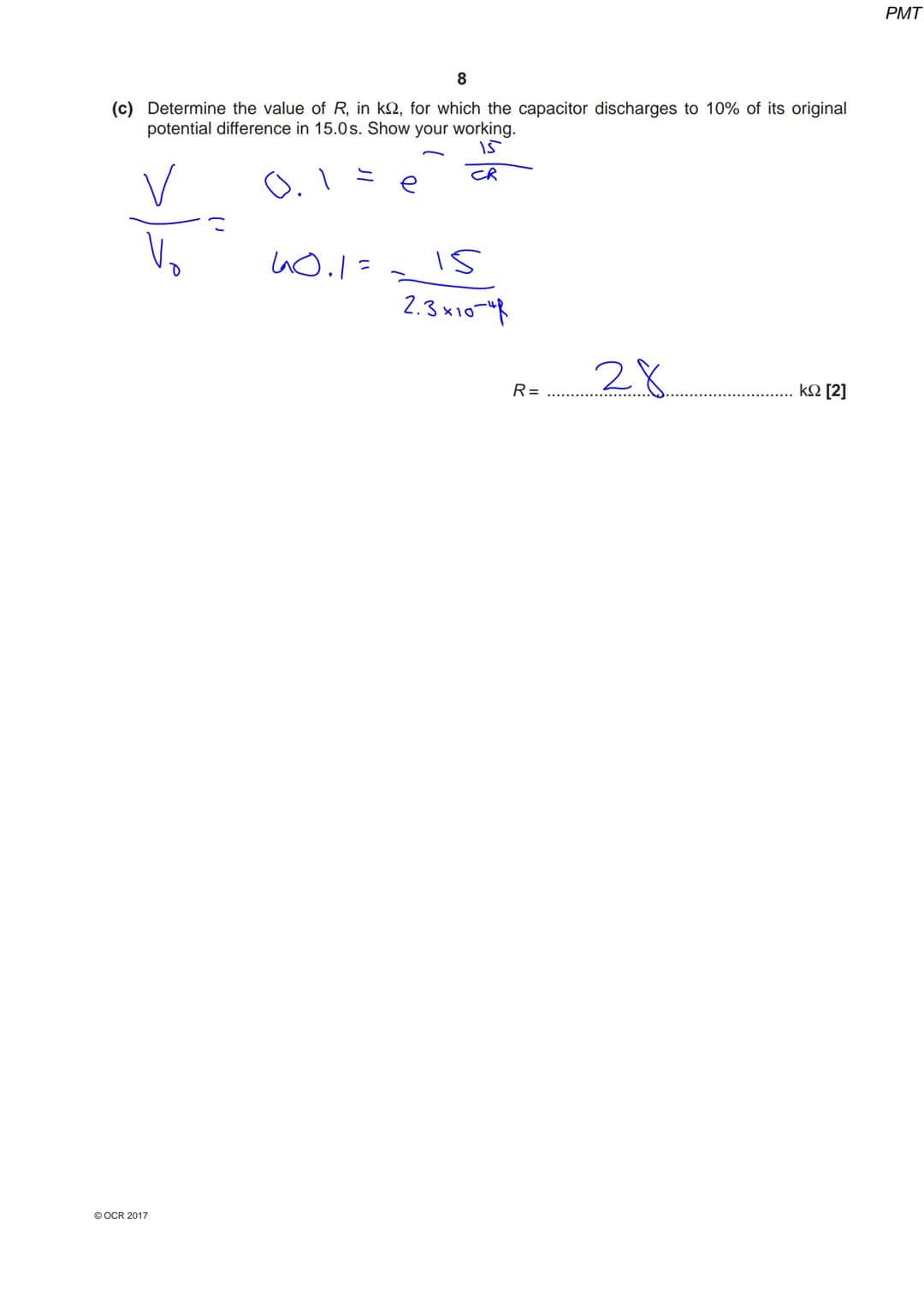

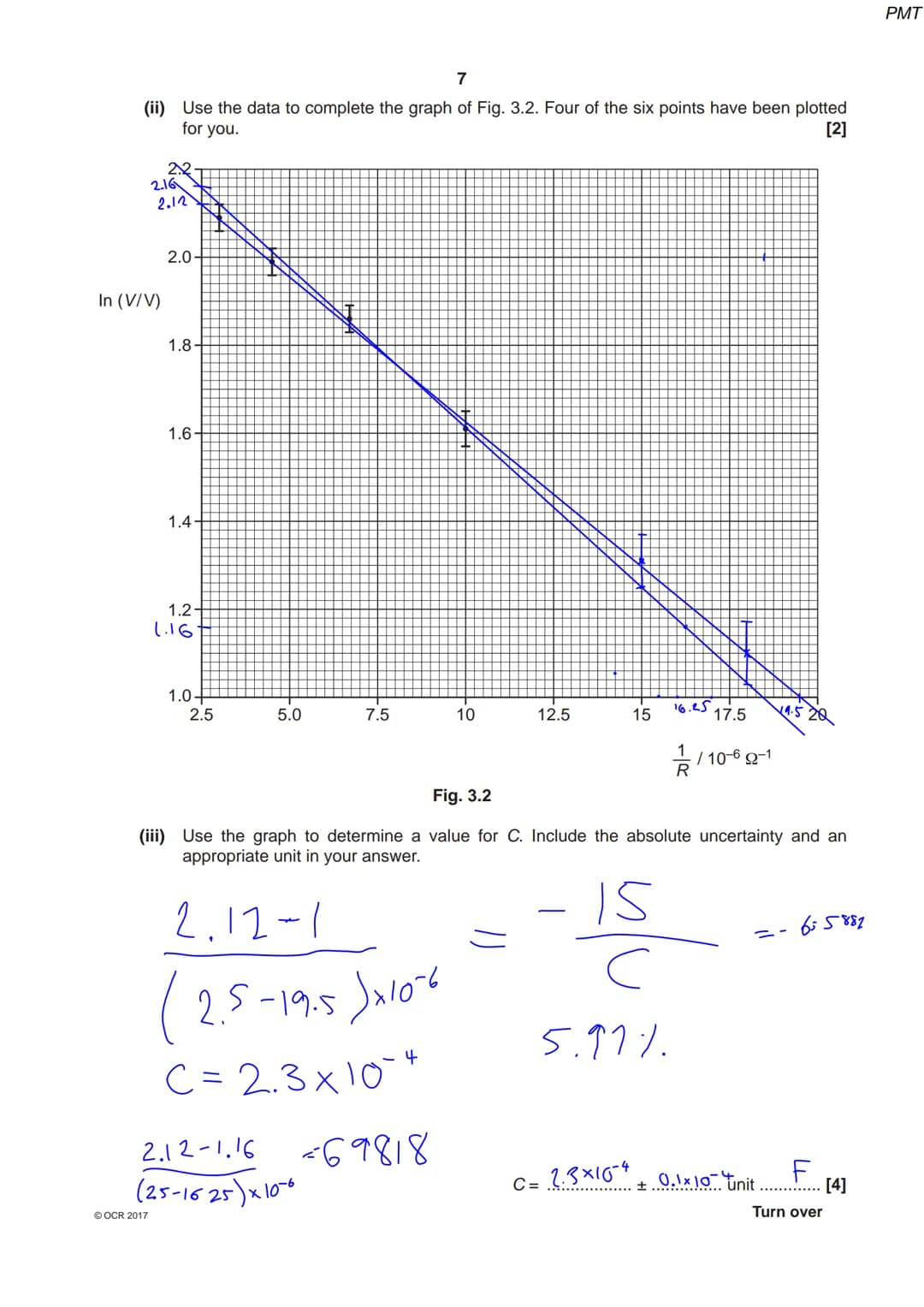

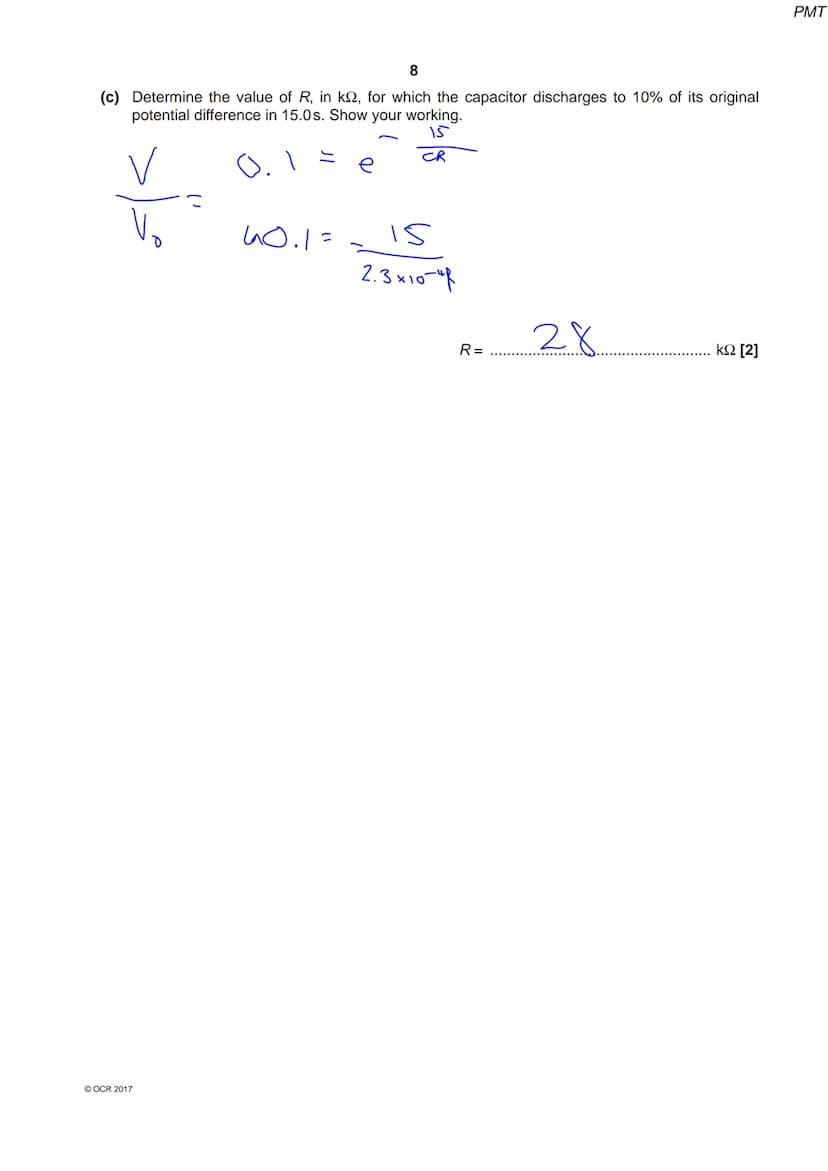

Page 1: Exam Information and Instructions

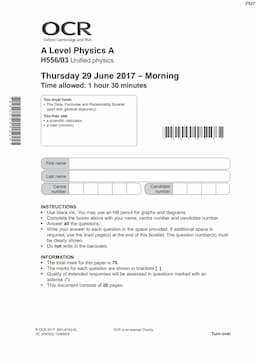

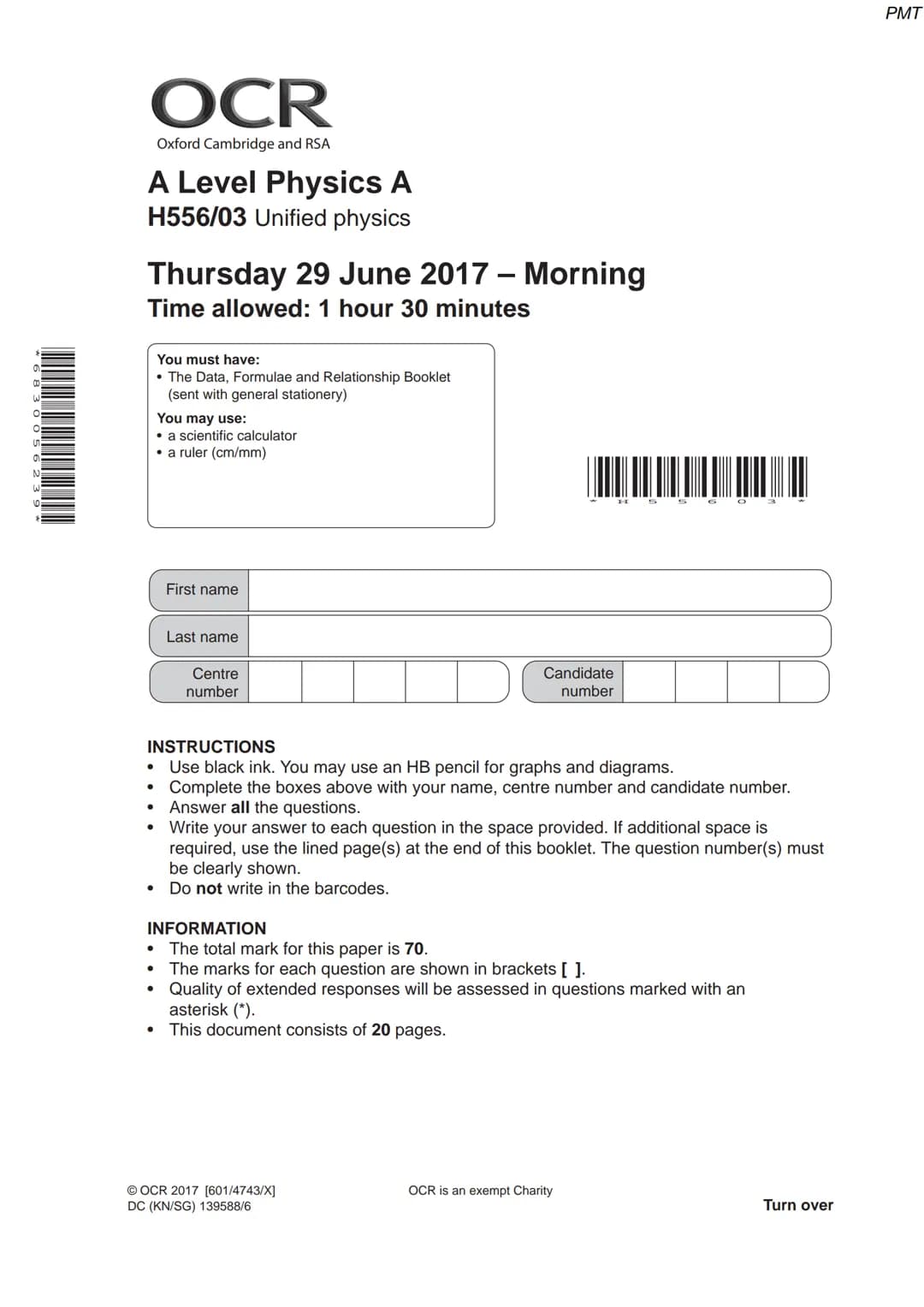

This page outlines the essential examination details for OCR A Level Physics A $H556/03$ Unified Physics paper. The examination is structured for a duration of 1 hour and 30 minutes with a total of 70 marks available.

Highlight: Students must use black ink for written responses and may use HB pencils for graphs and diagrams.

Definition: Quality of extended responses will be assessed in questions marked with an asterisk (*).
