Get to Know U Values: How Building Insulation Helps Keep Your Home Cozy and Saves Energy

Understanding Energy Physics and Efficiency

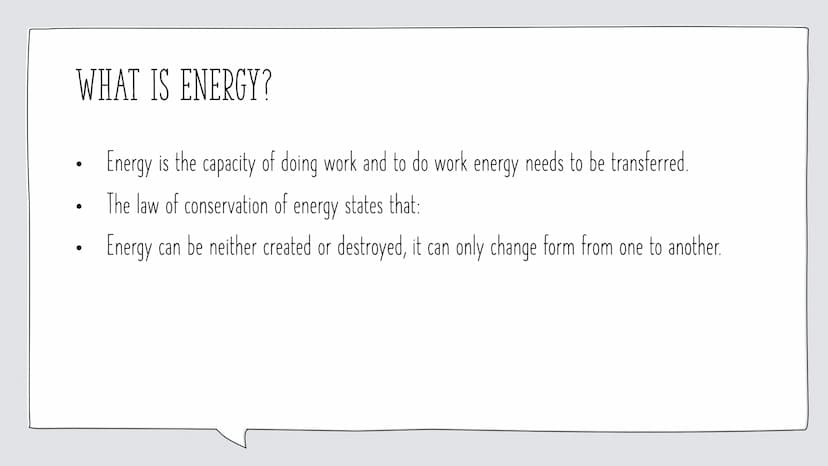

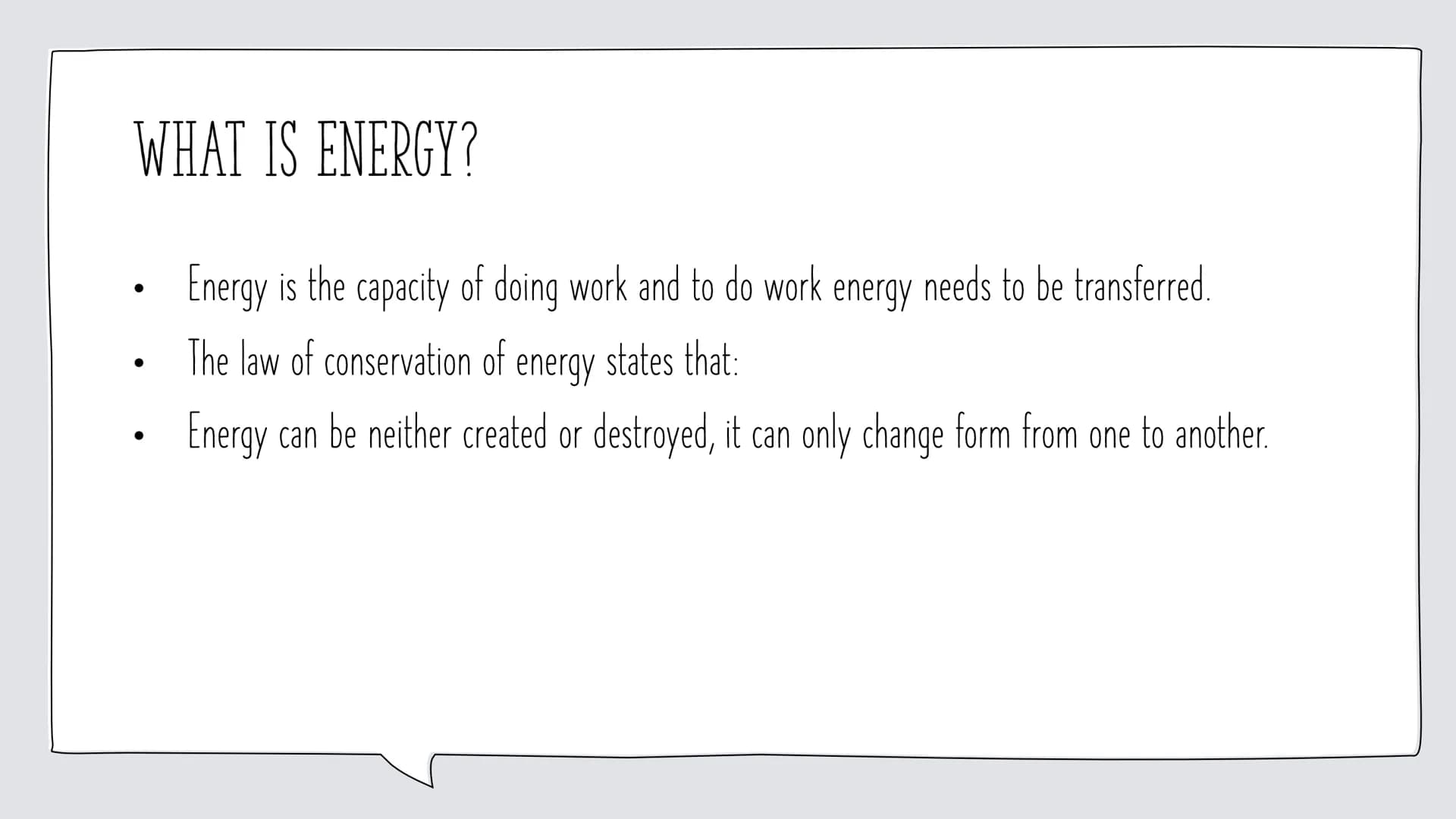

Energy is fundamental to our daily lives, playing a crucial role in how we heat our homes, power our devices, and maintain comfort in buildings. Understanding U values in building insulation is essential for architects and energy consultants who work to create energy-efficient structures. This knowledge directly connects to improving energy efficiency in homes and applies energy transfer and conservation laws in physics.

Definition: Efficiency in physics refers to the ratio of useful energy output to total energy input, expressed as a percentage. A perfect efficiency of 100% is impossible due to inevitable energy losses in any system.

The relationship between energy transfer and efficiency impacts every aspect of building design and energy management. When examining thermal systems, we must consider how heat moves through materials via conduction, convection, and radiation. These processes determine how effectively we can maintain desired temperatures while minimizing energy waste.

Example: In a typical home heating system, energy transfers occur from the heat source through various building materials. The efficiency of this process depends on factors like insulation quality, material properties, and system design.

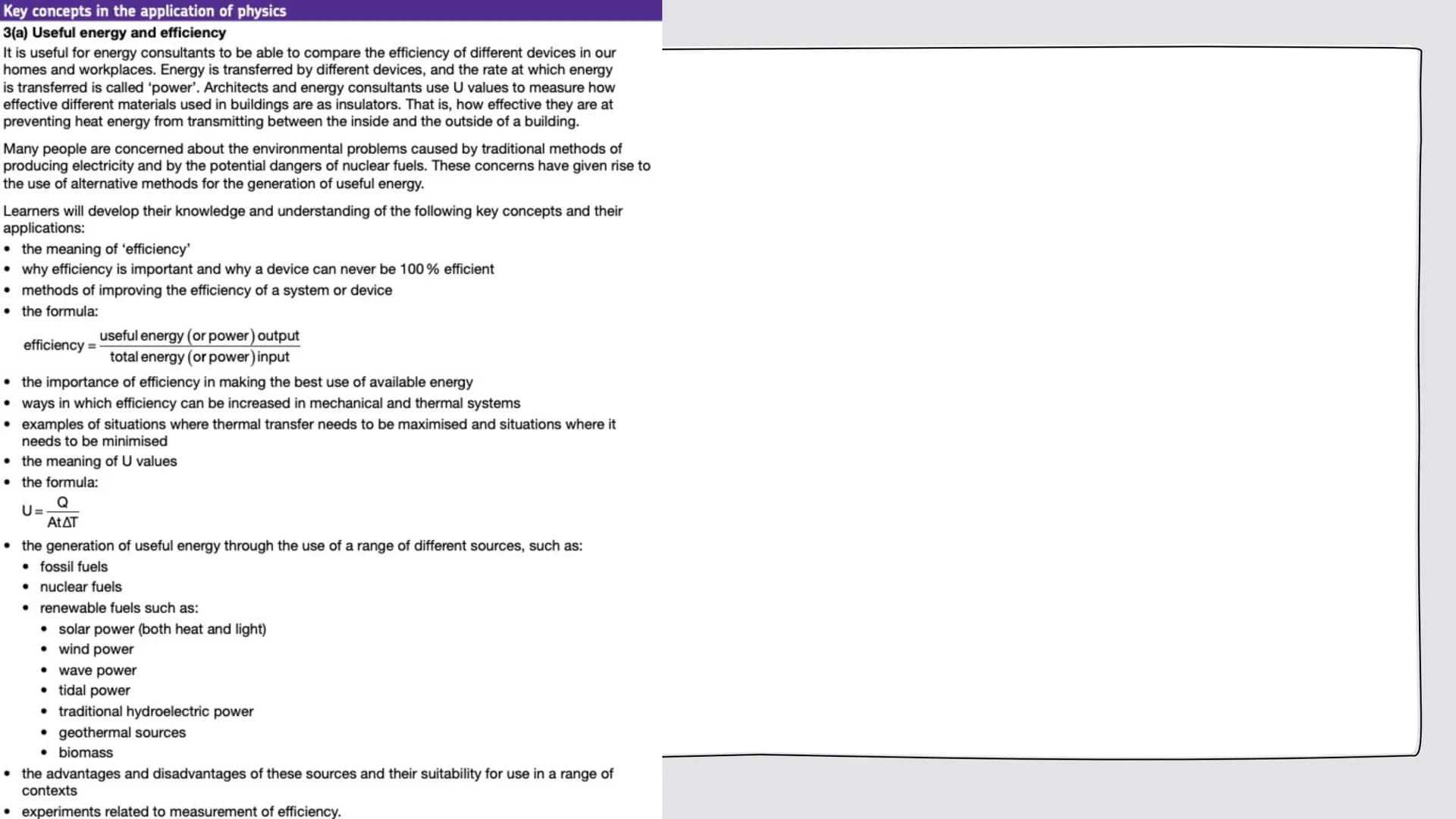

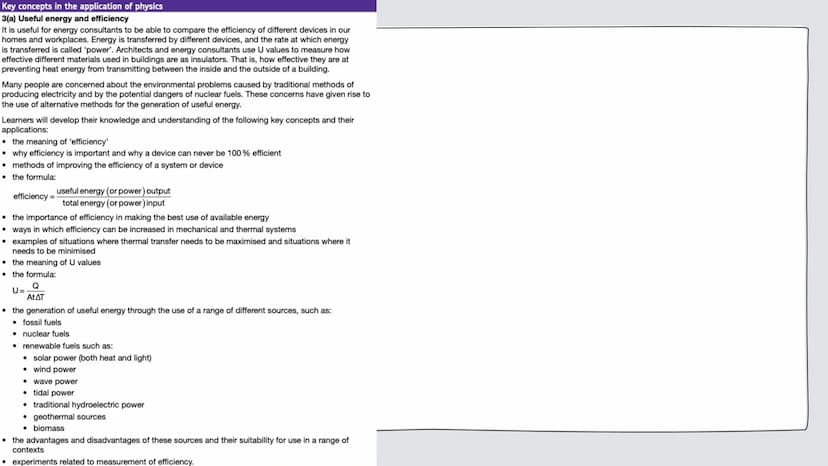

Energy Transfer Systems and U-Values

U-values measure how effectively materials prevent heat transmission between building interiors and exteriors. This crucial metric helps professionals select appropriate building materials and design more energy-efficient structures. Lower U-values indicate better insulation properties, while higher values suggest more heat transfer occurs.

Vocabulary: U-value (thermal transmittance) represents the rate of heat transfer through a structure divided by the difference in temperature across that structure. It is measured in watts per square meter per Kelvin $W/m²K$.

Understanding thermal transfer mechanisms enables better design choices for both heating and cooling systems. Engineers must consider whether to maximize or minimize thermal transfer depending on the specific application and climate conditions.

The effectiveness of insulation materials directly impacts energy consumption and operating costs. Modern building designs incorporate sophisticated insulation strategies based on U-value calculations to optimize energy efficiency while maintaining comfort.

Renewable Energy Sources and Applications

Modern energy solutions increasingly focus on renewable sources as alternatives to traditional fossil fuels. These sustainable options include solar power (both thermal and photovoltaic), wind energy, hydroelectric power, and geothermal systems. Each source offers unique advantages and faces distinct challenges in implementation.

Highlight: Renewable energy systems must be carefully matched to local conditions and requirements to achieve optimal efficiency. Factors like geographical location, climate patterns, and energy demand all influence system selection and design.

The integration of renewable energy sources requires thorough understanding of energy transfer principles and efficiency calculations. System designers must consider factors such as:

• Energy storage capabilities
• Conversion efficiency rates
• Infrastructure requirements
• Environmental impact
• Long-term sustainability

Energy Efficiency Calculations and Practical Applications

Professional energy consultants use specific formulas and measurements to evaluate system performance and efficiency. These calculations help determine the most effective solutions for different applications while considering economic and environmental factors.

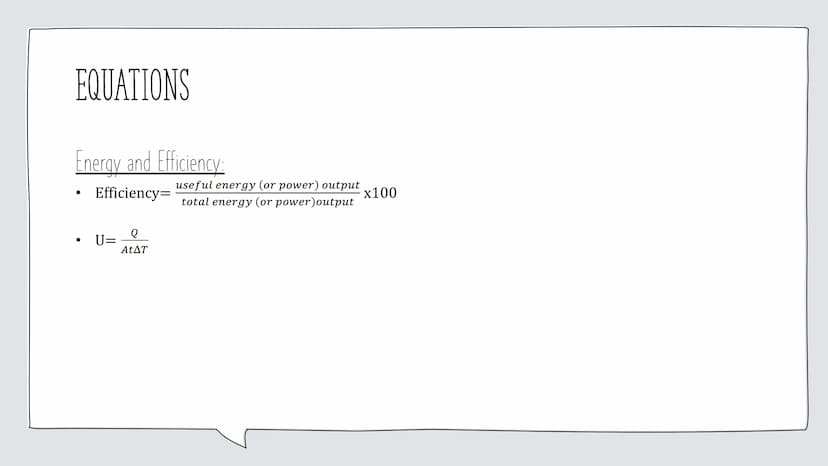

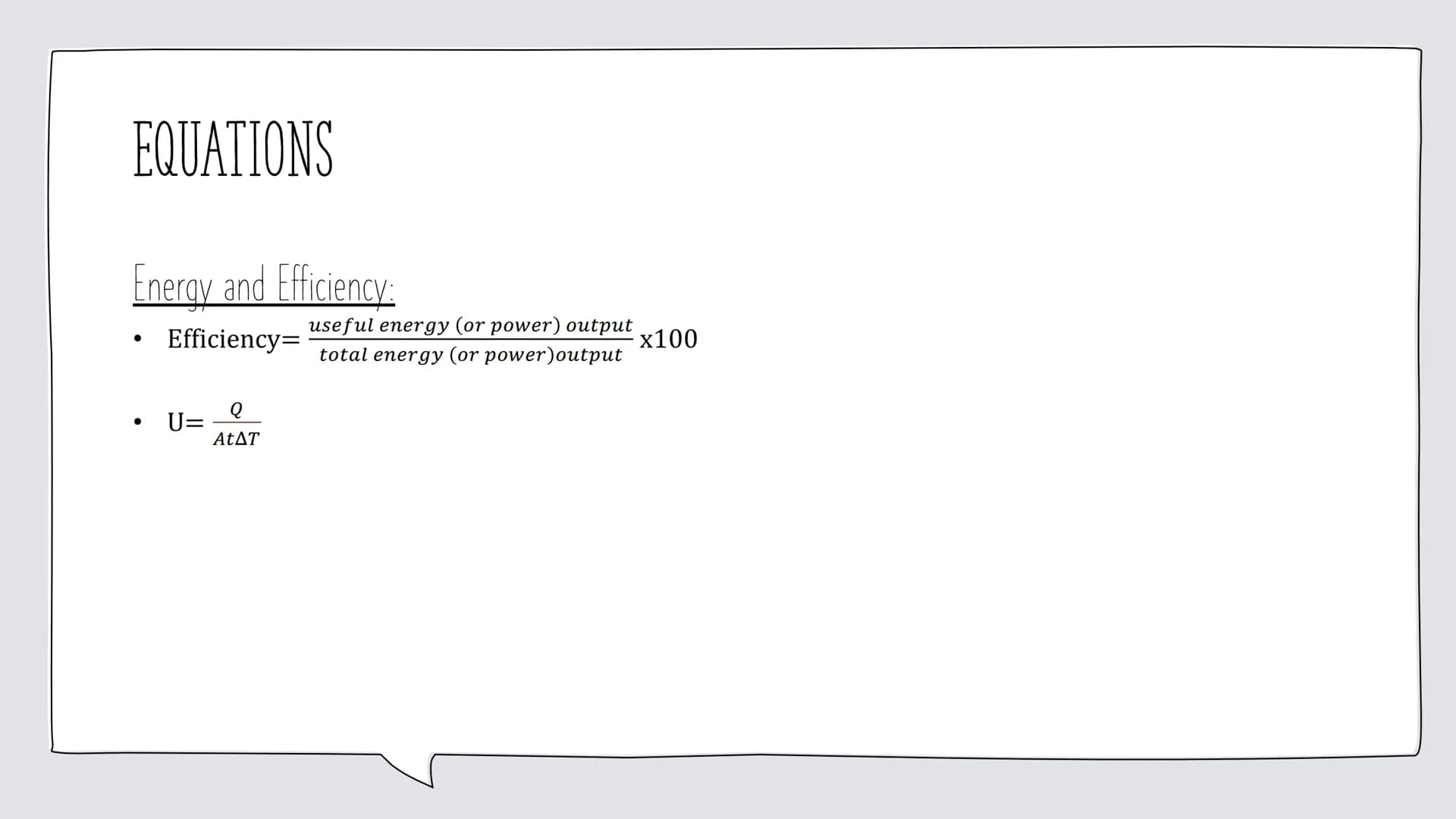

Example: To calculate efficiency: Efficiency = (Useful Energy Output / Total Energy Input) × 100% To determine thermal transmittance: U = Q/(A×ΔT), where Q is heat transfer rate, A is area, and ΔT is temperature difference

Understanding these calculations enables better decision-making in:

• Building design and renovation
• HVAC system selection
• Insulation material choice
• Energy conservation strategies

The practical application of these principles helps create more sustainable and efficient buildings while reducing environmental impact and operating costs.

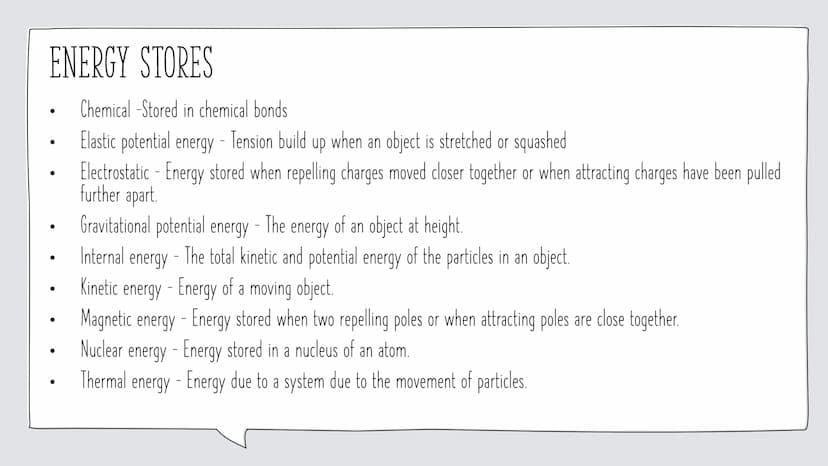

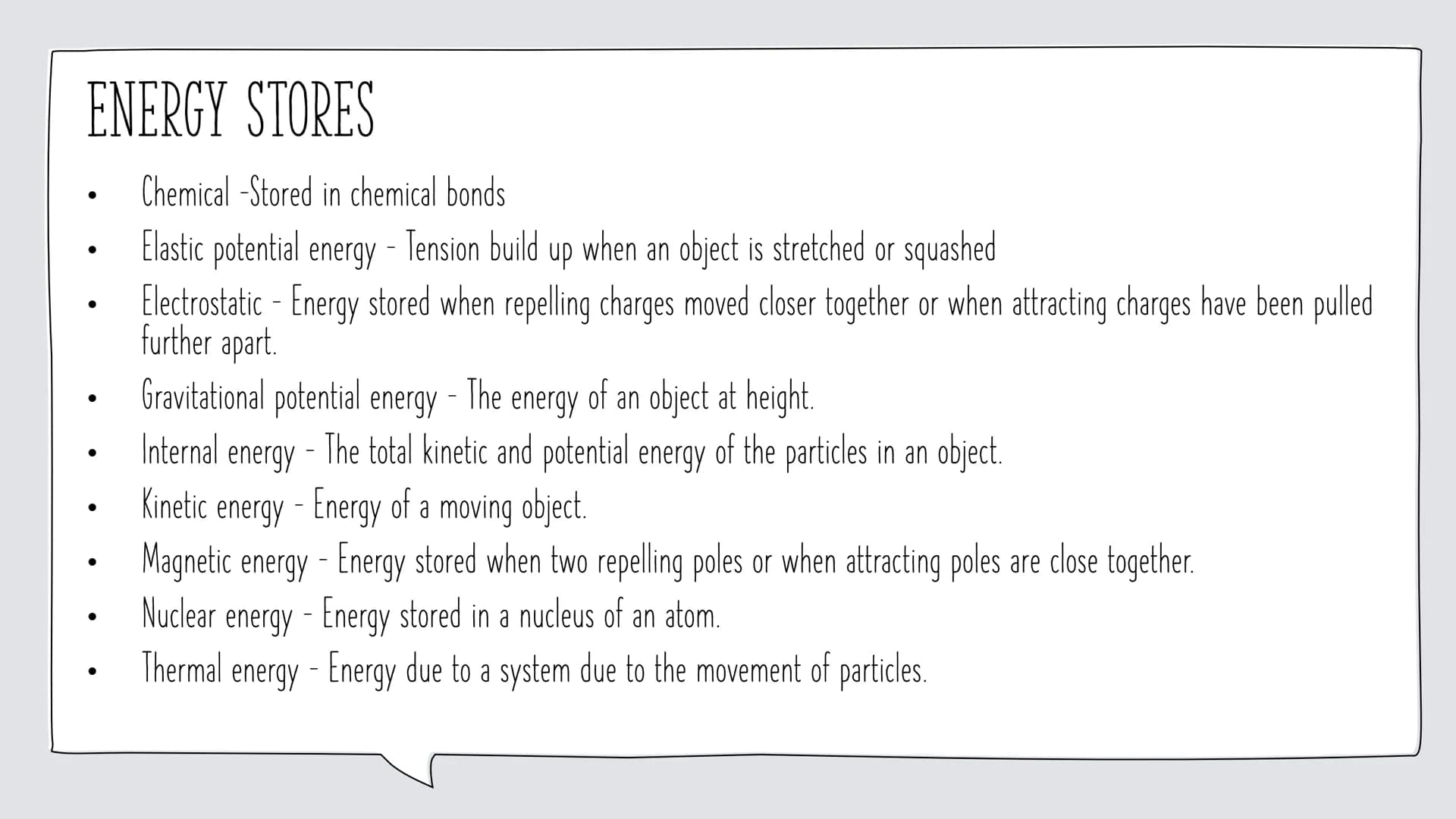

Page 6: Energy Stores

A comprehensive breakdown of different types of energy storage mechanisms.

Vocabulary: Includes detailed definitions of chemical, elastic potential, electrostatic, gravitational potential, internal, kinetic, magnetic, nuclear, and thermal energy. Example: Chemical energy is stored in chemical bonds, while kinetic energy is possessed by moving objects.

Page 7: Practical Application

Demonstrates a practical experiment for measuring gravitational acceleration.

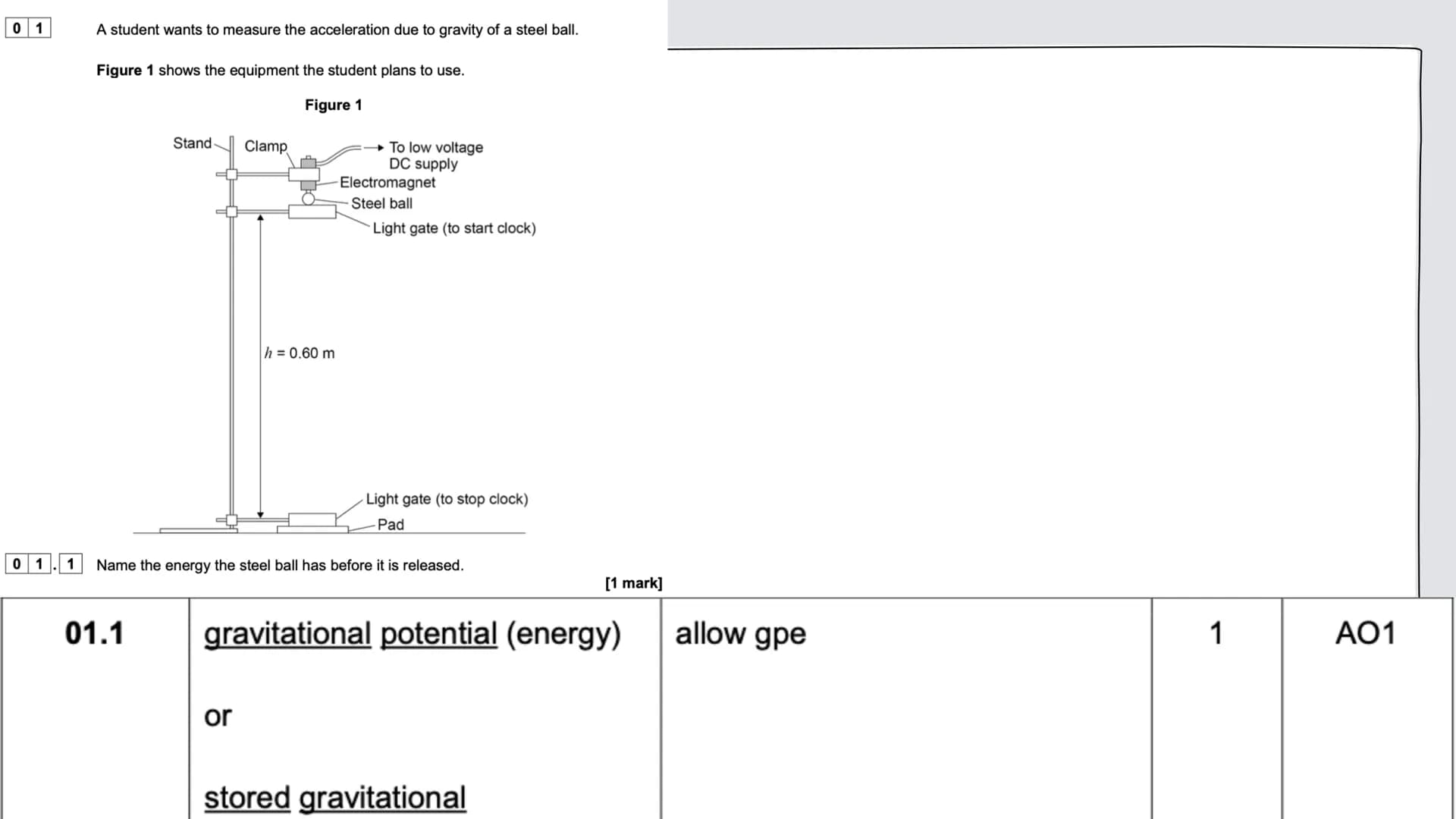

Example: The setup includes an electromagnet, steel ball, and light gates to measure acceleration. Highlight: Shows how theoretical concepts can be applied in laboratory settings.

Page 8: Energy Transfer Diagrams

Explains how energy transfers are represented visually through diagrams.

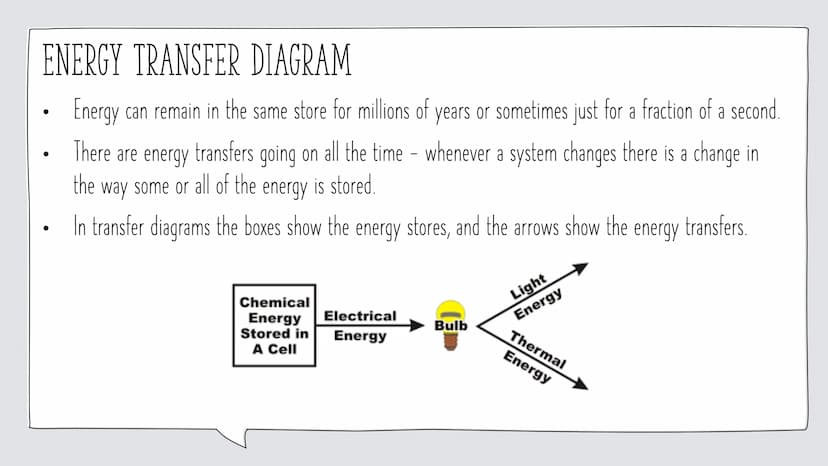

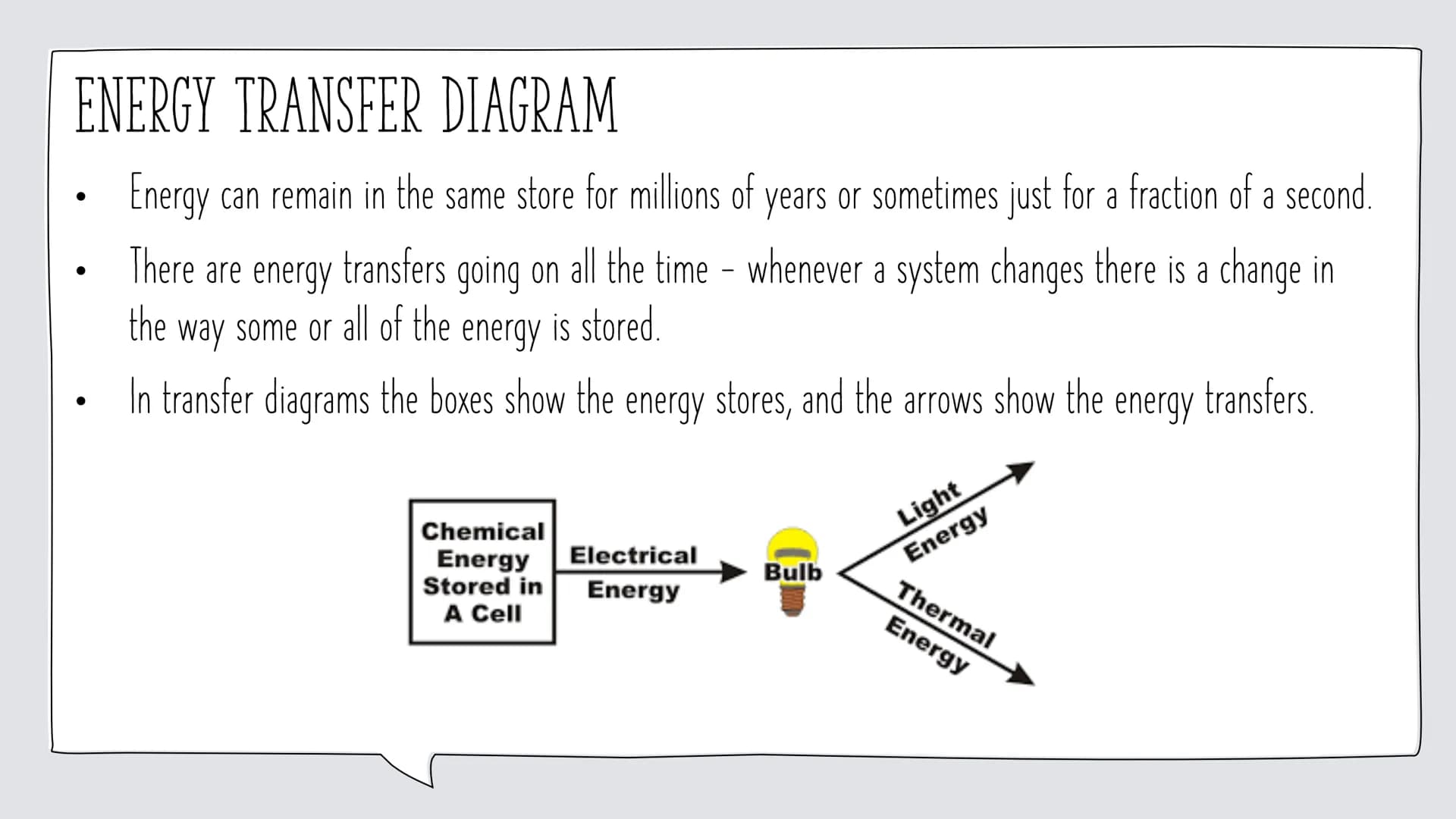

Definition: Energy transfer diagrams use boxes to show energy stores and arrows to indicate transfers. Example: Includes a practical example showing energy transfer from a cell to a bulb.

Page 9: Efficiency Concepts

Detailed explanation of efficiency calculations and principles.

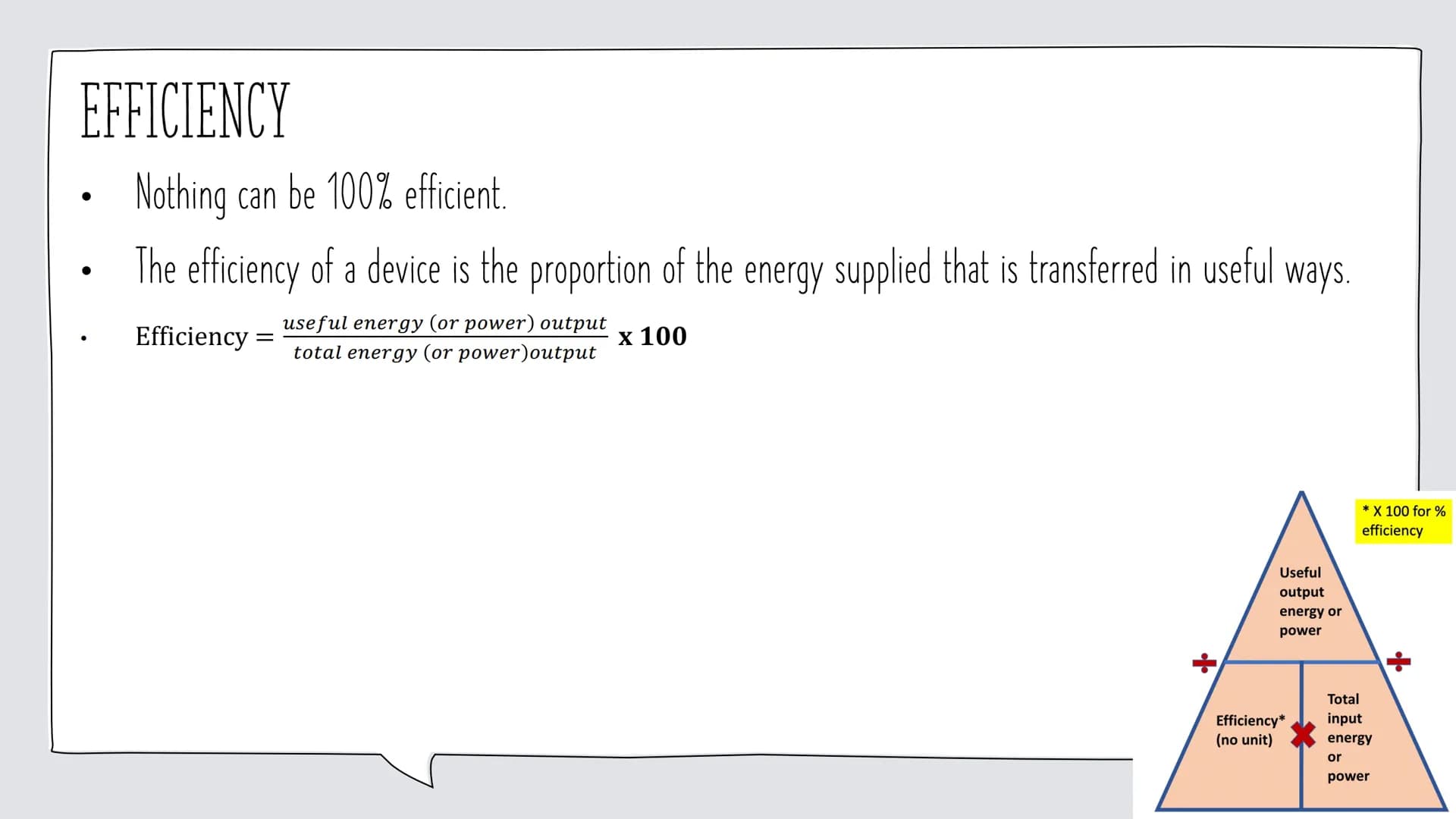

Quote: "Nothing can be 100% efficient." Definition: Efficiency is defined as the proportion of supplied energy that is transferred in useful ways.

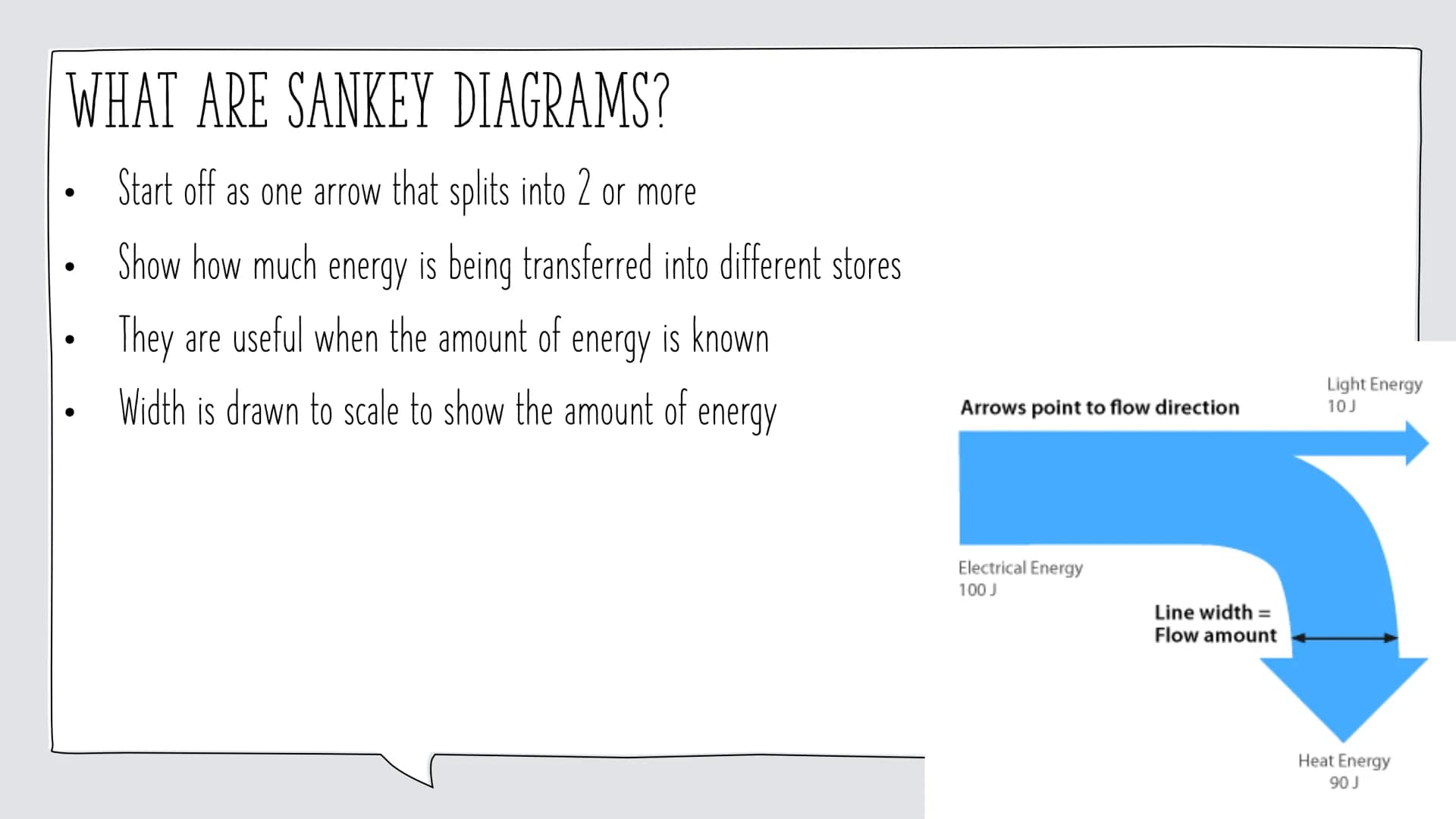

Understanding Sankey Diagrams in Energy Transfer Analysis

Sankey diagrams serve as powerful visual tools for understanding energy transfer and conservation laws in physics. These specialized flow diagrams illustrate how energy moves and transforms through various systems, making complex energy transfers easier to comprehend and analyze.

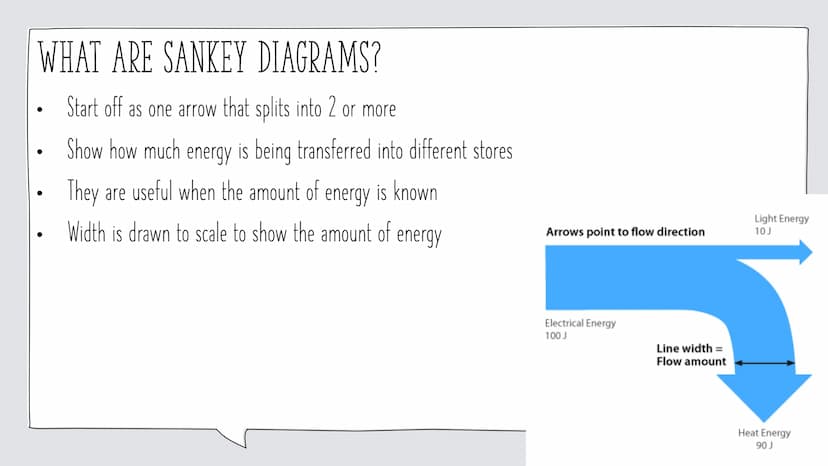

The fundamental structure of a Sankey diagram begins with a single arrow representing the total initial energy input. This primary arrow then branches into multiple smaller arrows, each representing different energy pathways or transformations. The width of each arrow is precisely drawn to scale, providing an immediate visual representation of the relative amounts of energy being transferred into different stores.

Definition: A Sankey diagram is a flow diagram where arrow widths are proportional to the quantity they represent, typically used to visualize energy transfers and transformations in systems.

In practical applications, Sankey diagrams are particularly valuable when working with known energy quantities. For example, in an electrical system starting with 100 joules of electrical energy, the diagram might show one branch converting 10 joules into light energy while 90 joules transform into heat energy. This visual representation makes it immediately apparent that heat energy represents the largest energy output in this system.

Applications of Sankey Diagrams in Building Energy Analysis

Sankey diagrams play a crucial role in improving energy efficiency in homes and understanding U values in building insulation. These diagrams help engineers and architects visualize how energy flows through building systems and identify areas where energy losses occur.

When analyzing building performance, Sankey diagrams can track energy from its initial source (like electrical input) through various building systems and eventual outputs. This visualization helps identify inefficiencies and opportunities for energy conservation.

Example: In a home heating system analysis, a Sankey diagram might show 1000 watts of electrical input splitting into 700 watts of useful heating and 300 watts of various losses through walls, windows, and ventilation systems.

The practical value of these diagrams extends beyond simple visualization. They serve as essential tools for energy auditors and building designers who need to optimize energy usage and comply with efficiency standards. By clearly showing energy flow proportions, these diagrams help professionals make informed decisions about energy-saving improvements and system modifications.

Highlight: The width of arrows in Sankey diagrams provides an immediate visual understanding of energy distribution, making them invaluable for identifying major energy losses and potential efficiency improvements.
