The nichrome wire resistance experiment procedure explores how temperature affects electrical resistance in nichrome wire through careful measurements and analysis.

The experiment begins by setting up a circuit containing nichrome wire, power supply, ammeter, and voltmeter. The wire is submerged in an oil bath that can be heated gradually. As the temperature increases from room temperature to around 100°C, voltage and current readings are recorded at regular intervals. These measurements allow calculation of resistance using Ohm's Law (R=V/I) at each temperature point.

When plotting resistance temperature graph, the data reveals a linear relationship between resistance and temperature for nichrome wire. This linearity allows for calculating resistance constant for nichrome by finding the slope of the line. The temperature coefficient of resistance (α) can be determined using the formula R = R₀(1 + αΔT), where R₀ is the initial resistance at room temperature. The experiment demonstrates that nichrome's resistance increases predictably with temperature, making it useful for heating elements and temperature sensors. Students learn important concepts about electrical properties of materials, data collection techniques, and graphical analysis while developing practical laboratory skills. The systematic approach of measuring, recording, and analyzing data helps reinforce the scientific method and the importance of controlling variables for accurate results. Understanding how temperature affects resistance is crucial for many real-world applications in electronics and electrical engineering.

The experiment also emphasizes safety precautions when working with electrical circuits and hot oil baths. Students must wear appropriate protective equipment, handle equipment carefully, and follow proper procedures for connecting circuits and taking measurements. The data analysis portion teaches valuable skills in creating graphs, determining best-fit lines, and calculating important material properties from experimental results. This hands-on experience helps students connect theoretical concepts with practical applications while developing critical thinking and problem-solving abilities.

03/08/2023

97

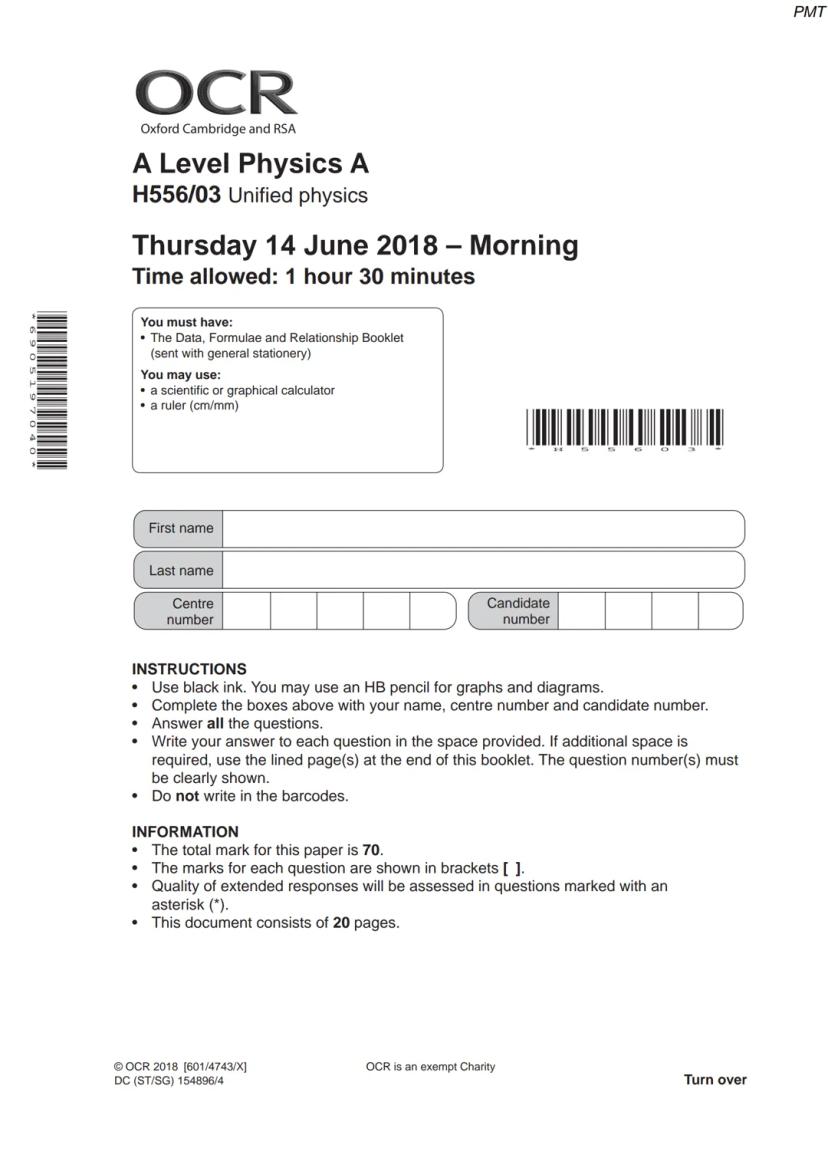

6905 1970 4

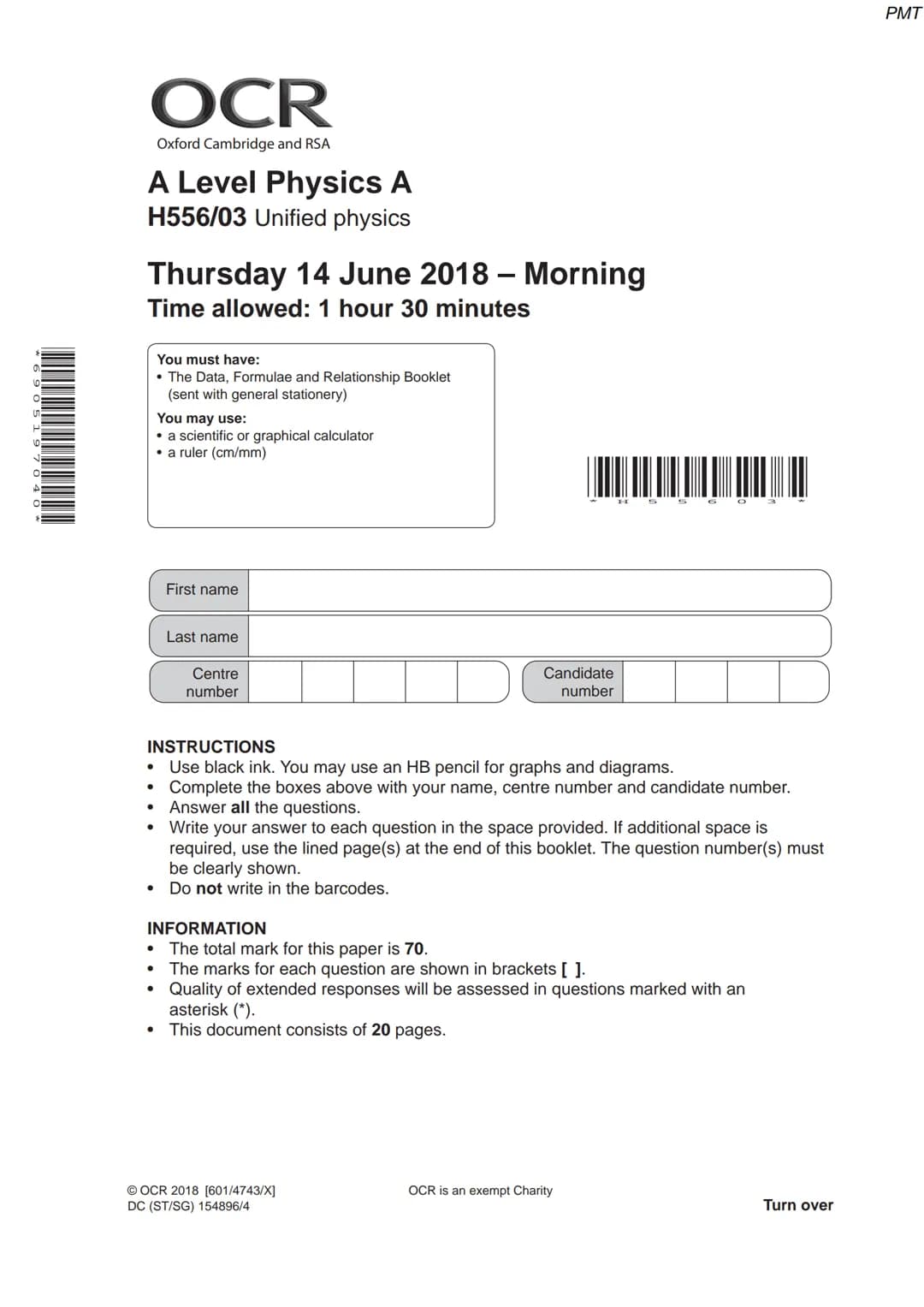

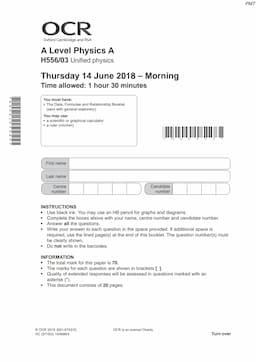

OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

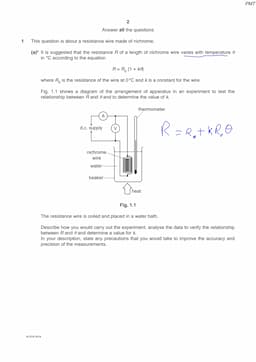

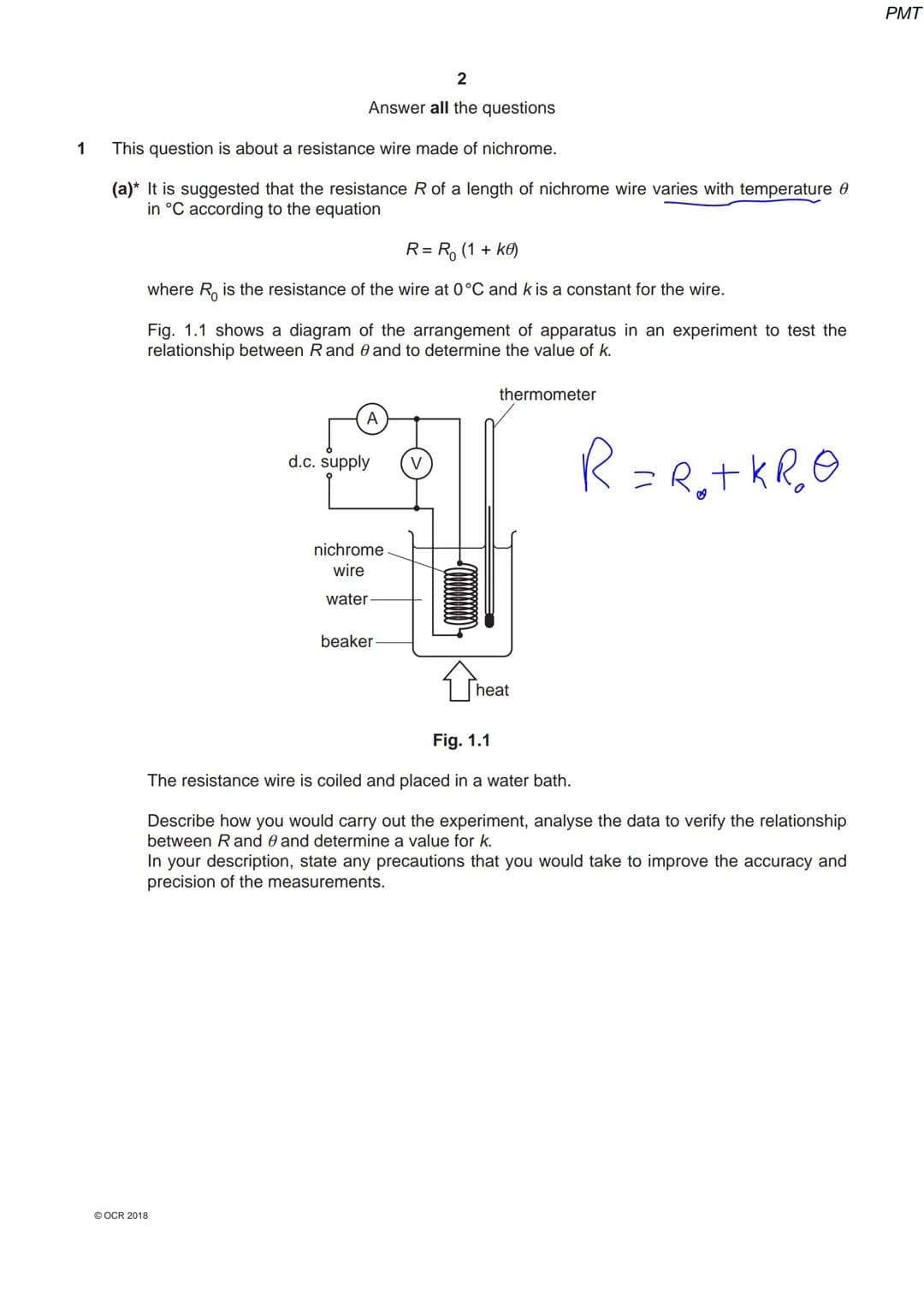

Understanding Nichrome Wire Resistance Experiments and Analysis

A comprehensive guide to measuring and analyzing the resistance-temperature relationship of nichrome wire, including experimental procedures and data analysis techniques.

The fundamental relationship between resistance and temperature for nichrome wire follows the equation R = R₁(1 + kθ), where R₁ represents the initial resistance at 0°C and k is the resistance temperature coefficient. Understanding this relationship is crucial for various practical applications in electronics and heating elements.

Definition: The resistance temperature coefficient (k) represents how much the resistance changes per degree change in temperature. For nichrome wire, this is a constant value specific to the material.

To conduct a nichrome wire resistance experiment procedure, you'll need:

  • A coiled nichrome wire sample
  • Water bath setup with heating capability
  • Thermometer
  • DC power supply
  • Ammeter and voltmeter
  • Stirring mechanism

The experimental process involves careful control of variables and precise measurements. Begin by measuring the initial resistance at 0°C using an ice-water mixture. Take voltage and current readings to calculate resistance using Ohm's Law (V=IR). Gradually increase the temperature while maintaining uniform heating through consistent stirring.

Highlight: To ensure accuracy, use a low current to minimize self-heating effects and only connect the power supply when taking measurements. Avoid parallax errors when reading instruments.

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

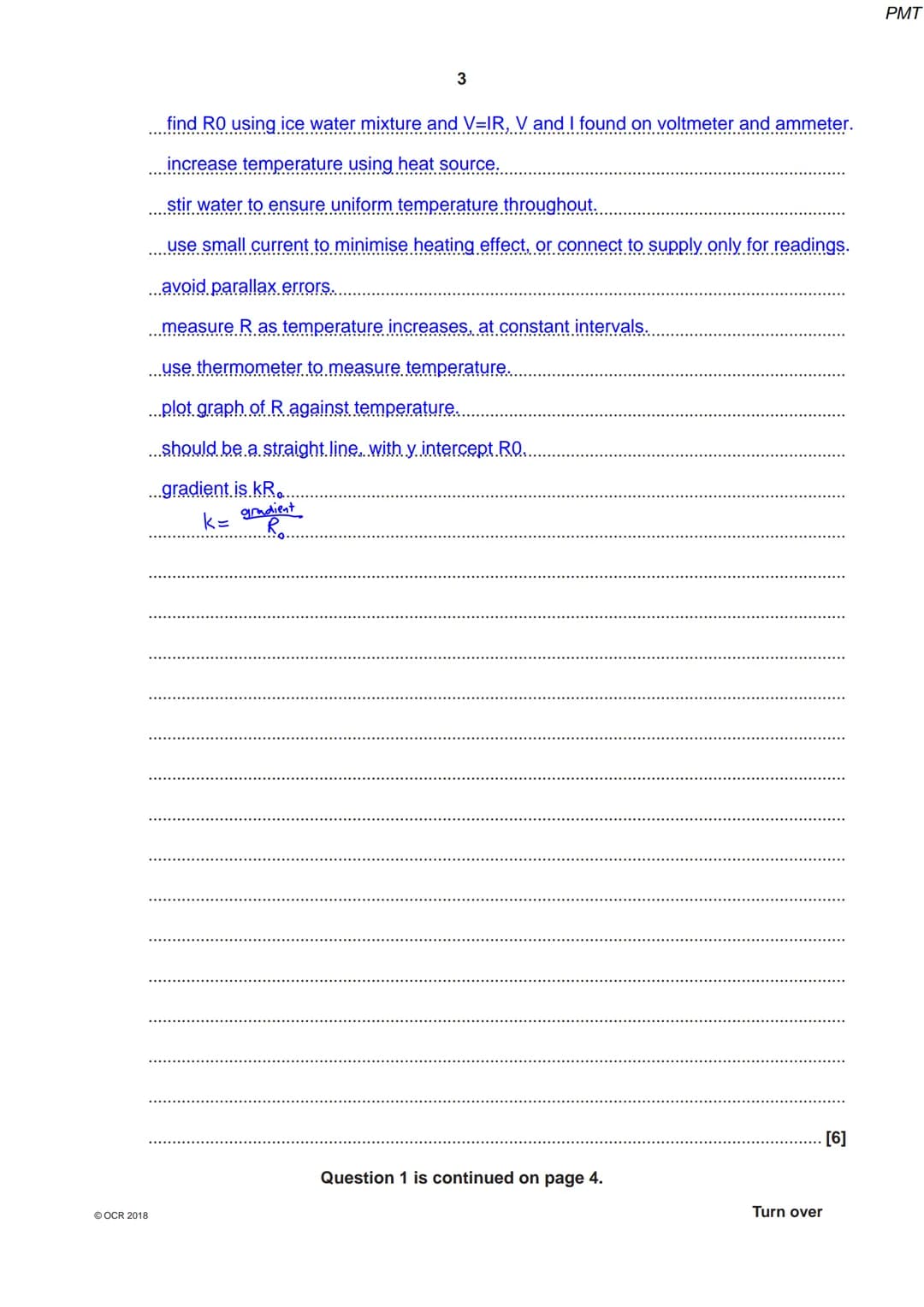

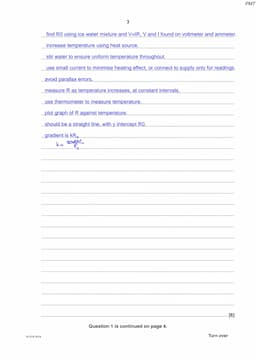

Analyzing Resistance-Temperature Data and Graph Plotting

When plotting resistance temperature graph, follow these systematic steps to obtain accurate results:

  1. Record resistance values at regular temperature intervals
  2. Create a data table with temperature and corresponding resistance values
  3. Plot resistance (R) on the y-axis against temperature (θ) on the x-axis
  4. Draw the best-fit line through the points

The resulting graph should show a linear relationship, with the y-intercept representing R₁ (resistance at 0°C) and the slope representing kR₁.

Example: If the graph shows a y-intercept of 10Ω and a slope of 0.04 Ω/°C, then: k = slope/R₁ = 0.04/10 = 0.004 °C⁻¹

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

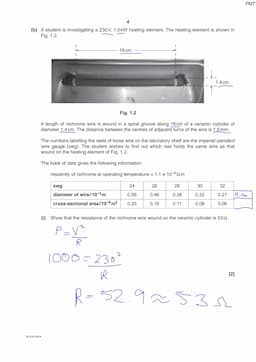

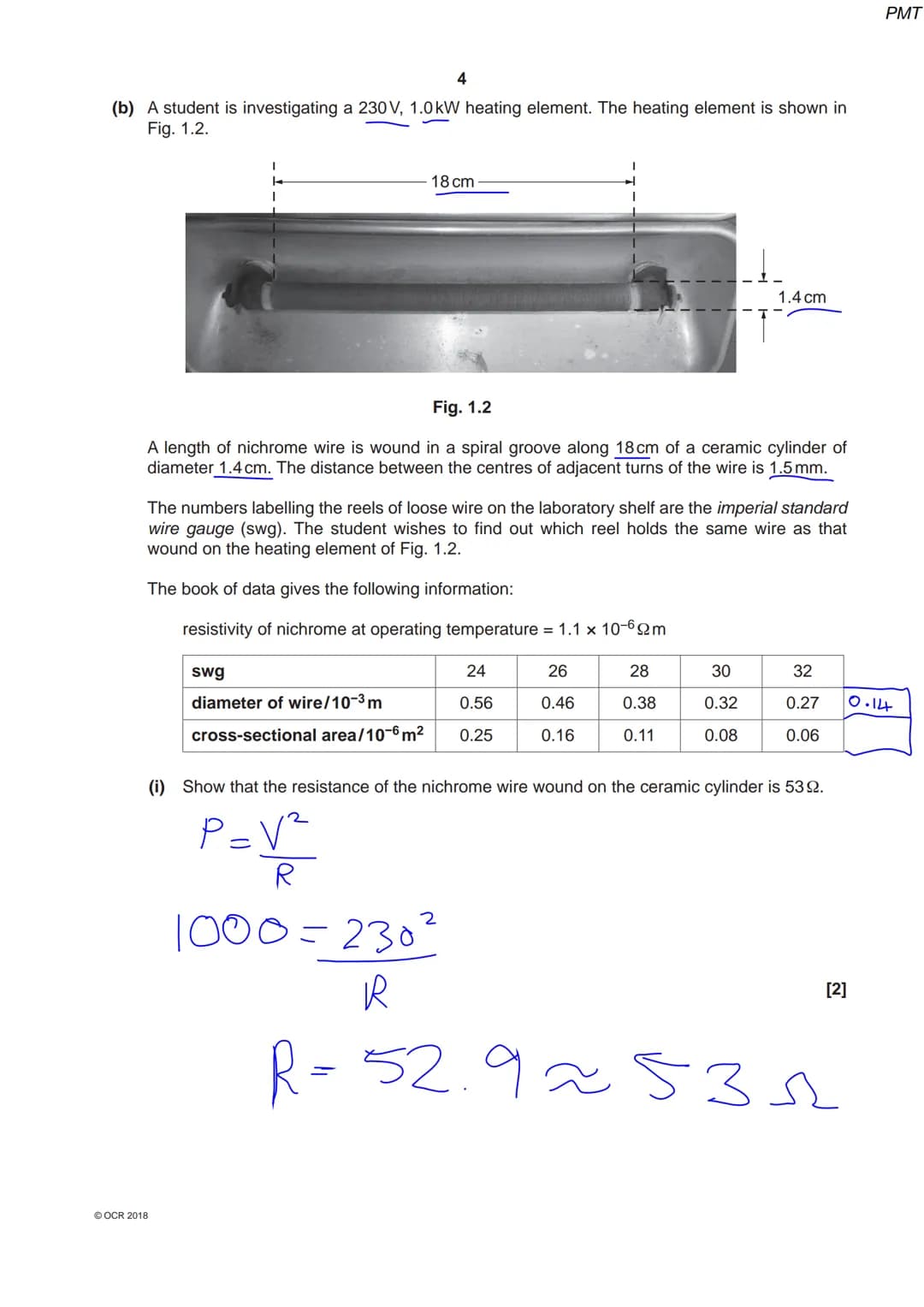

Practical Applications in Heating Elements

Understanding nichrome wire resistance characteristics is essential for designing heating elements. Consider a 230V, 1.0kW heating element with specific dimensional requirements:

  • Length: 18 cm
  • Cylinder diameter: 1.4 cm
  • Wire spacing: 1.5 mm between turns

The resistance calculation involves considering:

  • Wire diameter
  • Total length of wire
  • Operating temperature
  • Material resistivity (1.1 × 10⁻⁶ Ωm at operating temperature)

Vocabulary: Standard Wire Gauge (SWG) is a traditional system for specifying wire diameters, particularly important in selecting the correct wire for heating elements.

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

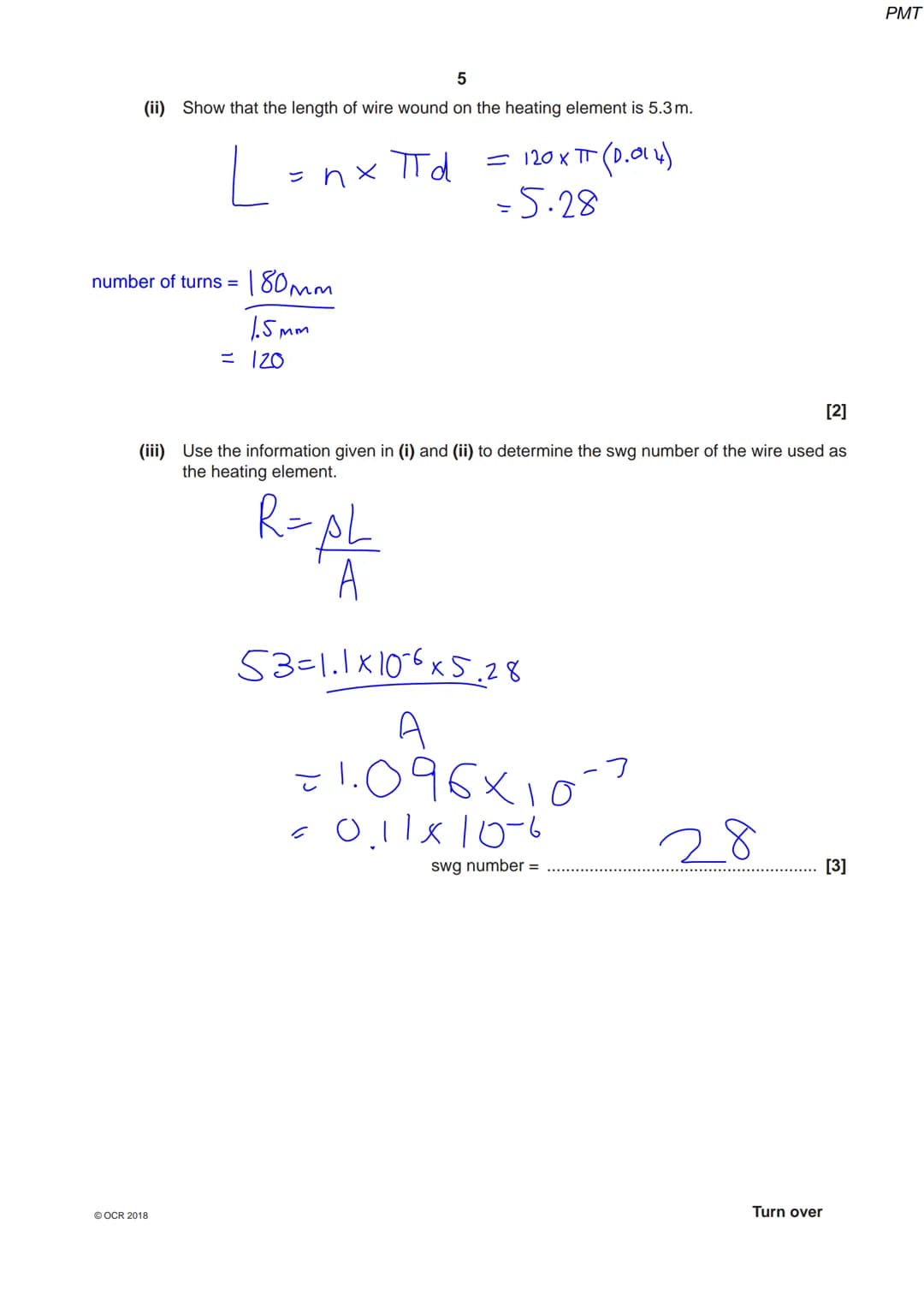

Calculating Resistance Constants for Nichrome Applications

For practical heating element design, accurate resistance calculations are crucial. Using the power equation P = V²/R:

For a 1.0kW element operating at 230V: 1000 = (230)²/R Therefore, R = 52.9Ω

This resistance value helps determine the appropriate wire gauge needed for construction. Consider these factors when selecting wire:

  • Current-carrying capacity
  • Heat dissipation requirements
  • Physical space constraints
  • Operating temperature range

Definition: Power rating (P) in heating elements represents the rate at which electrical energy is converted to heat, measured in watts (W).

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

Understanding Nichrome Wire Resistance and Temperature Relationships

The relationship between resistance and temperature in nichrome wire is a fundamental concept in electrical engineering and physics experimentation. When conducting a nichrome wire resistance experiment procedure, it's essential to understand how resistance changes with temperature and how to accurately measure these changes.

Definition: Nichrome wire is an alloy of nickel and chromium commonly used in heating elements due to its high resistance and ability to withstand high temperatures.

When plotting resistance temperature graph, researchers must carefully control variables and take precise measurements. The resistance of nichrome wire increases linearly with temperature within certain ranges, making it ideal for heating applications. This relationship can be expressed through the temperature coefficient of resistance, which describes how much the resistance changes per degree of temperature change.

To begin calculating resistance constant for nichrome, scientists must first measure the initial resistance at room temperature using an accurate ohmmeter. The wire is then heated systematically while recording both temperature and resistance values. This data allows researchers to determine the material's resistance constant, which is crucial for designing heating elements and temperature control systems.

Example: A typical nichrome wire experiment might involve measuring resistance at 10°C intervals from room temperature to 200°C, recording values in a data table, and plotting these points to visualize the linear relationship.

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

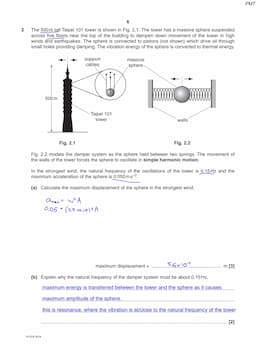

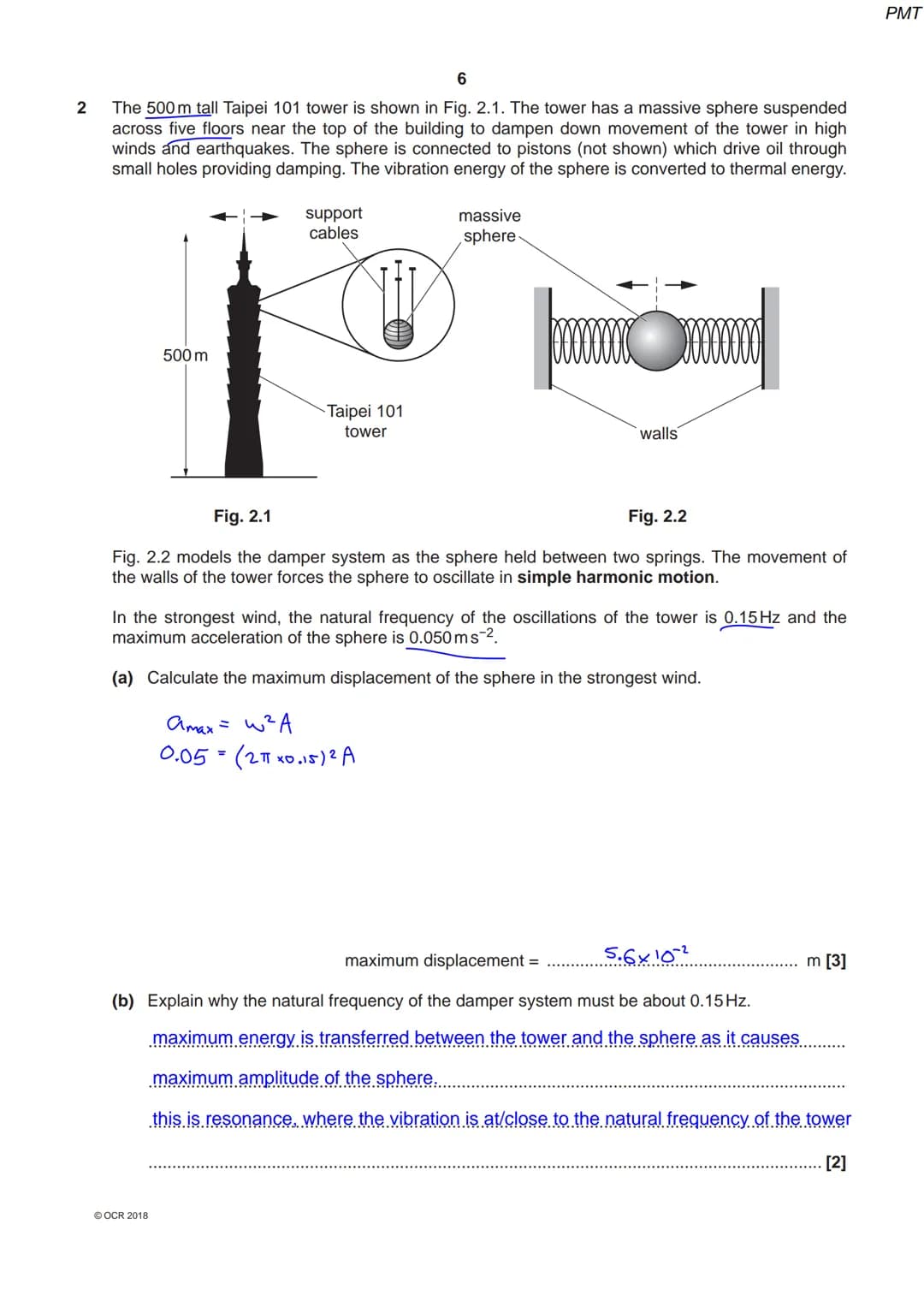

Mechanical Oscillations and Damping Systems in Architecture

The implementation of damping systems in tall buildings represents a crucial advancement in structural engineering. These systems, exemplified by the Taipei 101 tower's massive sphere damper, help control building movement during high winds and earthquakes through controlled oscillations.

The damping mechanism works through a carefully calibrated system where the sphere's natural frequency matches the building's oscillation frequency. This synchronization allows for maximum energy transfer and optimal damping effect. When the building sways, the sphere moves in opposition, effectively counteracting the motion.

Highlight: The effectiveness of a damping system depends on matching the natural frequency of the damper to the building's oscillation frequency, typically around 0.15 Hz for tall structures.

The system converts kinetic energy from building movement into thermal energy through hydraulic pistons, effectively dissipating potentially harmful vibrations. This conversion process involves precise engineering calculations considering mass, spring constants, and displacement factors to ensure optimal performance during extreme weather events or seismic activity.

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

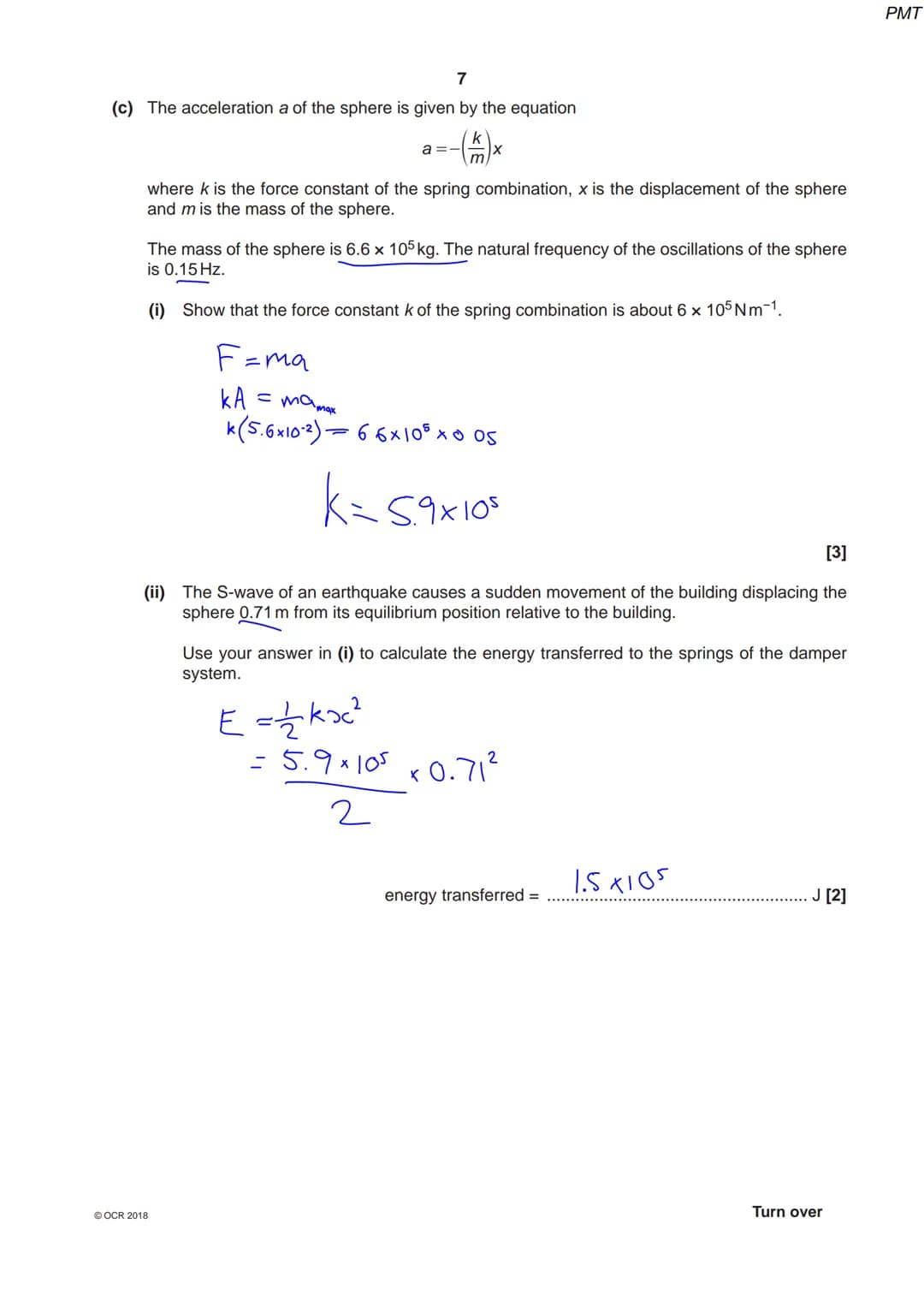

Force Constants and Energy Transfer in Building Dampers

Understanding force constants and energy transfer is crucial for designing effective building damper systems. The relationship between mass, acceleration, and displacement follows specific mathematical principles that engineers must consider when designing these safety systems.

Vocabulary: Force constant (k) represents the stiffness of a spring system, measured in Newtons per meter (N/m).

The calculation of force constants involves complex relationships between mass, frequency, and acceleration. For large-scale damping systems, such as those found in skyscrapers, these calculations must account for massive weights often exceeding 600,000 kg and precise frequency requirements around 0.15 Hz.

When seismic events occur, the energy transfer to the damping system must be carefully controlled and dissipated. Engineers calculate this energy transfer using spring equations that consider both the force constant and maximum displacement, ensuring the system can handle the most severe anticipated conditions.

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

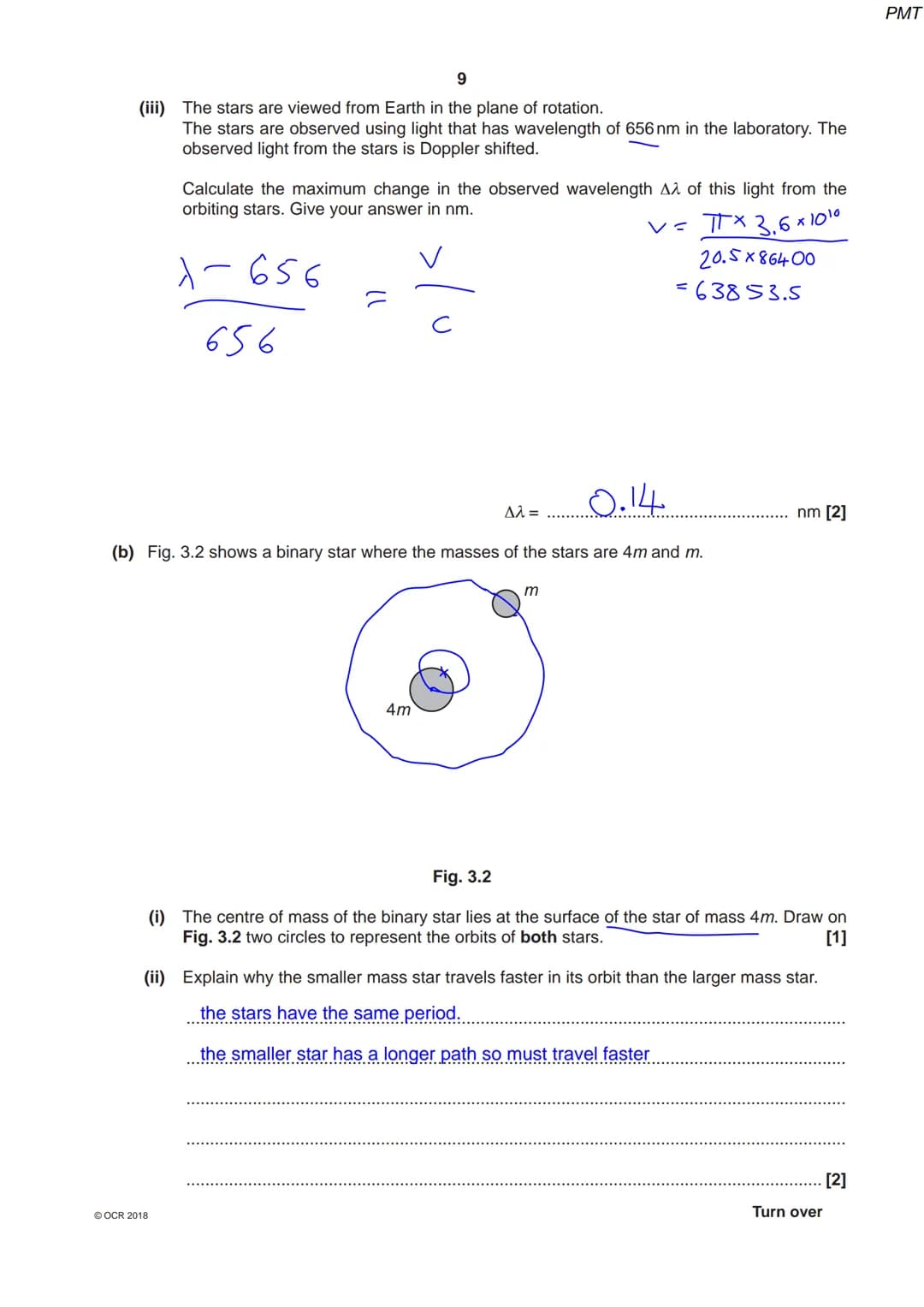

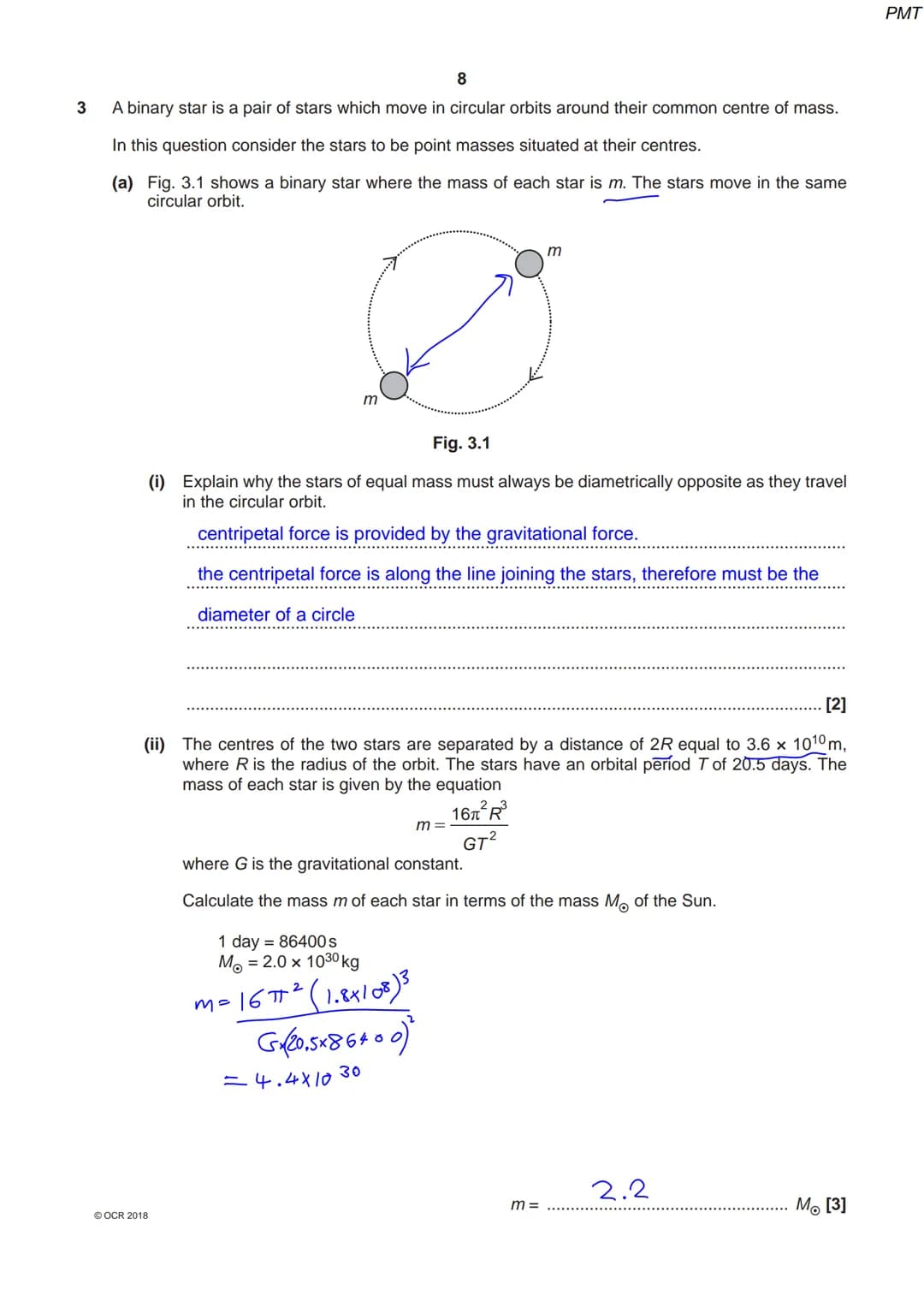

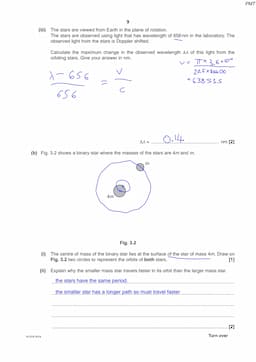

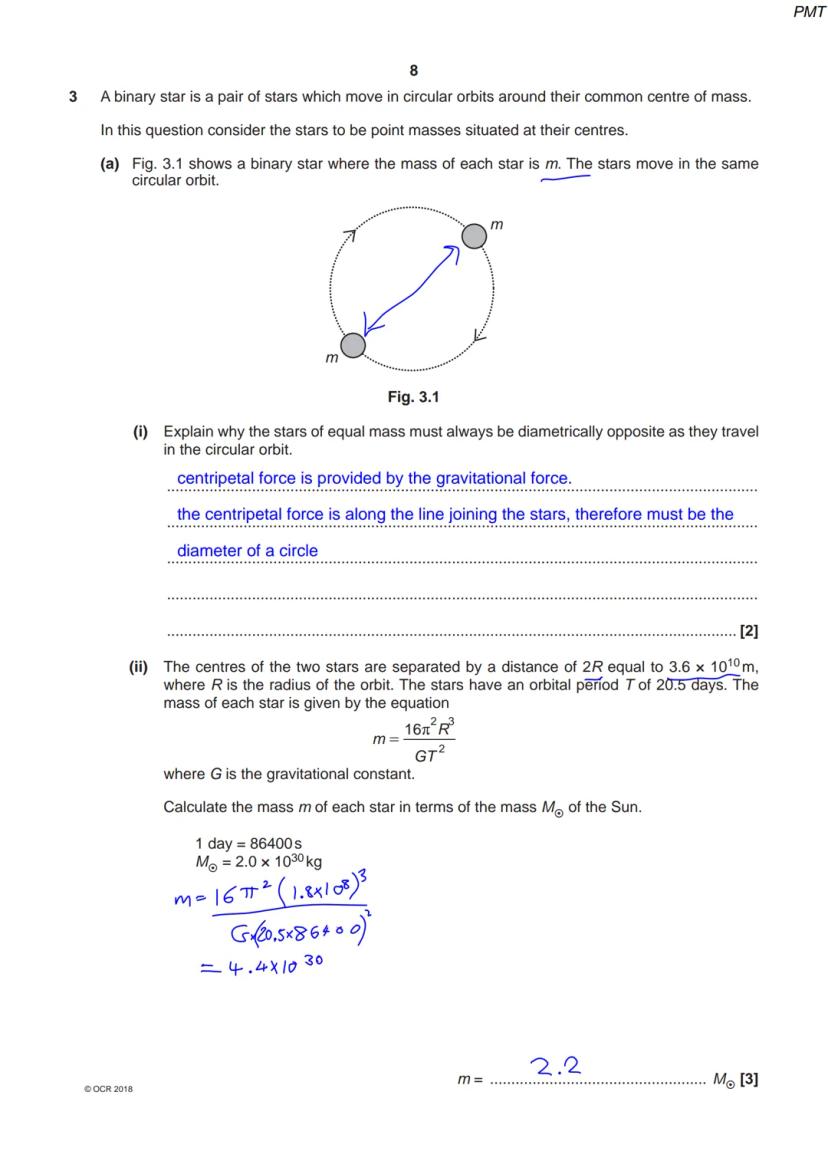

Binary Star Systems and Orbital Mechanics

Binary star systems demonstrate fundamental principles of celestial mechanics through their orbital relationships. These paired stars move in precise patterns governed by gravitational forces and conservation of angular momentum.

The orbital characteristics of binary stars depend critically on their relative masses. In systems where stars have equal masses, they maintain diametrically opposed positions as they orbit their common center of mass. This arrangement results from the balanced gravitational forces between the two bodies.

Definition: A binary star system consists of two stars orbiting around their common center of mass under mutual gravitational attraction.

The observation of binary stars provides valuable data through spectroscopic analysis, particularly through the Doppler effect. As stars orbit, their spectral lines shift due to their relative motion toward and away from Earth, allowing astronomers to calculate orbital velocities and stellar masses with remarkable precision.

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

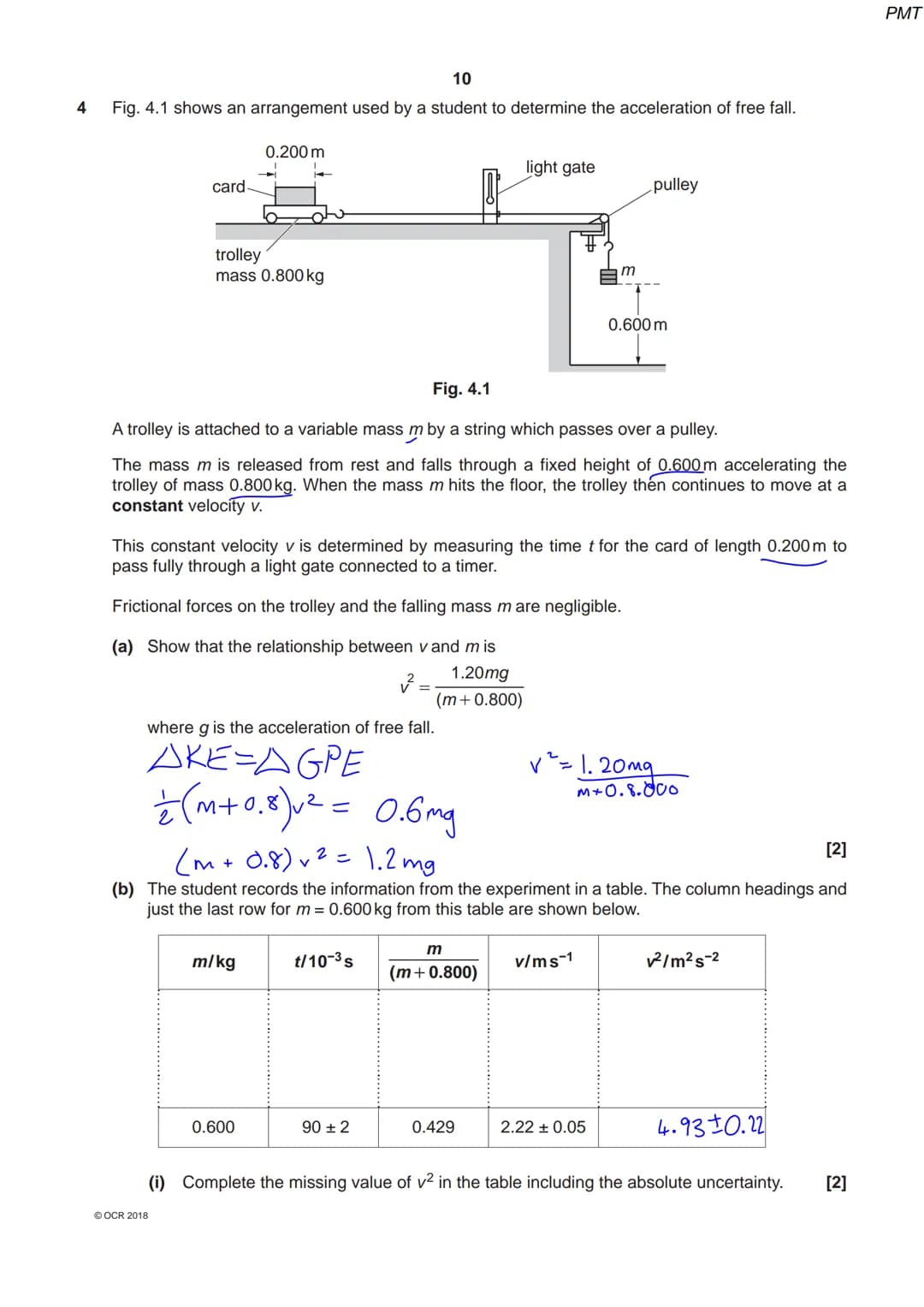

Understanding Free Fall Acceleration Through Trolley Experiments

A comprehensive experiment setup demonstrates how to measure the acceleration of free fall using a trolley-pulley system. The arrangement consists of a trolley with mass 0.800 kg connected to a variable mass m via a string passing over a pulley. When released from rest, the mass m falls through a fixed height of 0.600 meters, causing the trolley to accelerate.

The experimental procedure involves precise measurements using a light gate and timer system. A card of length 0.200 m attached to the trolley passes through the light gate, allowing measurement of the trolley's constant velocity after the falling mass hits the floor. This setup eliminates the need to consider frictional forces, as they are deemed negligible for both the trolley and falling mass.

Definition: Free fall acceleration (g) represents the acceleration experienced by objects falling freely under the influence of gravity, approximately 9.81 m/s² at Earth's surface.

The relationship between velocity (v) and mass (m) is derived using the principle of conservation of energy. The equation shows that v² = 1.20mg/(m+0.800), where g is the acceleration due to gravity. This relationship allows students to calculate the acceleration of free fall by measuring the trolley's velocity at different masses.

6905 1970 4
OCR
Oxford Cambridge and RSA
A Level Physics A
H556/03 Unified physics
Thursday 14 June 2018 - Morning
Time allowed: 1 hour 30 m

View

Analyzing Experimental Data and Calculations

The experimental data is systematically recorded in a table format, tracking multiple variables including the mass (m), the combined mass term (m+0.800), velocity (v), and velocity squared (v²). For a mass of 0.600 kg, the measured velocity is 2.22 ± 0.05 m/s.

Example: When m = 0.600 kg:

  • Combined mass term = 1.400 kg
  • Velocity (v) = 2.22 ± 0.05 m/s
  • Velocity squared (v²) = 4.93 ± 0.22 m²/s²

The uncertainty calculations are crucial for experimental accuracy. The absolute uncertainty in v² is determined using the measured velocity and its uncertainty. This demonstrates the importance of error analysis in physical measurements and how experimental uncertainties propagate through calculations.

Highlight: The experiment beautifully demonstrates the conversion between gravitational potential energy and kinetic energy, while teaching students about measurement techniques and error analysis.
