How Voltage, Current, and Resistance Work Together: Simple Guide for Kids

Electricity is a fundamental concept in physics, covering current flow, resistance, and circuit types. This unit explores the basics of electrical systems, from simple circuits to domestic applications and safety measures. Understanding series and parallel circuits in electricity is crucial for grasping how electrical systems function in everyday life. The unit also delves into energy transfers, the national grid, and static electricity, providing a comprehensive overview of electrical phenomena.

Key points:

  • Electrical current is the flow of charge, affected by potential difference and resistance
  • Circuits can be connected in series or parallel, each with distinct properties
  • UK mains electricity uses alternating current at 230V and 50Hz
  • The national grid distributes electricity using transformers to manage voltage and current
  • Static electricity occurs when charges are separated, creating electric fields
...

26/05/2023

1536

8

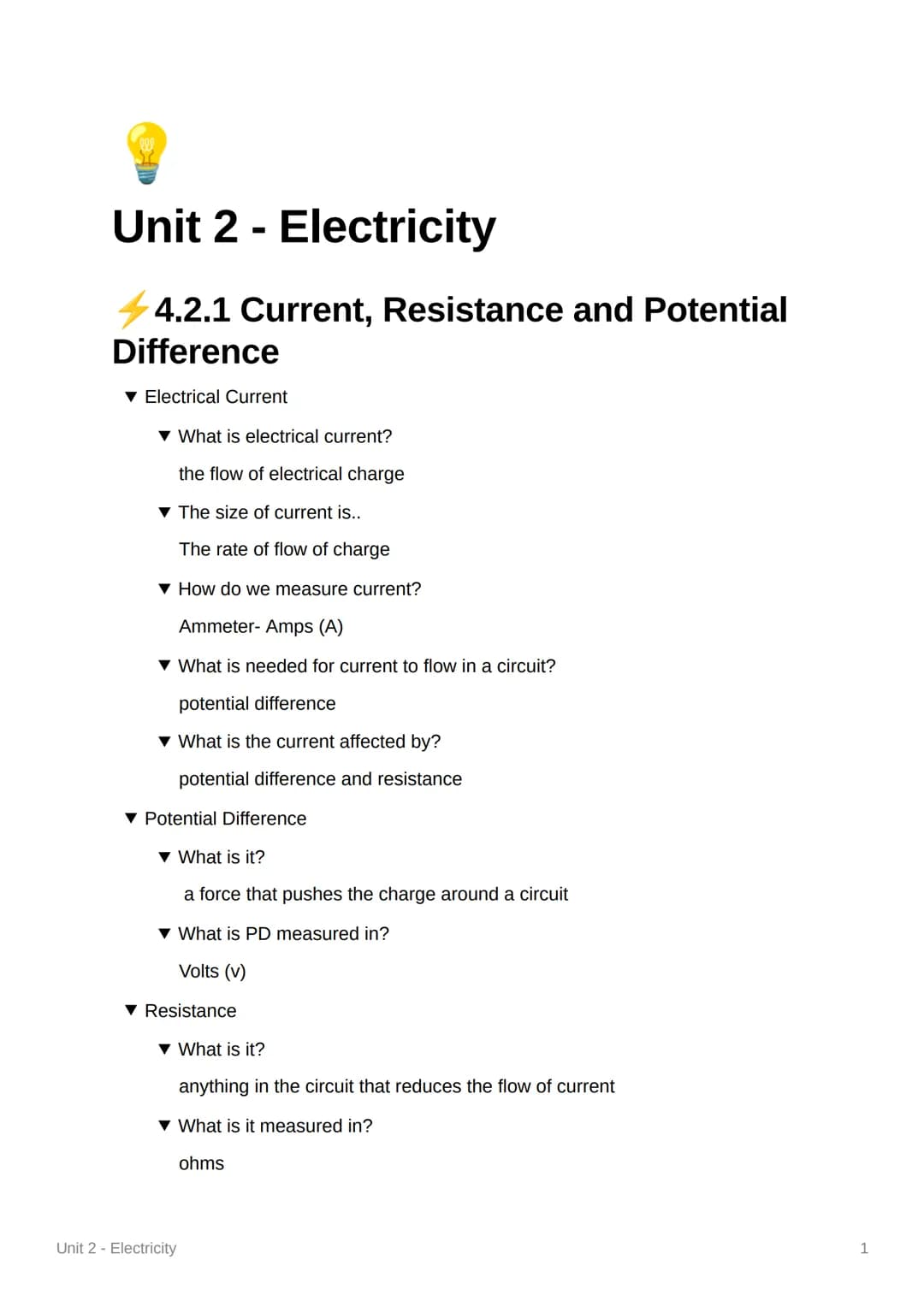

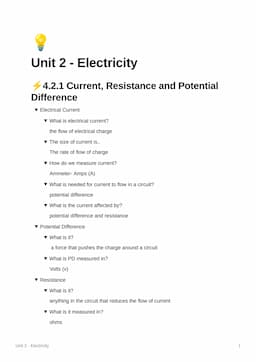

Unit 2 - Electricity
4.2.1 Current, Resistance and Potential
Difference
▼ Electrical Current
▼ What is electrical current?
the flow of ele

View

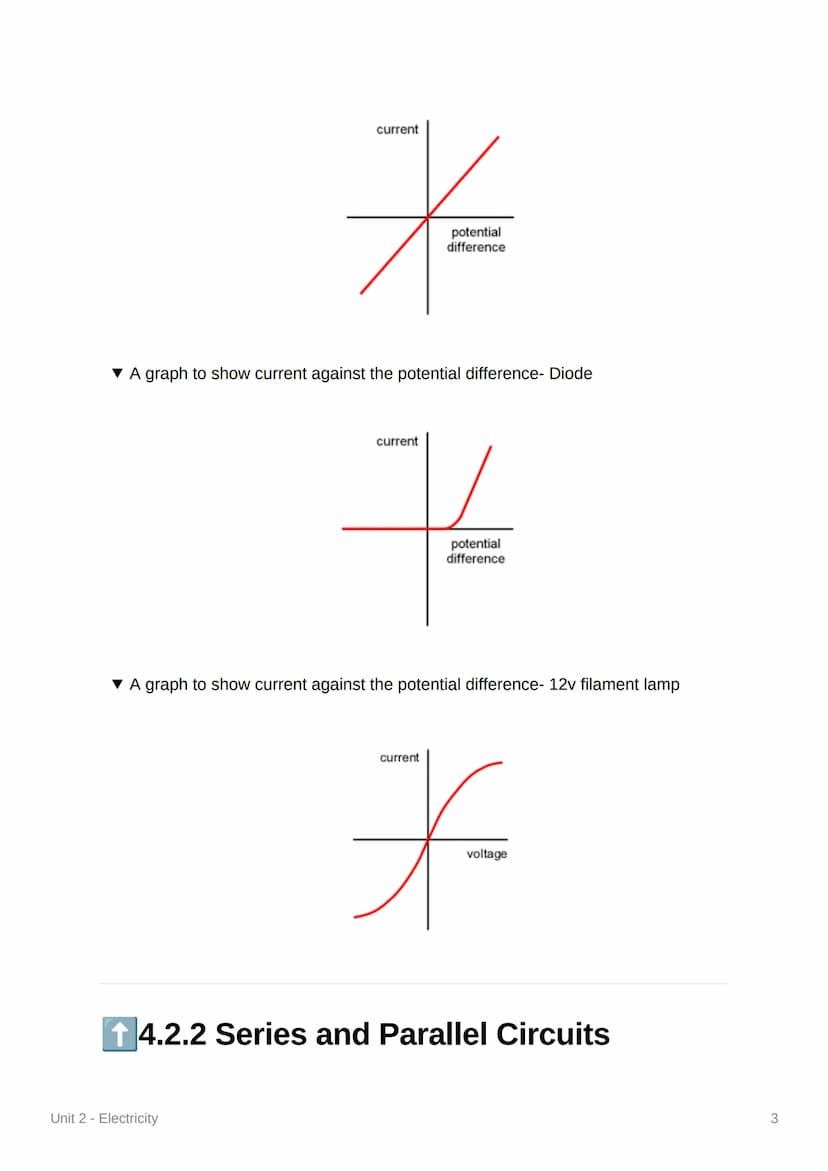

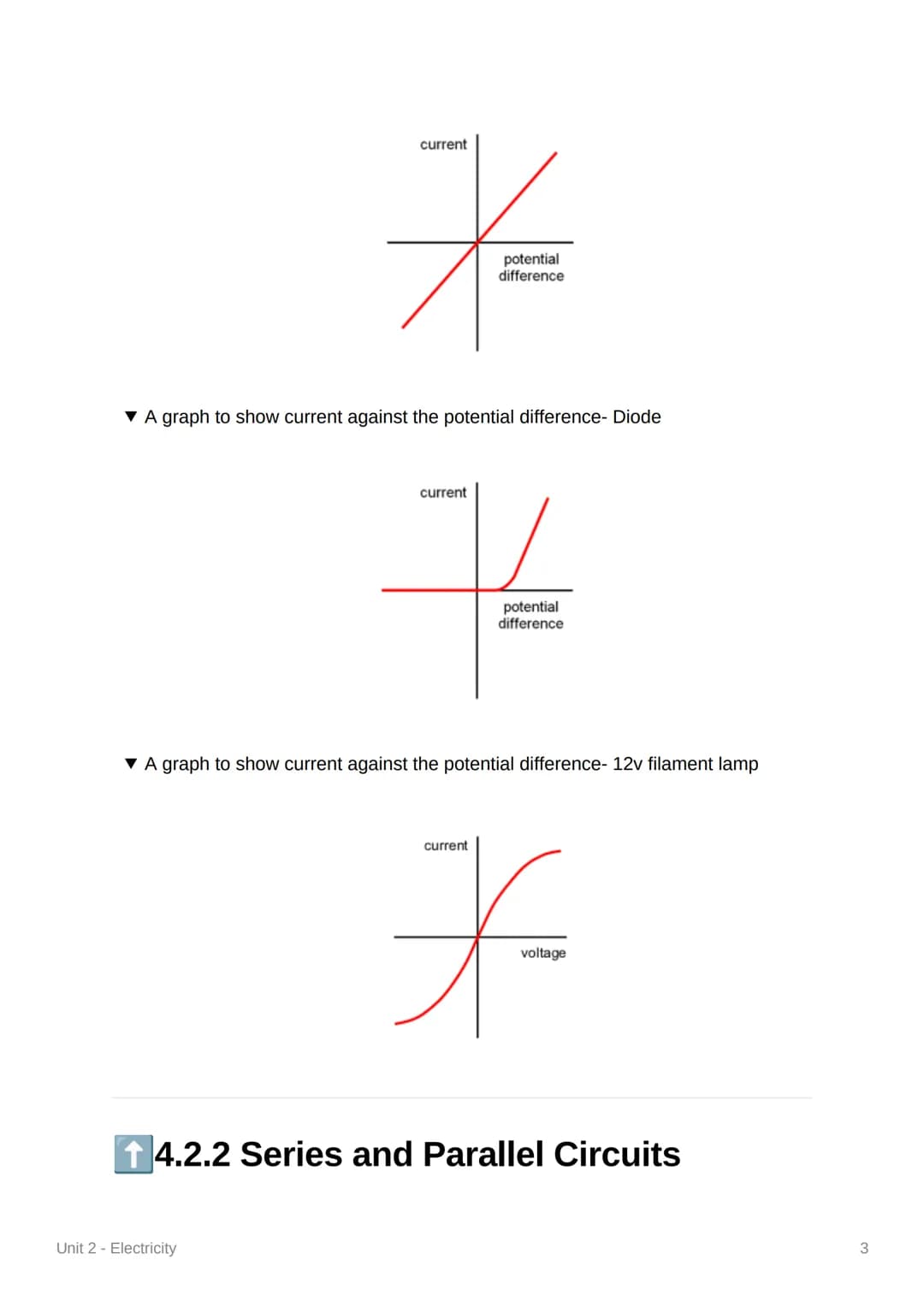

Circuit Graphs and Series/Parallel Circuits

This section delves deeper into graphical representations of current-voltage relationships for different circuit components and explores the behavior of series and parallel circuits.

Graphs are presented for:

  1. Resistor
  2. Diode
  3. 12V filament lamp

These graphs illustrate how current changes with potential difference for each component, highlighting their unique characteristics.

The page then transitions to discussing series and parallel circuits, comparing how potential difference, current, and resistance behave in each configuration.

Highlight: In a series circuit, potential difference is shared between components, while in a parallel circuit, it's the same across all components.

Example: Current remains the same throughout a series circuit but is shared between branches in a parallel circuit.

Definition: The total resistance in a series circuit is the sum of all component resistances, while in a parallel circuit, it's less than the resistance of the smallest resistor.

This information is crucial for understanding GCSE Physics questions related to circuit analysis and problem-solving.

8
Unit 2 - Electricity
4.2.1 Current, Resistance and Potential
Difference
▼ Electrical Current
▼ What is electrical current?
the flow of ele

View

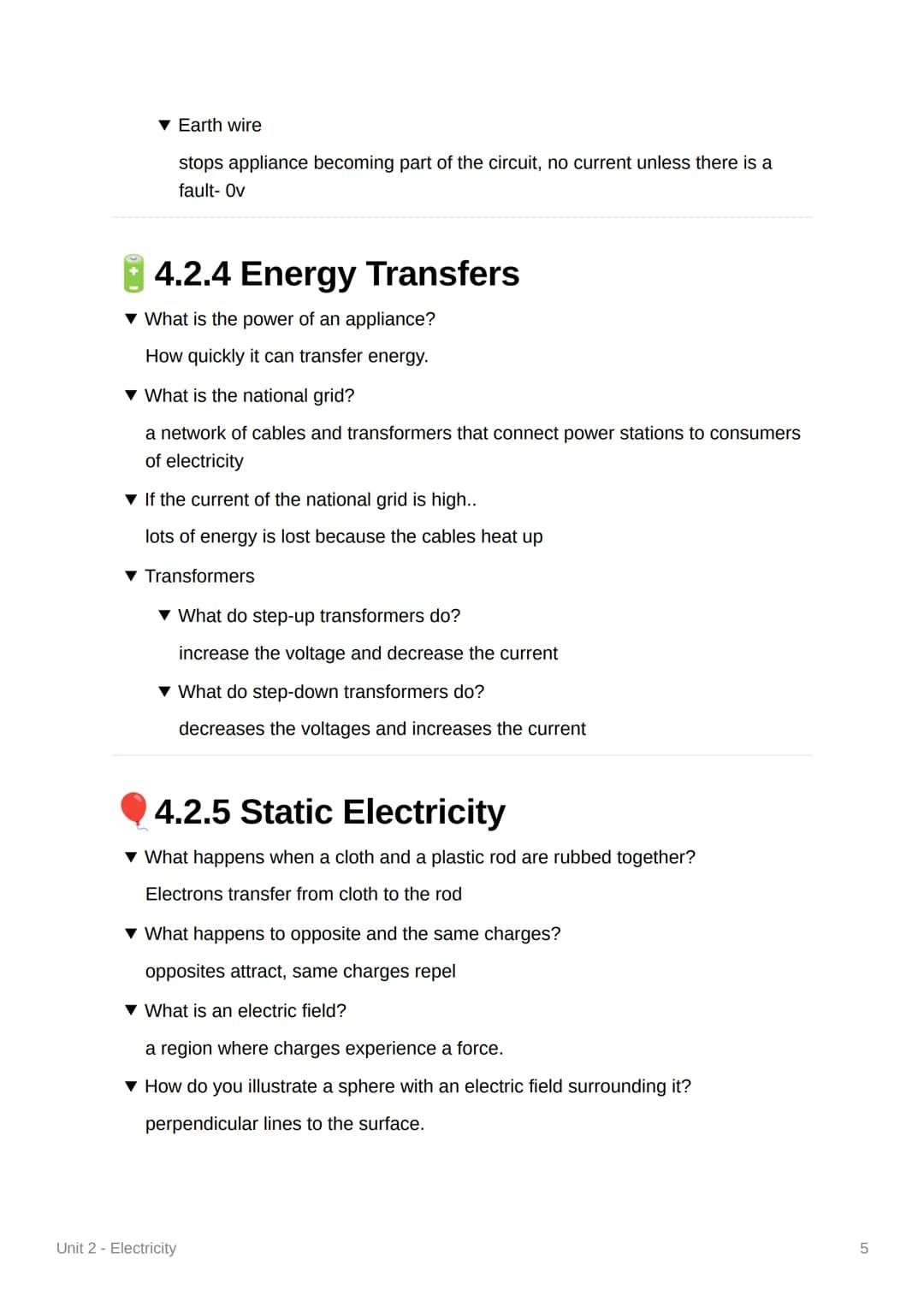

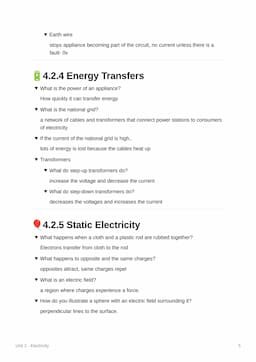

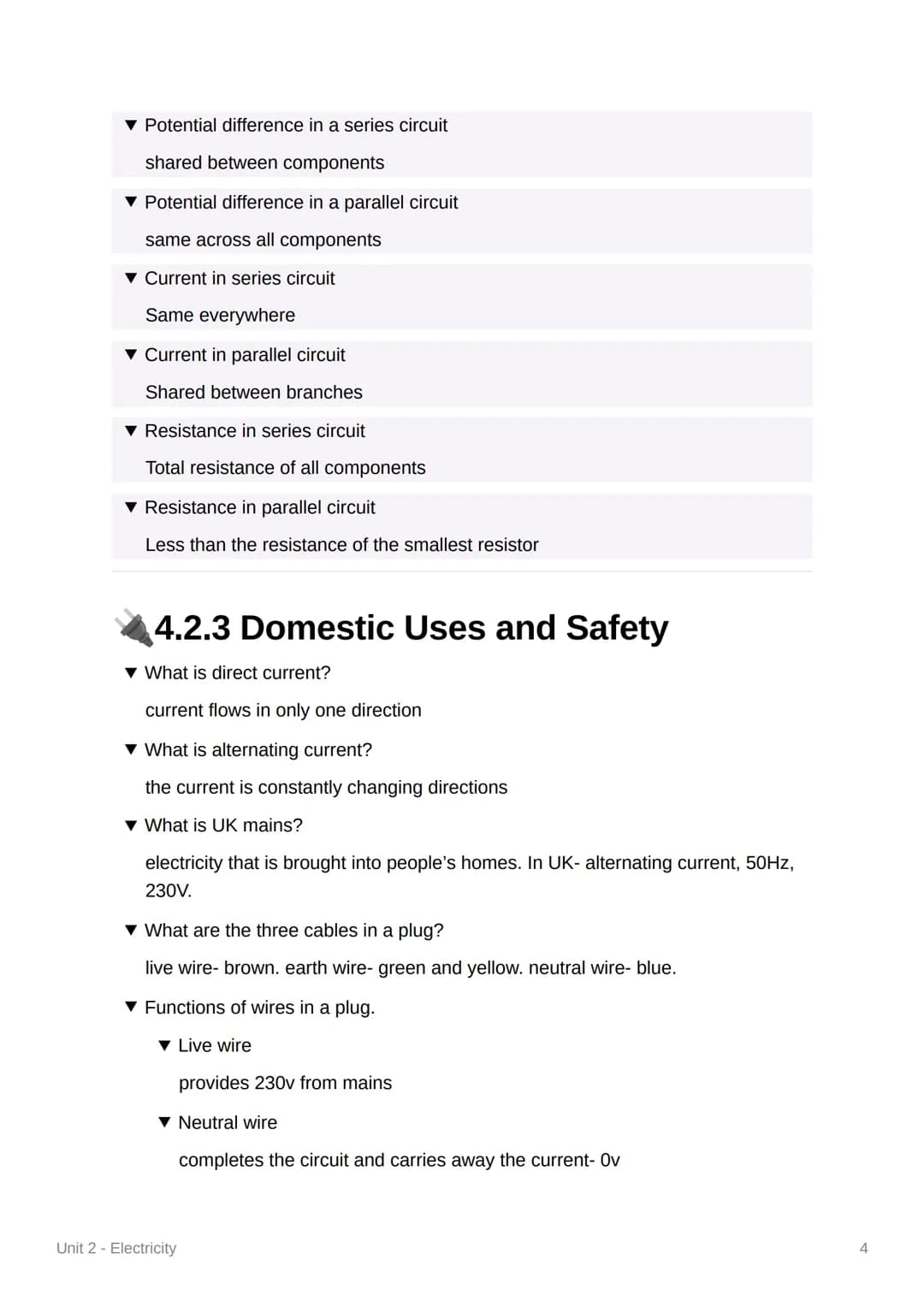

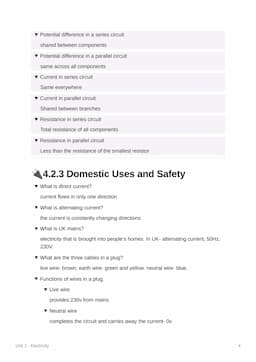

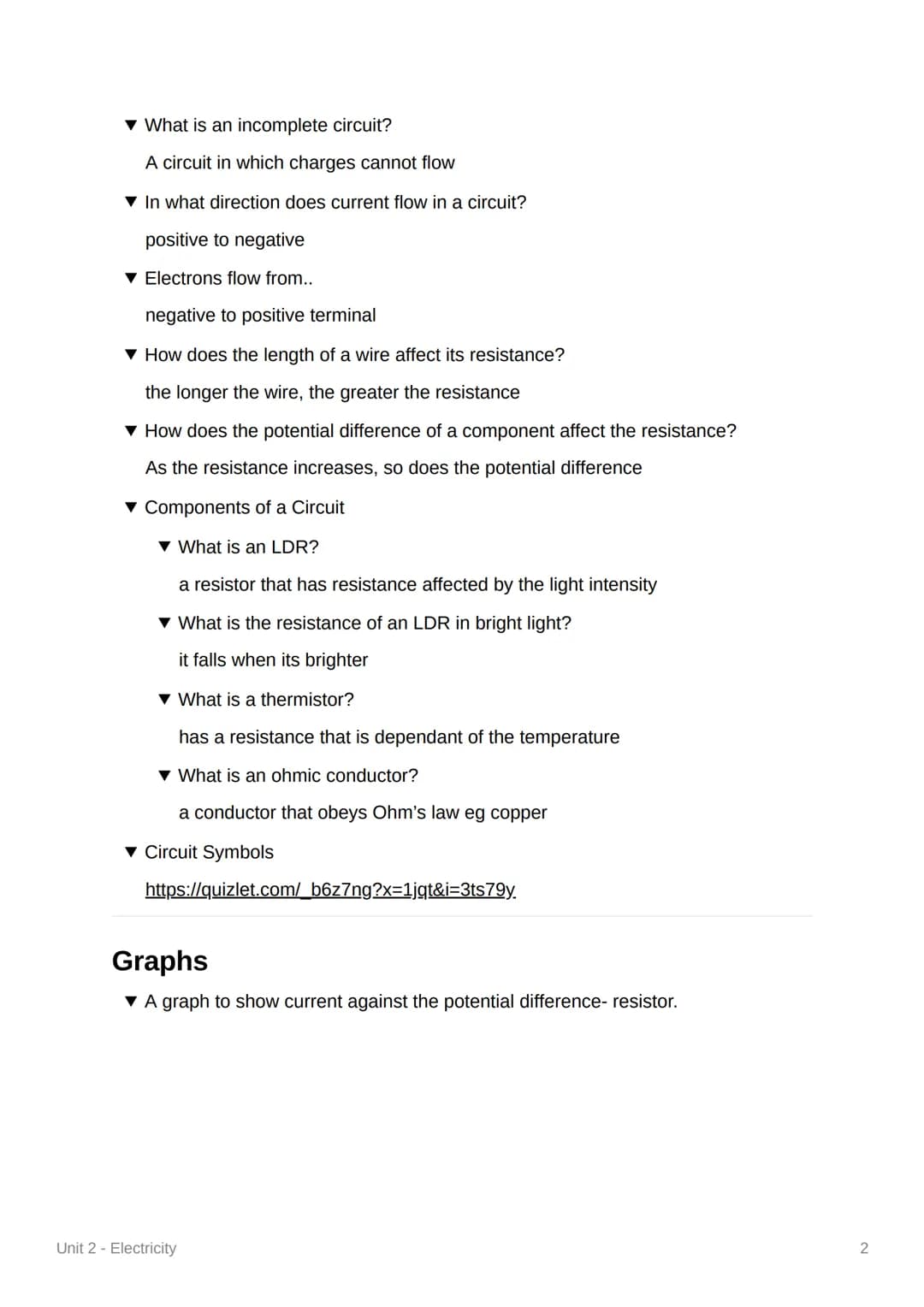

Domestic Uses, Safety, and Energy Transfers

This section covers practical applications of electricity in domestic settings, safety considerations, and energy transfers in electrical systems.

Definition: Direct current DCDC flows in only one direction, while alternating current ACAC constantly changes direction.

The UK mains electricity is described as alternating current with a frequency of 50Hz and a voltage of 230V.

Highlight: A standard UK plug contains three wires: live brownbrown, earth greenandyellowgreen and yellow, and neutral blueblue.

The functions of each wire in a plug are explained in detail, emphasizing their role in electrical safety.

The concept of power in electrical appliances is introduced as a measure of how quickly energy can be transferred.

Vocabulary: The National Grid is defined as a network of cables and transformers connecting power stations to consumers.

The section also covers transformers, explaining the difference between step-up and step-down transformers and their roles in the electrical distribution system.

This information is essential for answering AQA Physics Exam questions related to domestic electricity and energy transfers.

8
Unit 2 - Electricity
4.2.1 Current, Resistance and Potential
Difference
▼ Electrical Current
▼ What is electrical current?
the flow of ele

View

Static Electricity and Electric Fields

This section explores the phenomenon of static electricity and the concept of electric fields.

Example: When a cloth and a plastic rod are rubbed together, electrons transfer from the cloth to the rod, creating a static charge.

The behavior of electric charges is explained, noting that opposite charges attract while like charges repel.

Definition: An electric field is a region where charges experience a force.

The page provides guidance on illustrating electric fields around charged objects:

  • For positively charged objects, field lines point outwards.
  • For negatively charged objects, field lines point inwards.

Highlight: The strength of electric forces decreases as the distance from the charged object increases.

The occurrence of sparks is explained as a result of a large surplus of electrons jumping to an object with fewer electrons.

This information is crucial for understanding Physics Radioactivity GCSE AQA topics related to electric fields and charge interactions.

8
Unit 2 - Electricity
4.2.1 Current, Resistance and Potential
Difference
▼ Electrical Current
▼ What is electrical current?
the flow of ele

View

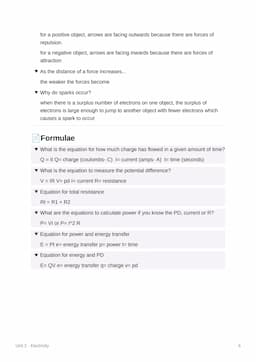

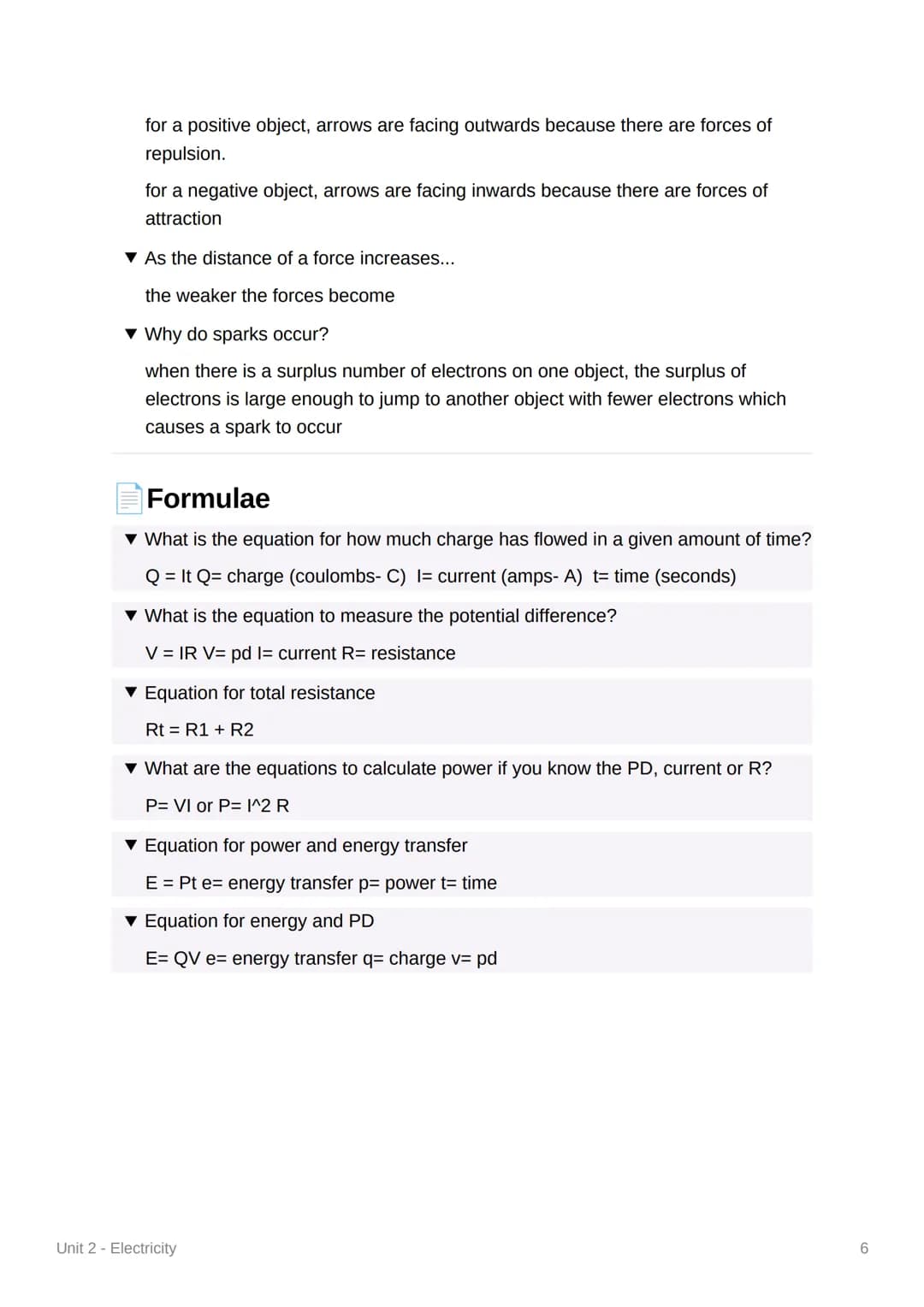

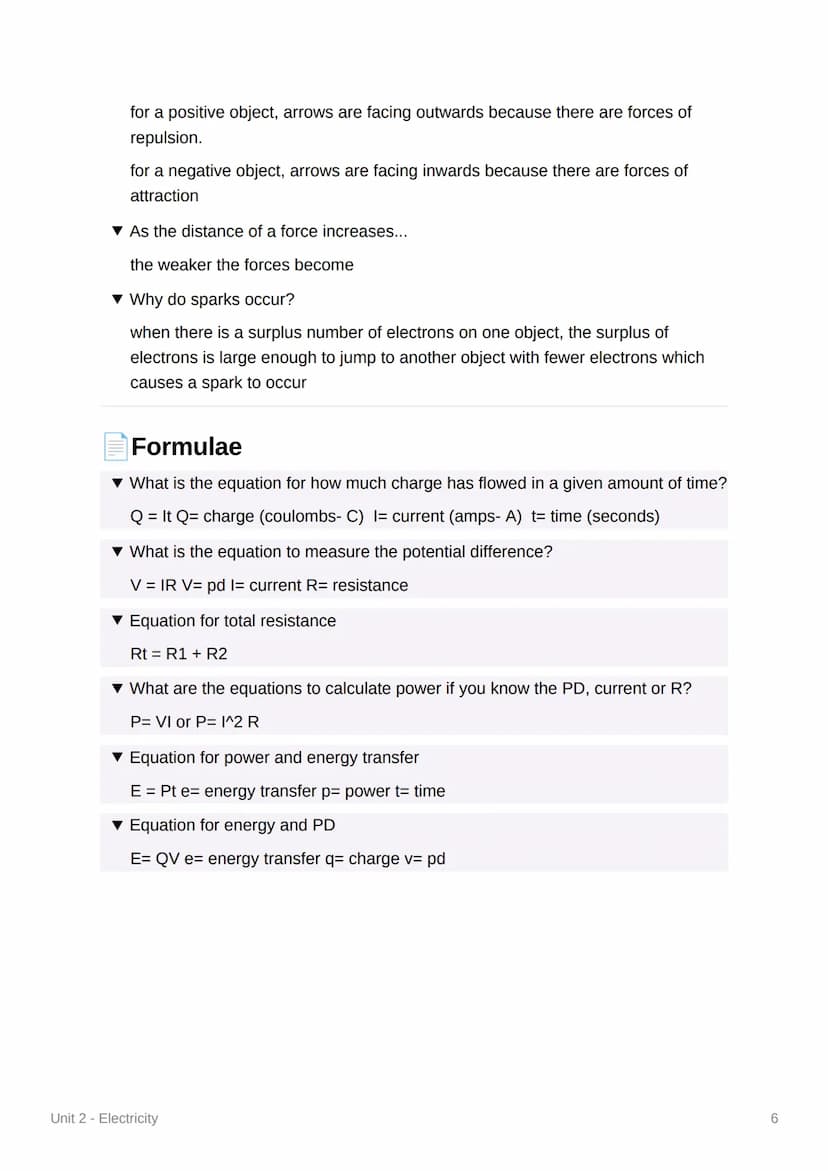

Key Equations in Electricity

This final section presents essential equations used in GCSE Physics electricity calculations.

Highlight: Q = It Charge=Current×TimeCharge = Current × Time Where Q is charge in coulombs CC, I is current in amperes AA, and t is time in seconds ss.

Definition: V = IR PotentialDifference=Current×ResistancePotential Difference = Current × Resistance This equation, known as Ohm's Law, relates voltage VV, current II, and resistance RR.

Other important equations covered include:

  • Total resistance in series: Rt = R1 + R2
  • Power calculations: P = VI or P = I²R
  • Energy transfer: E = Pt Energy=Power×TimeEnergy = Power × Time
  • Energy and potential difference: E = QV

These equations are fundamental for solving GCSE Physics questions related to electricity and energy transfers. Understanding and applying these formulas is crucial for success in AQA Physics Exam questions and AQA Trilogy Physics Paper 1 revision.

Example: To calculate the power of an electrical appliance, you can use P = VI if you know the voltage and current, or P = I²R if you know the current and resistance.

Mastering these equations and concepts is essential for students preparing for their GCSE Physics electricity active recall questions AQA higher triple answers.

8
Unit 2 - Electricity
4.2.1 Current, Resistance and Potential
Difference
▼ Electrical Current
▼ What is electrical current?
the flow of ele

View

Electrical Formulas and Calculations

This final section provides essential formulas for calculating various electrical quantities, which are crucial for solving problems in GCSE physics.

Key equations covered include:

  1. Charge flow: Q = It Q=chargeincoulombs,I=currentinamps,t=timeinsecondsQ = charge in coulombs, I = current in amps, t = time in seconds
  2. Potential difference: V = IR V=potentialdifference,I=current,R=resistanceV = potential difference, I = current, R = resistance
  3. Total resistance in series: Rt = R1 + R2
  4. Power calculations: P = VI or P = I²R
  5. Energy transfer: E = Pt E=energytransfer,P=power,t=timeE = energy transfer, P = power, t = time
  6. Energy and potential difference: E = QV

Highlight: Understanding and applying these formulas is essential for solving series parallel circuit example problems with solutions.

The page also explains how to calculate the total resistance in parallel circuits, noting that it's always less than the smallest individual resistor.

Example: In a parallel circuit with resistors of 2Ω and 4Ω, the total resistance would be less than 2Ω.

These formulas provide students with the tools to analyze complex circuits and solve real-world electrical problems, reinforcing the relationship between current and voltage and the relationship between current and resistance.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Physics

1,536

26 May 2023

6 pages

How Voltage, Current, and Resistance Work Together: Simple Guide for Kids

user profile picture

Zainab

@zainab_02839

Electricity is a fundamental concept in physics, covering current flow, resistance, and circuit types. This unit explores the basics of electrical systems, from simple circuits to domestic applications and safety measures. Understanding series and parallel circuits in electricityis crucial... Show more

8
Unit 2 - Electricity
4.2.1 Current, Resistance and Potential
Difference
▼ Electrical Current
▼ What is electrical current?
the flow of ele

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Circuit Graphs and Series/Parallel Circuits

This section delves deeper into graphical representations of current-voltage relationships for different circuit components and explores the behavior of series and parallel circuits.

Graphs are presented for:

  1. Resistor
  2. Diode
  3. 12V filament lamp

These graphs illustrate how current changes with potential difference for each component, highlighting their unique characteristics.

The page then transitions to discussing series and parallel circuits, comparing how potential difference, current, and resistance behave in each configuration.

Highlight: In a series circuit, potential difference is shared between components, while in a parallel circuit, it's the same across all components.

Example: Current remains the same throughout a series circuit but is shared between branches in a parallel circuit.

Definition: The total resistance in a series circuit is the sum of all component resistances, while in a parallel circuit, it's less than the resistance of the smallest resistor.

This information is crucial for understanding GCSE Physics questions related to circuit analysis and problem-solving.

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Domestic Uses, Safety, and Energy Transfers

This section covers practical applications of electricity in domestic settings, safety considerations, and energy transfers in electrical systems.

Definition: Direct current DCDC flows in only one direction, while alternating current ACAC constantly changes direction.

The UK mains electricity is described as alternating current with a frequency of 50Hz and a voltage of 230V.

Highlight: A standard UK plug contains three wires: live brownbrown, earth greenandyellowgreen and yellow, and neutral blueblue.

The functions of each wire in a plug are explained in detail, emphasizing their role in electrical safety.

The concept of power in electrical appliances is introduced as a measure of how quickly energy can be transferred.

Vocabulary: The National Grid is defined as a network of cables and transformers connecting power stations to consumers.

The section also covers transformers, explaining the difference between step-up and step-down transformers and their roles in the electrical distribution system.

This information is essential for answering AQA Physics Exam questions related to domestic electricity and energy transfers.

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Static Electricity and Electric Fields

This section explores the phenomenon of static electricity and the concept of electric fields.

Example: When a cloth and a plastic rod are rubbed together, electrons transfer from the cloth to the rod, creating a static charge.

The behavior of electric charges is explained, noting that opposite charges attract while like charges repel.

Definition: An electric field is a region where charges experience a force.

The page provides guidance on illustrating electric fields around charged objects:

  • For positively charged objects, field lines point outwards.
  • For negatively charged objects, field lines point inwards.

Highlight: The strength of electric forces decreases as the distance from the charged object increases.

The occurrence of sparks is explained as a result of a large surplus of electrons jumping to an object with fewer electrons.

This information is crucial for understanding Physics Radioactivity GCSE AQA topics related to electric fields and charge interactions.

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Key Equations in Electricity

This final section presents essential equations used in GCSE Physics electricity calculations.

Highlight: Q = It Charge=Current×TimeCharge = Current × Time Where Q is charge in coulombs CC, I is current in amperes AA, and t is time in seconds ss.

Definition: V = IR PotentialDifference=Current×ResistancePotential Difference = Current × Resistance This equation, known as Ohm's Law, relates voltage VV, current II, and resistance RR.

Other important equations covered include:

  • Total resistance in series: Rt = R1 + R2
  • Power calculations: P = VI or P = I²R
  • Energy transfer: E = Pt Energy=Power×TimeEnergy = Power × Time
  • Energy and potential difference: E = QV

These equations are fundamental for solving GCSE Physics questions related to electricity and energy transfers. Understanding and applying these formulas is crucial for success in AQA Physics Exam questions and AQA Trilogy Physics Paper 1 revision.

Example: To calculate the power of an electrical appliance, you can use P = VI if you know the voltage and current, or P = I²R if you know the current and resistance.

Mastering these equations and concepts is essential for students preparing for their GCSE Physics electricity active recall questions AQA higher triple answers.

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Electrical Formulas and Calculations

This final section provides essential formulas for calculating various electrical quantities, which are crucial for solving problems in GCSE physics.

Key equations covered include:

  1. Charge flow: Q = It Q=chargeincoulombs,I=currentinamps,t=timeinsecondsQ = charge in coulombs, I = current in amps, t = time in seconds
  2. Potential difference: V = IR V=potentialdifference,I=current,R=resistanceV = potential difference, I = current, R = resistance
  3. Total resistance in series: Rt = R1 + R2
  4. Power calculations: P = VI or P = I²R
  5. Energy transfer: E = Pt E=energytransfer,P=power,t=timeE = energy transfer, P = power, t = time
  6. Energy and potential difference: E = QV

Highlight: Understanding and applying these formulas is essential for solving series parallel circuit example problems with solutions.

The page also explains how to calculate the total resistance in parallel circuits, noting that it's always less than the smallest individual resistor.

Example: In a parallel circuit with resistors of 2Ω and 4Ω, the total resistance would be less than 2Ω.

These formulas provide students with the tools to analyze complex circuits and solve real-world electrical problems, reinforcing the relationship between current and voltage and the relationship between current and resistance.

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Current, Resistance, and Potential Difference

This section introduces fundamental concepts in electricity, focusing on current, potential difference, and resistance.

Definition: Electrical current is the flow of electrical charge. The size of current is measured as the rate of flow of charge.

Current is measured using an ammeter in units of Amperes AA. For current to flow in a circuit, a potential difference is required.

Highlight: Current is affected by both potential difference and resistance in a circuit.

Potential difference PDPD is defined as the force that pushes charge around a circuit and is measured in Volts VV.

Vocabulary: Resistance is anything in the circuit that reduces the flow of current, measured in ohms ΩΩ.

The section also covers incomplete circuits, direction of current flow, and factors affecting resistance in wires.

Example: The longer a wire, the greater its resistance. As resistance increases, so does the potential difference across a component.

Key circuit components like Light Dependent Resistors LDRsLDRs and thermistors are explained, along with their behavior under different conditions.

Definition: An ohmic conductor is a conductor that obeys Ohm's law, such as copper.

The page concludes with a reference to circuit symbols and introduces graphs showing the relationship between current and potential difference for various components.
