Electricity Knowledge Organiser

GCSE AQA Physics Electricity Notes PDF and Exam Questions

GCSE Physics Electricity is a crucial topic covering key concepts like resistance, circuits, and electrical components. This summary provides essential information for students preparing for exams and practical assessments in GCSE Physics electricity.

Key points:
• Explores required practicals for investigating resistance and I-V relationships
• Covers important equations and mathematical concepts
• Explains static electricity, resistance, and circuit components
• Discusses series and parallel circuits and their characteristics
• Provides information on household electricity and safety

...

28/06/2023

1700

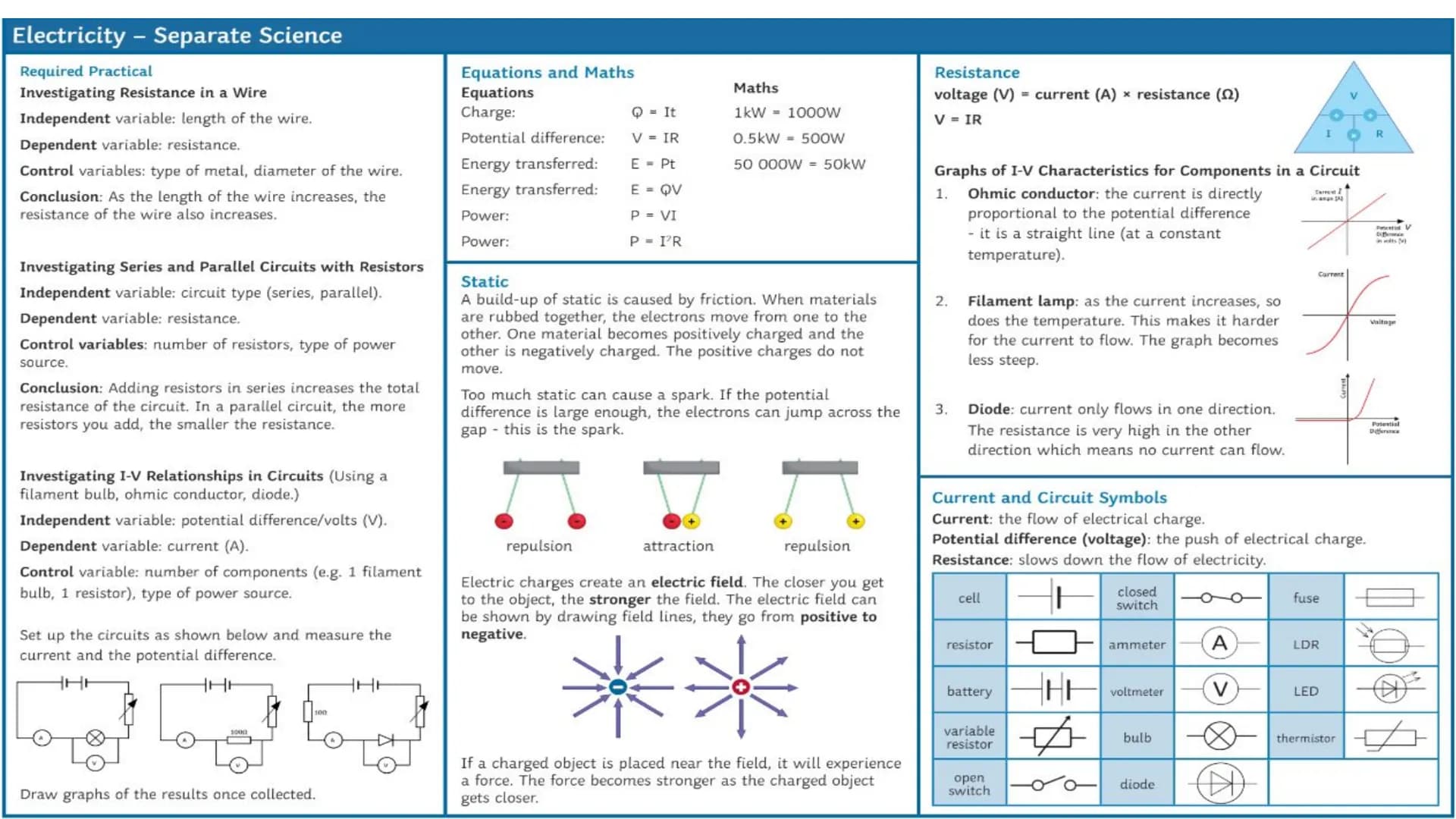

Electricity - Separate Science
Required Practical
Investigating Resistance in a Wire
Independent variable: length of the wire.
Dependent var

View

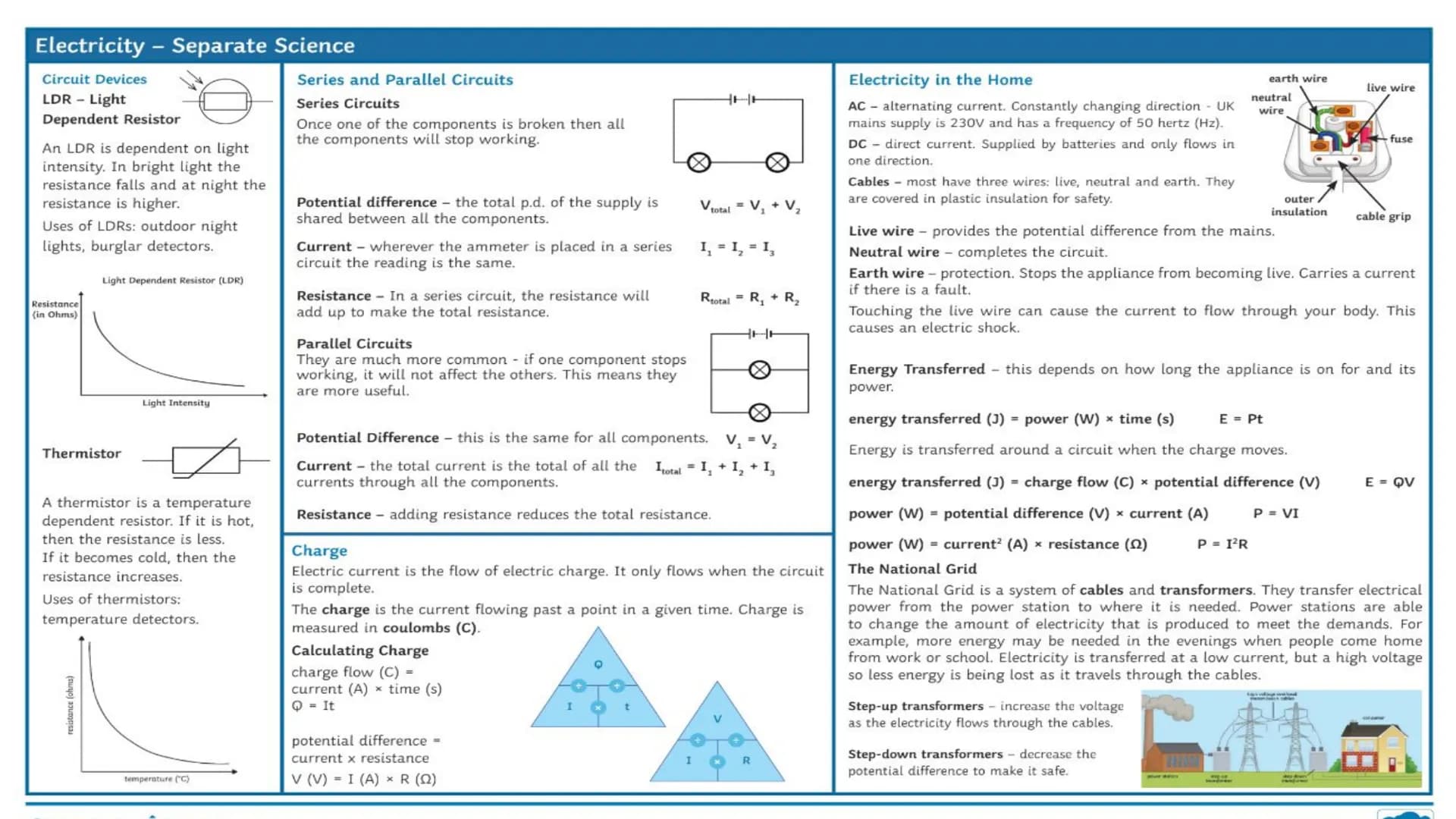

Circuit Devices

This section explores specific circuit components crucial for GCSE Physics Electricity revision notes.

Light Dependent Resistor (LDR)

An LDR's resistance changes based on light intensity. In bright light, resistance decreases, while in darkness, it increases.

Example: LDRs are used in outdoor night lights and burglar detectors, automatically activating when light levels drop.

Thermistor

A thermistor is a temperature-dependent resistor. Its resistance decreases as temperature rises and increases as temperature falls.

Vocabulary: Thermistor is a combination of "thermal" and "resistor", indicating its temperature-sensitive nature.

These components are essential for understanding i-v characteristics required practical experiments.

Series and Parallel Circuits

This section compares series and parallel circuits, a fundamental concept in Electricity Physics Notes pdf.

Series Circuits

In series circuits: • If one component fails, the entire circuit stops working. • The total potential difference is shared among all components. • Current is the same throughout the circuit. • Total resistance is the sum of individual resistances.

Parallel Circuits

Parallel circuits are more common in practical applications: • If one component fails, others continue to function. • Potential difference is the same across all components. • Total current is the sum of currents through each component. • Adding resistances reduces the total resistance.

Highlight: Understanding the differences between series and parallel circuits is crucial for solving GCSE electricity questions and answers pdf.

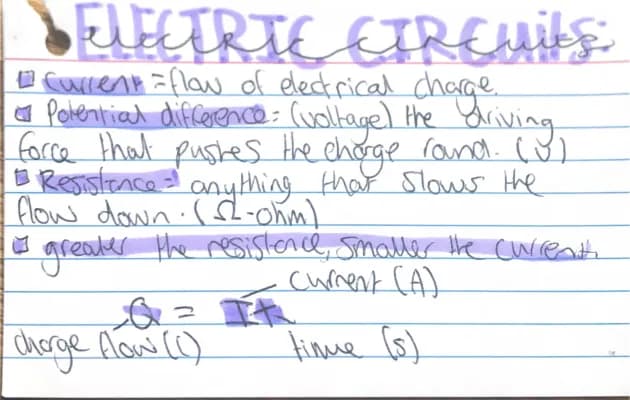

Charge Calculation

The section introduces the equation for calculating charge: Q = It charge=current×timecharge = current × time.

Definition: Charge QQ is measured in coulombs CC, current II in amperes AA, and time tt in seconds ss.

This equation is essential for Understanding iv relationships in circuits gcse physics questions.

Electricity in the Home

The final section covers household electricity, an important topic for practical applications of GCSE Physics Electricity.

Key points include: • AC alternatingcurrentalternating current vs. DC directcurrentdirect current • UK mains supply: 230V at 50Hz • Cable wiring: live, neutral, and earth wires

Highlight: Understanding household electricity is crucial for safety and practical applications of GCSE Physics Electricity.

This comprehensive summary covers all major aspects of electricity in GCSE Physics, providing students with a solid foundation for exams and practical assessments.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Physics

1,700

28 Jun 2023

2 pages

GCSE AQA Physics Electricity Notes PDF and Exam Questions

user profile picture

Zainab

@zainab_02839

GCSE Physics Electricity is a crucial topic covering key concepts like resistance, circuits, and electrical components. This summary provides essential information for students preparing for exams and practical assessments in GCSE Physics electricity.

Key points:
• Explores required practicals... Show more

Electricity - Separate Science
Required Practical
Investigating Resistance in a Wire
Independent variable: length of the wire.
Dependent var

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Circuit Devices

This section explores specific circuit components crucial for GCSE Physics Electricity revision notes.

Light Dependent Resistor (LDR)

An LDR's resistance changes based on light intensity. In bright light, resistance decreases, while in darkness, it increases.

Example: LDRs are used in outdoor night lights and burglar detectors, automatically activating when light levels drop.

Thermistor

A thermistor is a temperature-dependent resistor. Its resistance decreases as temperature rises and increases as temperature falls.

Vocabulary: Thermistor is a combination of "thermal" and "resistor", indicating its temperature-sensitive nature.

These components are essential for understanding i-v characteristics required practical experiments.

Series and Parallel Circuits

This section compares series and parallel circuits, a fundamental concept in Electricity Physics Notes pdf.

Series Circuits

In series circuits: • If one component fails, the entire circuit stops working. • The total potential difference is shared among all components. • Current is the same throughout the circuit. • Total resistance is the sum of individual resistances.

Parallel Circuits

Parallel circuits are more common in practical applications: • If one component fails, others continue to function. • Potential difference is the same across all components. • Total current is the sum of currents through each component. • Adding resistances reduces the total resistance.

Highlight: Understanding the differences between series and parallel circuits is crucial for solving GCSE electricity questions and answers pdf.

Charge Calculation

The section introduces the equation for calculating charge: Q = It charge=current×timecharge = current × time.

Definition: Charge QQ is measured in coulombs CC, current II in amperes AA, and time tt in seconds ss.

This equation is essential for Understanding iv relationships in circuits gcse physics questions.

Electricity in the Home

The final section covers household electricity, an important topic for practical applications of GCSE Physics Electricity.

Key points include: • AC alternatingcurrentalternating current vs. DC directcurrentdirect current • UK mains supply: 230V at 50Hz • Cable wiring: live, neutral, and earth wires

Highlight: Understanding household electricity is crucial for safety and practical applications of GCSE Physics Electricity.

This comprehensive summary covers all major aspects of electricity in GCSE Physics, providing students with a solid foundation for exams and practical assessments.

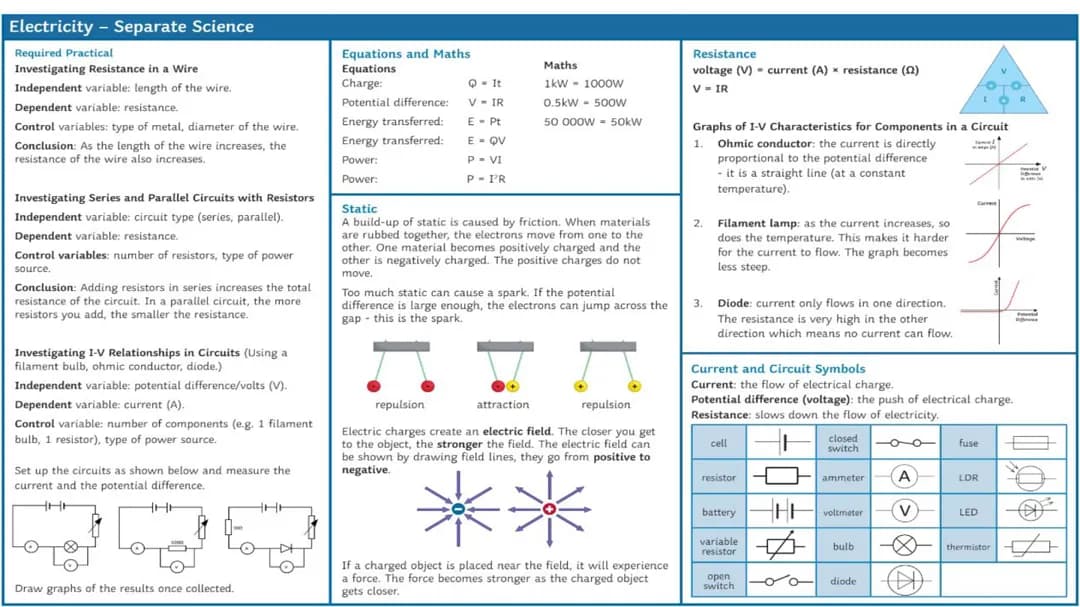

Electricity - Separate Science
