AQA Physics Electricity Past Paper Questions & Van de Graaff Generator Explained

View

AQA Physics Electricity Past Paper Questions & Van de Graaff Generator Explained

Understanding electrical concepts and calculations is fundamental for success in GCSE Physics electricity exam questions and answers.

The Van de Graaff generator serves as a crucial demonstration device for teaching electrostatic principles. This machine uses mechanical energy to accumulate large amounts of static electrical charge, capable of generating potentials up to several hundred thousand volts. The Van de Graaff generator experiment explained shows how a moving belt transfers electrons from the lower roller to the upper dome, creating a significant potential difference. The dome becomes positively charged as electrons are continuously removed, demonstrating fundamental principles of charge separation and accumulation. Students should understand that the Van de Graaff generator voltage depends on factors like humidity, belt speed, and dome size.

When solving Physics GCSE questions and answers pdf problems related to energy transfer in circuits, students must master several key equations. The energy transferred equation E = VIt (where E is energy in joules, V is voltage in volts, I is current in amperes, and t is time in seconds) is essential for calculating electrical energy transfer. Alternative forms include E = QV (where Q is charge in coulombs) and E = I²Rt (where R is resistance in ohms). These formulas appear frequently in AQA physics electricity past paper questions and answers, requiring students to manipulate units correctly and understand their practical applications. The energy transfer formula Physics problems often involve real-world scenarios, such as calculating energy consumption in household appliances or determining the cost of running electrical devices. Students should pay particular attention to the energy transferred unit, which is the joule (J), and understand how to convert between joules and kilowatt-hours (kWh) for practical applications.

24/05/2023

872

revise
with
harry

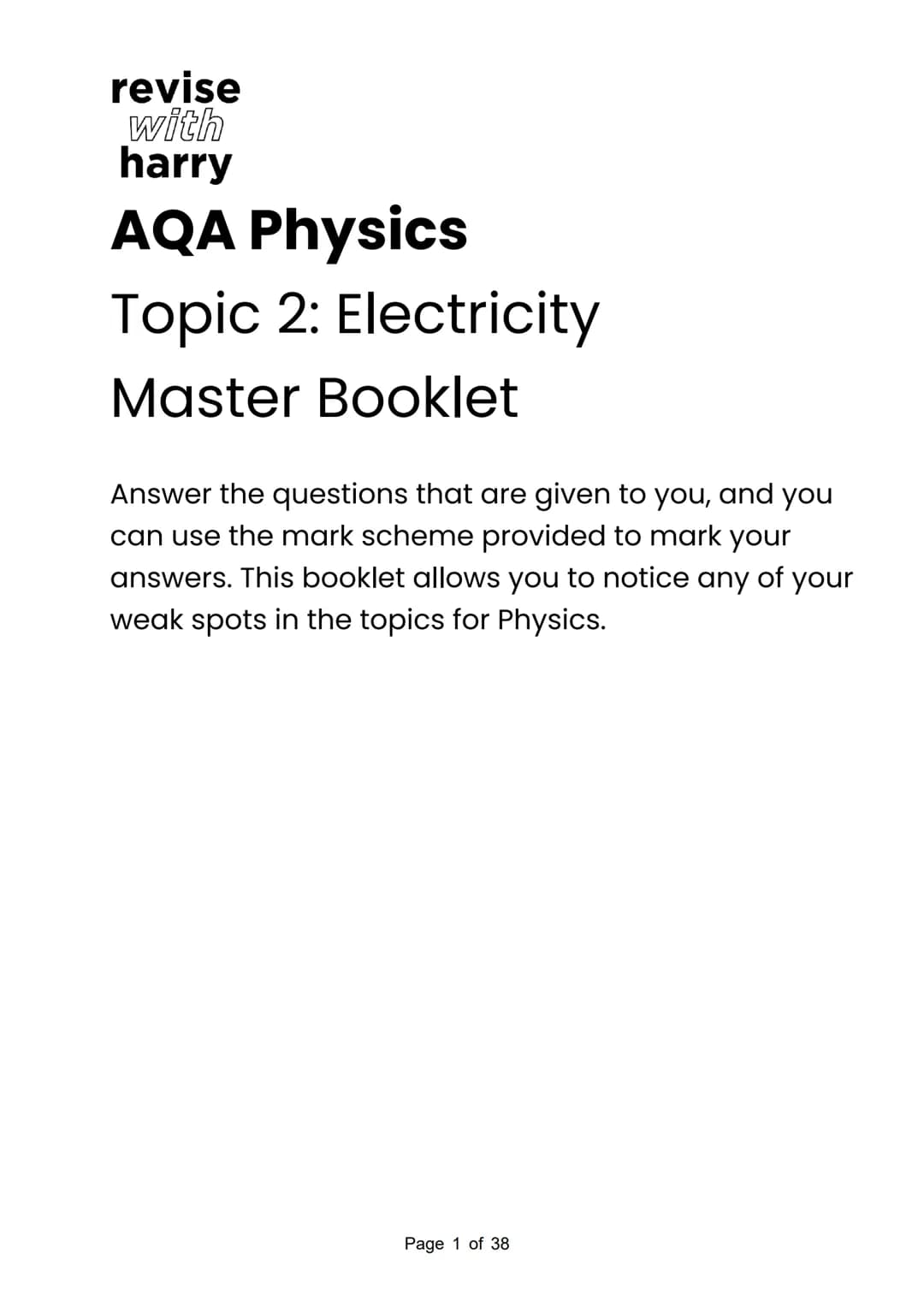

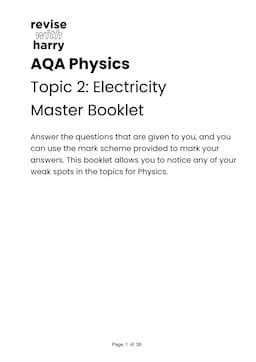

AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

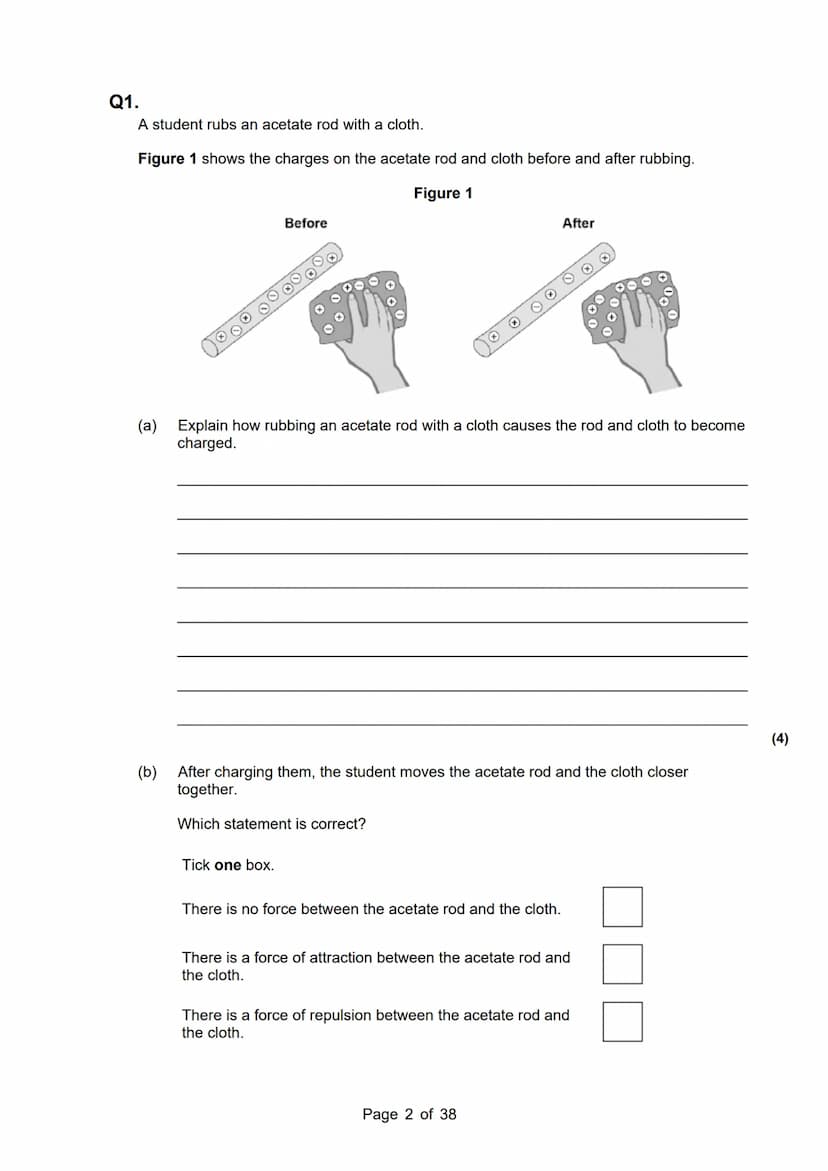

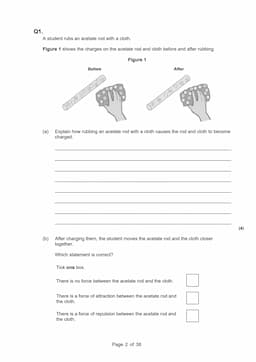

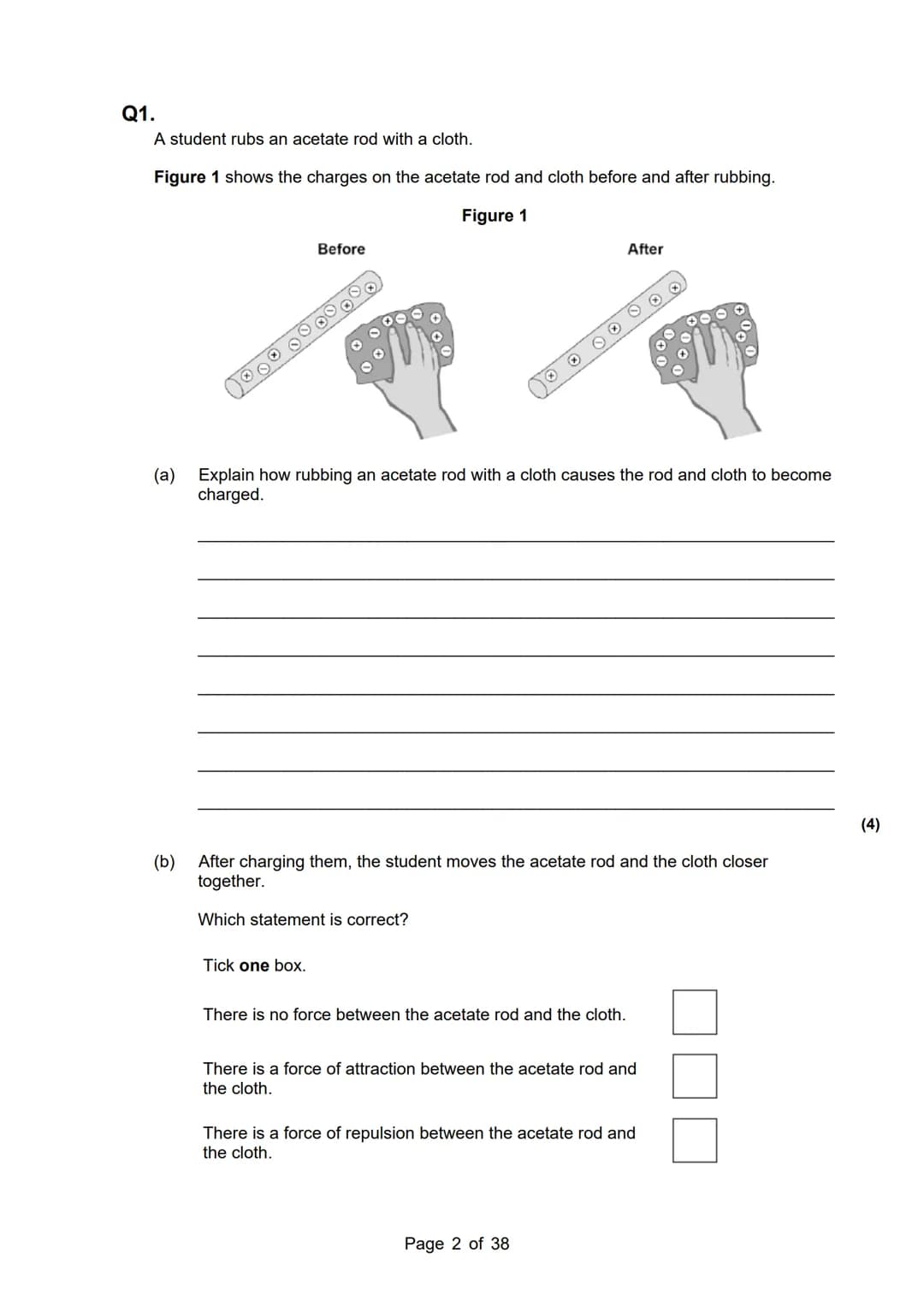

Understanding Static Electricity and Van de Graaff Generators in Physics

When studying electrical charges and static electricity, it's crucial to understand how objects become charged through friction and the principles behind Van de Graaff generators. The process of charging by friction, as demonstrated with an acetate rod and cloth, involves the transfer of electrons between materials.

Definition: Static electricity occurs when there is an imbalance of electric charges within or on the surface of a material. This charge imbalance remains until it can be released through a discharge.

When an acetate rod is rubbed with a cloth, electrons transfer from one material to another. This creates opposite charges on each object - typically negative charges on the acetate rod and positive charges on the cloth. This fundamental principle explains why the objects will experience a force of attraction when brought near each other after charging.

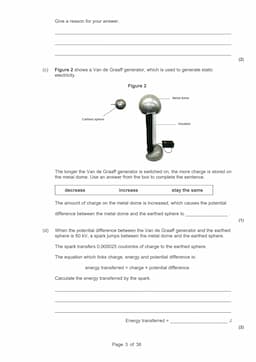

The Van de Graaff generator demonstrates these principles on a larger scale. As the generator operates, it accumulates charge on its metal dome, creating an increasing potential difference between the dome and the earthed sphere. This potential difference can reach significant voltages, often resulting in visible sparks when the charge difference becomes great enough to break down the air between the dome and sphere.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

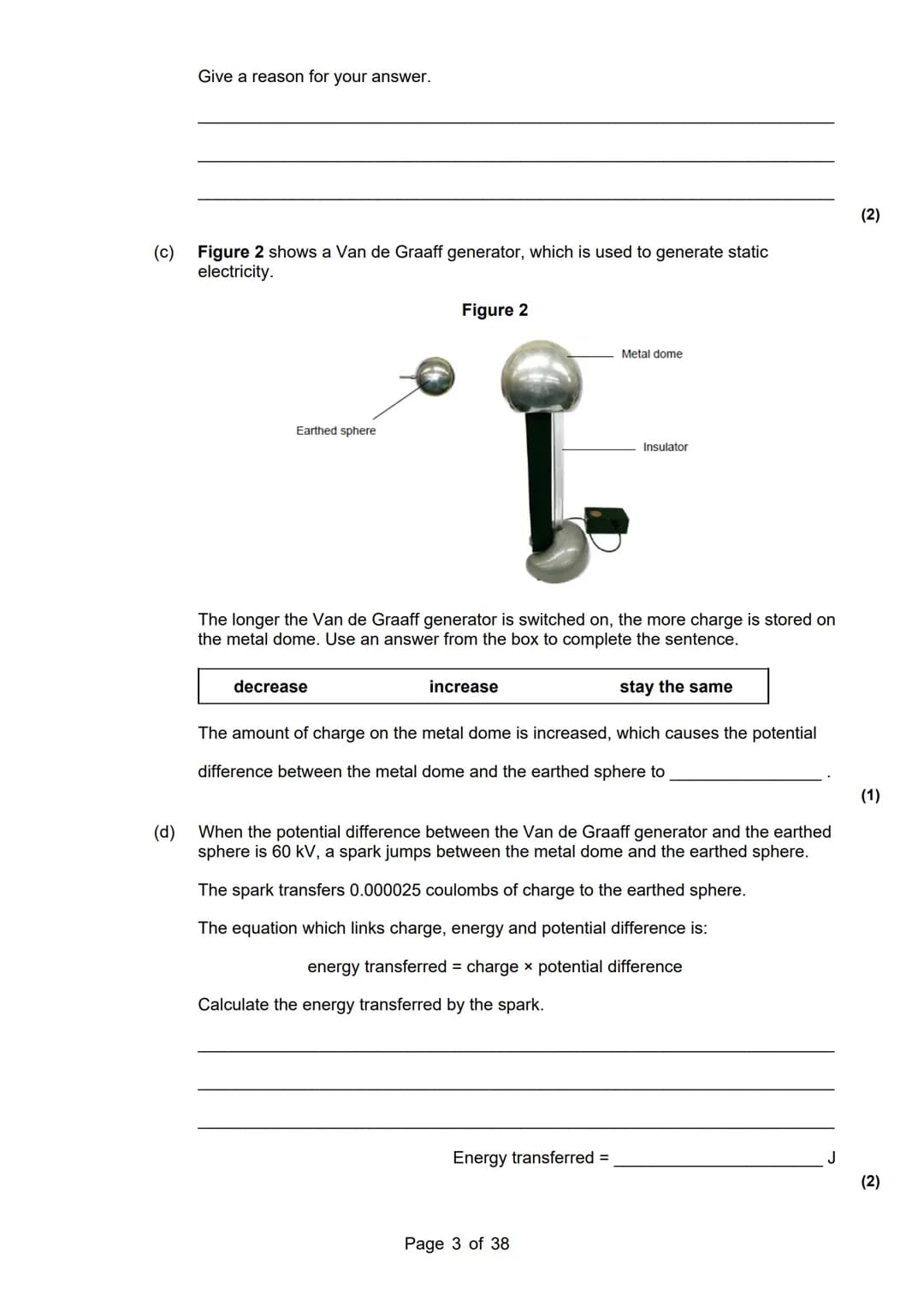

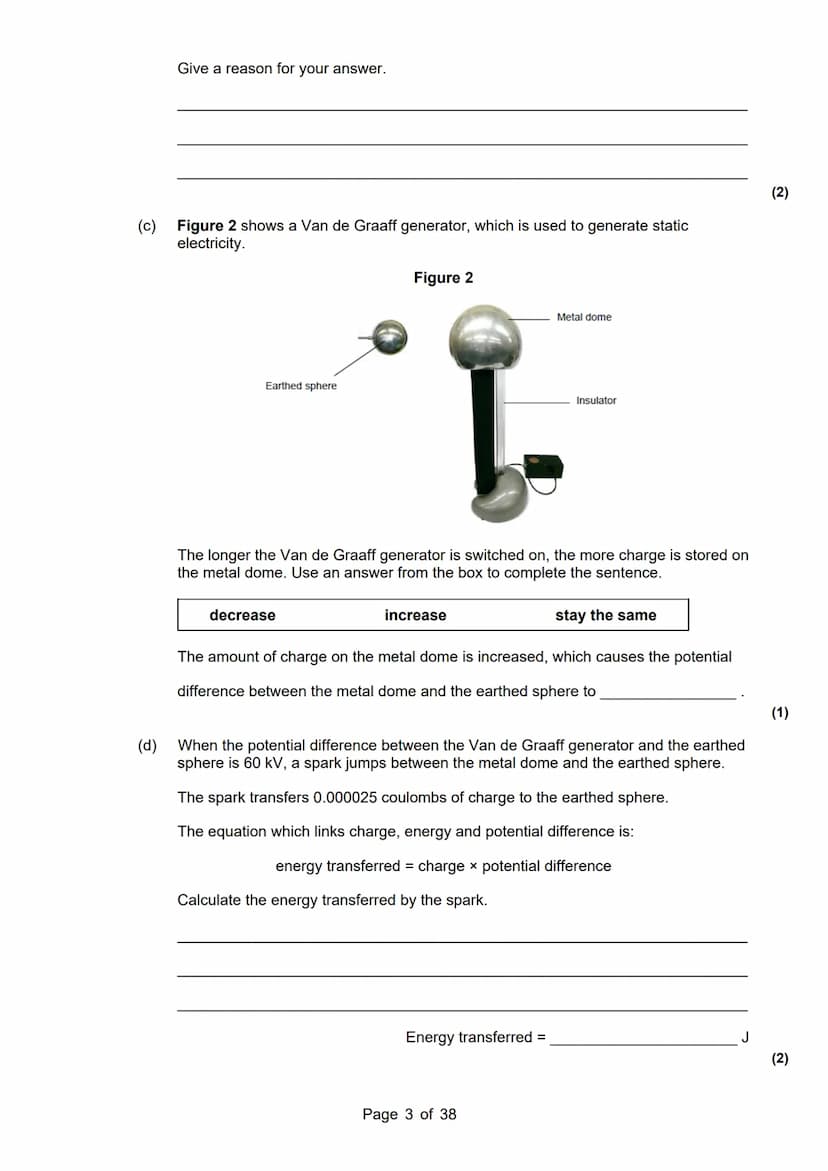

Calculating Energy Transfer in Electrical Systems

Understanding energy transfer in electrical systems is fundamental to Physics GCSE questions and answers pdf. The relationship between energy, charge, and potential difference is expressed through the equation: Energy transferred = charge × potential difference.

Example: If a Van de Graaff generator creates a potential difference of 60 kV and transfers 0.000025 coulombs of charge, the energy transferred can be calculated as: Energy = 0.000025 C × 60,000 V = 1.5 joules

The energy transferred equation helps us understand how electrical systems store and transfer energy. This concept is particularly important when studying electrical devices and their efficiency.

When working with circuits, it's essential to recognize that the energy transferred unit is measured in joules (J), while charge is measured in coulombs (C) and potential difference in volts (V).

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

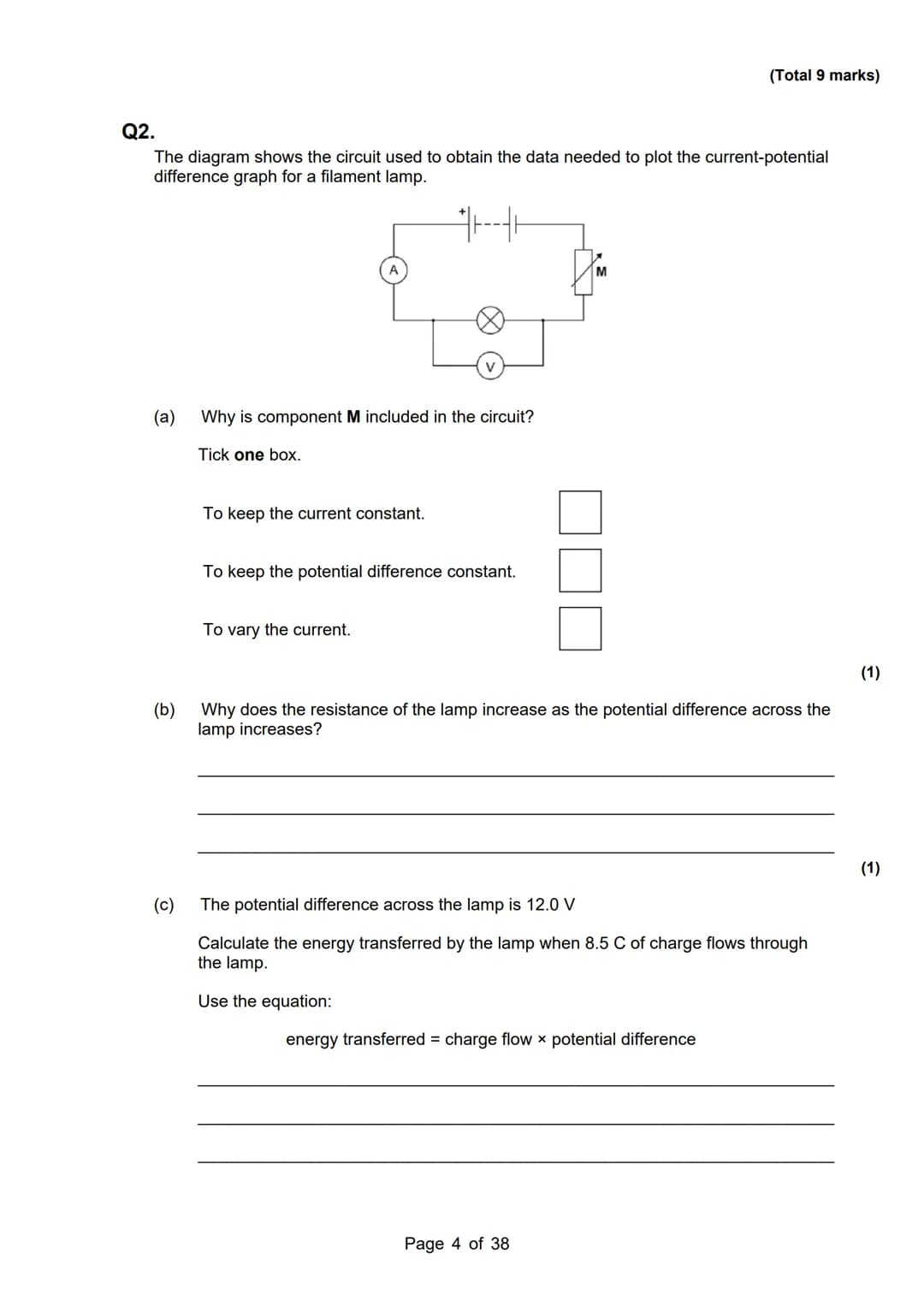

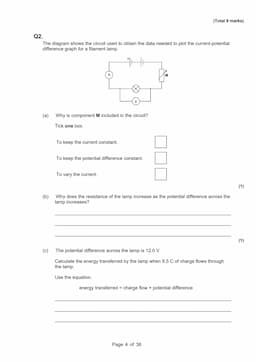

Circuit Components and Their Behaviors

Understanding how different components behave in electrical circuits is crucial for mastering GCSE Physics electricity exam questions and answers. Variable resistors play a vital role in controlling current flow through a circuit, allowing us to study how other components respond to changing conditions.

Highlight: The resistance of a filament lamp increases with temperature as the potential difference across it increases. This occurs because the metal filament gets hotter, causing the atoms to vibrate more vigorously and impede electron flow.

When calculating energy transfer in circuits, we use the same fundamental equation: energy transferred = charge × potential difference. This relationship remains consistent whether we're working with static electricity or current electricity.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

Advanced Circuit Analysis and Energy Calculations

For AQA physics electricity past paper questions and answers, understanding how to analyze circuits and calculate energy transfer is essential. When working with filament lamps, the relationship between current and potential difference is non-linear due to temperature effects.

Vocabulary: Potential difference (voltage) is the energy transferred per unit charge between two points in a circuit.

To calculate energy transfer in a circuit with a 12.0 V potential difference and 8.5 C charge flow: Energy transferred = 8.5 C × 12.0 V = 102 joules

This calculation demonstrates how the equation for energy transferred voltage and charge can be applied to real-world situations. Understanding these relationships is crucial for solving AQA physics electricity past paper questions GCSE.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

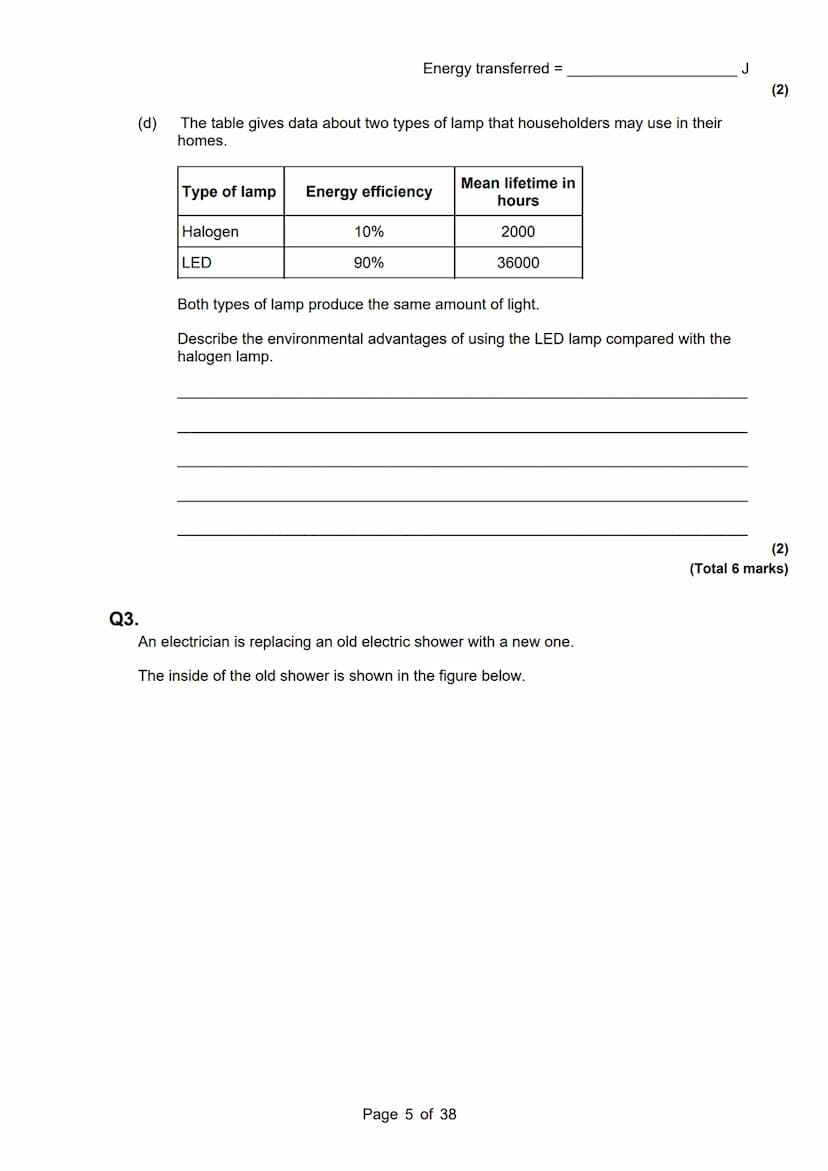

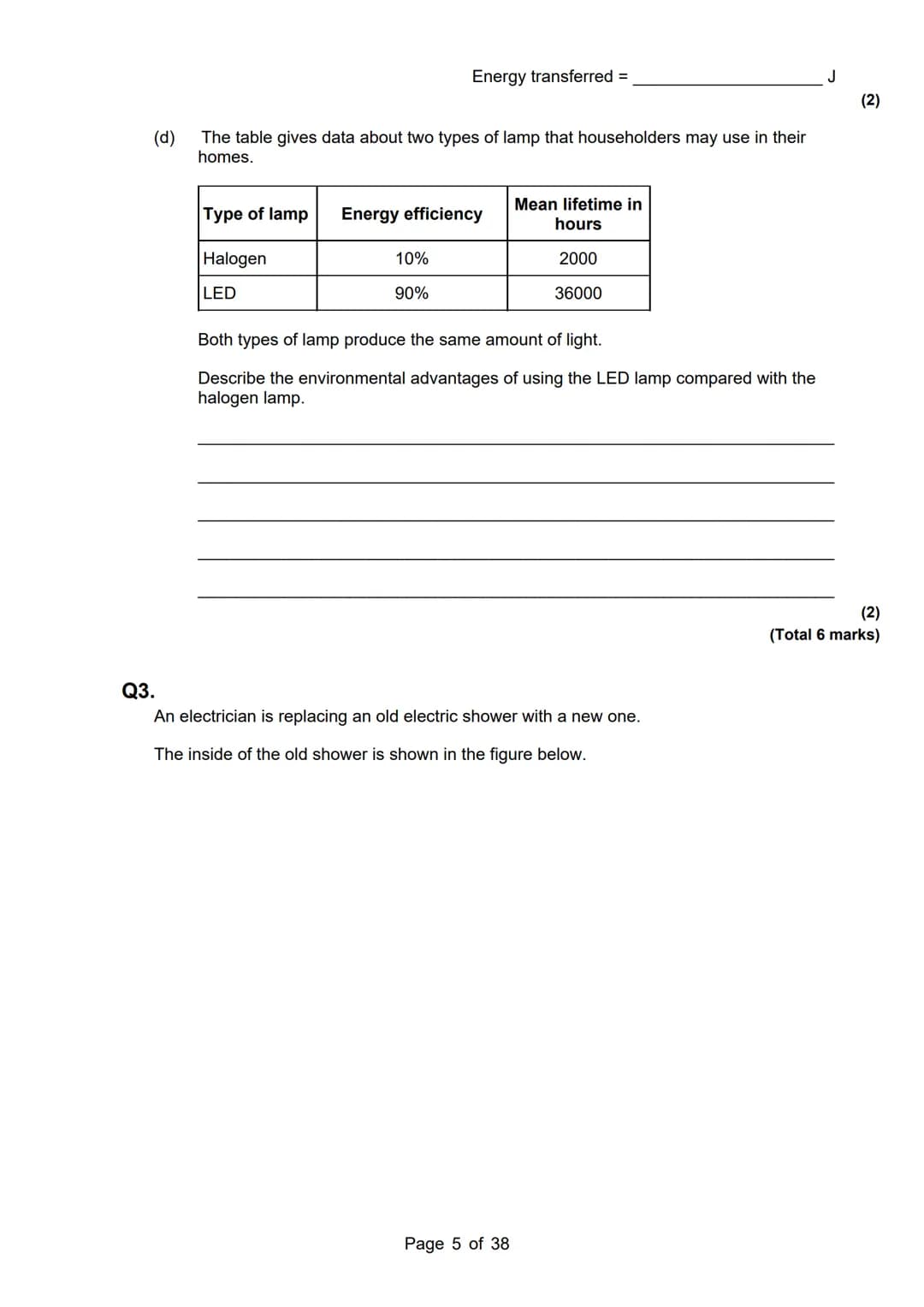

Understanding Electrical Power and Energy Efficiency in Household Applications

The efficiency of electrical devices plays a crucial role in both energy consumption and environmental impact. When comparing different lighting technologies like LED and halogen lamps, several key factors determine their overall effectiveness and environmental footprint.

LED lamps demonstrate superior energy efficiency at 90% compared to halogen lamps at 10%. This substantial difference in efficiency means LED lamps convert more electrical energy into useful light output while wasting less energy as heat. Additionally, LED lamps have a significantly longer mean lifetime of 36,000 hours versus 2,000 hours for halogen lamps, resulting in less frequent replacement and reduced waste.

Definition: Energy efficiency is the percentage of input energy that gets converted into useful output energy.

The environmental advantages of LED technology extend beyond just energy efficiency. The reduced energy consumption leads to lower electricity demand from power stations, resulting in decreased carbon emissions. The longer lifetime means fewer resources are needed for manufacturing replacement bulbs, and less waste ends up in landfills. This combination of factors makes LED lamps a more environmentally sustainable choice for household lighting.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

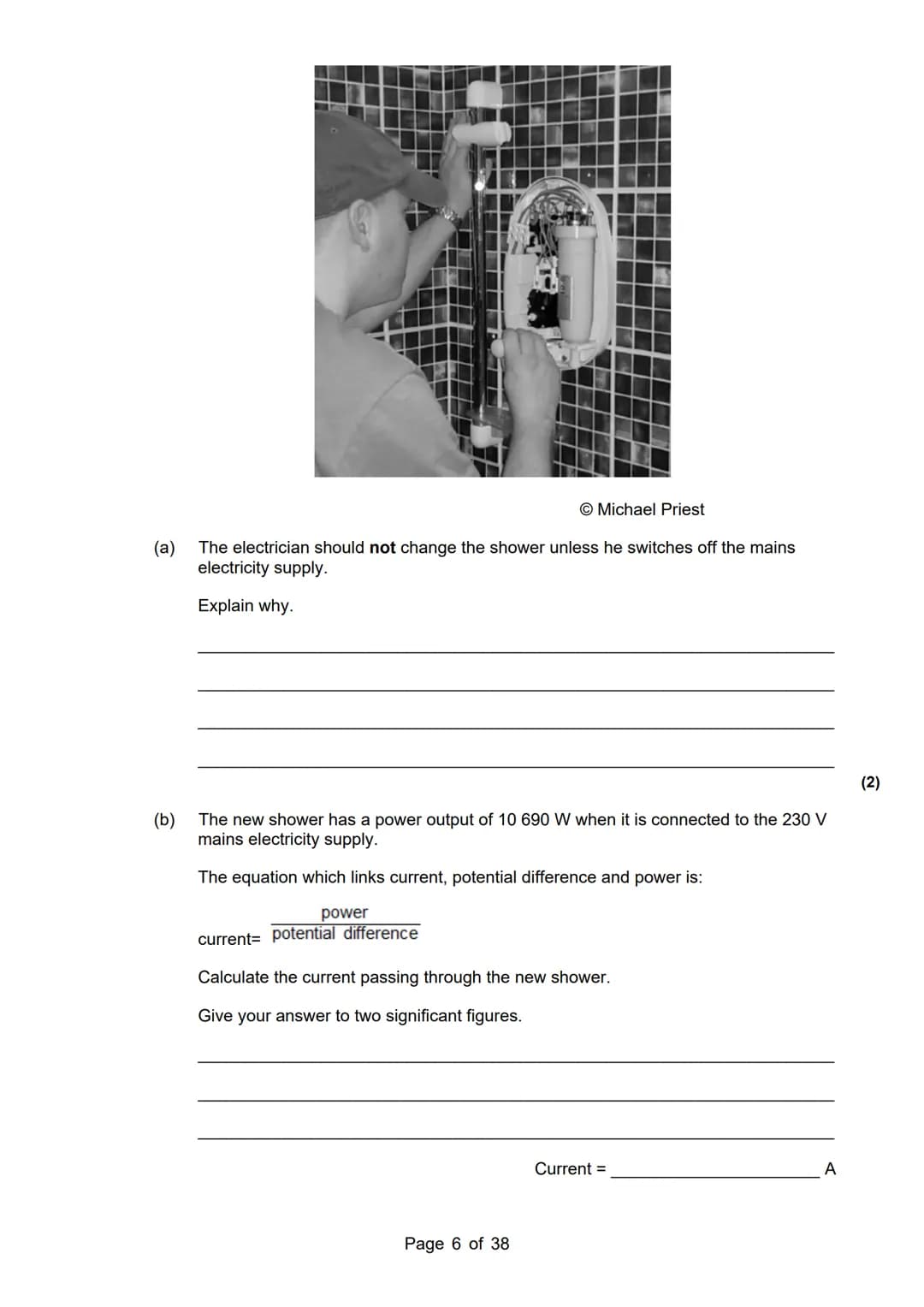

Electrical Safety and Power Calculations in Household Appliances

When working with electrical installations like electric showers, safety is paramount. The mains electricity supply must be switched off before any maintenance or replacement work begins to prevent the risk of electric shock, as water and electricity create a potentially lethal combination.

Example: For a shower rated at 10,690 W connected to a 230 V supply, the current can be calculated using the equation: Current = Power ÷ Voltage = 10,690 ÷ 230 = 46.5 A (to 2 significant figures)

Understanding power ratings is crucial for calculating operating costs. A higher power rating means more electrical energy is converted to heat energy per second, resulting in higher electricity consumption and increased running costs. This relationship between power and cost is direct - doubling the power rating doubles the energy consumption for the same usage time.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

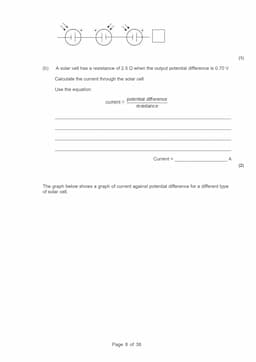

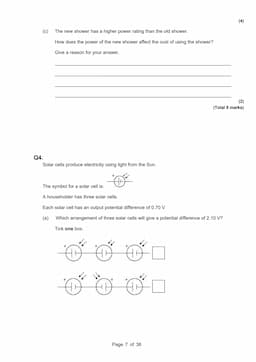

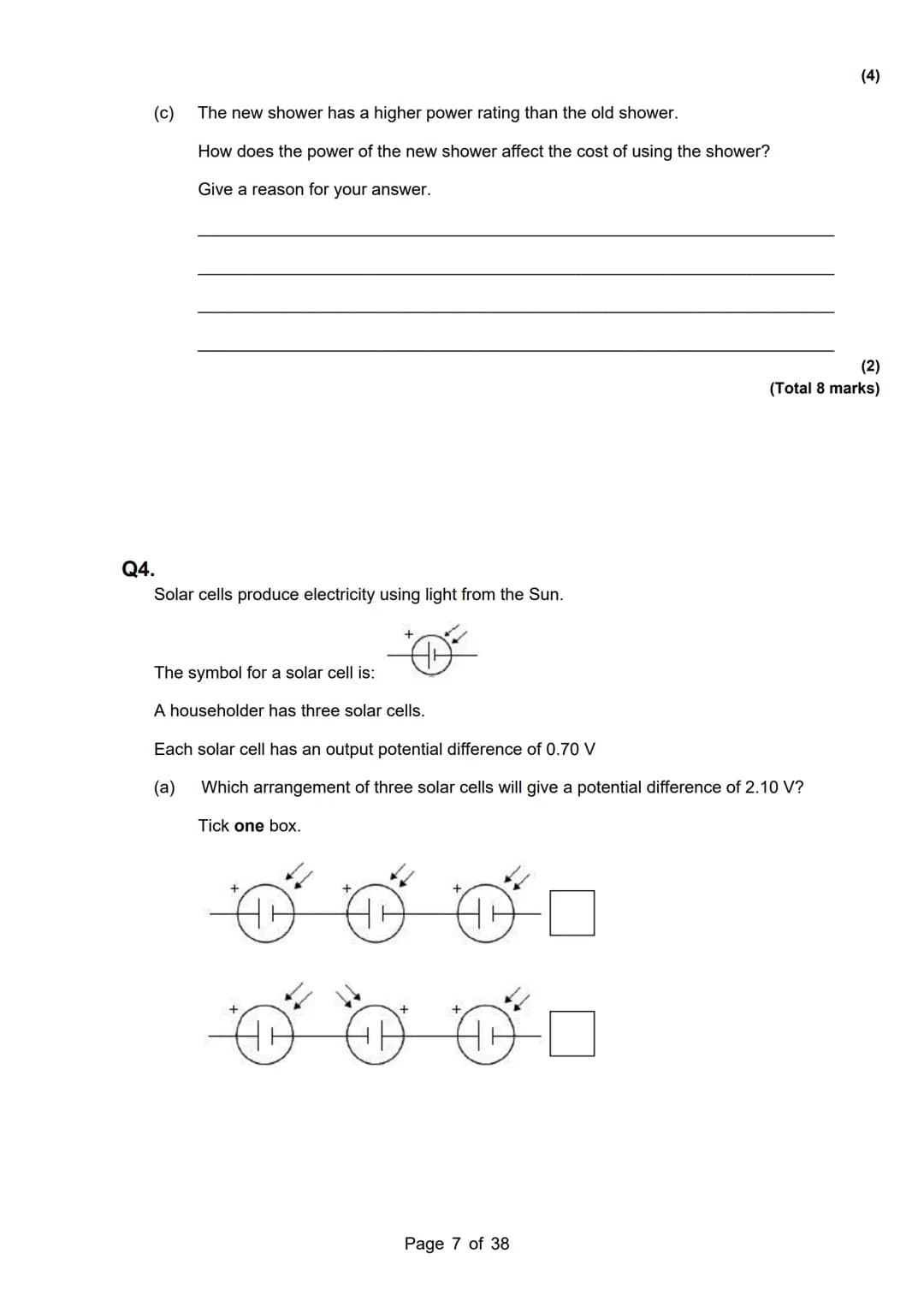

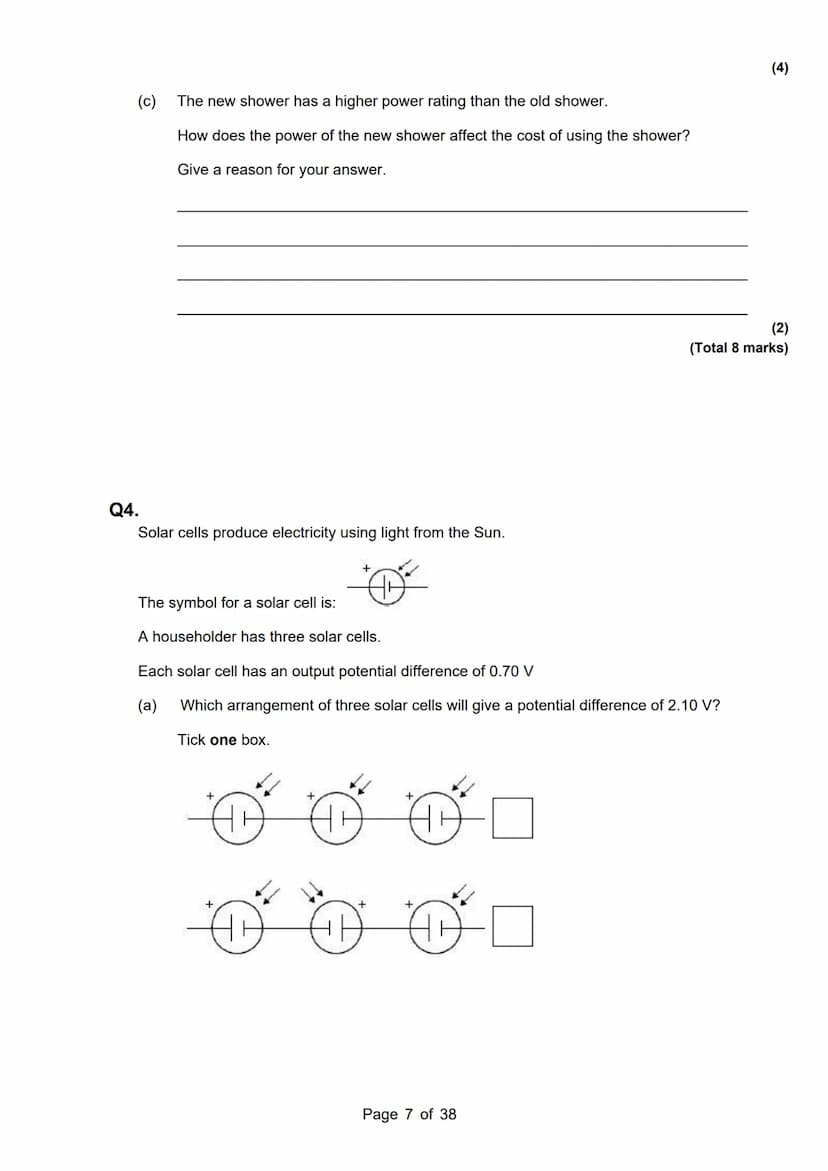

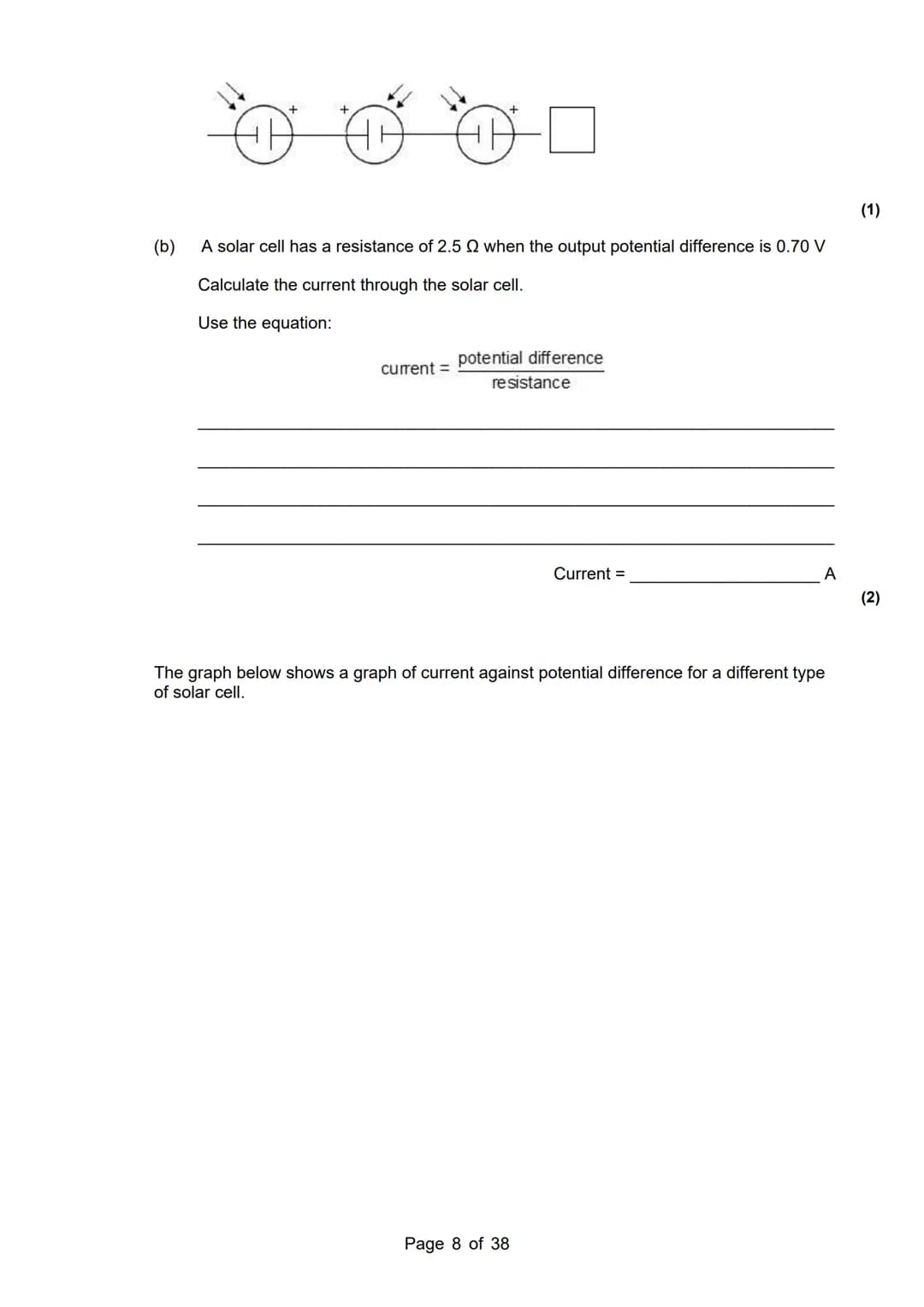

Solar Cell Configurations and Electrical Characteristics

Solar cells convert light energy into electrical energy, providing a renewable source of electricity. When connecting multiple solar cells, their arrangement affects the total output voltage. Series connections add voltages together, while parallel connections maintain the same voltage but increase current capacity.

Highlight: The arrangement of solar cells must be carefully considered to achieve the desired output voltage. For a target voltage of 2.10 V, cells must be connected in series to sum their individual voltages.

Understanding the relationship between current and voltage in solar cells is essential for optimizing their performance. Using Ohm's Law (V = IR), we can calculate the current through a solar cell when given its resistance and voltage. For example, with a resistance of 2.5 Ω and voltage of 0.70 V: Current = 0.70 V ÷ 2.5 Ω = 0.28 A

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

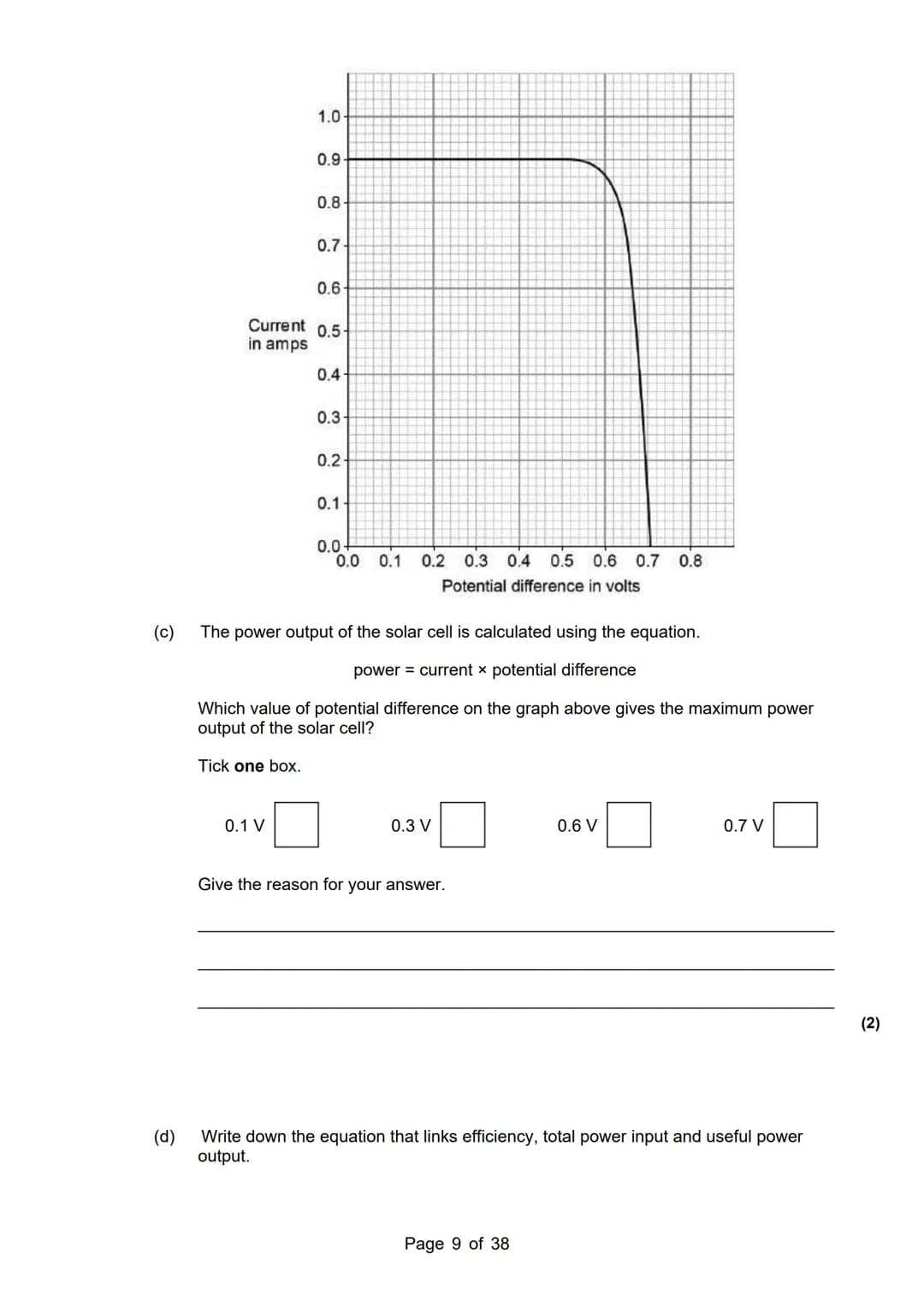

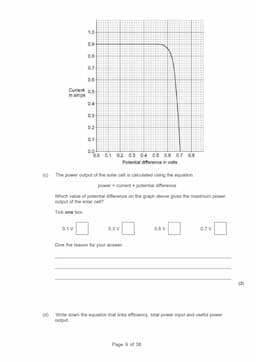

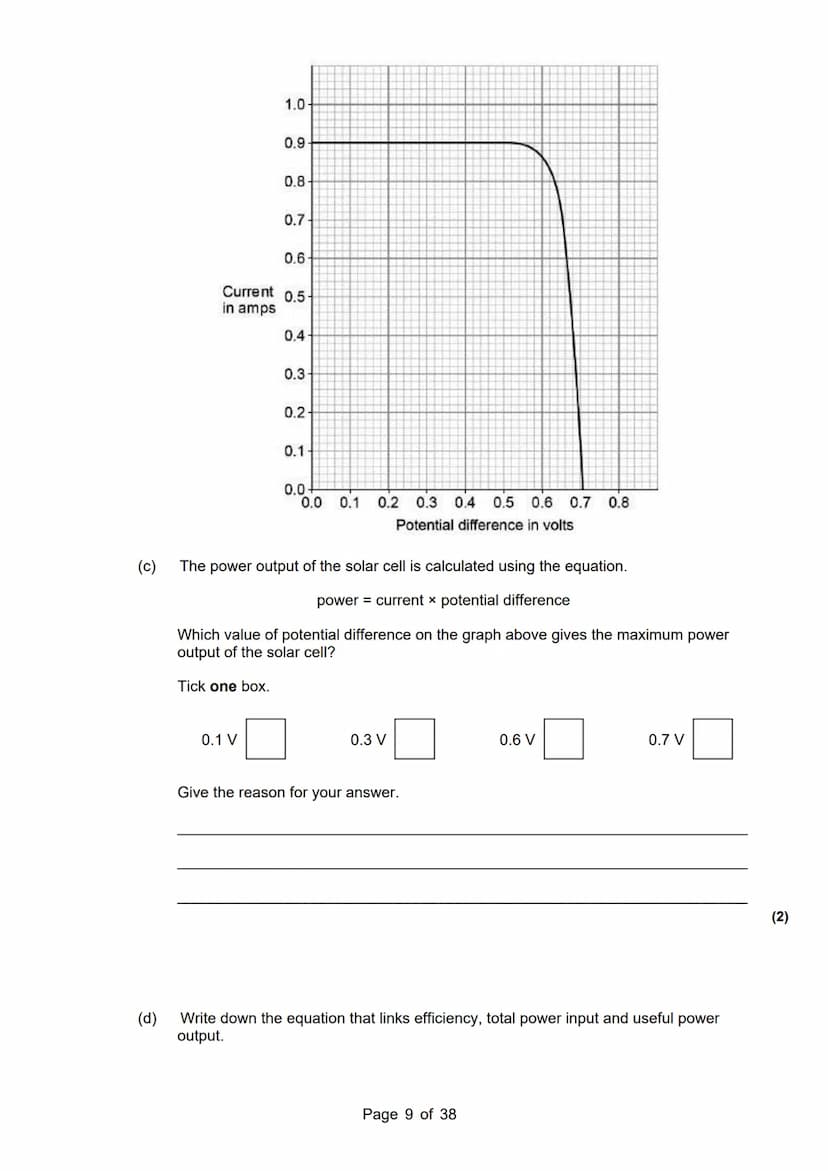

Solar Cell Power Output and Efficiency Analysis

The power output of a solar cell depends on both current and voltage, following the equation P = IV (Power = Current × Voltage). The maximum power point occurs where the product of current and voltage reaches its peak on the I-V characteristic curve.

Vocabulary: The maximum power point (MPP) is the operating point where a solar cell delivers its highest power output, representing the optimal balance between current and voltage.

Efficiency in solar cells is calculated using the relationship between useful power output and total power input. This ratio helps evaluate how effectively the solar cell converts light energy into electrical energy. The equation for efficiency is: Efficiency = (Useful Power Output ÷ Total Power Input) × 100%

Understanding these relationships allows for optimal solar cell operation and system design, ensuring maximum energy harvest from available sunlight.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

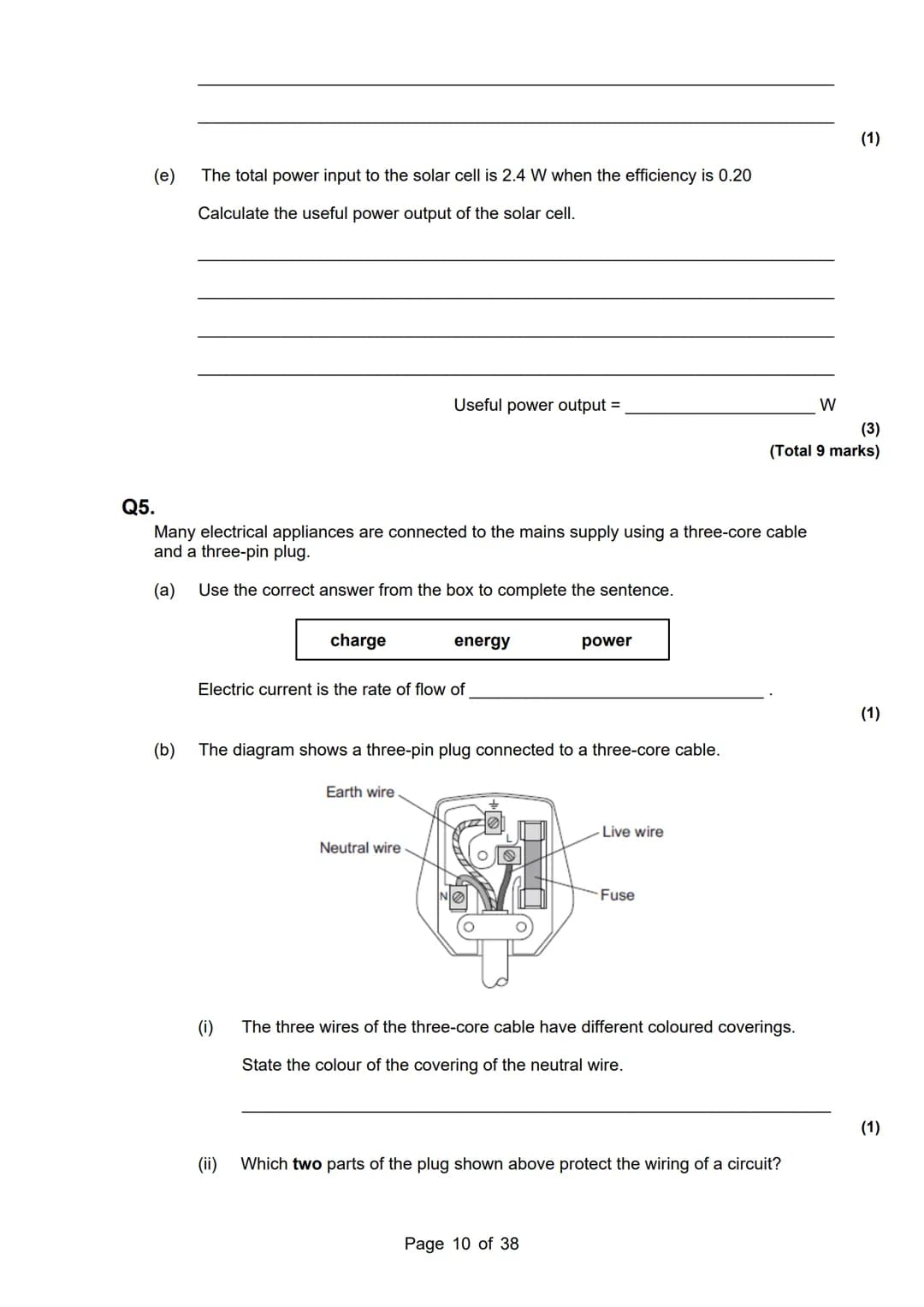

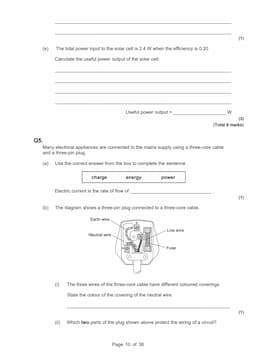

Understanding Electrical Power and Safety in Circuits

The concept of electrical power and safety components in household circuits is fundamental to GCSE Physics electricity exam questions and answers. When working with solar cells and electrical systems, understanding power calculations and safety features is crucial for both theoretical knowledge and practical applications.

In analyzing solar cell efficiency, we calculate useful power output by multiplying the total power input by the efficiency rating. For instance, with a total power input of 2.4 W and an efficiency of 0.20, the useful power output would be 0.48 W. This demonstrates how energy transfer formula Physics applies in real-world renewable energy systems.

Definition: Electric current is the rate of flow of charge through a conductor, measured in amperes (A). This fundamental concept is essential for understanding how electrical devices function.

Household electrical safety is implemented through three-core cables and three-pin plugs. These components are critical safety features in modern electrical systems. The three-core cable consists of live, neutral, and earth wires, each with distinct functions and color-coded coverings for safety identification. The neutral wire specifically has a blue covering in modern installations (black in older systems).

Highlight: Two crucial protective components in a three-pin plug are:

  • The fuse, which breaks the circuit if current exceeds safe levels
  • The earth wire, which provides a safe path for fault currents

Understanding these safety features is essential when dealing with Calculate energy transferred in a circuit physics aqa questions. The relationship between power, current, and voltage in household circuits demonstrates how electrical energy is safely delivered to our homes while protecting both users and equipment.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

View

Electrical Safety and Circuit Protection Mechanisms

The implementation of electrical safety measures in household circuits involves multiple protective mechanisms working together. These systems are designed to prevent electrical accidents and protect both users and equipment from potential hazards.

Three-core cables are fundamental to electrical safety, with each wire serving a specific purpose. The live wire (brown) carries the main current, the neutral wire (blue) completes the circuit, and the earth wire (green and yellow stripes) provides protection against electrical faults. This configuration is essential for understanding Energy transferred equation units and safety principles.

Example: In a properly wired three-pin plug:

  • The fuse is always connected to the live wire
  • The earth wire connects to the top pin
  • The neutral wire connects to the left pin (viewing from front)
  • All connections must be tight and secure

The relationship between electrical safety and power transmission is crucial for understanding Calculate energy transferred in a circuit physics aqa gcse. When electrical appliances are connected to the mains supply, the three-pin plug system ensures safe power delivery while protecting against potential hazards through multiple safety mechanisms.

Vocabulary: Key terms in electrical safety:

  • Current: Rate of charge flow
  • Potential difference: Voltage between points
  • Resistance: Opposition to current flow
  • Earth: Safety pathway for fault currents

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

15 M

Pupils love Knowunity

#1

In education app charts in 12 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

AQA Physics Electricity Past Paper Questions & Van de Graaff Generator Explained

Understanding electrical concepts and calculations is fundamental for success in GCSE Physics electricity exam questions and answers.

The Van de Graaff generator serves as a crucial demonstration device for teaching electrostatic principles. This machine uses mechanical energy to accumulate large amounts of static electrical charge, capable of generating potentials up to several hundred thousand volts. The Van de Graaff generator experiment explained shows how a moving belt transfers electrons from the lower roller to the upper dome, creating a significant potential difference. The dome becomes positively charged as electrons are continuously removed, demonstrating fundamental principles of charge separation and accumulation. Students should understand that the Van de Graaff generator voltage depends on factors like humidity, belt speed, and dome size.

When solving Physics GCSE questions and answers pdf problems related to energy transfer in circuits, students must master several key equations. The energy transferred equation E = VIt (where E is energy in joules, V is voltage in volts, I is current in amperes, and t is time in seconds) is essential for calculating electrical energy transfer. Alternative forms include E = QV (where Q is charge in coulombs) and E = I²Rt (where R is resistance in ohms). These formulas appear frequently in AQA physics electricity past paper questions and answers, requiring students to manipulate units correctly and understand their practical applications. The energy transfer formula Physics problems often involve real-world scenarios, such as calculating energy consumption in household appliances or determining the cost of running electrical devices. Students should pay particular attention to the energy transferred unit, which is the joule (J), and understand how to convert between joules and kilowatt-hours (kWh) for practical applications.

24/05/2023

872



10/11



Physics

16

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Understanding Static Electricity and Van de Graaff Generators in Physics

When studying electrical charges and static electricity, it's crucial to understand how objects become charged through friction and the principles behind Van de Graaff generators. The process of charging by friction, as demonstrated with an acetate rod and cloth, involves the transfer of electrons between materials.

Definition: Static electricity occurs when there is an imbalance of electric charges within or on the surface of a material. This charge imbalance remains until it can be released through a discharge.

When an acetate rod is rubbed with a cloth, electrons transfer from one material to another. This creates opposite charges on each object - typically negative charges on the acetate rod and positive charges on the cloth. This fundamental principle explains why the objects will experience a force of attraction when brought near each other after charging.

The Van de Graaff generator demonstrates these principles on a larger scale. As the generator operates, it accumulates charge on its metal dome, creating an increasing potential difference between the dome and the earthed sphere. This potential difference can reach significant voltages, often resulting in visible sparks when the charge difference becomes great enough to break down the air between the dome and sphere.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Calculating Energy Transfer in Electrical Systems

Understanding energy transfer in electrical systems is fundamental to Physics GCSE questions and answers pdf. The relationship between energy, charge, and potential difference is expressed through the equation: Energy transferred = charge × potential difference.

Example: If a Van de Graaff generator creates a potential difference of 60 kV and transfers 0.000025 coulombs of charge, the energy transferred can be calculated as: Energy = 0.000025 C × 60,000 V = 1.5 joules

The energy transferred equation helps us understand how electrical systems store and transfer energy. This concept is particularly important when studying electrical devices and their efficiency.

When working with circuits, it's essential to recognize that the energy transferred unit is measured in joules (J), while charge is measured in coulombs (C) and potential difference in volts (V).

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Circuit Components and Their Behaviors

Understanding how different components behave in electrical circuits is crucial for mastering GCSE Physics electricity exam questions and answers. Variable resistors play a vital role in controlling current flow through a circuit, allowing us to study how other components respond to changing conditions.

Highlight: The resistance of a filament lamp increases with temperature as the potential difference across it increases. This occurs because the metal filament gets hotter, causing the atoms to vibrate more vigorously and impede electron flow.

When calculating energy transfer in circuits, we use the same fundamental equation: energy transferred = charge × potential difference. This relationship remains consistent whether we're working with static electricity or current electricity.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Advanced Circuit Analysis and Energy Calculations

For AQA physics electricity past paper questions and answers, understanding how to analyze circuits and calculate energy transfer is essential. When working with filament lamps, the relationship between current and potential difference is non-linear due to temperature effects.

Vocabulary: Potential difference (voltage) is the energy transferred per unit charge between two points in a circuit.

To calculate energy transfer in a circuit with a 12.0 V potential difference and 8.5 C charge flow: Energy transferred = 8.5 C × 12.0 V = 102 joules

This calculation demonstrates how the equation for energy transferred voltage and charge can be applied to real-world situations. Understanding these relationships is crucial for solving AQA physics electricity past paper questions GCSE.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Understanding Electrical Power and Energy Efficiency in Household Applications

The efficiency of electrical devices plays a crucial role in both energy consumption and environmental impact. When comparing different lighting technologies like LED and halogen lamps, several key factors determine their overall effectiveness and environmental footprint.

LED lamps demonstrate superior energy efficiency at 90% compared to halogen lamps at 10%. This substantial difference in efficiency means LED lamps convert more electrical energy into useful light output while wasting less energy as heat. Additionally, LED lamps have a significantly longer mean lifetime of 36,000 hours versus 2,000 hours for halogen lamps, resulting in less frequent replacement and reduced waste.

Definition: Energy efficiency is the percentage of input energy that gets converted into useful output energy.

The environmental advantages of LED technology extend beyond just energy efficiency. The reduced energy consumption leads to lower electricity demand from power stations, resulting in decreased carbon emissions. The longer lifetime means fewer resources are needed for manufacturing replacement bulbs, and less waste ends up in landfills. This combination of factors makes LED lamps a more environmentally sustainable choice for household lighting.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Electrical Safety and Power Calculations in Household Appliances

When working with electrical installations like electric showers, safety is paramount. The mains electricity supply must be switched off before any maintenance or replacement work begins to prevent the risk of electric shock, as water and electricity create a potentially lethal combination.

Example: For a shower rated at 10,690 W connected to a 230 V supply, the current can be calculated using the equation: Current = Power ÷ Voltage = 10,690 ÷ 230 = 46.5 A (to 2 significant figures)

Understanding power ratings is crucial for calculating operating costs. A higher power rating means more electrical energy is converted to heat energy per second, resulting in higher electricity consumption and increased running costs. This relationship between power and cost is direct - doubling the power rating doubles the energy consumption for the same usage time.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Solar Cell Configurations and Electrical Characteristics

Solar cells convert light energy into electrical energy, providing a renewable source of electricity. When connecting multiple solar cells, their arrangement affects the total output voltage. Series connections add voltages together, while parallel connections maintain the same voltage but increase current capacity.

Highlight: The arrangement of solar cells must be carefully considered to achieve the desired output voltage. For a target voltage of 2.10 V, cells must be connected in series to sum their individual voltages.

Understanding the relationship between current and voltage in solar cells is essential for optimizing their performance. Using Ohm's Law (V = IR), we can calculate the current through a solar cell when given its resistance and voltage. For example, with a resistance of 2.5 Ω and voltage of 0.70 V: Current = 0.70 V ÷ 2.5 Ω = 0.28 A

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Solar Cell Power Output and Efficiency Analysis

The power output of a solar cell depends on both current and voltage, following the equation P = IV (Power = Current × Voltage). The maximum power point occurs where the product of current and voltage reaches its peak on the I-V characteristic curve.

Vocabulary: The maximum power point (MPP) is the operating point where a solar cell delivers its highest power output, representing the optimal balance between current and voltage.

Efficiency in solar cells is calculated using the relationship between useful power output and total power input. This ratio helps evaluate how effectively the solar cell converts light energy into electrical energy. The equation for efficiency is: Efficiency = (Useful Power Output ÷ Total Power Input) × 100%

Understanding these relationships allows for optimal solar cell operation and system design, ensuring maximum energy harvest from available sunlight.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Understanding Electrical Power and Safety in Circuits

The concept of electrical power and safety components in household circuits is fundamental to GCSE Physics electricity exam questions and answers. When working with solar cells and electrical systems, understanding power calculations and safety features is crucial for both theoretical knowledge and practical applications.

In analyzing solar cell efficiency, we calculate useful power output by multiplying the total power input by the efficiency rating. For instance, with a total power input of 2.4 W and an efficiency of 0.20, the useful power output would be 0.48 W. This demonstrates how energy transfer formula Physics applies in real-world renewable energy systems.

Definition: Electric current is the rate of flow of charge through a conductor, measured in amperes (A). This fundamental concept is essential for understanding how electrical devices function.

Household electrical safety is implemented through three-core cables and three-pin plugs. These components are critical safety features in modern electrical systems. The three-core cable consists of live, neutral, and earth wires, each with distinct functions and color-coded coverings for safety identification. The neutral wire specifically has a blue covering in modern installations (black in older systems).

Highlight: Two crucial protective components in a three-pin plug are:

  • The fuse, which breaks the circuit if current exceeds safe levels
  • The earth wire, which provides a safe path for fault currents

Understanding these safety features is essential when dealing with Calculate energy transferred in a circuit physics aqa questions. The relationship between power, current, and voltage in household circuits demonstrates how electrical energy is safely delivered to our homes while protecting both users and equipment.

revise
with
harry
AQA Physics
Topic 2: Electricity
Master Booklet
Answer the questions that are given to you, and you
can use the mark schem

Electrical Safety and Circuit Protection Mechanisms

The implementation of electrical safety measures in household circuits involves multiple protective mechanisms working together. These systems are designed to prevent electrical accidents and protect both users and equipment from potential hazards.

Three-core cables are fundamental to electrical safety, with each wire serving a specific purpose. The live wire (brown) carries the main current, the neutral wire (blue) completes the circuit, and the earth wire (green and yellow stripes) provides protection against electrical faults. This configuration is essential for understanding Energy transferred equation units and safety principles.

Example: In a properly wired three-pin plug:

  • The fuse is always connected to the live wire
  • The earth wire connects to the top pin
  • The neutral wire connects to the left pin (viewing from front)
  • All connections must be tight and secure

The relationship between electrical safety and power transmission is crucial for understanding Calculate energy transferred in a circuit physics aqa gcse. When electrical appliances are connected to the mains supply, the three-pin plug system ensures safe power delivery while protecting against potential hazards through multiple safety mechanisms.

Vocabulary: Key terms in electrical safety:

  • Current: Rate of charge flow
  • Potential difference: Voltage between points
  • Resistance: Opposition to current flow
  • Earth: Safety pathway for fault currents
