Electrical Circuits and Current

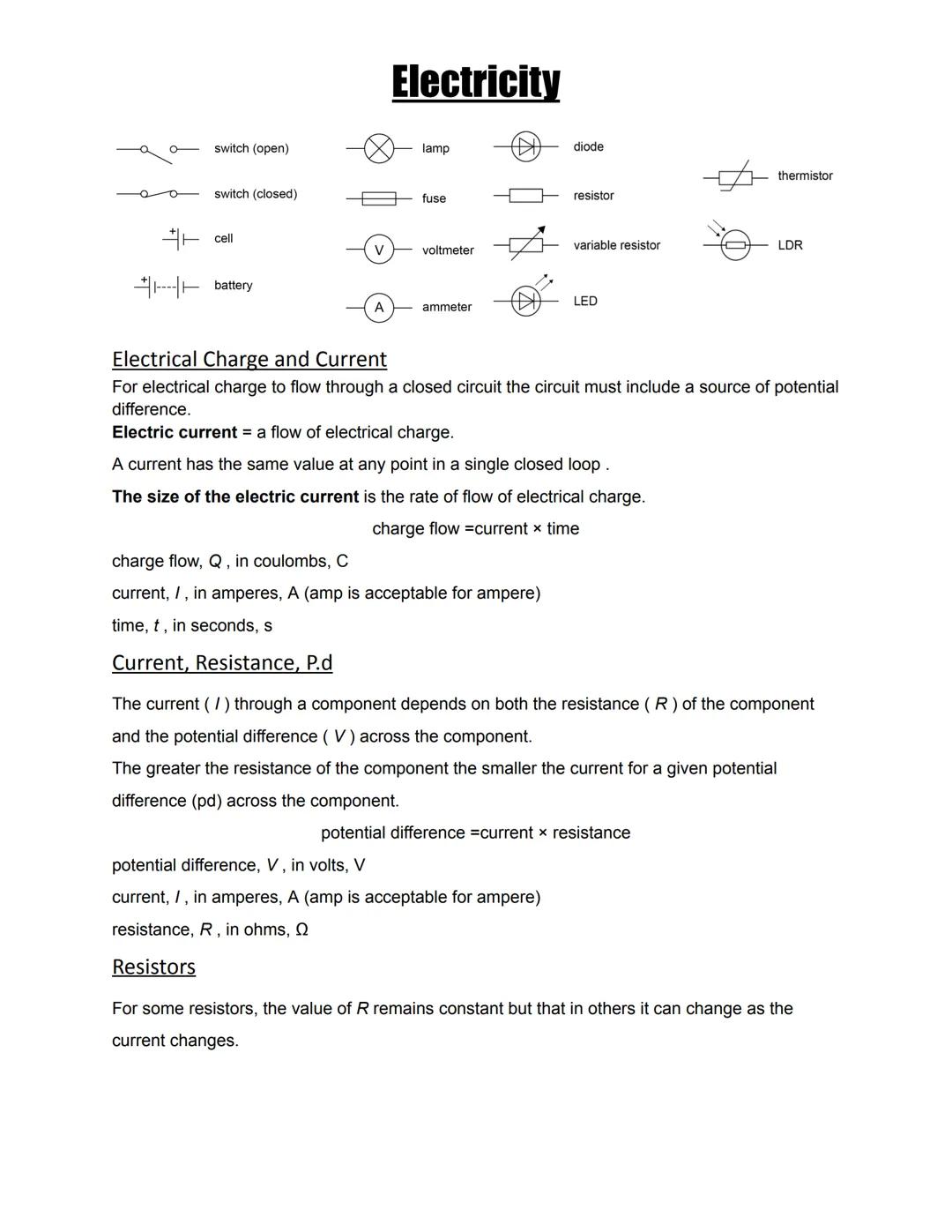

Ever wondered what actually happens when you flip a light switch? Electric current is simply the flow of electrical charge around a closed circuit - think of it like water flowing through pipes. The current stays the same throughout a single loop, just like water flow in a continuous pipe.

You can calculate how much charge flows using this handy formula: charge flow = current × time. Current is measured in amperes (amps), time in seconds, and charge in coulombs.

The relationship between current, resistance, and potential difference follows a simple rule: potential difference = current × resistance. This means if you increase the resistance in a circuit (like adding more obstacles), less current will flow for the same voltage.

Quick Tip: Think of electrical resistance like traffic jams - the more resistance, the slower the flow!

How Different Components Behave

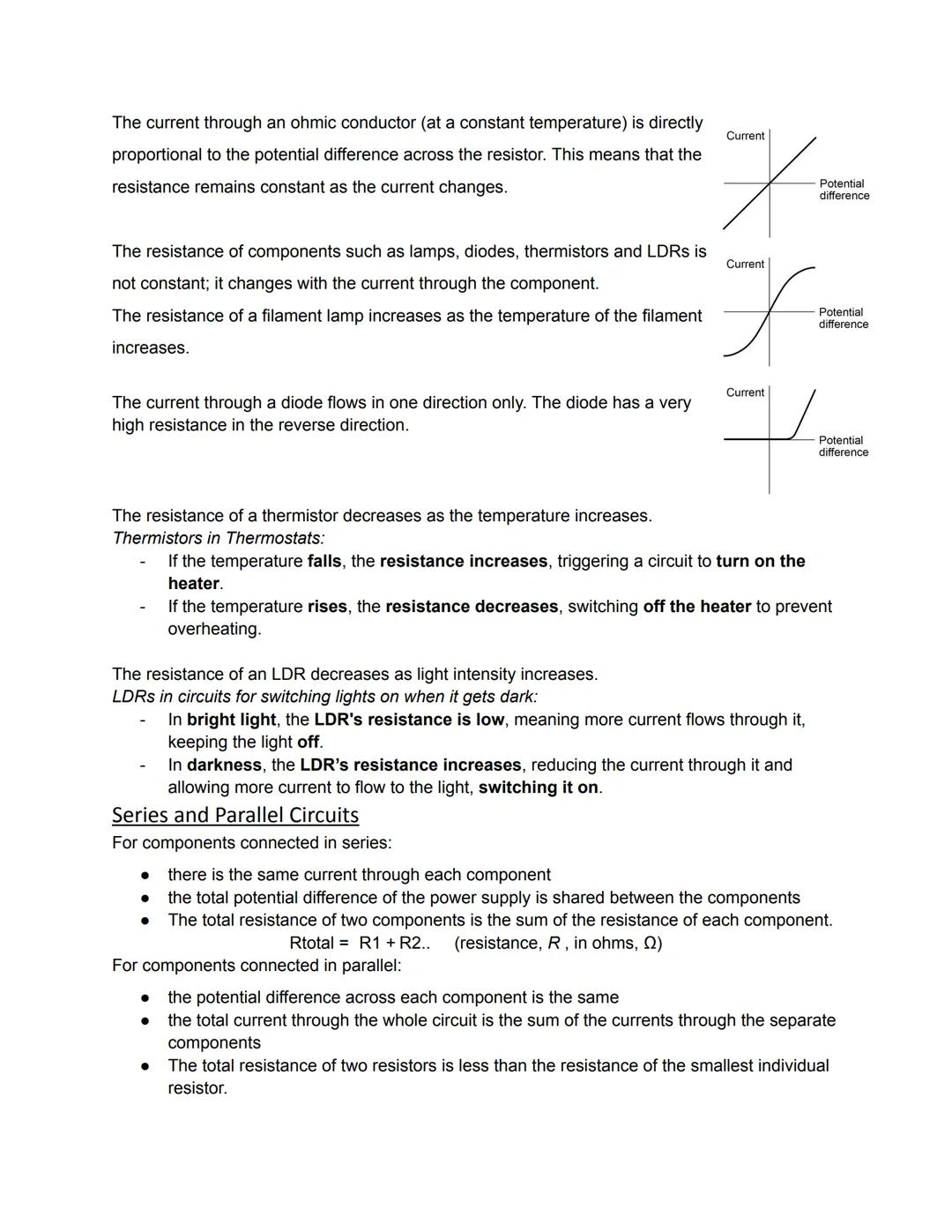

Not all electrical components behave the same way! Ohmic conductors (like basic resistors) keep the same resistance no matter how much current flows through them - they're predictable and reliable.

But other components are more interesting. Filament lamps get hotter as more current flows, which increases their resistance. Diodes only let current flow in one direction, acting like electrical one-way streets with very high resistance in the reverse direction.

Thermistors are temperature-sensitive - their resistance decreases as temperature rises. That's why they're perfect for thermostats in heating systems. Light Dependent Resistors (LDRs) do something similar with light - less resistance when it's bright, more resistance in darkness.

Understanding series and parallel circuits is crucial. In series, current flows through each component one after another, and resistances add up. In parallel, current splits into different paths, and total resistance actually decreases.

Remember: More paths in parallel circuits means less overall resistance - like opening extra lanes on a motorway!

Mains Electricity and Safety

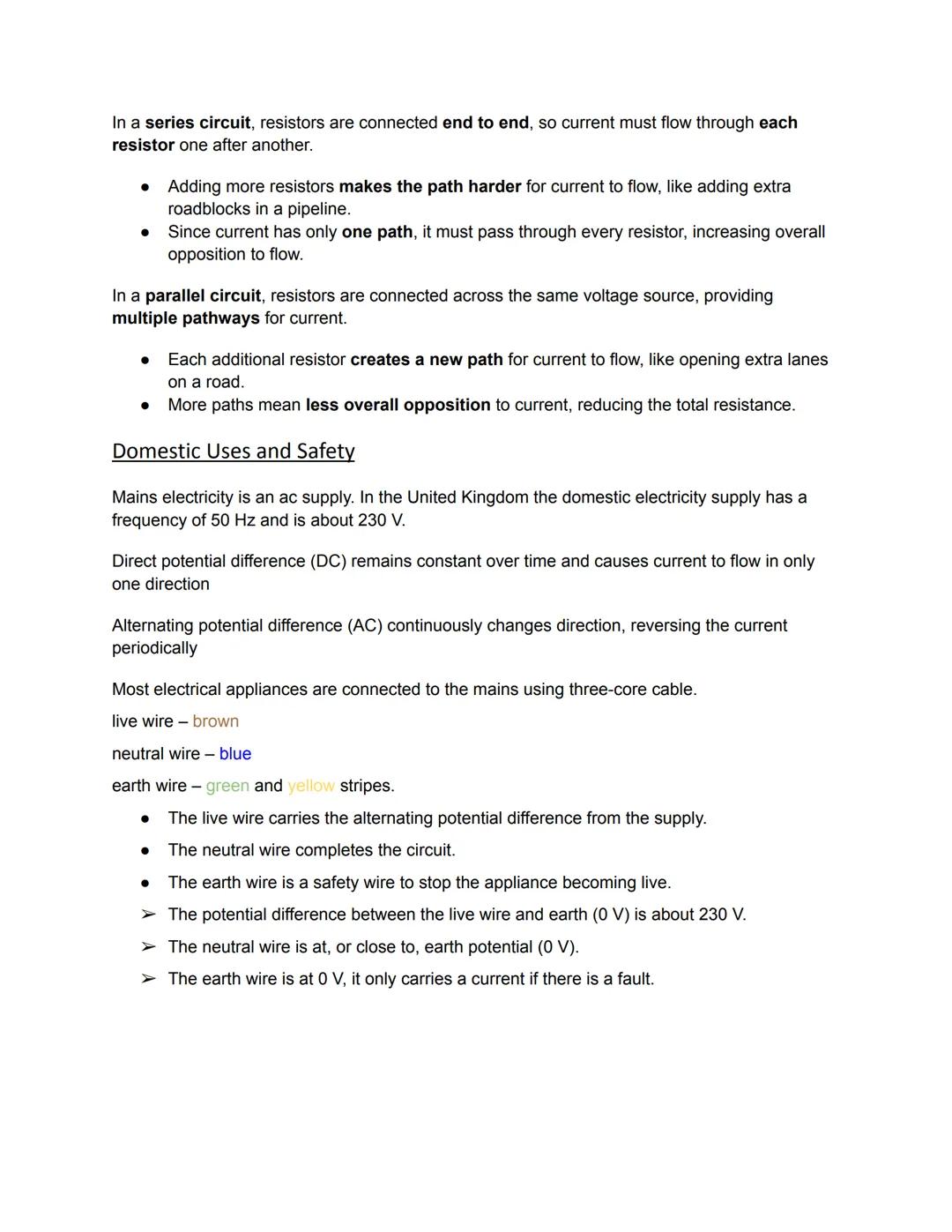

Your home's mains electricity runs on alternating current (AC) at 230V and 50Hz - this means the current constantly changes direction 50 times per second. This differs from direct current (DC) from batteries, which flows in only one direction.

Every electrical appliance uses a three-core cable with colour-coded wires. The brown live wire carries 230V from the supply, the blue neutral wire completes the circuit at 0V, and the green and yellow earth wire provides crucial safety protection.

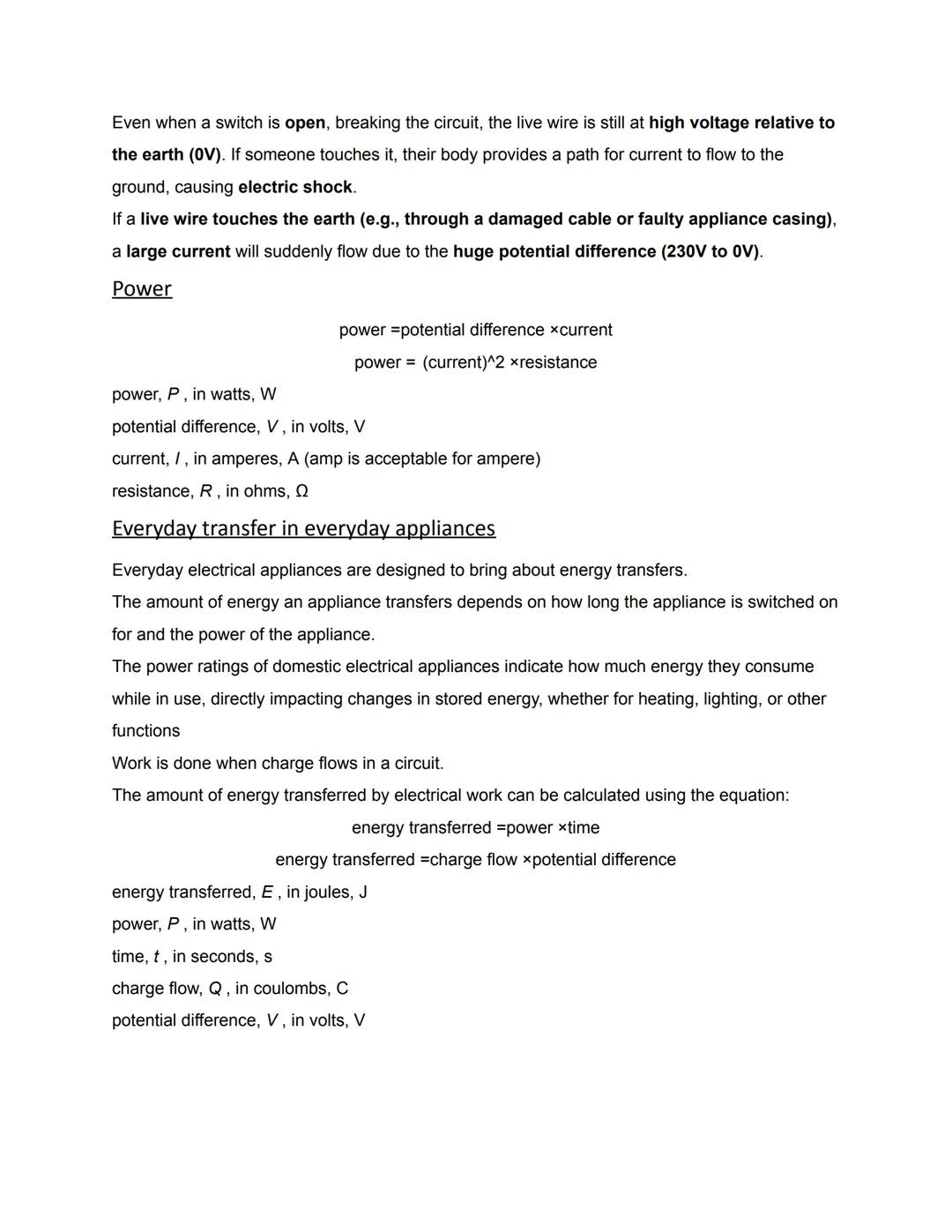

Here's the dangerous bit: even when a switch is off, the live wire still carries 230V. Touch it, and your body becomes a path to earth - that's how electric shocks happen. The earth wire protects you by providing a safer route for fault currents.

Safety systems work because when the live wire accidentally touches earth, the huge voltage difference (230V to 0V) causes a massive current surge that trips protective devices.

Safety First: Never touch exposed wires - the live wire is always dangerous, even when appliances are switched off!

Power and Energy Transfer

Power tells you how quickly an electrical device uses energy, measured in watts. You can calculate it using: power = potential difference × current, or power = current² × resistance. Higher power means more energy consumption.

Every electrical appliance transfers energy from one form to another. Your kettle converts electrical energy to heat, your phone converts it to light and sound. The energy transferred depends on both power rating and time: energy transferred = power × time.

You can also calculate energy transfer using: energy transferred = charge flow × potential difference. This shows that moving more charge through a higher voltage transfers more energy.

Understanding power ratings helps you choose efficient appliances and predict electricity bills. A 2000W kettle uses energy twice as fast as a 1000W kettle.

Money Saver: Check power ratings when buying appliances - lower wattage often means lower running costs!

The National Grid and Static Electricity

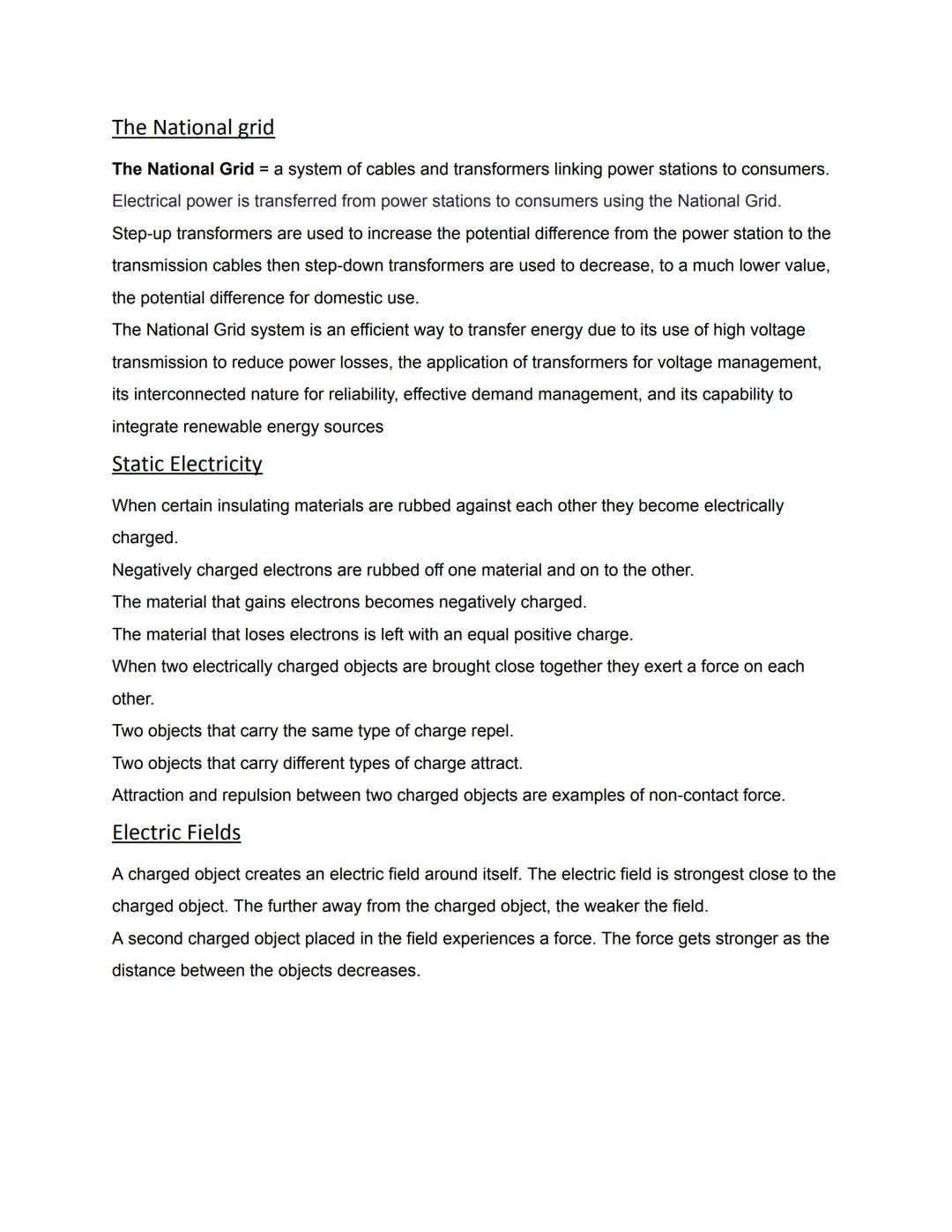

The National Grid is like a massive electrical motorway system connecting power stations to your home. Step-up transformers increase voltage for long-distance transmission (reducing energy losses), whilst step-down transformers reduce it back to safe levels for domestic use.

This high-voltage transmission system makes the grid incredibly efficient - much like sending data through fibre optic cables rather than old copper wires.

Static electricity forms when you rub insulating materials together. Electrons transfer from one material to another, creating positive and negative charges. You've experienced this when your hair sticks to a balloon or you get shocked touching a car door.

Electric fields surround any charged object, getting stronger as you get closer. When two charged objects meet, they either attract (opposite charges) or repel (same charges) - these are non-contact forces that work through the electric field.

Fun Fact: Lightning is just massive static electricity discharge between clouds and earth!
