MAGNETIC FIELDS
magnetic fields
• b-fields
• force that exerts a force on magnetised materials, moving charges & electrical currents
when a

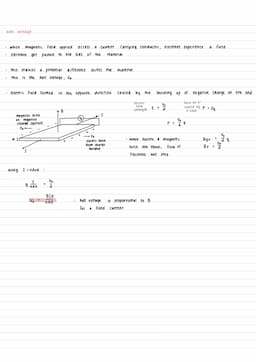

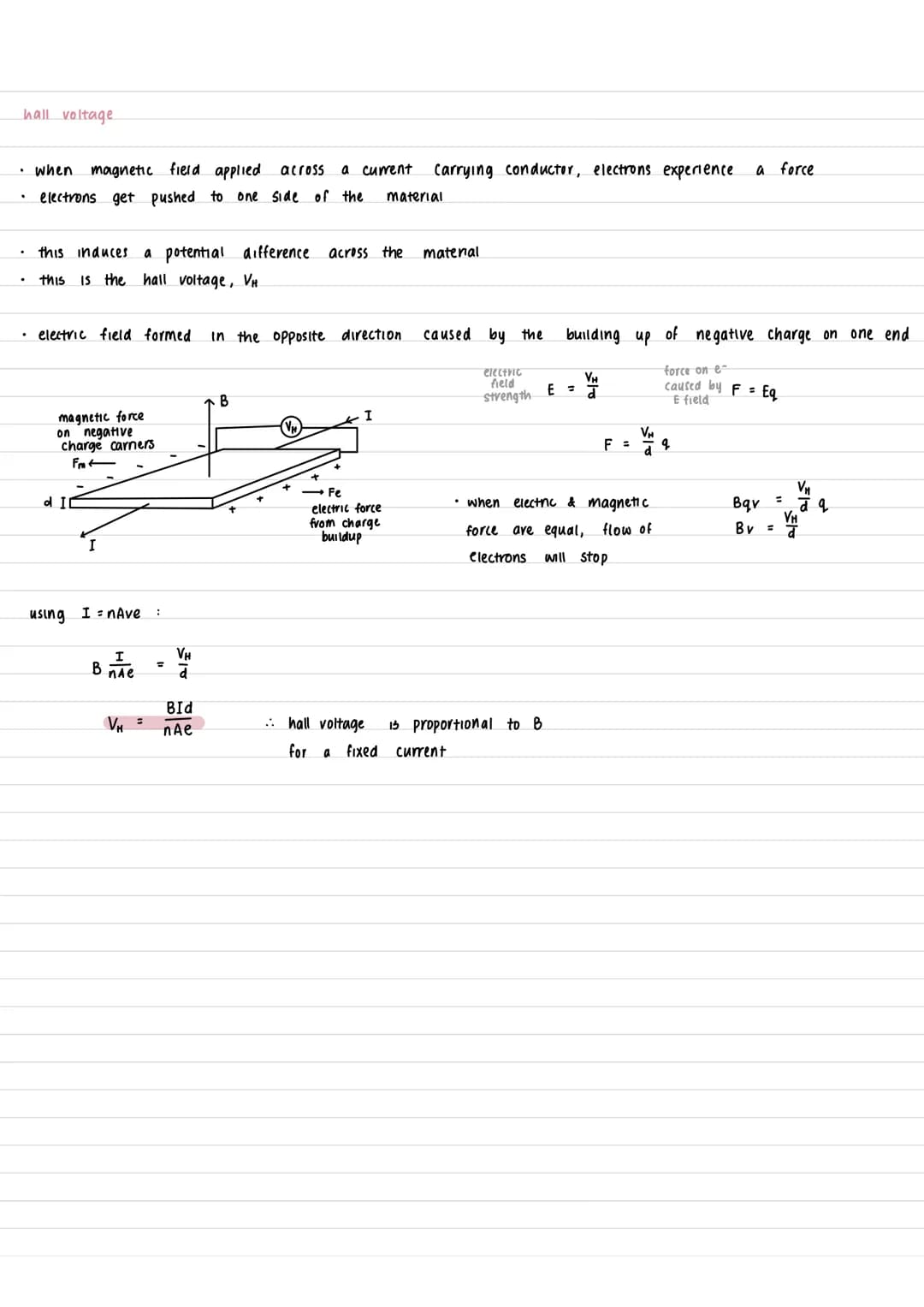

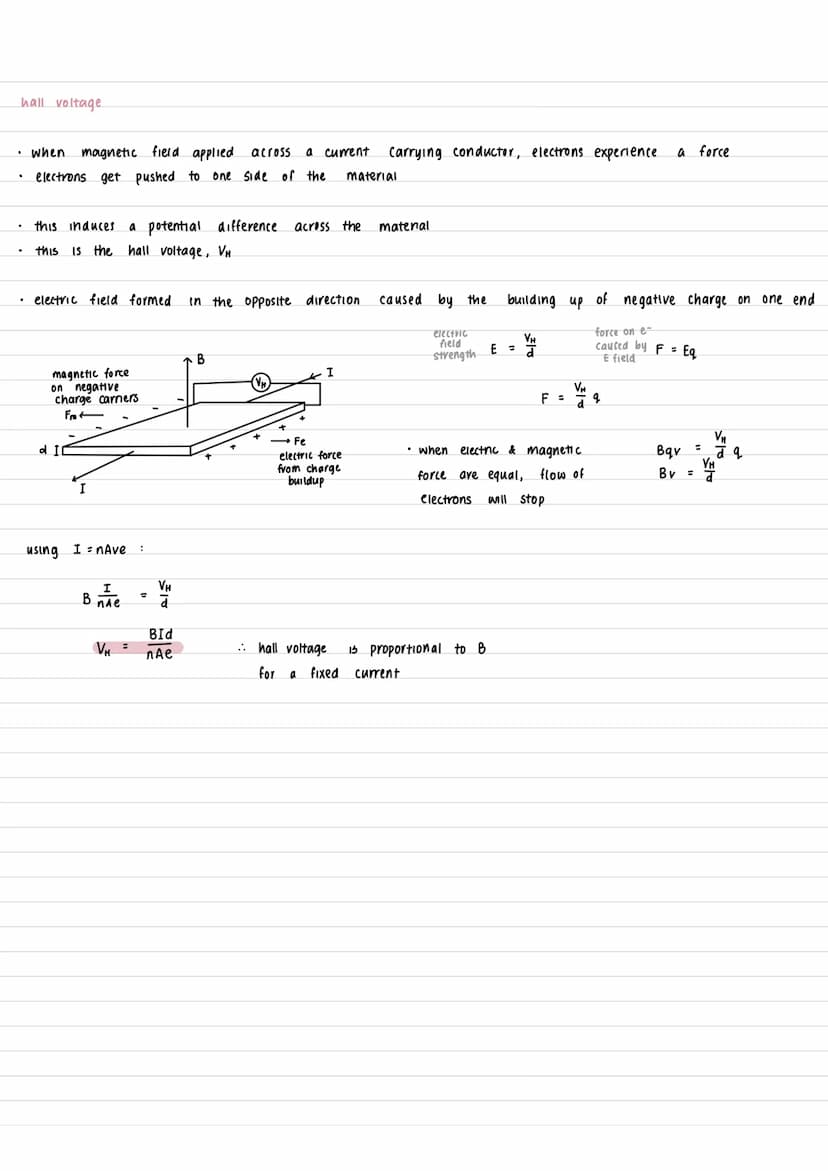

Hall Voltage

This section explains the Hall effect and its relationship to magnetic fields in current-carrying conductors.

Definition: Hall voltage is the potential difference induced across a conductor when a magnetic field is applied perpendicular to the current flow.

Highlight: The Hall voltage (VH) is proportional to the magnetic field strength (B) for a fixed current.

Example: When electrons in a conductor experience both electric and magnetic forces, they reach equilibrium when these forces become equal (Bqv = VH/d).

View

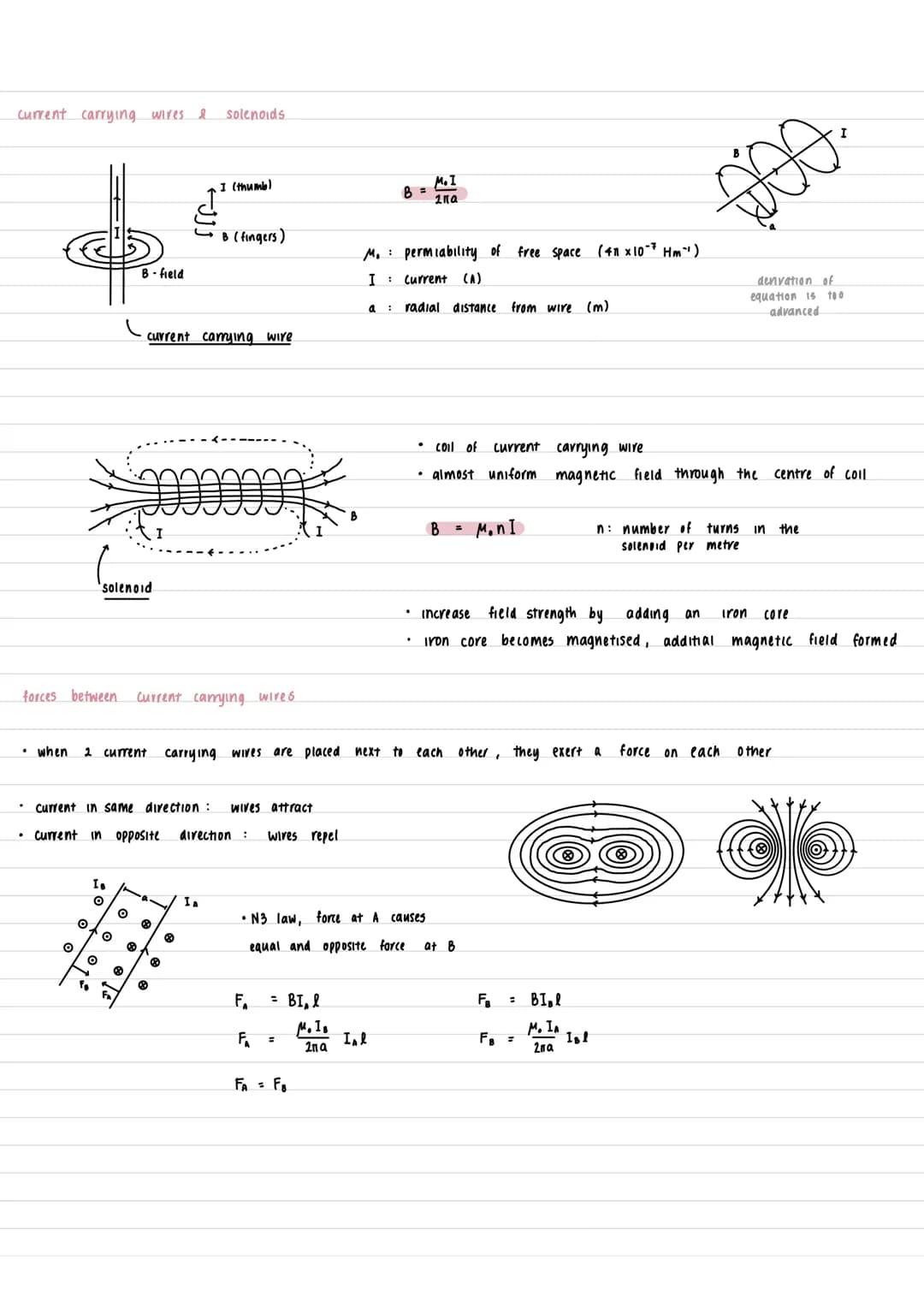

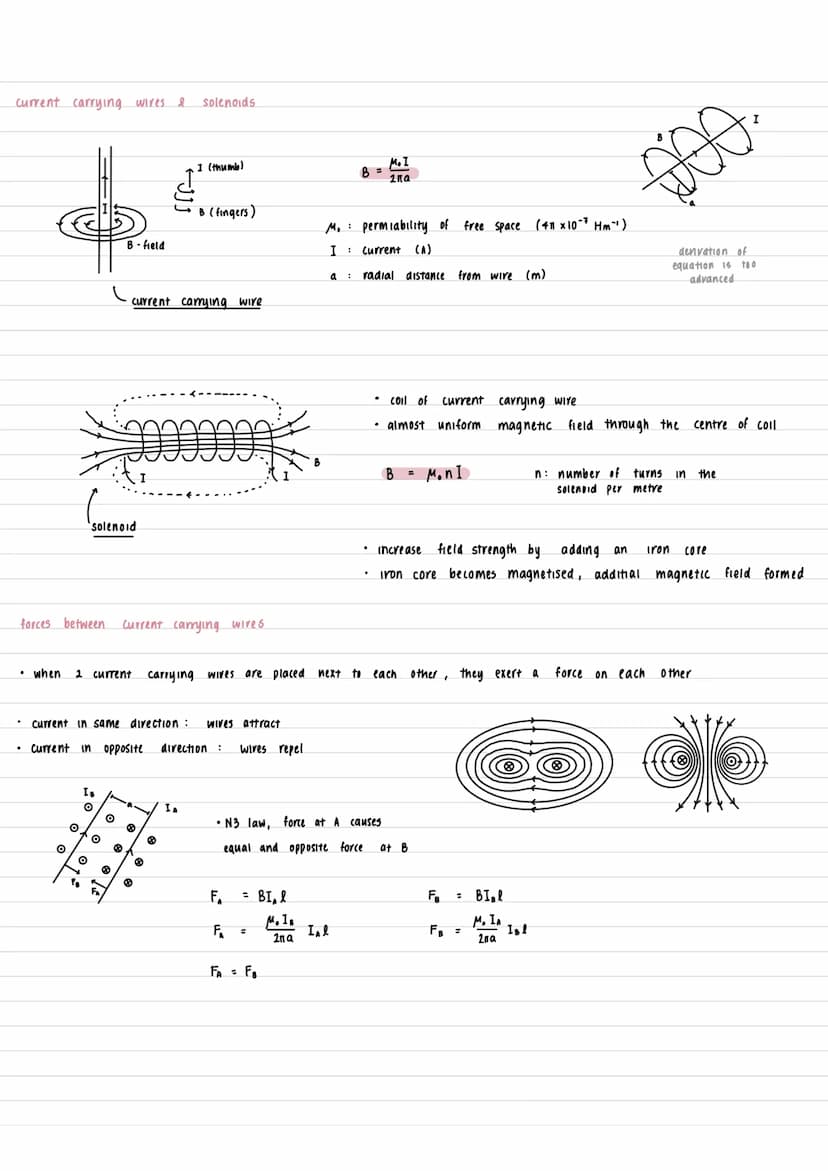

Current Carrying Wires and Solenoids

This page details the interactions between current-carrying wires and the properties of solenoids.

Definition: A solenoid is a coil of current-carrying wire that produces a nearly uniform magnetic field inside its core.

Highlight: Parallel current-carrying wires attract when currents flow in the same direction and repel when currents flow in opposite directions.

Example: The force between parallel current-carrying wires is given by F = (μ₀I₁I₂l)/(2πa), where μ₀ is the permeability of free space.

View

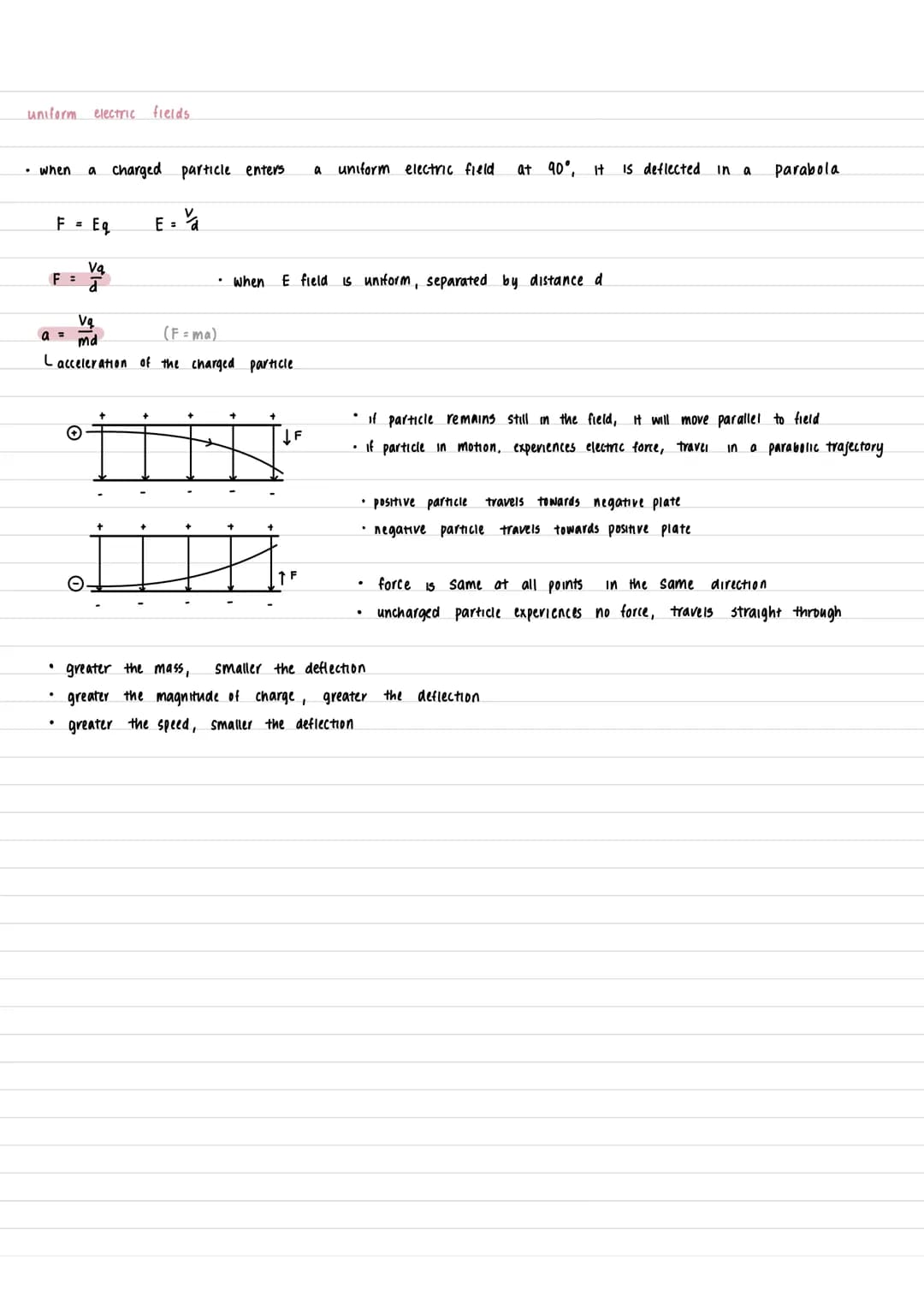

Uniform Electric Fields

This section explores the behavior of charged particles in uniform electric fields.

Definition: A uniform electric field is a region where the electric force is constant in both magnitude and direction.

Highlight: Charged particles follow parabolic trajectories when entering a uniform electric field at 90°.

Example: The acceleration of a charged particle in a uniform electric field is given by a = (Vq)/(md), where V is voltage, q is charge, m is mass, and d is distance between plates.

View

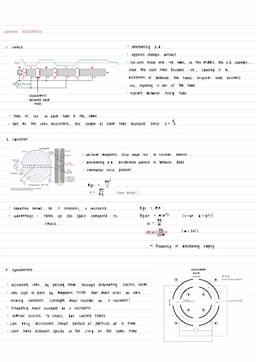

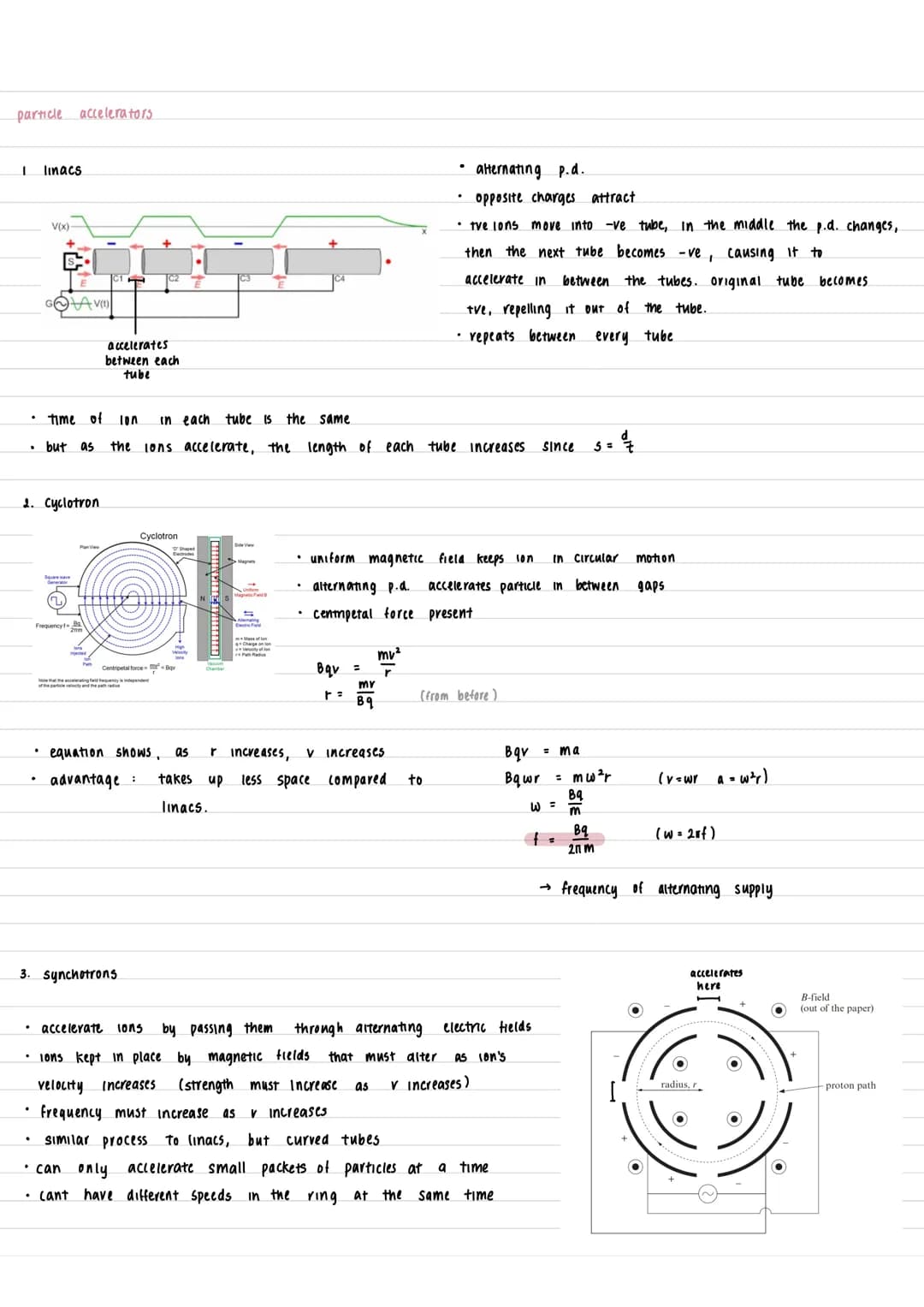

Particle Accelerators

This final section covers different types of particle accelerators and their operating principles.

Definition: Particle accelerators are devices that use electromagnetic fields to propel charged particles to high speeds.

Highlight: Three main types of accelerators are discussed: linear accelerators (linacs), cyclotrons, and synchrotrons.

Example: In a cyclotron, the frequency of particle rotation is independent of velocity and path radius, given by f = (Bq)/(2πm).

Vocabulary: Linac - Linear accelerator that uses alternating electric fields to accelerate particles in a straight line.

View

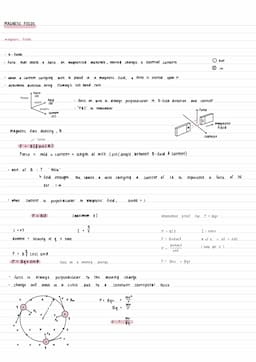

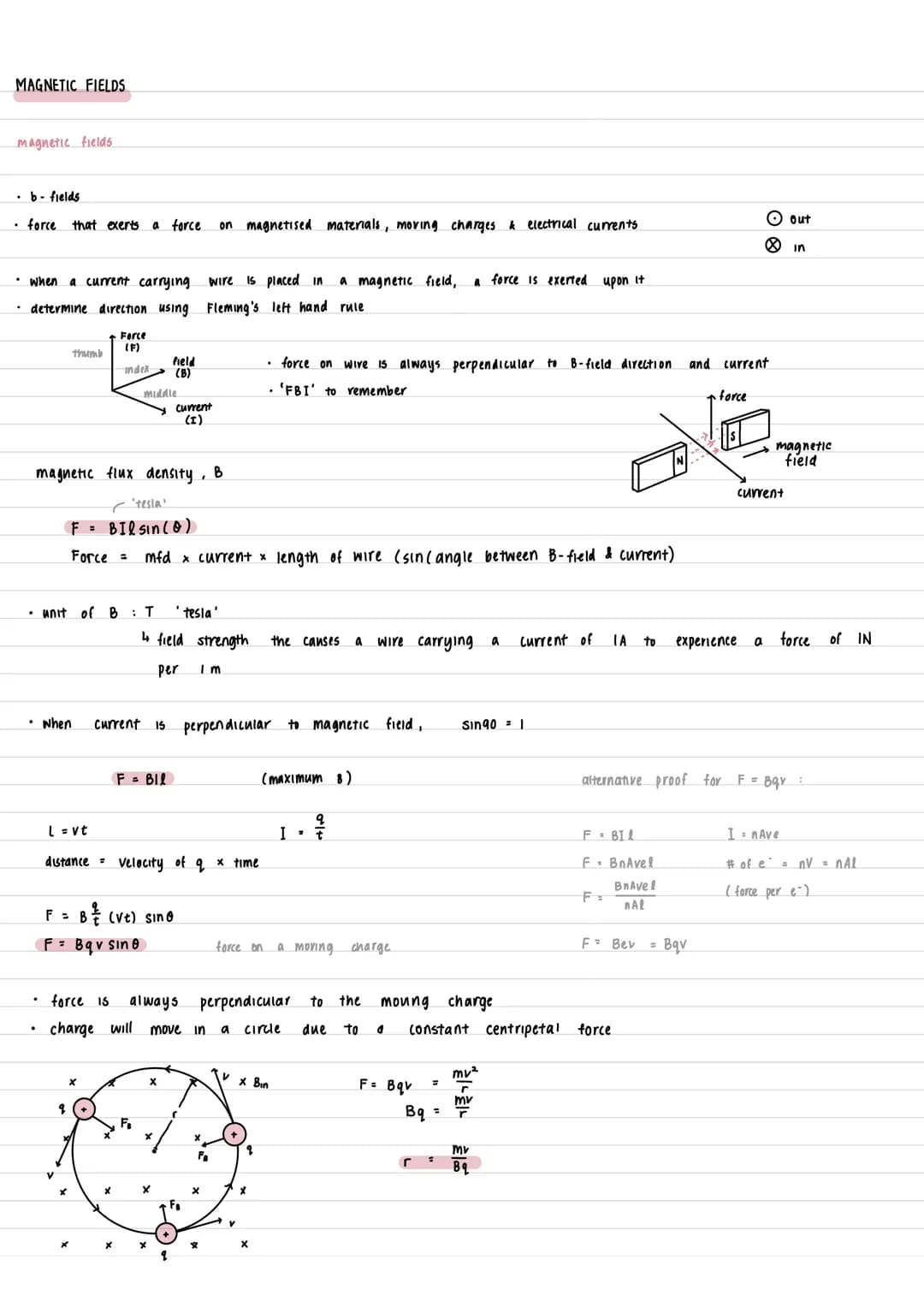

Magnetic Fields and Forces

This page introduces fundamental concepts of magnetic fields and their interactions with current-carrying conductors. The relationship between force, magnetic field, and current is explored through Fleming's left hand rule and mathematical equations.

Definition: Magnetic fields (B-fields) are forces that exert influence on magnetized materials, moving charges, and electrical currents.

Highlight: The force on a current-carrying wire in a magnetic field is given by F = BIlsinθ, where B is magnetic flux density, I is current, l is length, and θ is the angle between B-field and current.

Example: A moving charge in a magnetic field experiences a force F = Bqv, causing it to move in a circular path due to constant centripetal force.

Vocabulary: Tesla (T) - the unit of magnetic flux density, representing the field strength that causes a wire carrying 1A to experience a force of 1N per meter.
