Electric and Magnetic Fields Study Notes PDF Free | GCSE & A Level

Electric and Magnetic Fields: A Comprehensive Study Guide

This guide provides an in-depth exploration of electric and magnetic fields, covering key concepts such as electric field strength, electric potential, Coulomb's law, capacitors, and more. Ideal for GCSE and A-Level physics students seeking to understand the fundamentals of electromagnetism.

...

19/04/2023

233

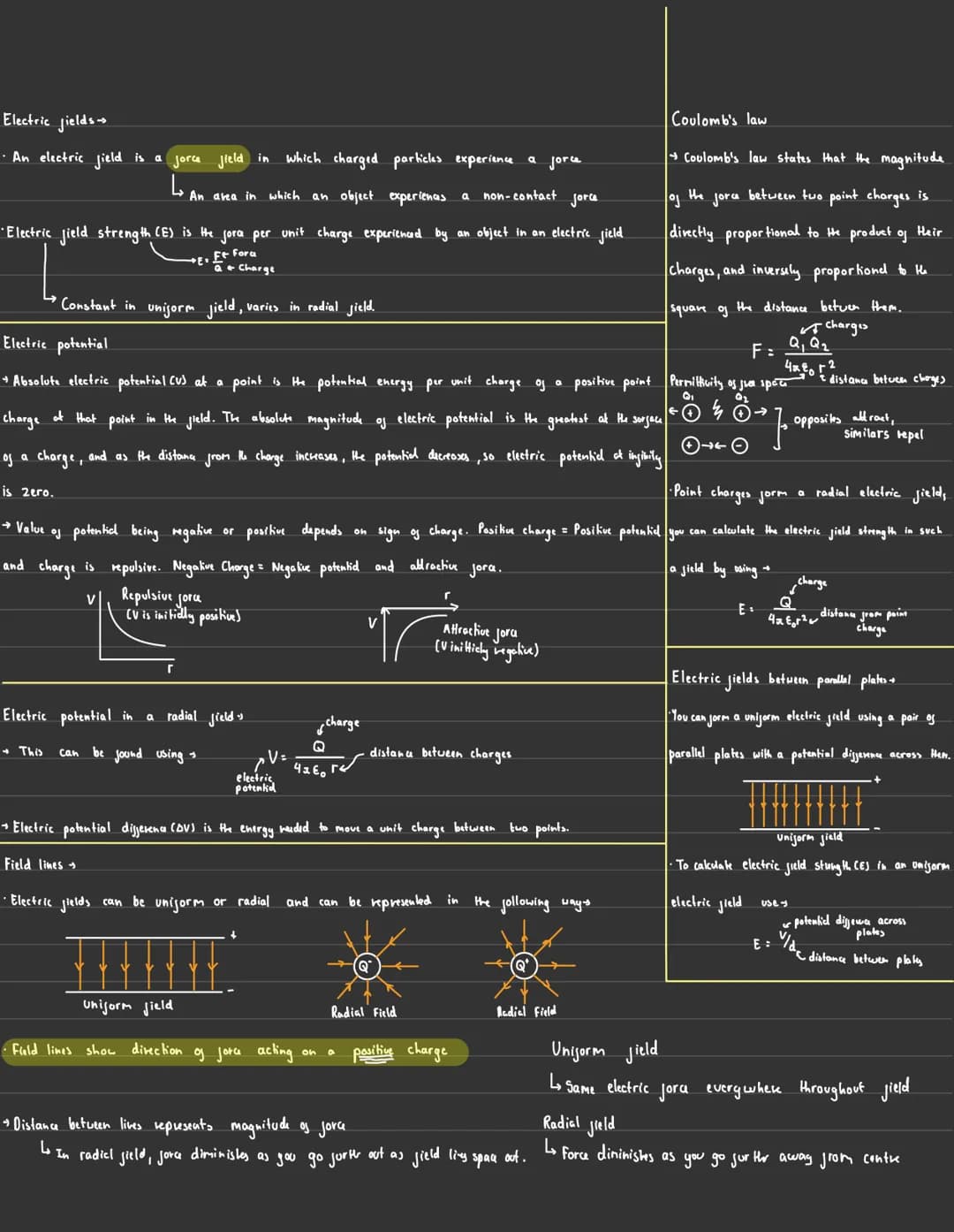

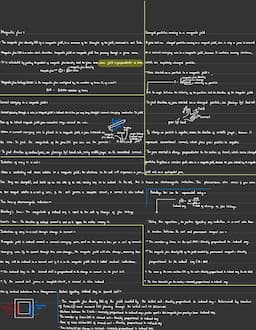

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

View

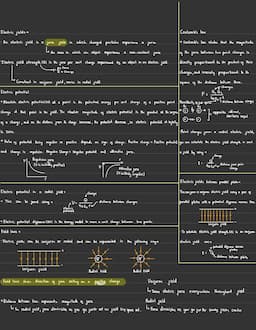

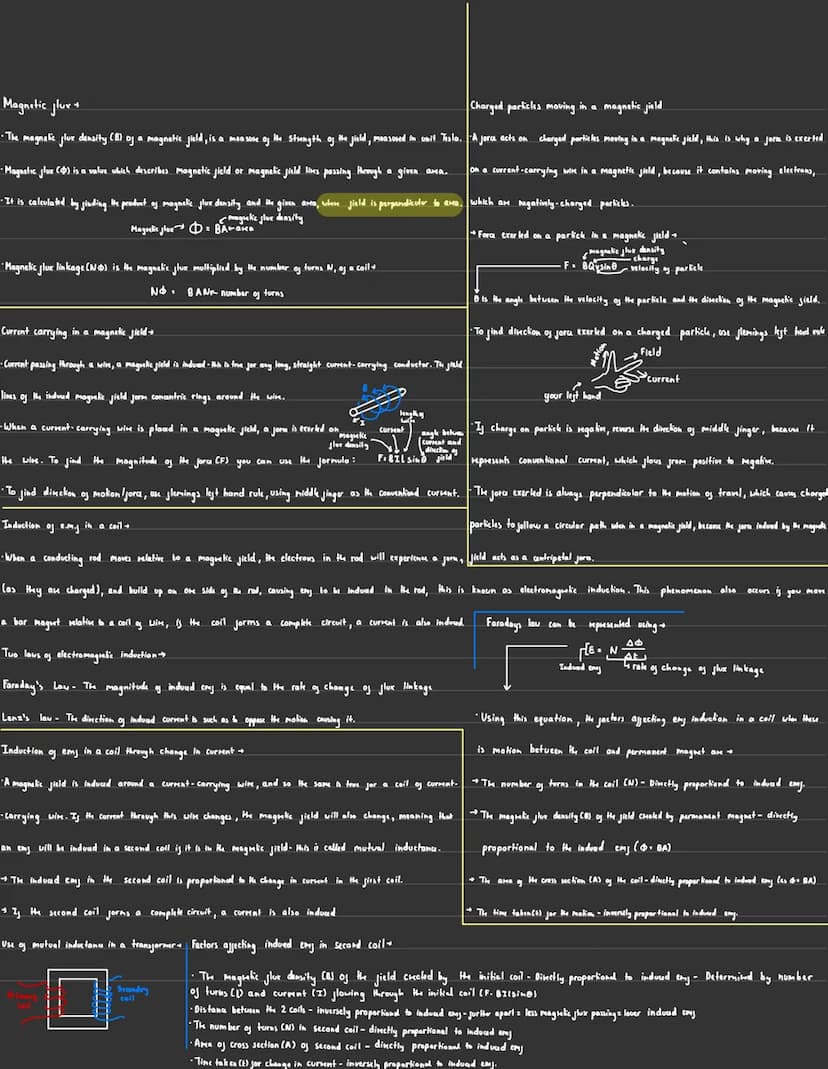

Electric Fields and Electric Potential

Electric fields are a fundamental concept in electromagnetism, describing the force experienced by charged particles in space.

Definition: An electric field is an area in which an object experiences a non-contact force due to the presence of electric charges.

Electric field strength EE is defined as the force per unit charge experienced by an object in an electric field. It is constant in a uniform field but varies in a radial field.

Vocabulary: Electric potential is the potential energy per unit charge of a positive point charge at a specific point in the field.

Key characteristics of electric potential:

  • Highest at the surface of a charge
  • Decreases with distance from the charge
  • Zero at infinity

Electric and magnetic field relation is crucial to understand, as they are interconnected phenomena in electromagnetism.

Formula: Electric potential in a radial field can be calculated using V = Q / 4πε0r4πε₀r, where Q is charge, ε₀ is permittivity of free space, and r is distance.

Electric potential vs electric potential energy is an important distinction:

  • Electric potential is the potential energy per unit charge
  • Electric potential energy depends on both the potential and the charge of the object

Highlight: The electric potential SI unit is the volt VV, while the electric potential energy units are joules JJ.

Field representations:

  1. Uniform fields: Parallel, equally spaced field lines
  2. Radial fields: Field lines radiating from a point charge

Example: A positive charge creates a radial field with field lines pointing outward, while a negative charge has field lines pointing inward.

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

View

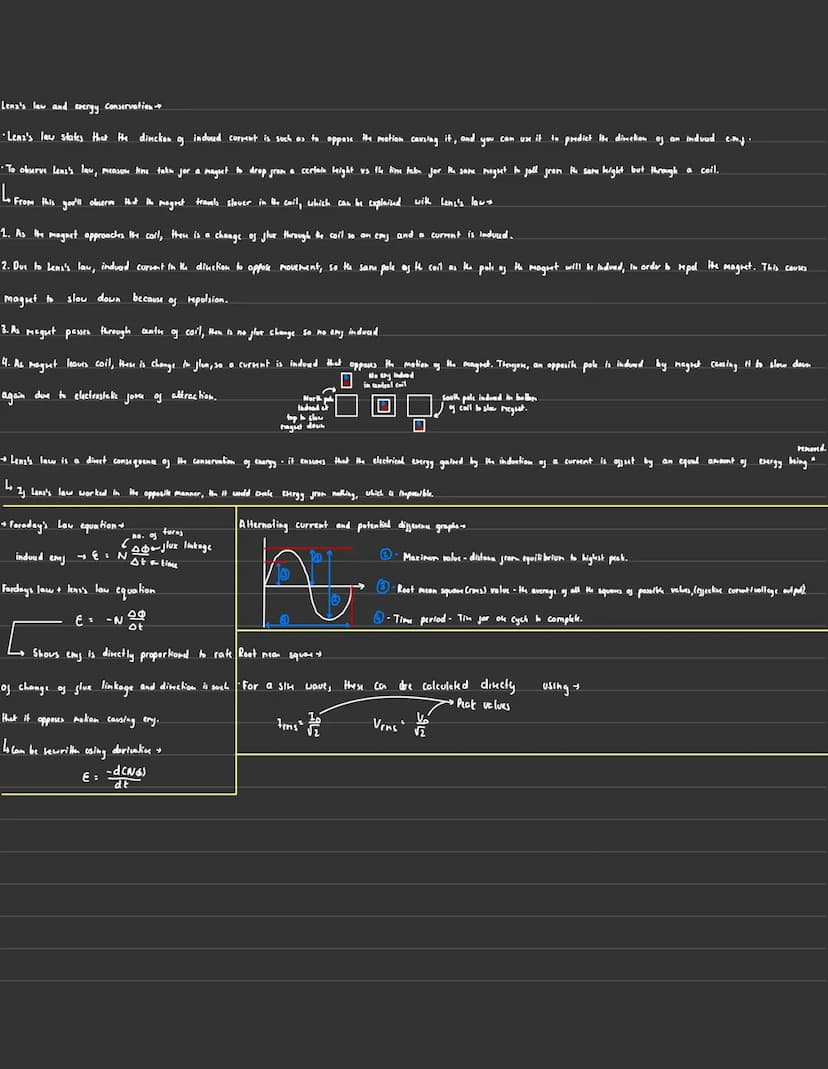

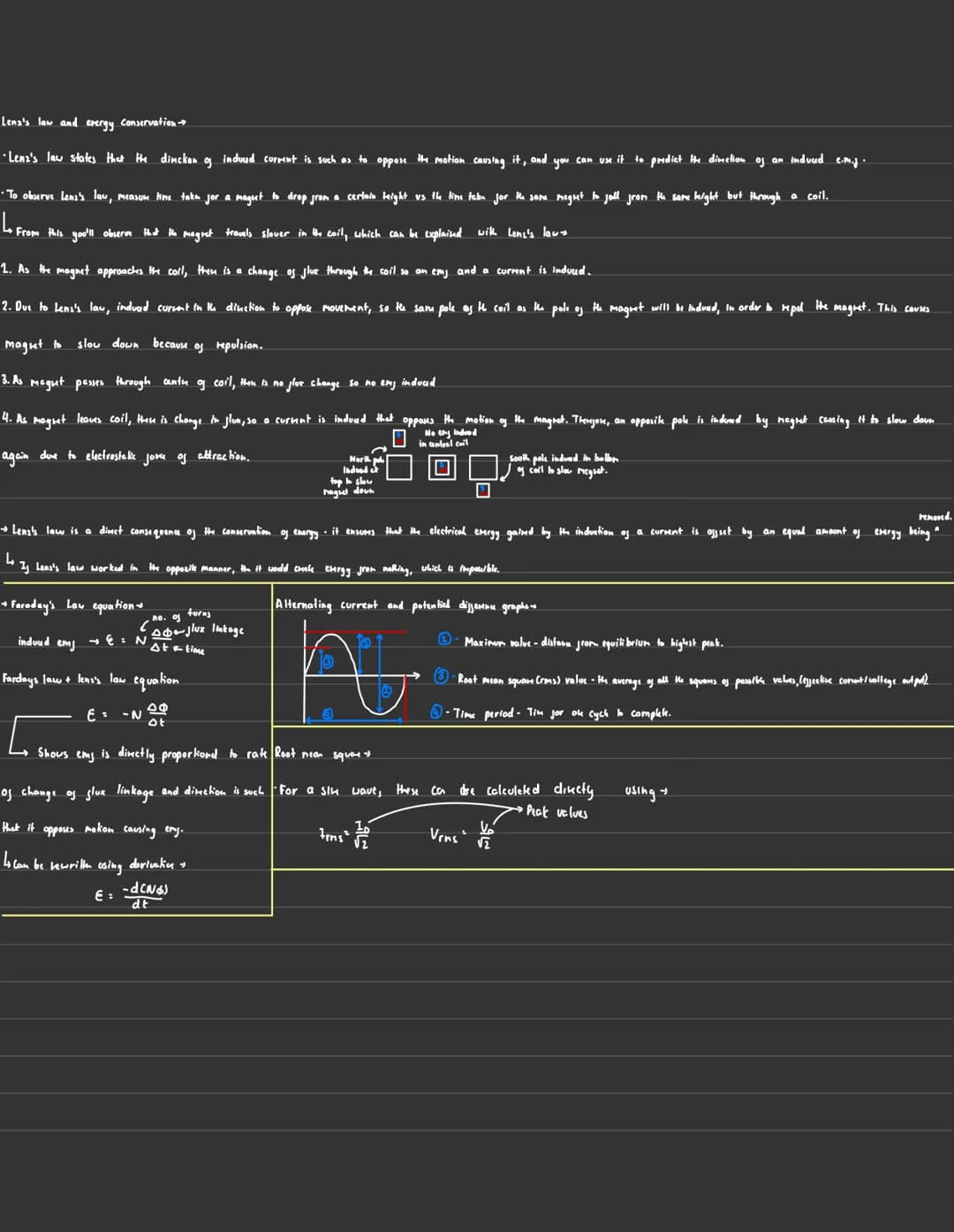

Coulomb's Law and Electric Fields Between Parallel Plates

Coulomb's Law pdf resources often highlight this fundamental principle of electrostatics.

Definition: Coulomb's law states that the magnitude of the force between two point charges is directly proportional to the product of their charges and inversely proportional to the square of the distance between them.

Formula: The Coulomb's law formula is F = kQ1Q2Q₁Q₂/r², where k is Coulomb's constant, Q₁ and Q₂ are the charges, and r is the distance between them.

Coulomb's Law A Level Physics studies often include detailed Coulomb's law derivation and applications.

Electric fields between parallel plates:

  • Create a uniform electric field
  • Field strength EE calculated using E = V/d, where V is potential difference and d is plate separation

Highlight: In a uniform field, the electric force is the same everywhere throughout the field, while in a radial field, the force diminishes as you move away from the center.

Understanding electric potential and fields pdf resources often emphasize the relationship between field strength and potential difference in various configurations.

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

View

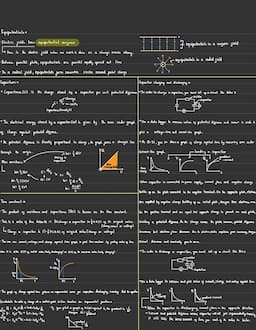

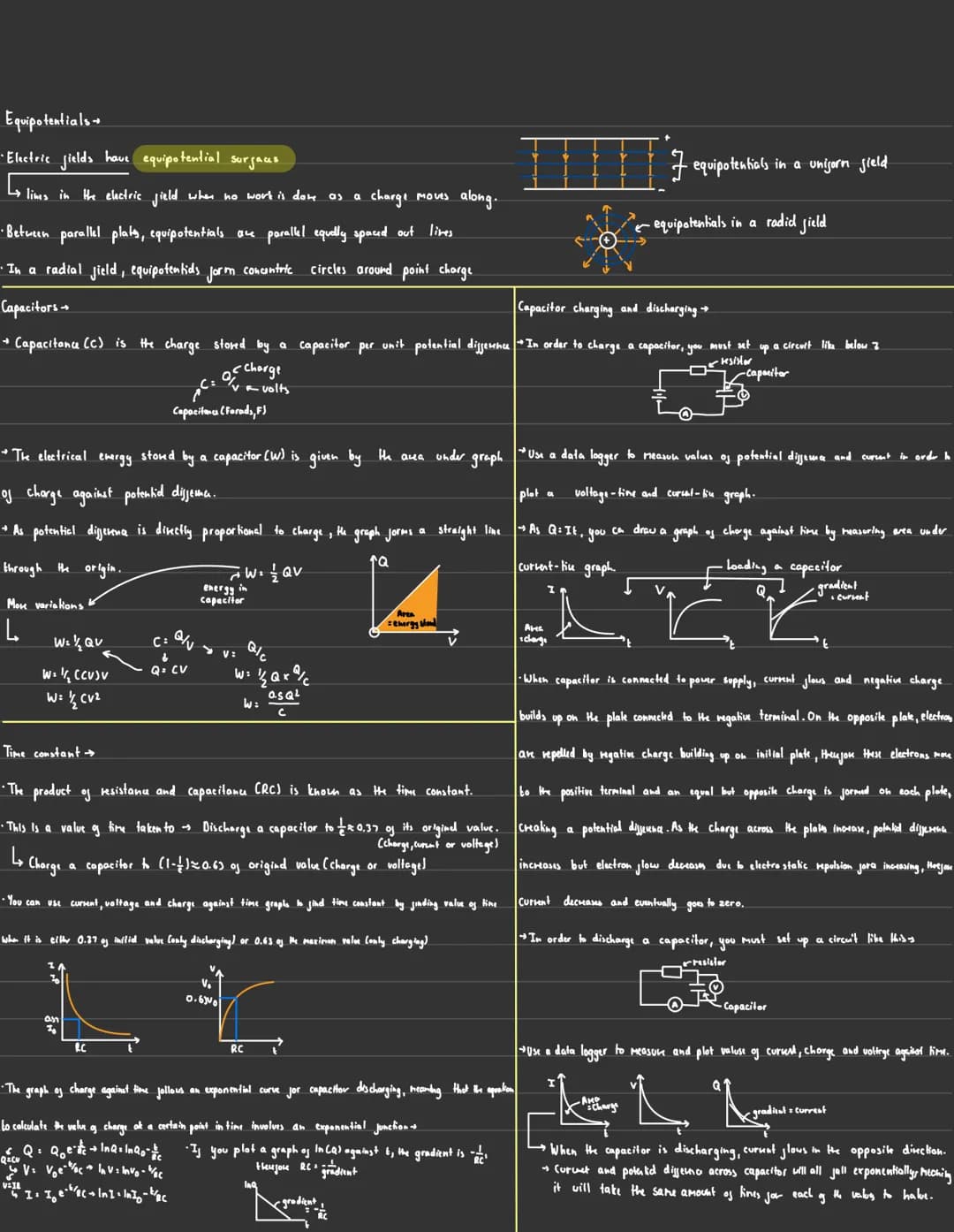

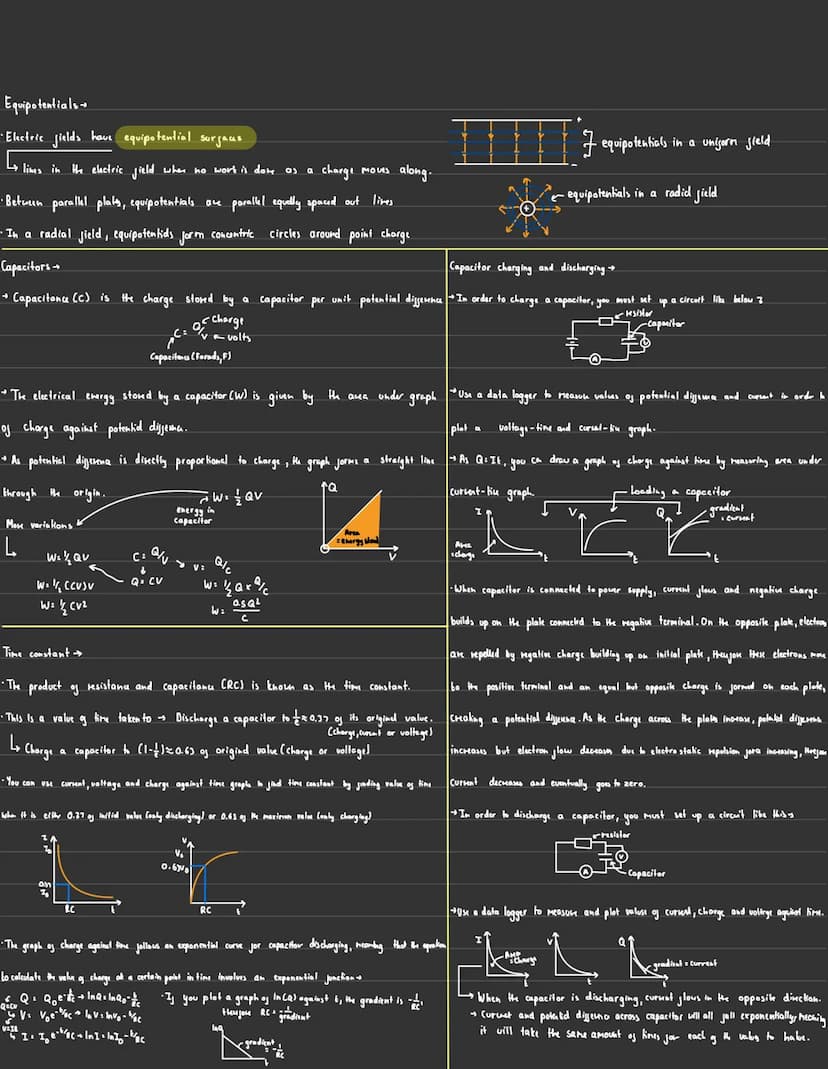

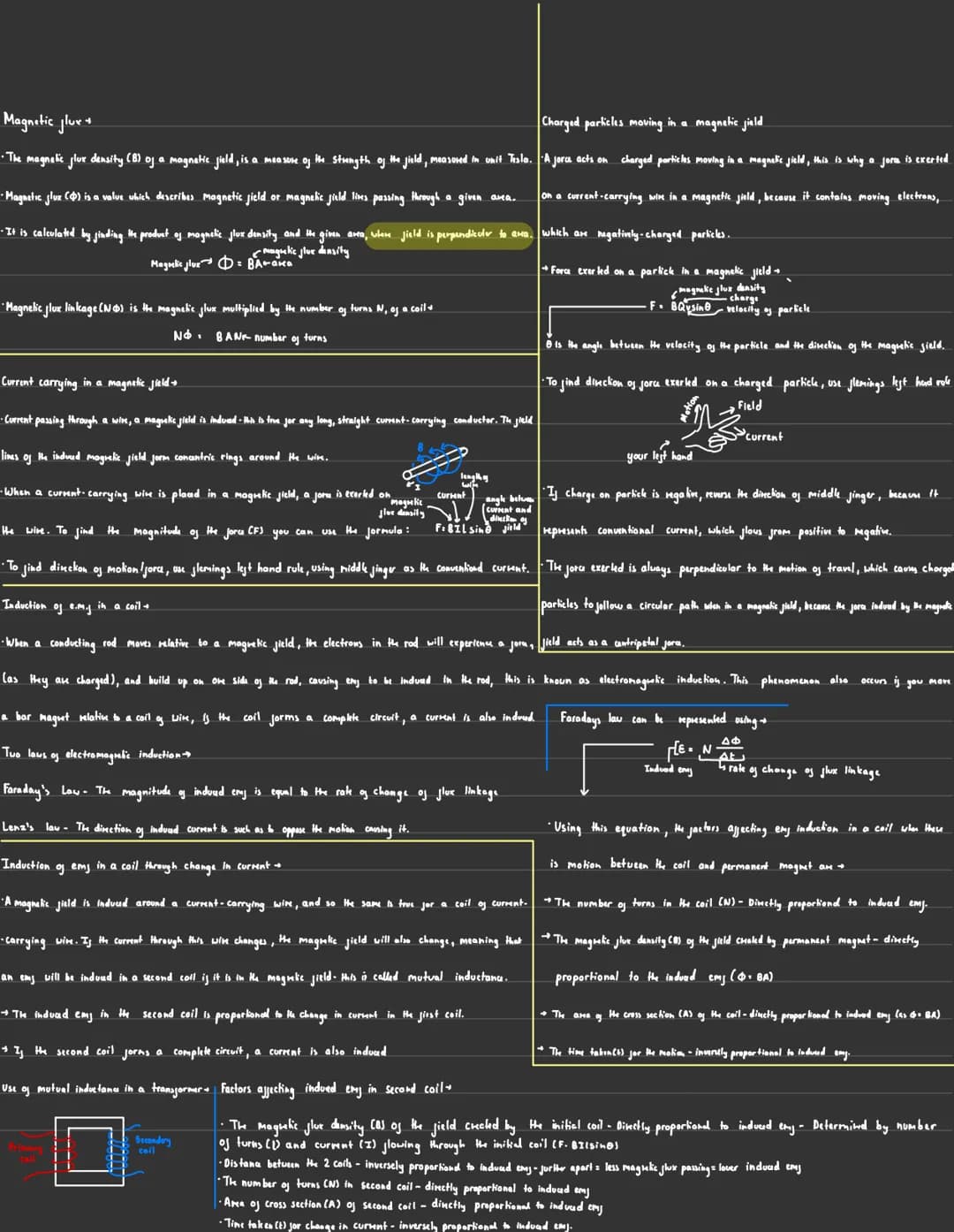

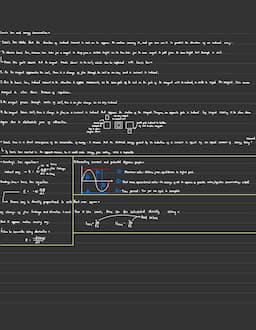

Equipotentials and Capacitors

Equipotentials are an essential concept in understanding electric potential and fields GCSE level studies.

Definition: Equipotentials are lines or surfaces in an electric field where no work is done as a charge moves along them.

Characteristics of equipotentials:

  • Parallel, equally spaced lines between parallel plates
  • Concentric circles around a point charge in a radial field

Capacitors and Coulomb's law explained class materials often cover the relationship between charge storage and electric fields.

Vocabulary: Capacitance CC is the charge stored by a capacitor per unit potential difference, measured in farads FF.

Capacitor energy storage:

  • W = ½QV = ½CV² = ½Q2/CQ²/C, where W is energy, Q is charge, V is potential difference, and C is capacitance

Capacitor charging and discharging:

  • Follows an exponential curve
  • Time constant ττ = RC, where R is resistance and C is capacitance

Example: A capacitor discharges to 1/e 0.37≈0.37 of its original value in one time constant.

Highlight: Plotting lnQQ against time yields a straight line with gradient -1/RC, useful for determining the time constant experimentally.

Understanding these concepts is crucial for mastering electric and magnetic fields study notes GCSE level and beyond.

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

View

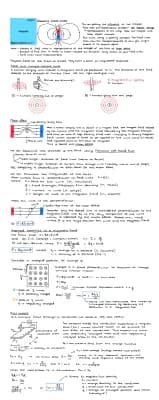

Practical Applications and Measurements

Practical work is essential for reinforcing electric and magnetic fields study notes free theoretical concepts.

Experimental setup for capacitor measurements:

  • Use a data logger to measure potential difference and current
  • Plot voltage-time and current-time graphs
  • Calculate charge using Q = It and integrate the current-time graph

Example: To charge a capacitor, connect it to a power supply through a resistor. Observe how current flows and charge builds up on the plates.

Key observations:

  • Negative charge accumulates on the plate connected to the negative terminal
  • Electrons are repelled from the opposite plate, creating a potential difference

Highlight: The behavior of capacitors in circuits demonstrates the practical applications of electric field theory and charge storage principles.

Understanding these practical aspects complements the theoretical knowledge gained from electricity and magnetism notes PDF resources, providing a comprehensive understanding of electric and magnetic fields.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Physics

233

19 Apr 2023

5 pages

Electric and Magnetic Fields Study Notes PDF Free | GCSE & A Level

K

Kunal

@wantedbythecia

Electric and Magnetic Fields: A Comprehensive Study Guide

This guide provides an in-depth exploration of electric and magnetic fields, covering key concepts such as electric field strength, electric potential, Coulomb's law, capacitors, and more. Ideal for GCSE and A-Level physics... Show more

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Electric Fields and Electric Potential

Electric fields are a fundamental concept in electromagnetism, describing the force experienced by charged particles in space.

Definition: An electric field is an area in which an object experiences a non-contact force due to the presence of electric charges.

Electric field strength EE is defined as the force per unit charge experienced by an object in an electric field. It is constant in a uniform field but varies in a radial field.

Vocabulary: Electric potential is the potential energy per unit charge of a positive point charge at a specific point in the field.

Key characteristics of electric potential:

  • Highest at the surface of a charge
  • Decreases with distance from the charge
  • Zero at infinity

Electric and magnetic field relation is crucial to understand, as they are interconnected phenomena in electromagnetism.

Formula: Electric potential in a radial field can be calculated using V = Q / 4πε0r4πε₀r, where Q is charge, ε₀ is permittivity of free space, and r is distance.

Electric potential vs electric potential energy is an important distinction:

  • Electric potential is the potential energy per unit charge
  • Electric potential energy depends on both the potential and the charge of the object

Highlight: The electric potential SI unit is the volt VV, while the electric potential energy units are joules JJ.

Field representations:

  1. Uniform fields: Parallel, equally spaced field lines
  2. Radial fields: Field lines radiating from a point charge

Example: A positive charge creates a radial field with field lines pointing outward, while a negative charge has field lines pointing inward.

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Coulomb's Law and Electric Fields Between Parallel Plates

Coulomb's Law pdf resources often highlight this fundamental principle of electrostatics.

Definition: Coulomb's law states that the magnitude of the force between two point charges is directly proportional to the product of their charges and inversely proportional to the square of the distance between them.

Formula: The Coulomb's law formula is F = kQ1Q2Q₁Q₂/r², where k is Coulomb's constant, Q₁ and Q₂ are the charges, and r is the distance between them.

Coulomb's Law A Level Physics studies often include detailed Coulomb's law derivation and applications.

Electric fields between parallel plates:

  • Create a uniform electric field
  • Field strength EE calculated using E = V/d, where V is potential difference and d is plate separation

Highlight: In a uniform field, the electric force is the same everywhere throughout the field, while in a radial field, the force diminishes as you move away from the center.

Understanding electric potential and fields pdf resources often emphasize the relationship between field strength and potential difference in various configurations.

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Equipotentials and Capacitors

Equipotentials are an essential concept in understanding electric potential and fields GCSE level studies.

Definition: Equipotentials are lines or surfaces in an electric field where no work is done as a charge moves along them.

Characteristics of equipotentials:

  • Parallel, equally spaced lines between parallel plates
  • Concentric circles around a point charge in a radial field

Capacitors and Coulomb's law explained class materials often cover the relationship between charge storage and electric fields.

Vocabulary: Capacitance CC is the charge stored by a capacitor per unit potential difference, measured in farads FF.

Capacitor energy storage:

  • W = ½QV = ½CV² = ½Q2/CQ²/C, where W is energy, Q is charge, V is potential difference, and C is capacitance

Capacitor charging and discharging:

  • Follows an exponential curve
  • Time constant ττ = RC, where R is resistance and C is capacitance

Example: A capacitor discharges to 1/e 0.37≈0.37 of its original value in one time constant.

Highlight: Plotting lnQQ against time yields a straight line with gradient -1/RC, useful for determining the time constant experimentally.

Understanding these concepts is crucial for mastering electric and magnetic fields study notes GCSE level and beyond.

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Practical Applications and Measurements

Practical work is essential for reinforcing electric and magnetic fields study notes free theoretical concepts.

Experimental setup for capacitor measurements:

  • Use a data logger to measure potential difference and current
  • Plot voltage-time and current-time graphs
  • Calculate charge using Q = It and integrate the current-time graph

Example: To charge a capacitor, connect it to a power supply through a resistor. Observe how current flows and charge builds up on the plates.

Key observations:

  • Negative charge accumulates on the plate connected to the negative terminal
  • Electrons are repelled from the opposite plate, creating a potential difference

Highlight: The behavior of capacitors in circuits demonstrates the practical applications of electric field theory and charge storage principles.

Understanding these practical aspects complements the theoretical knowledge gained from electricity and magnetism notes PDF resources, providing a comprehensive understanding of electric and magnetic fields.

Electric & Magnetic Fields Electric fields
· An electric field is a force field in which charged particles experience.
•Electric field stren

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Electric and Magnetic Fields: Overview

Electric and magnetic fields study notes pdf provide a comprehensive look at the fundamental concepts of electromagnetism. This guide covers:

  • Electric fields and their properties
  • Electric potential and its relationship to electric fields
  • Coulomb's law and its applications
  • Capacitors and their behavior
  • Electric field representations and equipotentials

Key points:

  • Electric fields are force fields experienced by charged particles
  • Electric potential is the potential energy per unit charge at a point in the field
  • Coulomb's law describes the force between charged particles
  • Capacitors store electrical energy and have specific charging/discharging characteristics
  • Electric fields can be represented by field lines and equipotentials
