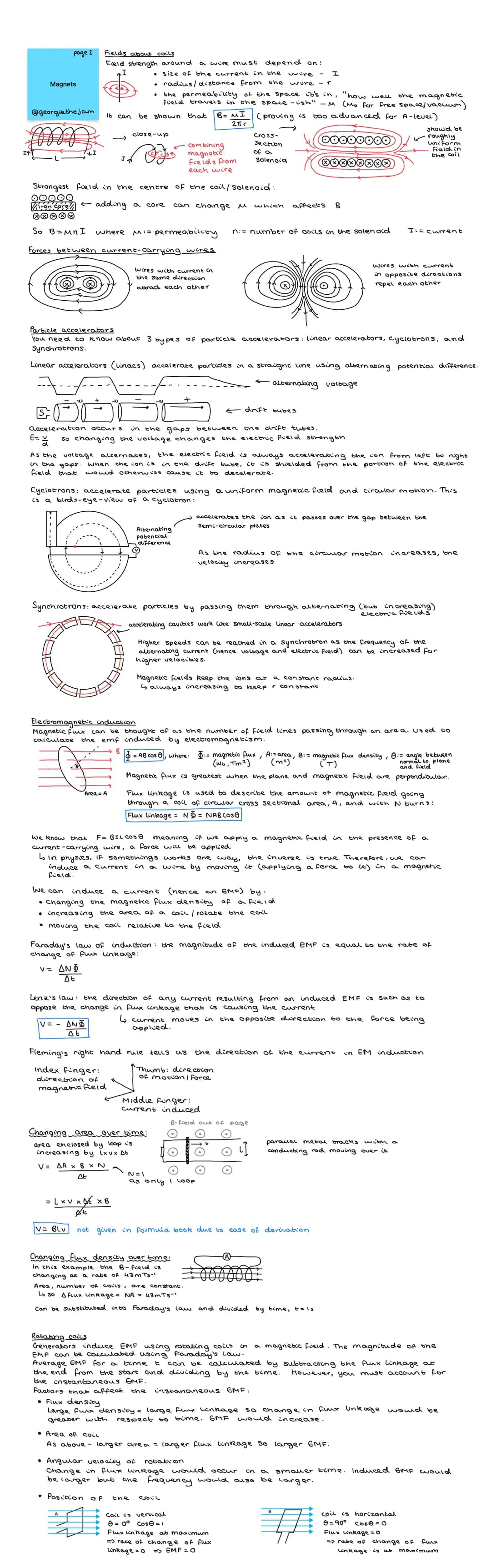

Magnetic Fields Around Coils and Particle Accelerators

This page delves deeper into magnetic fields around coils and introduces particle accelerators.

The magnetic field strength around a wire depends on several factors:

• The size of the current
• The distance from the wire
• The permeability of the space it's in

For a long straight wire, the magnetic field strength is given by:

B = μI / (2πr)

Where:

• μ is the permeability of the space
• I is the current
• r is the distance from the wire

Highlight: The magnetic field is strongest at the center of a coil or solenoid.

For a solenoid, the field strength is given by:

B = μnI

Where n is the number of coils per unit length.

Example: Adding an iron core to a solenoid can significantly increase its magnetic field strength by changing the permeability.

The page also discusses forces between current-carrying wires. Wires with currents flowing in the same direction attract each other, while those with opposite currents repel.

Vocabulary: Permeability (μ) is a measure of how easily a material can be magnetized.

Finally, the page introduces three types of particle accelerators:

1. Linear accelerators (Linacs): These accelerate particles in a straight line using alternating potential differences.
2. Cyclotrons: These use a combination of magnetic fields and alternating electric fields to accelerate particles in a spiral path.
3. Synchrotrons: These are circular accelerators that use synchronized magnetic and electric fields to accelerate particles to very high energies.

Definition: Particle accelerators are machines that use electromagnetic fields to propel charged particles to high speeds and contain them in well-defined beams.

These accelerators play crucial roles in modern physics research and have applications in various fields, including medicine and materials science.

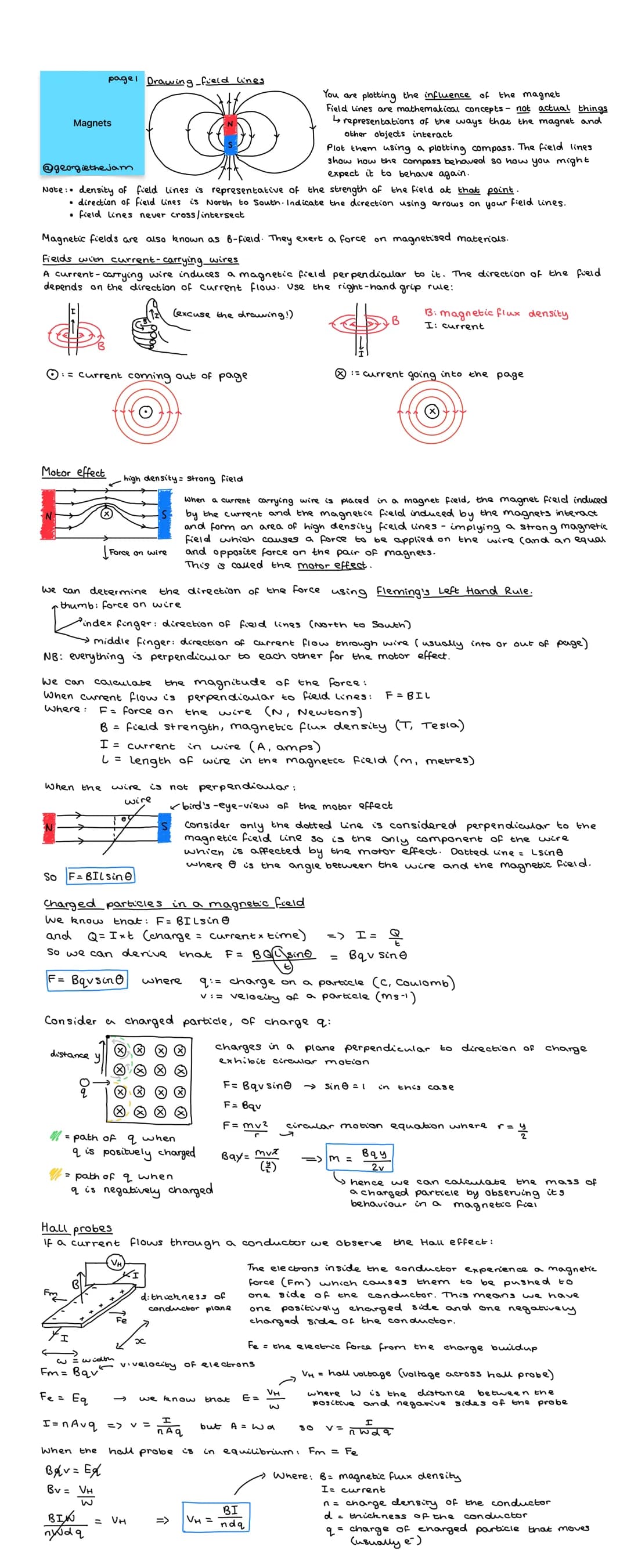

Magnetic Fields and the Motor Effect

This page covers the fundamentals of magnetic fields and introduces the motor effect in magnetic fields.

Magnetic fields, also known as B-fields, exert forces on magnetized materials. The density of field lines represents the strength of the field, with field lines never intersecting.

Highlight: Magnetic field lines always point from North to South.

When a wire carries an electric current, it induces a magnetic field perpendicular to it. The direction of this field depends on the current flow and can be determined using the right hand grip rule.

Example: To use the right hand grip rule, point your thumb in the direction of the current flow. Your curled fingers will then indicate the direction of the magnetic field lines around the wire.

The motor effect occurs when a current-carrying wire is placed in a magnetic field. The interaction between the wire's induced field and the external field creates an area of high-density field lines, resulting in a force on the wire.

Definition: The motor effect is the phenomenon where a current-carrying conductor experiences a force when placed in a magnetic field.

The force on the wire can be calculated using the formula:

F = BIL sin θ

Where:

• F is the force on the wire (in Newtons)
• B is the magnetic field strength (in Tesla)
• I is the current in the wire (in Amperes)
• L is the length of wire in the magnetic field (in meters)
• θ is the angle between the wire and the magnetic field

Vocabulary: Tesla (T) is the unit of magnetic flux density or magnetic field strength.

For charged particles moving through a magnetic field, a similar formula applies:

F = Bqv sin θ

Where q is the charge of the particle and v is its velocity.

The page also introduces the Hall effect, which occurs when a current flows through a conductor in a magnetic field. This effect causes a voltage difference across the conductor, known as the Hall voltage.

Highlight: The Hall effect is used in Hall probes to measure magnetic field strength.
