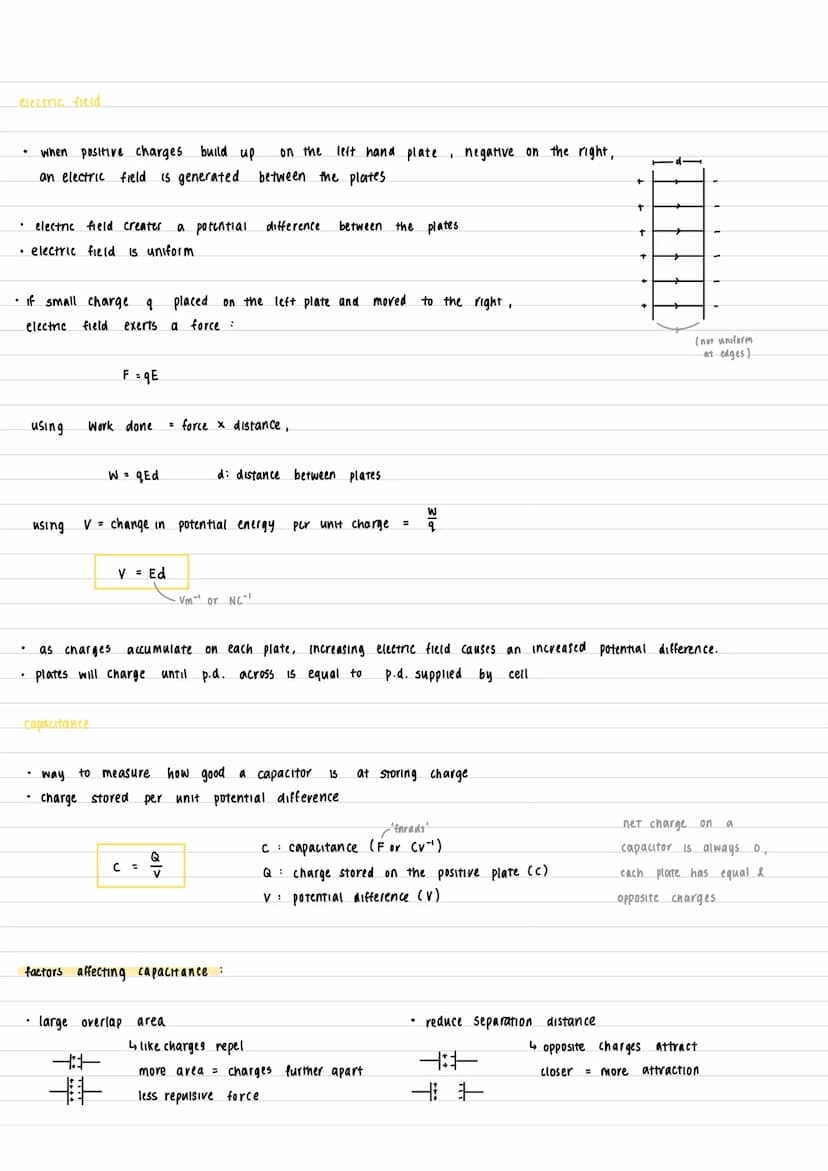

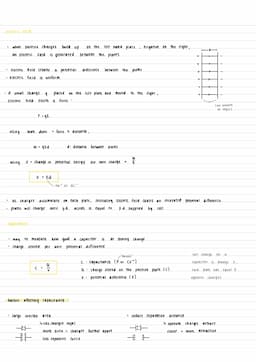

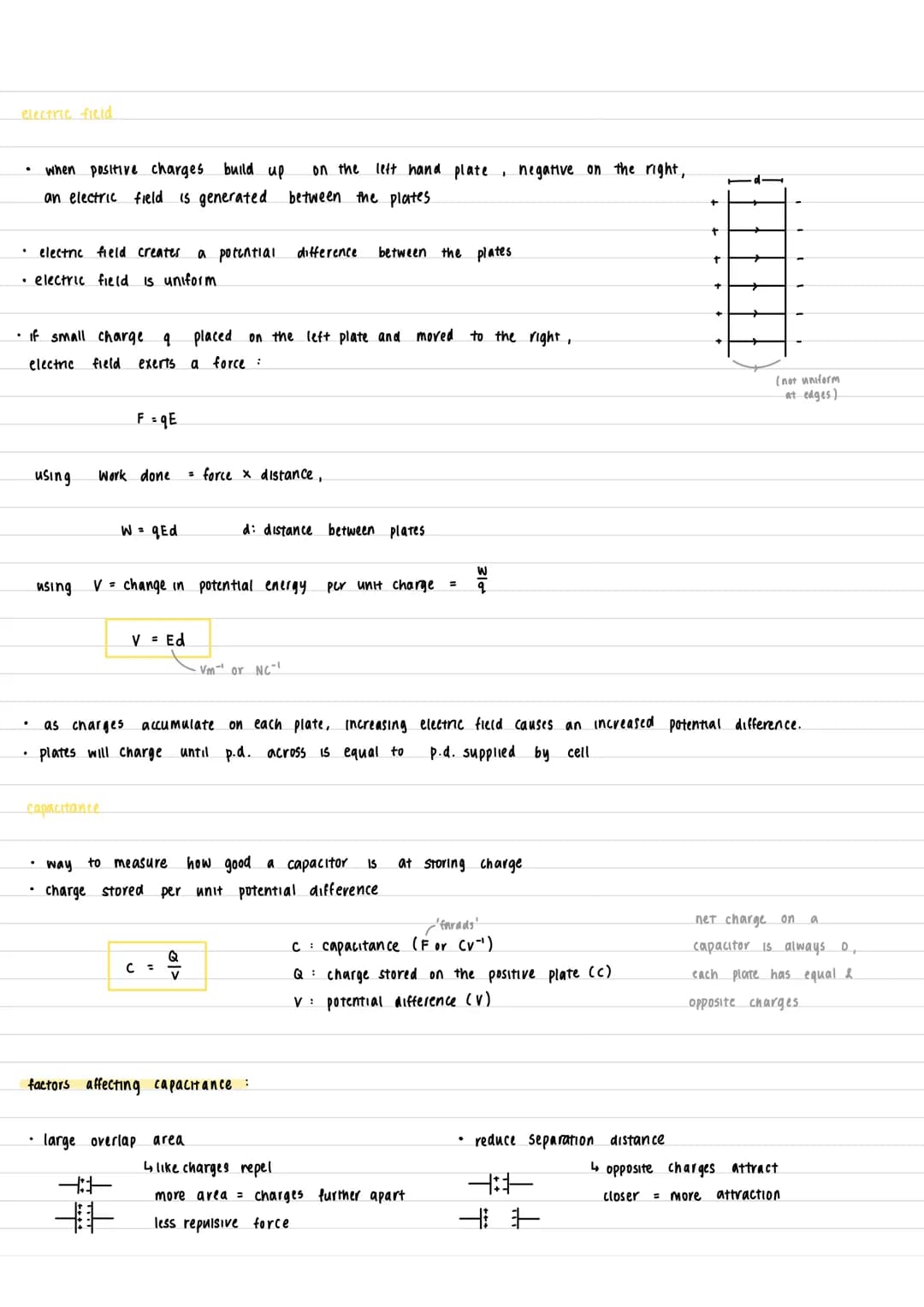

Electric Fields and Capacitance Factors

The second page delves into electric fields and the factors affecting capacitance. When charges accumulate on capacitor plates, they generate a uniform electric field between them.

Definition: Capacitance is defined as the charge stored per unit potential difference, measured in Farads.

Highlight: The electric field created between plates is uniform except at the edges, and it generates a potential difference proportional to the field strength.

Example: A larger plate overlap area allows charges to spread further apart, reducing repulsive forces and increasing capacitance.

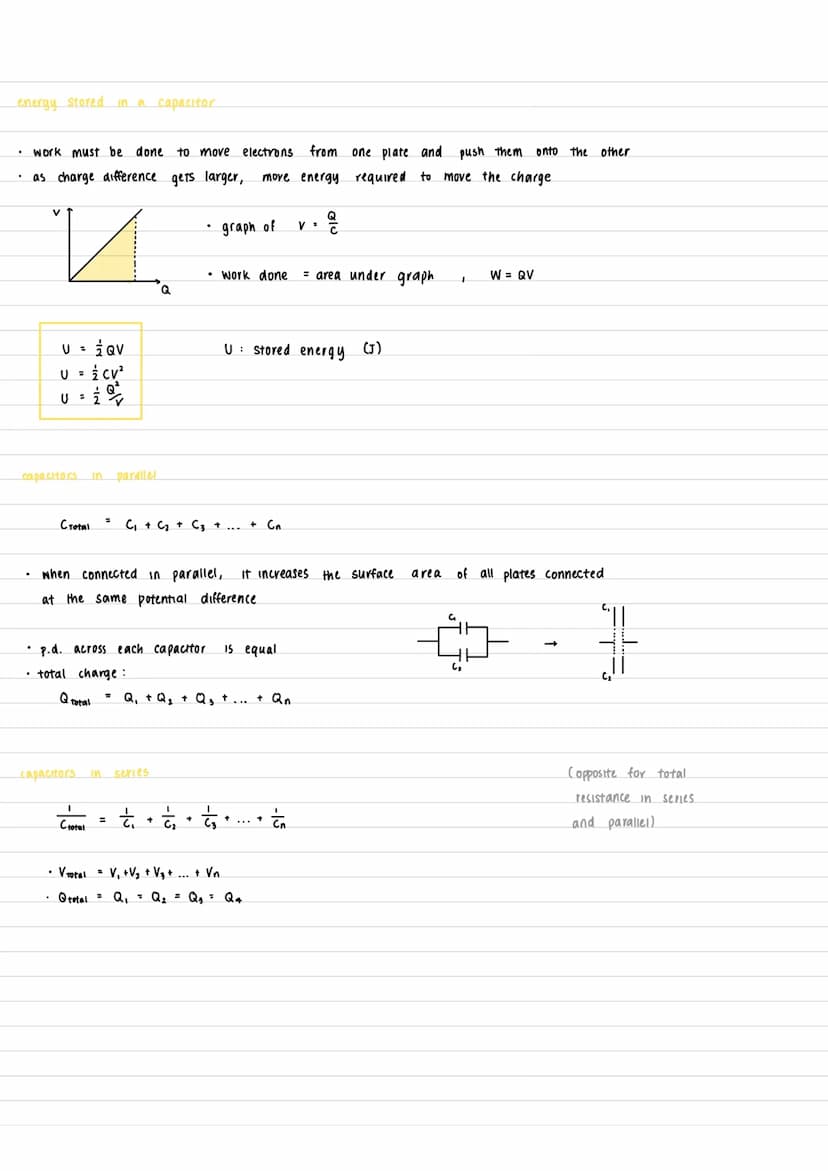

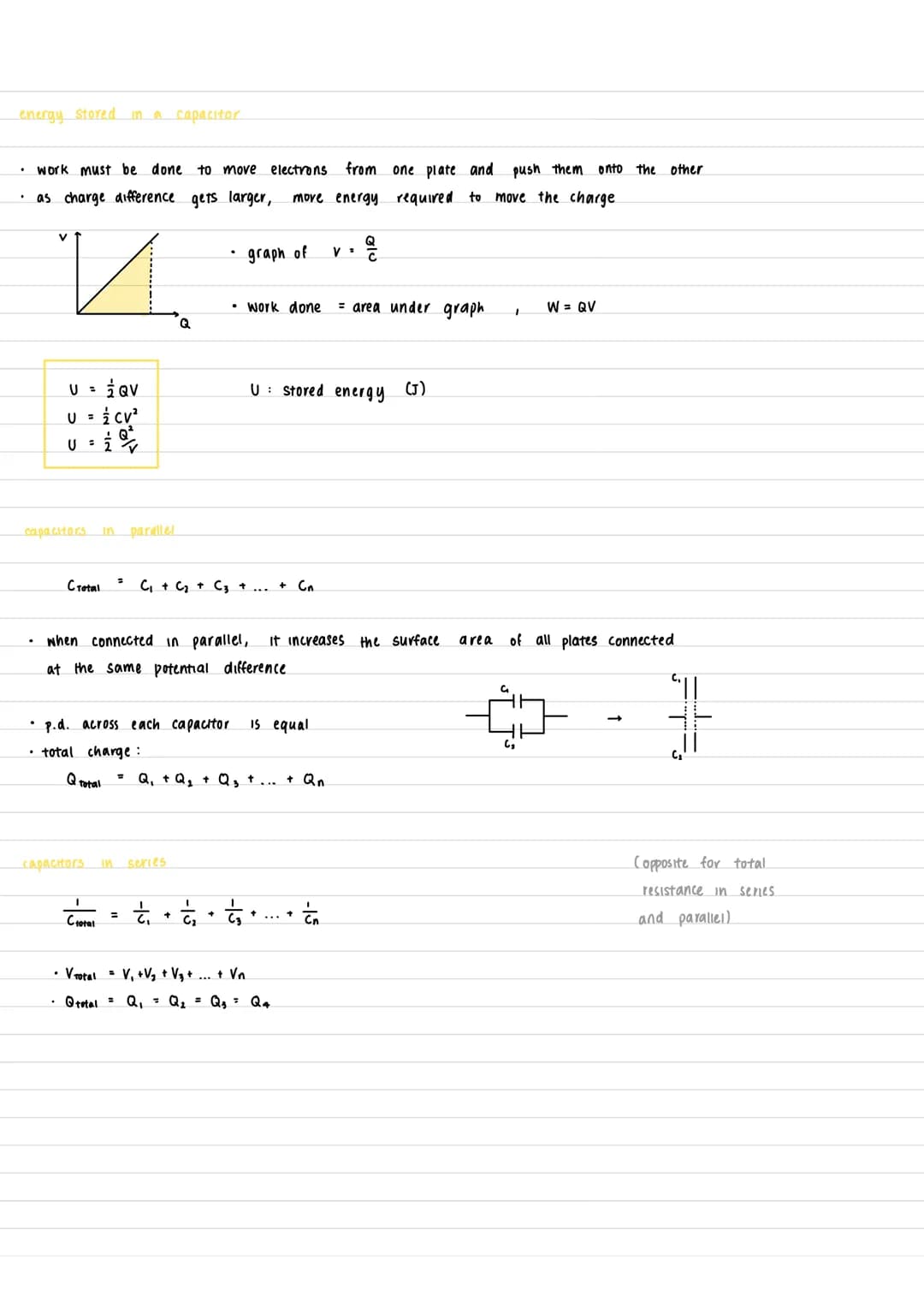

Energy Storage and Parallel Configurations

Page three explores energy storage in capacitors and their behavior in parallel configurations.

Definition: The energy stored in a capacitor is given by U = ½QV = ½CV² = ½Q²/C, where U is the stored energy in Joules.

Highlight: In parallel connections, the total capacitance is the sum of individual capacitances, while the potential difference remains equal across all capacitors.

Example: When capacitors are connected in parallel, the total charge is the sum of individual charges: Qₜₒₜₐₗ = Q₁ + Q₂ + Q₃ + ... + Qₙ

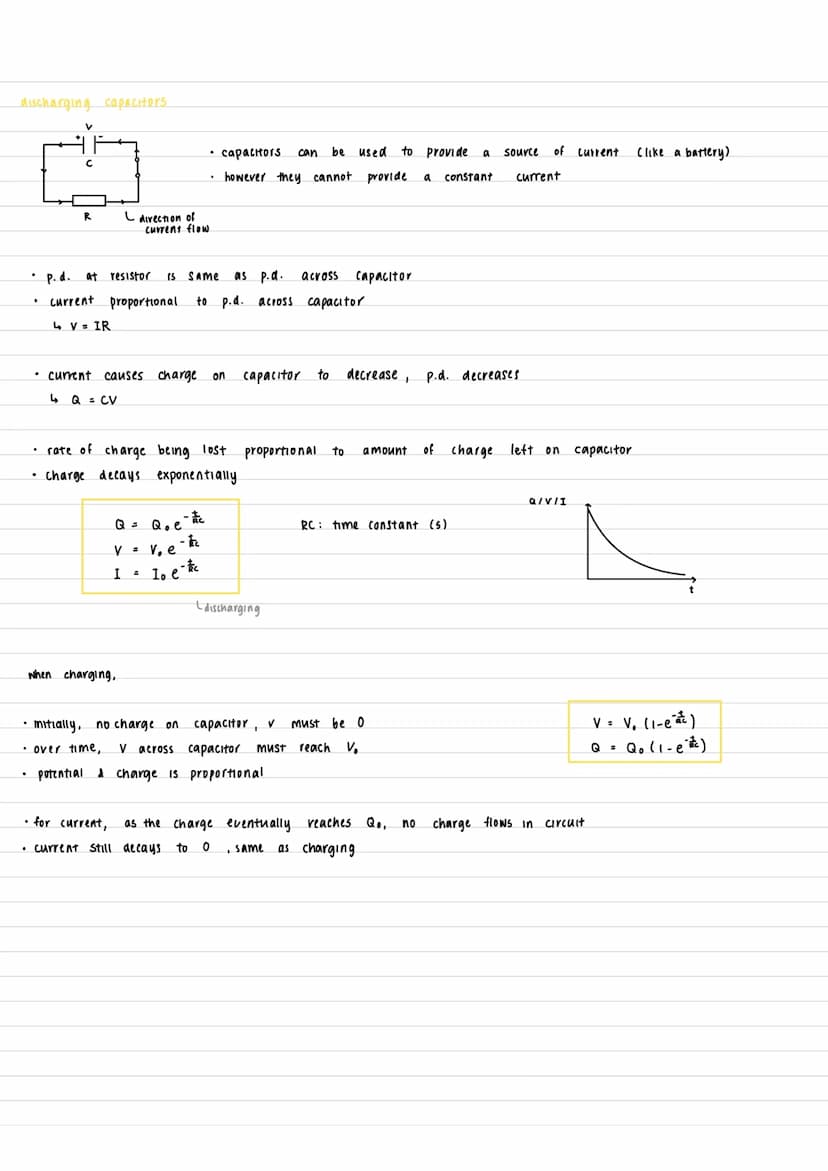

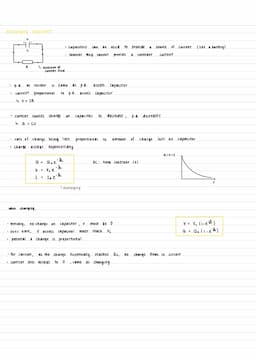

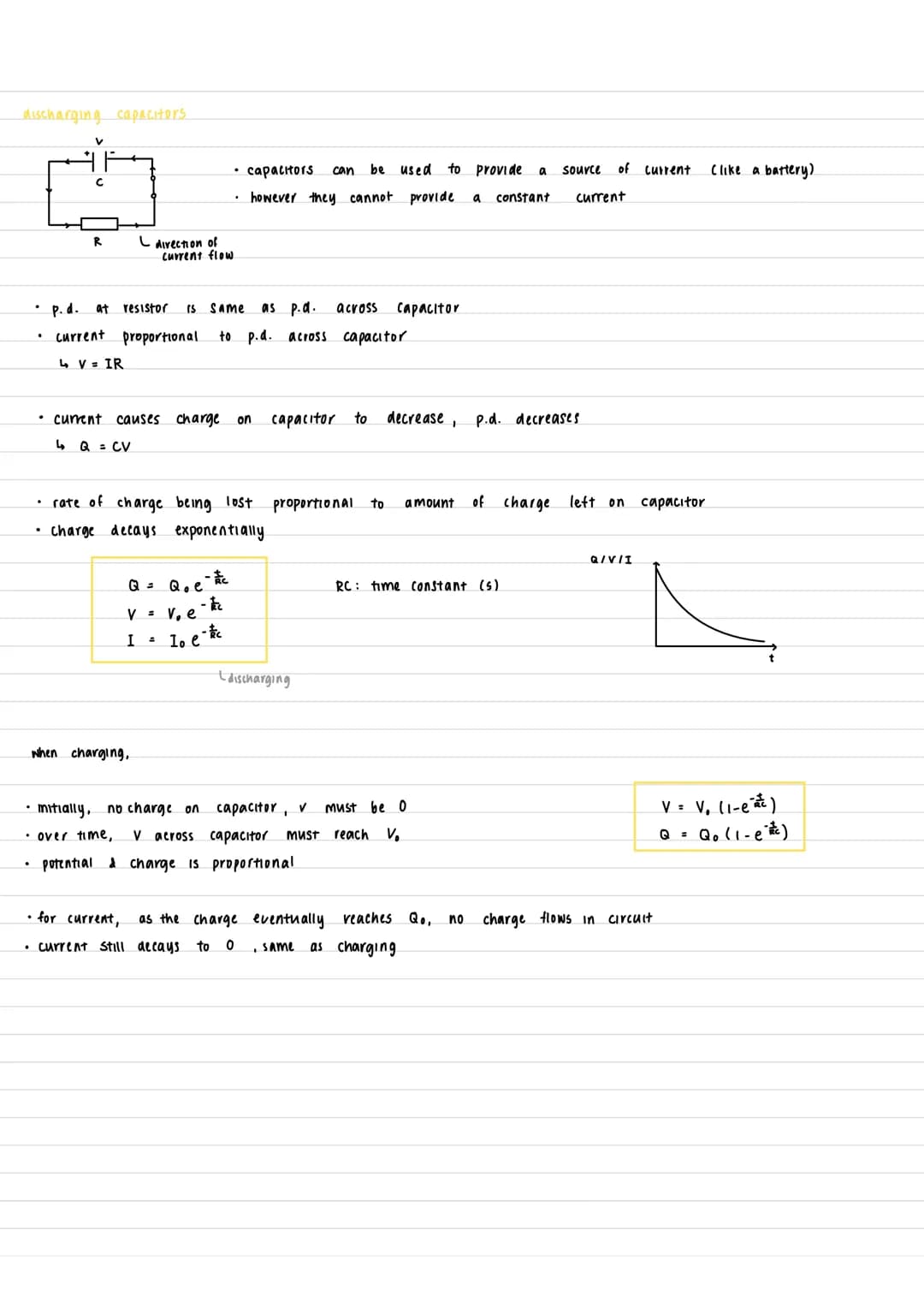

Capacitor Discharge Characteristics

The final page covers the discharge behavior of capacitors and their practical applications.

Definition: The RC time constant determines the rate of capacitor charging and discharging, measured in seconds.

Highlight: During discharge, both current and voltage decay exponentially, following the equations V = V₀e⁻ᵗ/ᴿᶜ and I = I₀e⁻ᵗ/ᴿᶜ.

Example: Capacitors can provide a temporary current source, but unlike batteries, they cannot maintain a constant current output due to their exponential discharge characteristics.

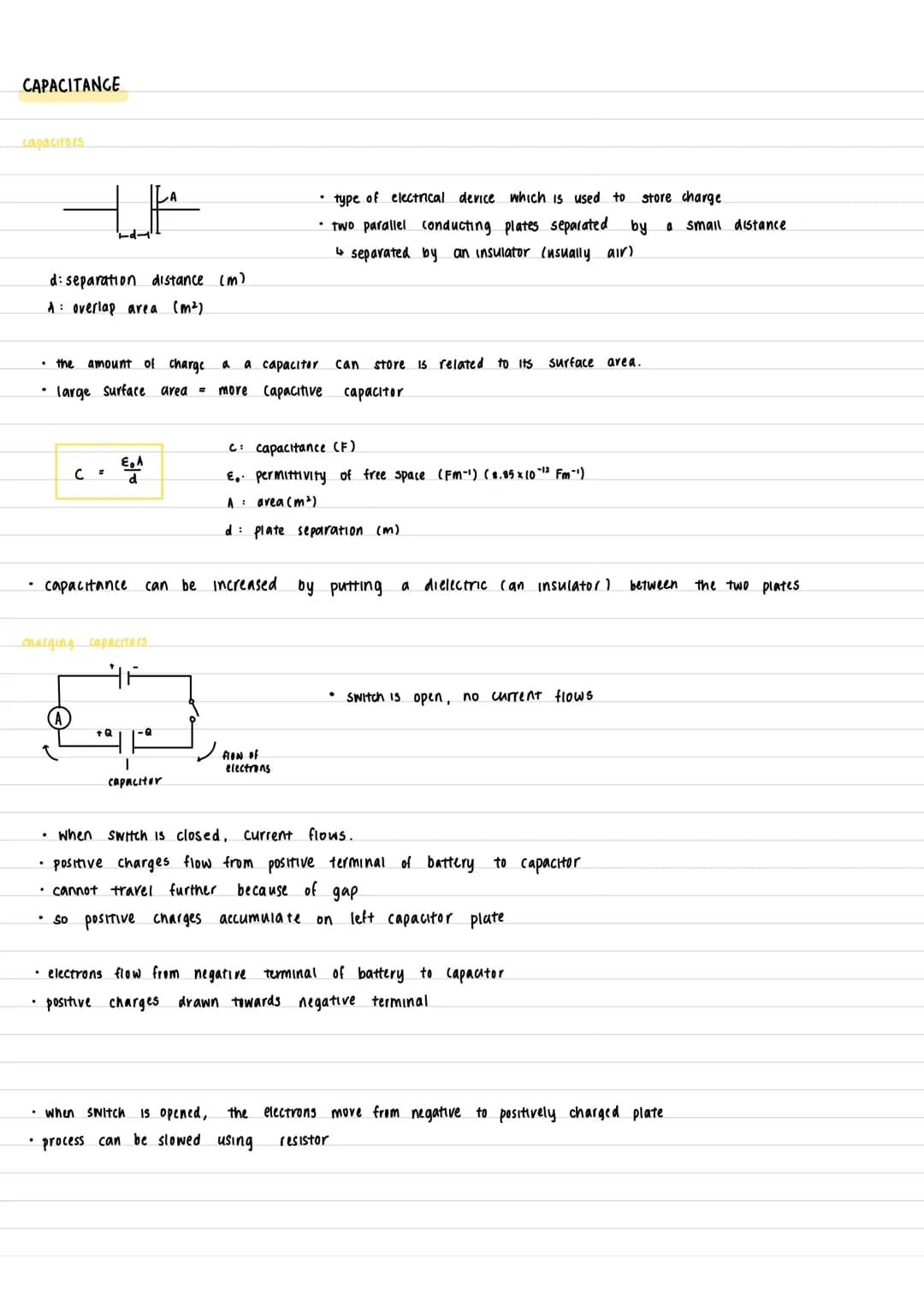

Understanding Capacitor Basics

The first page introduces fundamental concepts of capacitors and their construction. A capacitor consists of two parallel conducting plates separated by an insulator, typically air.

Definition: A capacitor is an electrical device used to store charge through two parallel conducting plates separated by an insulating material.

Highlight: The capacitance of a device can be increased through three main methods: increasing plate surface area, reducing plate separation distance, or inserting a dielectric material between plates.

Vocabulary: Capacitance (C) is measured in Farads (F), while the permittivity of free space (ε₀) is measured in Fm⁻¹.

Example: When a switch is closed in a circuit containing a capacitor, positive charges flow from the battery's positive terminal to one plate while electrons flow to the opposite plate.
