Awesome Year 7 Guide: Angles, Triangles, and Polygons Made Easy

Name: Knowunity
Brand: Knowunity

Understanding angles and their properties for year 7 forms the foundation of geometry education, covering essential concepts from basic angle types to complex polygon properties.

• The module comprehensively covers angle types (acute, right, obtuse, reflex) and their measurements
• Special attention is given to identifying different types of triangles with examples, including right-angled, isosceles, and equilateral triangles
• Students learn about parallel line angles, including corresponding, alternate, and co-interior angles
• The content extends to calculating interior angles in polygons for beginners and understanding regular polygon properties
• Advanced concepts include quadrilateral properties, scale measurements, and Pythagoras' theorem

...

02/08/2023

406

Year 7
Module 8 - Angles
Topic/Skill
1. Types of
Angles
2. Angle
Notation
3. Angles at a
Point
4. Angles on a
Straight Line
5. Opposite
Angl

View

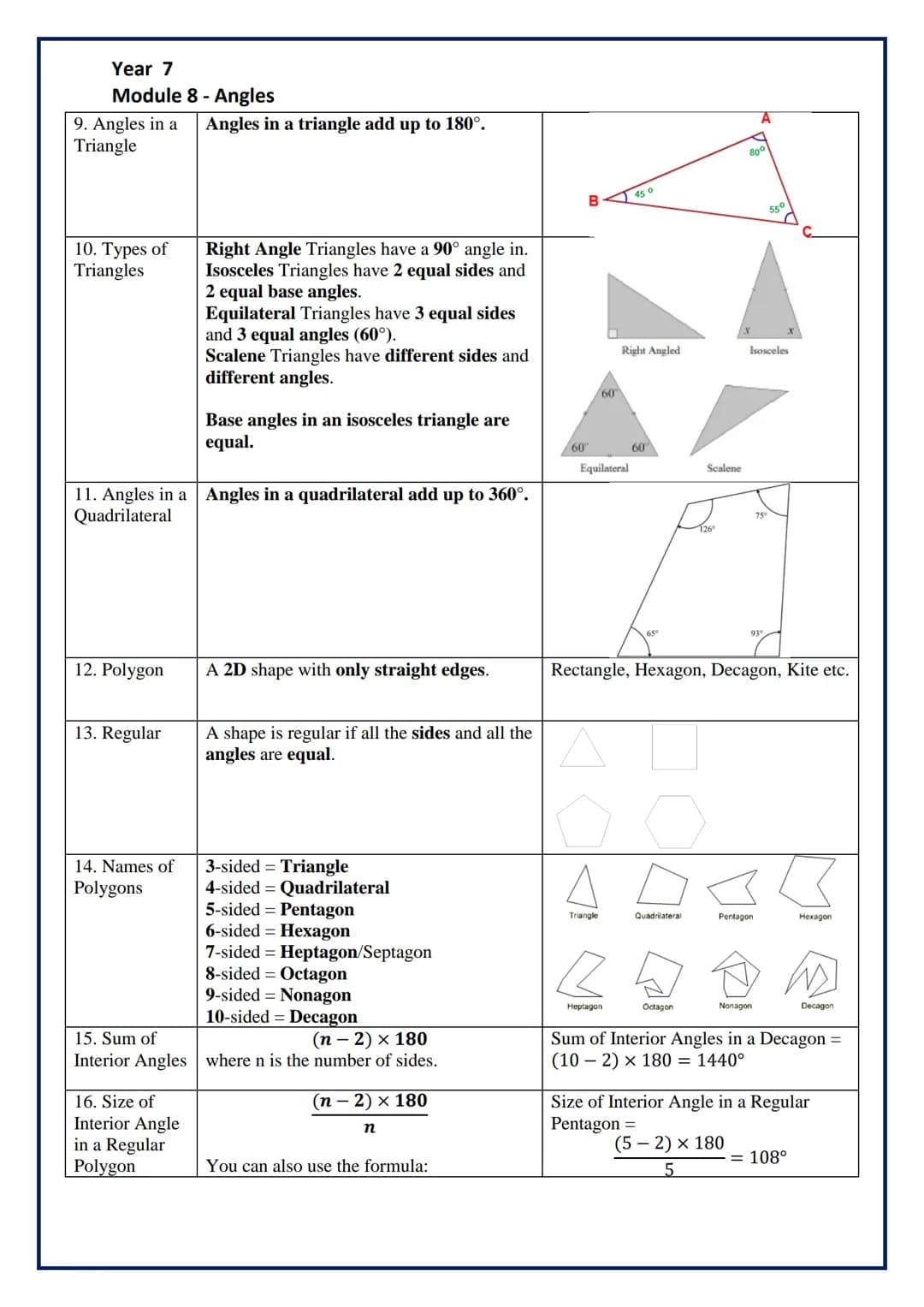

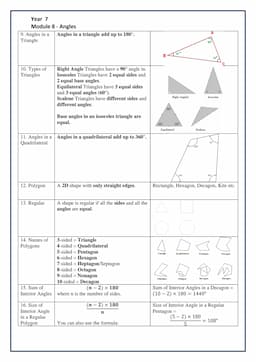

Page 2: Triangles, Quadrilaterals, and Polygons

This page explores triangle properties, polygon classifications, and methods for calculating interior angles in various shapes.

Definition: A polygon is a 2D shape with straight edges only, and it's considered regular when all sides and angles are equal.

Highlight: Triangle interior angles always sum to 180°, while quadrilateral interior angles sum to 360°.

Example: Triangle types include:

Right-angled triangles $one 90° angle$
Isosceles triangles $two equal sides and angles$
Equilateral triangles $all sides and angles equal$
Scalene triangles $all sides and angles different$

Vocabulary: Polygon names are based on their number of sides:

Pentagon $5 sides$
Hexagon $6 sides$
Heptagon/Septagon $7 sides$
Octagon $8 sides$
Nonagon $9 sides$
Decagon $10 sides$

View

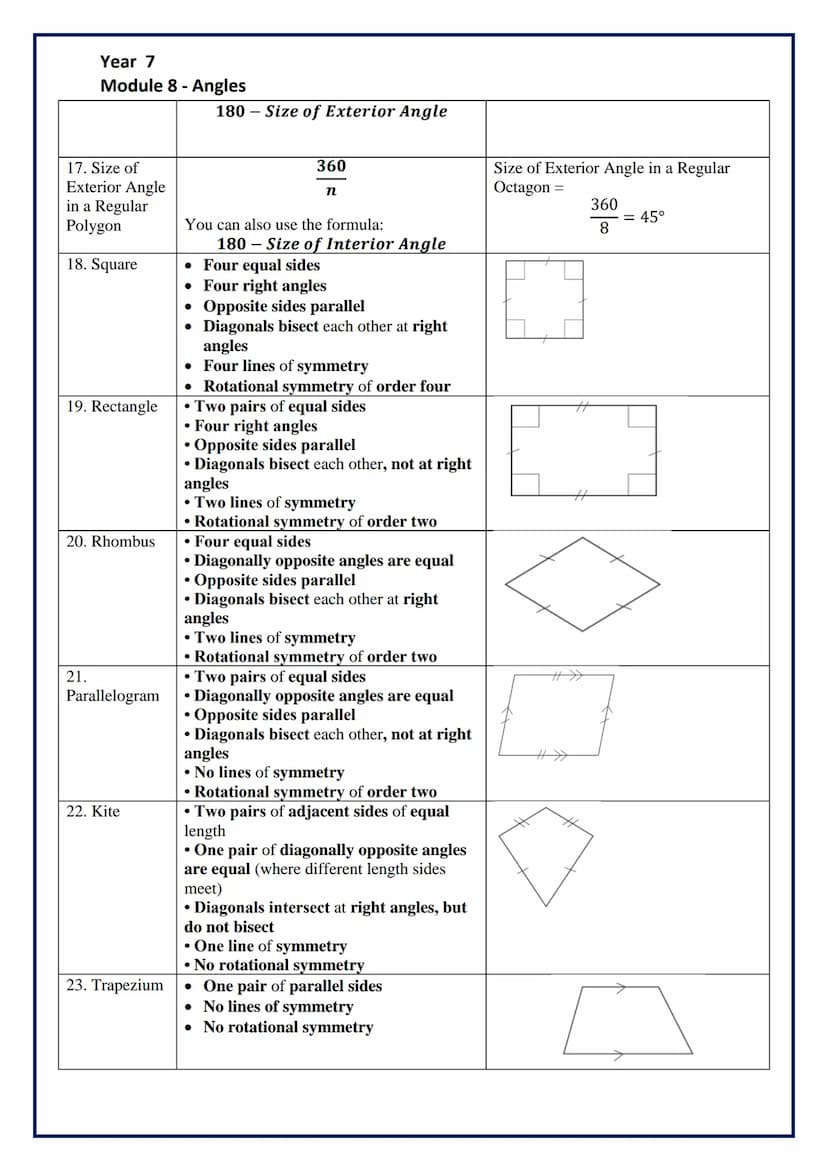

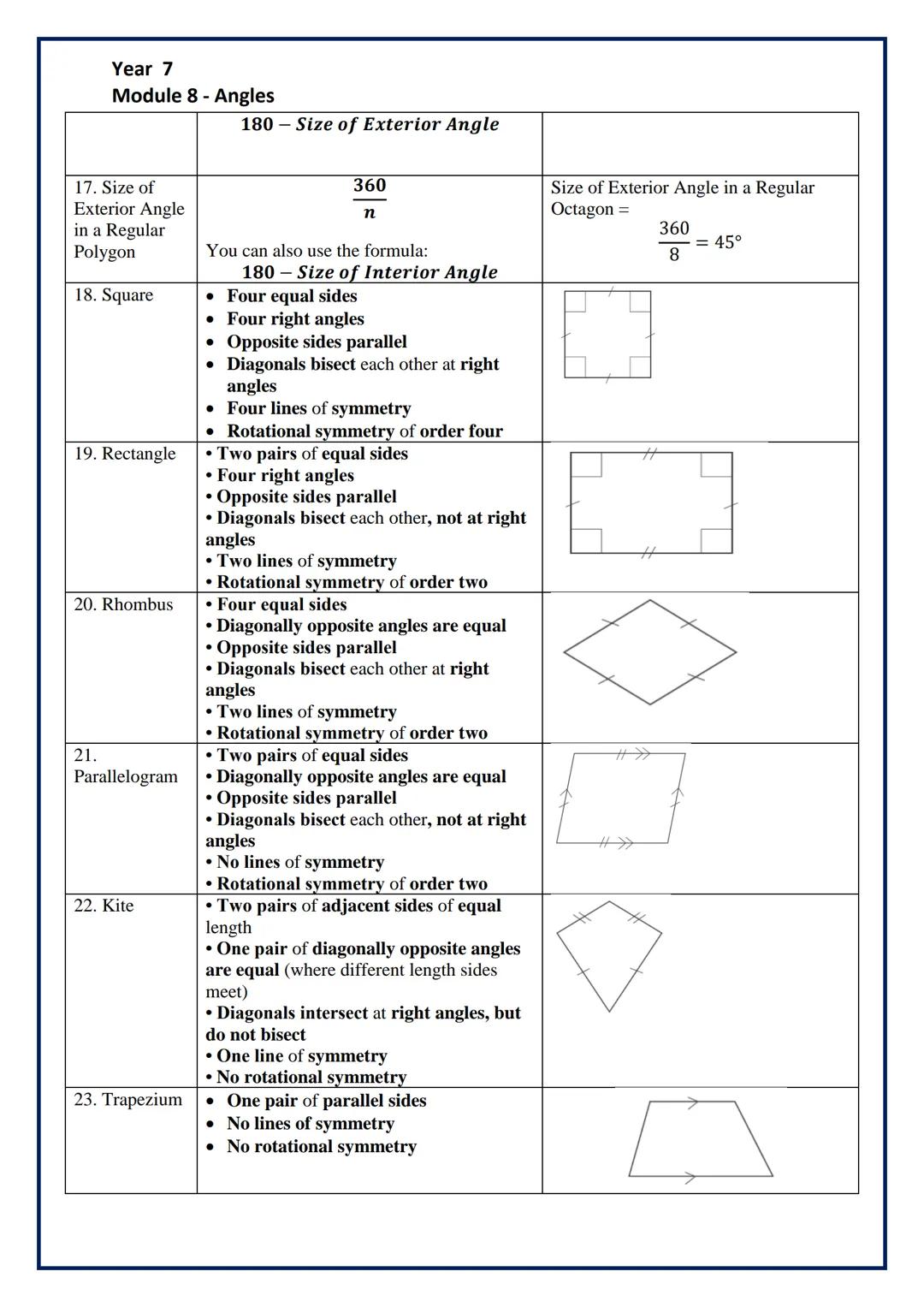

Page 3: Quadrilateral Properties

This page details the properties of various quadrilaterals, including squares, rectangles, rhombuses, parallelograms, kites, and trapeziums.

Definition: Each quadrilateral type has unique properties related to:

Side lengths
Angle measurements
Parallel sides
Diagonal relationships
Symmetry
Rotational properties

Example: A square has:

Four equal sides
Four right angles
Opposite sides parallel
Diagonals bisecting at right angles
Four lines of symmetry
Rotational symmetry of order four

Highlight: The properties of special quadrilaterals build upon each other, with squares having the most properties and trapeziums having the least.

View

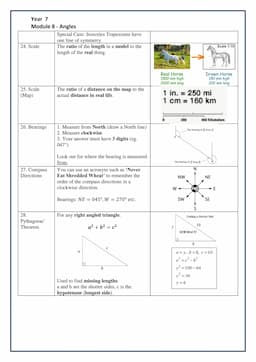

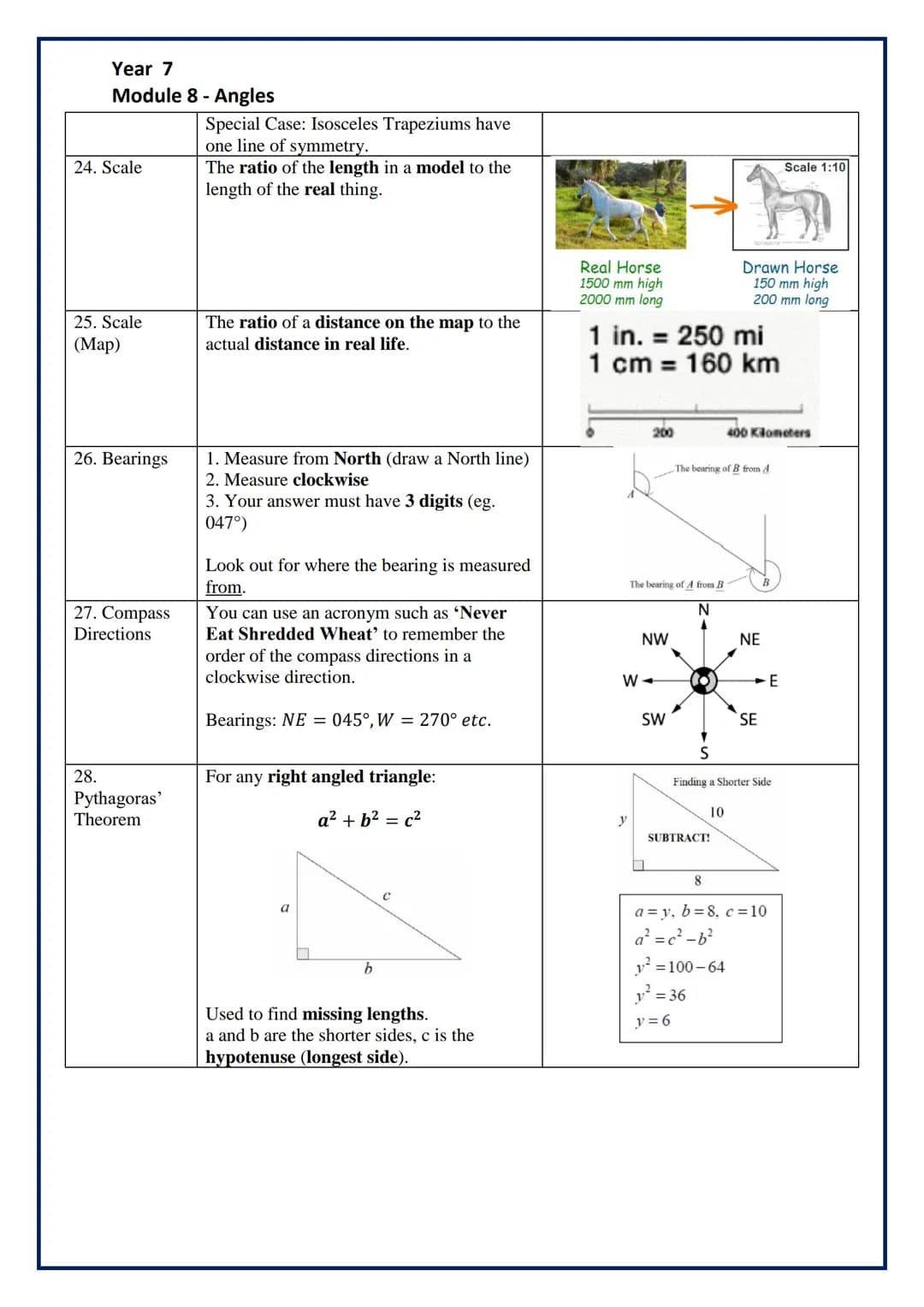

Page 4: Scale, Bearings, and Pythagoras' Theorem

This page covers practical applications of geometry, including scale drawings, bearings, and the Pythagorean theorem.

Definition: Scale represents the ratio between model dimensions and actual dimensions, while map scale shows the ratio between map distances and real-life distances.

Vocabulary: Bearings are measured clockwise from North and must be expressed in three digits.

Example: Pythagoras' theorem states that a² + b² = c² in right-angled triangles, where:

a and b are the shorter sides
c is the hypotenuse $longest side$

Highlight: The compass direction acronym "Never Eat Shredded Wheat" helps remember the clockwise order: North, East, South, West.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Subjects

Maths

Geometry and measure

Angles, lines and polygons

Maths

•

406

•

2 Aug 2023

•

4 pages

Awesome Year 7 Guide: Angles, Triangles, and Polygons Made Easy

Olamide

@olamide_26

Understanding angles and their properties for year 7 forms the foundation of geometry education, covering essential concepts from basic angle types to complex polygon properties.

• The module comprehensively covers angle types (acute, right, obtuse, reflex) and their measurements
•... Show more

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 2: Triangles, Quadrilaterals, and Polygons

This page explores triangle properties, polygon classifications, and methods for calculating interior angles in various shapes.

Definition: A polygon is a 2D shape with straight edges only, and it's considered regular when all sides and angles are equal.

Highlight: Triangle interior angles always sum to 180°, while quadrilateral interior angles sum to 360°.

Example: Triangle types include:

Right-angled triangles $one 90° angle$
Isosceles triangles $two equal sides and angles$
Equilateral triangles $all sides and angles equal$
Scalene triangles $all sides and angles different$

Vocabulary: Polygon names are based on their number of sides:

Pentagon $5 sides$
Hexagon $6 sides$
Heptagon/Septagon $7 sides$
Octagon $8 sides$
Nonagon $9 sides$
Decagon $10 sides$

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 3: Quadrilateral Properties

This page details the properties of various quadrilaterals, including squares, rectangles, rhombuses, parallelograms, kites, and trapeziums.

Definition: Each quadrilateral type has unique properties related to:

Side lengths
Angle measurements
Parallel sides
Diagonal relationships
Symmetry
Rotational properties

Example: A square has:

Four equal sides
Four right angles
Opposite sides parallel
Diagonals bisecting at right angles
Four lines of symmetry
Rotational symmetry of order four

Highlight: The properties of special quadrilaterals build upon each other, with squares having the most properties and trapeziums having the least.

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 4: Scale, Bearings, and Pythagoras' Theorem

This page covers practical applications of geometry, including scale drawings, bearings, and the Pythagorean theorem.

Definition: Scale represents the ratio between model dimensions and actual dimensions, while map scale shows the ratio between map distances and real-life distances.

Vocabulary: Bearings are measured clockwise from North and must be expressed in three digits.

Example: Pythagoras' theorem states that a² + b² = c² in right-angled triangles, where:

a and b are the shorter sides
c is the hypotenuse $longest side$

Highlight: The compass direction acronym "Never Eat Shredded Wheat" helps remember the clockwise order: North, East, South, West.

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

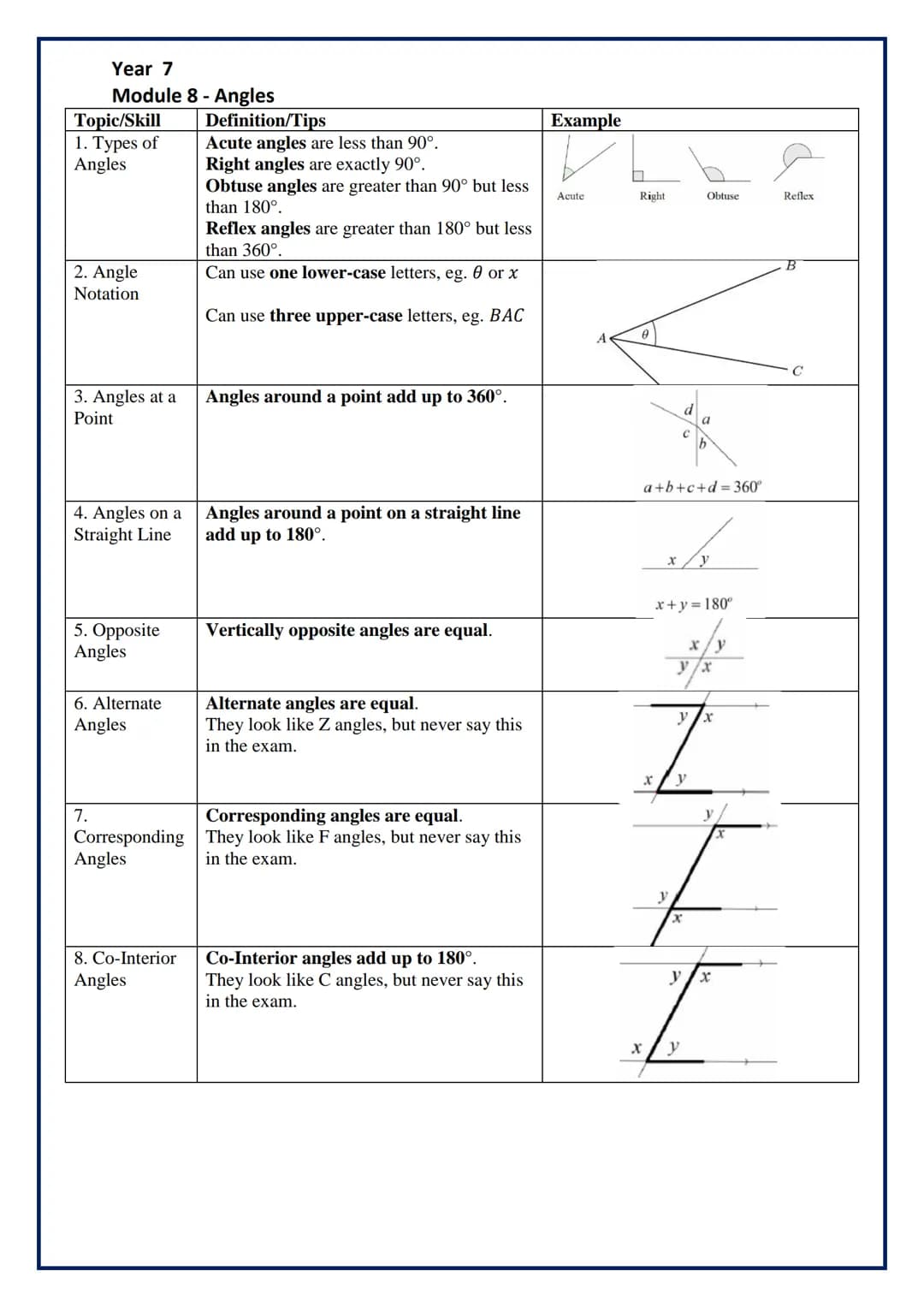

Page 1: Basic Angle Concepts and Parallel Lines
