Plate Tectonics - Edexcel GCSE Geography B Mind Maps

user profile picture
Samira Wadud@amiraadud_fpvl

Ever wonder what's going on beneath your feet? The Earth...

1
of 5
starting fron centre-
> inner core
> outer core
> lower mantle
• upper mantle Calthenusphere)
lithospheve
> the crust

outer core
'molten la

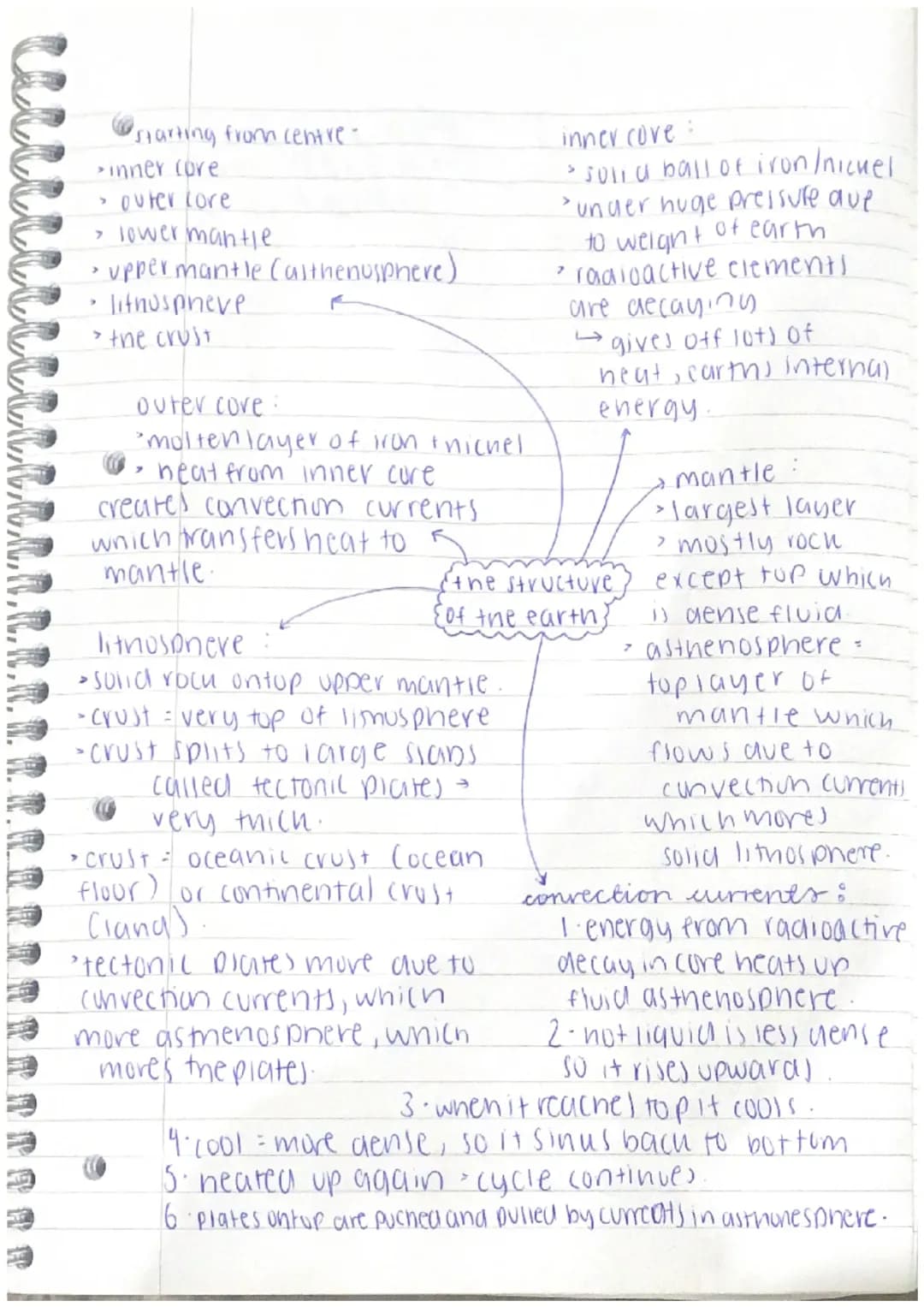

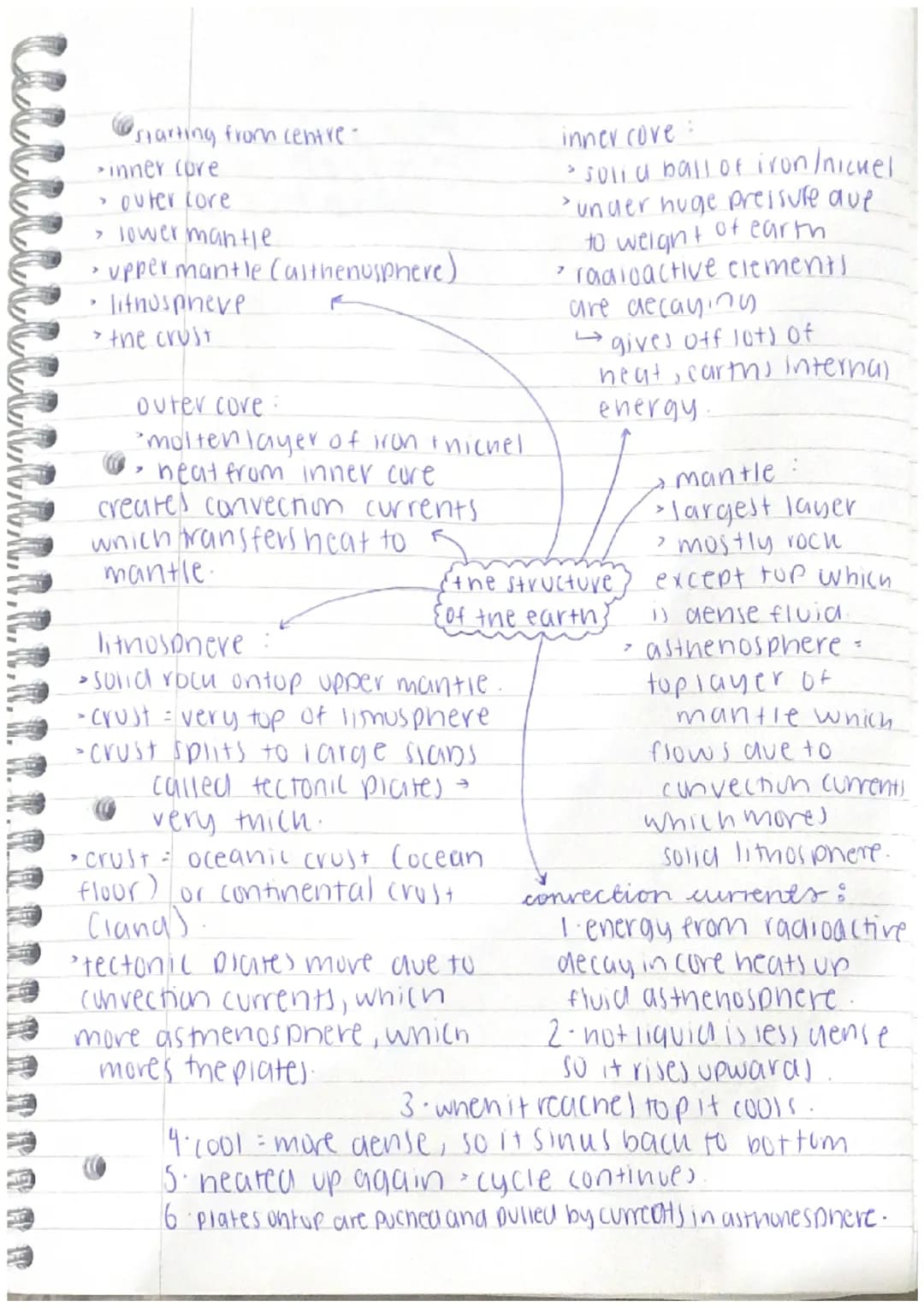

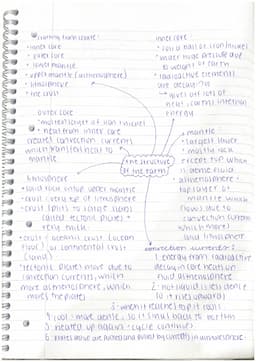

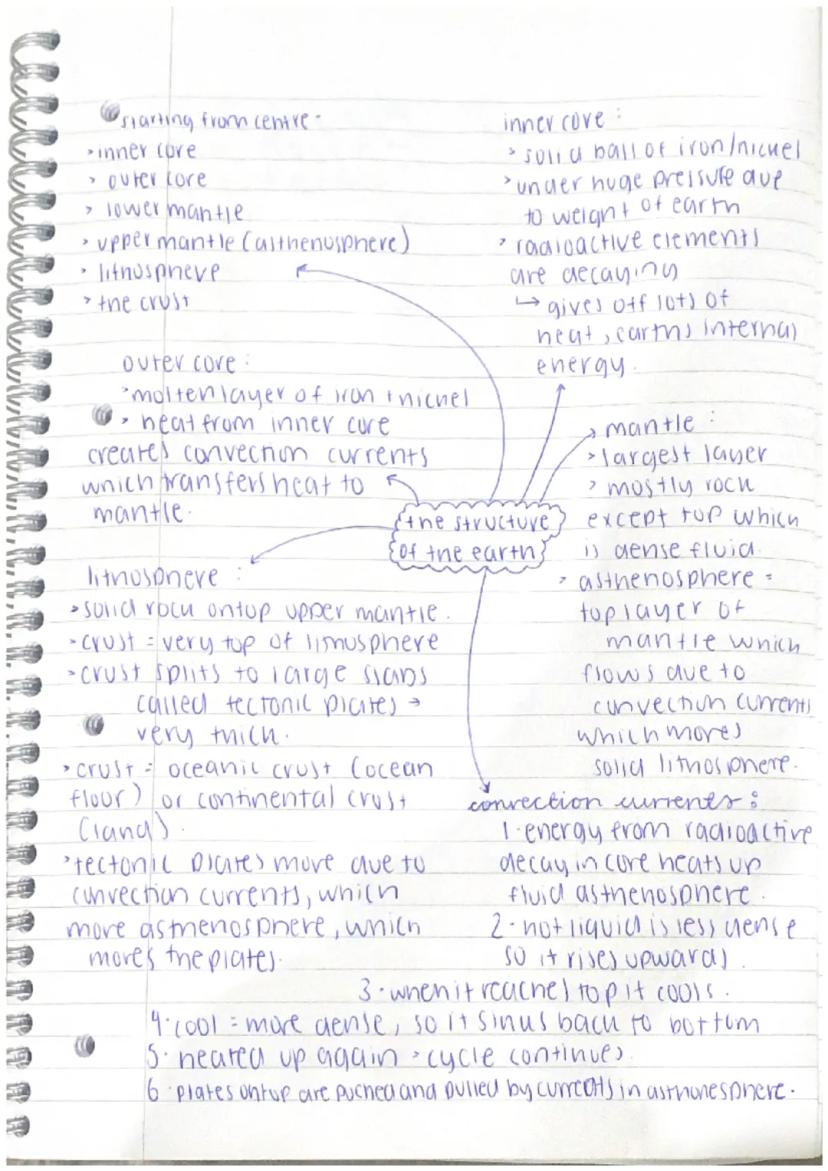

Earth's Structure and Plate Movement

Think of Earth as having six main layers, starting from the centre outward. The inner core is a solid ball of iron and nickel under immense pressure, whilst the outer core is molten and creates convection currents that transfer heat upward.

The mantle is Earth's largest layer, mostly solid rock except for the top part called the asthenosphere, which flows like thick treacle. Above this sits the lithosphere - solid rock that includes the crust, which splits into massive chunks called tectonic plates.

Here's the clever bit: convection currents work like a giant underground heating system. Radioactive decay in the core heats the asthenosphere, making it rise when hot (less dense) and sink when cool (more dense). This constant cycle pushes and pulls the tectonic plates above, causing them to move slowly across Earth's surface.

Quick Fact: These plates are still moving today - evidence suggests they once formed a supercontinent called Pangaea that gradually split apart!

2
of 5
starting fron centre-
> inner core
> outer core
> lower mantle
• upper mantle Calthenusphere)
lithospheve
> the crust

outer core
'molten la

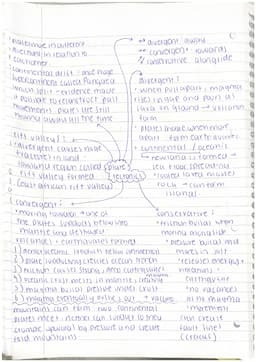

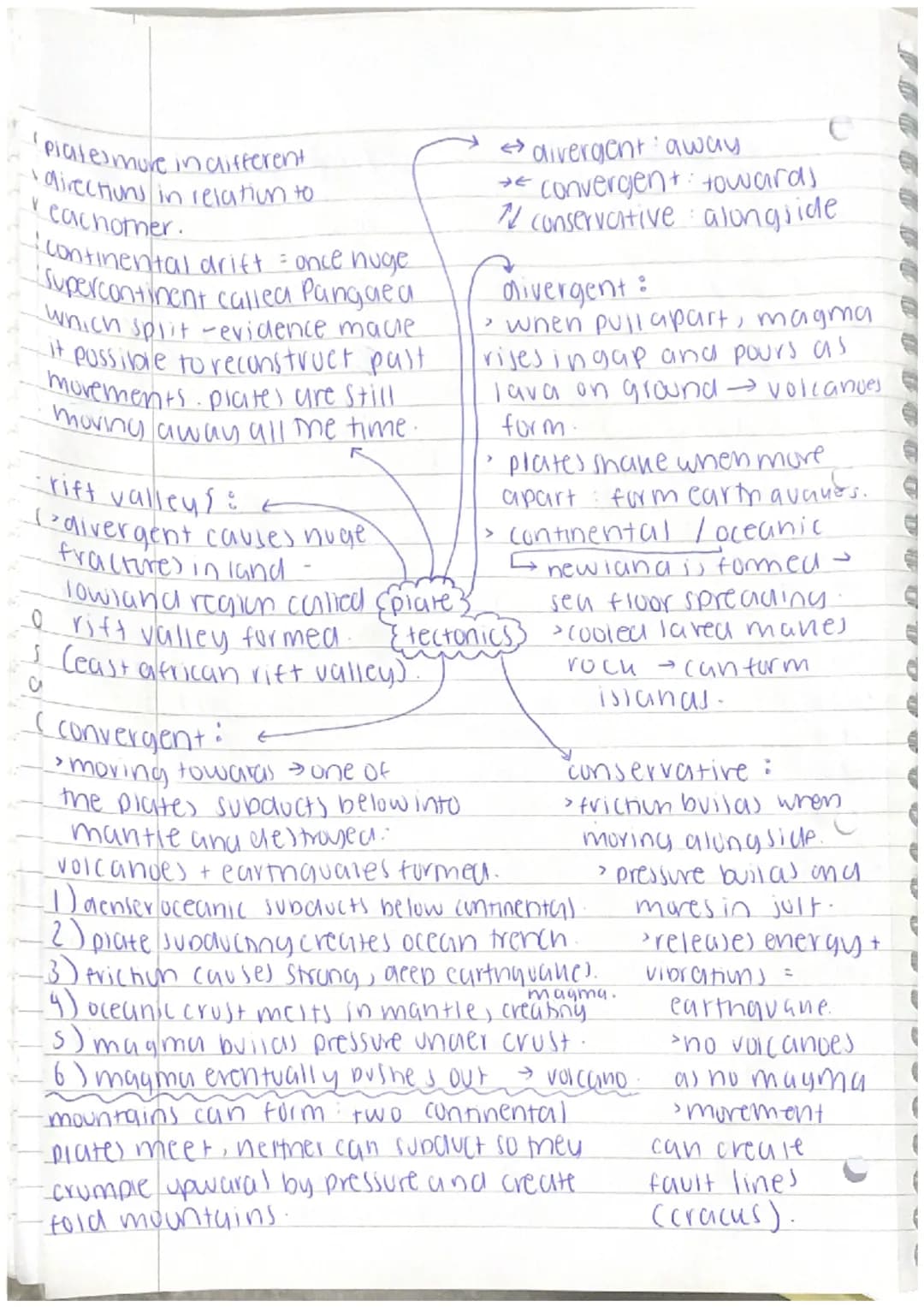

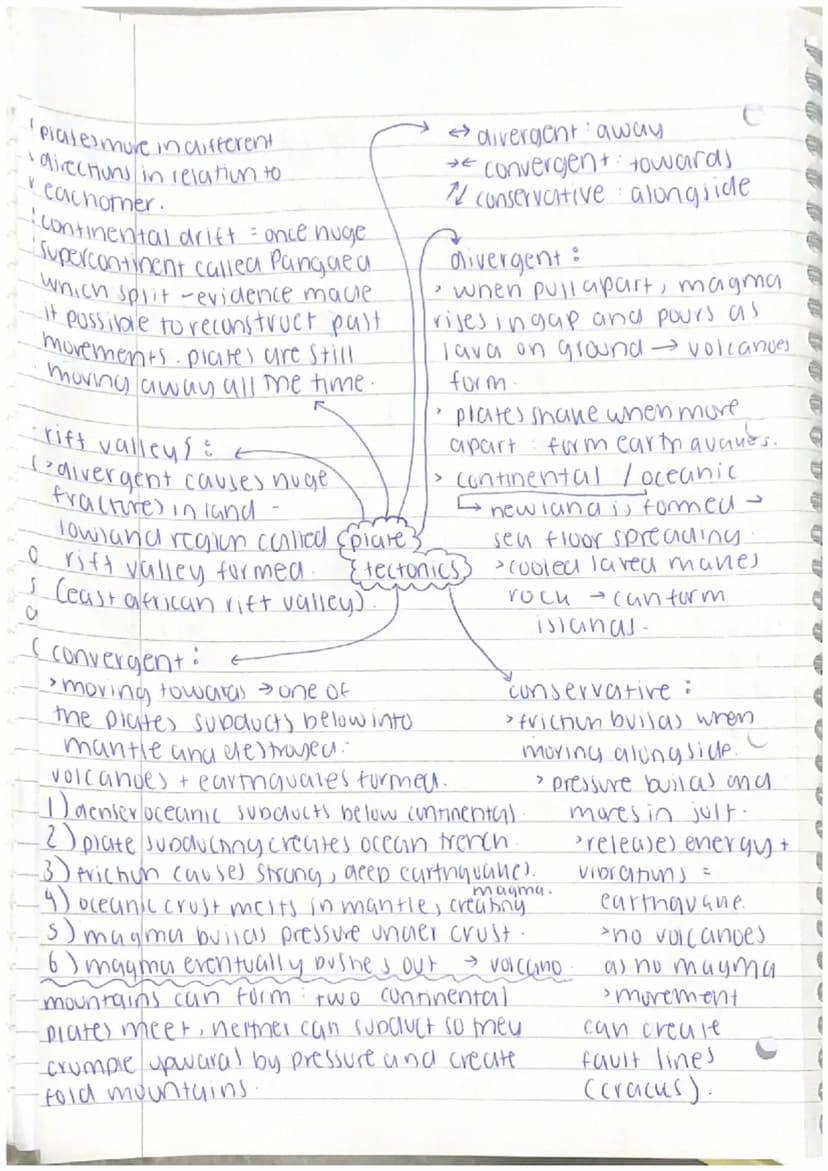

Types of Plate Boundaries

Tectonic plates don't just wander about randomly - they move in three specific ways that create different geological features. Understanding these movements helps explain why certain areas experience more earthquakes and volcanoes.

Divergent boundaries occur when plates pull apart. Magma rises to fill the gap, creating new land through sea floor spreading. This process forms islands and ocean ridges, plus creates rift valleys like the East African Rift Valley.

Convergent boundaries happen when plates crash into each other. The denser oceanic plate usually subducts (slides under) the continental plate, melting in the mantle and creating magma that erupts as volcanoes. When two continental plates meet, neither can subduct, so they crumple upward forming fold mountains.

Conservative boundaries see plates sliding alongside each other. There's no magma movement here, but friction builds up enormous pressure that eventually releases in sudden jolts - creating powerful earthquakes and fault lines.

Remember: Divergent = apart, Convergent = towards, Conservative = alongside!

3
of 5
starting fron centre-
> inner core
> outer core
> lower mantle
• upper mantle Calthenusphere)
lithospheve
> the crust

outer core
'molten la

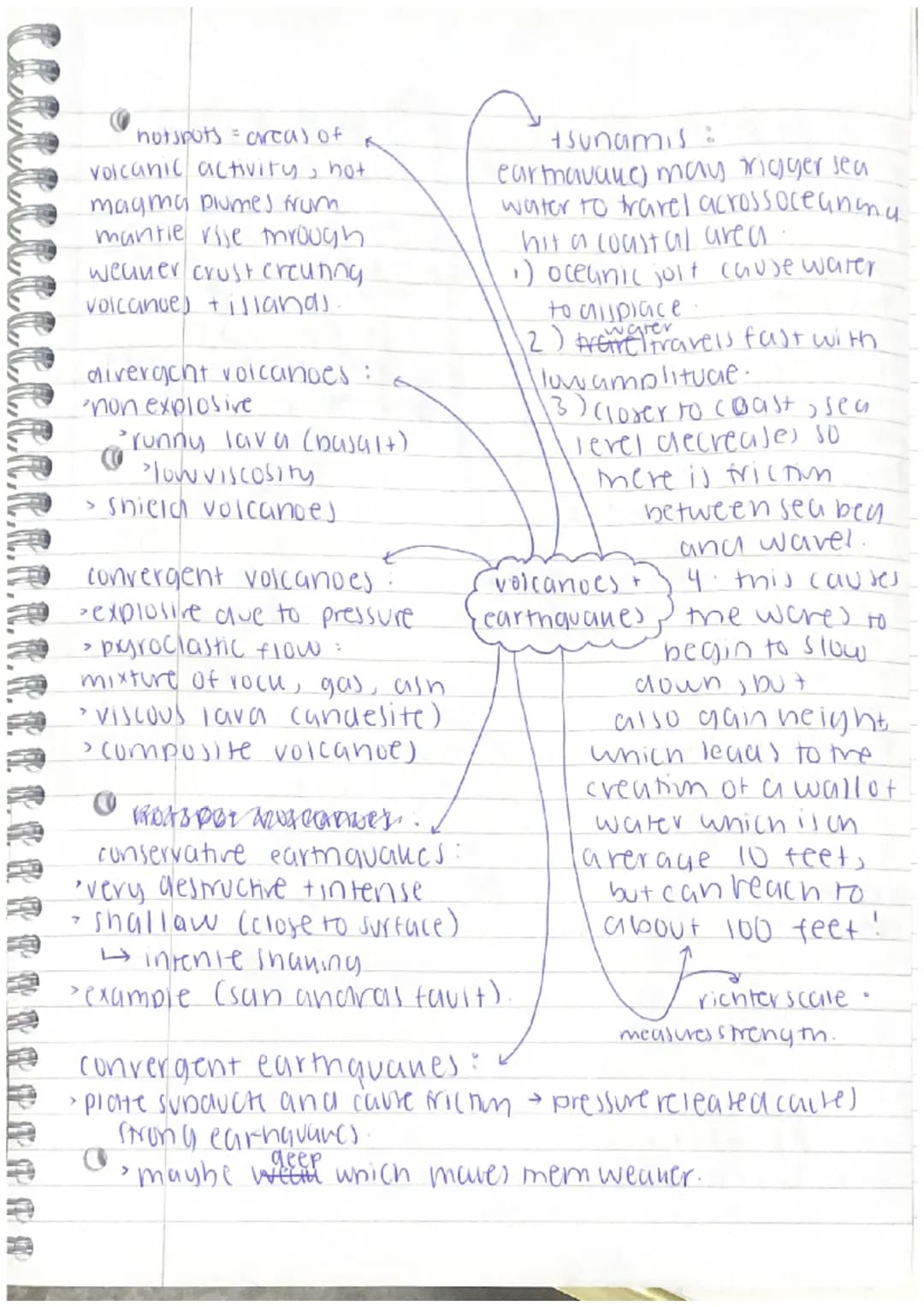

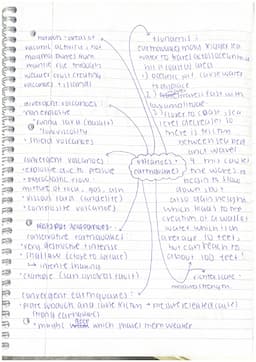

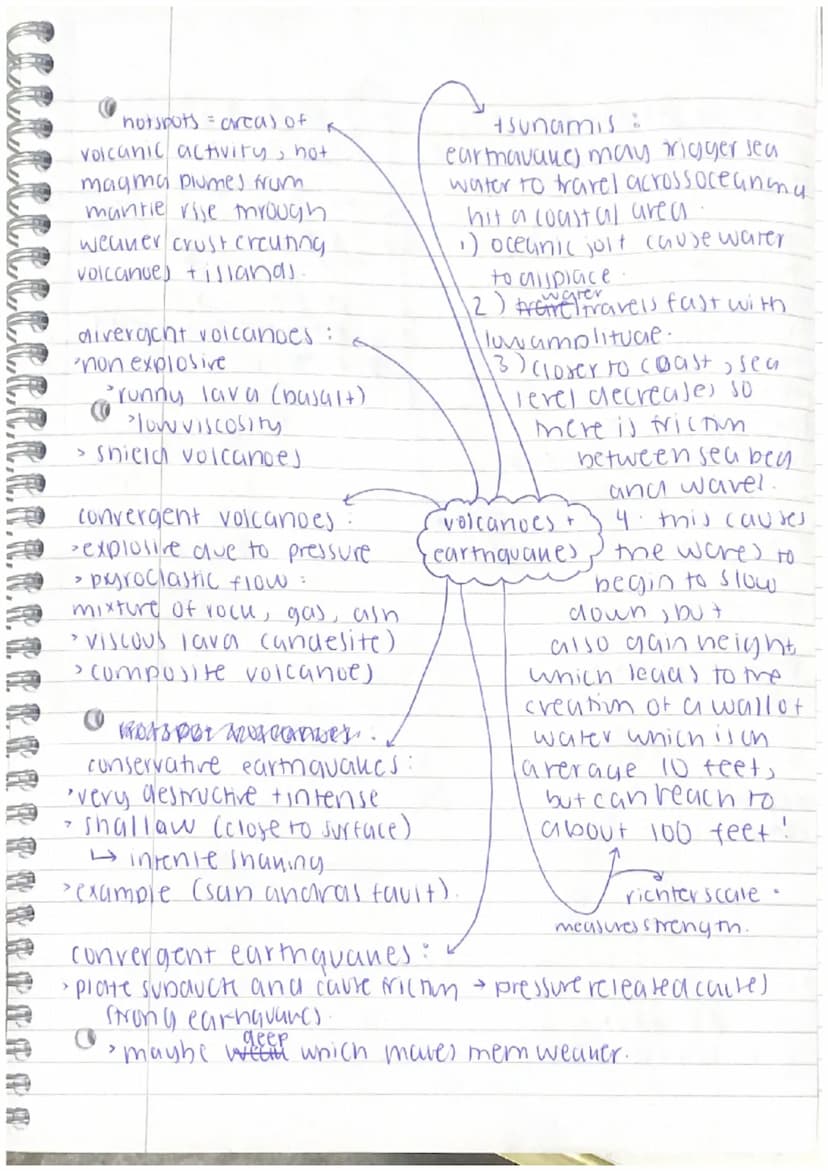

Volcanoes, Earthquakes and Tsunamis

Not all volcanoes and earthquakes are created equal - their location determines their behaviour and danger level. Hotspots are special areas where volcanic activity occurs away from plate boundaries, as hot magma plumes rise through weaker crust.

Divergent volcanoes are relatively gentle with runny basalt lava that creates broad shield volcanoes. Convergent volcanoes are explosive beasts with thick andesite lava and dangerous pyroclastic flows - mixtures of rock, gas and ash that form steep composite volcanoes.

Earthquakes vary too. Conservative earthquakes tend to be shallow and incredibly destructive (like those along the San Andreas Fault), whilst convergent earthquakes can be deep but still powerful due to subduction friction.

Tsunamis form when underwater earthquakes displace massive amounts of seawater. These waves travel incredibly fast across oceans with low height, but as they approach coastlines, friction with the seabed slows them down whilst increasing their height - sometimes reaching 100 feet!

Danger Alert: The Richter scale measures earthquake strength - each number represents a tenfold increase in power!

4
of 5
starting fron centre-
> inner core
> outer core
> lower mantle
• upper mantle Calthenusphere)
lithospheve
> the crust

outer core
'molten la

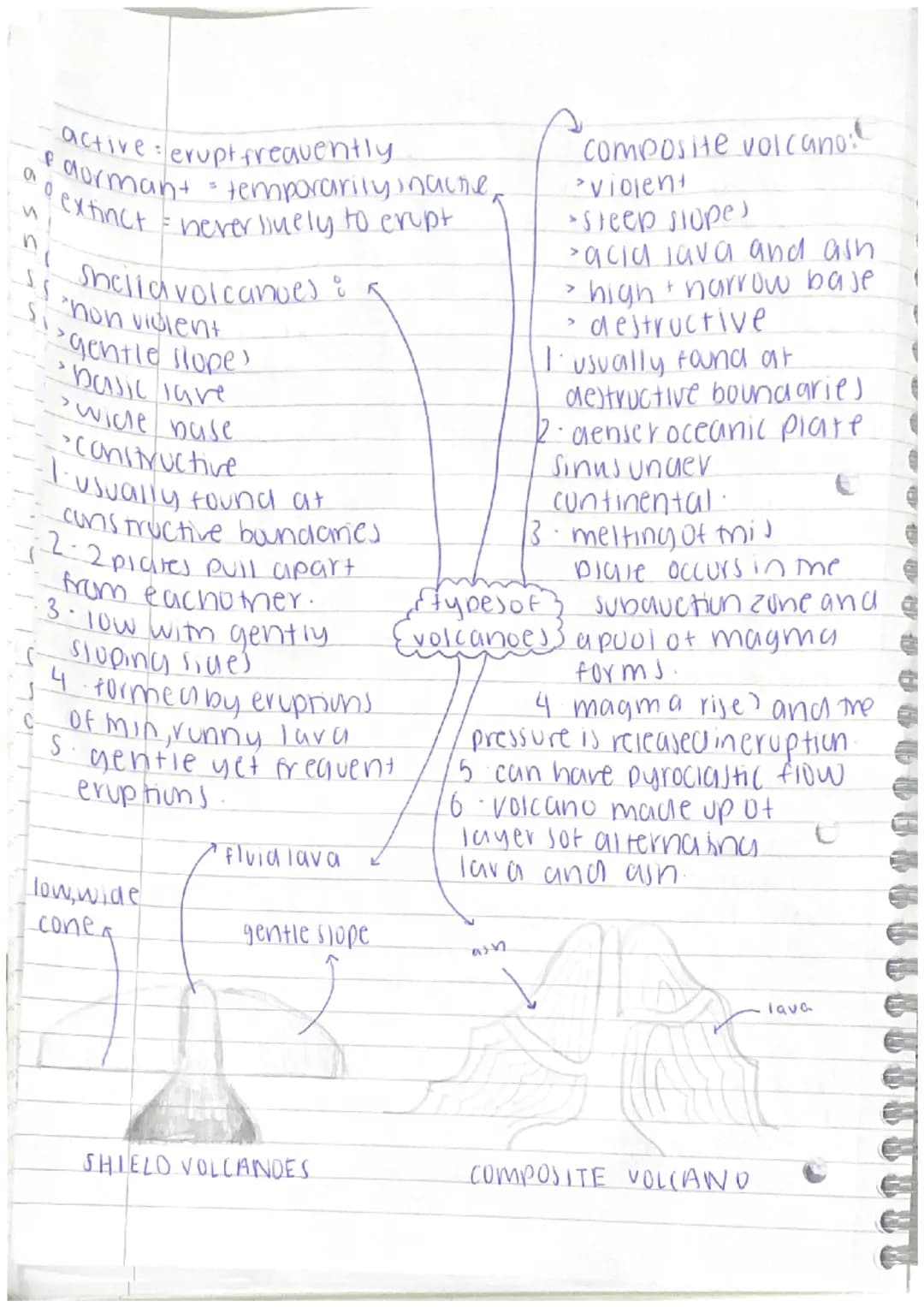

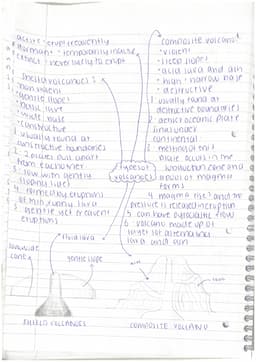

Shield vs Composite Volcanoes

Knowing your volcano types could literally save your life if you're ever near one! Volcanoes are classified as active (erupt frequently), dormant (temporarily inactive), or extinct (never likely to erupt again).

Shield volcanoes form at constructive boundaries where plates pull apart. They're the gentle giants of the volcano world - wide, low cones with gentle slopes created by frequent eruptions of thin, fluid lava that flows easily across large areas.

Composite volcanoes are found at destructive boundaries and are far more dangerous. They're tall and narrow with steep slopes, built from alternating layers of lava and ash. When the oceanic plate melts in the subduction zone, it creates a magma pool that builds pressure until it explodes violently.

The key difference? Shield volcanoes let off steam regularly with predictable, gentle eruptions. Composite volcanoes build up pressure over time, then release it catastrophically with pyroclastic flows that can devastate entire regions.

Safety Tip: If you're near a composite volcano, take evacuation warnings seriously - these aren't gentle giants!

5
of 5
starting fron centre-
> inner core
> outer core
> lower mantle
• upper mantle Calthenusphere)
lithospheve
> the crust

outer core
'molten la

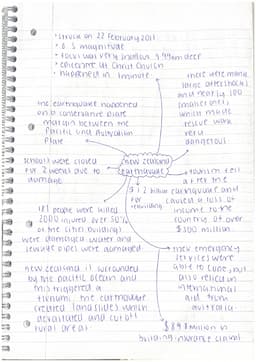

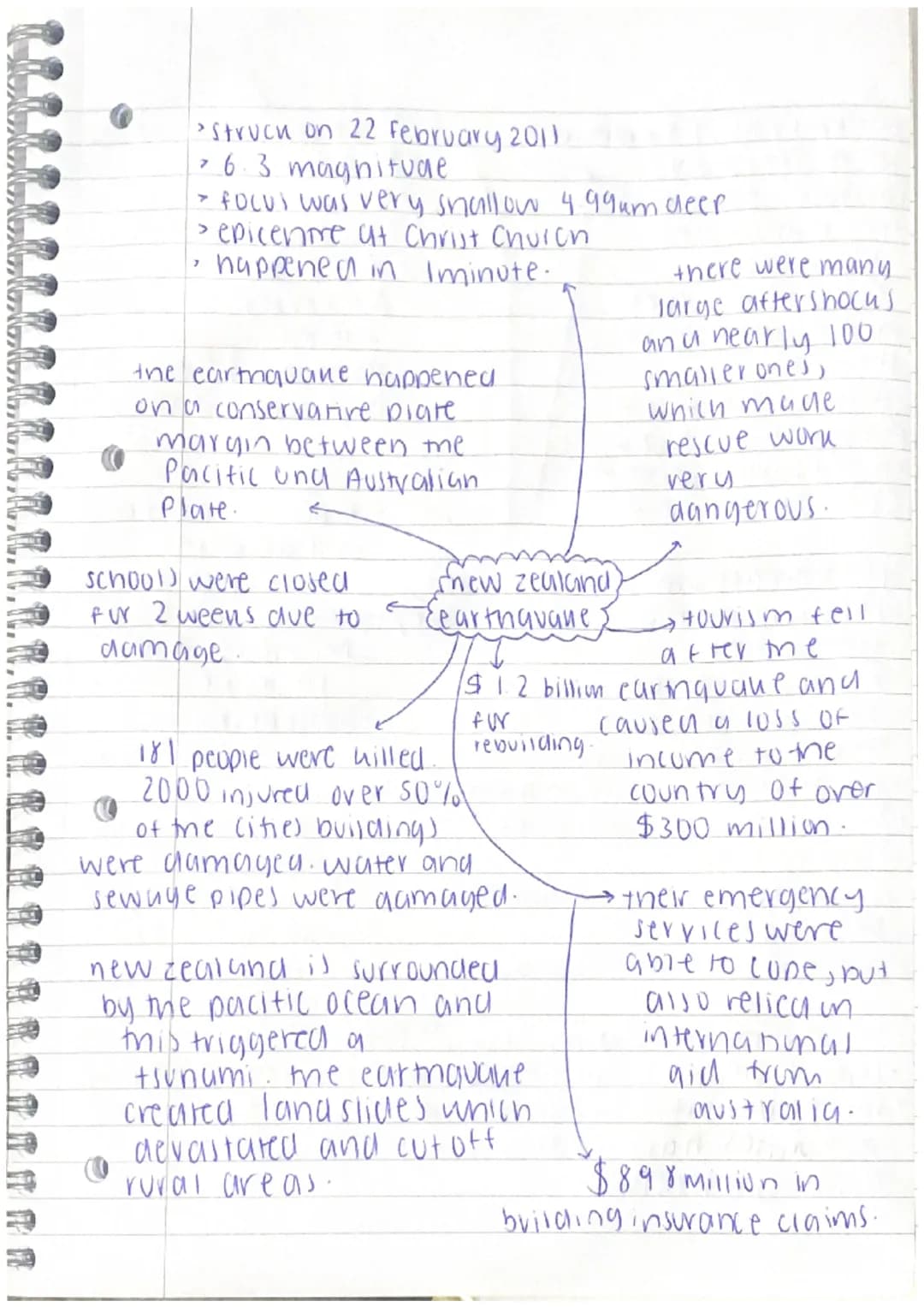

Case Study: Christchurch Earthquake 2011

Real-world disasters show just how devastating plate movements can be. The Christchurch earthquake struck New Zealand on 22nd February 2011, measuring 6.3 magnitude with a dangerously shallow focus of just 4.99km deep.

This earthquake occurred on a conservative plate boundary between the Pacific and Australian plates. Despite lasting only one minute, it killed 181 people and injured 2,000 more. Over 50% of the city's buildings were damaged, and schools closed for two weeks.

The economic impact was staggering - 1.2billionneededforrebuilding,withtourismlossesexceeding1.2 billion** needed for rebuilding, with tourism losses exceeding **300 million. Building insurance claims alone reached $898 million, showing how one geological event can cripple an entire region's economy.

The earthquake triggered landslides that cut off rural areas and nearly 100 aftershocks that made rescue work extremely dangerous. New Zealand's emergency services coped well, but international aid from Australia proved essential for recovery efforts.

Learning Point: Shallow earthquakes like this one cause maximum surface damage - depth matters as much as magnitude!
