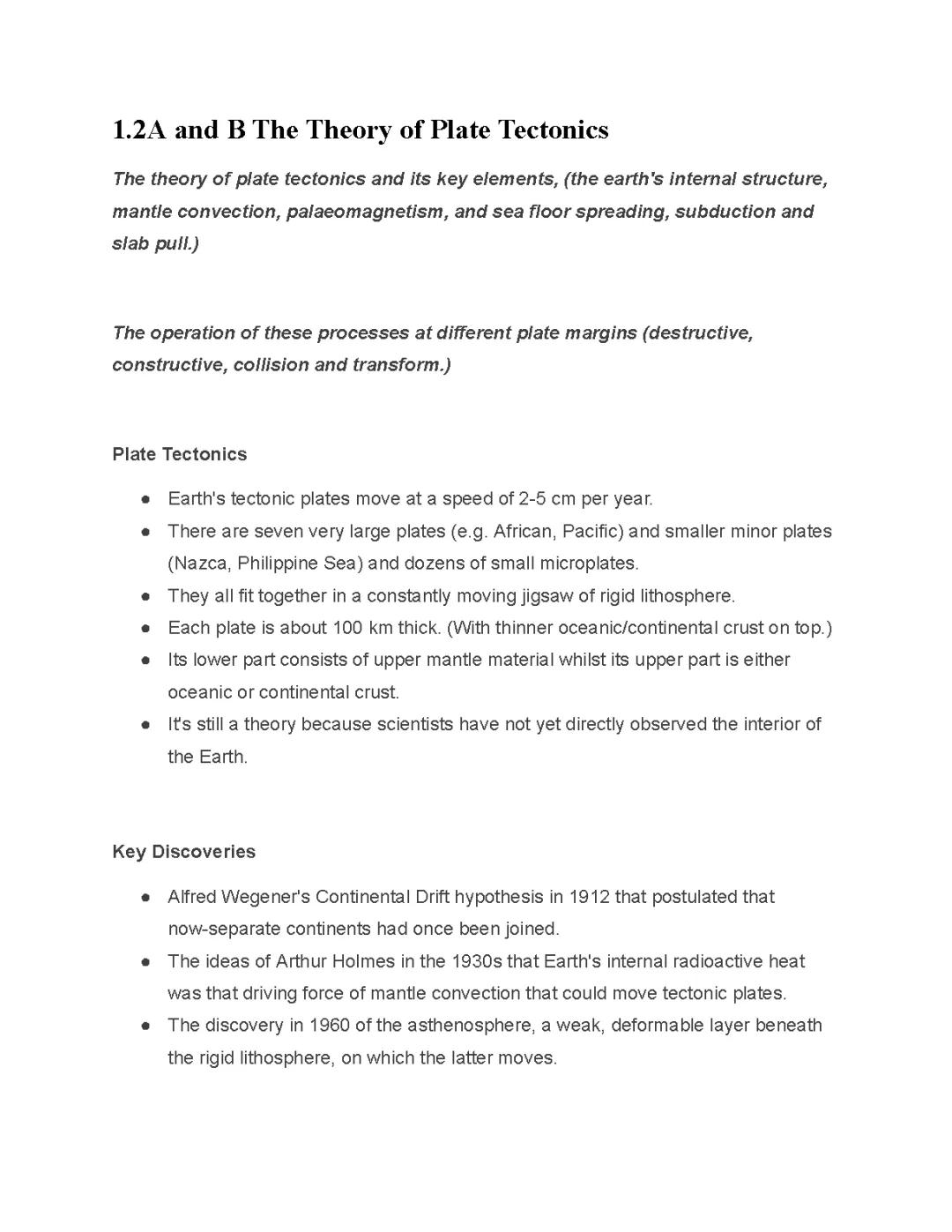

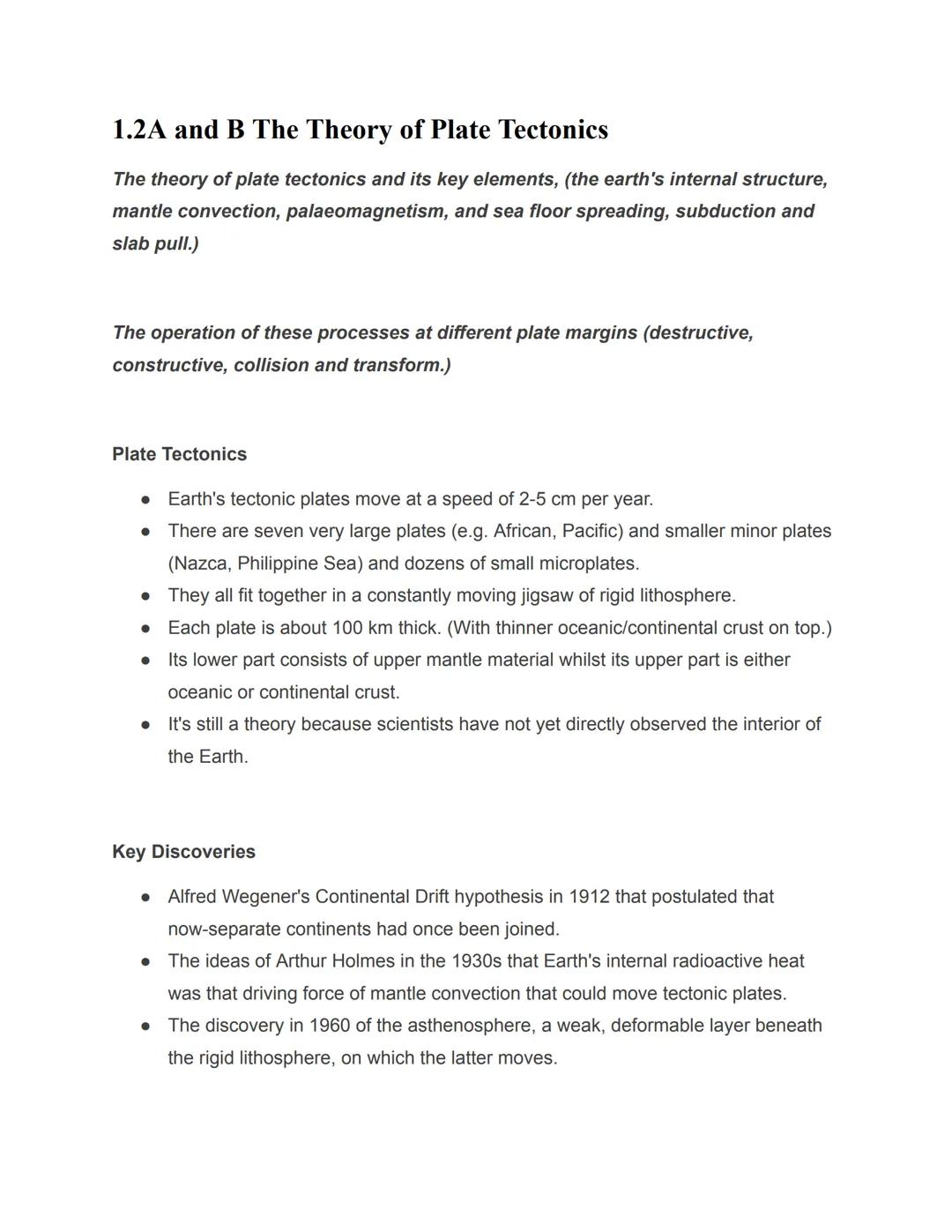

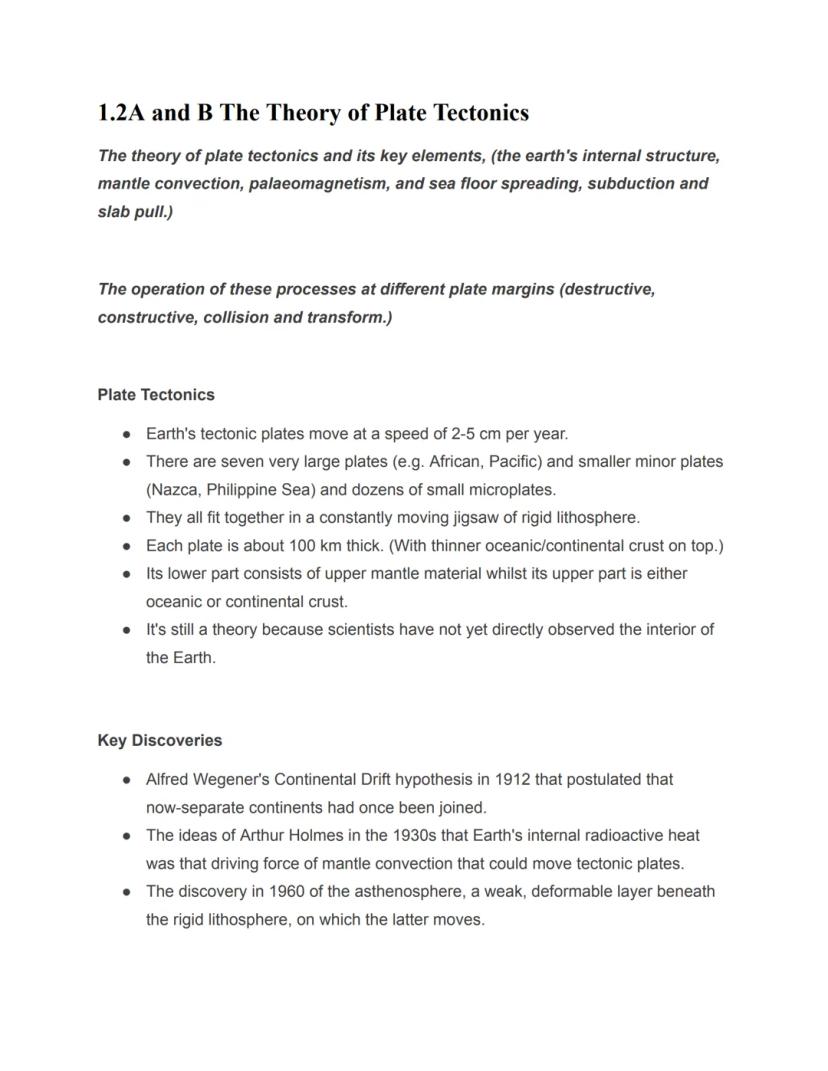

1.2A and B The Theory of Plate Tectonics
The theory of plate tectonics and its key elements, (the earth's internal structure,
mantle convect

The Theory of Plate Tectonics

Ever wondered why continents seem to fit together like puzzle pieces? Plate tectonics explains this perfectly! Earth's surface consists of massive slabs called tectonic plates that crawl along at about 2-5 cm per year - roughly the same speed your fingernails grow.

These plates aren't just surface features - they're about 100 km thick and made of rigid lithosphere floating on the softer asthenosphere below. There are seven massive plates (like the Pacific and African plates) plus loads of smaller ones that all fit together in a constantly shifting jigsaw.

The theory started with Alfred Wegener in 1912, who noticed that continents looked like they'd once been joined together. Later scientists like Arthur Holmes figured out that radioactive heat inside Earth drives the whole system through mantle convection.

Quick Fact: It's still called a "theory" because we can't directly observe Earth's interior - but the evidence is absolutely overwhelming!

1.2A and B The Theory of Plate Tectonics
The theory of plate tectonics and its key elements, (the earth's internal structure,
mantle convect

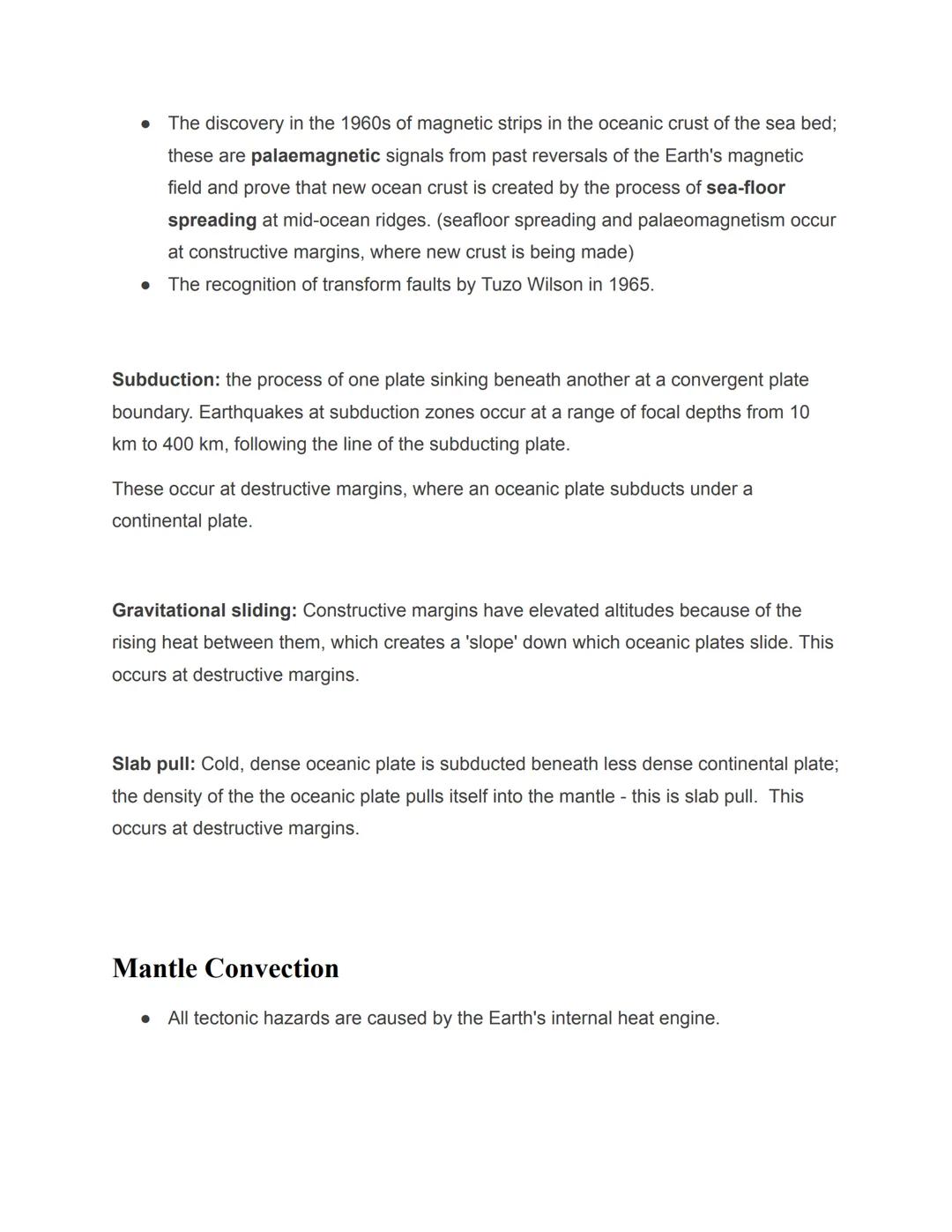

Key Evidence and Processes

The 1960s brought game-changing discoveries that proved plate tectonics was real. Scientists found magnetic stripes on the ocean floor that recorded Earth's magnetic field flipping back and forth over millions of years. This palaeomagnetism showed that new ocean crust forms at mid-ocean ridges through seafloor spreading.

Subduction happens when dense oceanic plates sink beneath lighter continental plates at destructive margins. As these plates descend, they create earthquakes at depths from 10 km to 400 km deep, following the sinking slab's path.

Two main forces drive this movement: gravitational sliding occurs because constructive margins sit higher up, creating slopes that plates slide down. Slab pull is even more powerful - cold, dense oceanic plates literally pull themselves into the mantle under their own weight.

Remember: All this movement is powered by Earth's internal heat engine from radioactive decay!

1.2A and B The Theory of Plate Tectonics
The theory of plate tectonics and its key elements, (the earth's internal structure,
mantle convect

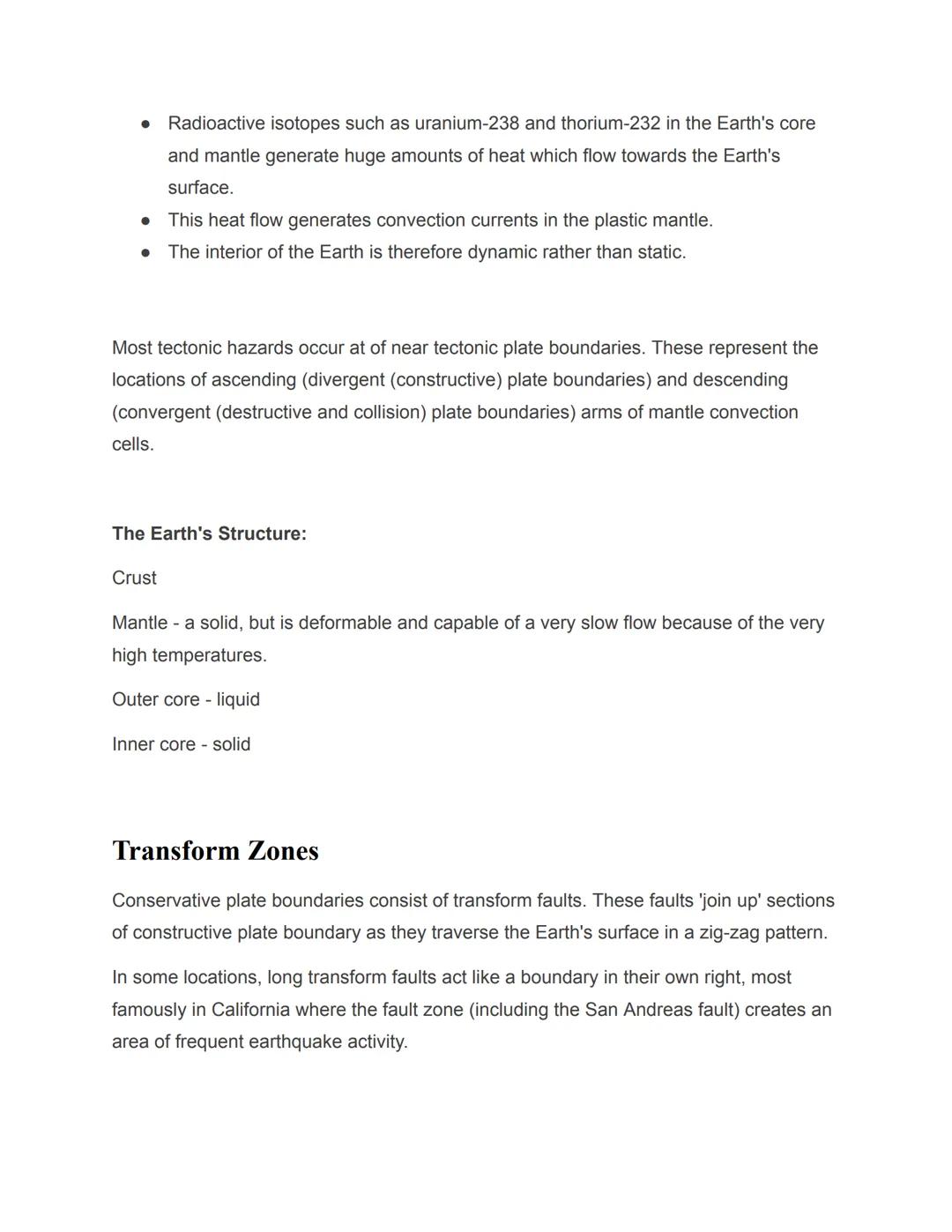

Earth's Structure and Mantle Convection

Think of Earth like a layered cake that's been heated from the inside. Radioactive isotopes like uranium-238 in the core and mantle pump out massive amounts of heat that flow towards the surface. This creates convection currents in the mantle - similar to how soup bubbles and flows when you heat it.

The mantle isn't liquid, but it's so hot that solid rock can flow incredibly slowly over millions of years. This dynamic system drives everything - most earthquakes and volcanoes occur right where these convection currents rise (at constructive boundaries) or sink (at destructive boundaries).

Earth's layers work like this: thin crust on top, thick flowing mantle, liquid outer core, and solid inner core. The mantle's convection currents are the engine that moves all the plates around.

Key Point: Earth's interior is dynamic, not static - it's constantly moving and changing!

1.2A and B The Theory of Plate Tectonics
The theory of plate tectonics and its key elements, (the earth's internal structure,
mantle convect

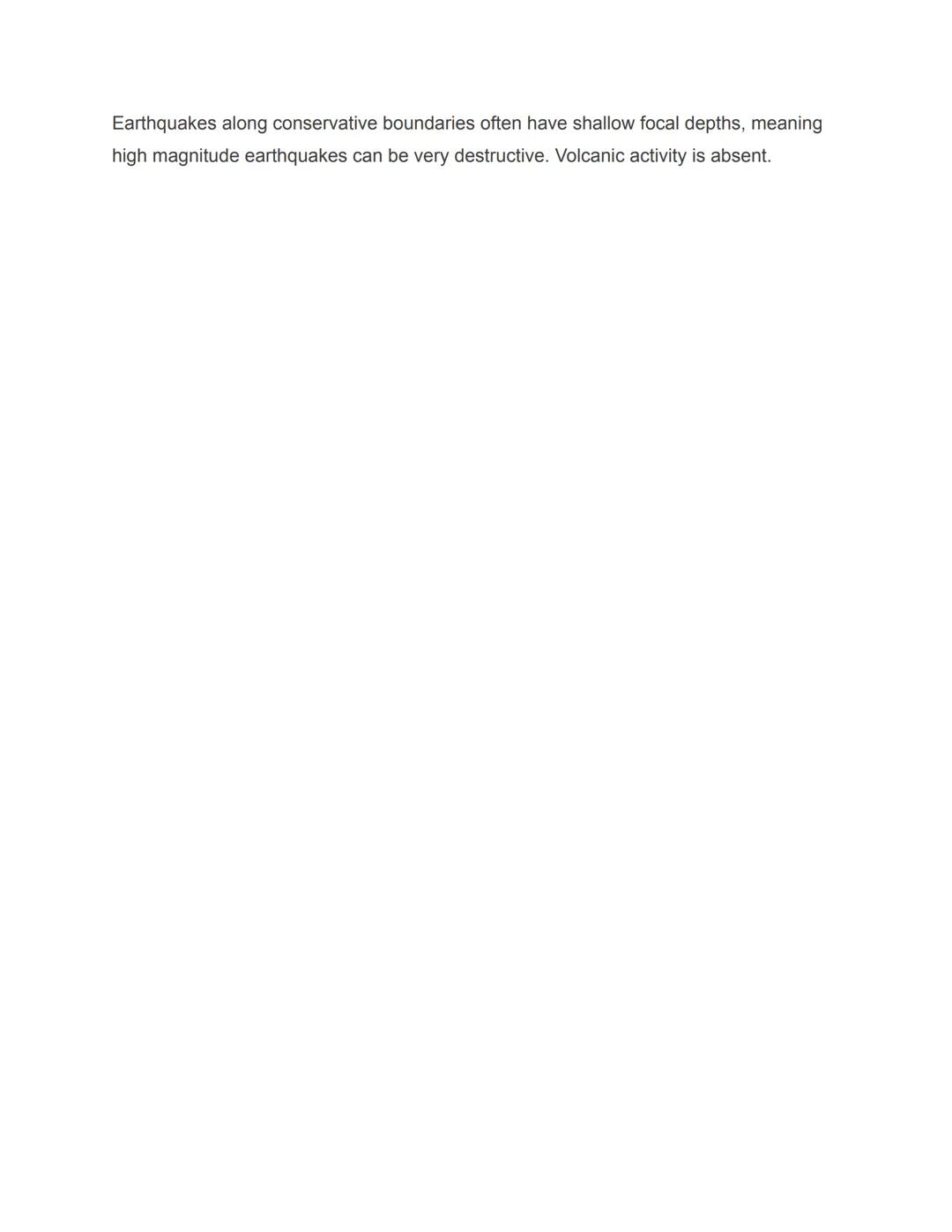

Transform Boundaries

Conservative plate boundaries are where plates slide past each other horizontally rather than colliding or separating. These transform faults often connect sections of other boundaries in a zigzag pattern across Earth's surface.

California's famous San Andreas fault is the perfect example - it's part of a massive transform system that creates frequent, shallow earthquakes. Because these earthquakes have shallow focal depths, they can be incredibly destructive even when they're not the highest magnitude.

Unlike other boundary types, transform zones don't produce volcanic activity. The plates aren't creating new crust or destroying old crust - they're just grinding past each other, building up stress until it's released as earthquakes.

Reality Check: These "conservative" boundaries are anything but peaceful - they're responsible for some of the world's most devastating earthquakes!
