GCSE Computer Science Revision Notes - OCR J277 Specification

Getting Started with Systems Architecture

This is your introduction to the fundamental concepts you'll need to master for GCSE Computer Science. We're covering CPU architecture, memory systems, and data storage - the building blocks of every computer you use.

Understanding these concepts will help you tackle exam questions confidently and give you a solid foundation for more advanced computing topics.

Quick Tip: These notes focus on the most important points for your exam, so you can revise efficiently without getting bogged down in unnecessary detail.

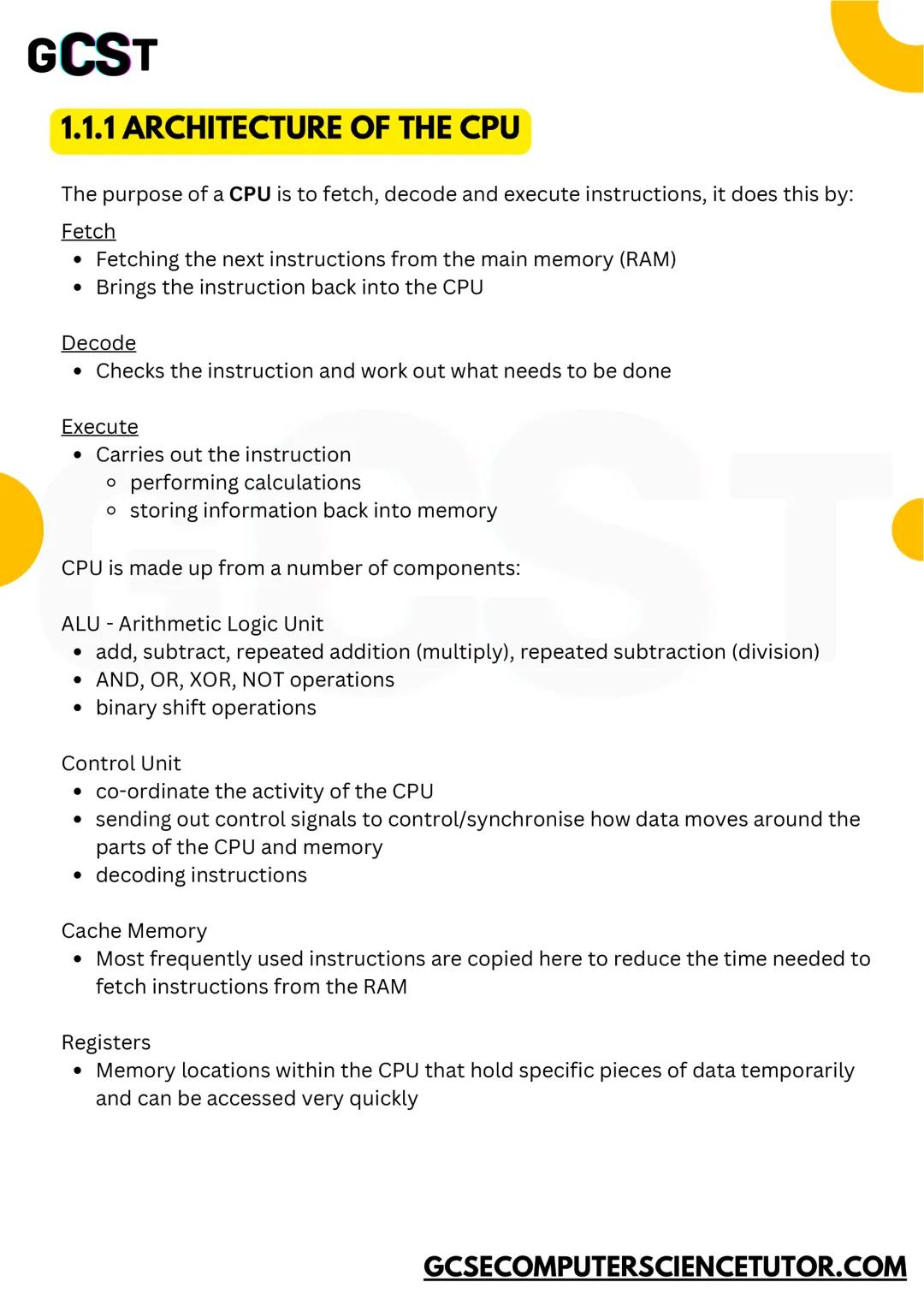

CPU Architecture Fundamentals

Your CPU is basically the brain of your computer, and it follows a simple three-step process called the fetch-decode-execute cycle. First, it fetches instructions from memory (RAM), then decodes what needs to be done, and finally executes the instruction by doing calculations or storing information.

The CPU contains several key components that work together. The Arithmetic Logic Unit (ALU) handles all mathematical operations like addition, subtraction, and logical operations like AND and OR. The Control Unit acts like a conductor, coordinating all CPU activities and sending control signals to synchronise data movement.

Cache memory stores your most frequently used instructions right inside the CPU, which makes accessing them much faster than going all the way to RAM. Registers are tiny memory locations within the CPU that hold specific pieces of data temporarily - think of them as the CPU's scratchpad.

Remember: The fetch-decode-execute cycle repeats constantly while your computer is running, millions of times per second!

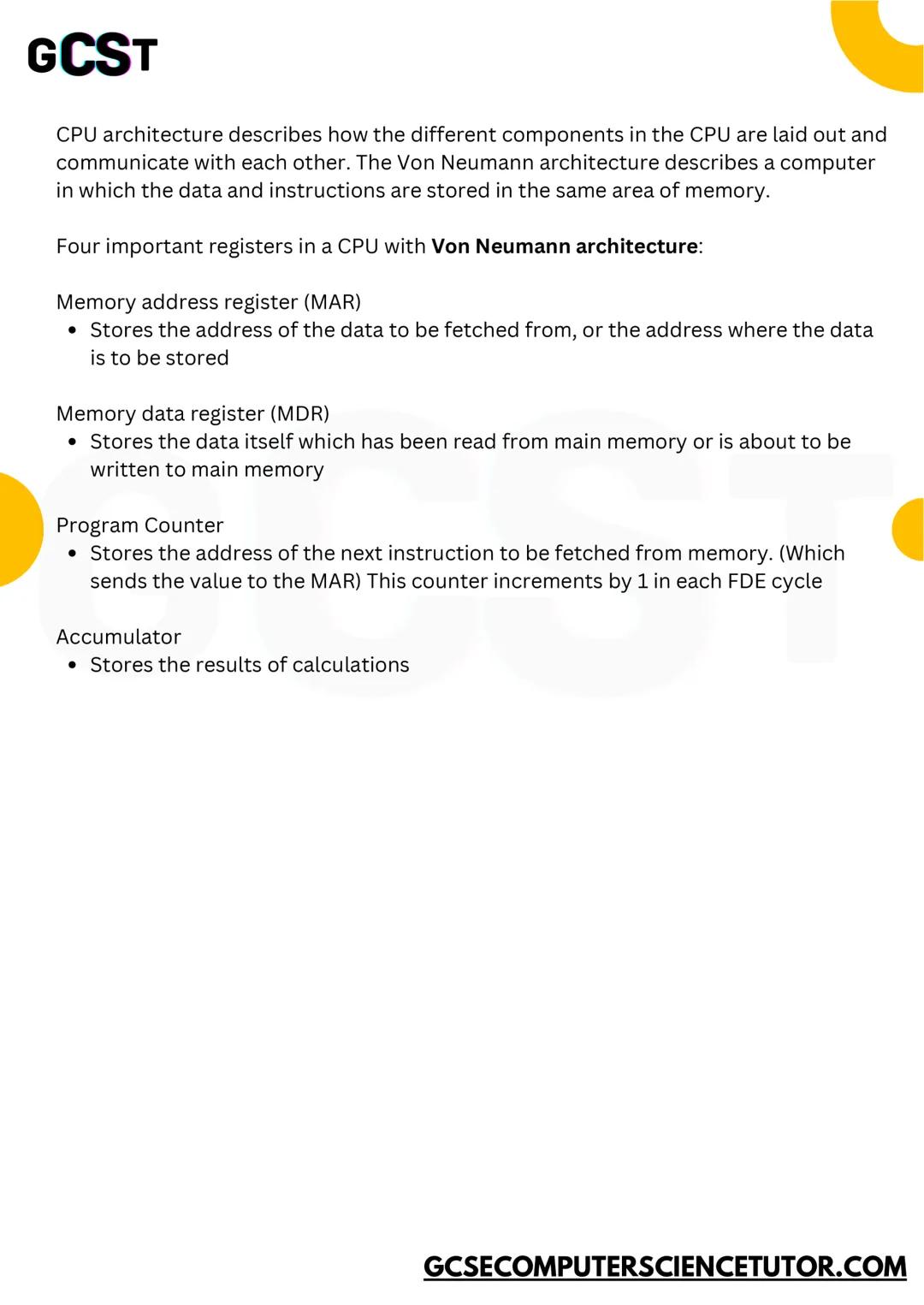

Von Neumann Architecture and Key Registers

Von Neumann architecture describes how most computers are designed - with data and instructions stored together in the same memory area. This might seem obvious, but it's actually a specific design choice that makes computers more flexible.

Four crucial registers make this architecture work smoothly. The Memory Address Register (MAR) stores the address of where data needs to be fetched from or stored to. The Memory Data Register (MDR) holds the actual data being transferred to or from memory.

The Program Counter keeps track of which instruction comes next by storing its memory address - it automatically increments by 1 after each instruction. Finally, the Accumulator stores the results of calculations performed by the ALU.

Exam Tip: Learn these four registers well - they're frequently tested and understanding them helps explain how the fetch-decode-execute cycle actually works.

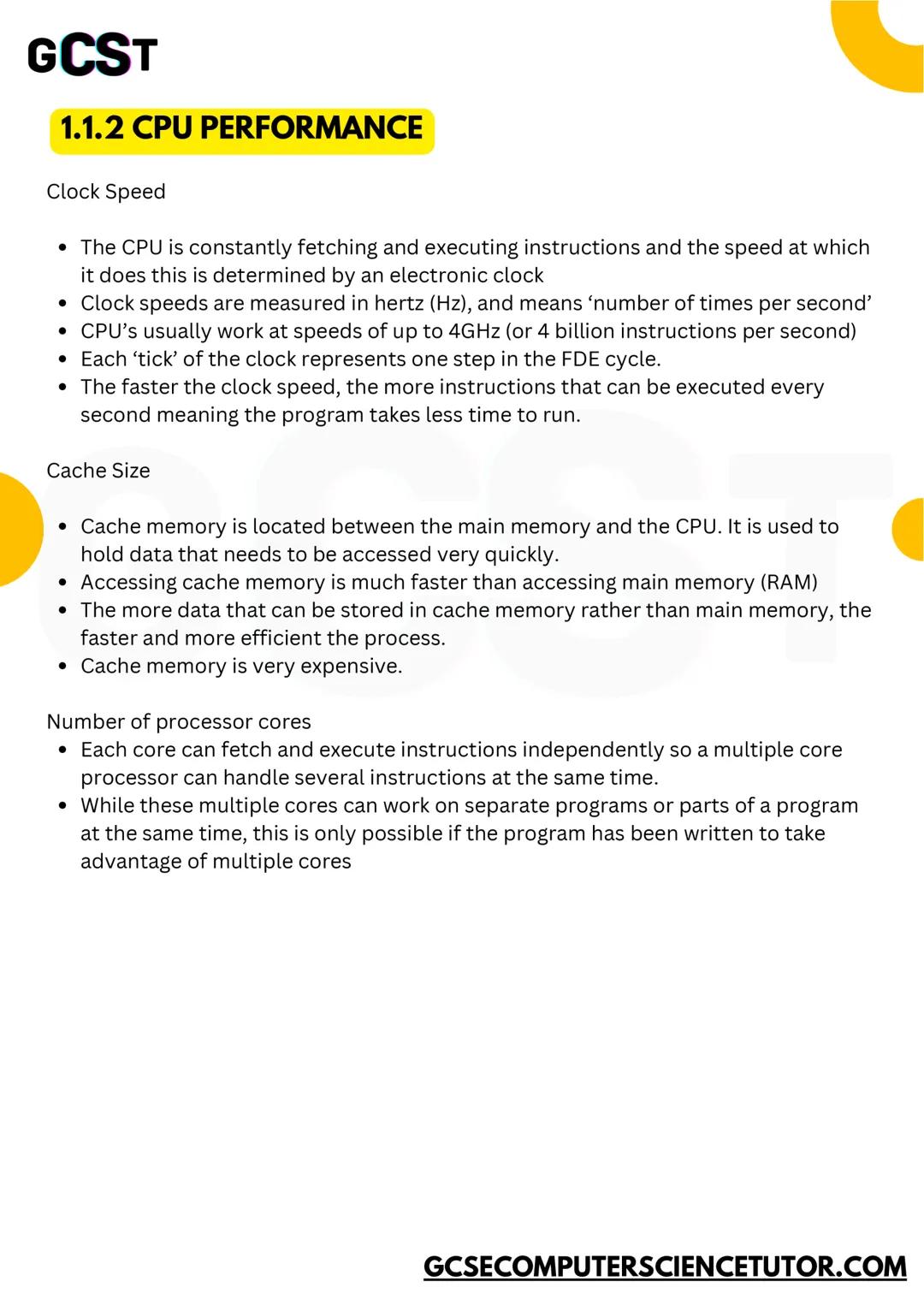

CPU Performance Factors

Three main factors determine how fast your CPU can process information. Clock speed, measured in hertz (Hz), determines how many instructions your CPU can execute per second - modern CPUs typically run at around 4GHz, meaning 4 billion instructions per second!

Cache size significantly impacts performance because accessing cache memory is much faster than accessing main memory (RAM). The more data that can be stored in cache rather than RAM, the more efficient your system becomes. However, cache memory is expensive, so there's always a trade-off.

Multiple processor cores allow your CPU to handle several instructions simultaneously, like having multiple workers instead of just one. However, this only helps if your software is specifically designed to take advantage of multiple cores - otherwise, those extra cores just sit idle.

Real-world Connection: This is why a newer CPU with fewer cores but higher clock speed might feel faster for everyday tasks than an older CPU with more cores.

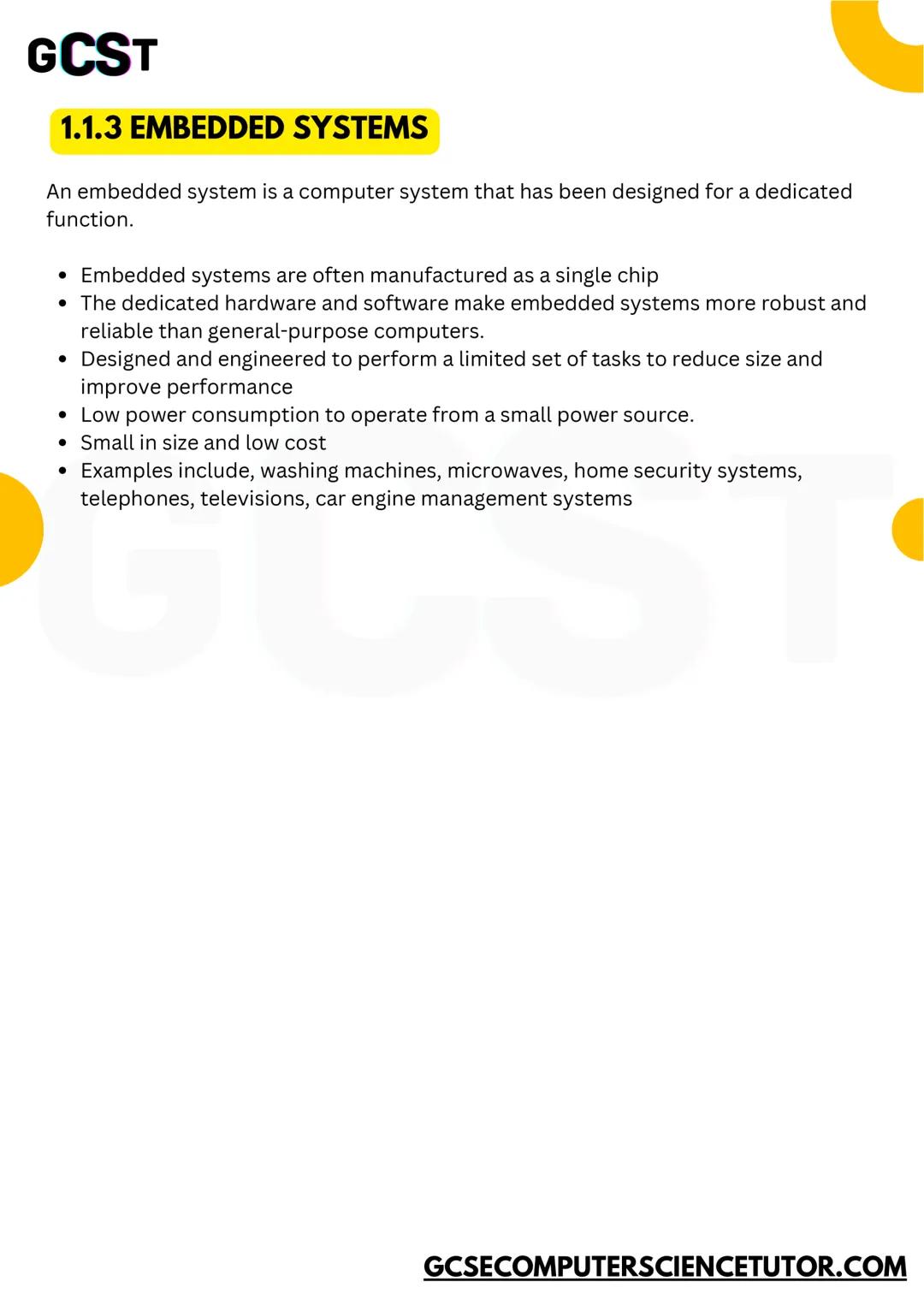

Embedded Systems

Embedded systems are specialised computers designed to perform one specific job really well. Unlike your laptop or phone, they're built for a single purpose and can't run different software.

These systems are typically manufactured as a single chip, making them incredibly robust and reliable compared to general-purpose computers. They're designed to be small, consume minimal power, and operate at low cost whilst being highly efficient at their specific task.

You'll find embedded systems everywhere in daily life - washing machines, microwaves, car engines, home security systems, and even smart TVs all contain embedded systems. They're so common that you probably interact with dozens of them every day without realising it.

Think About It: Your smartphone contains multiple embedded systems working alongside the main processor - the camera, GPS, and wireless chips all have their own embedded systems.

Memory and Storage Overview

Understanding different types of memory and storage is crucial for grasping how computers manage information. We'll explore primary storage (RAM and ROM) and secondary storage options, plus how computers measure and handle data.

This section covers essential concepts for your exam, including virtual memory, storage technologies, and data representation methods.

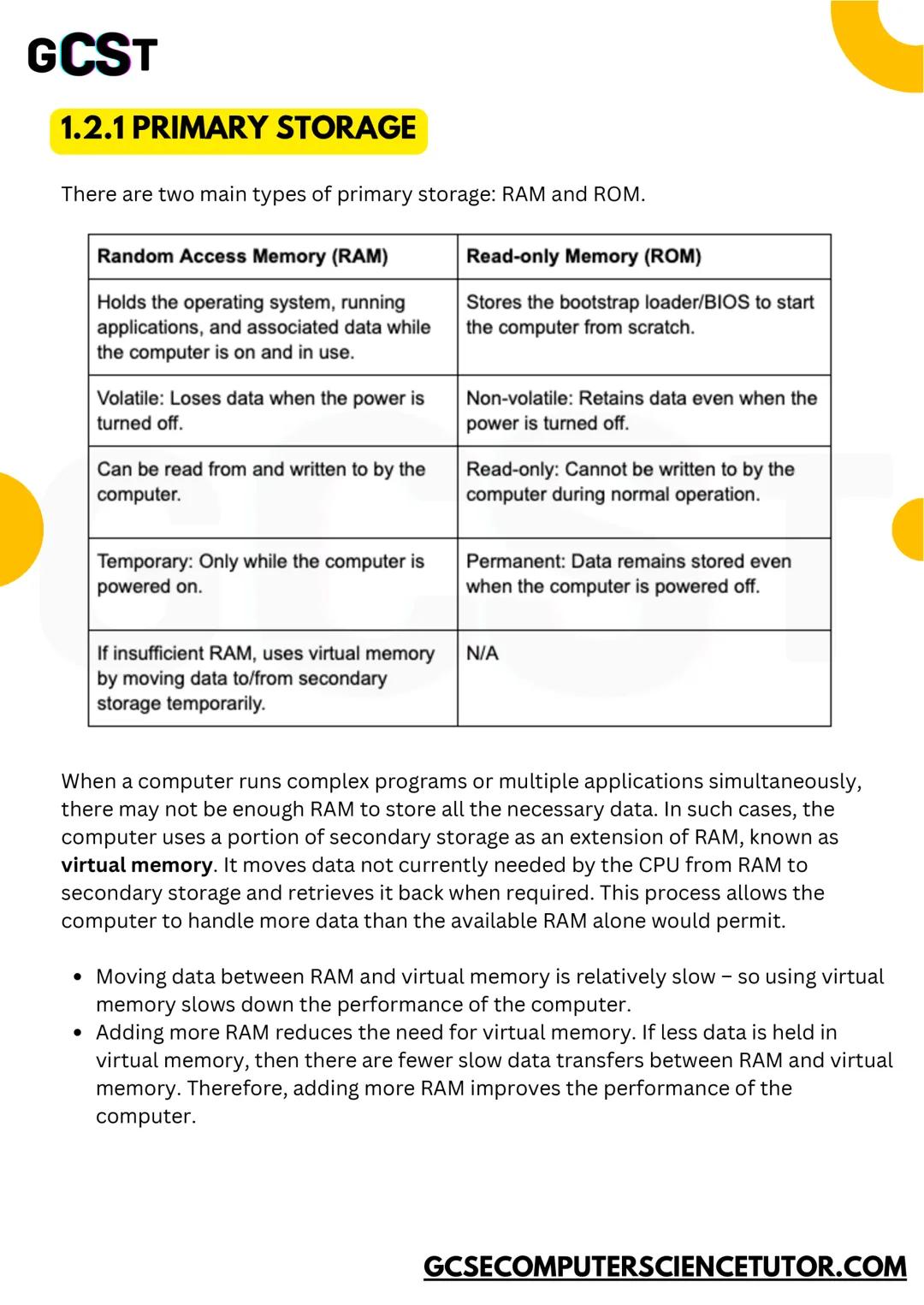

Primary Storage: RAM and ROM

RAM (Random Access Memory) is your computer's working space - it holds the operating system, running applications, and their data while you're using them. However, RAM is volatile, meaning everything disappears when you turn off the power. It's fast, can be read from and written to, but only works temporarily.

ROM (Read-Only Memory) stores essential startup instructions (the BIOS) that your computer needs to boot up. Unlike RAM, ROM is non-volatile - it keeps its data even when powered off. You can only read from ROM during normal operation, not write to it.

When you run out of RAM, your computer uses virtual memory - basically borrowing space from your hard drive to extend RAM. This works but slows things down significantly because transferring data between RAM and storage is much slower than keeping everything in RAM.

Performance Tip: Adding more RAM reduces the need for virtual memory, which directly improves your computer's speed and responsiveness.

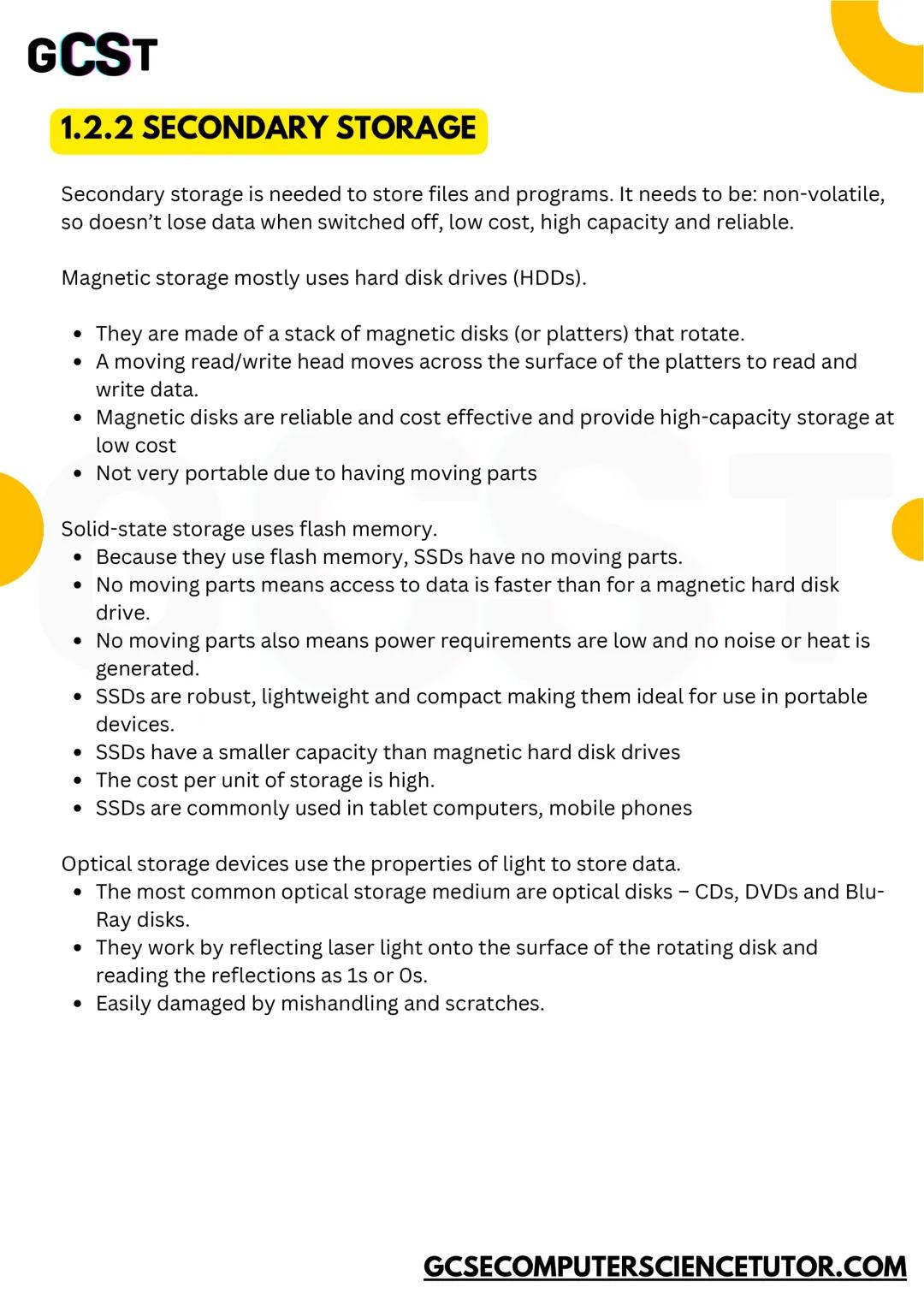

Secondary Storage Technologies

Secondary storage provides permanent, non-volatile storage for your files and programs. You need storage that's reliable, high-capacity, and cost-effective.

Magnetic storage (like traditional hard disk drives) uses spinning magnetic disks with moving read/write heads. They're reliable, cost-effective, and offer high capacity at low prices, but they're not very portable due to their moving parts.

Solid-state storage uses flash memory with no moving parts, making it faster, more robust, and power-efficient than magnetic storage. SSDs are perfect for portable devices but cost more per gigabyte and typically offer smaller capacities than traditional hard drives.

Optical storage (CDs, DVDs, Blu-ray) uses laser light to read data from rotating discs. They're portable and good for distributing media, but easily damaged by scratches and have limited storage capacity compared to other technologies.

Choosing Storage: SSDs are becoming the standard for speed-critical applications, while traditional hard drives remain popular for bulk storage where cost matters more than speed.

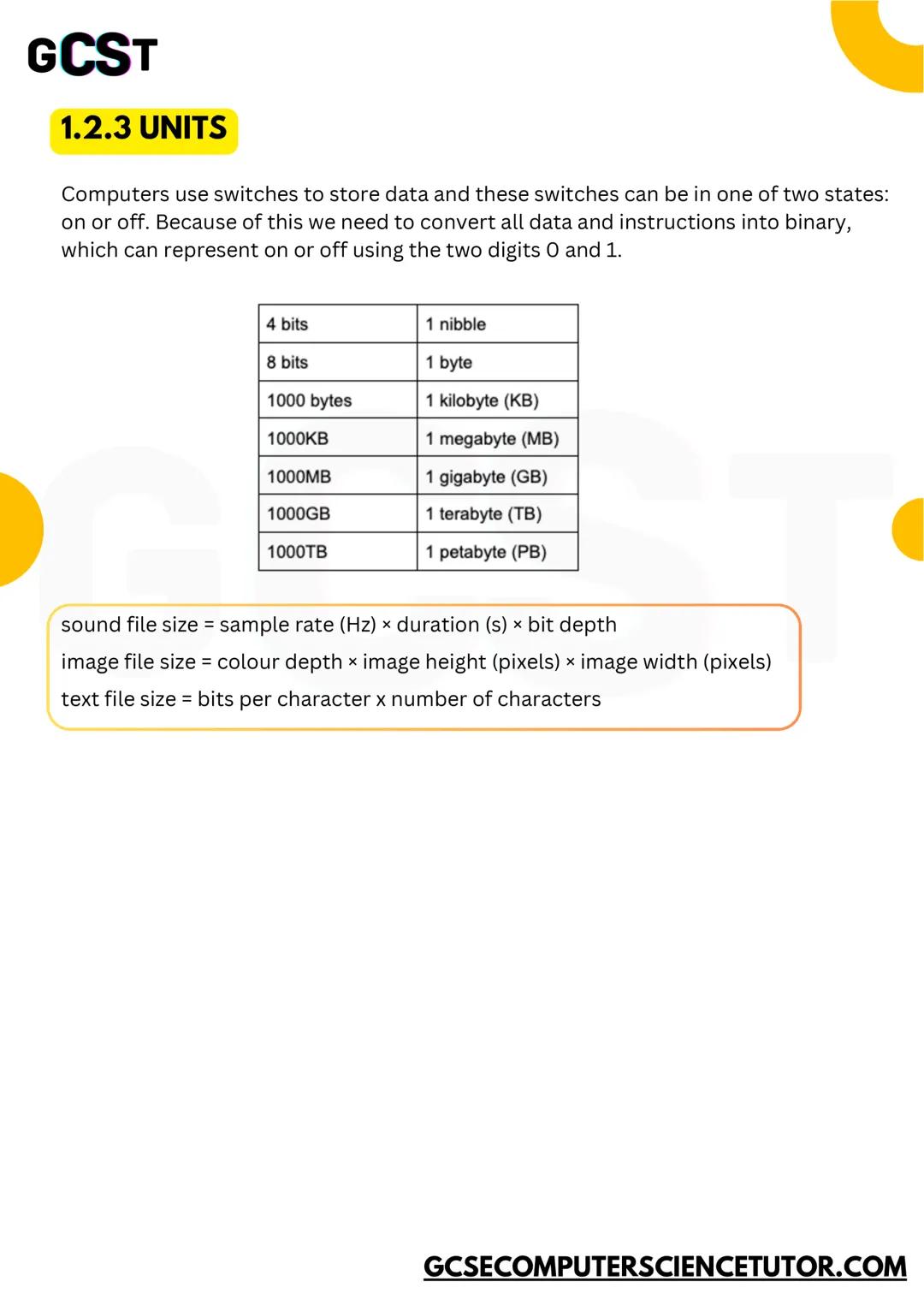

Data Units and File Size Calculations

Computers use binary (0s and 1s) because they work with switches that are either on or off. Understanding data units helps you calculate storage requirements and compare different systems.

The hierarchy goes: 4 bits = 1 nibble, 8 bits = 1 byte, then 1000 bytes = 1 kilobyte (KB), 1000KB = 1 megabyte (MB), 1000MB = 1 gigabyte (GB), and so on up to terabytes and petabytes.

You can calculate file sizes using these formulas: sound file size = sample rate × duration × bit depth, image file size = colour depth × height × width, and text file size = bits per character × number of characters.

Exam Success: Learn these formulas by heart - they appear frequently in exam questions and are straightforward marks if you know them.
