Sound Waves and Wave Speed

This section explores sound waves KS3 concepts and wave speed calculations, essential for KS3 Waves revision and BBC Bitesize waves KS3 study.

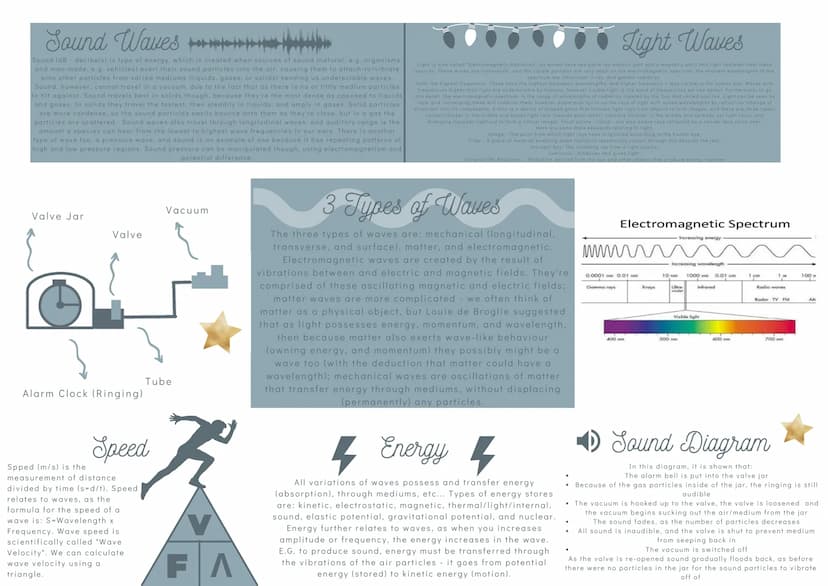

Sound waves are a type of energy created when sources vibrate particles in various mediums. Key points about sound waves include:

1. Measured in decibels (dB)
2. Travel best in solids due to particle density
3. Cannot travel in a vacuum
4. Propagate as longitudinal waves
5. Are pressure waves with repeating patterns of high and low pressure regions

Vocabulary: Auditory range - The range of frequencies a species can hear, from lowest to highest.

Wave speed, also known as wave velocity, is crucial in understanding wave propagation. The formula for wave speed is:

Speed = Wavelength × Frequency

Highlight: Wave speed can be calculated using a triangle diagram, which is a helpful tool for KS3 waves questions.

Light waves, also called electromagnetic radiation, have unique properties:

1. Consist of electric and magnetic parts
2. Are transverse waves
3. Visible light is a small portion of the electromagnetic spectrum
4. Higher frequency waves $ultraviolet, x-ray, gamma$ are less visible to the human eye

Example: The electromagnetic spectrum includes visible light, as well as invisible waves like radio waves and gamma rays.

Understanding these concepts is crucial for mastering KS3 year 9 science waves summary GCSE and BBC Bitesize waves KS4 materials.

Page 2: Sound Waves and Wave Speed

This section covers Sound waves KS3 concepts in detail, explaining how sound energy propagates through different mediums and introduces wave speed calculations.

Definition: Sound waves are pressure disturbances that travel through mediums as longitudinal waves.

Vocabulary:

• Decibels (dB): Unit of sound measurement
• Wave Velocity: Scientific term for wave speed
• Auditory Range: Frequency range detectable by species

Example: A vacuum jar demonstration shows how sound cannot travel through a vacuum due to lack of medium particles.

Highlight: The speed of a wave can be calculated using the formula: Speed = Wavelength × Frequency

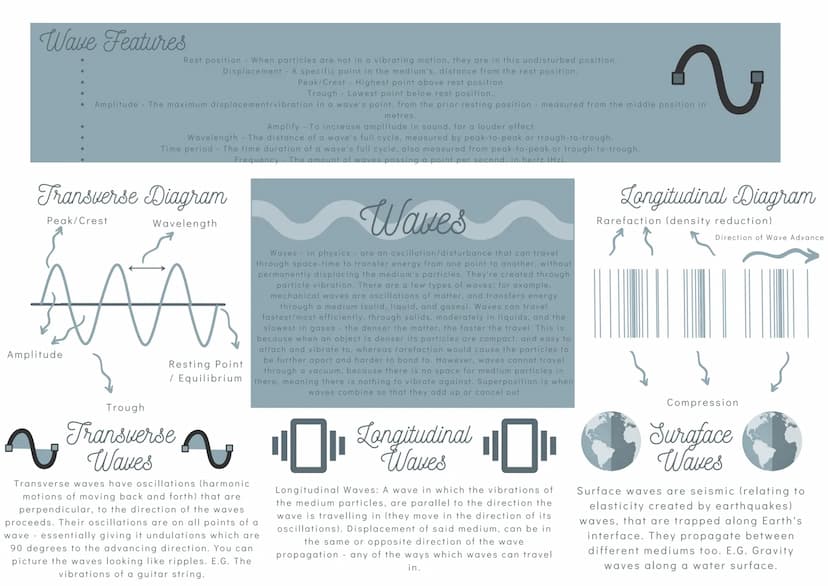

Wave Features and Fundamentals

Understanding wave features is crucial for KS3 waves questions and KS3 Waves revision. This section covers key concepts like rest position, displacement, and amplitude.

Definition: Waves in physics are oscillations or disturbances that transfer energy from one point to another without permanently displacing the medium's particles.

Wave features include:

1. Rest position: The undisturbed state of particles when not vibrating.
2. Displacement: The distance of a point in the medium from its rest position.
3. Peak/Crest: The highest point above the rest position.
4. Trough: The lowest point below the rest position.
5. Amplitude: The maximum displacement from the rest position, measured in meters.

Vocabulary: Amplify - To increase the amplitude of sound, resulting in a louder effect.

6. Wavelength: The distance of a full wave cycle, measured peak-to-peak or trough-to-trough.
7. Time period: The duration of a full wave cycle.
8. Frequency: The number of waves passing a point per second, measured in hertz (Hz).

Highlight: Waves travel fastest through solids, moderately in liquids, and slowest in gases due to particle density and compactness.

Types of waves include:

1. Transverse waves: Oscillations perpendicular to the wave's direction.
2. Longitudinal waves: Vibrations parallel to the wave's direction.
3. Surface waves: Seismic waves trapped along Earth's interface.

Example: Transverse waves can be visualized as ripples, such as the vibrations of a guitar string.
