Overall Summary

Chemical bonding is a fundamental concept in A-level chemistry covering ionic, covalent, dative, and metallic bonds. This comprehensive guide explores various bonding types, molecular shapes, and intermolecular forces essential for understanding chemical structures and properties.

Key points:

  • Ionic bonding occurs between metals and non-metals through electrostatic attraction
  • Covalent and dative bonds involve electron sharing between atoms
  • Metallic bonding features delocalized electrons in a sea of positive metal ions
  • Molecular shapes are determined by electron pair repulsion
  • Intermolecular forces include van der Waals, dipole-dipole, and hydrogen bonds

20/09/2023

302

3.1.3.1 lonic Bonding lonic Bonds: ● Metals & Non-Metals Ionic Bonds ⇒ The electrostatic attraction between the oppositely charged ions → ve

View

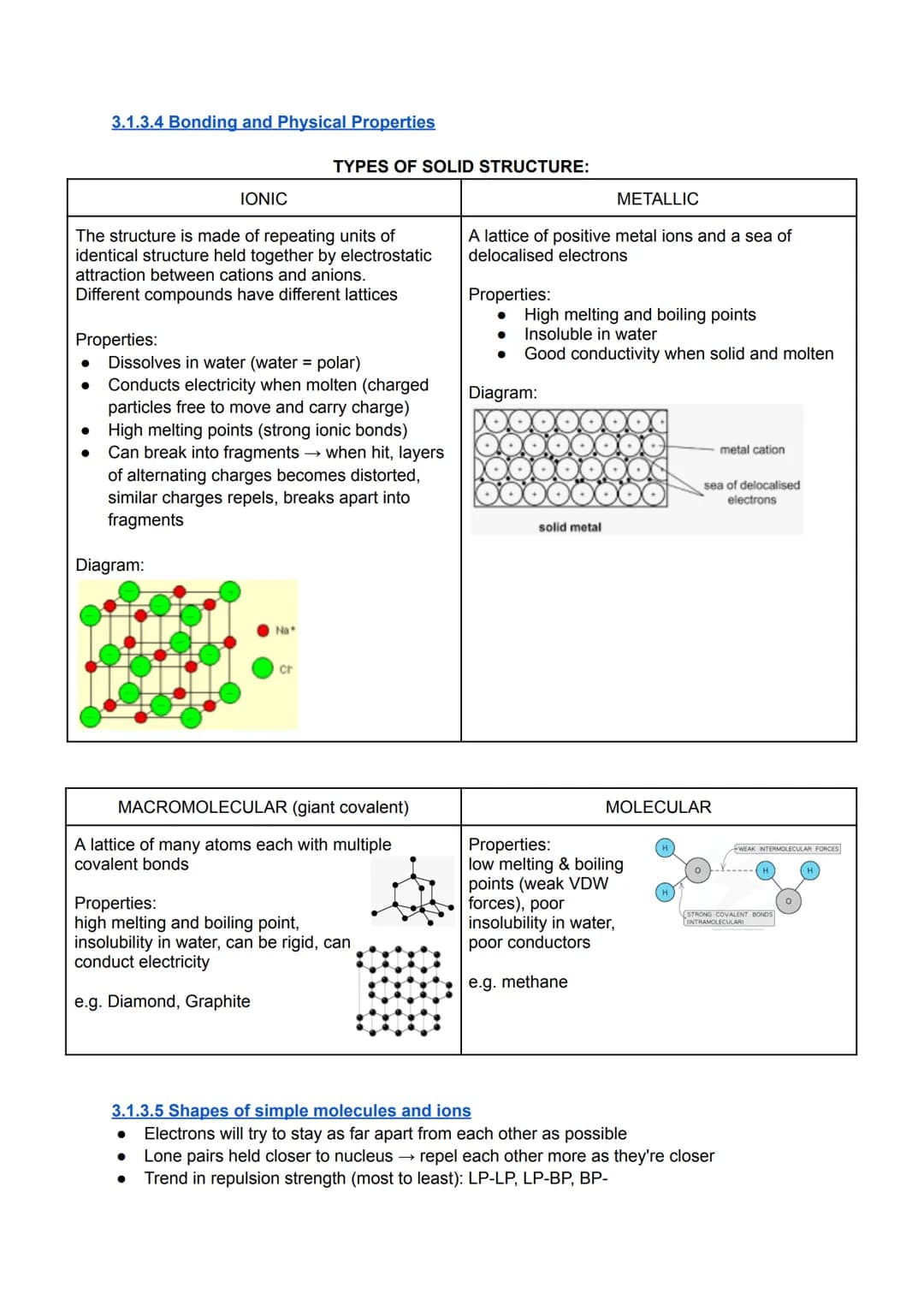

Bonding Types and Physical Properties

This page explores the different types of solid structures and their properties, providing essential information for Chemical bonding A level notes PDF.

  1. Ionic Structure:

    • Composed of repeating units held together by electrostatic attraction
    • Properties include water solubility, electrical conductivity when molten, high melting points, and tendency to break into fragments when hit

  2. Macromolecular (Giant Covalent) Structure:

    • Lattice of many atoms with multiple covalent bonds
    • Properties include high melting and boiling points, insolubility in water, rigidity, and potential electrical conductivity
    • Examples: Diamond and Graphite

  3. Metallic Structure:

    • Lattice of positive metal ions in a sea of delocalized electrons
    • Properties include high melting and boiling points, insolubility in water, and good electrical conductivity in solid and molten states

  4. Molecular Structure:

    • Composed of individual molecules
    • Properties include low melting and boiling points, poor water solubility, and poor electrical conductivity

Example: Methane (CH₄) is an example of a molecular structure with weak intermolecular forces and strong intramolecular covalent bonds.

The page also introduces the concept of electron repulsion in molecular shapes, noting that lone pairs repel more strongly than bonding pairs.

3.1.3.1 lonic Bonding lonic Bonds: ● Metals & Non-Metals Ionic Bonds ⇒ The electrostatic attraction between the oppositely charged ions → ve

View

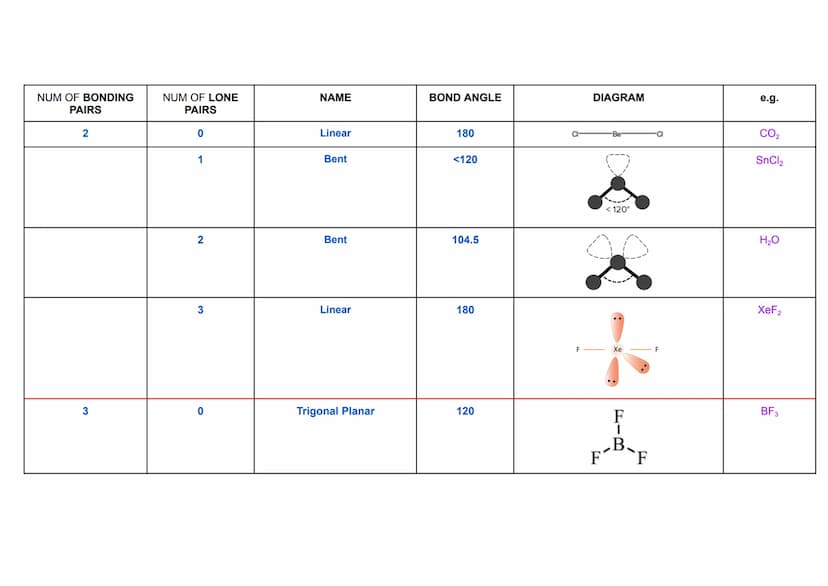

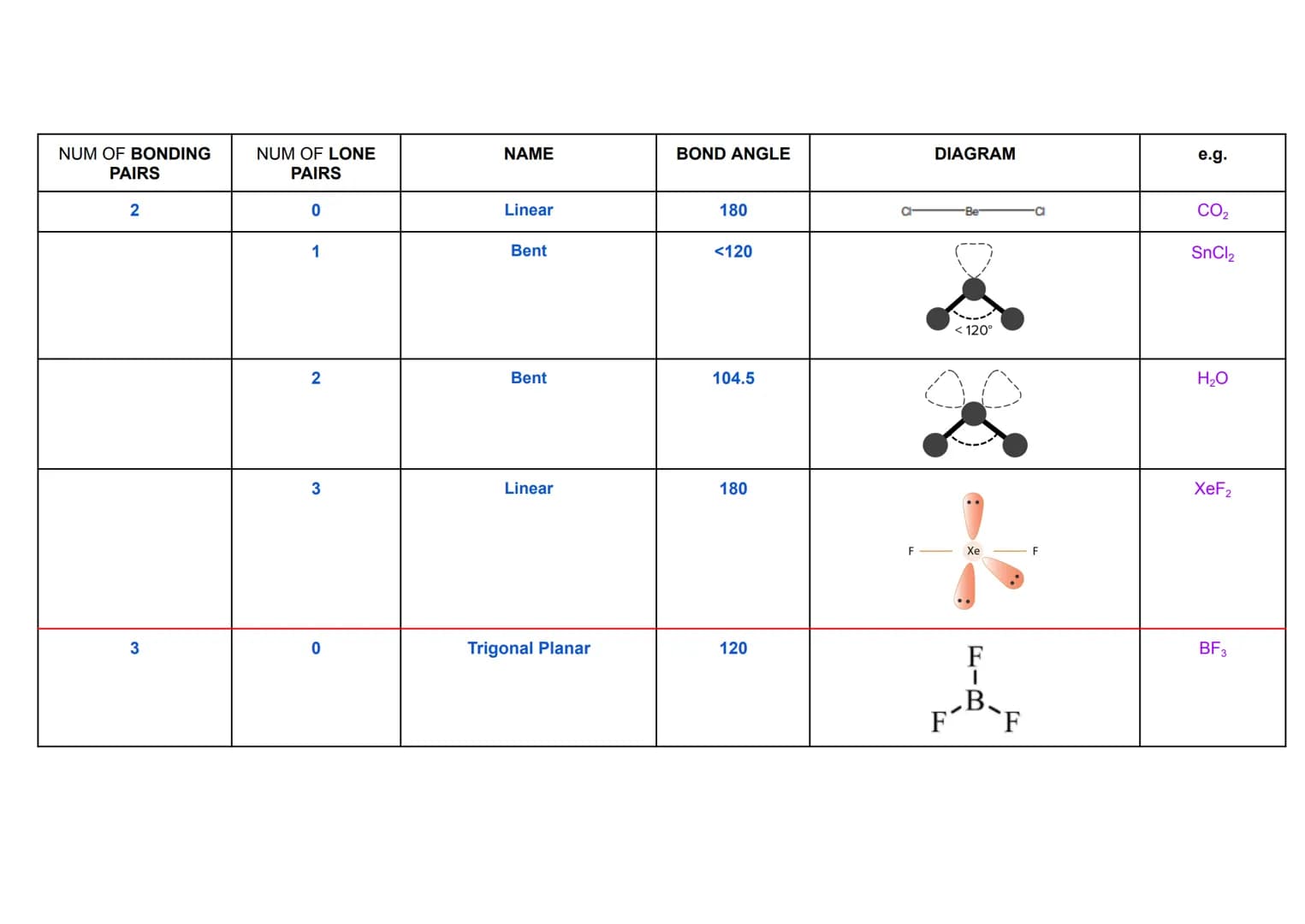

Shapes of Simple Molecules and Ions

This section provides a comprehensive guide to molecular geometry, essential for understanding Covalent bonding A Level Chemistry.

The page presents a detailed table of molecular shapes based on the number of bonding pairs and lone pairs of electrons. Key shapes include:

  1. Linear (2 bonding pairs, 0 lone pairs, 180° bond angle)
  2. Bent (2 bonding pairs, 1-2 lone pairs, <120° or 104.5° bond angle)
  3. Trigonal Planar (3 bonding pairs, 0 lone pairs, 120° bond angle)
  4. Triangular Pyramid (3 bonding pairs, 1 lone pair, 107° bond angle)
  5. Tetrahedral (4 bonding pairs, 0 lone pairs, 109.5° bond angle)

Example: Carbon dioxide (CO₂) has a linear shape, while water (H₂O) has a bent shape due to the presence of lone pairs on the oxygen atom.

The table includes diagrams and examples for each shape, making it an excellent resource for visual learners.

3.1.3.1 lonic Bonding lonic Bonds: ● Metals & Non-Metals Ionic Bonds ⇒ The electrostatic attraction between the oppositely charged ions → ve

View

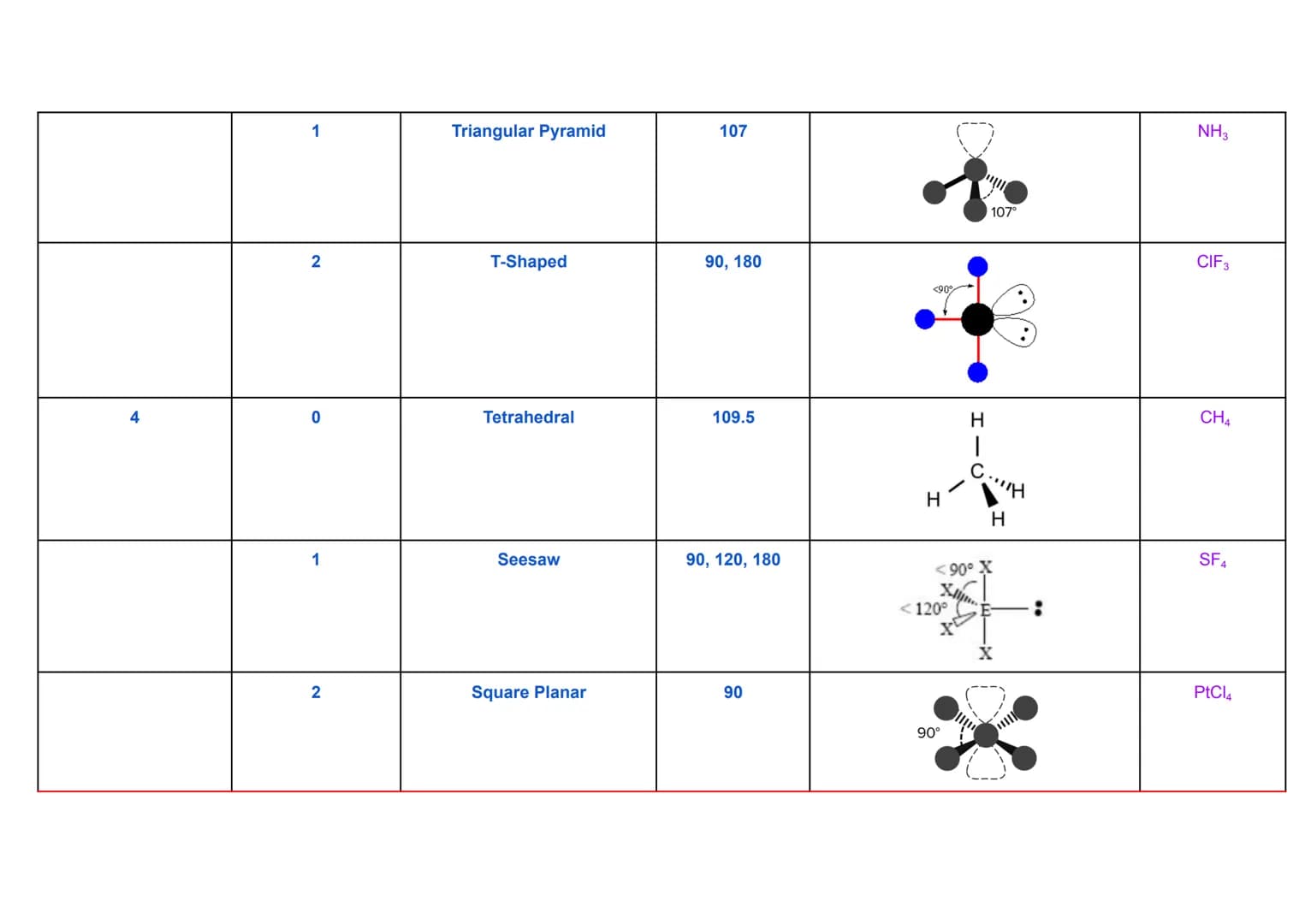

More Complex Molecular Shapes

This page continues the exploration of molecular geometry, focusing on more complex shapes relevant to A level chemistry bonding questions and answers.

The shapes covered in this section include:

  1. T-Shaped (3 bonding pairs, 2 lone pairs, 90° and 180° bond angles)
  2. Seesaw (4 bonding pairs, 1 lone pair, 90°, 120°, and 180° bond angles)
  3. Square Planar (4 bonding pairs, 2 lone pairs, 90° bond angle)
  4. Trigonal Bipyramidal (5 bonding pairs, 0 lone pairs, 90° and 120° bond angles)
  5. Square Pyramidal (5 bonding pairs, 1 lone pair, 90° bond angle)
  6. Octahedral (6 bonding pairs, 0 lone pairs, 90° bond angle)

Example: Sulfur tetrafluoride (SF₄) has a seesaw shape, while phosphorus pentachloride (PCl₅) has a trigonal bipyramidal shape.

Each shape is accompanied by a diagram and an example molecule, providing students with a clear visual representation and practical application of the concept.

3.1.3.1 lonic Bonding lonic Bonds: ● Metals & Non-Metals Ionic Bonds ⇒ The electrostatic attraction between the oppositely charged ions → ve

View

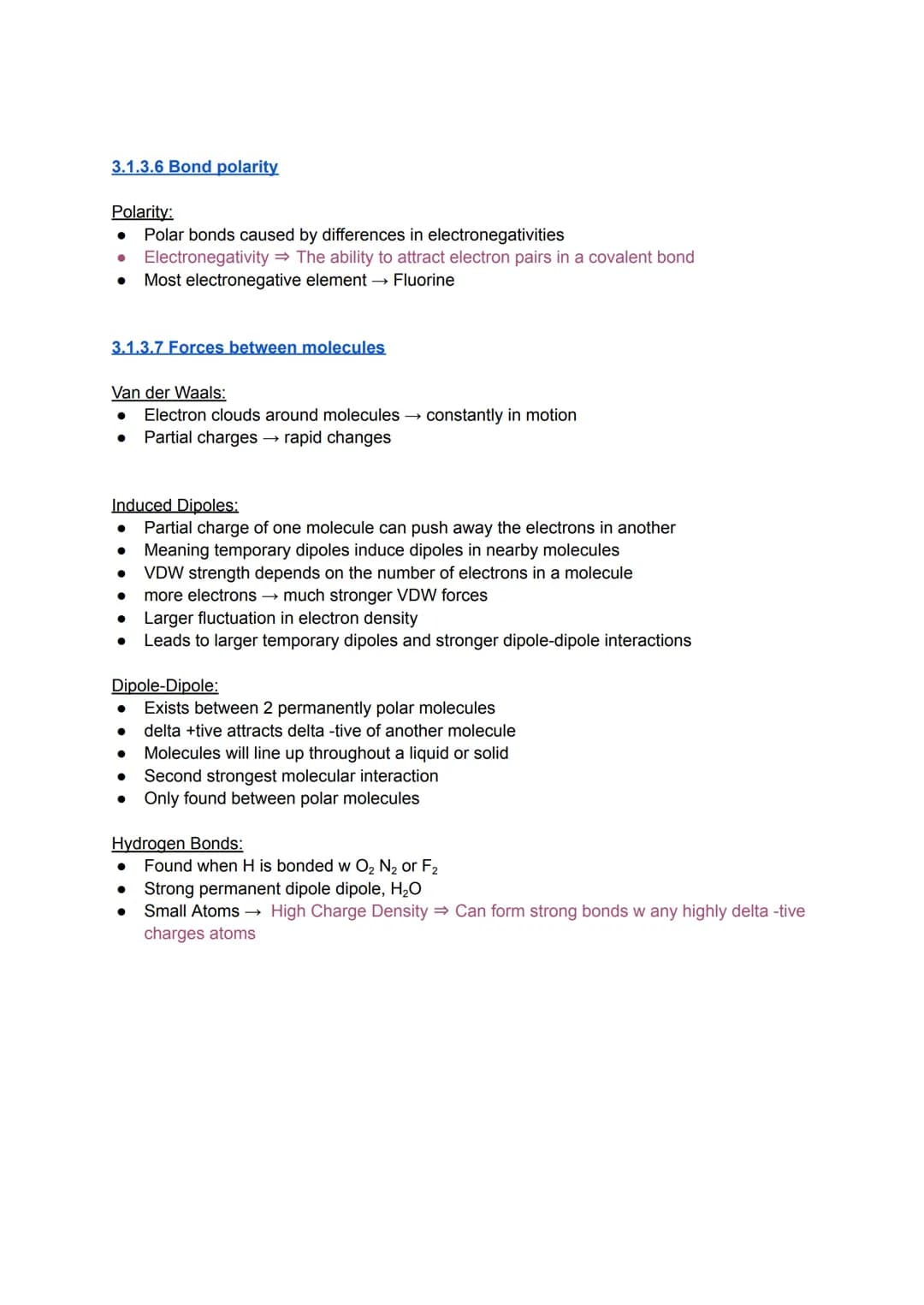

Bond Polarity and Intermolecular Forces

This final section covers bond polarity and intermolecular forces, crucial topics for understanding Chemical bonding notes PDF.

Bond Polarity:

  • Caused by differences in electronegativity between atoms
  • Electronegativity is defined as the ability to attract electron pairs in a covalent bond
  • Fluorine is the most electronegative element

Definition: Electronegativity is the ability of an atom to attract the electron density in a covalent bond.

Intermolecular Forces:

  1. Van der Waals Forces:

    • Result from constantly moving electron clouds around molecules
    • Strength depends on the number of electrons in a molecule

  2. Induced Dipoles:

    • Temporary dipoles in one molecule can induce dipoles in nearby molecules
    • Larger molecules with more electrons have stronger induced dipole interactions

  3. Dipole-Dipole Interactions:

    • Exist between two permanently polar molecules
    • Second strongest molecular interaction

  4. Hydrogen Bonds:

    • Found when hydrogen is bonded to oxygen, nitrogen, or fluorine
    • Strongest type of intermolecular force

Highlight: Hydrogen bonds are particularly important in determining the properties of water and biological molecules.

This section provides a comprehensive overview of the forces that govern molecular interactions, essential for understanding many chemical and biological processes.

3.1.3.1 lonic Bonding lonic Bonds: ● Metals & Non-Metals Ionic Bonds ⇒ The electrostatic attraction between the oppositely charged ions → ve

View

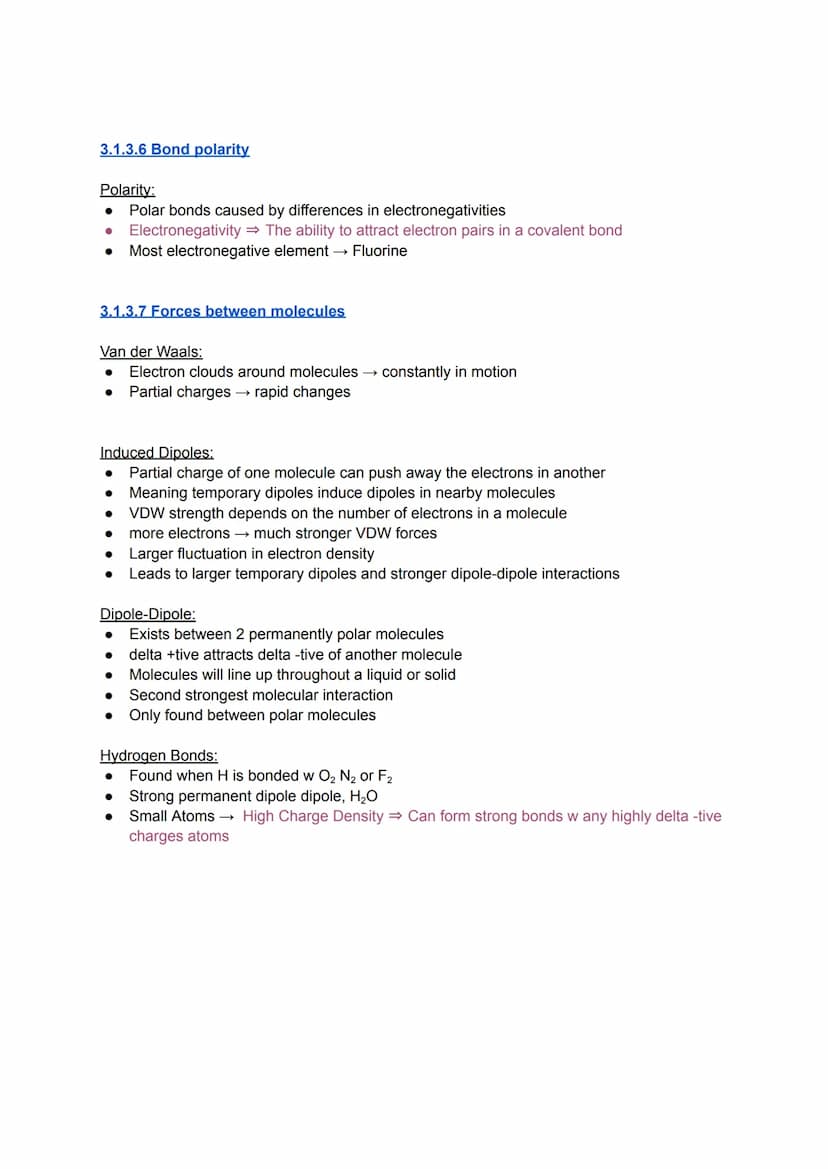

Page 6: Bond Polarity and Intermolecular Forces

The final page covers bond polarity and various types of intermolecular forces, including van der Waals, dipole-dipole, and hydrogen bonding.

Definition: Electronegativity is the ability to attract electron pairs in a covalent bond.

Highlight: Hydrogen bonds are particularly strong intermolecular forces found when hydrogen is bonded to oxygen, nitrogen, or fluorine.

Example: Water (H₂O) demonstrates strong hydrogen bonding, affecting its physical properties.

3.1.3.1 lonic Bonding lonic Bonds: ● Metals & Non-Metals Ionic Bonds ⇒ The electrostatic attraction between the oppositely charged ions → ve

View

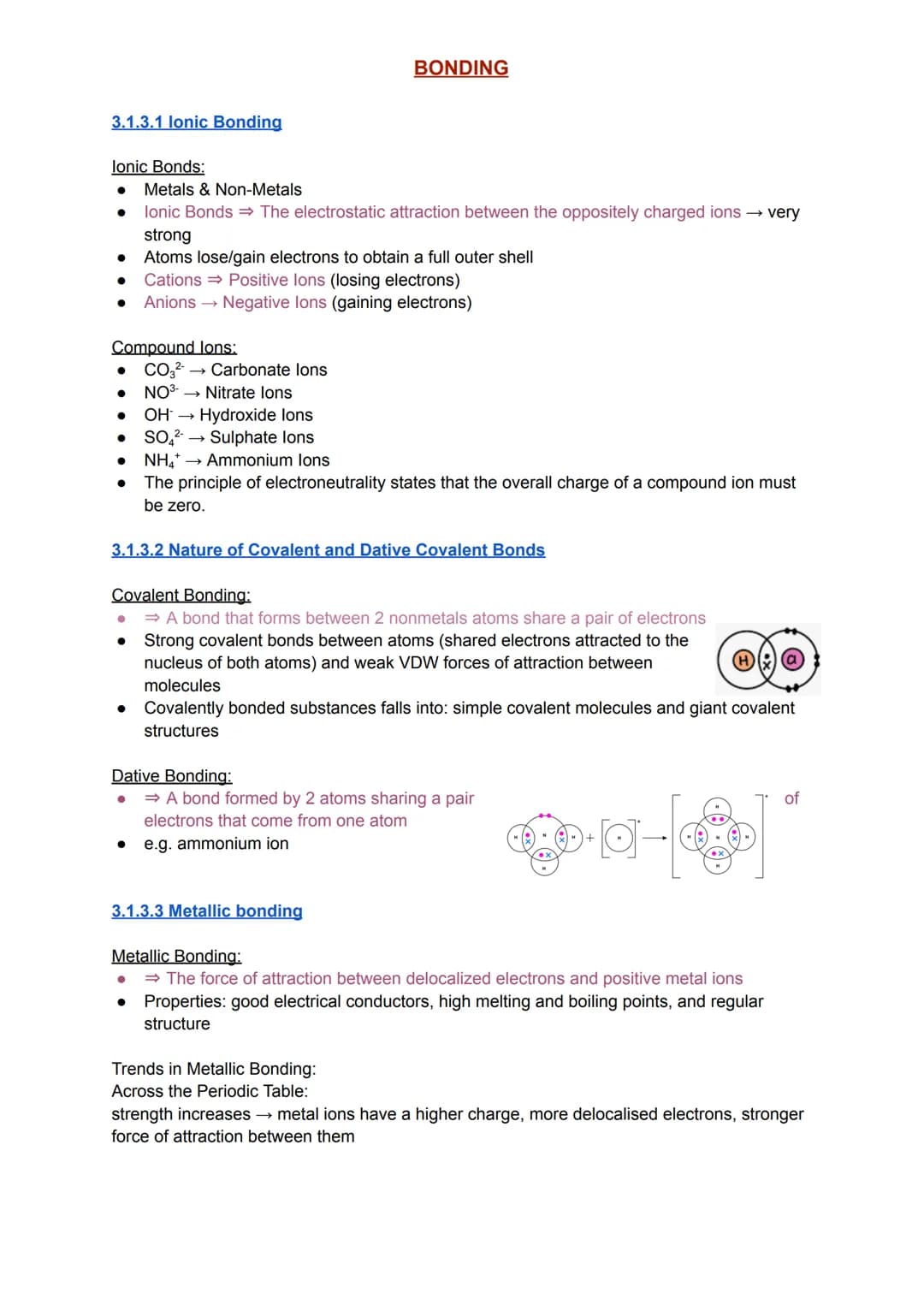

Ionic Bonding and Compound Ions

This section introduces ionic bonding A Level Chemistry concepts and compound ions.

Ionic bonds form between metals and non-metals through electrostatic attraction between oppositely charged ions. Atoms lose or gain electrons to achieve a full outer shell, forming cations (positive ions) or anions (negative ions).

Definition: Ionic bonds are the electrostatic attraction between oppositely charged ions, resulting in very strong bonds.

Compound ions are groups of atoms that behave as a single unit with an overall charge. Examples include:

  • Carbonate ions (CO₃²⁻)
  • Nitrate ions (NO₃⁻)
  • Hydroxide ions (OH⁻)
  • Sulphate ions (SO₄²⁻)
  • Ammonium ions (NH₄⁺)

Highlight: The principle of electroneutrality states that the overall charge of a compound ion must be zero.

The section also introduces covalent and dative covalent bonding, as well as trends in metallic bonding across the periodic table.

Vocabulary: Dative bonding is a type of covalent bond where both shared electrons come from one atom.
