Understanding Atomic Structure: Comprehensive AQA Year 1 Notes
Mariya Akbar
@mariyaakbar_x
1 / 4

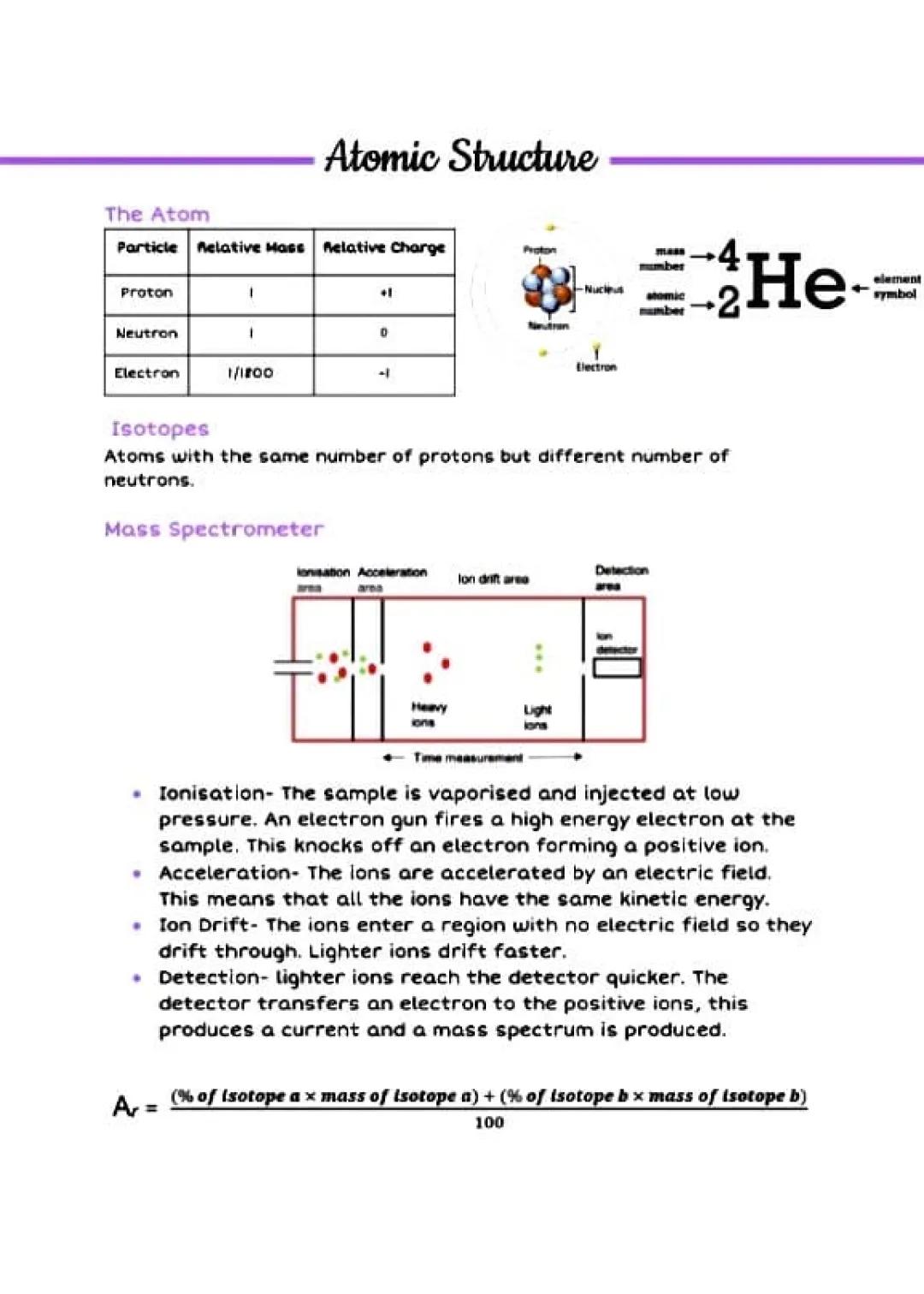

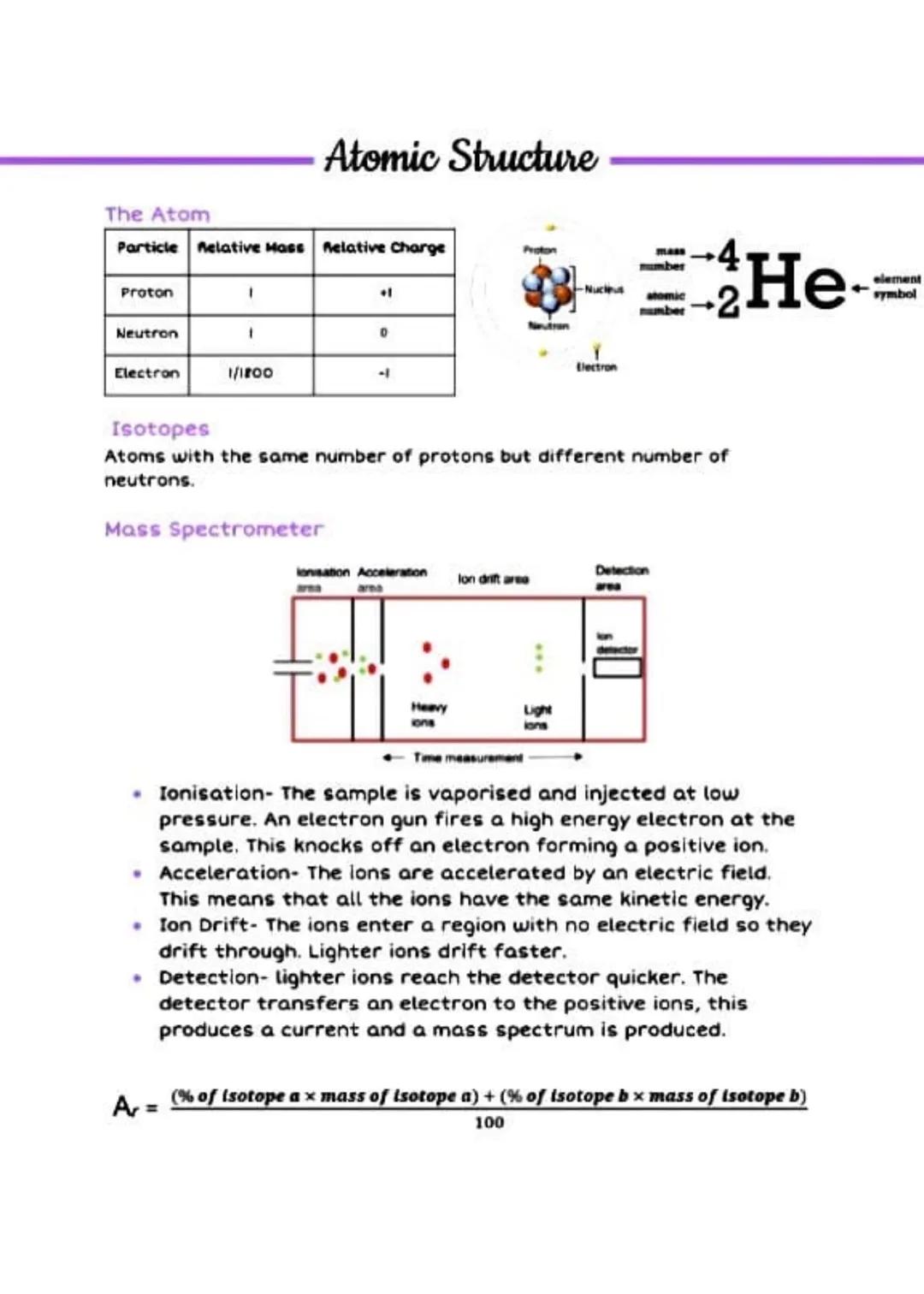

Atomic Structure Basics
Every atom contains three key particles that you absolutely need to know. Protons have a positive charge and relative mass of 1, neutrons are neutral with the same mass, and electrons are negatively charged but incredibly light .
The nucleus sits at the atom's centre and contains all the protons and neutrons. This is where nearly all the atom's mass is concentrated. Electrons whiz around this nucleus in the space surrounding it.
Isotopes are atoms of the same element with different numbers of neutrons - they're like identical twins with different weights. The mass spectrometer is a brilliant piece of kit that separates these isotopes by firing electrons at them, accelerating the resulting ions, and timing how fast they travel.
Key Tip: Remember that lighter ions travel faster through the mass spectrometer - it's like comparing how quickly a tennis ball and a bowling ball would roll down the same hill!

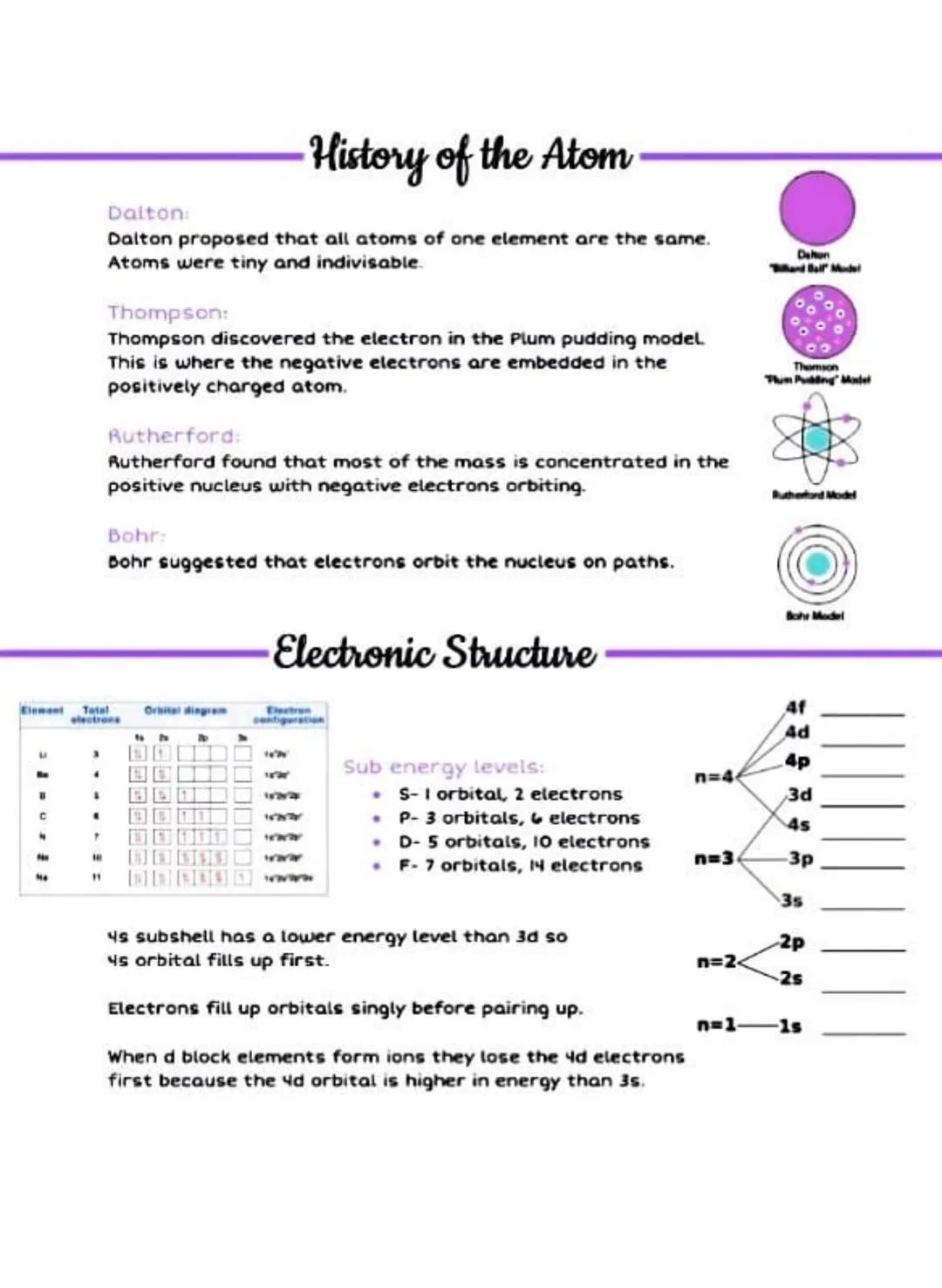

How Scientists Discovered Atomic Structure
Scientists didn't always know what atoms looked like - it took centuries of brilliant detective work! Dalton started us off thinking atoms were solid, indivisible balls. Then Thomson discovered electrons and imagined atoms like plum puddings with negative electrons dotted throughout positive "dough."
Rutherford completely revolutionised our understanding by discovering that atoms are mostly empty space. His famous gold foil experiment showed that all the positive charge and mass is squashed into a tiny nucleus at the centre.
Bohr then suggested that electrons don't just float randomly - they travel in specific paths or orbitals around the nucleus. This electronic structure follows strict rules about how electrons fill up different energy levels.
The filling order gets a bit tricky because 4s fills before 3d - energy levels don't always follow the pattern you'd expect. When atoms form ions, they lose the highest energy electrons first, which explains why d-block elements behave the way they do.
Remember: Electrons are like students choosing seats - they fill up singly before pairing up, and they always pick the lowest energy "seats" first!

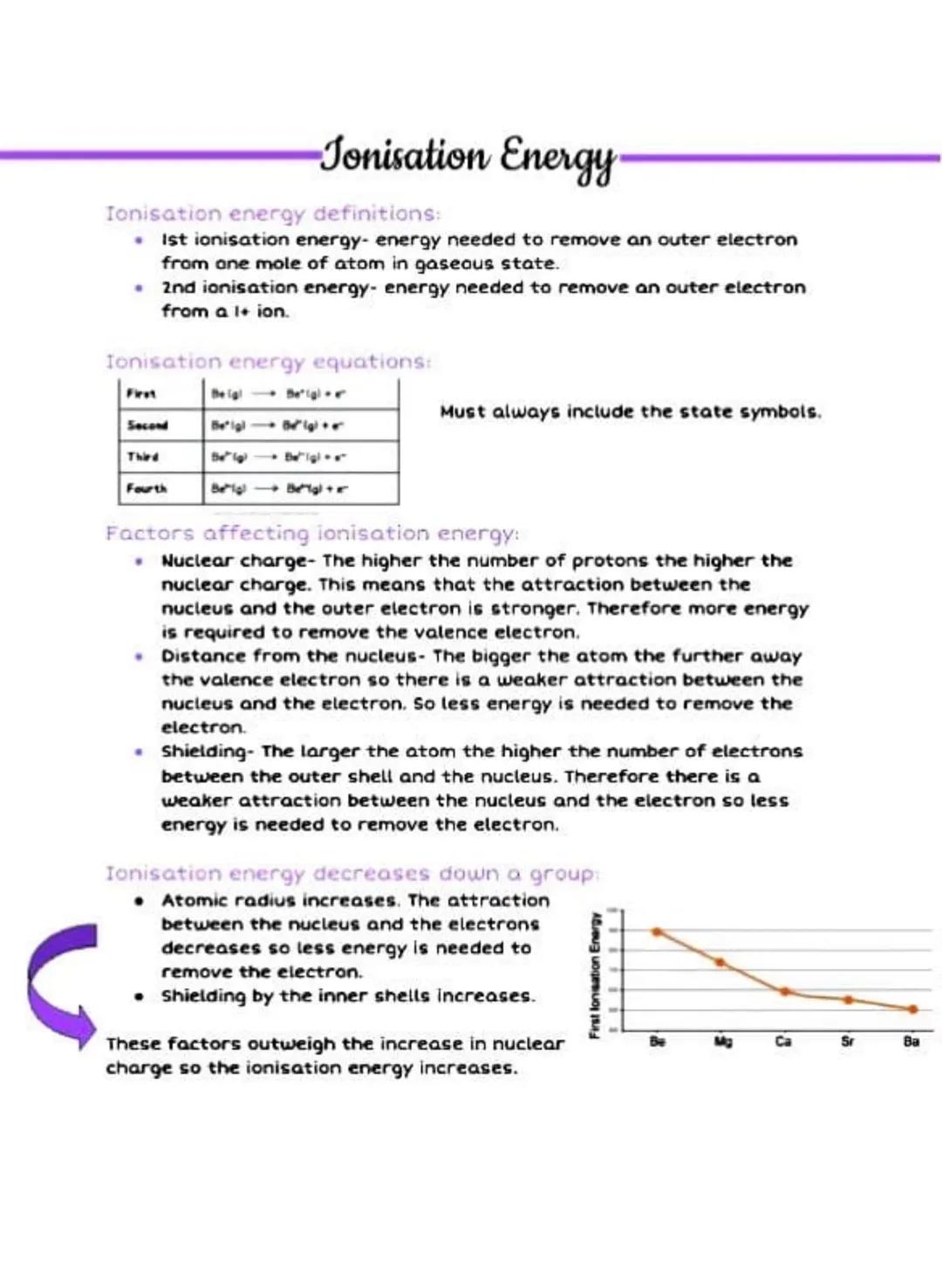

Ionisation Energy Fundamentals
Ionisation energy is simply the energy needed to rip an electron away from an atom - think of it as measuring how tightly an atom grips its electrons. The first ionisation energy removes the first electron, the second removes another from the resulting ion, and so on.
Three main factors control how much energy this takes. Nuclear charge matters because more protons mean stronger attraction to electrons. Distance from nucleus is crucial - electrons further away are easier to remove, like trying to hold onto something with a really long arm.
Shielding happens when inner electrons get between the nucleus and outer electrons, weakening the attraction. It's like trying to hear someone shouting when there's a crowd of people between you.
Going down any group in the periodic table, ionisation energy decreases. Even though nuclear charge increases, the atoms get so much bigger and have so much more shielding that electrons become much easier to remove.
Quick Check: If you're struggling with ionisation energy trends, just think about which electrons would be hardest to pull away - the ones closest to lots of protons, or the ones far away and shielded!

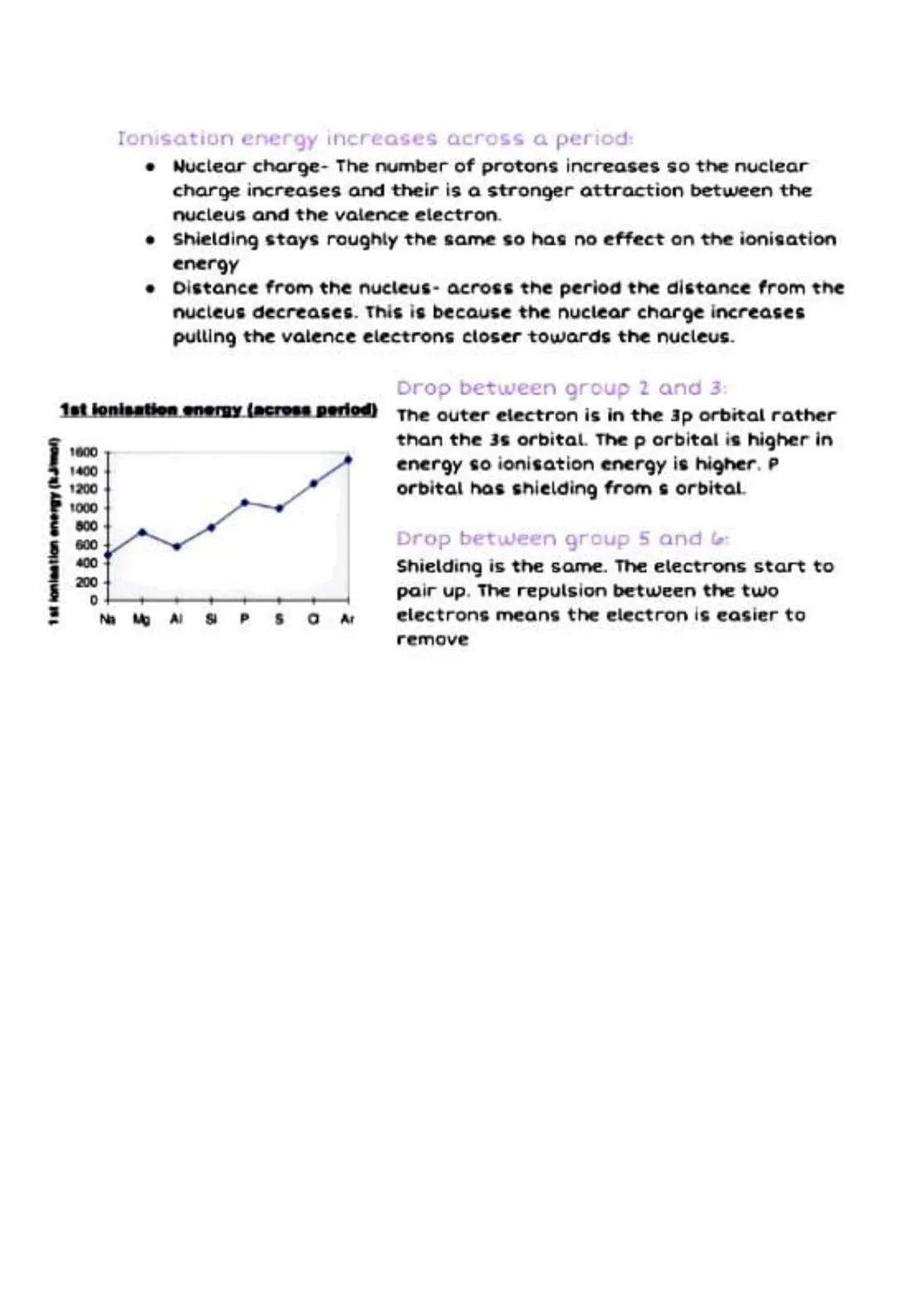

Ionisation Energy Across Periods
Moving across a period, ionisation energy generally increases because nuclear charge goes up whilst shielding stays roughly the same. The atoms also get smaller as increased nuclear charge pulls electrons closer, making them even harder to remove.
However, there are two important exceptions you need to spot. There's a drop between groups 2 and 3 because the outer electron jumps from an s-orbital to a higher-energy p-orbital, and the s-electrons provide extra shielding.
The drop between groups 5 and 6 happens for a different reason - electrons start pairing up in the p-orbitals. When two electrons share the same orbital, they repel each other, making one easier to remove than expected.
These patterns aren't just academic - they explain why certain elements form ions more easily than others and help predict chemical behaviour. Understanding these trends gives you a powerful tool for explaining reactivity patterns across the periodic table.
Exam Tip: Always mention nuclear charge, shielding, and atomic radius when explaining ionisation energy trends - these three factors explain almost every pattern you'll encounter!
