Ever wondered how electrons actually arrange themselves around an atom's...
Chemistry51 views·Updated 15 Sept 2026·2 pagesUnderstanding Atomic Orbitals through Handwritten Notes
1
of 2

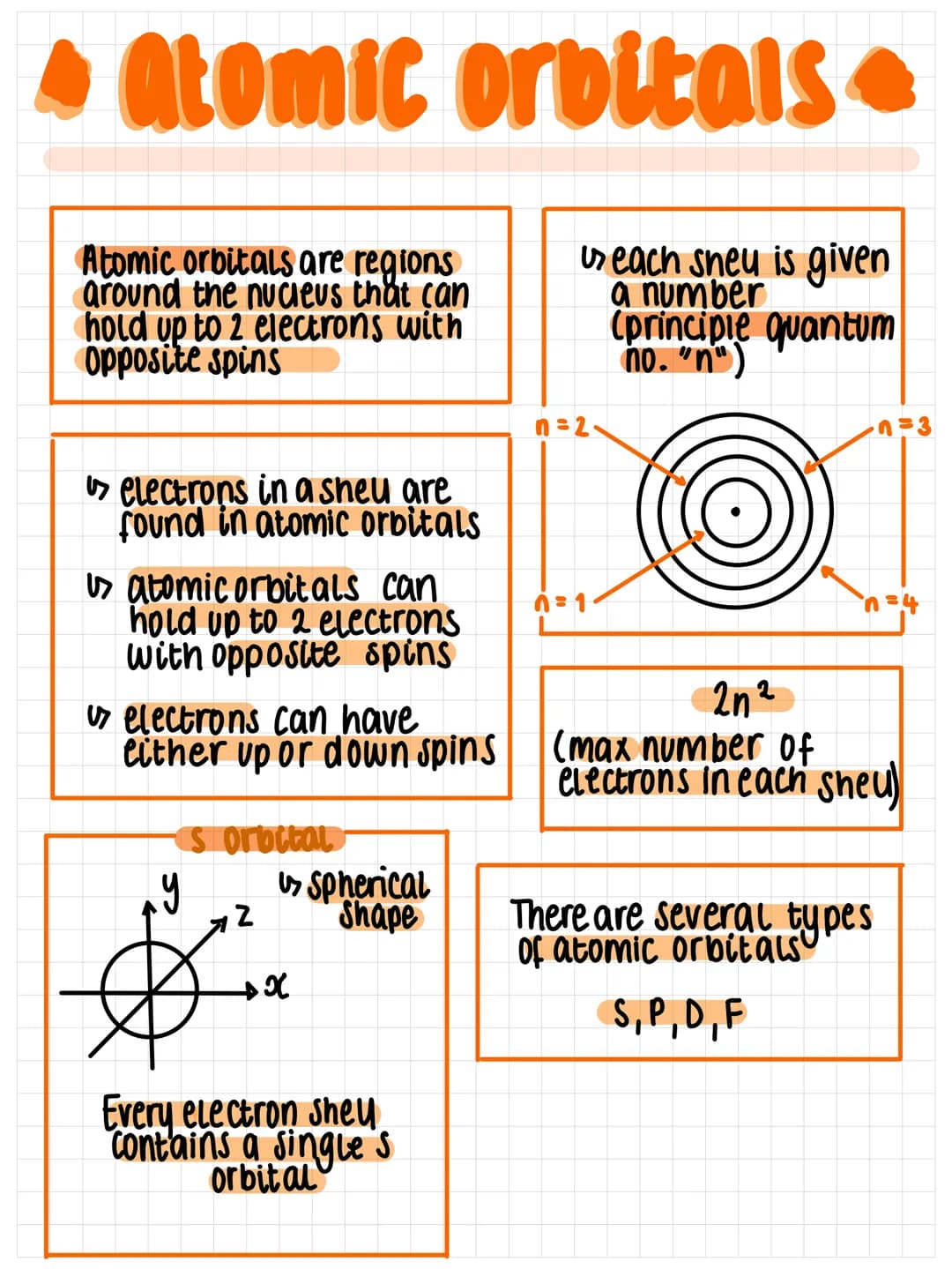

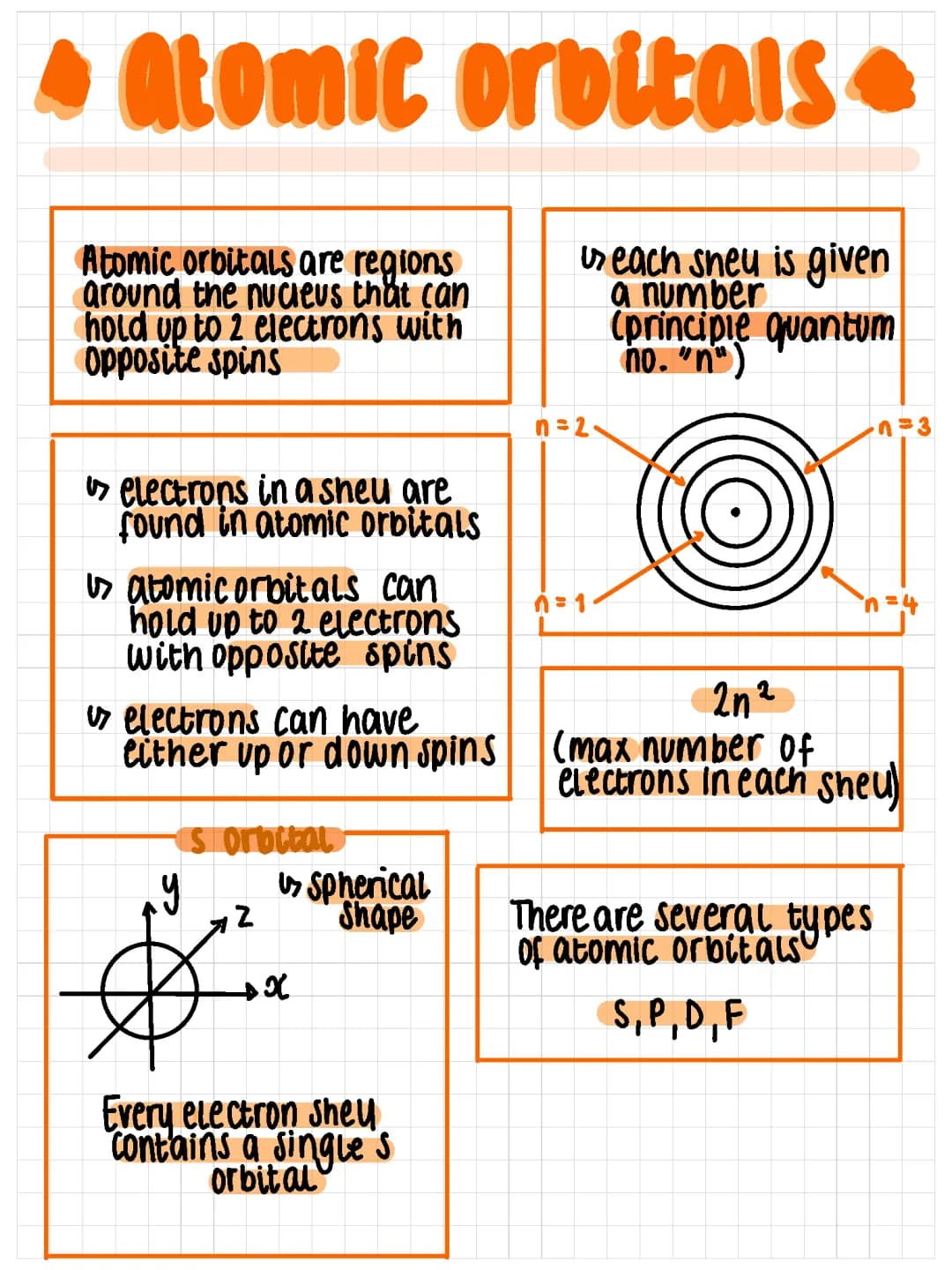

Understanding Atomic Orbitals
Think of atomic orbitals as designated zones around the nucleus where you'll find electrons hanging out. Each orbital can hold a maximum of 2 electrons, but here's the catch - they must have opposite spins (imagine one spinning clockwise, the other anticlockwise).
Electrons live in shells around the nucleus, and each shell gets a number called the principal quantum number . Shell 1 is closest to the nucleus, then shell 2, shell 3, and so on. The further out you go, the more space there is for electrons.
There's actually a neat formula to work out how many electrons can fit in each shell: 2n². So shell 1 holds 2 electrons maximum, shell 2 holds 8, shell 3 holds 18, and shell 4 can pack in 32 electrons.
The really interesting bit is that there are different types of orbitals - s, p, d, and f orbitals - each with their own unique shapes. Every single electron shell contains at least one s orbital, which has a perfectly spherical shape.
Key Insight: Think of orbitals like different types of rooms in a hotel - some are small and round (s orbitals), others have different shapes, but each can only accommodate 2 electrons maximum!
2
of 2

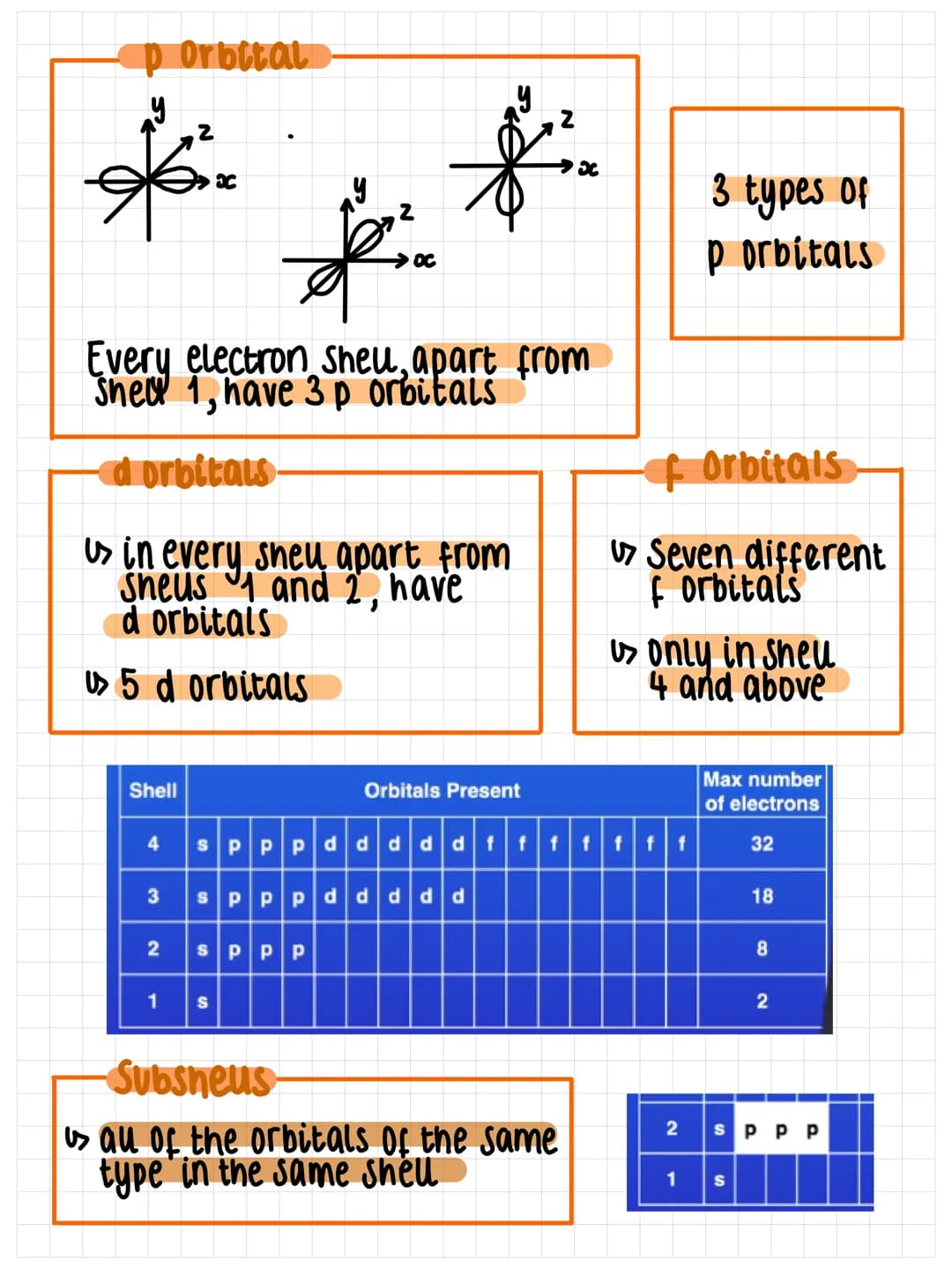

Orbital Types and Shell Structure
P orbitals have a distinctive dumbbell shape and come in sets of three per shell (except shell 1, which is too small). These three p orbitals point in different directions - along the x, y, and z axes.
As shells get bigger, even more orbital types appear. D orbitals show up from shell 3 onwards, and you get 5 of them per shell. F orbitals are the most complex, with 7 different orientations, but they only appear in shell 4 and above.
Here's how it all fits together: Shell 1 just has 1 s orbital (2 electrons max). Shell 2 has 1 s + 3 p orbitals (8 electrons max). Shell 3 adds 5 d orbitals on top (18 electrons max). Shell 4 throws in 7 f orbitals as well (32 electrons max).
Scientists call groups of the same orbital type in the same shell subshells. So you might hear about the "2p subshell" (the three p orbitals in shell 2) or the "3d subshell" (the five d orbitals in shell 3).
Memory Trick: Remember the orbital sequence as "Some People Don't Function" - S, P, D, F - to recall the order they appear in!
