Edexcel AS Level Chemistry - Introduction to Topic 1

Chapter Introduction - Atomic Structure Basics

Welcome to the fascinating world of atoms! This chapter covers everything you need to know about atomic structure and how it connects to the periodic table. You'll discover how tiny particles determine the properties of every element around us.

Understanding these concepts will help you predict chemical behaviour, explain why elements are arranged as they are in the periodic table, and make sense of countless chemical reactions. It's the foundation that makes the rest of chemistry click into place.

Key Point: Mastering atomic structure is like learning the alphabet before reading - once you get it, everything else becomes so much clearer!

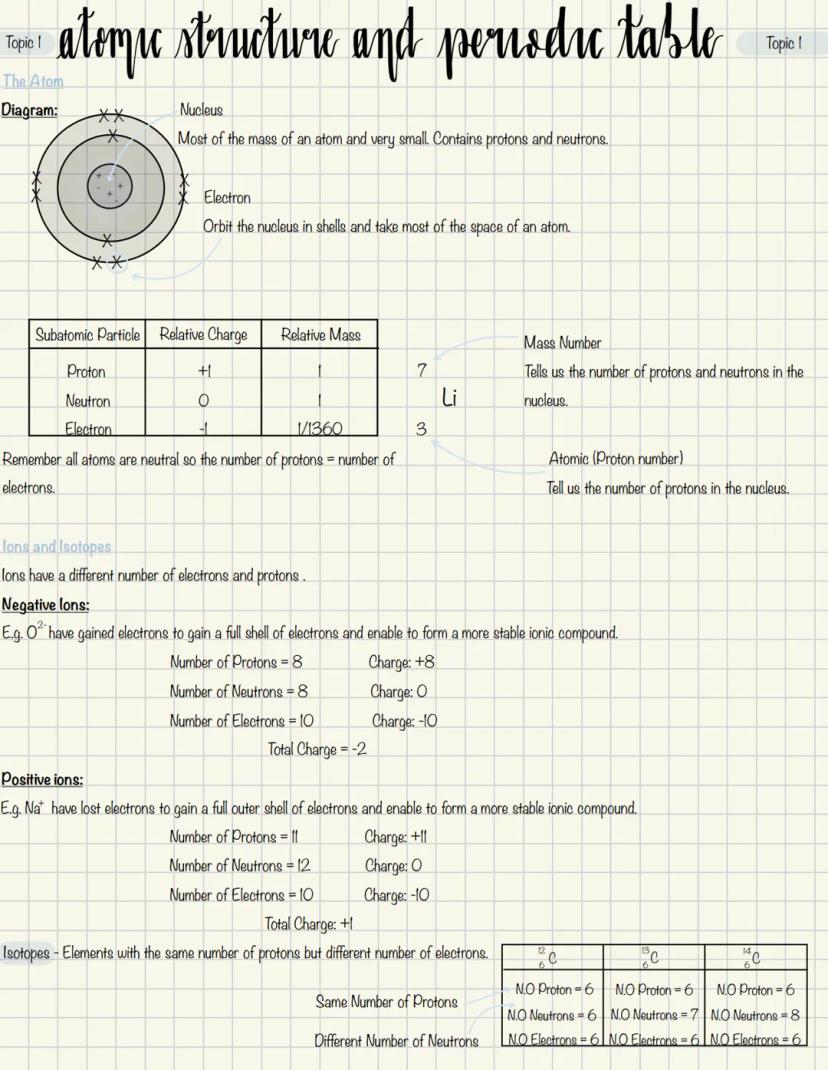

The Atom and Its Components

Picture an atom as a tiny solar system - but much weirder! The nucleus sits at the centre, containing almost all the atom's mass despite being incredibly small. It's packed with protons (positive charge, +1) and neutrons (no charge, 0).

Electrons whizz around the nucleus in shells, taking up most of the atom's space despite having virtually no mass (1/1836 of a proton). Think of them as negatively charged clouds rather than tiny balls orbiting like planets.

Here's the crucial bit: atoms are always neutral overall. This means the number of protons always equals the number of electrons in a normal atom. The mass number tells you protons plus neutrons, while the atomic number tells you just the protons.

Ions mess with this balance - they've gained or lost electrons to get full outer shells and become more stable. Isotopes are atoms of the same element with different numbers of neutrons - same protons, different mass.

Remember: Protons determine what element it is, electrons determine the charge, and neutrons determine the mass!

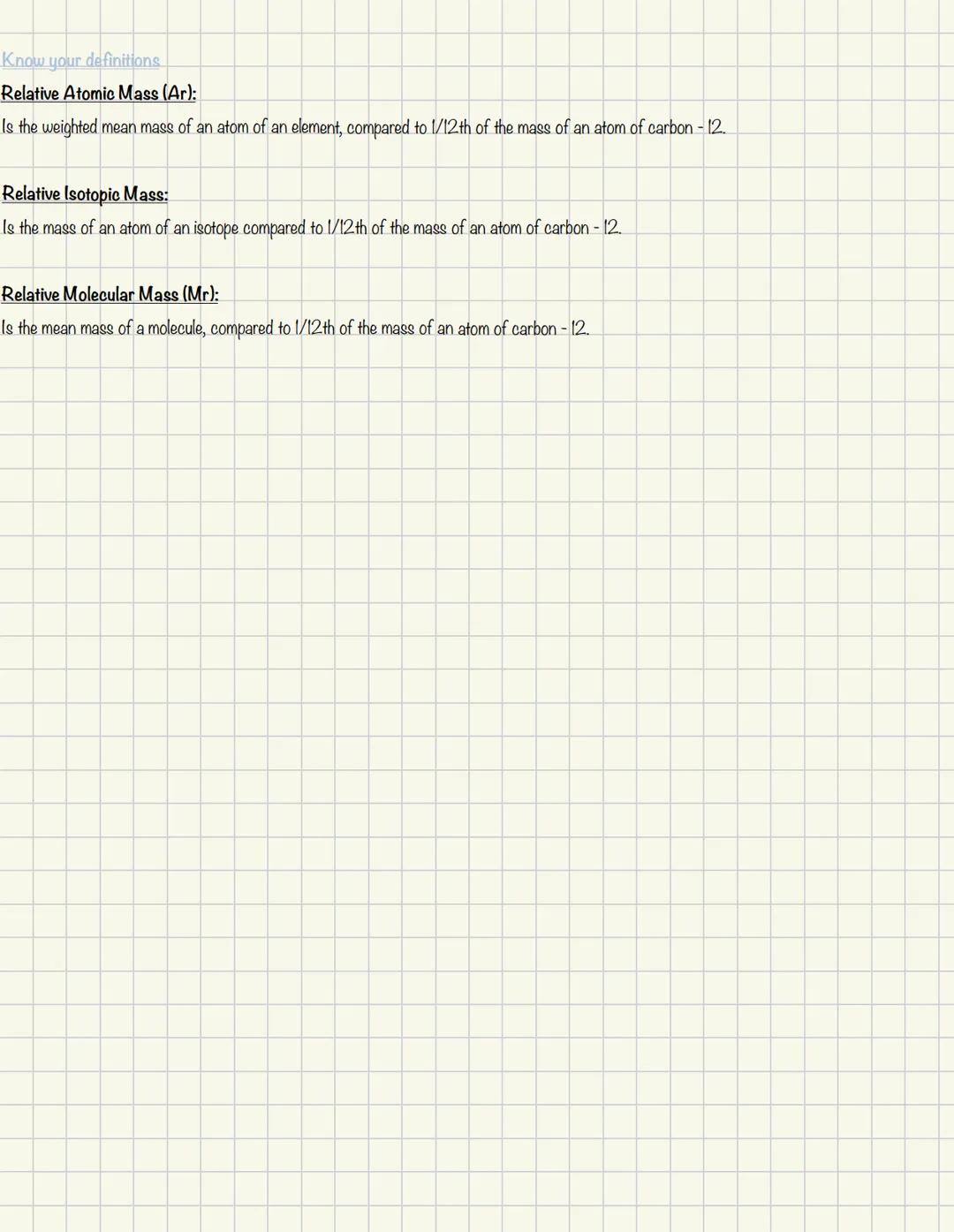

Essential Definitions You Need to Know

These definitions might seem boring, but they're absolutely crucial for understanding chemistry calculations. Relative atomic mass (Ar) compares an atom's mass to 1/12th of a carbon-12 atom - it's like having a universal measuring stick for atoms.

Relative isotopic mass does the same thing but for specific isotopes of an element. Meanwhile, relative molecular mass (Mr) extends this concept to entire molecules - just add up all the atomic masses in the molecule.

These values explain why chlorine's atomic mass is 35.5 rather than a whole number - it's an average of all chlorine isotopes found in nature, weighted by how common each one is.

Study Tip: Think of relative atomic mass as a "weighted average" - like your overall grade being affected more by a big test than a small quiz!

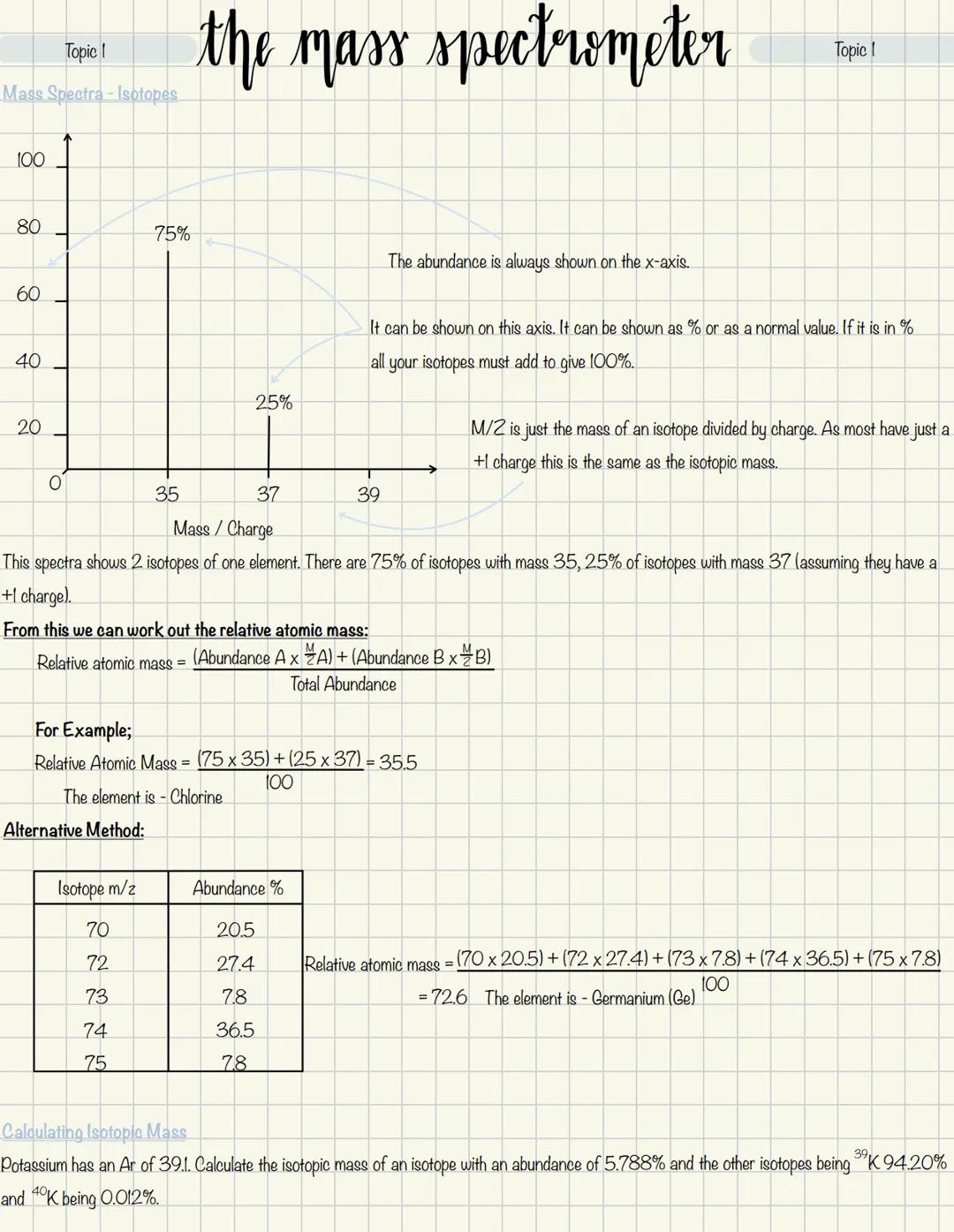

Mass Spectra and Isotope Analysis

Mass spectrometry is like a sophisticated weighing machine for atoms and molecules. It shows you exactly which isotopes are present and how much of each you've got. The x-axis shows mass-to-charge ratio (usually just mass since most ions have +1 charge), whilst the y-axis shows abundance.

Reading these spectra is straightforward once you get the hang of it. Each peak represents a different isotope, and the height tells you how common it is. For chlorine, you'd see peaks at 35 (75%) and 37 (25%).

To calculate relative atomic mass from spectra: multiply each mass by its abundance, add them up, then divide by total abundance. So chlorine = $(75 × 35) + (25 × 37)$ ÷ 100 = 35.5.

You can even predict spectra for molecules like O₂ by working out all possible isotope combinations and their probabilities. It's like predicting lottery combinations, but with atoms!

Exam Tip: Always check your calculated atomic mass makes sense - it should be between the masses of the most common isotopes!

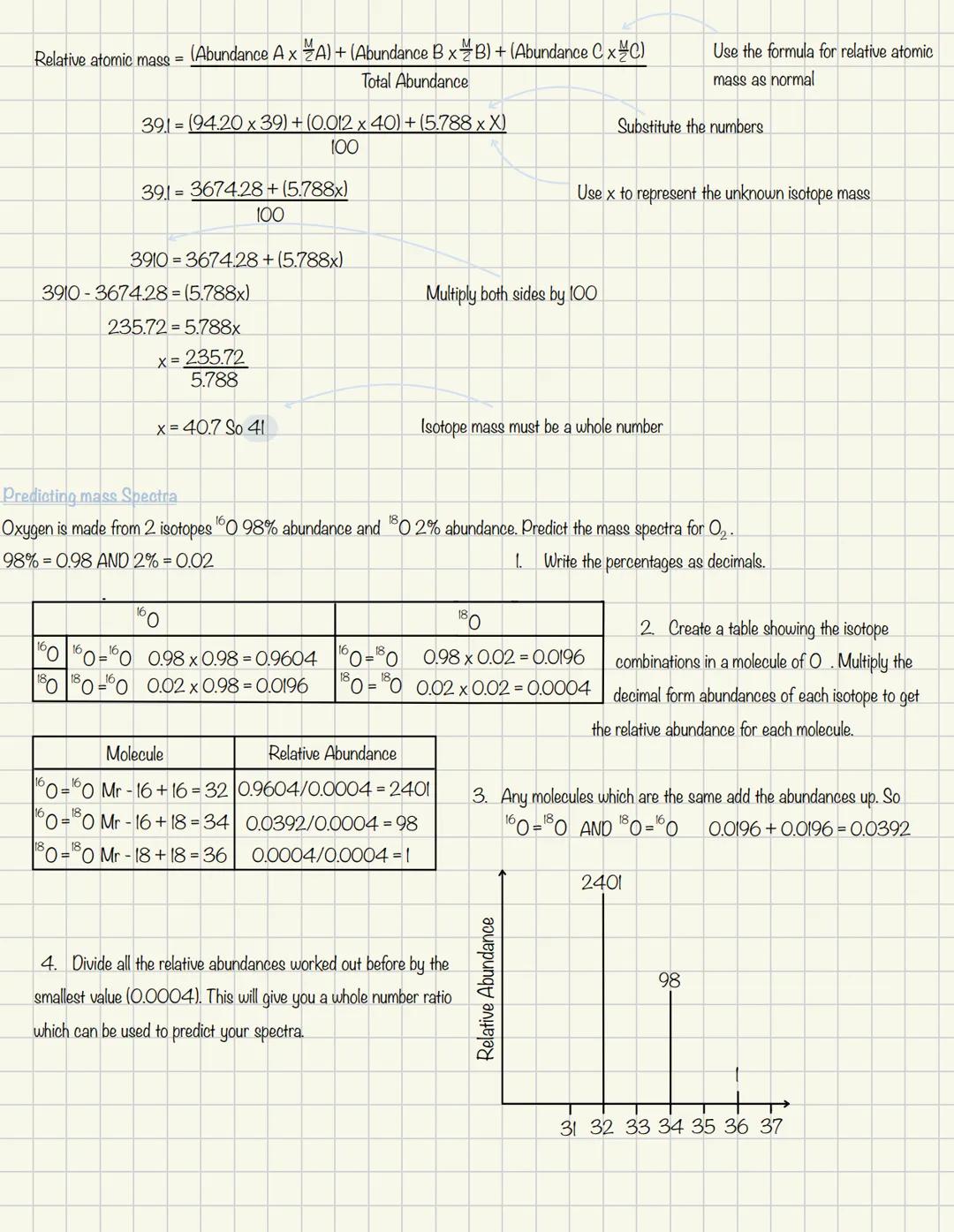

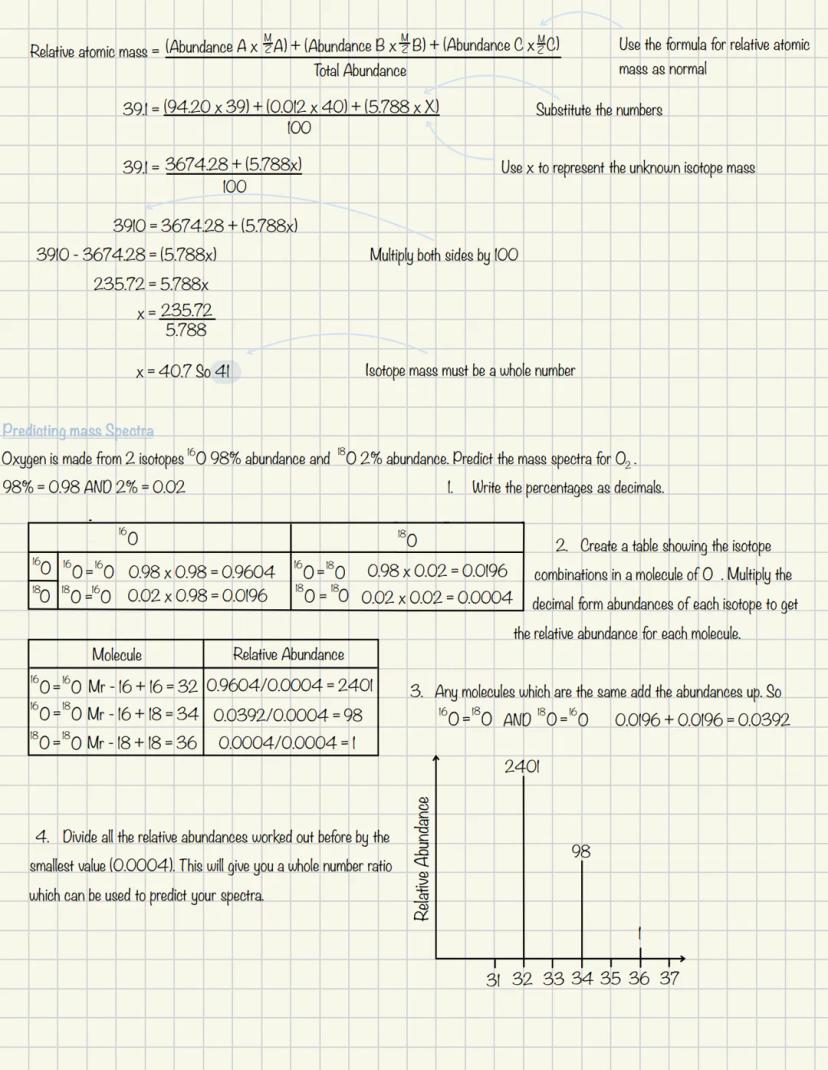

Calculating Unknown Isotope Masses

Sometimes you'll need to work backwards from the relative atomic mass to find an unknown isotope mass. This is just algebraic manipulation - nothing too scary! Set up the relative atomic mass equation with x representing your unknown mass.

For the potassium example: you know the overall Ar is 39.1, and you know the masses and abundances of two isotopes. Substitute everything into the formula, multiply through by 100 to clear the fraction, then solve for x.

Predicting mass spectra for molecules gets trickier but follows logical steps. Convert percentages to decimals, work out all possible isotope combinations, calculate their relative abundances, then simplify to whole number ratios.

The oxygen example shows how O₂ can have three different masses (32, 34, 36) depending on which isotopes combine. The relative abundances follow probability rules - ¹⁶O-¹⁶O is most common because ¹⁶O is the abundant isotope.

Pro Tip: When predicting molecular spectra, don't forget that ¹⁶O-¹⁸O and ¹⁸O-¹⁶O are the same molecule - add their abundances together!

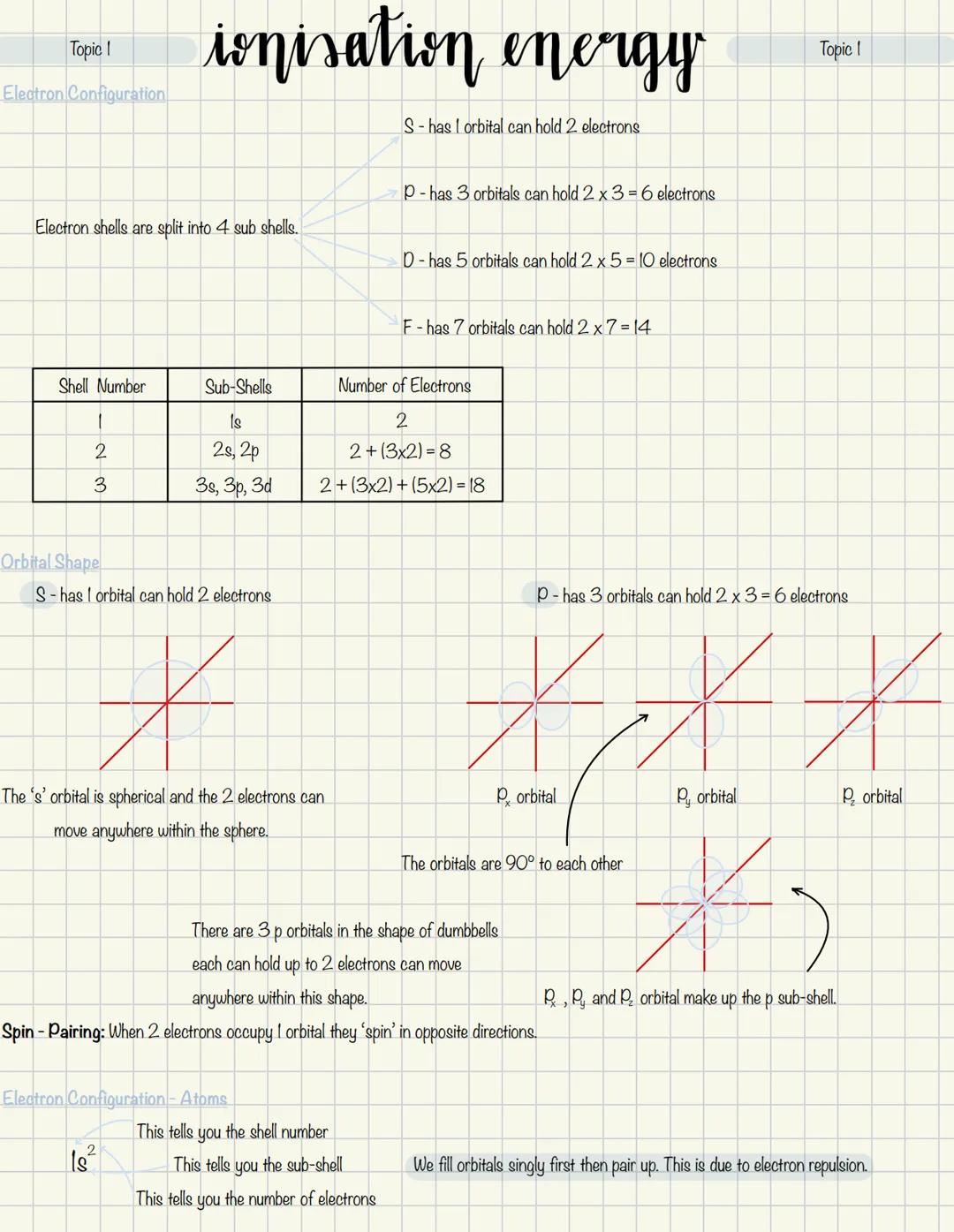

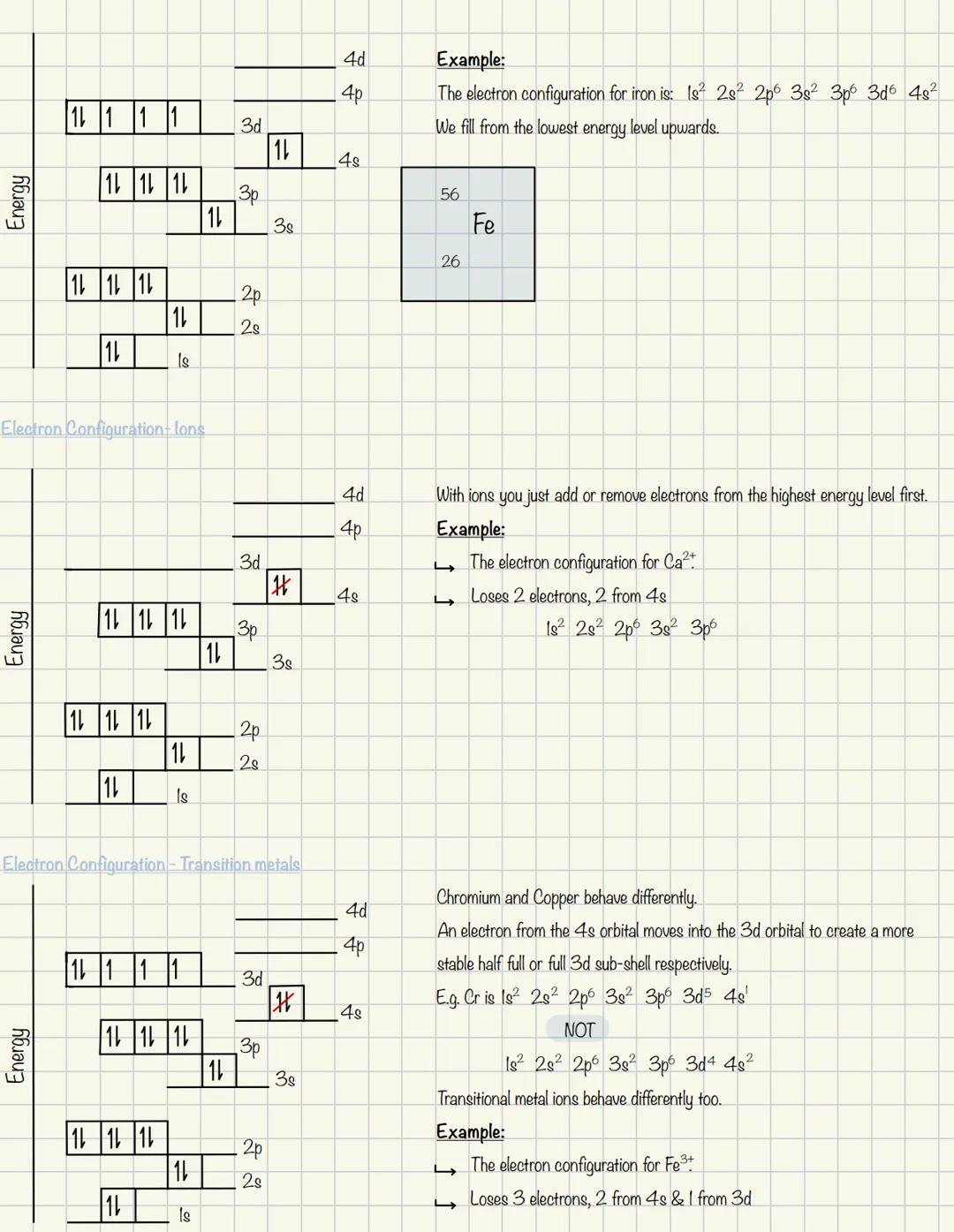

Electron Configuration and Orbital Shapes

Electrons don't just randomly float around the nucleus - they're organised into specific shells and sub-shells. Think of it like a multi-storey car park with different sections (s, p, d, f) that can hold different numbers of cars (electrons).

S orbitals are spherical and hold 2 electrons maximum. P orbitals are dumbbell-shaped, come in sets of three (px, py, pz), and hold 6 electrons total. D orbitals are more complex, come in sets of five, and hold 10 electrons.

The key rule is electron configuration - fill from lowest energy upwards, put one electron in each orbital before pairing them up (like people avoiding sitting next to strangers on a bus). When electrons do pair up, they spin in opposite directions to minimise repulsion.

Writing electron configurations is like giving directions: 1s² means "2 electrons in the 1s orbital". For iron: 1s² 2s² 2p⁶ 3s² 3p⁶ 3d⁶ 4s².

Memory Trick: Electrons are antisocial - they'd rather be alone in separate orbitals than share until they absolutely have to!

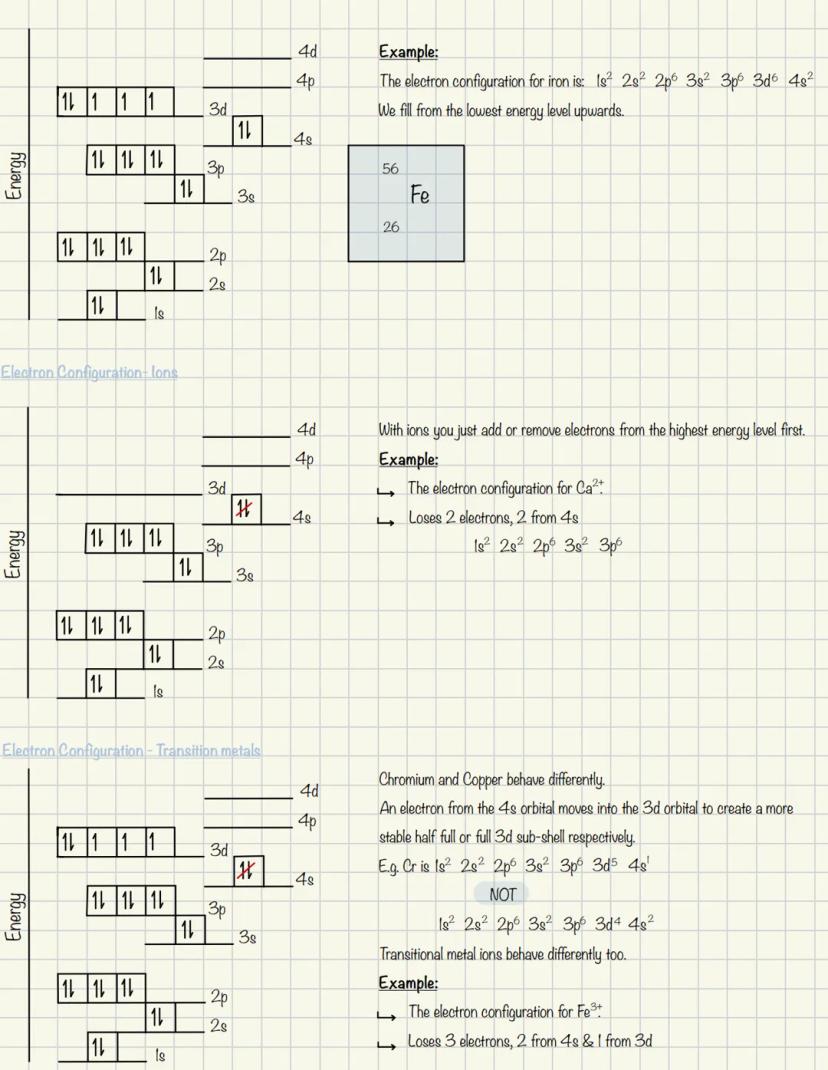

Advanced Electron Configurations

Transition metals like chromium and copper break the normal rules because half-filled and completely filled d orbitals are extra stable. Chromium "borrows" an electron from 4s to get 3d⁵ 4s¹ instead of 3d⁴ 4s².

When dealing with ions, remember electrons are removed from the highest energy level first. For Ca²⁺, you remove both 4s electrons. But transition metal ions are sneaky - remove from 4s first, then from 3d.

The periodic table blocks make sense now: Groups 1-2 are filling s orbitals (s-block), Groups 3-7 are filling p orbitals (p-block), and transition metals are filling d orbitals (d-block). The group number tells you outer shell electrons.

This organisation isn't random - it reflects how electrons are arranged and explains why elements in the same group behave similarly.

Quick Check: If you can predict whether an element is s, p, or d block from its position, you're getting the hang of this!

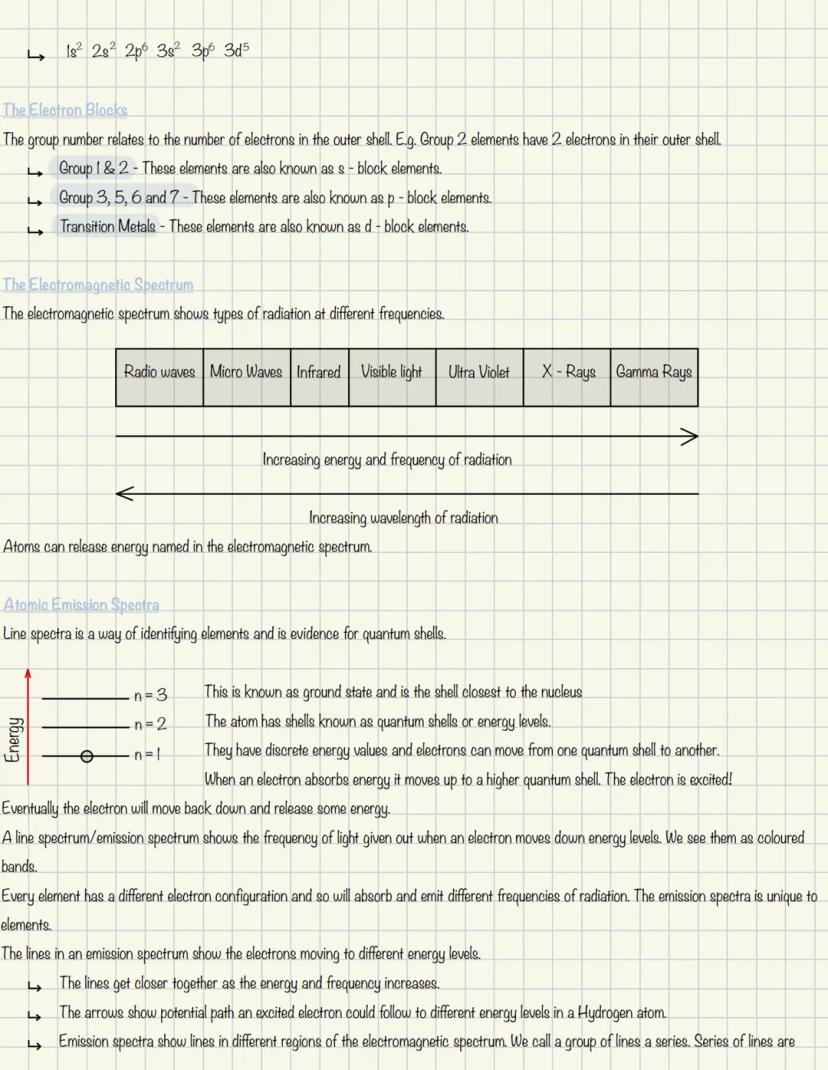

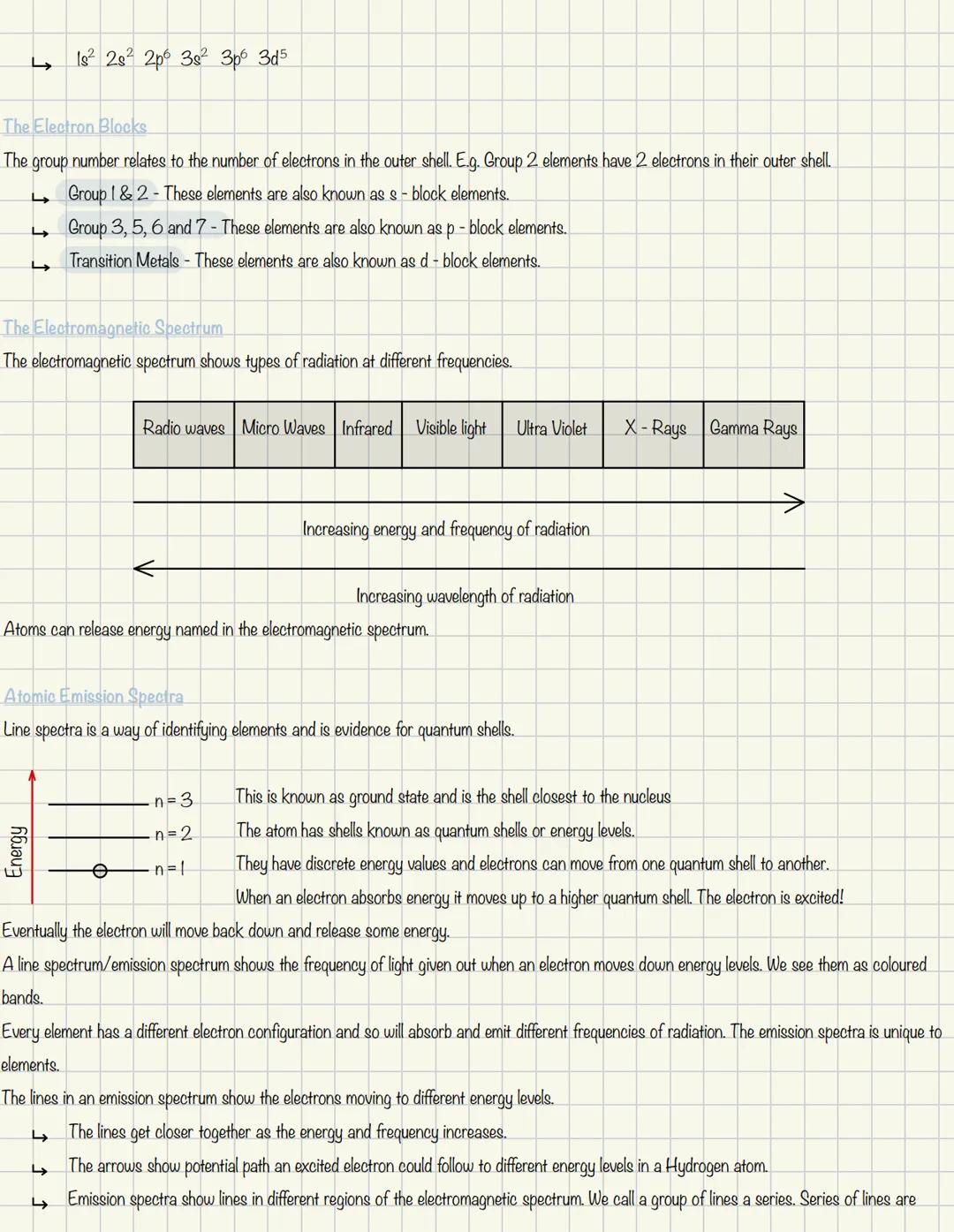

Electromagnetic Spectrum and Atomic Emission

Light isn't just light - it's part of the electromagnetic spectrum ranging from radio waves to gamma rays. Atoms can absorb and emit energy at specific frequencies, creating their own unique "fingerprints" of light.

When electrons absorb energy, they jump to higher quantum shells (like climbing stairs). When they fall back down, they emit light at specific frequencies. This creates line spectra - distinct coloured lines rather than continuous rainbows.

Each element produces different line patterns because each has a unique electron arrangement. This is how we identify elements in stars millions of miles away! The spacing and positions of lines tell us exactly which element we're looking at.

Ground state is when electrons are in their lowest energy positions. Excited states occur when electrons have absorbed energy and moved to higher levels - but they don't stay there long.

Amazing Fact: The same principles that make fireworks colourful also let astronomers discover what distant planets are made of!

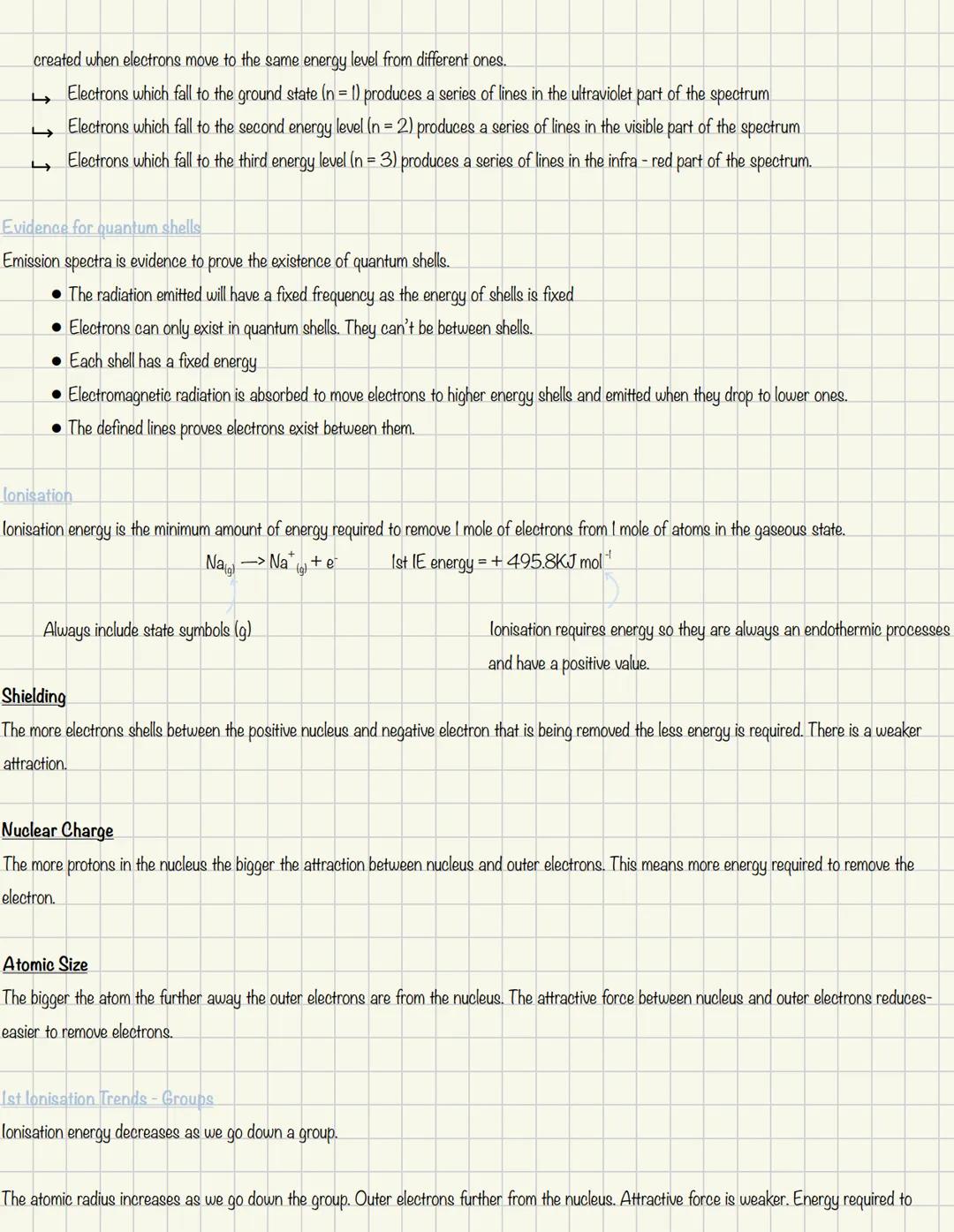

Evidence for Quantum Shells and Ionisation

Emission spectra provide rock-solid evidence that electrons exist in discrete energy levels, not just anywhere around the nucleus. If electrons could exist anywhere, we'd see continuous spectra, not distinct lines.

The fact that we see sharp, defined lines at specific frequencies proves that electron shells have fixed energies. Series of lines form when electrons fall to the same energy level from various higher ones - ultraviolet series (falling to n=1), visible series (falling to n=2), infrared series (falling to n=3).

Ionisation energy is the energy needed to remove one mole of electrons from one mole of gaseous atoms. It's always positive (endothermic) because you're fighting the attractive force between positive nucleus and negative electrons.

Three factors affect ionisation energy: nuclear charge (more protons = stronger attraction), shielding (more inner electrons = weaker attraction), and atomic size (bigger atoms = weaker attraction to outer electrons).

Pattern Spot: Ionisation energy decreases down groups but increases across periods - can you explain why using the three factors?

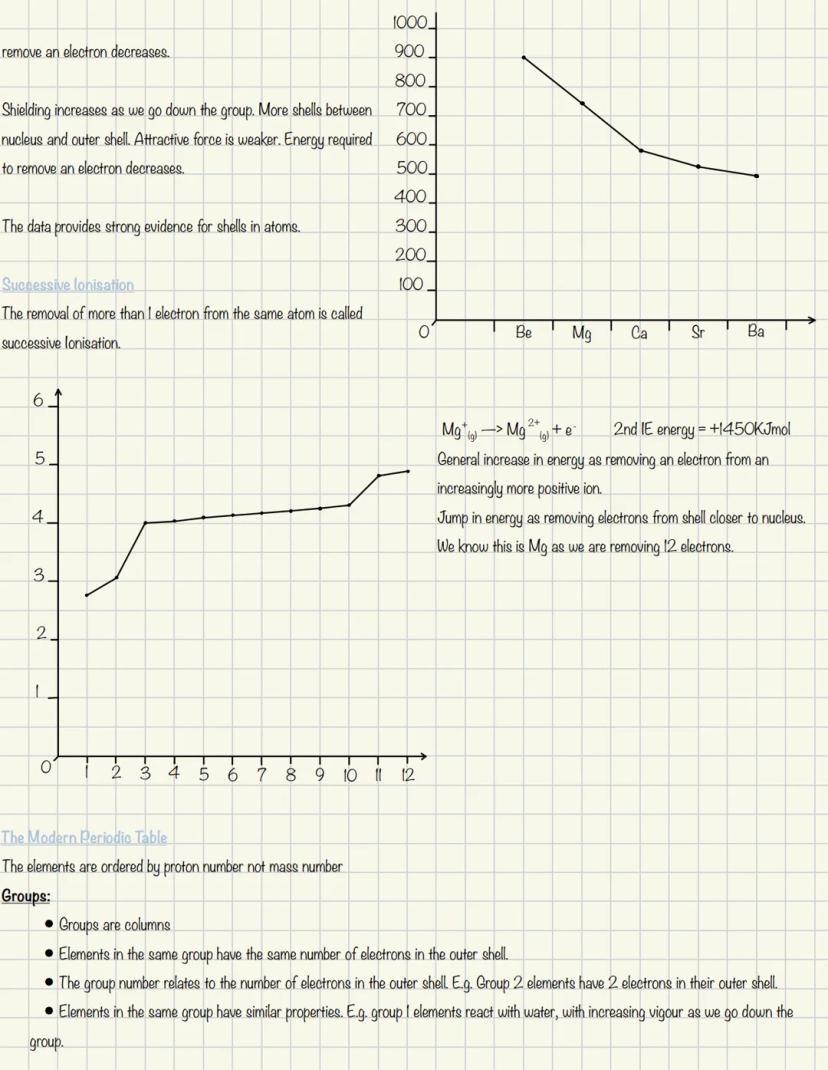

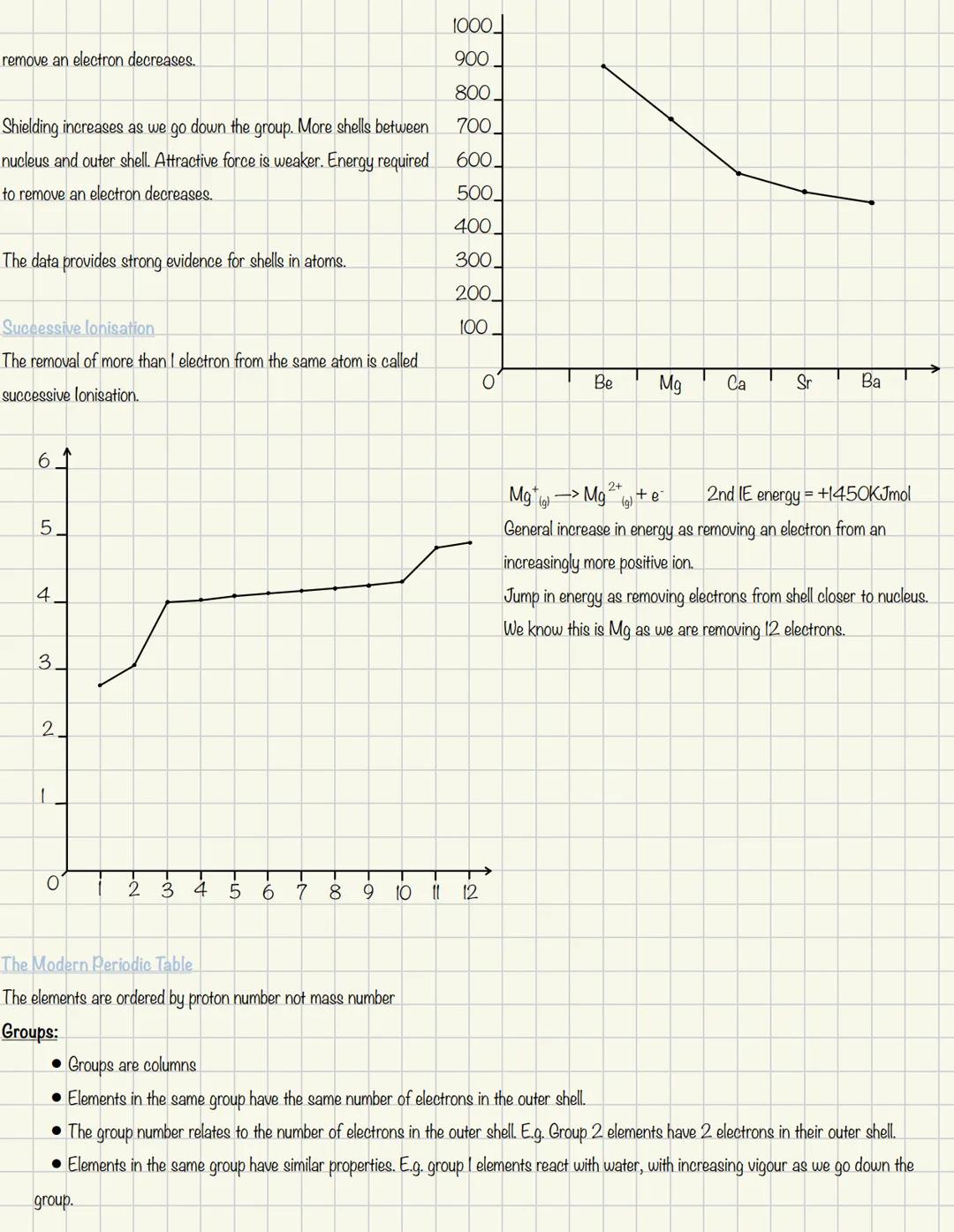

Ionisation Trends and the Modern Periodic Table

Successive ionisation energies show dramatic jumps when you start removing electrons from inner shells. This provides brilliant evidence for electron shells - the graph literally shows you where one shell ends and the next begins.

For magnesium, there's a huge jump after removing 2 electrons (from 3s to 2p shell), then another massive jump after removing 10 more (from 2p to 1s shell). The pattern tells you exactly how many electrons are in each shell.

The modern periodic table arranges elements by atomic number (protons), not mass. Groups are vertical columns where elements have the same number of outer electrons and similar properties. Periods are horizontal rows representing electron shells.

Group numbers directly relate to outer electrons - Group 1 has 1 outer electron, Group 7 has 7 outer electrons. This explains why elements in the same group react similarly but with increasing vigour down the group.

Big Picture: The periodic table isn't just a random arrangement - it's a map of electron configurations that predicts chemical behaviour!
