Exploring Protein Structures: A Level Notes

user profile picture
Victor@the1andonly

Proteins are incredibly complex molecules that your body uses for... Show more

1
of 8
# Year 12

# BIOLOGY

September | Lesson 7

Protein Structure

WORKBOOK

myedspace.co.uk September | Lesson 7 | Protein Structure

Y12
mes
R

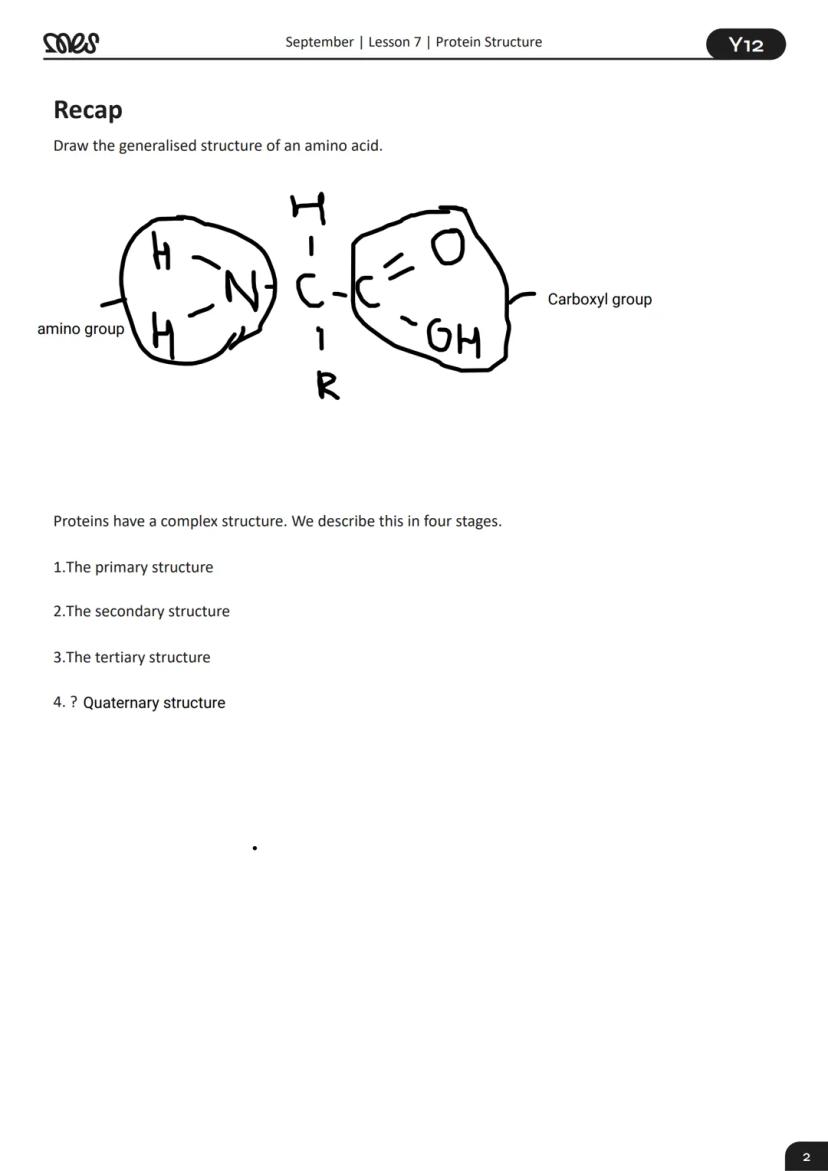

Getting Started with Protein Structure

Think of proteins like LEGO constructions - they start with basic building blocks (amino acids) and get increasingly complex. Every amino acid has the same basic structure: an amino group, a carboxyl group, and a unique R group that gives each amino acid its special properties.

Scientists describe protein complexity in four distinct levels. The primary structure is simply the sequence of amino acids. Then comes secondary structure (basic folding patterns), tertiary structure (the final 3D shape), and quaternary structure (multiple chains working together).

Quick Tip: Remember that the primary structure determines everything else - change the sequence, and you change the entire protein!

2
of 8
# Year 12

# BIOLOGY

September | Lesson 7

Protein Structure

WORKBOOK

myedspace.co.uk September | Lesson 7 | Protein Structure

Y12
mes
R

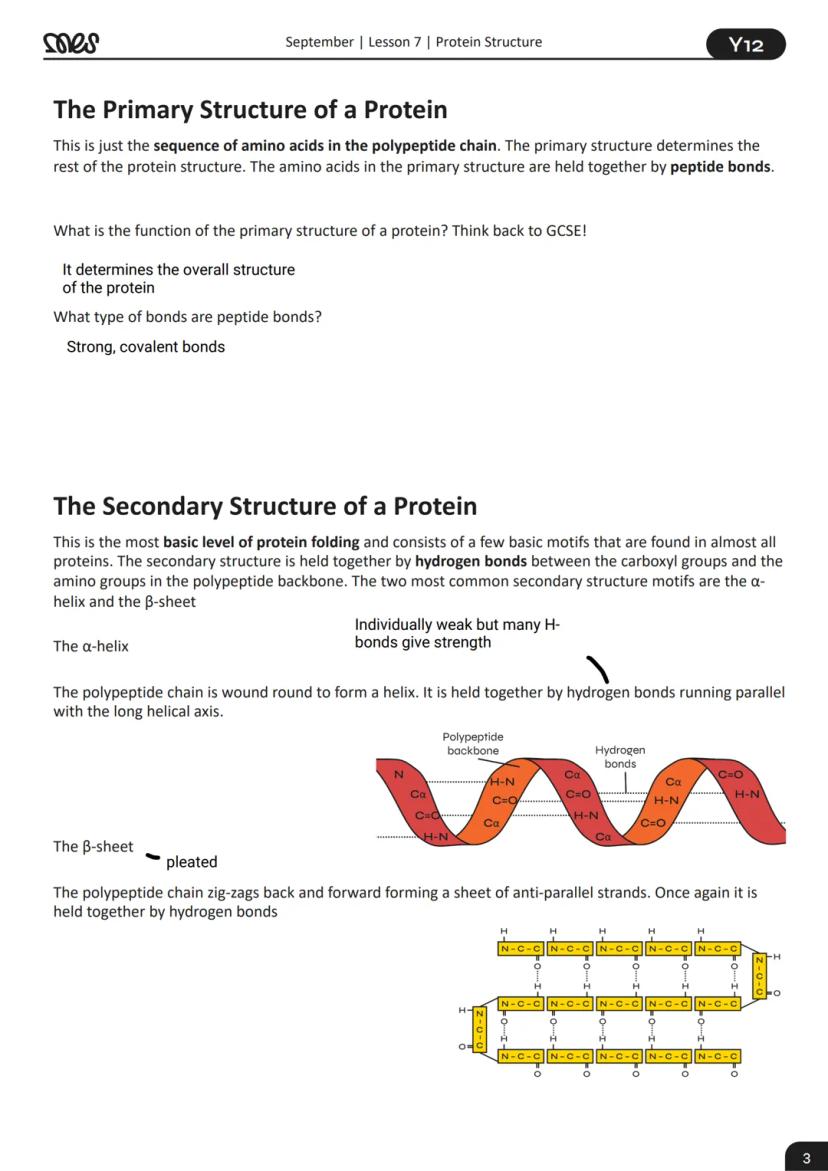

Primary and Secondary Structure Basics

The primary structure is just the order of amino acids in the chain, like letters in a sentence. These amino acids are linked by strong peptide bonds through condensation reactions. Get this sequence wrong, and the entire protein won't work properly.

Secondary structure is where things get interesting. The polypeptide chain starts folding into two main patterns: α-helices (spiral staircases) and β-sheets (pleated curtains). These shapes are held together by hydrogen bonds between the backbone atoms.

Think of α-helices as tightly wound springs, whilst β-sheets look like accordion folds. Both structures appear in almost every protein you'll encounter. These hydrogen bonds are individually weak, but together they're strong enough to maintain the protein's shape.

Remember: Secondary structure only involves the protein backbone - the R groups aren't involved yet!

3
of 8
# Year 12

# BIOLOGY

September | Lesson 7

Protein Structure

WORKBOOK

myedspace.co.uk September | Lesson 7 | Protein Structure

Y12
mes
R

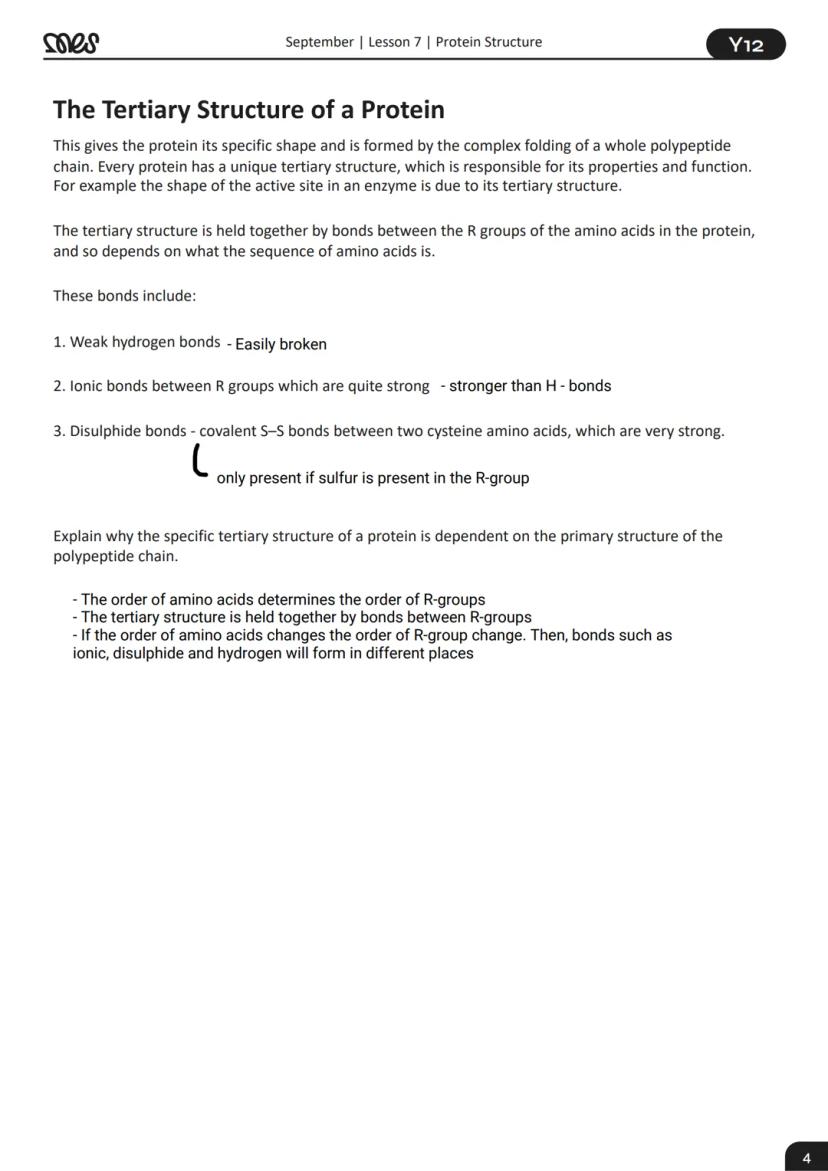

Tertiary Structure - The Final Shape

Here's where proteins get their unique personalities. Tertiary structure is the final 3D shape of a single polypeptide chain, and it's absolutely crucial for the protein's function. Think of an enzyme's active site - its precise shape comes from tertiary structure.

This complex folding happens because of bonds between the R groups of different amino acids. You've got three types of bonds to remember: weak hydrogen bonds (easily broken), stronger ionic bonds between charged R groups, and super-strong disulphide bonds between cysteine amino acids.

The beauty of tertiary structure is that it's entirely determined by the primary structure. Change one amino acid in the sequence, and the R groups will bond differently, potentially creating a completely different shape and function.

Key Point: Every protein has a unique tertiary structure that directly determines what job it can do in your body!

4
of 8
# Year 12

# BIOLOGY

September | Lesson 7

Protein Structure

WORKBOOK

myedspace.co.uk September | Lesson 7 | Protein Structure

Y12
mes
R

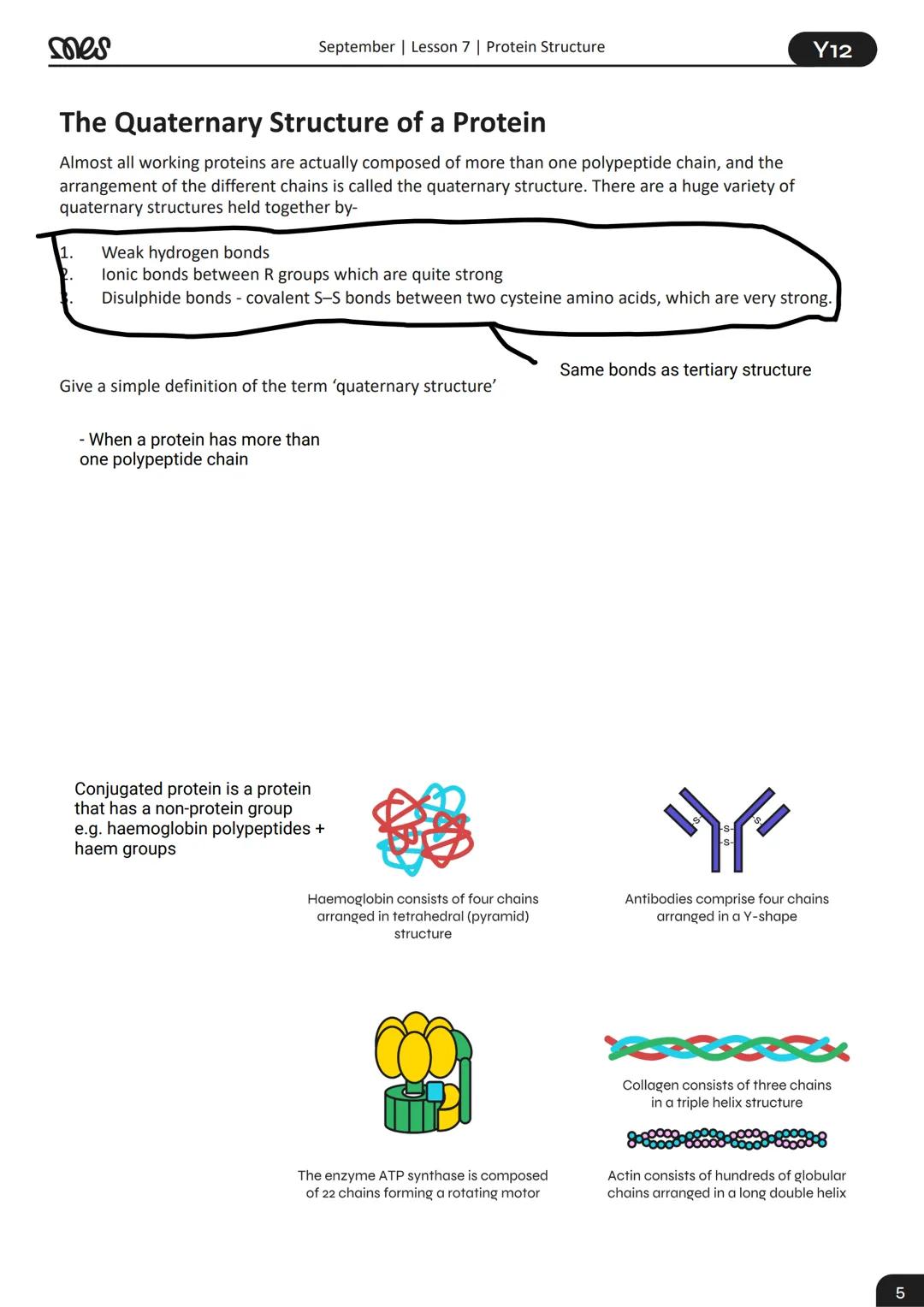

Quaternary Structure and Protein Types

Not all proteins work alone - many are team players. Quaternary structure describes how multiple polypeptide chains fit together to create a working protein. Haemoglobin (four chains in a pyramid), antibodies fourchainsinaYshapefour chains in a Y-shape, and collagen (three chains in a triple helix) are perfect examples.

The bonds holding quaternary structures together are the same as tertiary: hydrogen bonds, ionic bonds, and disulphide bonds. Some proteins even include conjugated groups - non-protein parts like the iron-containing haem groups in haemoglobin.

You'll encounter two main protein shapes: globular proteins compactandballshapedlikeenzymesandhormonescompact and ball-shaped like enzymes and hormones and fibrous proteins longandropelikeforstructuraljobslong and rope-like for structural jobs. Globular proteins do most of the body's chemical work, whilst fibrous proteins provide strength and structure.

Fun Fact: The enzyme ATP synthase has 22 different polypeptide chains working together like a tiny rotating motor!

5
of 8
# Year 12

# BIOLOGY

September | Lesson 7

Protein Structure

WORKBOOK

myedspace.co.uk September | Lesson 7 | Protein Structure

Y12
mes
R

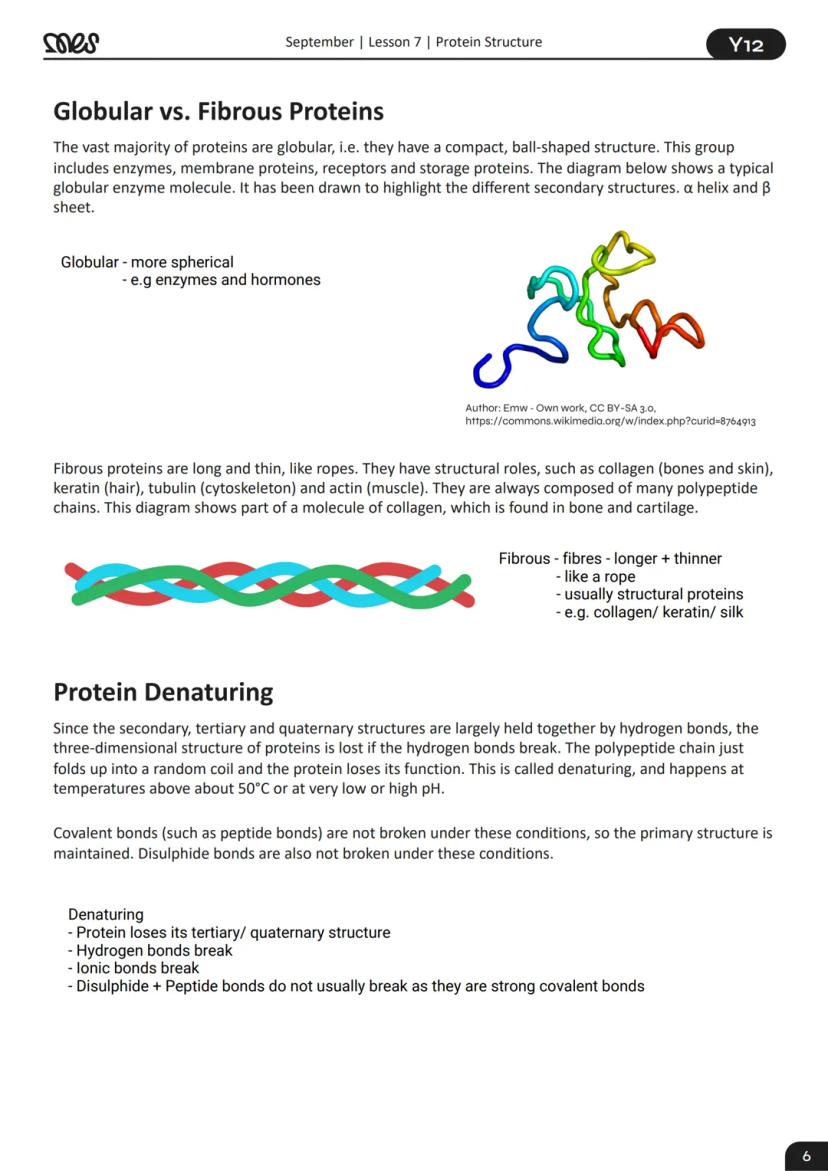

When Proteins Go Wrong - Denaturing

Proteins are surprisingly fragile despite their complex structure. Denaturing happens when a protein loses its 3D shape and becomes a useless tangle. High temperatures (above 50°C) or extreme pH levels break the hydrogen and ionic bonds holding the structure together.

The good news? Peptide bonds and disulphide bonds are tough covalent bonds that usually survive denaturing. This means the primary structure stays intact - only the secondary, tertiary, and quaternary structures collapse.

Once denatured, proteins can't do their jobs anymore. Think about cooking an egg - the heat denatures the proteins, turning the clear egg white solid and white. The same thing happens to enzymes in your body during a high fever.

Real-World Connection: This is why your body works so hard to maintain a constant temperature - your proteins need stable conditions to function properly!

6
of 8
# Year 12

# BIOLOGY

September | Lesson 7

Protein Structure

WORKBOOK

myedspace.co.uk September | Lesson 7 | Protein Structure

Y12
mes
R

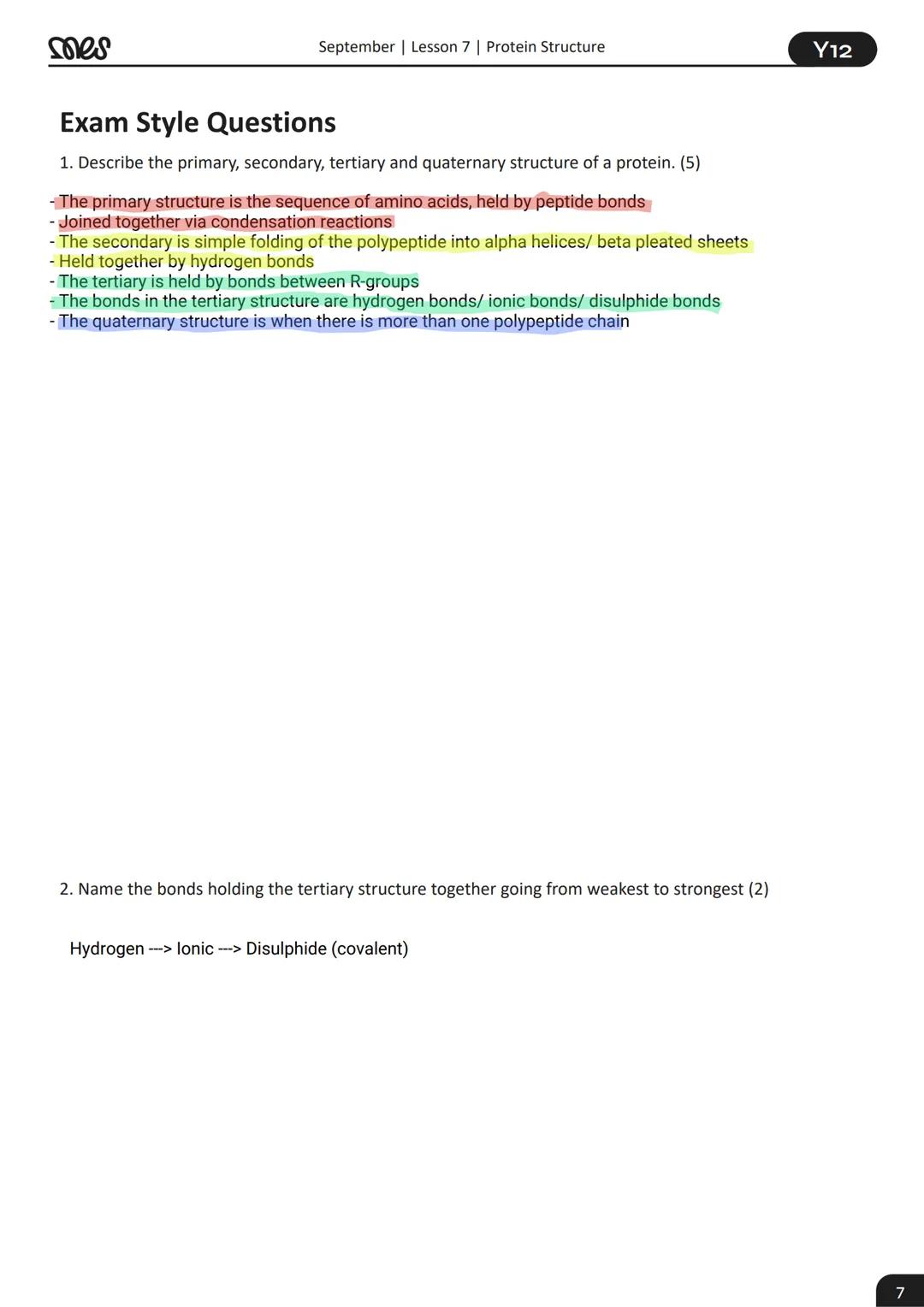

7
