KS3 Biology Revision: Cells and Microscopes Explained

user profile picture

summer @summer_pexs

Every living thing is made up of cells - they're like tiny building blocks that keep us alive!... Show more

44 90
Cells
Cell membrane
nucleus. Just Controls the cell
+ Contains genetic material
Cell wall
cyto plasm
cell membrane
Cytoplasm - Chemica

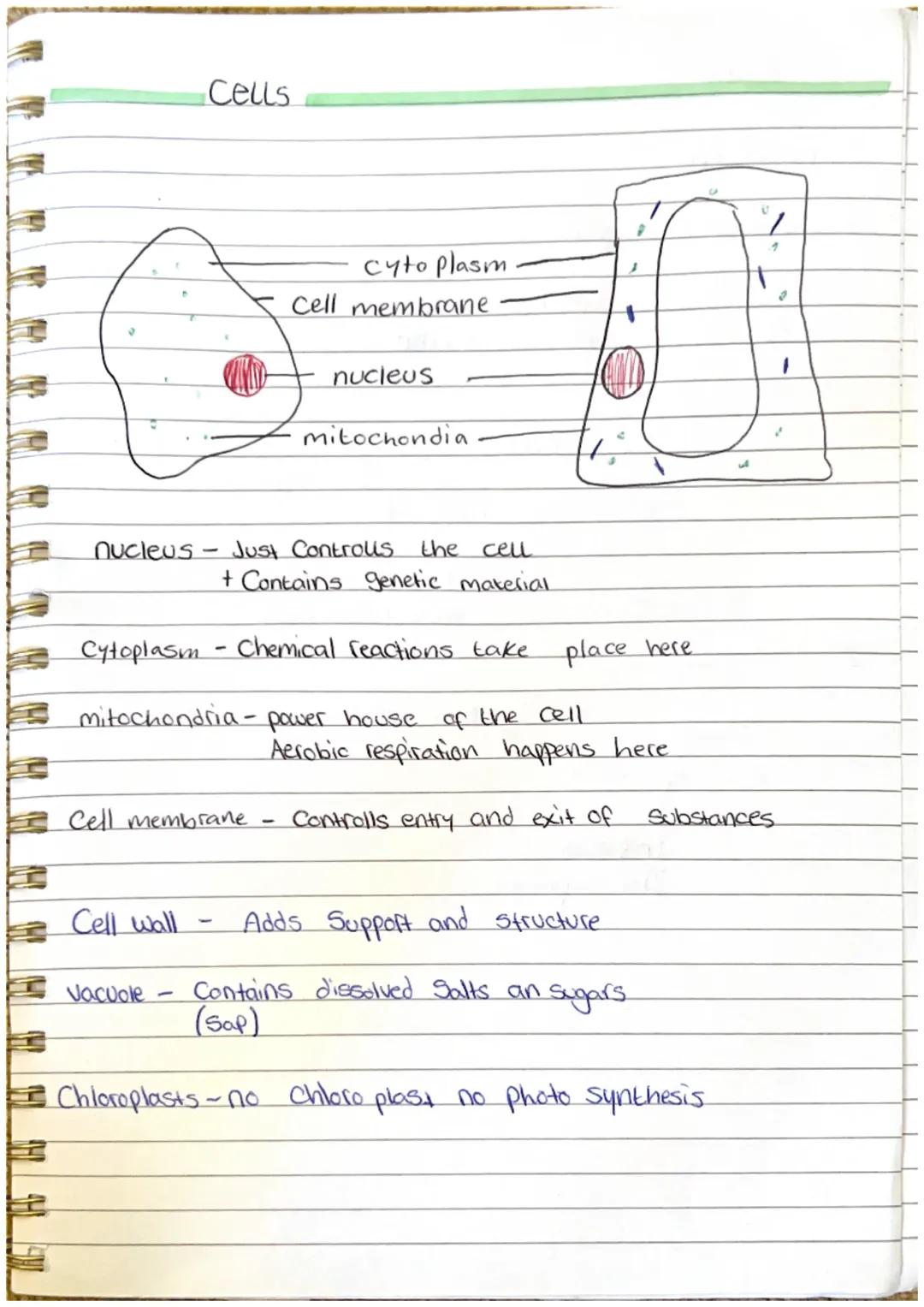

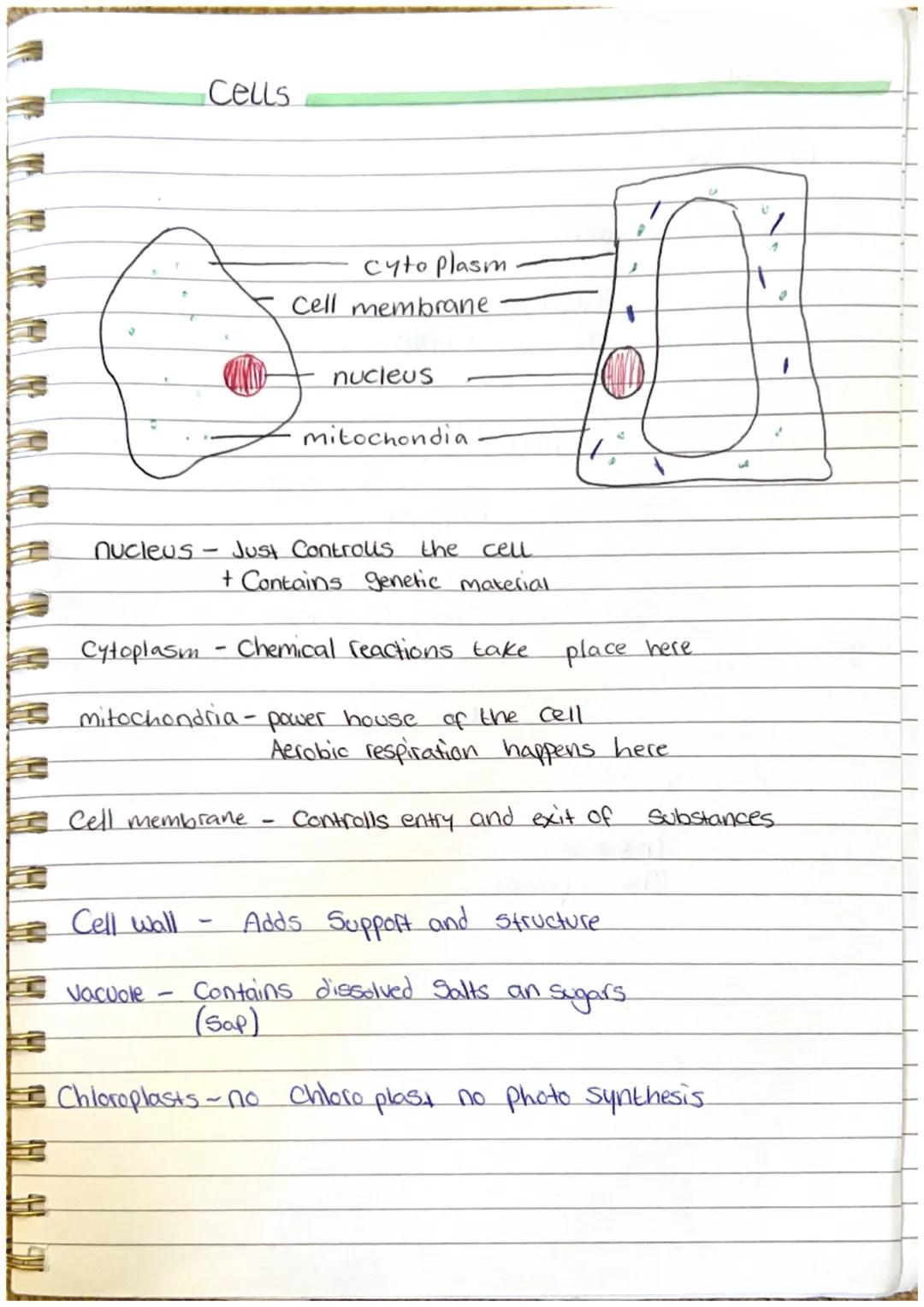

Cell Structure and Function

Think of a cell as a miniature factory with different parts doing specific jobs to keep everything running smoothly. The nucleus acts like the boss, controlling everything the cell does whilst storing all the genetic material (DNA) that makes you unique.

The cytoplasm is where all the action happens - it's a jelly-like substance where chemical reactions take place constantly. Meanwhile, the mitochondria work as the cell's power stations, using aerobic respiration to create energy for all cellular activities.

The cell membrane works like a security guard, carefully controlling what enters and exits the cell. Plant cells have extra features a strong cell wall for support, vacuoles filled with sap (dissolved salts and sugars), and chloroplasts that make photosynthesis possible.

Quick Tip Remember that without chloroplasts, plants couldn't photosynthesise and produce the oxygen we breathe!

44 90
Cells
Cell membrane
nucleus. Just Controls the cell
+ Contains genetic material
Cell wall
cyto plasm
cell membrane
Cytoplasm - Chemica

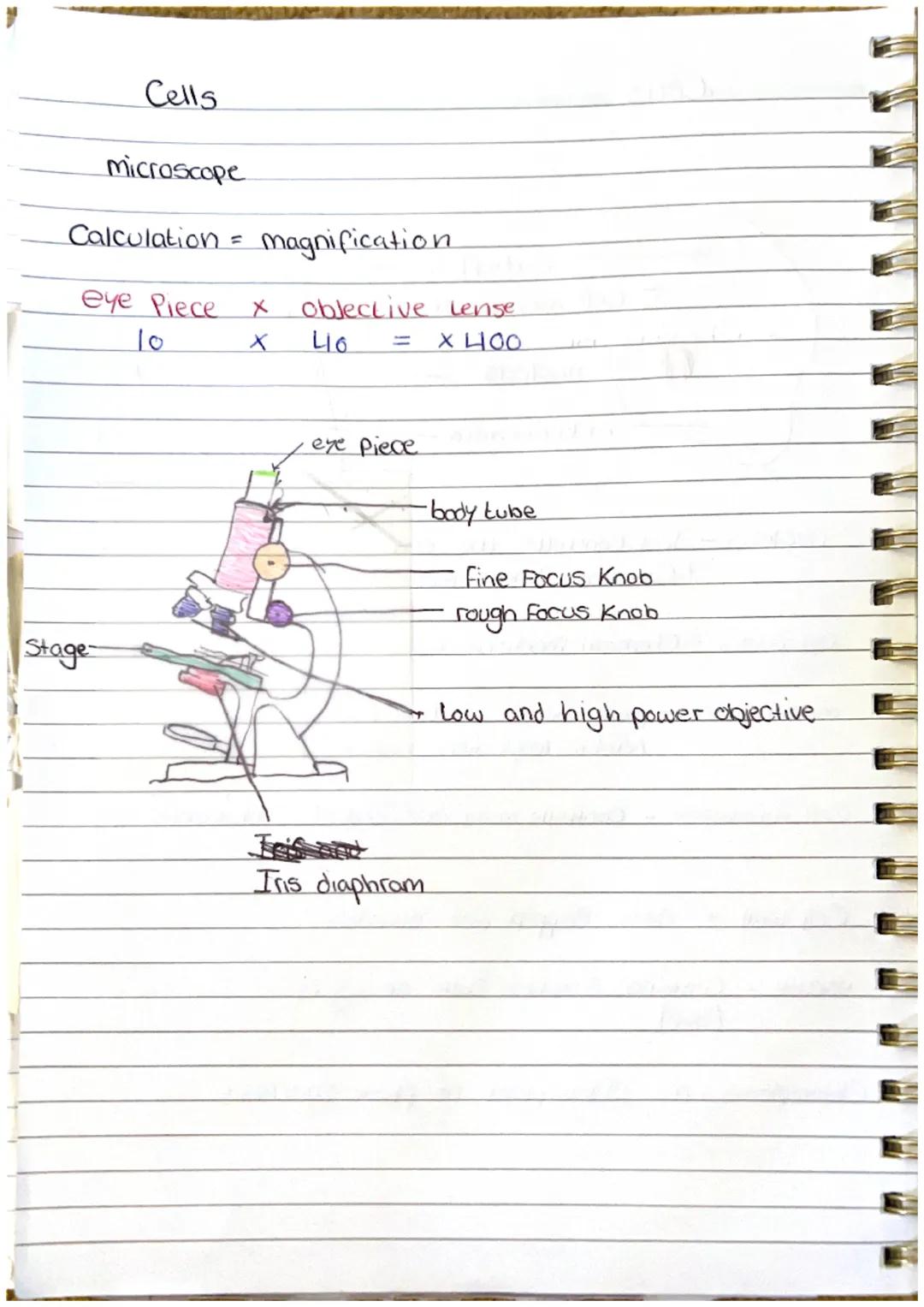

Using a Microscope

Microscopes are your gateway to exploring the invisible world of cells! Understanding magnification is crucial - it tells you how much bigger an object appears compared to its actual size.

To calculate total magnification, simply multiply the eyepiece magnification by the objective lens magnification. For example 10× eyepiece × 40× objective lens = 400× total magnification.

Key microscope parts include the stage (where you place slides), body tube (connects eyepiece to objectives), and focus knobs. Use the coarse focus knob first to get roughly in focus, then fine-tune with the fine focus knob. The iris diaphragm controls light levels for clearer viewing.

Pro Tip Always start with low power objectives before switching to high power - it makes finding your specimen much easier!

44 90
Cells
Cell membrane
nucleus. Just Controls the cell
+ Contains genetic material
Cell wall
cyto plasm
cell membrane
Cytoplasm - Chemica

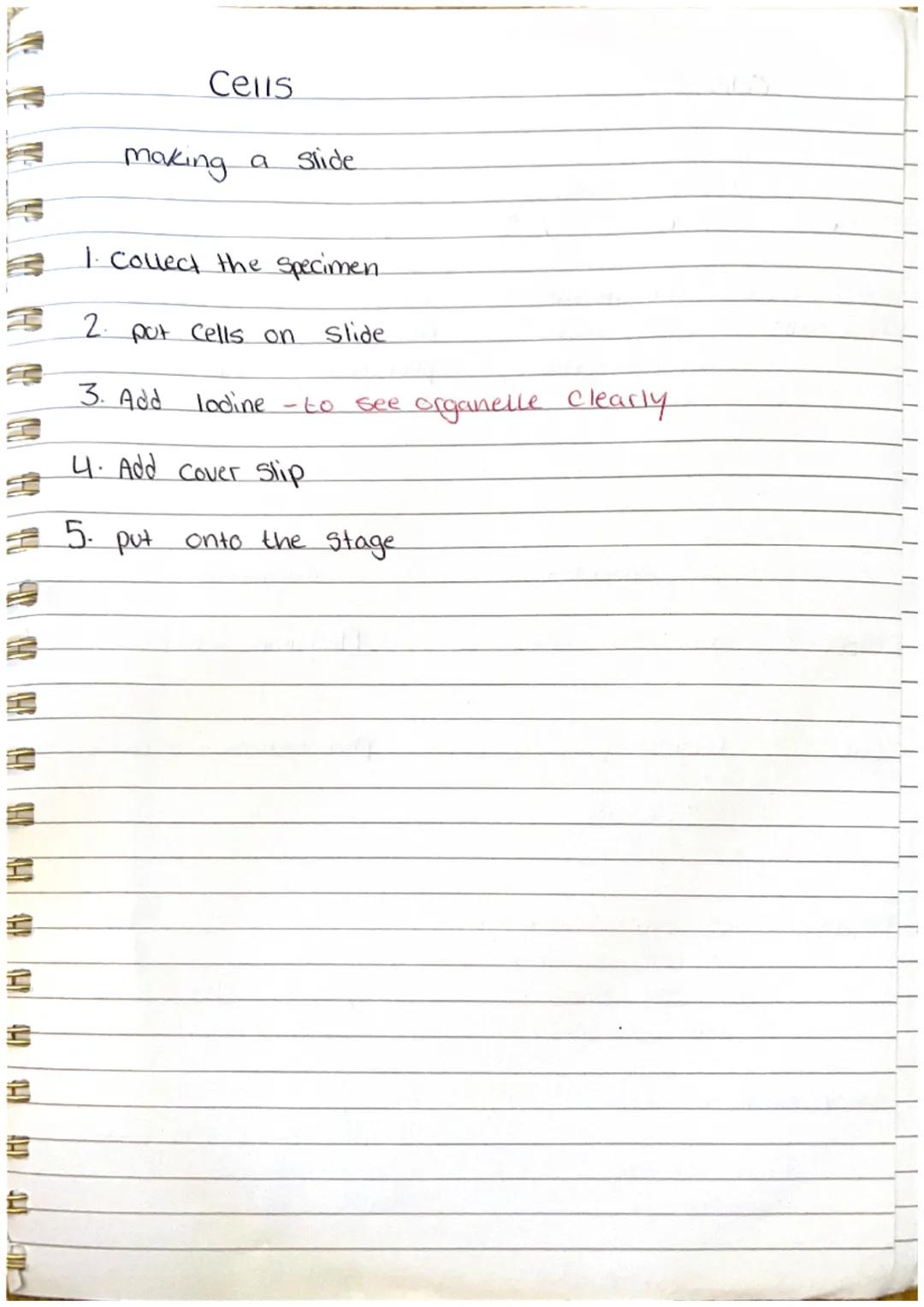

Preparing Microscope Slides

Making your own microscope slides is simpler than you might think! Start by collecting your specimen - this could be anything from onion skin to pond water.

Place your specimen carefully onto a clean slide, then add a drop of iodine stain. This stain makes cell structures (organelles) much easier to see by creating contrast.

Gently lower a cover slip over your specimen to protect it and prevent air bubbles. Finally, place the slide onto the microscope stage and you're ready to explore!

Remember Adding iodine might seem like an extra step, but it's the difference between seeing blurry shapes and clearly defined cell structures!

44 90
Cells
Cell membrane
nucleus. Just Controls the cell
+ Contains genetic material
Cell wall
cyto plasm
cell membrane
Cytoplasm - Chemica

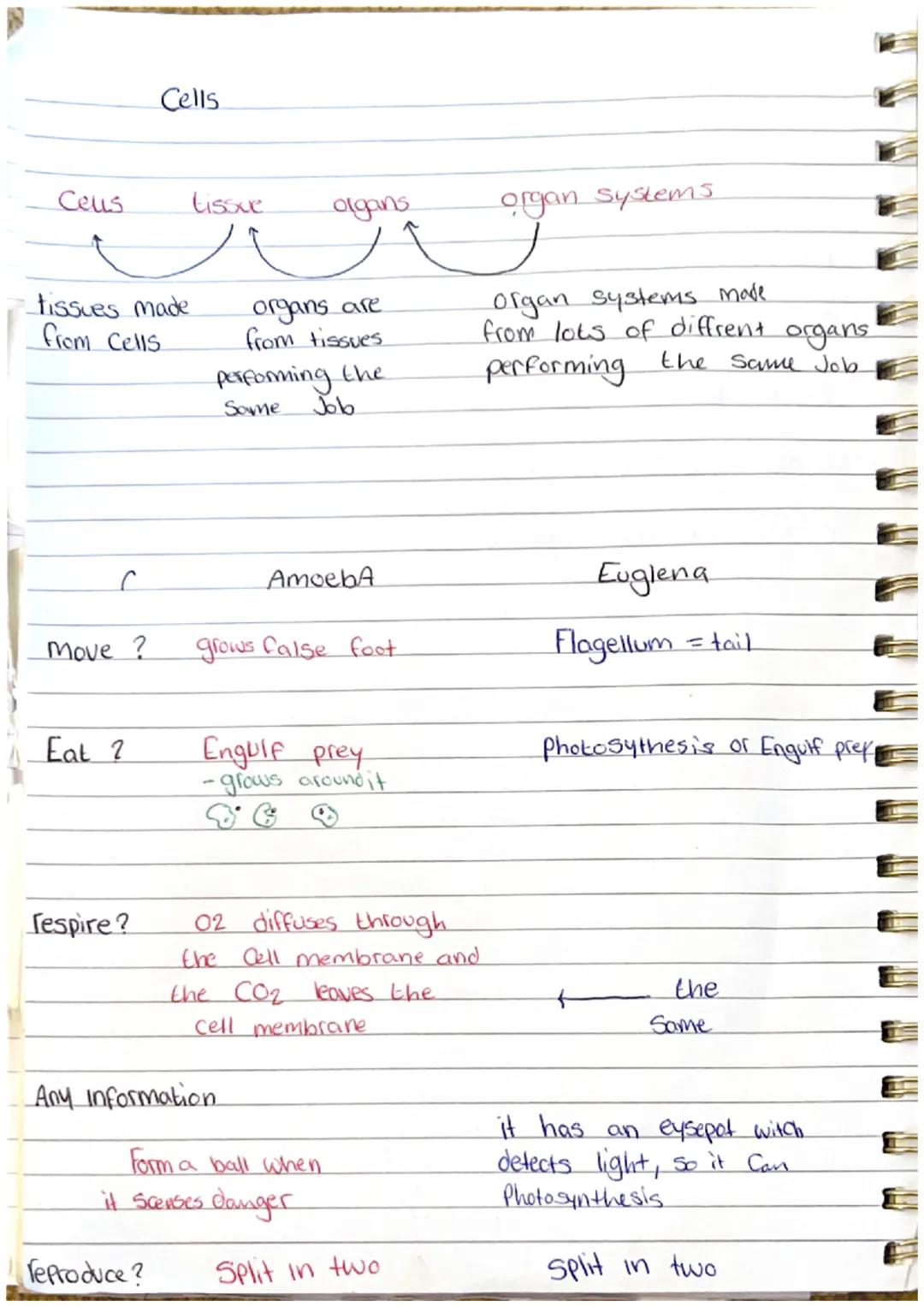

From Cells to Organisms

Your body follows an amazing organisational system cells group together to form tissues, tissues combine to create organs, and organs work together as organ systems. It's like building with increasingly complex Lego sets!

Single-celled organisms like amoeba and euglena are fascinating because they must do everything within just one cell. Amoebas move by growing false feet and eat by engulfing prey, whilst euglenas swim using their flagellum taillikestructuretail-like structure.

Both organisms respire by allowing oxygen to diffuse through their cell membrane and carbon dioxide to exit the same way. They reproduce simply by splitting in two! Euglenas are particularly clever - they have an eyespot that detects light for photosynthesis.

Amazing Fact When amoebas sense danger, they curl up into a protective ball - it's like having a built-in panic room!
