Comprehensive Biology Mind Maps: Biological Molecules and Enzymes for IGCSE Edexcel

user profile picture
lemon_socks94@water_lily_butterfly

Ever wondered how your body breaks down that chocolate bar...

1
of 4
# Carbohydrates

Made up of
Carbon,
Hydrogen and
Oxygen

CH2OH
0
H
H
H
OH
H
HO
OH
H
OH

Monomers-one single unit. The
monomer of a carbo hyd

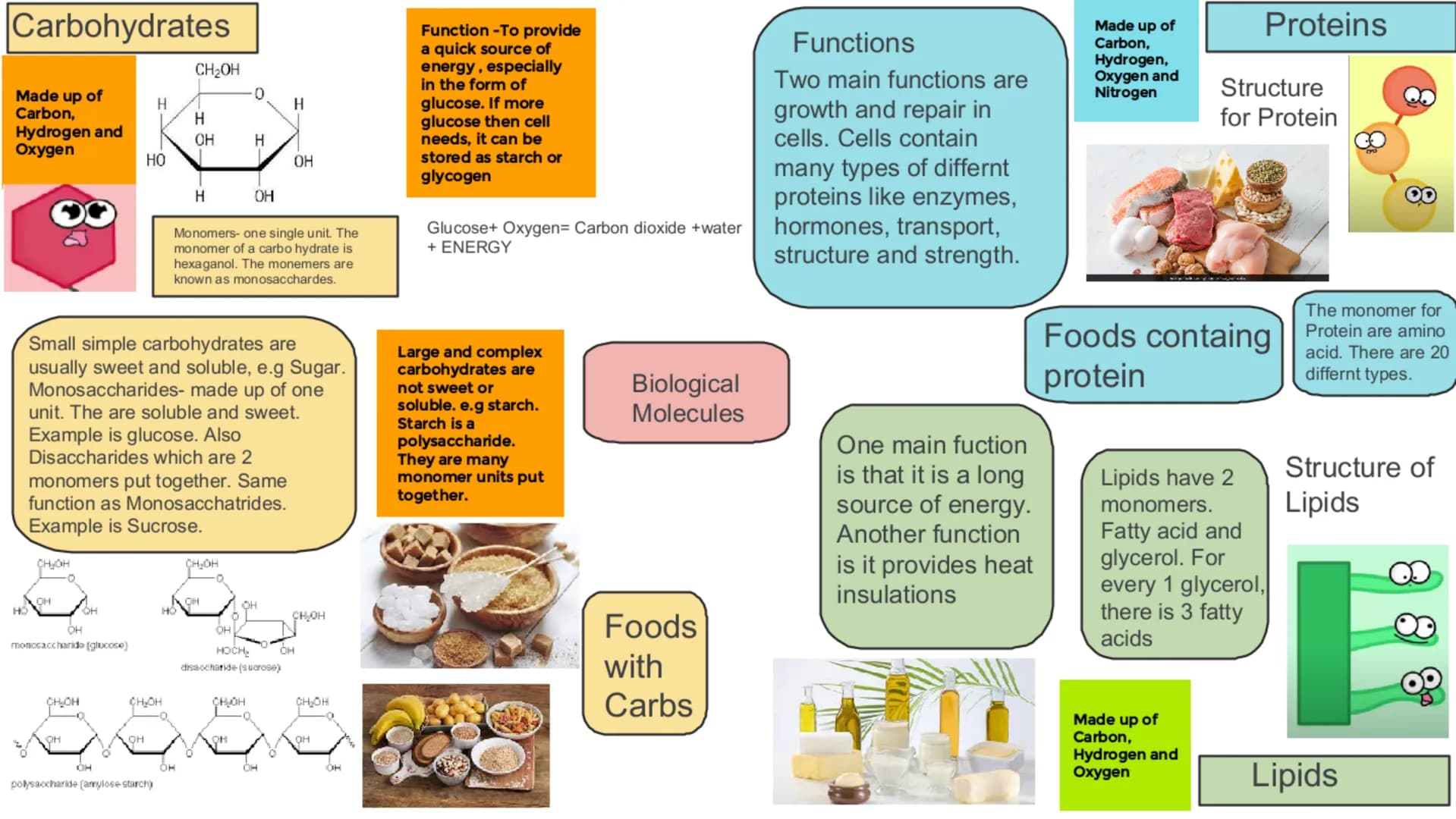

Biological Molecules: The Building Blocks of Life

Your body runs on three main types of biological molecules, and each one has a specific job to do. Think of them as different tools in a toolbox - each perfectly designed for their role.

Carbohydrates are your body's favourite fuel source. They're made from carbon, hydrogen, and oxygen atoms arranged in different ways. The simplest ones are called monosaccharides (like glucose), which are sweet and dissolve easily in water. When two of these join together, you get disaccharides like sucrose (table sugar). Chain loads of them together and you get polysaccharides like starch - these aren't sweet and don't dissolve easily.

Proteins are the workhorses of your cells. Made from carbon, hydrogen, oxygen, and nitrogen, they're built from 20 different amino acids that can be arranged in countless ways. Proteins handle growth, repair, and act as enzymes, hormones, and structural support - basically, they keep everything running smoothly.

Quick Tip: Remember that glucose + oxygen = carbon dioxide + water + ENERGY - this is how your cells get power!

Lipids (fats) are your long-term energy storage and insulation. They're made from carbon, hydrogen, and oxygen, but arranged differently than carbs. Each lipid has one glycerol molecule attached to three fatty acids - think of it like a three-pronged fork.

2
of 4
# Carbohydrates

Made up of
Carbon,
Hydrogen and
Oxygen

CH2OH
0
H
H
H
OH
H
HO
OH
H
OH

Monomers-one single unit. The
monomer of a carbo hyd

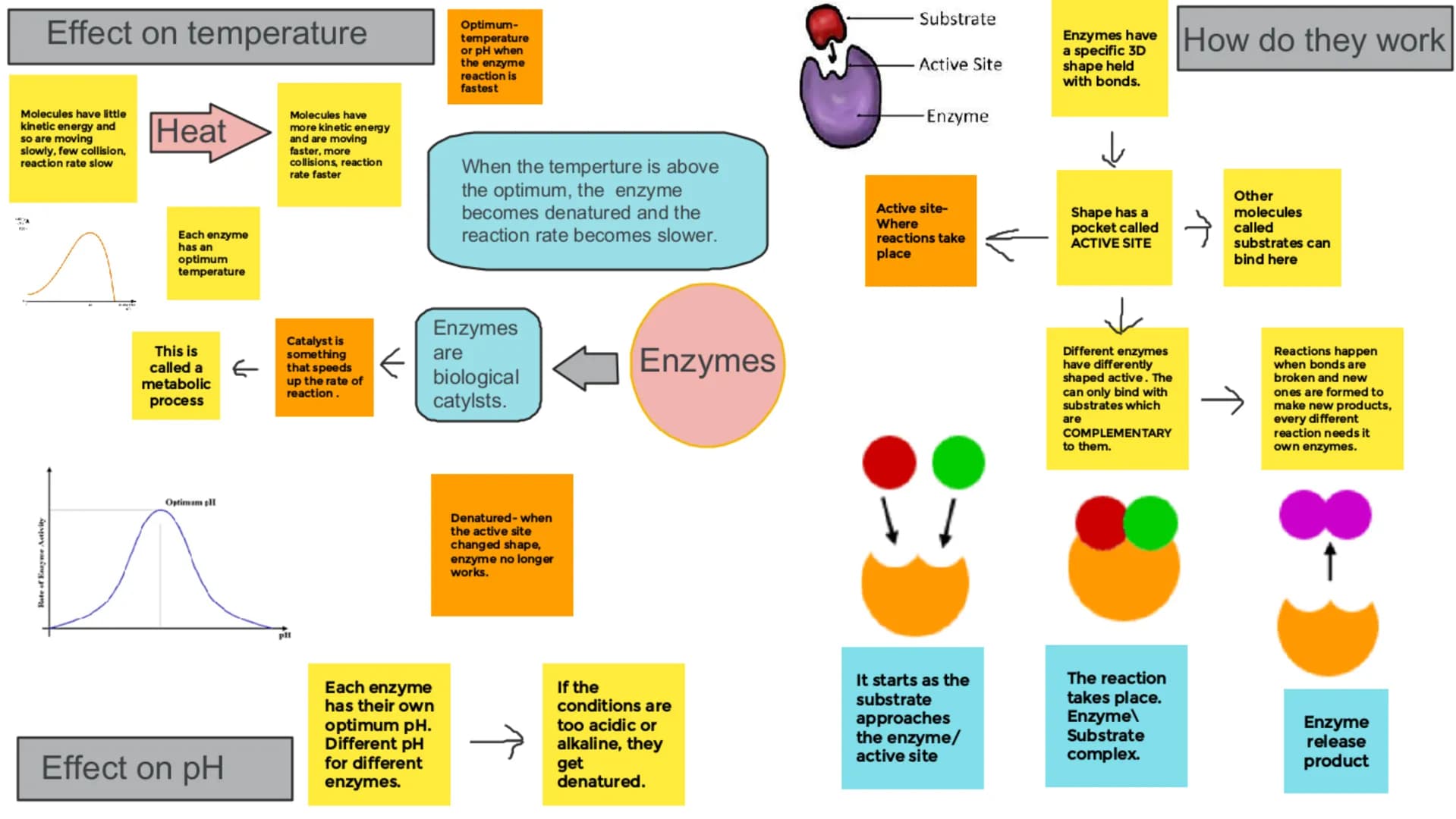

Enzymes: Your Body's Speed Boosters

Enzymes are special proteins that act as biological catalysts - they speed up chemical reactions without getting used up themselves. Every single reaction in your body needs its own specific enzyme to work properly.

Each enzyme has a unique 3D shape with a special pocket called the active site. This is where the magic happens. Substrates (the molecules being changed) fit into this site like a key in a lock - they must be complementary to work. When they bind together, they form an enzyme-substrate complex, the reaction happens, and products are released.

Temperature and pH massively affect how well enzymes work. Each enzyme has an optimum temperature and pH where it works fastest. Too hot, too cold, too acidic, or too alkaline, and the enzyme becomes denatured - its shape changes and it stops working completely.

Remember: Higher temperature means molecules move faster and collide more often, speeding up reactions - but only up to the optimum point!

Understanding enzymes is crucial because they control every chemical process in your body, from digesting food to building new cells. Without them, these reactions would be far too slow to sustain life.

3
of 4
# Carbohydrates

Made up of
Carbon,
Hydrogen and
Oxygen

CH2OH
0
H
H
H
OH
H
HO
OH
H
OH

Monomers-one single unit. The
monomer of a carbo hyd

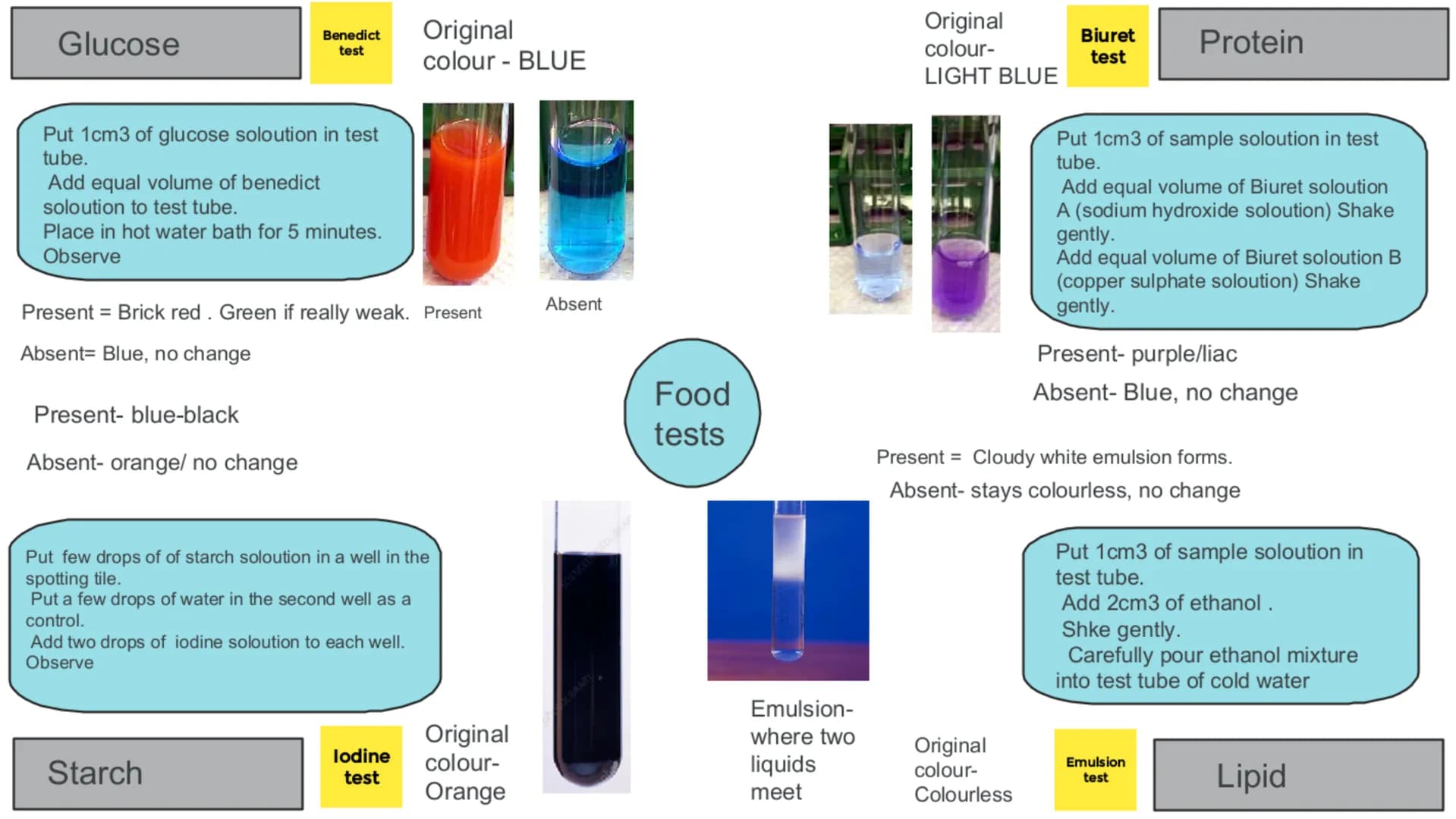

Food Tests: Detecting What's in Your Meals

Want to become a food detective? These simple food tests let you identify which biological molecules are hiding in different foods using colour-changing reactions.

The Benedict's test reveals glucose and other reducing sugars. Start with a blue solution, heat it with your sample, and watch for a colour change. Brick red means loads of glucose is present, whilst green indicates just a tiny amount. No change? No glucose there.

For starch, use the iodine test - dead simple and super reliable. Add orange iodine solution to your sample. If it turns blue-black, starch is present. Stays orange? No starch detected.

Lab Safety: Always wear safety goggles when heating solutions and handling chemicals like iodine!

The Biuret test hunts down proteins using two solutions. Mix your sample with sodium hydroxide, then add copper sulphate. Purple or lilac colour means protein is there, whilst blue means it's absent.

Finally, the emulsion test spots lipids by mixing your sample with ethanol, then pouring it into cold water. A cloudy white emulsion forming means fats are present - if it stays clear, there are no lipids.

4
of 4
# Carbohydrates

Made up of
Carbon,
Hydrogen and
Oxygen

CH2OH
0
H
H
H
OH
H
HO
OH
H
OH

Monomers-one single unit. The
monomer of a carbo hyd

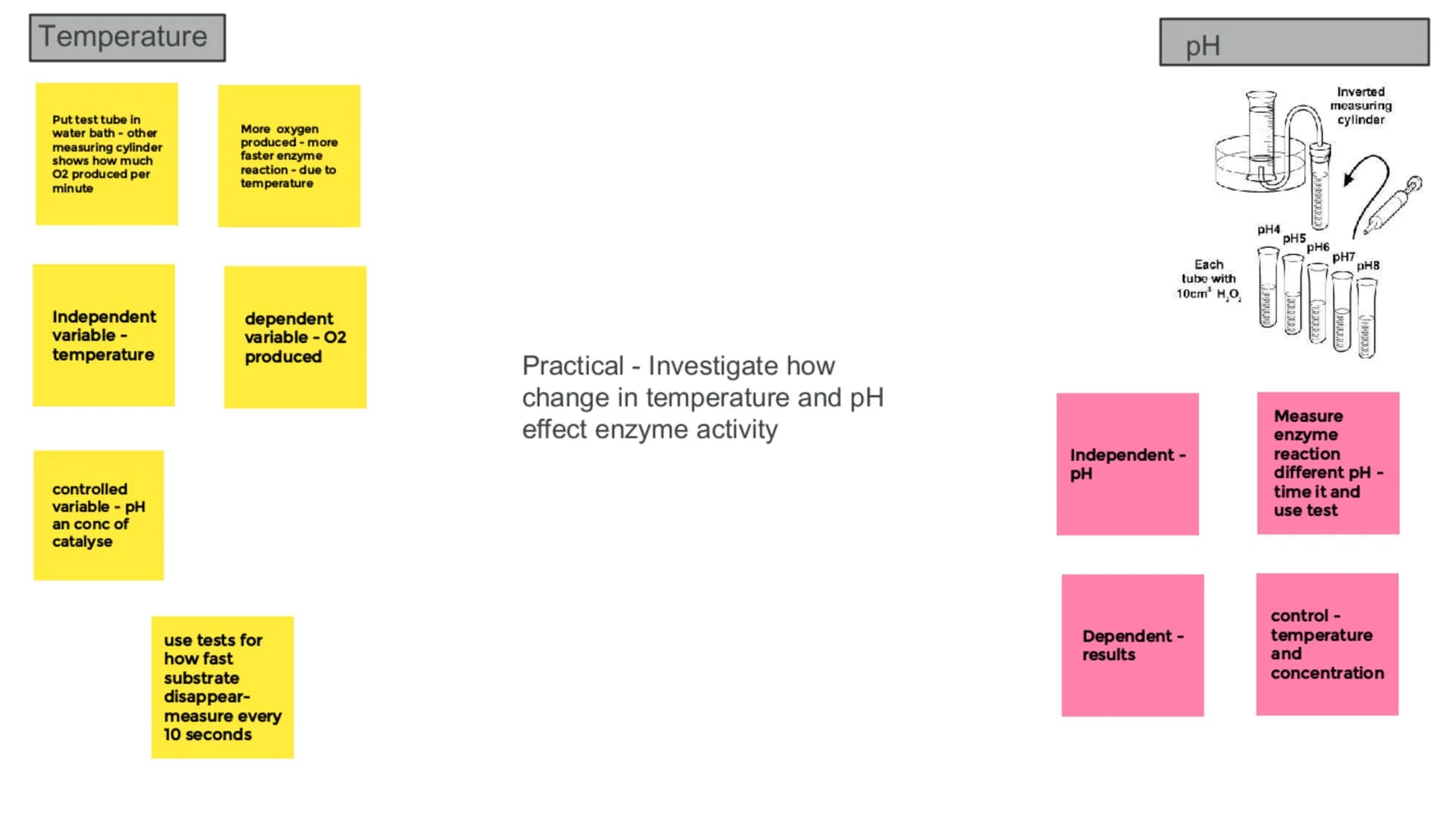

Enzyme Investigation: Measuring Reaction Rates

Time to put your enzyme knowledge into practice! This investigation shows how temperature and pH affect enzyme activity by measuring oxygen production from hydrogen peroxide breakdown.

Set up your experiment with test tubes containing the enzyme catalase at different temperatures in water baths. Use an inverted measuring cylinder to collect oxygen gas and measure how much is produced per minute. The independent variable is temperature, the dependent variable is oxygen produced, and you'll control pH and enzyme concentration.

For the pH investigation, prepare test tubes with solutions at different pH levels (pH 4, 5, 6, 7, 8). Test each one and time how long substrates take to disappear - measure every 10 seconds for accuracy.

Practical Tip: Always use the same volume of enzyme solution and substrate to make your results fair and comparable!

Watch for the optimum conditions where the enzyme works fastest. You'll see reaction rates increase with temperature up to a point, then suddenly drop off when the enzyme denatures. Each enzyme has its own perfect pH too.

This investigation perfectly demonstrates how enzymes are affected by their environment and why your body works so hard to maintain stable temperature and pH levels.

We thought you’d never ask...

What is the Knowunity AI companion?

Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.

Where can I download the Knowunity app?

You can download the app from Google Play Store and Apple App Store.

Is Knowunity really free of charge?

That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.

Most popular content: Enzymes

9
BiologyBiology

Cell Biology Essentials

Explore key concepts in Cell Biology, including cell structure, transport mechanisms, the heart's anatomy, and digestive processes. This summary covers essential topics for AQA GCSE Biology Paper 1, providing a clear overview of eukaryotic and prokaryotic cells, enzyme functions, and plant systems. Ideal for quick revision and exam preparation.

1029,8214,133
BiologyBiology

Biology Unit 1 Overview

Comprehensive mindmaps for WJEC AS Biology Unit 1, covering essential topics such as the Cell Cycle, Mitosis, Meiosis, Enzyme Function, Nucleic Acids, and Cellular Structures. Ideal for quick revision and understanding of key biological concepts.

124,177180
BiologyBiology

Enzyme Function & Dynamics

Explore the role of enzymes as biological catalysts in digestion. This summary covers enzyme structure, active sites, substrate interactions, and the effects of temperature and pH on enzyme activity. Ideal for biology students seeking to understand enzyme kinetics and denaturation.

102698
BiologyBiology

BTEC level 3 applied science Unit 3 mock

Blolbbbb mockssss notessss yyyy

1242317
BiologyBiology

Enzymes & Digestion Overview

Explore the role of enzymes as biological catalysts in digestion, including the lock and key model, factors affecting enzyme activity, and the digestive process. This summary covers key concepts such as enzyme-substrate complexes, optimal conditions for enzyme function, and the digestive system's organization. Ideal for AQA GCSE Biology revision.

94,561182
BiologyBiology

Biology Revision: Key Concepts

Essential revision material covering cellular biology, photosynthesis, respiration, human physiology, diseases, and the immune system. This summary includes critical information on stem cells, the heart, blood components, and drug development, making it ideal for exam preparation.

98819
BiologyBiology

Enzymes

Biology notes on enzymes

93469
BiologyBiology

GCSE Biology Enzyme & Hormone Overview

Explore key concepts in GCSE Biology focusing on enzyme specificity, hormone functions, and their roles in biological processes. This summary covers enzyme catalysis, hormonal regulation, and the impact of environmental factors on living organisms. Ideal for exam preparation and understanding essential biological mechanisms.

102,455107
BiologyBiology

Digestive Enzymes Overview

Explore the role of digestive enzymes in breaking down food into absorbable molecules. This summary covers key enzymes like amylase, protease, and lipase, their sites of production (salivary glands, pancreas, small intestine), and the reactions they catalyze. Ideal for students studying biology and human digestion.

949526

Most popular content in Biology

9

Most popular content

9
SociologySociology

Sociology of Education Overview

Explore comprehensive A-Level Sociology notes on the education system, covering key theories, policies, and sociological perspectives. This resource includes insights on marketisation, gender roles, cultural deprivation, and educational inequalities, providing a thorough understanding of how education shapes social stratification and individual achievement. Ideal for exam preparation and in-depth study.

12102,8803,041
SociologySociology

Sociology of Families: Comprehensive Revision

Dive into an extensive overview of family dynamics, perspectives, and patterns in sociology. This resource covers key concepts such as family diversity, gender roles, marriage, and the impact of social policies on family structures. Perfect for A-Level Sociology students preparing for Paper 2.

1273,6782,307
CriminologyCriminology

Criminology: Crime & Punishment Overview

Comprehensive mindmaps covering key concepts in the Crime and Punishment topic for WJEC Criminology Unit 4. This resource includes detailed insights into the Criminal Justice System, crime prevention strategies, sentencing models, and the roles of various agencies. Ideal for A-Level revision, ensuring you grasp essential theories and legislative processes to excel in your exams.

1254,8731,059
SociologySociology

Comprehensive Crime & Deviance Overview

Explore an extensive revision of crime and deviance topics, including theories, types of crime, and the impact of media. This resource covers key concepts such as Marxism, functionalism, gender and crime, and the influence of globalization on criminal behavior. Ideal for students seeking a thorough understanding of criminology and its various theories. Type: Full Topic Revision.

1251,6571,399
C
BiologyBiology

Cell Biology and Cell structure

cell structures

93,2520
English LiteratureEnglish Literature

An Inspector Calls: Character Insights

Explore in-depth analysis and key quotes for characters in J.B. Priestley's 'An Inspector Calls'. This resource covers Gerald Croft, Inspector Goole, Sheila Birling, Mrs. Birling, Eric Birling, and Eva Smith, focusing on themes of class, gender roles, and social responsibility. Ideal for students aiming for Grade 8 and above.

1025,434907
CriminologyCriminology

WJEC Unit 4 Criminology

Criminology unit 4 detailed revision note

127,155125
CriminologyCriminology

Criminology Theories Overview

Explore key criminology theories and their implications on crime and deviance. This comprehensive summary covers biological, psychological, and sociological perspectives, including labelling theory, right realism, and the impact of social campaigns on policy development. Ideal for A-Level criminology students seeking to understand the complexities of criminal behaviour and the factors influencing crime prevention strategies.

129,761210
English LiteratureEnglish Literature

Romeo and Juliet: Key themes

Key Romeo and Juliet themes and analysed quotes

106,711198

Can't find what you're looking for? Explore other subjects.

Students love us — and so will you.

4.6/5App Store
4.7/5Google Play

The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.

Stefan SiOS user

This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.

Samantha KlichAndroid user

Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.

AnnaiOS user

BiologyBiology785 views·Updated 27 Jun 2026·4 pages

Comprehensive Biology Mind Maps: Biological Molecules and Enzymes for IGCSE Edexcel

user profile picture
lemon_socks94@water_lily_butterfly

Ever wondered how your body breaks down that chocolate bar or why bread tastes sweet when you chew it? It's all down to biological molecules - the building blocks that keep you alive and functioning every single day.

1
of 4
# Carbohydrates

Made up of
Carbon,
Hydrogen and
Oxygen

CH2OH
0
H
H
H
OH
H
HO
OH
H
OH

Monomers-one single unit. The
monomer of a carbo hyd

Sign up to see the content. It's free!

  • Access to all documents
  • Improve your grades
  • Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Biological Molecules: The Building Blocks of Life

Your body runs on three main types of biological molecules, and each one has a specific job to do. Think of them as different tools in a toolbox - each perfectly designed for their role.

Carbohydrates are your body's favourite fuel source. They're made from carbon, hydrogen, and oxygen atoms arranged in different ways. The simplest ones are called monosaccharides (like glucose), which are sweet and dissolve easily in water. When two of these join together, you get disaccharides like sucrose (table sugar). Chain loads of them together and you get polysaccharides like starch - these aren't sweet and don't dissolve easily.

Proteins are the workhorses of your cells. Made from carbon, hydrogen, oxygen, and nitrogen, they're built from 20 different amino acids that can be arranged in countless ways. Proteins handle growth, repair, and act as enzymes, hormones, and structural support - basically, they keep everything running smoothly.

Quick Tip: Remember that glucose + oxygen = carbon dioxide + water + ENERGY - this is how your cells get power!

Lipids (fats) are your long-term energy storage and insulation. They're made from carbon, hydrogen, and oxygen, but arranged differently than carbs. Each lipid has one glycerol molecule attached to three fatty acids - think of it like a three-pronged fork.

2
of 4
# Carbohydrates

Made up of
Carbon,
Hydrogen and
Oxygen

CH2OH
0
H
H
H
OH
H
HO
OH
H
OH

Monomers-one single unit. The
monomer of a carbo hyd

Sign up to see the content. It's free!

  • Access to all documents
  • Improve your grades
  • Join milions of students

By signing up you accept Terms of Service and Privacy Policy

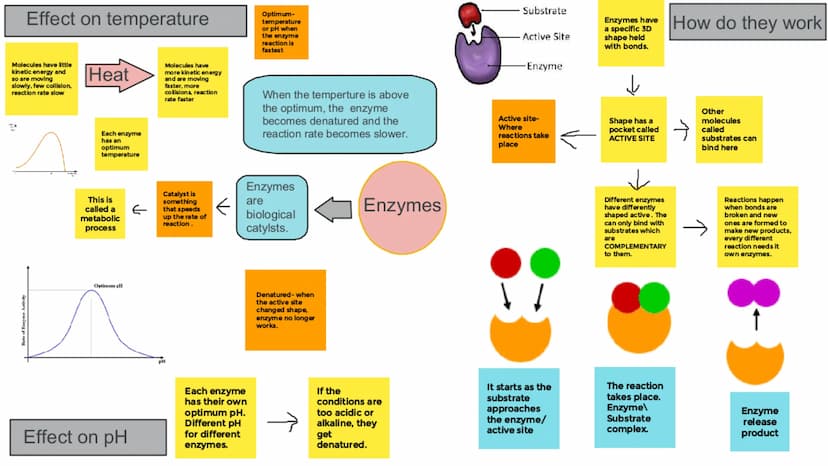

Enzymes: Your Body's Speed Boosters

Enzymes are special proteins that act as biological catalysts - they speed up chemical reactions without getting used up themselves. Every single reaction in your body needs its own specific enzyme to work properly.

Each enzyme has a unique 3D shape with a special pocket called the active site. This is where the magic happens. Substrates (the molecules being changed) fit into this site like a key in a lock - they must be complementary to work. When they bind together, they form an enzyme-substrate complex, the reaction happens, and products are released.

Temperature and pH massively affect how well enzymes work. Each enzyme has an optimum temperature and pH where it works fastest. Too hot, too cold, too acidic, or too alkaline, and the enzyme becomes denatured - its shape changes and it stops working completely.

Remember: Higher temperature means molecules move faster and collide more often, speeding up reactions - but only up to the optimum point!

Understanding enzymes is crucial because they control every chemical process in your body, from digesting food to building new cells. Without them, these reactions would be far too slow to sustain life.

3
of 4
# Carbohydrates

Made up of
Carbon,
Hydrogen and
Oxygen

CH2OH
0
H
H
H
OH
H
HO
OH
H
OH

Monomers-one single unit. The
monomer of a carbo hyd

Sign up to see the content. It's free!

  • Access to all documents
  • Improve your grades
  • Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Food Tests: Detecting What's in Your Meals

Want to become a food detective? These simple food tests let you identify which biological molecules are hiding in different foods using colour-changing reactions.

The Benedict's test reveals glucose and other reducing sugars. Start with a blue solution, heat it with your sample, and watch for a colour change. Brick red means loads of glucose is present, whilst green indicates just a tiny amount. No change? No glucose there.

For starch, use the iodine test - dead simple and super reliable. Add orange iodine solution to your sample. If it turns blue-black, starch is present. Stays orange? No starch detected.

Lab Safety: Always wear safety goggles when heating solutions and handling chemicals like iodine!

The Biuret test hunts down proteins using two solutions. Mix your sample with sodium hydroxide, then add copper sulphate. Purple or lilac colour means protein is there, whilst blue means it's absent.

Finally, the emulsion test spots lipids by mixing your sample with ethanol, then pouring it into cold water. A cloudy white emulsion forming means fats are present - if it stays clear, there are no lipids.

4
of 4
# Carbohydrates

Made up of
Carbon,
Hydrogen and
Oxygen

CH2OH
0
H
H
H
OH
H
HO
OH
H
OH

Monomers-one single unit. The
monomer of a carbo hyd

Sign up to see the content. It's free!

  • Access to all documents
  • Improve your grades
  • Join milions of students

By signing up you accept Terms of Service and Privacy Policy

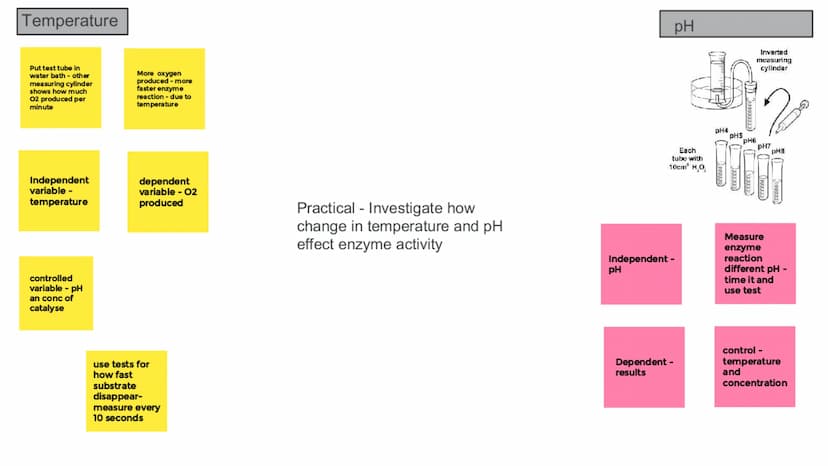

Enzyme Investigation: Measuring Reaction Rates

Time to put your enzyme knowledge into practice! This investigation shows how temperature and pH affect enzyme activity by measuring oxygen production from hydrogen peroxide breakdown.

Set up your experiment with test tubes containing the enzyme catalase at different temperatures in water baths. Use an inverted measuring cylinder to collect oxygen gas and measure how much is produced per minute. The independent variable is temperature, the dependent variable is oxygen produced, and you'll control pH and enzyme concentration.

For the pH investigation, prepare test tubes with solutions at different pH levels (pH 4, 5, 6, 7, 8). Test each one and time how long substrates take to disappear - measure every 10 seconds for accuracy.

Practical Tip: Always use the same volume of enzyme solution and substrate to make your results fair and comparable!

Watch for the optimum conditions where the enzyme works fastest. You'll see reaction rates increase with temperature up to a point, then suddenly drop off when the enzyme denatures. Each enzyme has its own perfect pH too.

This investigation perfectly demonstrates how enzymes are affected by their environment and why your body works so hard to maintain stable temperature and pH levels.

We thought you’d never ask...

What is the Knowunity AI companion?

Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.

Where can I download the Knowunity app?

You can download the app from Google Play Store and Apple App Store.

Is Knowunity really free of charge?

That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.

Most popular content: Enzymes

9
BiologyBiology

Cell Biology Essentials

Explore key concepts in Cell Biology, including cell structure, transport mechanisms, the heart's anatomy, and digestive processes. This summary covers essential topics for AQA GCSE Biology Paper 1, providing a clear overview of eukaryotic and prokaryotic cells, enzyme functions, and plant systems. Ideal for quick revision and exam preparation.

1029,8214,133
BiologyBiology

Biology Unit 1 Overview

Comprehensive mindmaps for WJEC AS Biology Unit 1, covering essential topics such as the Cell Cycle, Mitosis, Meiosis, Enzyme Function, Nucleic Acids, and Cellular Structures. Ideal for quick revision and understanding of key biological concepts.

124,177180
BiologyBiology

Enzyme Function & Dynamics

Explore the role of enzymes as biological catalysts in digestion. This summary covers enzyme structure, active sites, substrate interactions, and the effects of temperature and pH on enzyme activity. Ideal for biology students seeking to understand enzyme kinetics and denaturation.

102698
BiologyBiology

BTEC level 3 applied science Unit 3 mock

Blolbbbb mockssss notessss yyyy

1242317
BiologyBiology

Enzymes & Digestion Overview

Explore the role of enzymes as biological catalysts in digestion, including the lock and key model, factors affecting enzyme activity, and the digestive process. This summary covers key concepts such as enzyme-substrate complexes, optimal conditions for enzyme function, and the digestive system's organization. Ideal for AQA GCSE Biology revision.

94,561182
BiologyBiology

Biology Revision: Key Concepts

Essential revision material covering cellular biology, photosynthesis, respiration, human physiology, diseases, and the immune system. This summary includes critical information on stem cells, the heart, blood components, and drug development, making it ideal for exam preparation.

98819
BiologyBiology

Enzymes

Biology notes on enzymes

93469
BiologyBiology

GCSE Biology Enzyme & Hormone Overview

Explore key concepts in GCSE Biology focusing on enzyme specificity, hormone functions, and their roles in biological processes. This summary covers enzyme catalysis, hormonal regulation, and the impact of environmental factors on living organisms. Ideal for exam preparation and understanding essential biological mechanisms.

102,455107
BiologyBiology

Digestive Enzymes Overview

Explore the role of digestive enzymes in breaking down food into absorbable molecules. This summary covers key enzymes like amylase, protease, and lipase, their sites of production (salivary glands, pancreas, small intestine), and the reactions they catalyze. Ideal for students studying biology and human digestion.

949526

Most popular content in Biology

9

Most popular content

9
SociologySociology

Sociology of Education Overview

Explore comprehensive A-Level Sociology notes on the education system, covering key theories, policies, and sociological perspectives. This resource includes insights on marketisation, gender roles, cultural deprivation, and educational inequalities, providing a thorough understanding of how education shapes social stratification and individual achievement. Ideal for exam preparation and in-depth study.

12102,8803,041
SociologySociology

Sociology of Families: Comprehensive Revision

Dive into an extensive overview of family dynamics, perspectives, and patterns in sociology. This resource covers key concepts such as family diversity, gender roles, marriage, and the impact of social policies on family structures. Perfect for A-Level Sociology students preparing for Paper 2.

1273,6782,307
CriminologyCriminology

Criminology: Crime & Punishment Overview

Comprehensive mindmaps covering key concepts in the Crime and Punishment topic for WJEC Criminology Unit 4. This resource includes detailed insights into the Criminal Justice System, crime prevention strategies, sentencing models, and the roles of various agencies. Ideal for A-Level revision, ensuring you grasp essential theories and legislative processes to excel in your exams.

1254,8731,059
SociologySociology

Comprehensive Crime & Deviance Overview

Explore an extensive revision of crime and deviance topics, including theories, types of crime, and the impact of media. This resource covers key concepts such as Marxism, functionalism, gender and crime, and the influence of globalization on criminal behavior. Ideal for students seeking a thorough understanding of criminology and its various theories. Type: Full Topic Revision.

1251,6571,399
C
BiologyBiology

Cell Biology and Cell structure

cell structures

93,2520
English LiteratureEnglish Literature

An Inspector Calls: Character Insights

Explore in-depth analysis and key quotes for characters in J.B. Priestley's 'An Inspector Calls'. This resource covers Gerald Croft, Inspector Goole, Sheila Birling, Mrs. Birling, Eric Birling, and Eva Smith, focusing on themes of class, gender roles, and social responsibility. Ideal for students aiming for Grade 8 and above.

1025,434907
CriminologyCriminology

WJEC Unit 4 Criminology

Criminology unit 4 detailed revision note

127,155125
CriminologyCriminology

Criminology Theories Overview

Explore key criminology theories and their implications on crime and deviance. This comprehensive summary covers biological, psychological, and sociological perspectives, including labelling theory, right realism, and the impact of social campaigns on policy development. Ideal for A-Level criminology students seeking to understand the complexities of criminal behaviour and the factors influencing crime prevention strategies.

129,761210
English LiteratureEnglish Literature

Romeo and Juliet: Key themes

Key Romeo and Juliet themes and analysed quotes

106,711198

Can't find what you're looking for? Explore other subjects.

Students love us — and so will you.

4.6/5App Store
4.7/5Google Play

The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.

Stefan SiOS user

This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.

Samantha KlichAndroid user

Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.

AnnaiOS user
