BiologyBiology972 views·Updated May 31, 2026·7 pages

Biology Study Posters for Exam Paper 1

R
Revision for you@revisionforyou

The cardiovascular system is essentially your body's transport network, moving... Show more

1
of 7

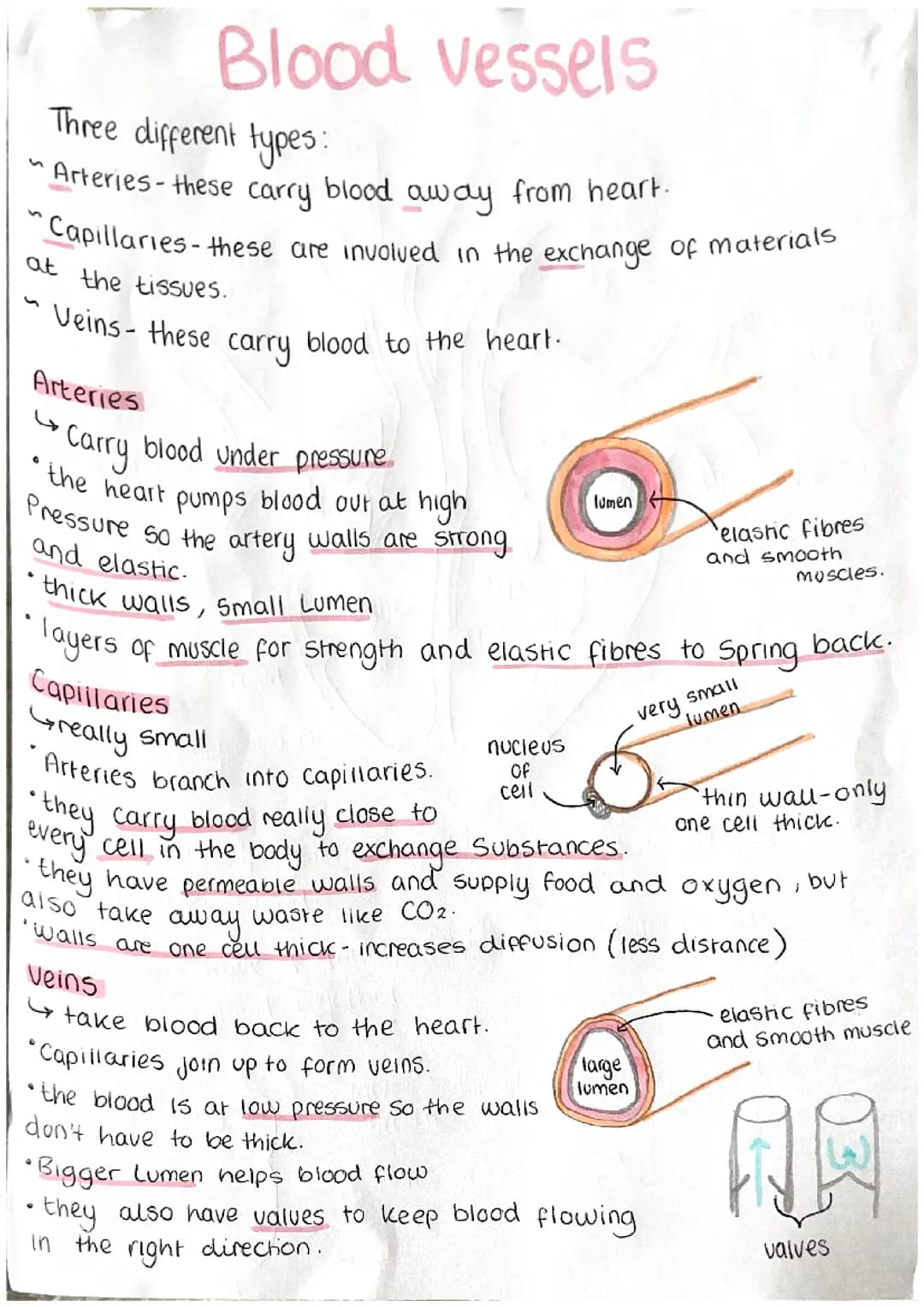

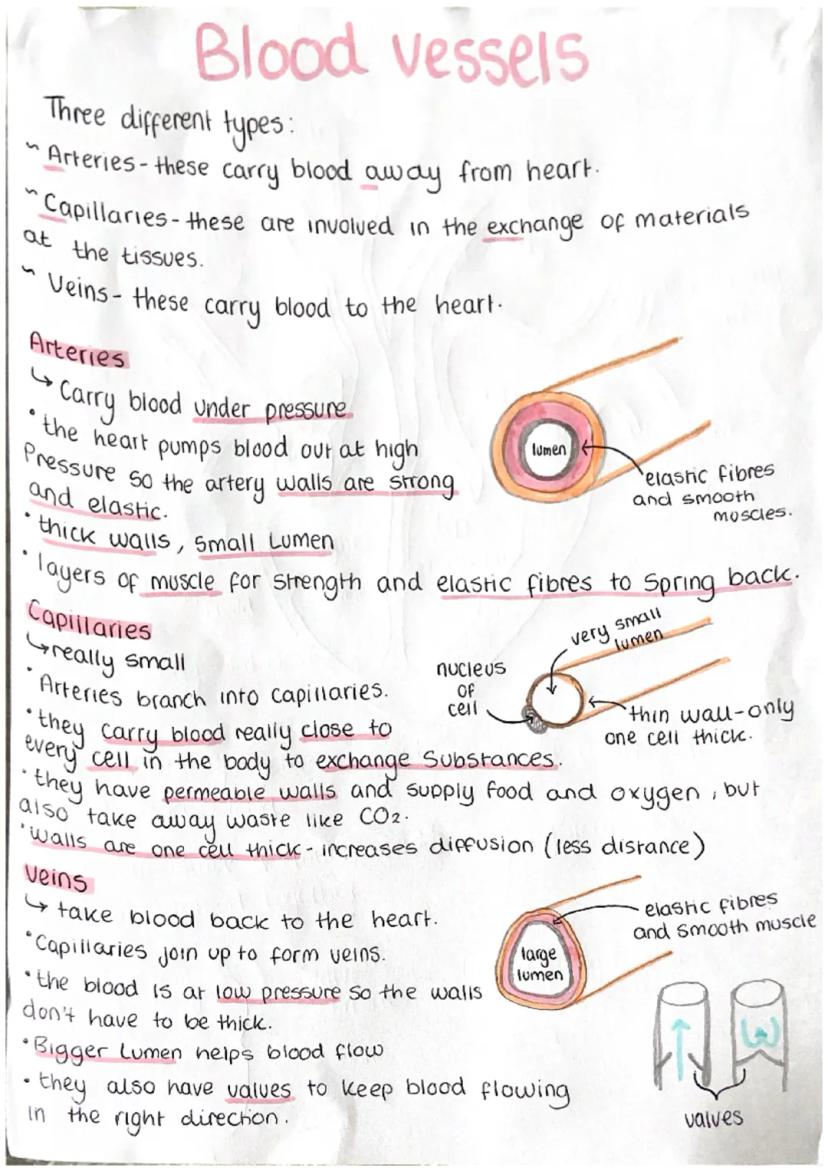

# Blood vessels

Three different types:
"Arteries-these carry blood away from heart.
Capillaries-these are involved in the exchange of mater

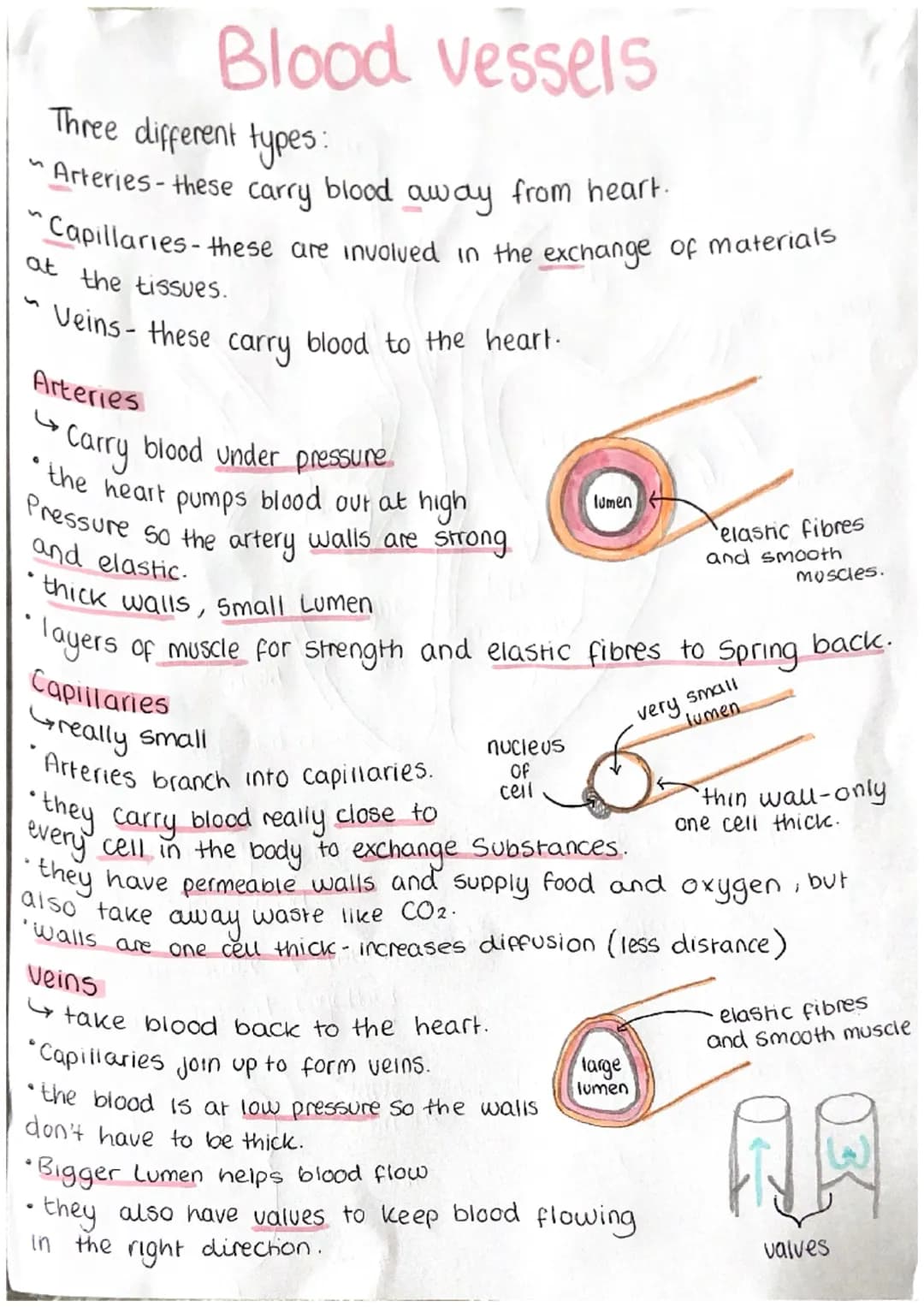

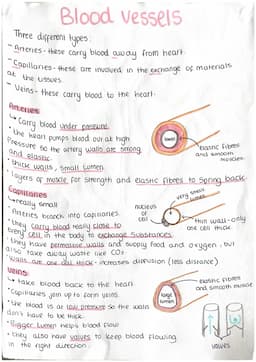

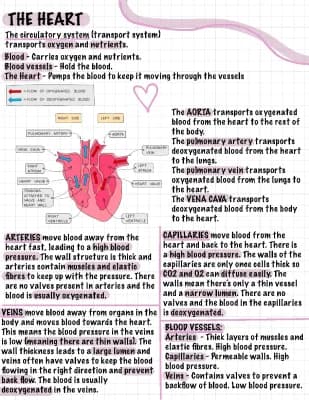

Blood Vessels - Your Body's Highway System

Think of your cardiovascular system like a massive road network - arteries are the motorways carrying blood away from your heart under high pressure, so they need thick, muscular walls to handle the force. Capillaries are like tiny side streets where the real action happens - they're only one cell thick so oxygen, food, and waste can easily pass through their walls to reach every cell in your body.

Veins are the return routes back to your heart, but since blood pressure is much lower by this point, they don't need thick walls. Instead, they have valves likeonewaygateslike one-way gates and larger internal spaces to help blood flow back efficiently.

The key thing to remember: arteries = away from heart, veins = towards heart, capillaries = exchange zone. Each type is perfectly designed for its specific job in keeping your circulation flowing smoothly.

Quick Check: If you see a blood vessel with thick walls and high pressure, it's definitely an artery!

2
of 7
# Blood vessels

Three different types:
"Arteries-these carry blood away from heart.
Capillaries-these are involved in the exchange of mater

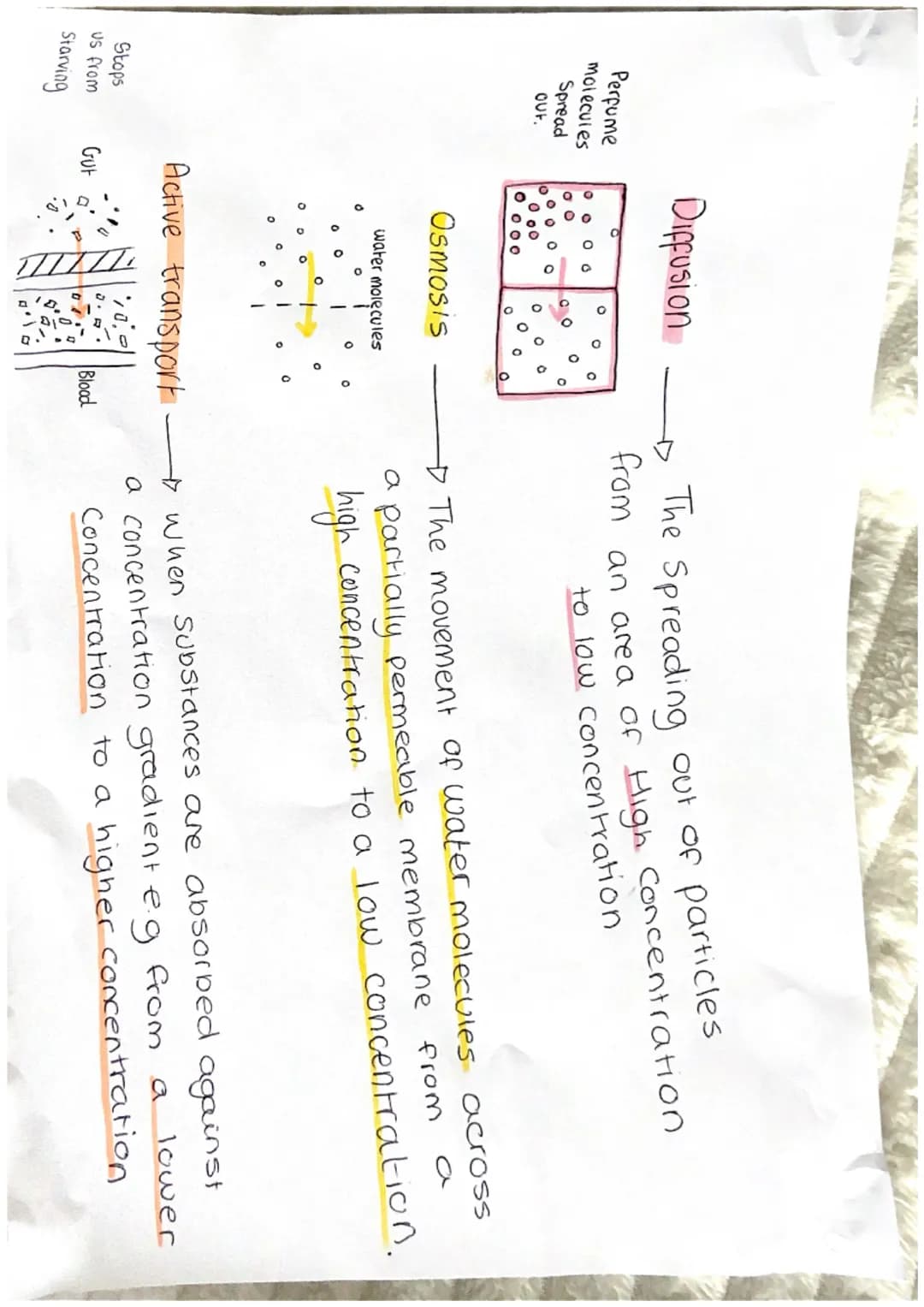

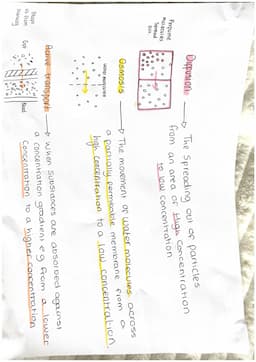

Transport Processes - How Stuff Moves Around

Your body uses three main methods to move substances where they need to go. Diffusion is the simplest - particles naturally spread from crowded areas to less crowded ones, like perfume spreading across a room.

Osmosis is specifically about water movement across membranes, always flowing from areas with lots of water to areas with less water. This happens constantly in your cells to maintain the right balance.

Active transport is the body's power move - it can push substances against their natural flow, from low to high concentration areas. This is crucial for absorbing nutrients from your gut even when your blood already has more than your intestines do.

Remember: Active transport stops you from starving because it can work against concentration gradients!

3
of 7
# Blood vessels

Three different types:
"Arteries-these carry blood away from heart.
Capillaries-these are involved in the exchange of mater

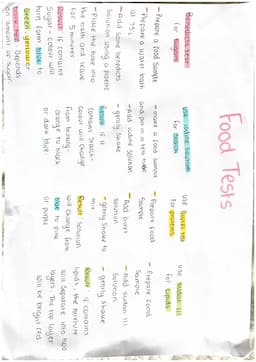

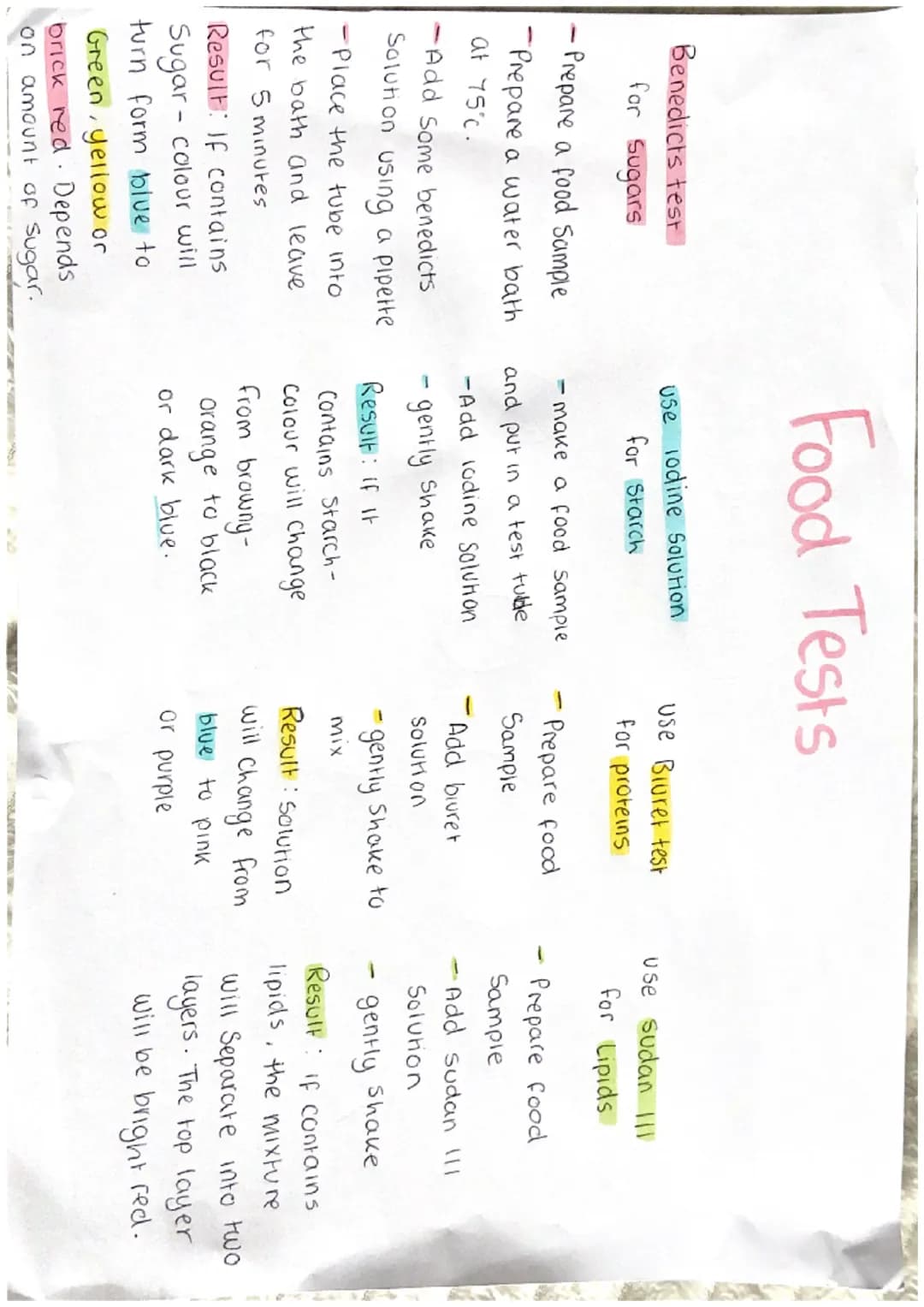

Food Tests - Detecting What You're Eating

Scientists use specific chemical tests to identify different nutrients in food. Benedict's test detects sugars by turning from blue to green, yellow, or brick red depending on sugar concentration when heated to 75°C.

For starch, you'll use iodine solution which changes from brown-orange to black or dark blue if starch is present. The Biuret test identifies proteins by turning from blue to pink or purple when mixed with your sample.

Lipids (fats) are detected using Sudan III solution - if fats are present, the mixture separates into two layers with a bright red top layer. Each test is specific to one type of nutrient, so you'd need to run multiple tests to get a complete picture.

Exam Tip: Remember the colour changes - Benedict's goes red for sugars, iodine goes black for starch!

4
of 7
# Blood vessels

Three different types:
"Arteries-these carry blood away from heart.
Capillaries-these are involved in the exchange of mater

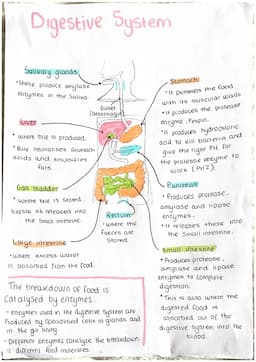

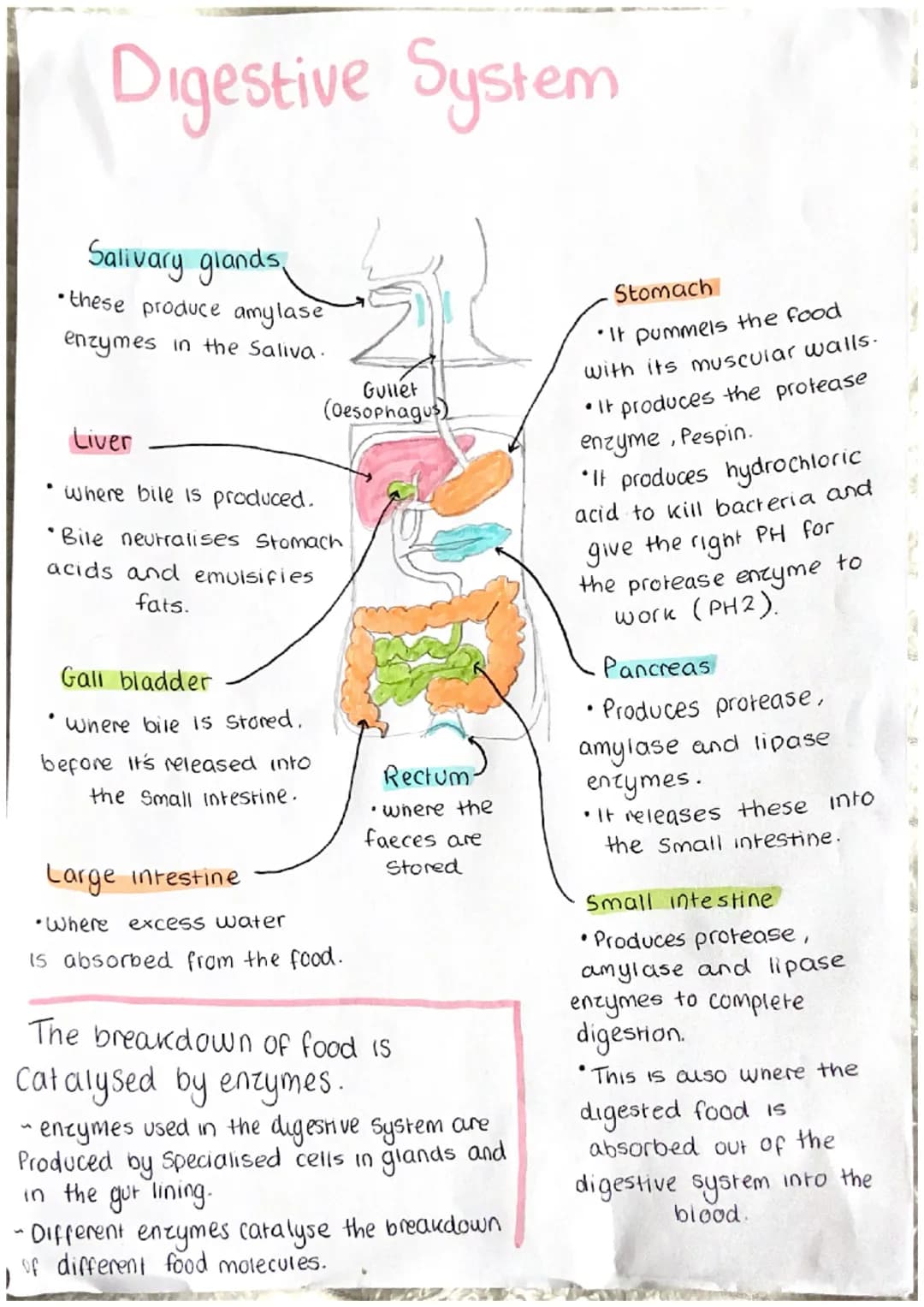

The Digestive System - Breaking Down Your Food

Your digestive system is like a food processing factory with specialised stations. It starts in your mouth where salivary glands produce amylase enzymes to begin breaking down starch.

Your stomach is the heavy-duty processor - muscular walls pummel food while pepsin (a protease enzyme) attacks proteins in the acidic environment (pH 2). The liver produces bile which neutralises stomach acid and breaks up fats, storing it in the gall bladder until needed.

The pancreas is your enzyme powerhouse, producing protease, amylase, and lipase enzymes that flow into the small intestine. This is where most digestion completes and nutrients get absorbed into your bloodstream. Finally, the large intestine recycles water before waste exits through the rectum.

Key Point: Different enzymes work best at different pH levels - pepsin loves acid, others prefer neutral conditions!

5
of 7
# Blood vessels

Three different types:
"Arteries-these carry blood away from heart.
Capillaries-these are involved in the exchange of mater

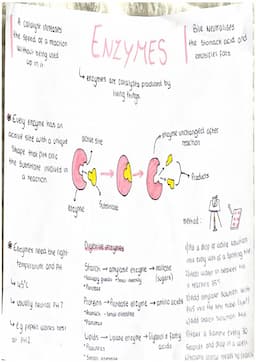

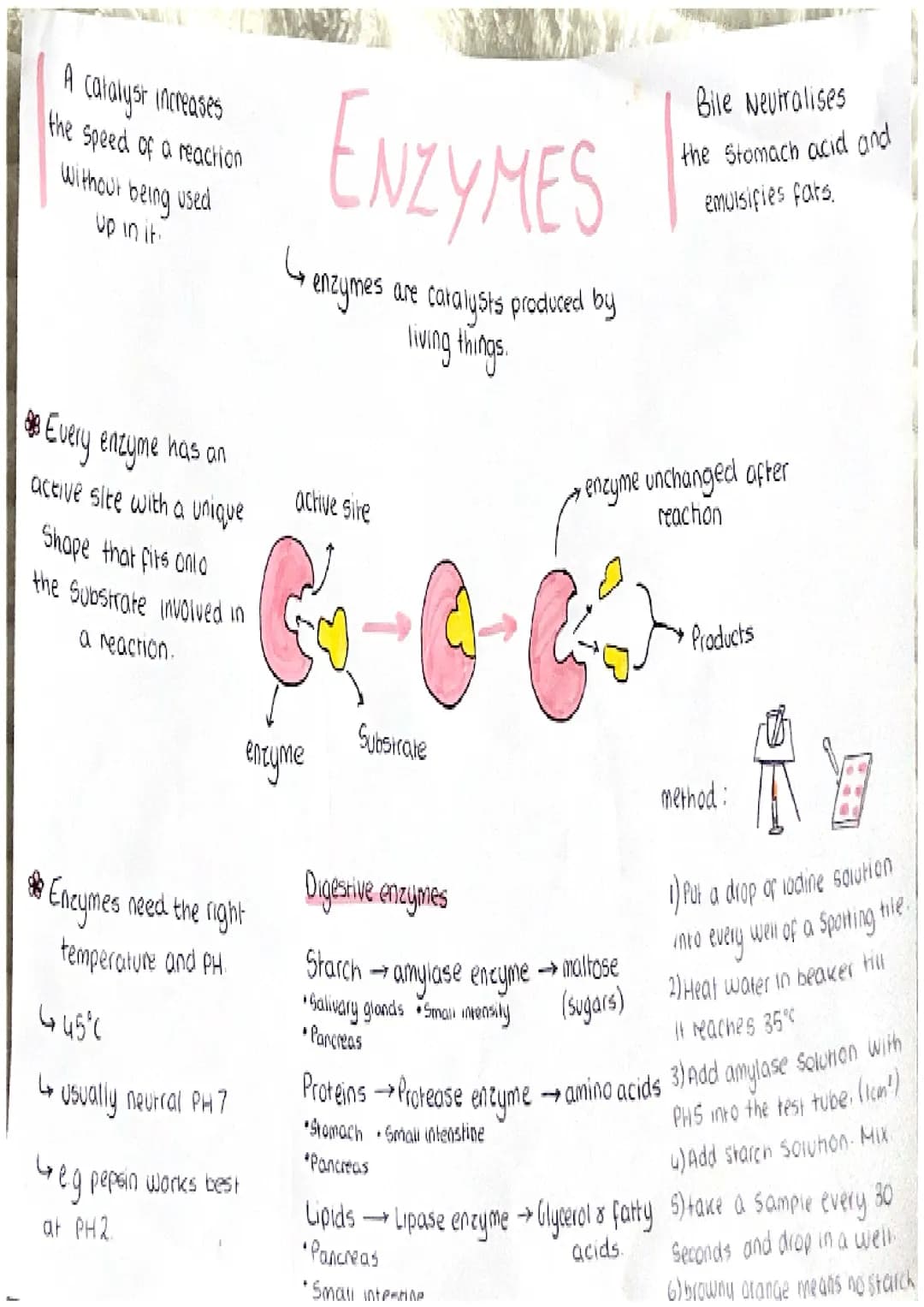

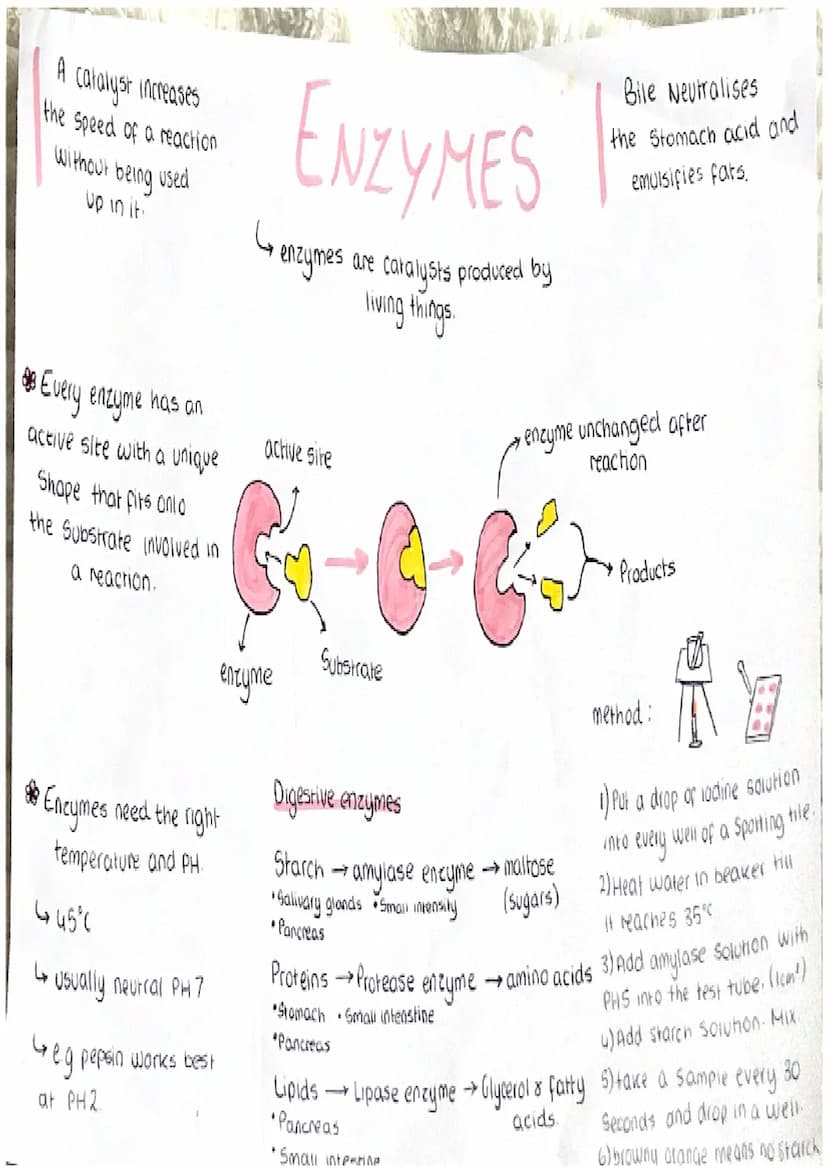

Enzymes - Your Body's Chemical Helpers

Enzymes are biological catalysts that speed up reactions without getting used up - think of them as reusable tools. Each enzyme has a unique active site that perfectly fits its specific substrate (the molecule it works on), like a lock and key.

Digestive enzymes have three main jobs: amylase breaks starch into sugars, protease breaks proteins into amino acids, and lipase breaks fats into glycerol and fatty acids. Temperature and pH are crucial - most enzymes work best around pH 7, except pepsin which prefers the stomach's acidic pH 2.

Bile isn't an enzyme but plays a vital supporting role by neutralising stomach acid and emulsifying fats (breaking them into smaller droplets) so lipase can work more effectively.

You can test enzyme activity using the starch-iodine method: when amylase breaks down all the starch, the iodine solution stays brown-orange instead of turning black.

Remember: Enzymes are reusable and highly specific - one enzyme, one job!

6
of 7
# Blood vessels

Three different types:
"Arteries-these carry blood away from heart.
Capillaries-these are involved in the exchange of mater

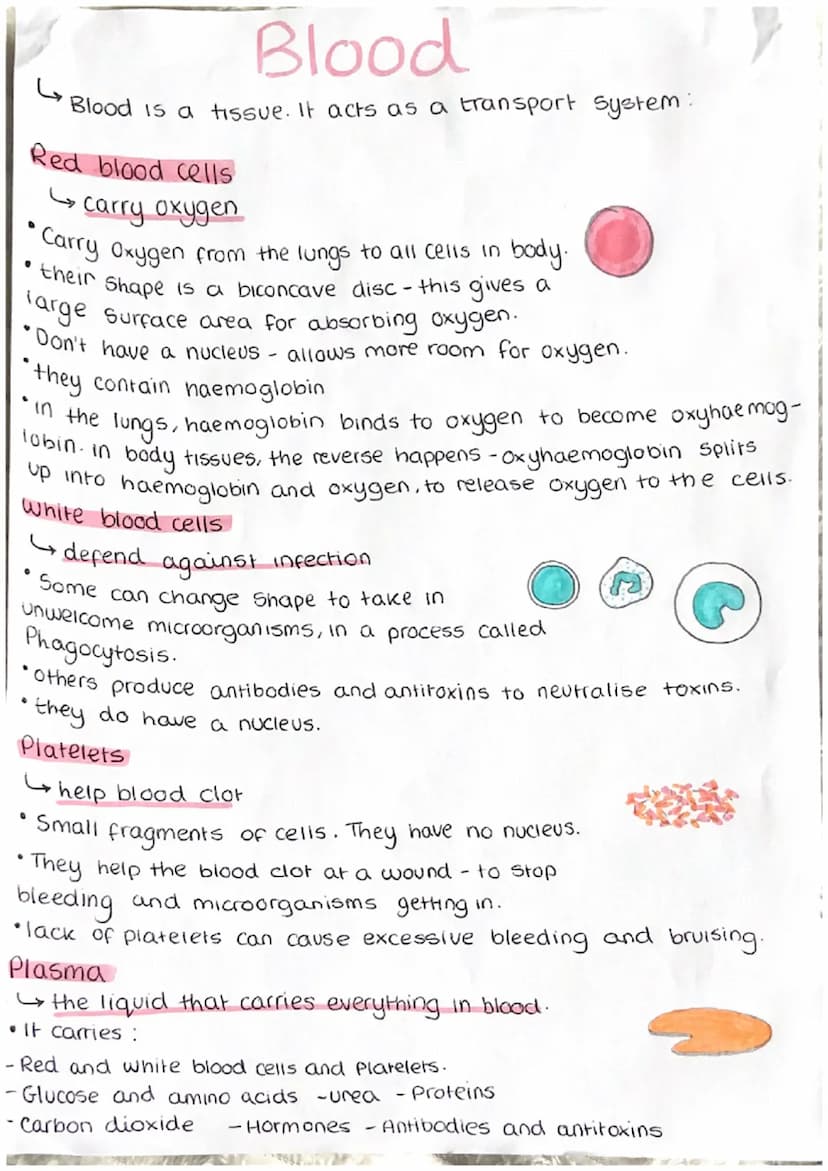

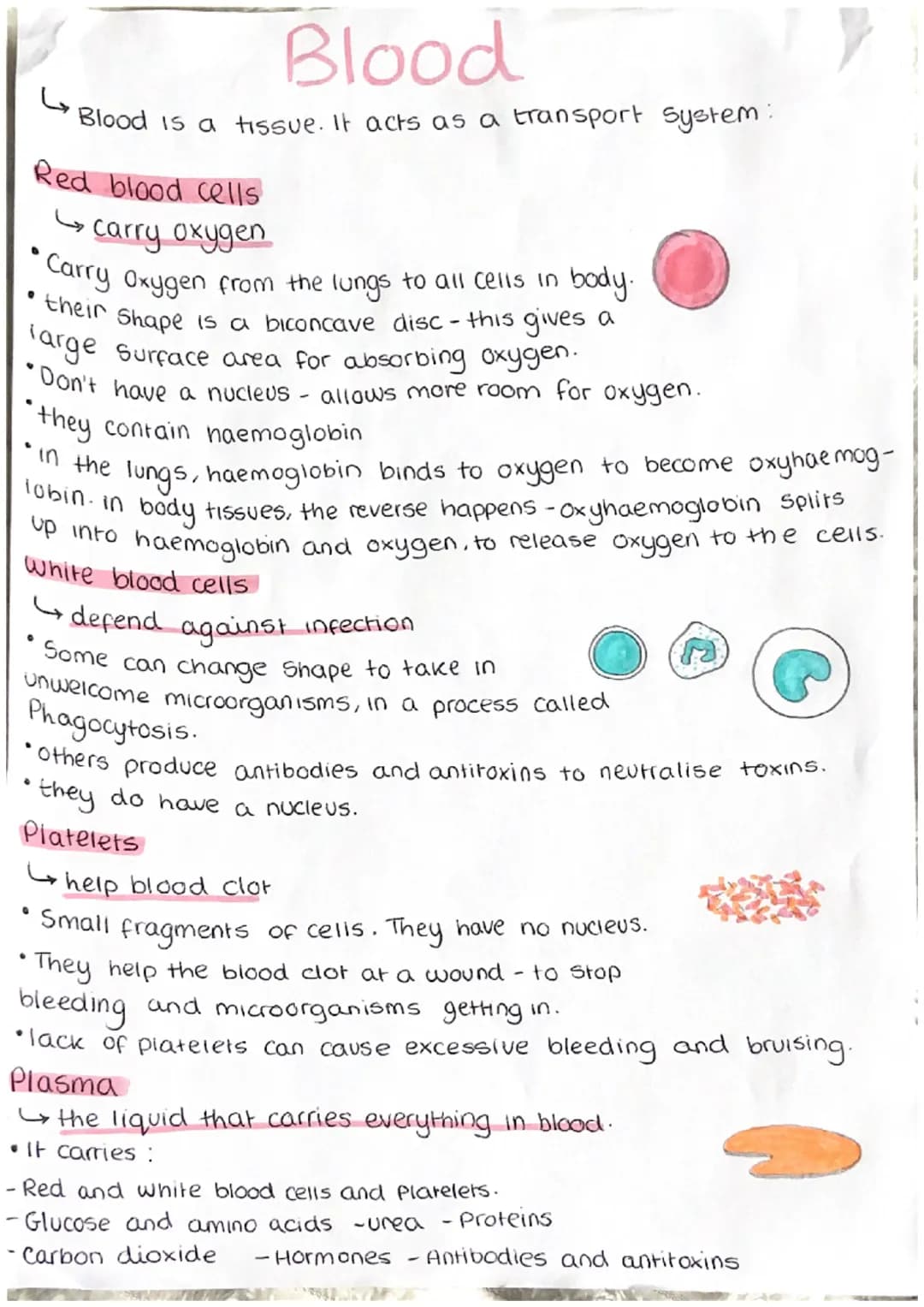

Blood - More Than Just Red Liquid

Blood is actually a tissue that acts as your body's transport system. Red blood cells are oxygen delivery specialists - their biconcave disc shape maximises surface area, they lack a nucleus to make room for more haemoglobin, and they carry oxygen from lungs to tissues.

White blood cells are your immune defenders with nuclei and the ability to change shape. Some engulf harmful microorganisms through phagocytosis, while others produce antibodies and antitoxins to neutralise threats.

Platelets are tiny cell fragments without nuclei that help your blood clot at wounds, preventing excessive bleeding and infection. Plasma is the liquid component carrying everything else - nutrients, waste products, hormones, and all the blood cells.

Fun Fact: Your red blood cells live for about 120 days before being recycled!

7
of 7
# Blood vessels

Three different types:
"Arteries-these carry blood away from heart.
Capillaries-these are involved in the exchange of mater

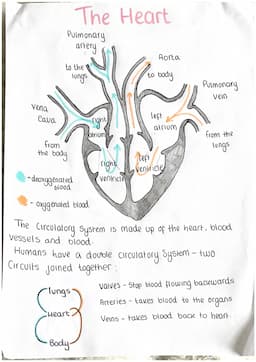

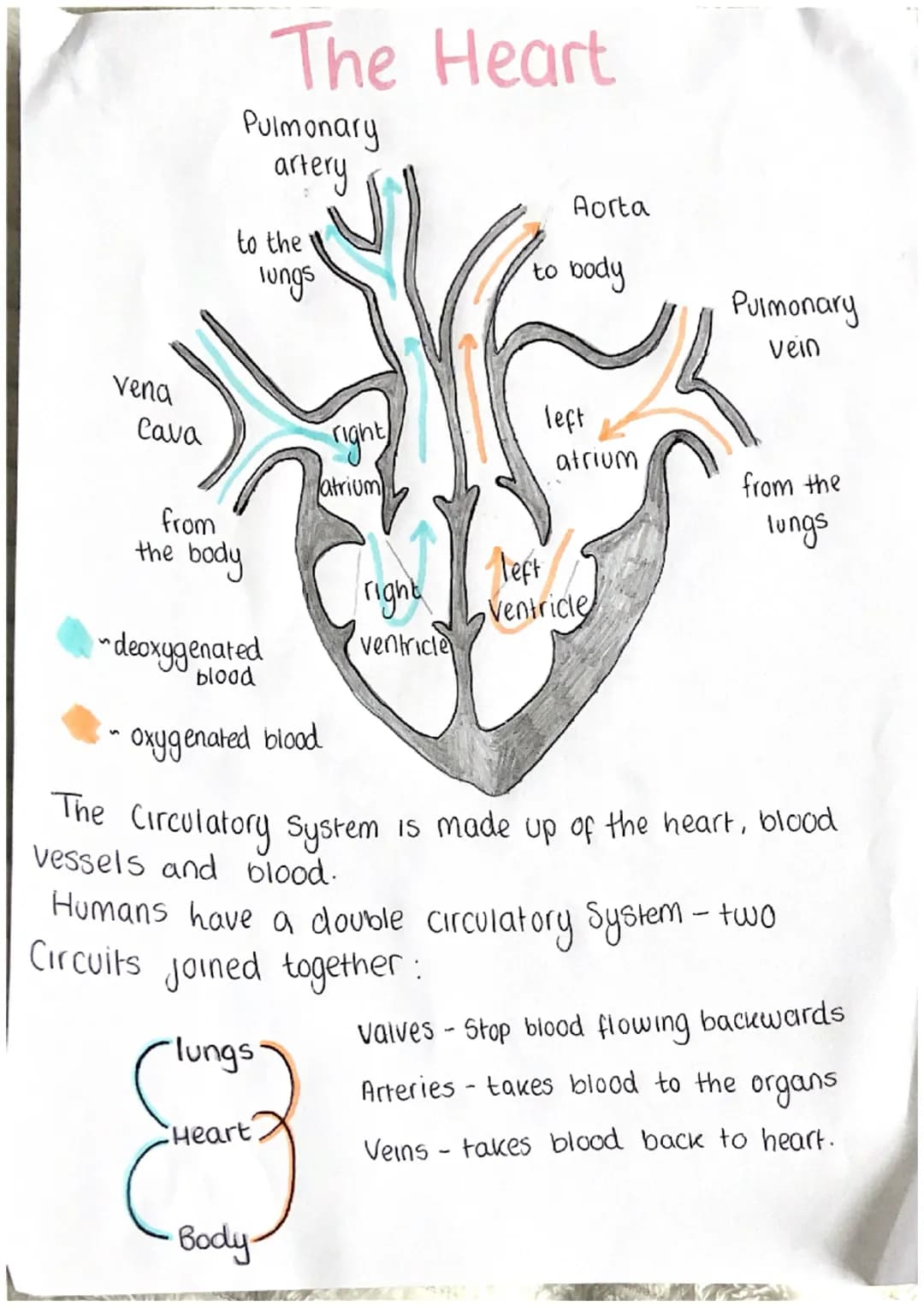

The Heart and Circulation - Your Body's Pump

Your heart is a four-chambered pump driving a double circulatory system - two connected circuits that ensure efficient oxygen delivery. The right side handles deoxygenated blood from your body to your lungs, while the left side pumps oxygenated blood from your lungs to your body.

Valves act like one-way doors preventing blood from flowing backwards, while the muscular walls of the ventricles provide the pumping power. The atria (top chambers) receive blood, while ventricles (bottom chambers) pump it out.

This double system is brilliant because it maintains high pressure for delivering oxygen to your tissues while allowing lower pressure circulation through your delicate lung capillaries. The whole system works continuously, with your heart beating around 100,000 times per day.

Quick Tip: Right side = lungs, left side = body. The strongest chamber is the left ventricle because it pumps to your entire body!
