GCSE Biology Mind Maps for Key Topics

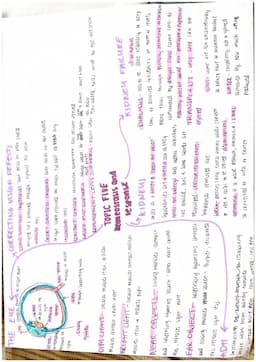

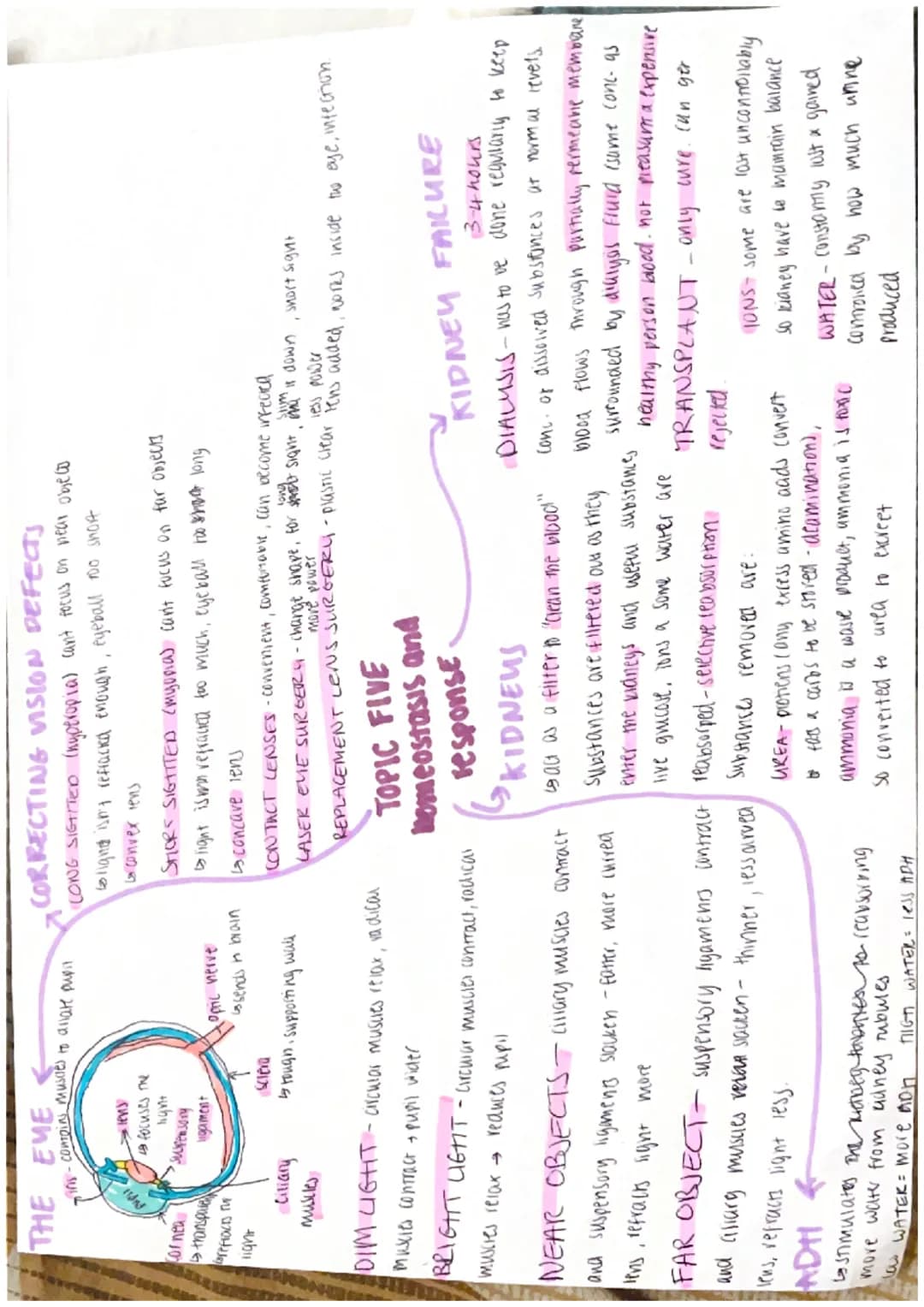

The Eye and Vision Problems

Your eye is basically a sophisticated camera that can adjust itself automatically. The cornea and lens work together to refract light, whilst the iris controls how much light enters through the pupil. When you look at something close, your ciliary muscles contract to make the lens fatter and more curved.

Vision defects are surprisingly common and totally fixable. Long-sightedness (hyperopia) means you can't focus on near objects because light isn't refracted enough - a convex lens sorts this out. Short-sightedness (myopia) is the opposite problem where you can't see far objects clearly, and a concave lens fixes it.

Modern treatments include contact lenses (convenient but can cause infections), laser eye surgery (changes the cornea's shape), and replacement lens surgery (swaps your natural lens for a plastic one). Your pupils also automatically adjust to light - they get wider in dim conditions and smaller in bright light.

Quick tip: Remember that convex lenses bulge outwards (like long-sightedness needs "extra" help) whilst concave lenses curve inwards!

Kidneys and Homeostasis

Your kidneys are incredible filters that clean about 180 litres of blood daily. They remove waste like urea (from broken-down proteins), excess ions, and control water levels through selective reabsorption. ADH hormone tells your kidneys how much water to keep - more ADH means less urine production.

When kidneys fail, you've got two main options. Dialysis involves connecting to a machine for 3-4 hours regularly - your blood flows through a partially permeable membrane surrounded by dialysis fluid. It works but it's expensive, time-consuming, and frankly quite unpleasant.

Kidney transplants are the only proper cure, though you might wait ages for a suitable donor. The new kidney does all the filtering work your original ones can't manage anymore.

Remember: Your kidneys are constantly balancing what to keep and what to chuck out - they're like bouncers for your bloodstream!

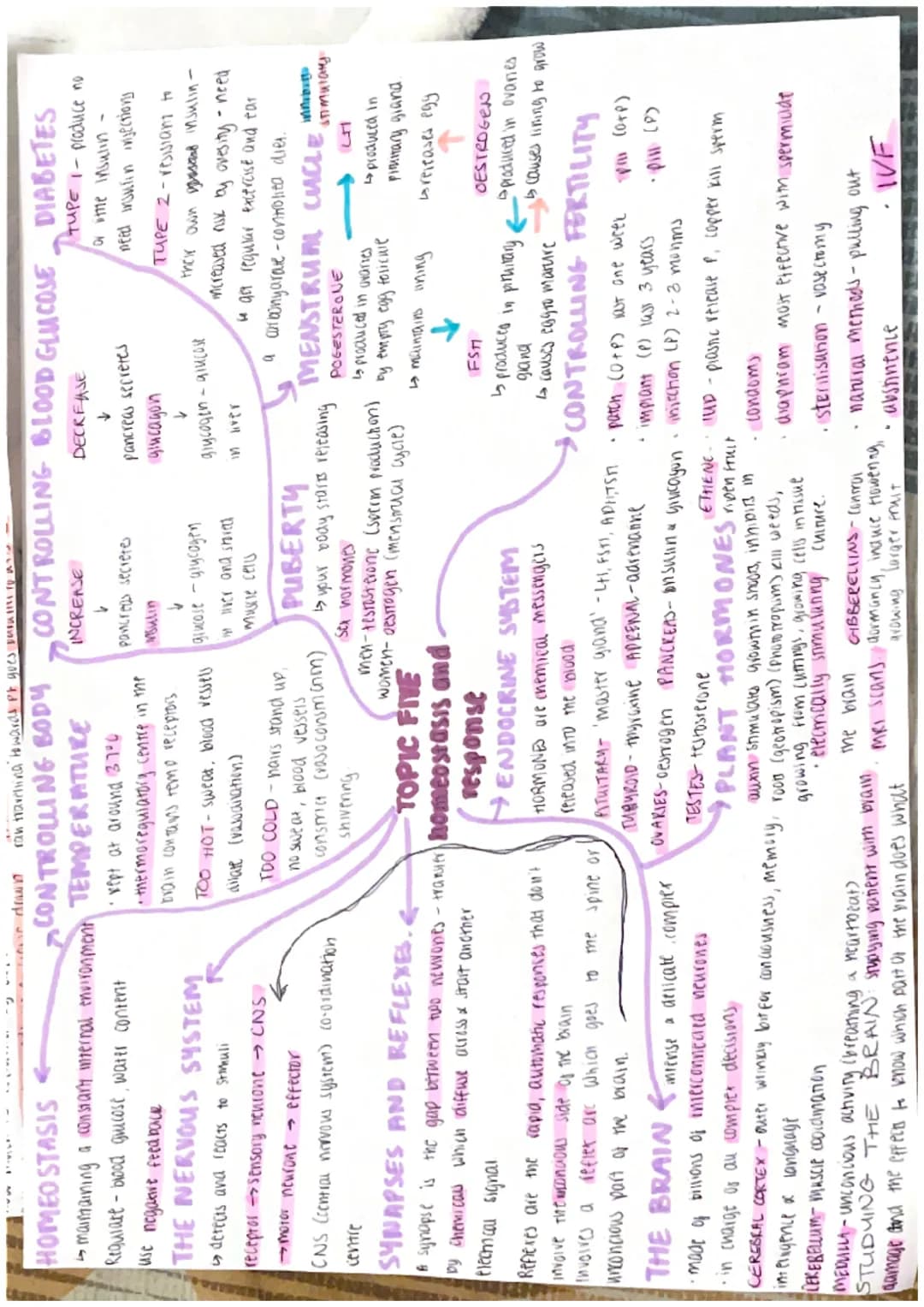

Homeostasis and Body Systems

Homeostasis means keeping your internal environment stable - your body's like a thermostat that never switches off. Your nervous system detects changes through receptors, processes info in your CNS, then sends responses through motor neurones to effectors. Reflexes bypass your conscious brain for super-quick responses.

Body temperature stays around 37°C thanks to your brain's thermoregulatory centre. Too hot? You sweat and blood vessels dilate (vasodilation). Too cold? You shiver, blood vessels constrict (vasoconstriction), and body hairs stand up.

Your endocrine system uses hormones as chemical messengers. The pituitary gland is the 'master gland' controlling others. Blood glucose is managed by insulin (lowers glucose by converting it to glycogen) and glucagon (raises glucose by breaking down glycogen).

Diabetes comes in two types: Type 1 (no insulin production, needs injections) and Type 2 (insulin resistance, often linked to obesity). The menstrual cycle involves FSH, LH, oestrogen, and progesterone working together.

Key insight: Negative feedback loops keep everything balanced - when something goes up, your body brings it back down!

Controlling Fertility and Plant Hormones

Contraception ranges from hormonal methods (the pill, patches, implants) to barrier methods (condoms, diaphragms) and permanent solutions (sterilisation). IVF helps couples who struggle to conceive naturally.

Plant hormones are fascinating too. Auxins promote growth in shoots but inhibit it in roots, explaining why plants grow towards light (phototropism) and roots grow down (geotropism). Gibberellins control dormancy and flowering, whilst ethene helps fruit ripen.

Your brain has three key areas: the wrinkled cerebral cortex (consciousness and memory), cerebellum (muscle coordination), and medulla (unconscious activities like breathing). Scientists study brain function by examining patients with brain damage or electrically stimulating different regions.

Pro tip: Plant hormones have loads of commercial uses - from rooting powder for cuttings to ripening fruit artificially!

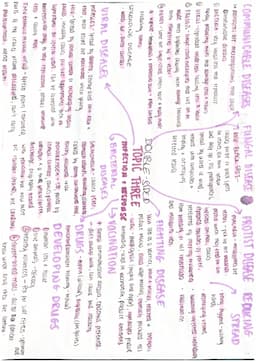

Communicable Diseases and Immune Response

Pathogens are disease-causing microorganisms that spread through water, air, or direct contact. Bacteria reproduce rapidly and produce toxins, viruses hijack your cells and make them burst, fungi grow thread-like structures called hyphae, and protists are single-celled parasites often spread by vectors.

Viral diseases include measles (red rash, spread by droplets) and HIV (attacks immune cells, controlled by antiretroviral drugs). Bacterial diseases like salmonella cause food poisoning, whilst gonorrhoea is an STD. Rose black spot is a fungal plant disease, and malaria is a protist disease spread by mosquitoes.

Your body fights back through physical barriers (skin, stomach acid), white blood cells that engulf pathogens (phagocytosis), and antibodies that target specific threats. Vaccination introduces dead or inactive pathogens to build immunity without causing disease.

Drug development is rigorous - starting with lab tests, then animal trials, then human volunteers in double-blind trials where neither doctor nor patient knows who gets the real drug versus placebo.

Remember: Antibiotics only work on bacteria, not viruses - that's why you can't cure a cold with penicillin!

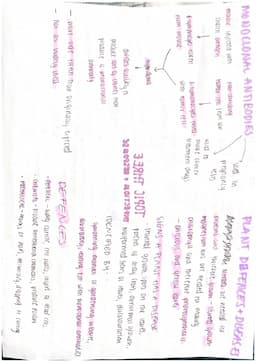

Monoclonal Antibodies and Plant Health

Monoclonal antibodies are identical antibodies produced by cloning B-lymphocytes. Scientists inject mice with antigens, extract B-lymphocytes, then fuse them with fast-dividing tumour cells to create hybridomas. These produce loads of identical antibodies used in pregnancy tests and potentially cancer treatments.

Plant diseases show through stunted growth, leaf spots, decay, abnormal growth, or discolouration. Mineral deficiencies cause specific problems - lack of nitrates means stunted growth (needed for proteins), whilst magnesium deficiency causes chlorosis (yellow leaves can't photosynthesise properly).

Plants defend themselves through physical barriers (waxy cuticles, cell walls), chemical defences (antibacterial chemicals, poisons), and mechanical defences (thorns, hairs, drooping when touched). You can identify plant diseases using gardening manuals, websites, lab tests, or testing kits with monoclonal antibodies.

Interesting fact: The side effects of monoclonal antibodies were worse than expected, so they're not used as widely as originally hoped!

Photosynthesis and Respiration

Photosynthesis happens in chloroplasts and is an endothermic reaction: carbon dioxide + water → glucose + oxygen (using light energy). Plants use glucose for respiration, making cellulose for cell walls, creating amino acids, and storing energy as starch, oils, or fats.

Limiting factors affect photosynthesis rates - could be light intensity, CO₂ concentration, temperature, or chlorophyll amount. The relationship between light intensity and distance follows the inverse square law. Farmers use greenhouses to control these factors artificially, though it's expensive.

Metabolism is all the chemical reactions in living things. Large molecules are built from smaller ones (glucose → starch) or broken down (proteins → urea). Aerobic respiration in mitochondria efficiently transfers energy: glucose + oxygen → carbon dioxide + water.

Anaerobic respiration happens without oxygen but transfers less energy. In animals, glucose becomes lactic acid (causing muscle fatigue). In plants and yeast, fermentation produces ethanol and carbon dioxide - useful for bread-making and brewing.

Key point: Photosynthesis and respiration are essentially opposite reactions - plants do both, but animals only respire!

Cell Biology and Microscopy

Animal cells contain nucleus, cytoplasm, cell membrane, mitochondria, and ribosomes. Plant cells have all these plus rigid cell walls, permanent vacuoles, and chloroplasts. Bacterial cells are prokaryotes with no nucleus - their DNA is a circular strand floating in the cytoplasm.

Specialised cells are shaped for specific jobs. Muscle cells have protein fibres and lots of mitochondria for energy. Nerve cells have dendrites for connections and long axons for carrying impulses. Sperm cells have tails for swimming and lots of mitochondria in the middle section.

Stem cells can become different cell types. Embryonic stem cells can become any cell type, adult stem cells from bone marrow are more limited, and meristem stem cells help plants grow. Therapeutic cloning could produce stem cells matching a patient's genetic makeup.

Diffusion moves particles from high to low concentration. Osmosis is water diffusion through partially permeable membranes. Active transport moves substances against concentration gradients using energy. Mitosis produces two identical daughter cells for growth and repair.

Microscopy tip: Magnification = image size ÷ actual size. Always use clean, unbroken lines when drawing cells and keep everything in proportion!
