DNA is basically your body's instruction manual, storing all the...
A-Level Biology: Nucleotides and Nucleic Acids Mind Map

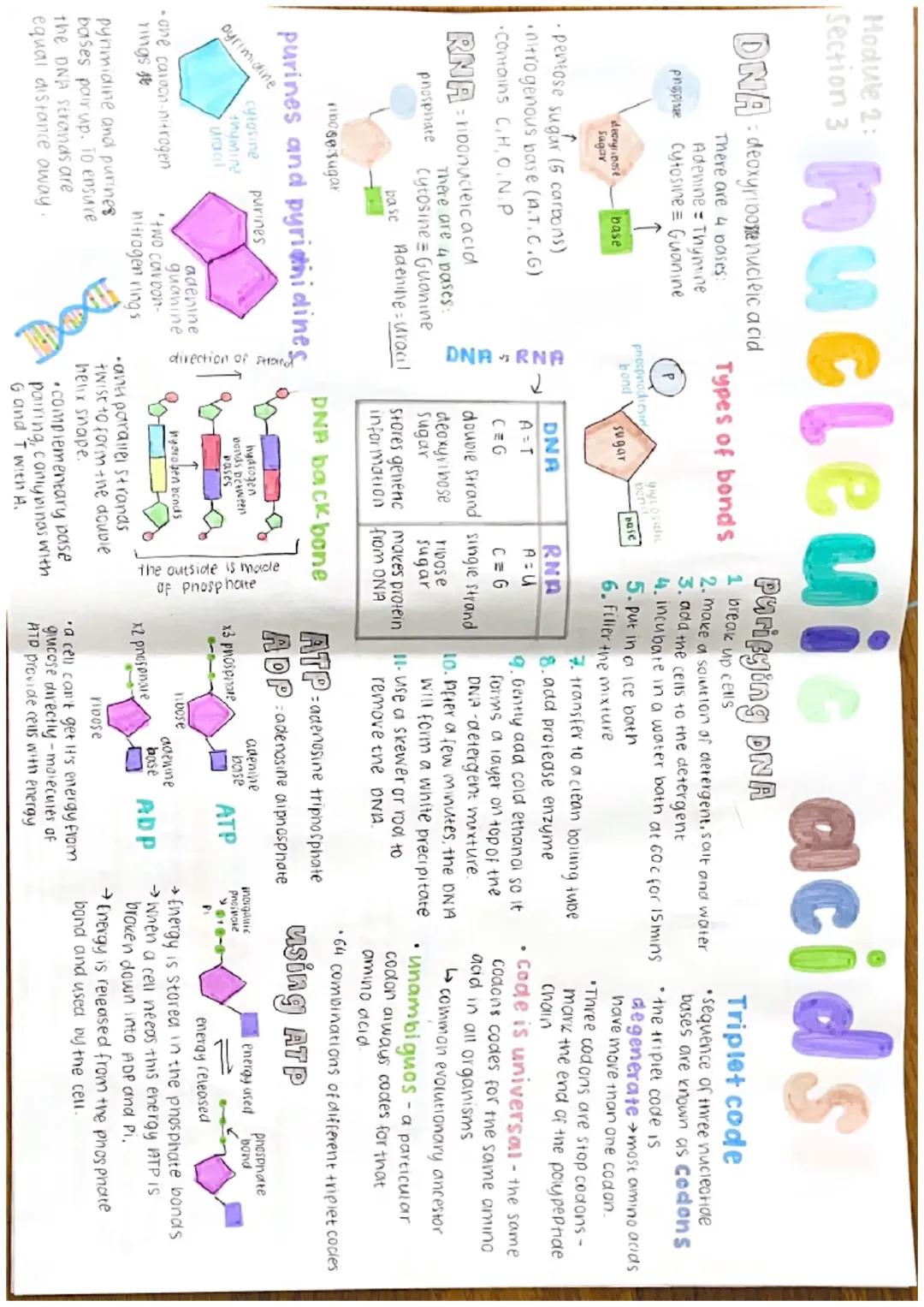

Nucleic Acids and DNA Structure
Think of DNA (deoxyribonucleic acid) as a twisted ladder where the rungs are made of four chemical letters: A, T, C, and G. These bases always pair up the same way - A with T, and C with G - like a perfect molecular match.
DNA has a double helix structure with two strands running in opposite directions, held together by hydrogen bonds. The backbone is made of sugar and phosphate groups connected by phosphodiester bonds. RNA is similar but uses U instead of T and has just one strand.
ATP (adenosine triphosphate) is your cell's energy currency. When ATP breaks down into ADP, it releases energy that powers everything from muscle contractions to thinking. The triplet code means every three DNA bases (called codons) code for one amino acid - and this code is universal across all life forms.
Key Point: The fact that all organisms use the same genetic code suggests we all evolved from a common ancestor millions of years ago.

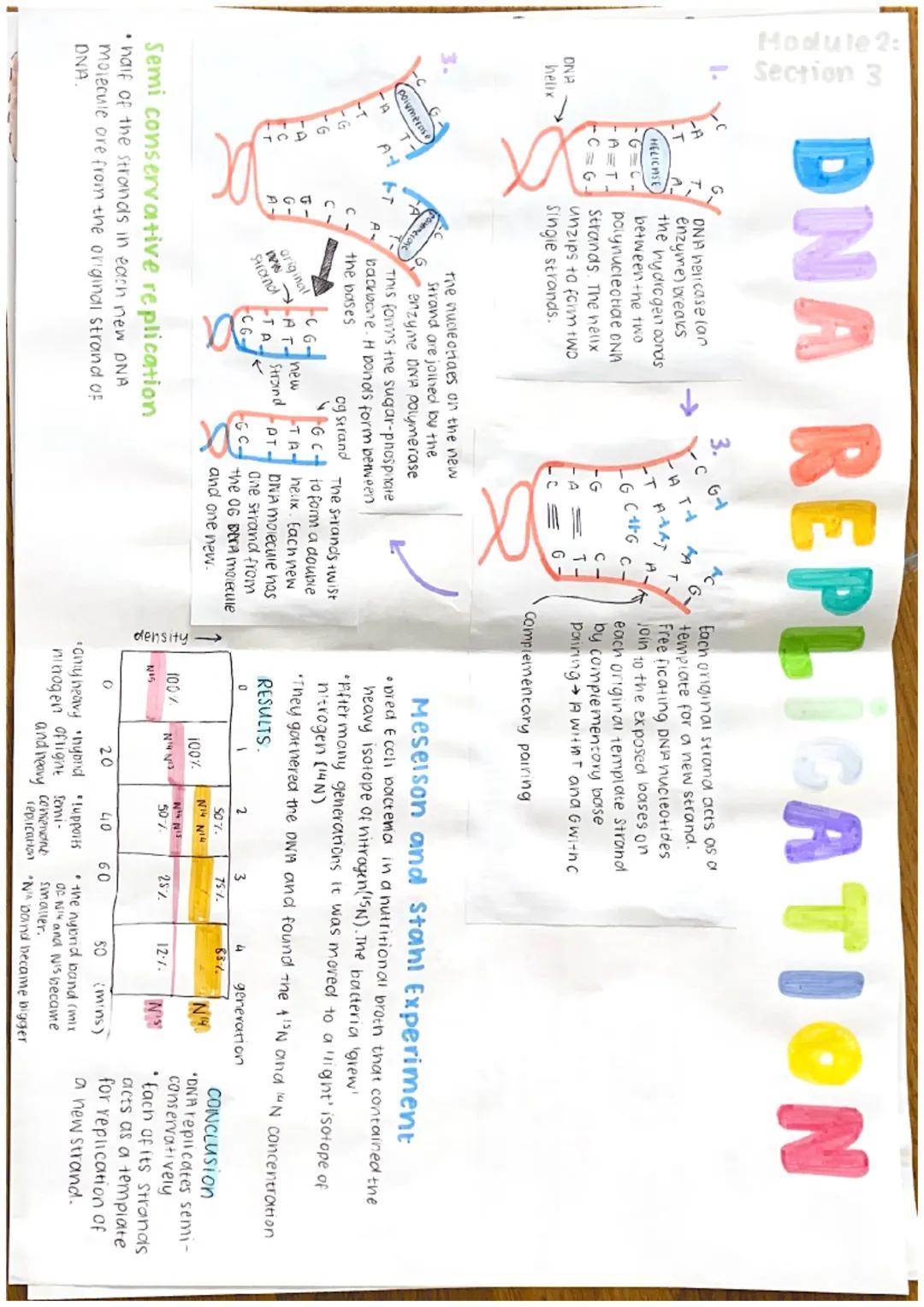

DNA Replication
Your cells need to copy DNA every time they divide, and they do this through semi-conservative replication - meaning half of each new DNA molecule comes from the original strand.
The process starts when DNA helicase unzips the double helix by breaking hydrogen bonds between base pairs. Each separated strand then acts as a template for building a new complementary strand using free-floating nucleotides.
DNA polymerase joins these new nucleotides together, following the base-pairing rules (A with T, C with G). The result? Two identical DNA molecules, each containing one original and one newly-made strand.
The famous Meselson and Stahl experiment proved this happens by tracking heavy and light nitrogen isotopes through bacterial generations. They showed that DNA replication is indeed semi-conservative, not conservative or dispersive.
Remember: Semi-conservative replication ensures genetic information is accurately passed from parent to daughter cells during cell division.

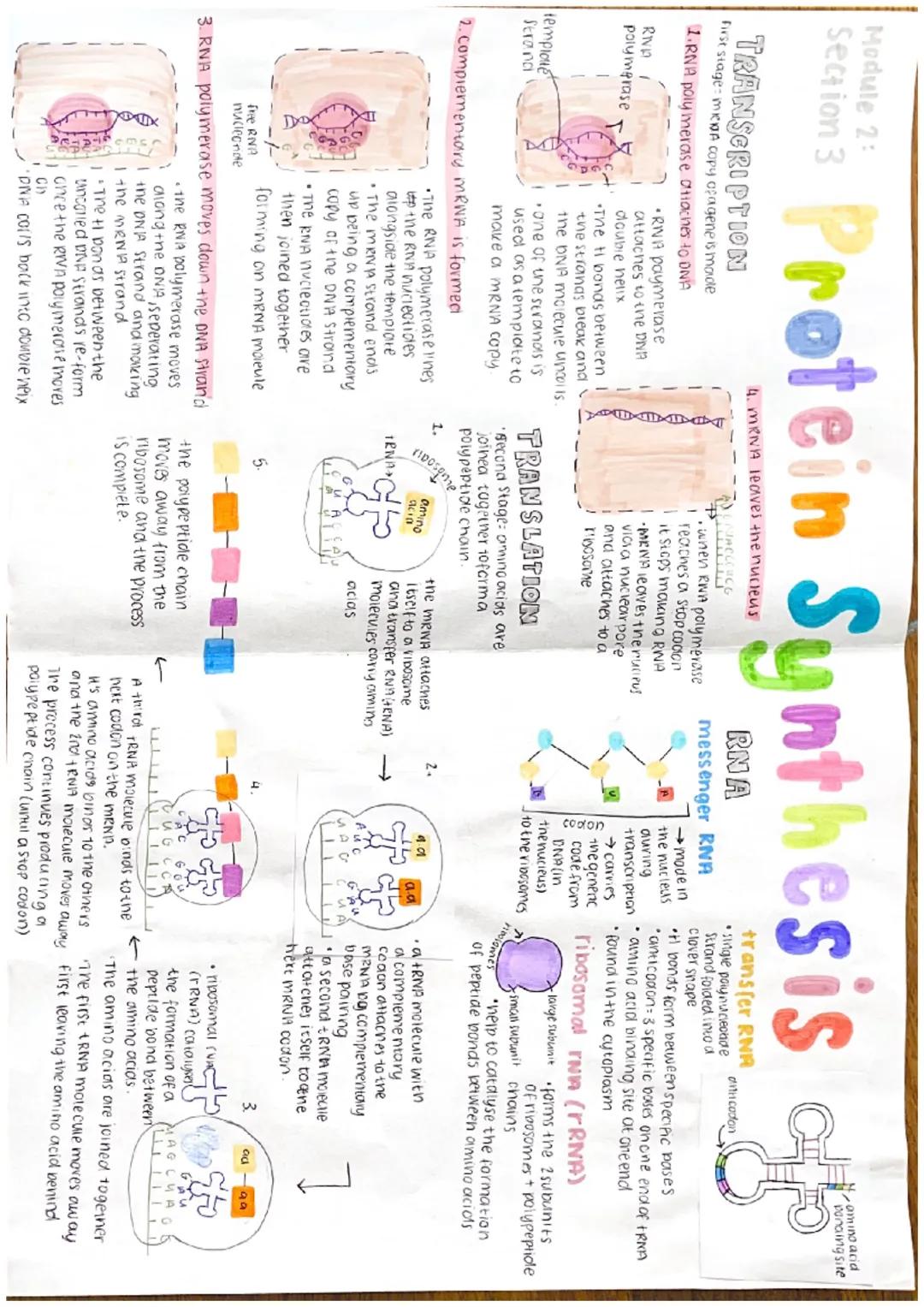

Protein Synthesis
Protein synthesis happens in two main stages: transcription (making mRNA) and translation (making proteins). Think of it as copying a recipe from a cookbook, then following that recipe to cook a meal.
During transcription, RNA polymerase attaches to DNA and creates a complementary mRNA copy of a gene. The DNA uncoils, one strand serves as a template, and the mRNA molecule is built using base-pairing rules (except A pairs with U in RNA). The finished mRNA then leaves the nucleus through nuclear pores.
Translation occurs at ribosomes in the cytoplasm. tRNA molecules, shaped like three-leaf clovers, carry specific amino acids and have anticodons that match mRNA codons. As the ribosome reads the mRNA sequence, tRNA molecules bring the correct amino acids in order.
Ribosomal RNA (rRNA) catalyses the formation of peptide bonds between amino acids, creating a growing polypeptide chain. The process continues until a stop codon is reached, producing a complete protein.
Top Tip: Remember the flow: DNA → mRNA → protein. Each step ensures the genetic code is accurately translated into functional proteins.
