How to Draw Convex and Concave Lens Ray Diagrams

Inyiego Coheh

@yumify

Understanding how lenses create images is crucial for explaining everything... Show more

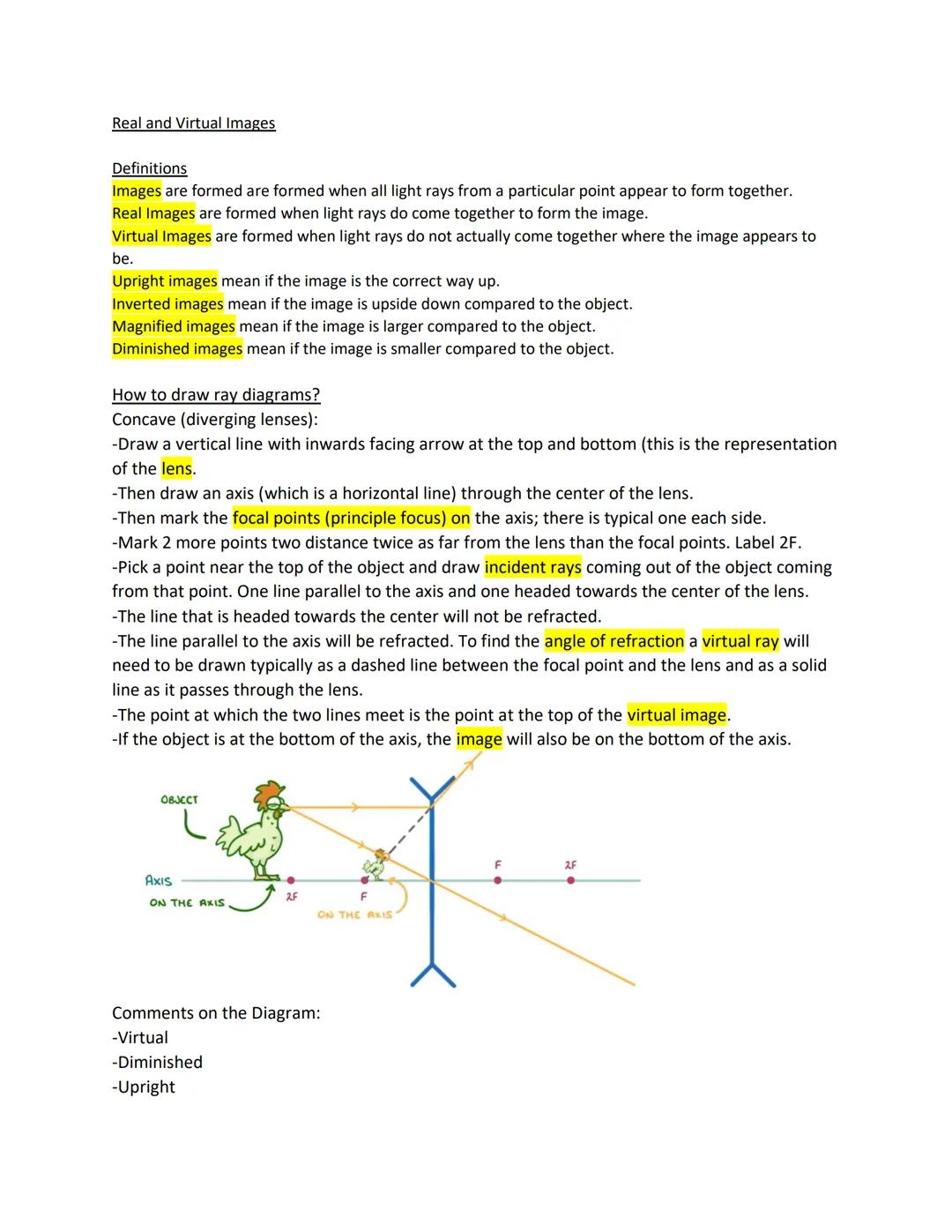

Real and Virtual Images

Definitions
Images are formed are formed when all light rays from a particular point appear to form together.
Real

Real and Virtual Images: The Basics

Think about looking in a mirror versus watching a film at the cinema - both show images, but they work in completely different ways. Real images form when light rays actually meet at a point, like the image projected onto a cinema screen that you can see from anywhere in the room.

Virtual images appear to exist but the light rays never actually come together - they just seem to come from that spot. Your reflection in a bathroom mirror is virtual because the light rays only appear to be coming from behind the glass.

Images can be described in several ways: upright (right way up) or inverted (upside down), and magnified (bigger than the object) or diminished (smaller than the object). These characteristics help us understand what type of lens or mirror created them.

Key Point: Real images can be caught on a screen, virtual images cannot - this is the easiest way to tell them apart!

Drawing Ray Diagrams for Lenses

Concave lenses (also called diverging lenses) curve inwards and always create virtual, diminished, upright images. To draw their ray diagrams, mark the focal points on both sides of the lens, then points at 2F (twice the focal distance).

Draw two rays from the top of your object: one parallel to the axis (which gets bent away from the focal point) and one through the centre (which passes straight through). Where these rays appear to meet behind the lens is your virtual image.

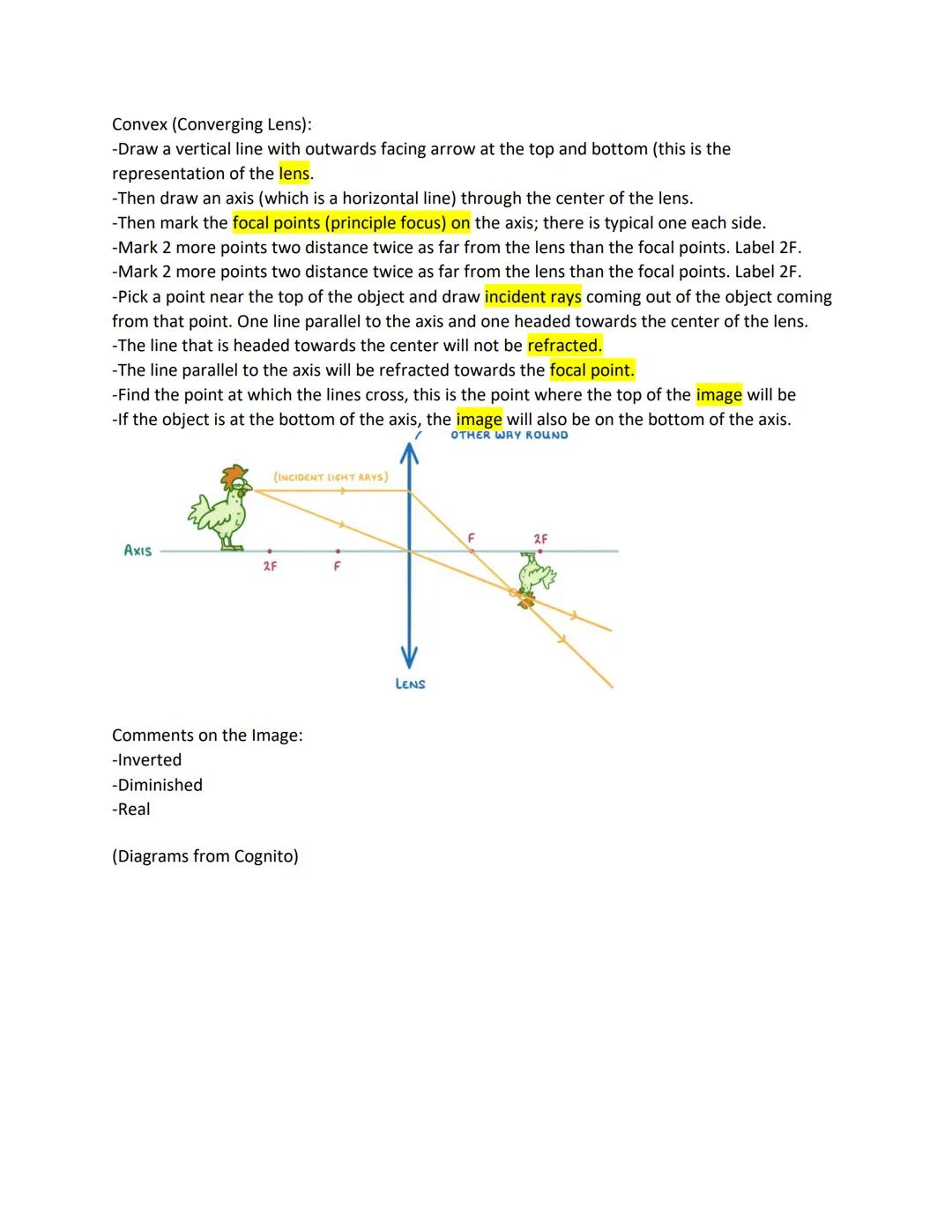

Convex lenses (converging lenses) curve outwards and create different types of images depending on object position. Using the same setup, draw your two rays - but this time the parallel ray bends towards the focal point on the opposite side.

When the object is beyond 2F, you get a real, inverted, diminished image. This is exactly how cameras and your eyes work! The light actually meets to form the image, which is why it can be captured on film or detected by your retina.

Pro Tip: Remember the phrase "Real images are always inverted" - this helps you check if your ray diagram is correct!
